Lamp Assembly, Right Rear Connector

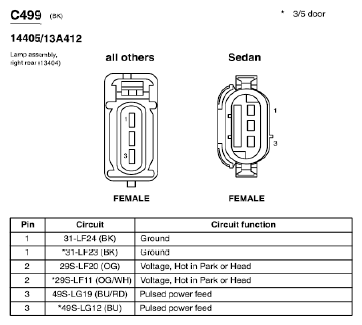

Fig 1: Lamp Assembly, Right Rear Connector End View (C499)
G07850445Courtesy of FORD MOTOR CO.
