Steering Column: Notes

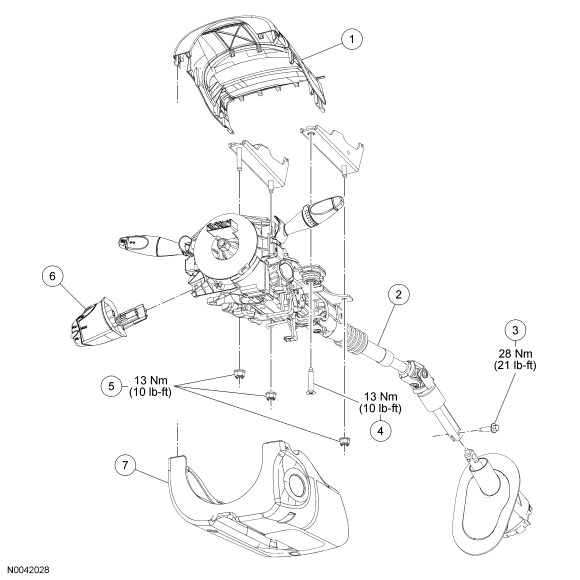

Fig 1: Steering Column Replacement Components With Torque Specifications
GF0040314Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3530 Upper steering shroud
2 3C529 Steering column
3 W706229 Steering shaft pinch bolt
4 W703601 Steering column mounting bolt
5 W520202 Steering column mounting nuts
6 14K147 Audio control switch (if equipped)
7 3530 Lower steering column shroud
