Windshield Washer Switch: Service and Repair

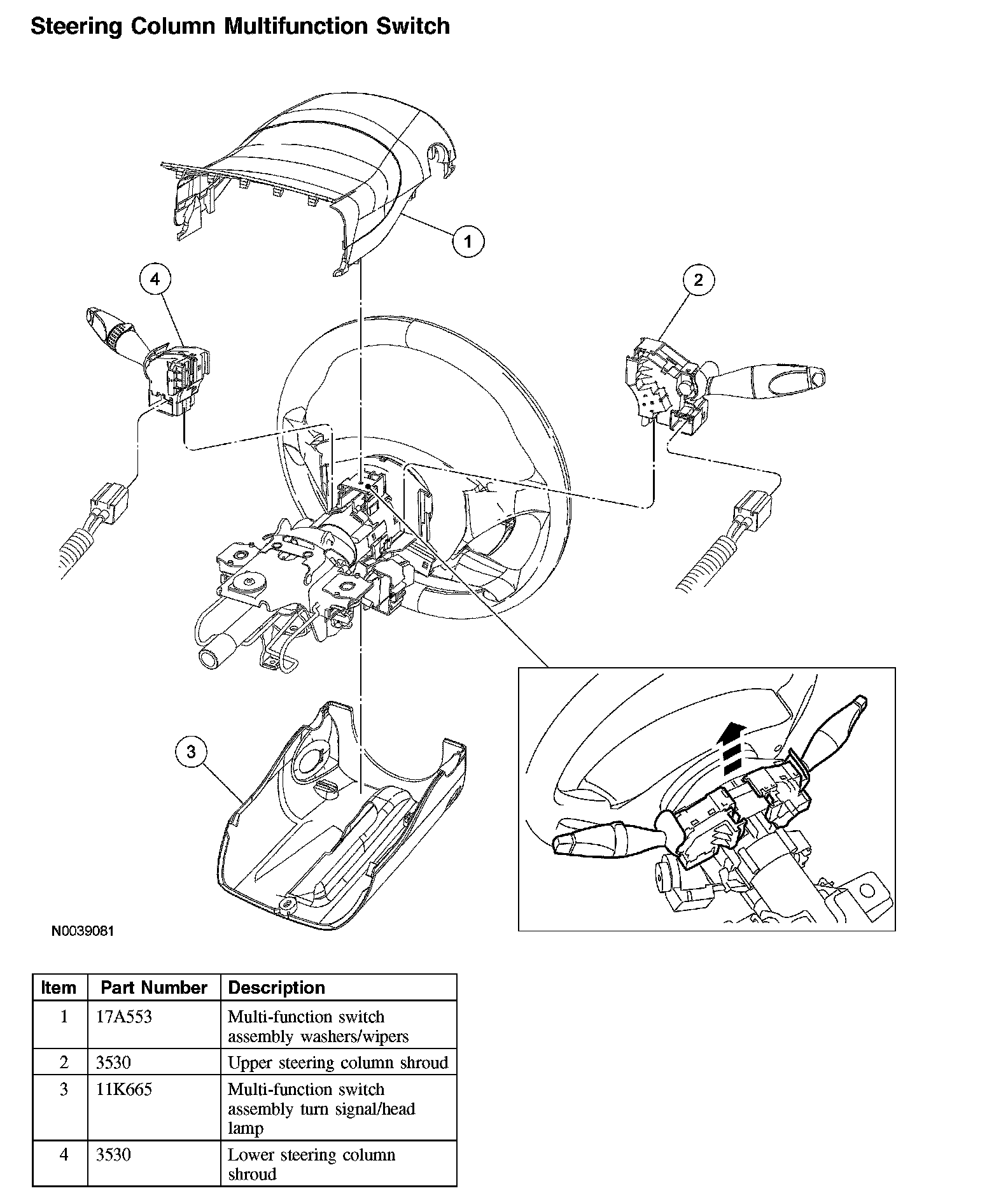

Steering Column Multifunction Switch

Steering Column Multifunction Switch:

Removal and Installation
1. Remove the steering column upper shroud.
^ Using a suitable tool, release the 2 clips (one on each side).
2. Remove the audio control switch.
^ Using a suitable tool, release the locking tab.
^ Disconnect the electrical connector.





3. Remove the steering column lower shroud.
1. If equipped, release the steering column locking lever.
2. Remove the screws.

4. NOTE: LH multi-function switch shown, RH similar.

Disconnect the electrical connectors.





5. Remove the multi-function switch.
1. Press the locking tab.
2. Lift the multi-function switch upwards.





6. To install, reverse the removal procedure.
