Parking Assist Control Module: Service and Repair

PARKING AID MODULE

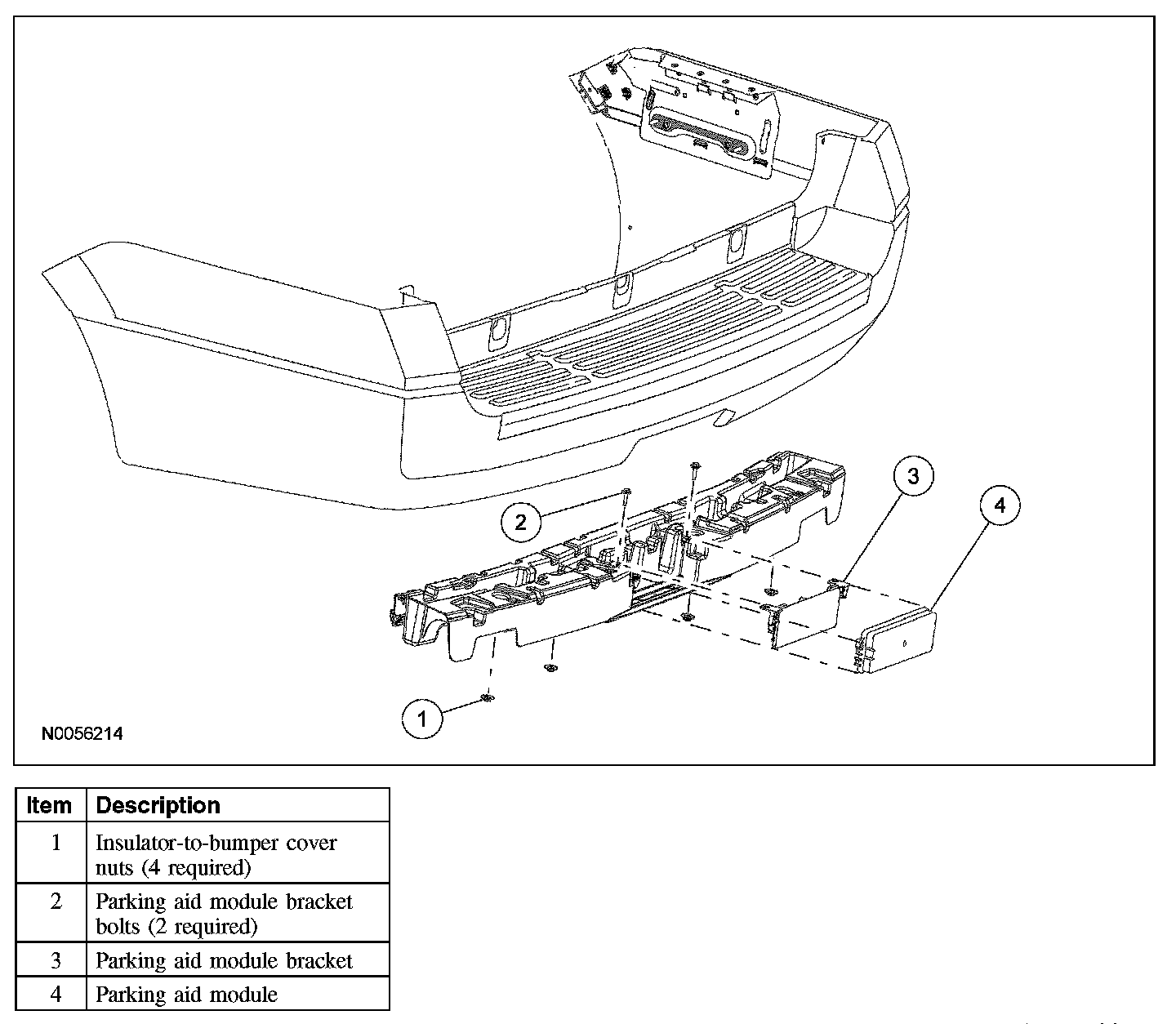

Removal and Installation
1. Disconnect the parking aid module bumper harness from the body harness.
2. Remove the rear bumper cover.
3. Remove the 4 insulator-to-bumper cover nuts and the insulator from the bumper cover.
4. Disconnect the parking aid module bumper harness from the parking aid module.
5. Remove the 2 parking aid module bracket bolts.
6. Remove the parking module bracket assembly.
7. Release the module tabs from the bracket and remove the module.
8. To install, reverse the removal procedure.
