Home >> Ford >> 2007 >> Explorer 4WD V6-4.0L VIN K >> Repair and Diagnosis >> Heating and Air Conditioning >> System Relay >> Locations

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

System Relay: Locations

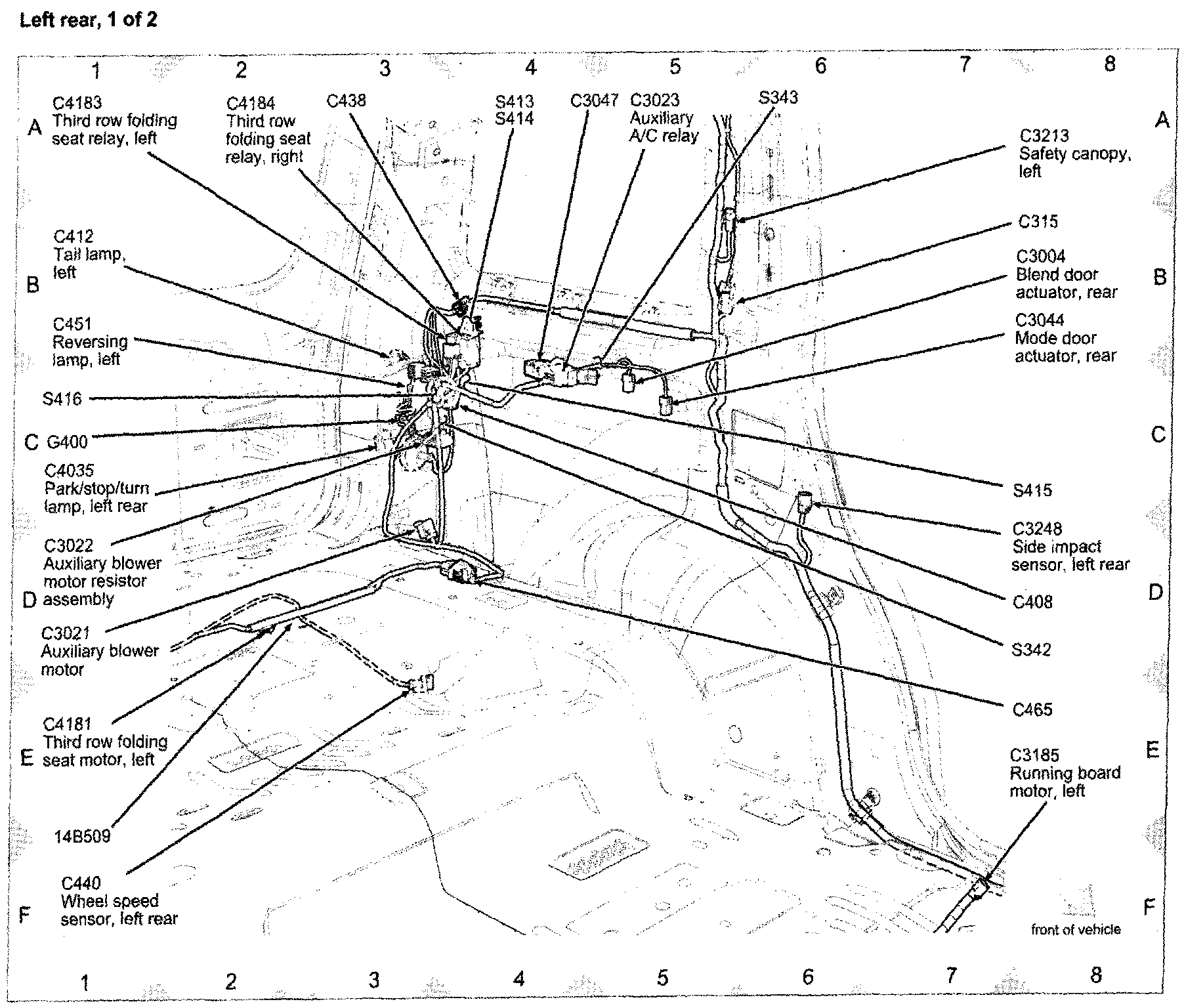

View 151-15 (Left Rear, (1 0f 2)):
