Auxiliary Climate Control Assembly Connector

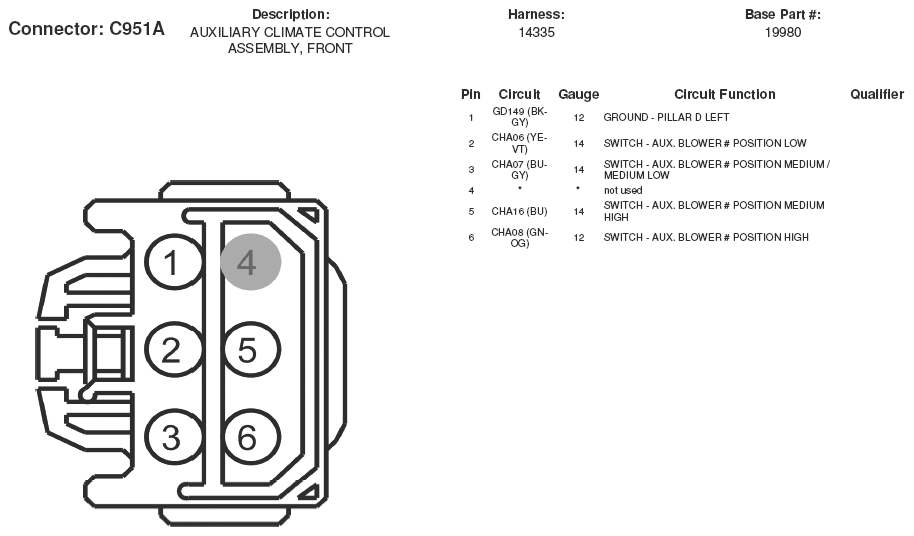

Fig 1: Auxiliary Climate Control Assembly Connector End View (C951A)
Courtesy of FORD MOTOR CO.

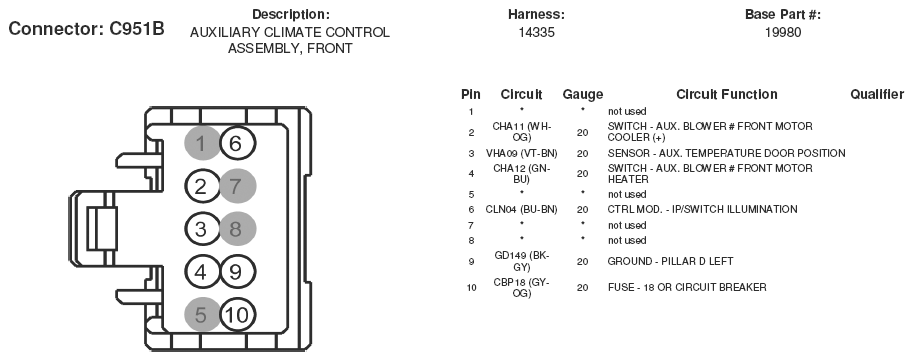

Fig 2: Auxiliary Climate Control Assembly Connector End View (C951B)
Courtesy of FORD MOTOR CO.
