Seat - Exploded View, Front

NOTE: Driver backrest shown, passenger backrest similar.

Fig 1: Exploded View Of Front Seat Backrest With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14D696	Backrest heated seat mat (if equipped)
2	64417/64811	Backrest trim cover/backrest foam pad
3	65500	Static lumbar (if equipped)
4	65500	Manual lumbar adjust assembly (if equipped)
5	65500	Power lumbar adjust assembly (if equipped)
6	611A08	Head restraint assembly
7	610A18	Inboard head restraint guide
8	610A16	Outboard head restraint guide
9	61018	Backrest frame (serviced with manual recliners) (if equipped)
10	61018	Backrest frame (serviced with power recliners) (if equipped)
11	14547	Power recline motor (if equipped)
12	-	Recliner-to-cushion frame bolts (4 required) (part of 600A58)
13	-	One-way push clips (2 required) (if equipped) (part of 14547)
14	-	Screw (if equipped) (part of 600A58)
15	62714	Recliner shaft (if equipped)
16	611D11	Side air bag module
17	-	Side air bag module bolts (2 required)

NOTE: Power seat track shown, manual seat track similar.

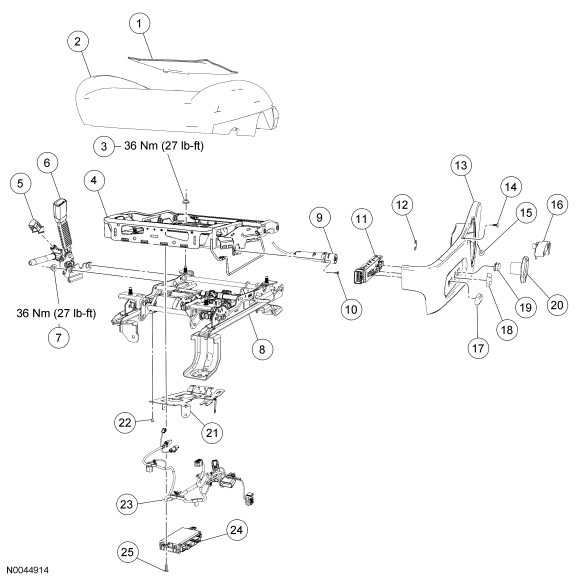

Fig 2: Exploded View Of Front Driver Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Cushion heated seat mat (if equipped)
2	62901/632A23	Cushion trim cover/cushion foam pad
3	-	Cushion frame-to-seat-track nut (4 required) (part of 600A58)
4	63100	Cushion frame
5	-	Safety belt buckle and pretensioner electrical connector cover
6	61203	Safety belt buckle and pretensioner
7	-	Safety belt buckle and pretensioner nut (2 required) (part of 61203)
8	61711	Power seat track
9	610C00	Manual lumbar control (if equipped)
10	-	Manual lumbar control screw (2 required) (if equipped) (part of 600A58)
11	14A701	Seat control switch (if equipped)
12	-	Manual recline handle clip (if equipped) (part of 610A76)
13	62187	Cushion side shield
14	-	Scrivet (part of 600A58)
15	-	Pin-type retainer (part of 600A58)
16	62622	Manual recline handle (if equipped)
17	14C715	Seat control switch knob (if equipped)
18	14711	Power recline switch knob (if equipped)
19	14711	Power lumbar switch knob (if equipped)
20	617B70	Manual lumbar control knob (if equipped)
21	14A163	Bracket
22	-	Screw (4 required) (part of 600A58)
23	14C719	Driver seat wire harness
24	14C708	Driver seat module (if equipped)
25	-	Screw (2 required) (if equipped) (part of 600A58)

NOTE: Manual seat track shown, power seat track similar.

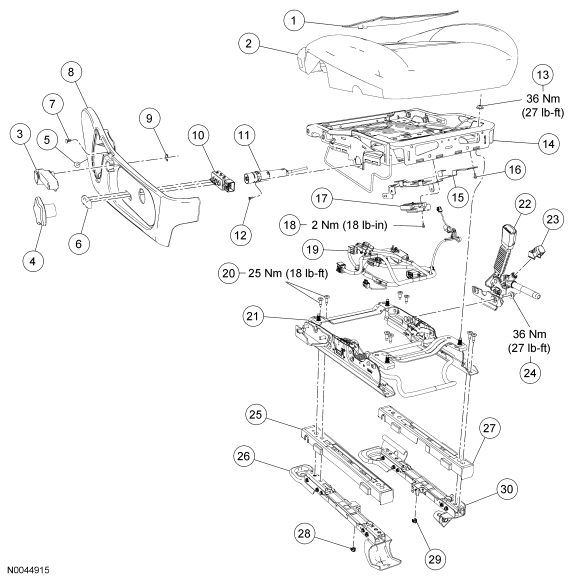

Fig 3: Exploded View Of Front Passenger Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14D698	Cushion heated seat mat (if equipped)
2	62900/632A22	Cushion trim cover/cushion foam pad
3	62622	Manual recline handle (if equipped)
4	617B70	Manual lumbar control knob (if equipped)
5	-	Pin-type retainer (part of 600A58)
6	14C715	Seat control switch knob (if equipped)
7	-	Scrivet (part of 600A58)
8	62186	Cushion side shield
9	-	Manual recline handle clip (part of 610A76) (if equipped)
10	14A701	Seat control switch (if equipped)
11	610C00	Manual lumbar control (if equipped)
12	-	Manual lumbar control screw (2 required) (if equipped) (part of 600A58)
13	-	Cushion frame-to-seat-track nut (4 required) (part of 600A58)
14	63100	Cushion frame
15	14A163	Bracket
16	-	Screw (4 required) (part of 600A58)
17	14B422	Occupant classification system module (OCSM)
18	-	Screw, OCSM (2 required) (part of 600A58)
19	14A699	Passenger seat wire harness
20	-	Seat track-to-OCS rail bolts (8 required) (part of 600A58)
21	61710	Manual seat track
22	61202	Safety belt buckle and pretensioner
23	-	Safety belt buckle and pretensioner electrical connector cover
24	-	Safety belt buckle and pretensioner nut (2 required) (part of 61203)
25	62126	Outboard OCS rail shield
26	61708	Outboard OCS rail
27	62127	Inboard OCS rail shield
28	-	Outboard OCS rail electrical connector (part of 14A699)
29	-	Inboard OCS rail electrical connector (part of 14A699)
30	61709	Inboard OCS rail
