Cooling System

Radiator and Cooling Fan - Exploded View

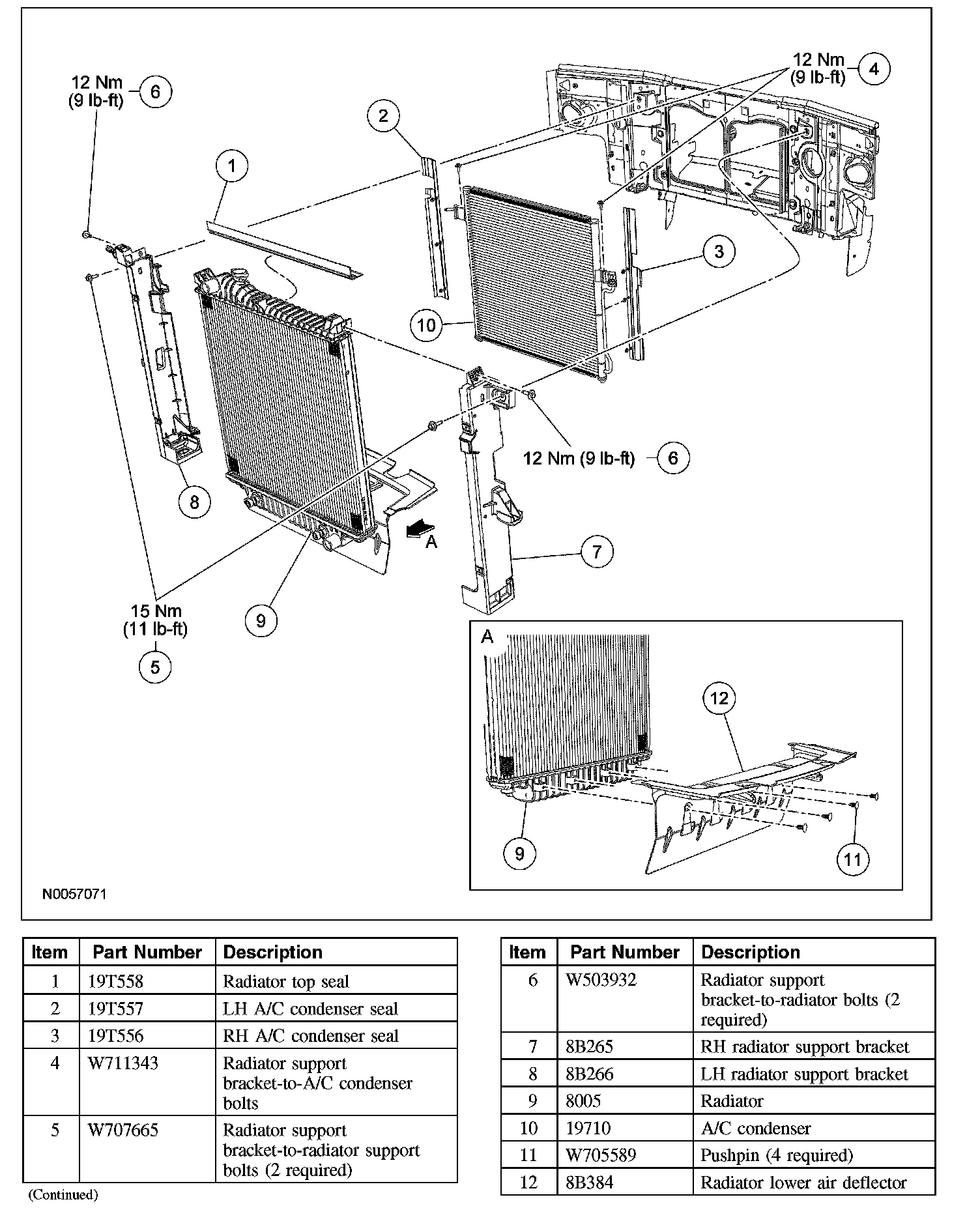

Radiator And Cooling Fan - Exploded View (Part 1):

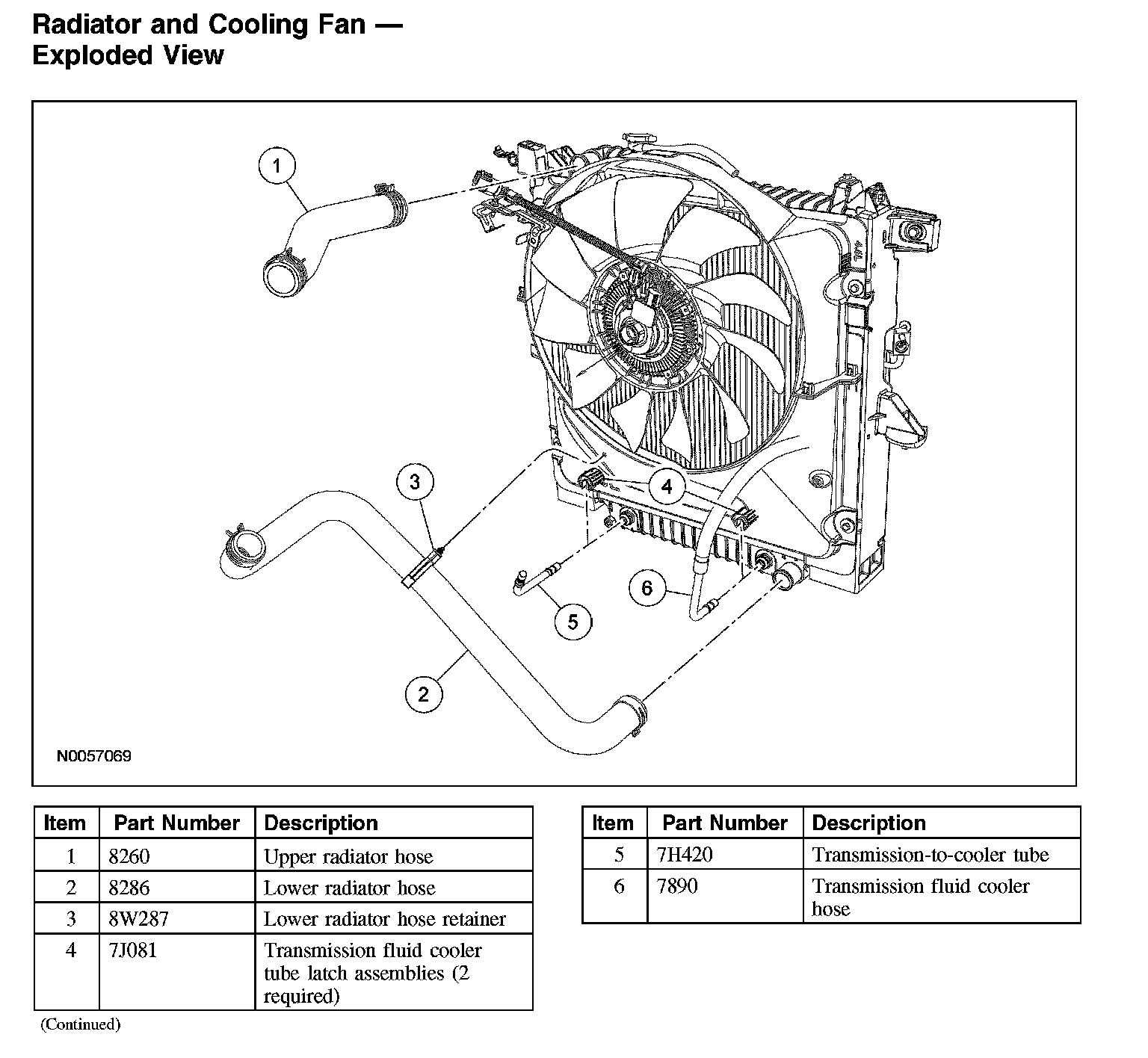

Radiator And Cooling Fan - Exploded View (Part 2):

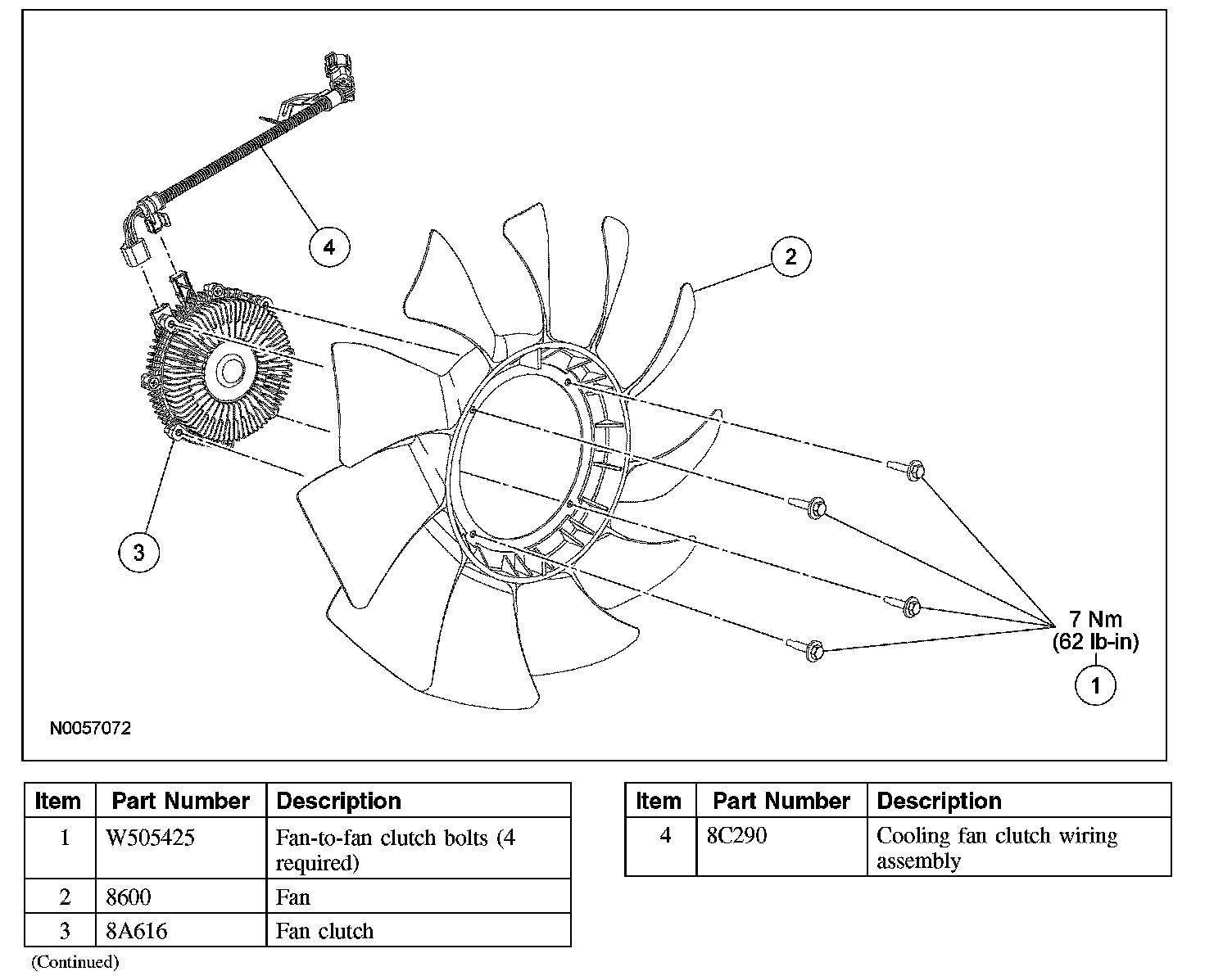

Radiator And Cooling Fan - Exploded View (Part 3):

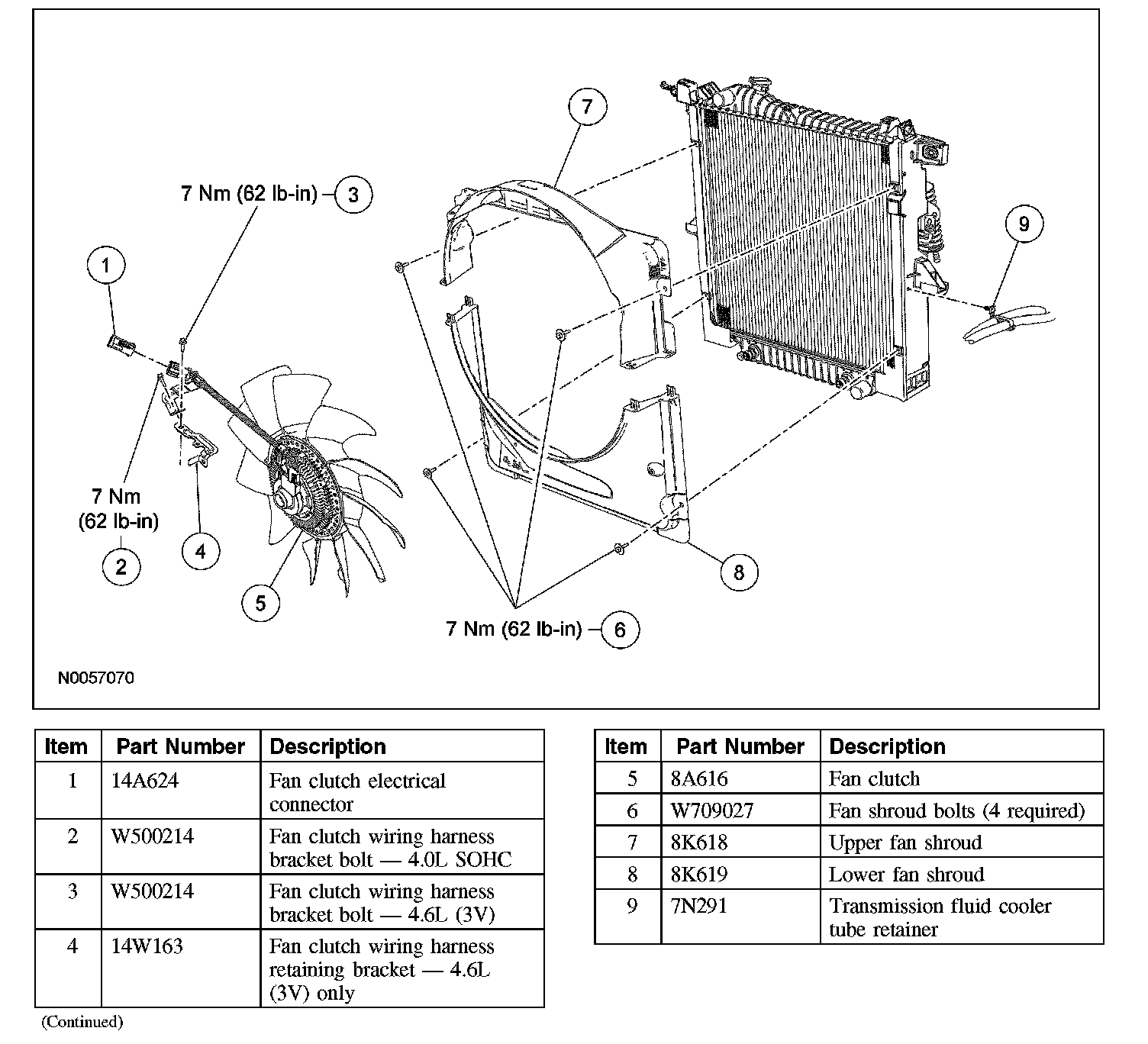

Radiator And Cooling Fan - Exploded View (Part 4):
