Explorer 2WD V6-4.0L VIN K
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Flex Plate
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

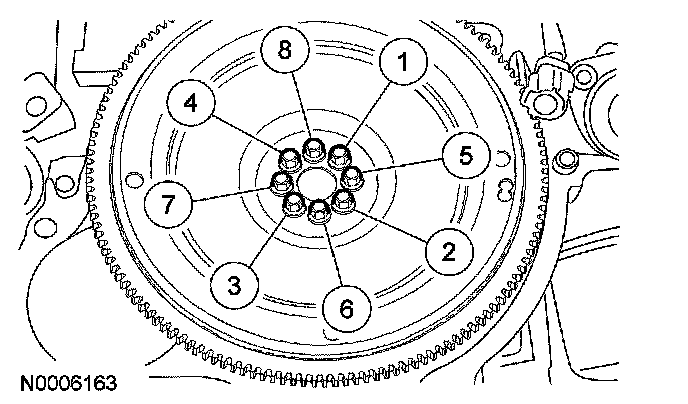

Flex Plate
Flex plate
bolts
Stage 1: Tighten to
13 Nm (10 ft. lbs.).
Stage 2: Tighten to
71 Nm (52 ft. lbs.).
