Torque Specifications

Torque Specifications

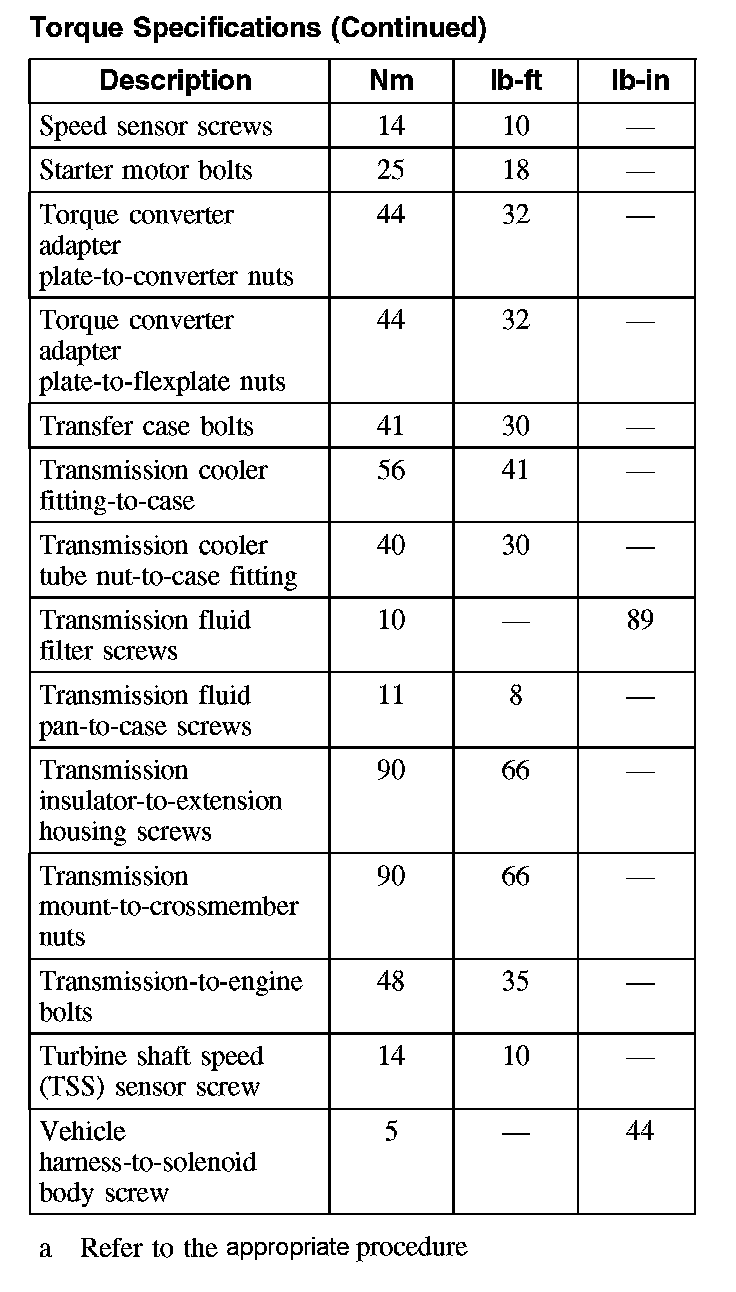

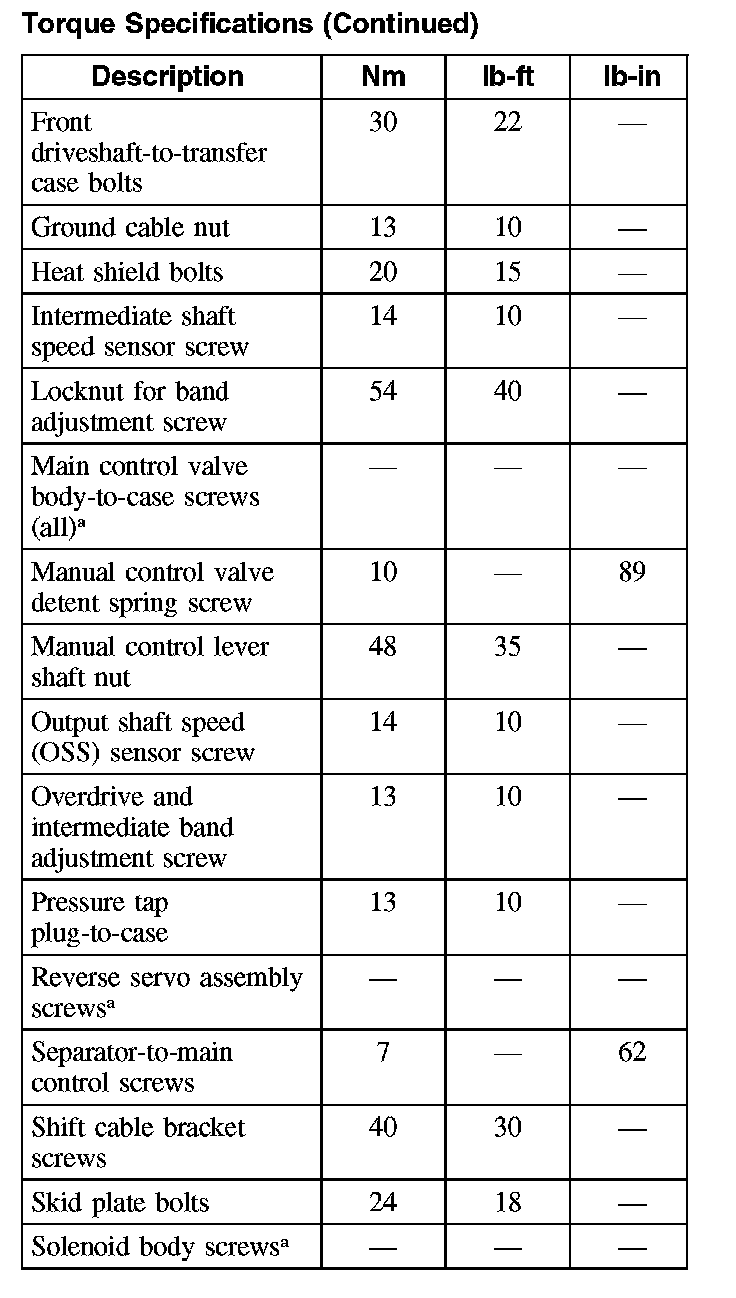

Torque Specifications (Part 1):




Torque Specifications (Part 2):




Torque Specifications (Part 3):




Torque Specifications (Part 4):
