System Diagram

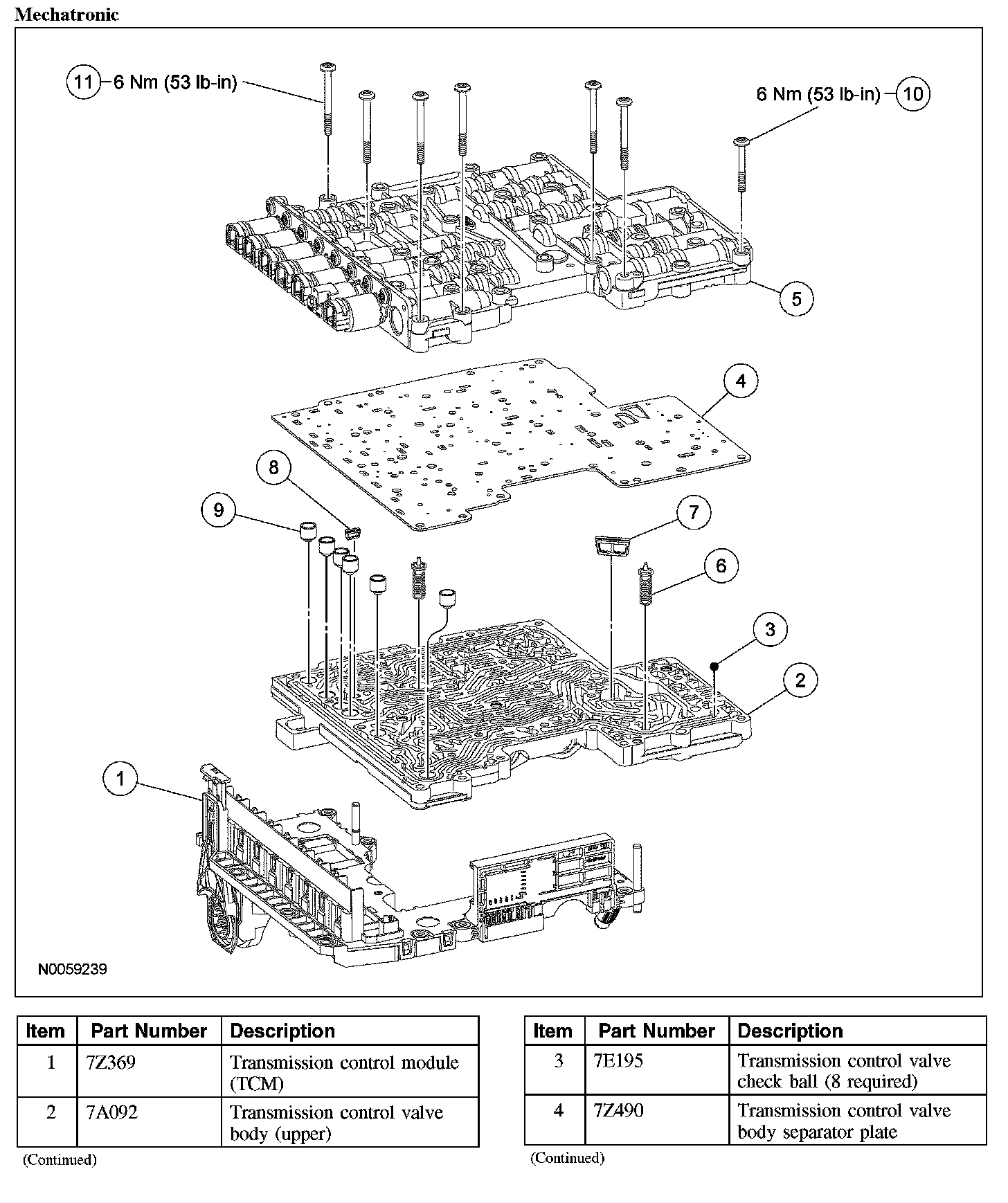

Mechatronic Assembly Exploded Views

Mechatronic:

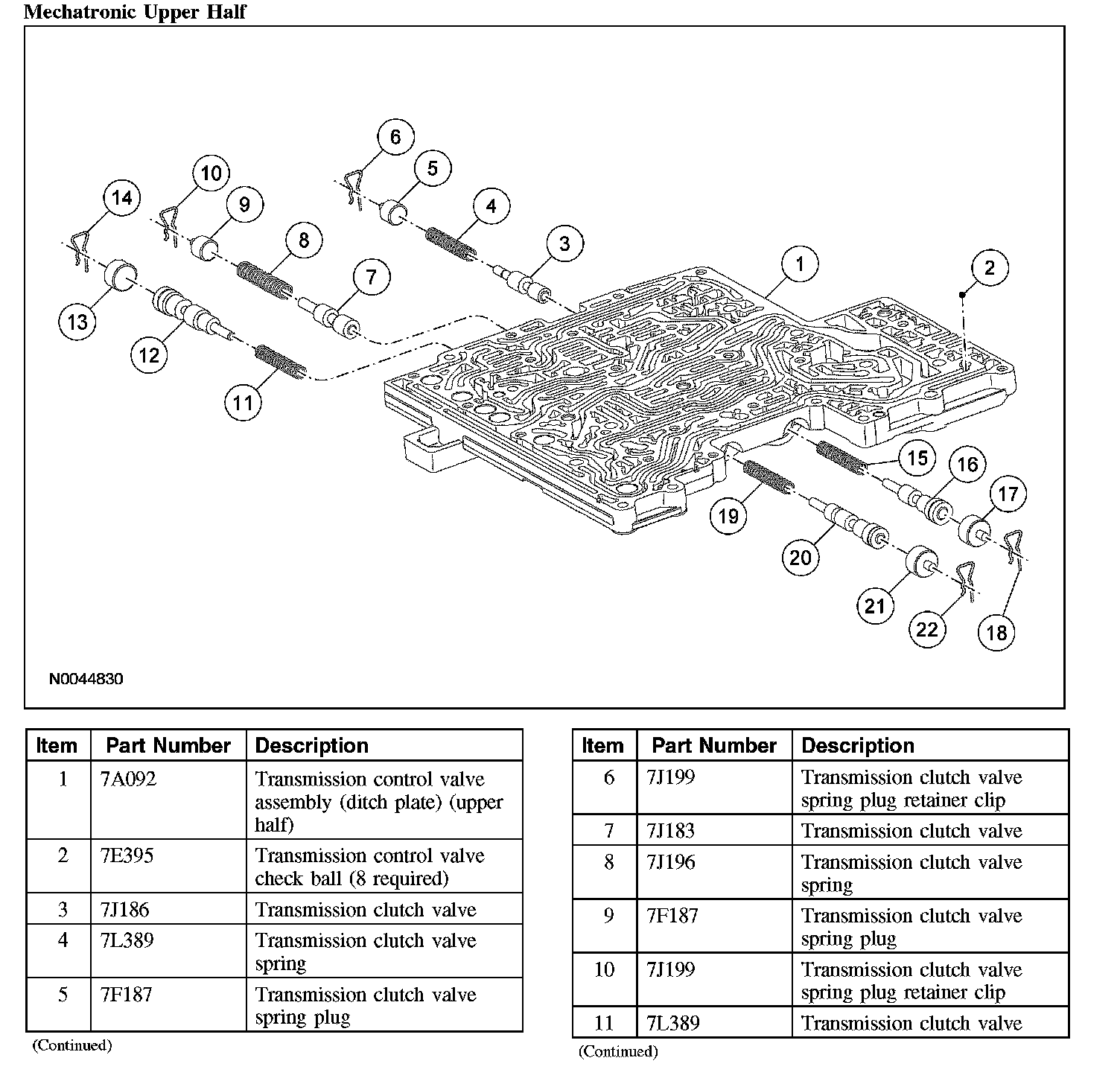

Mechatronic Upper Half:

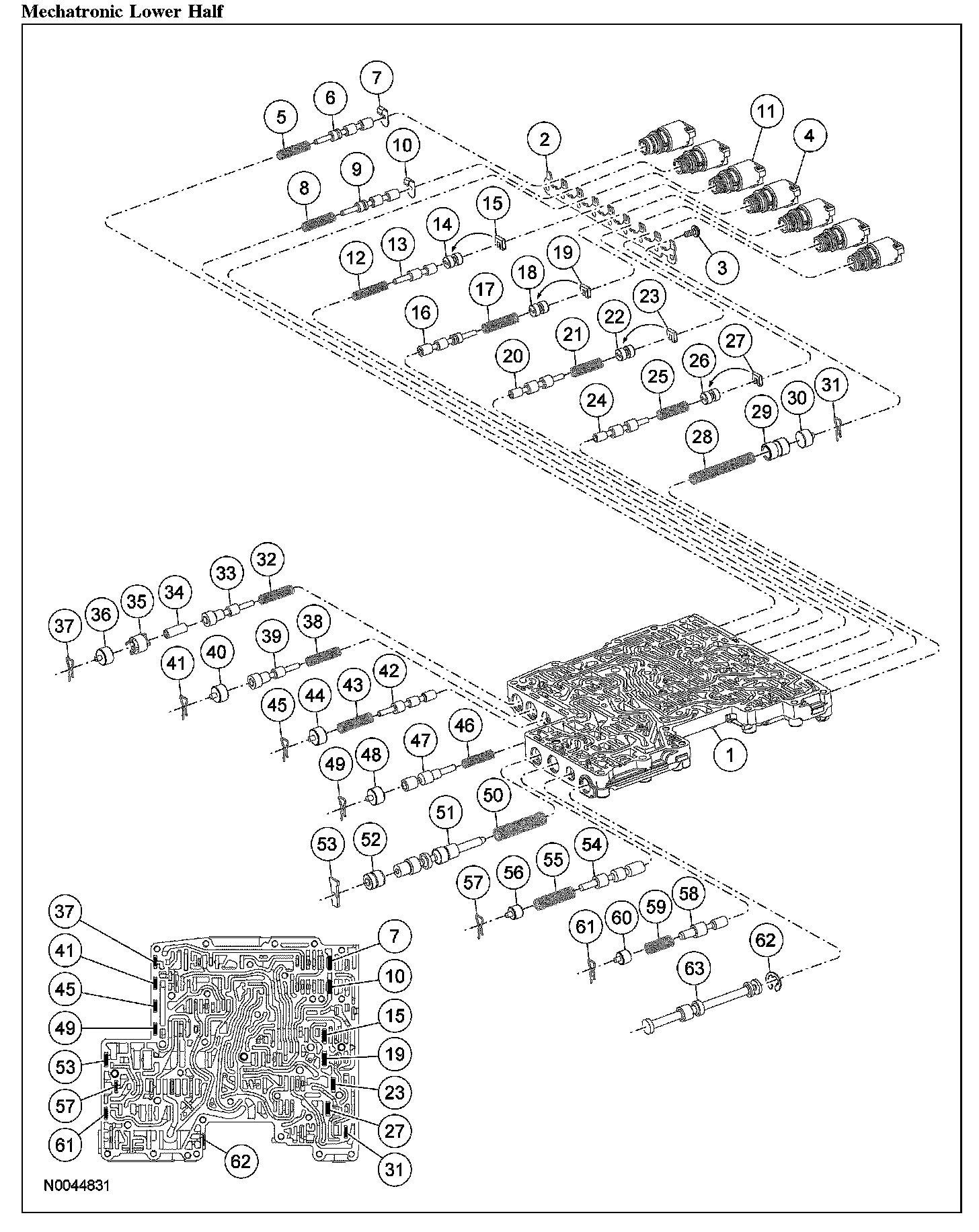

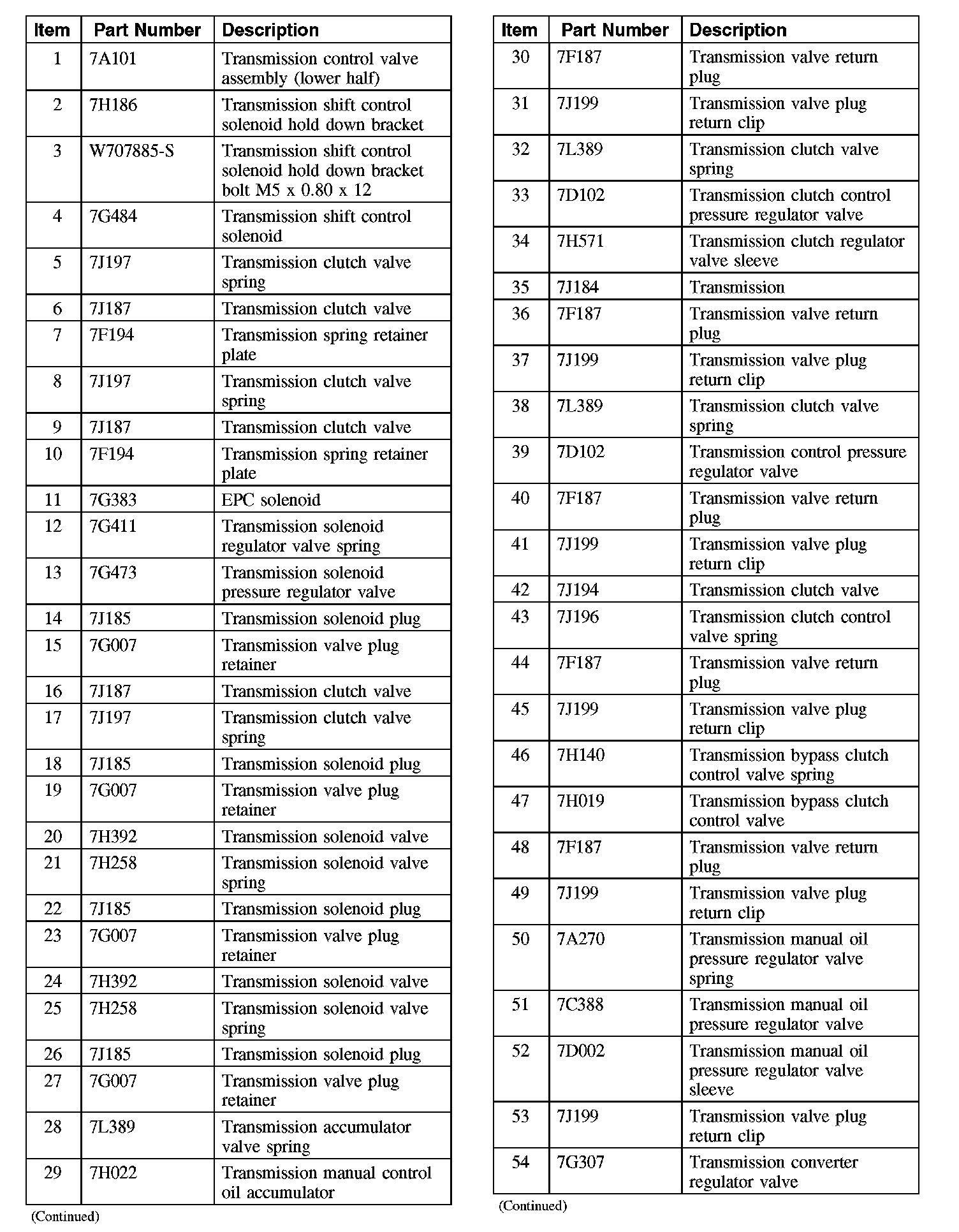

Mechatronic Lower Half:
