Tests HD: Misfire Detection Monitor

PINPOINT TEST HD: MISFIRE DETECTION MONITOR

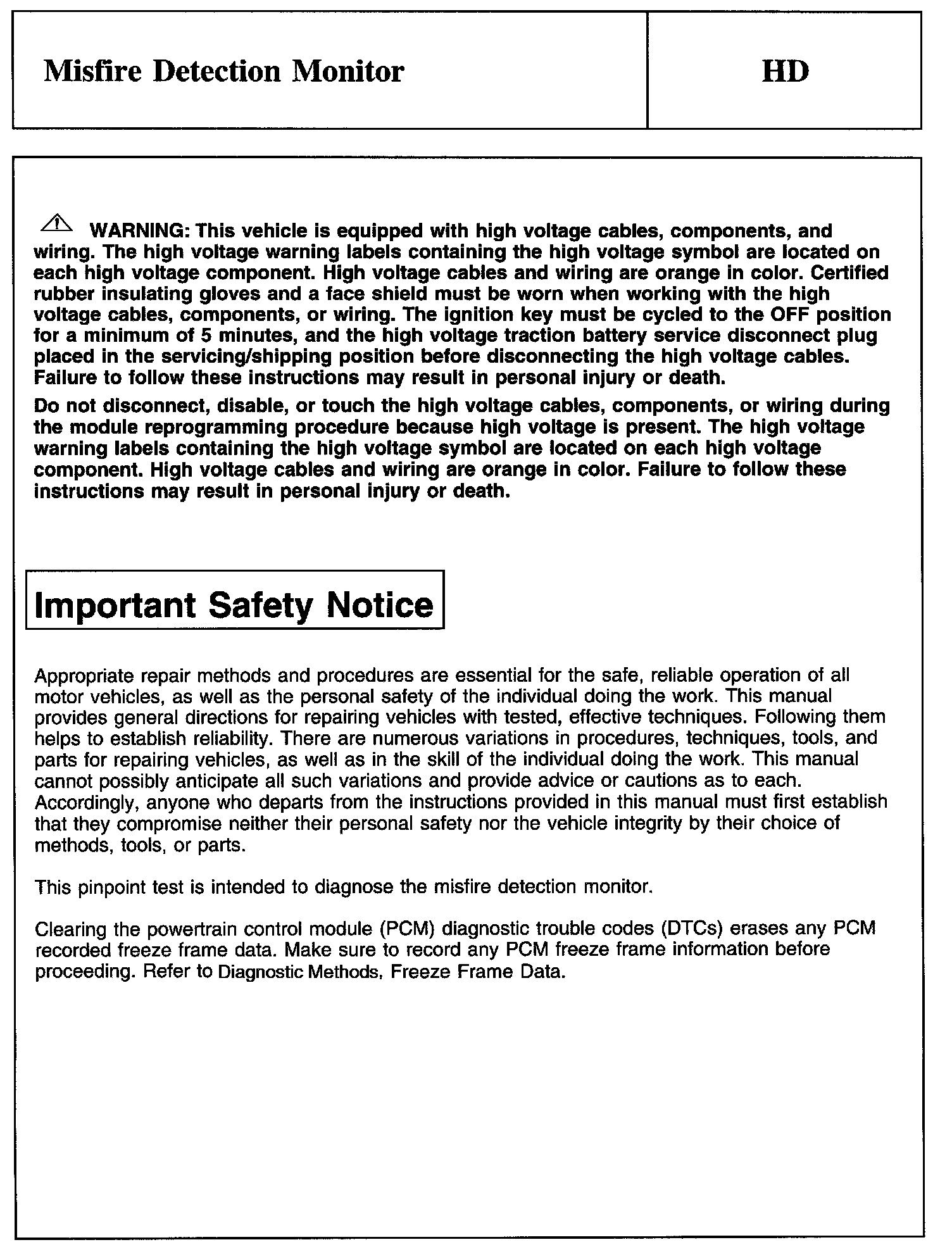

Warning And Important Safety Notice:

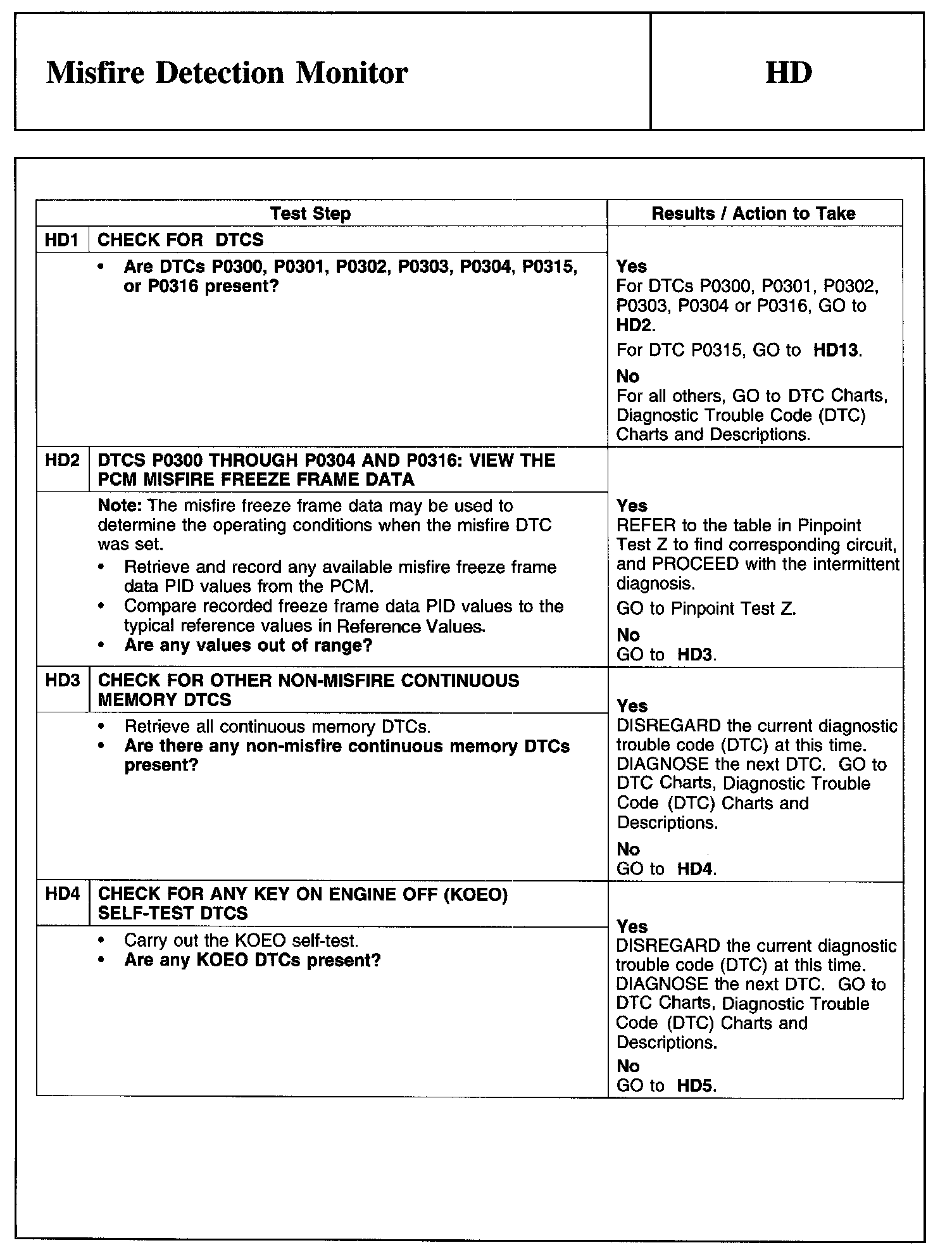

HD1-HD4:

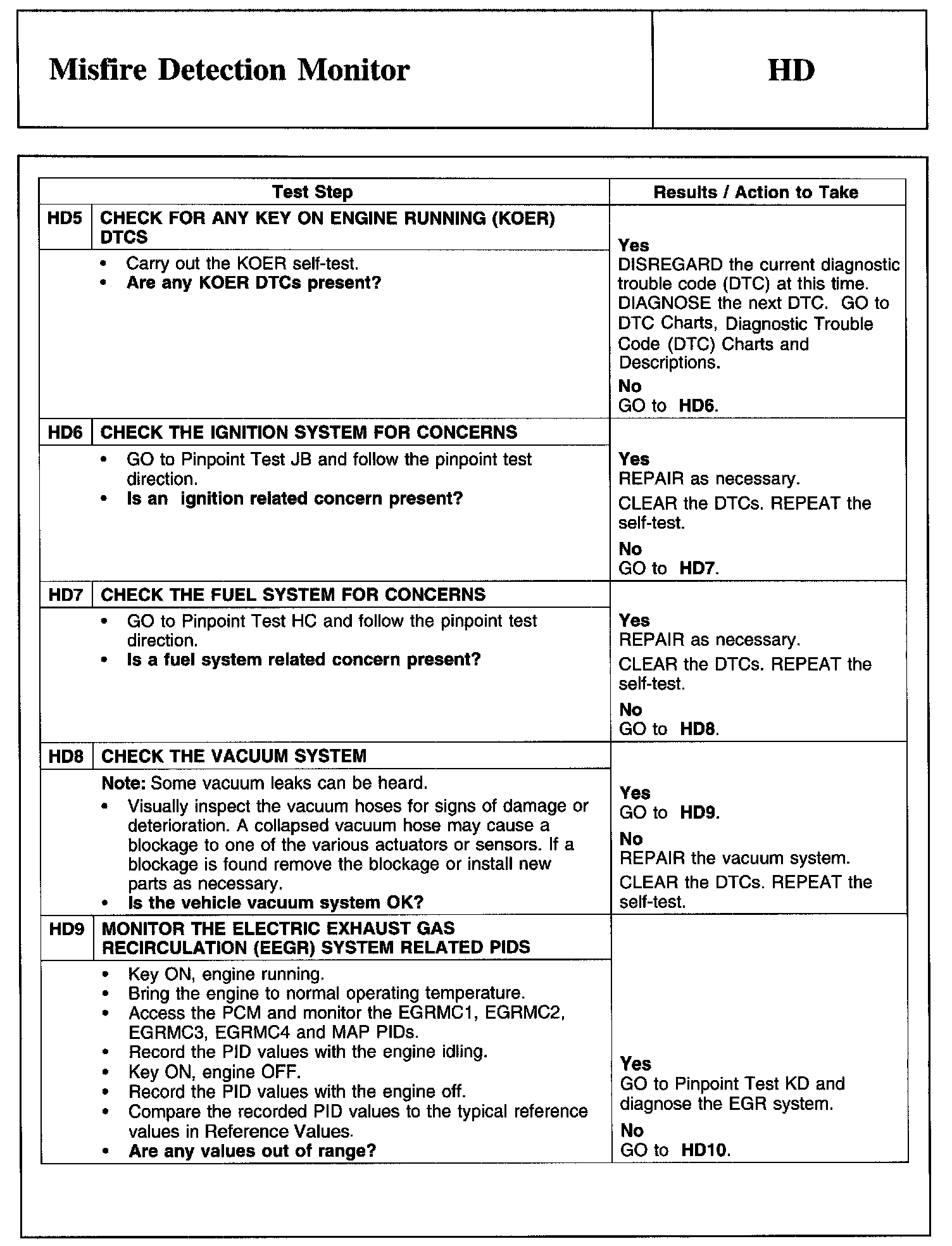

HD5-HD9:

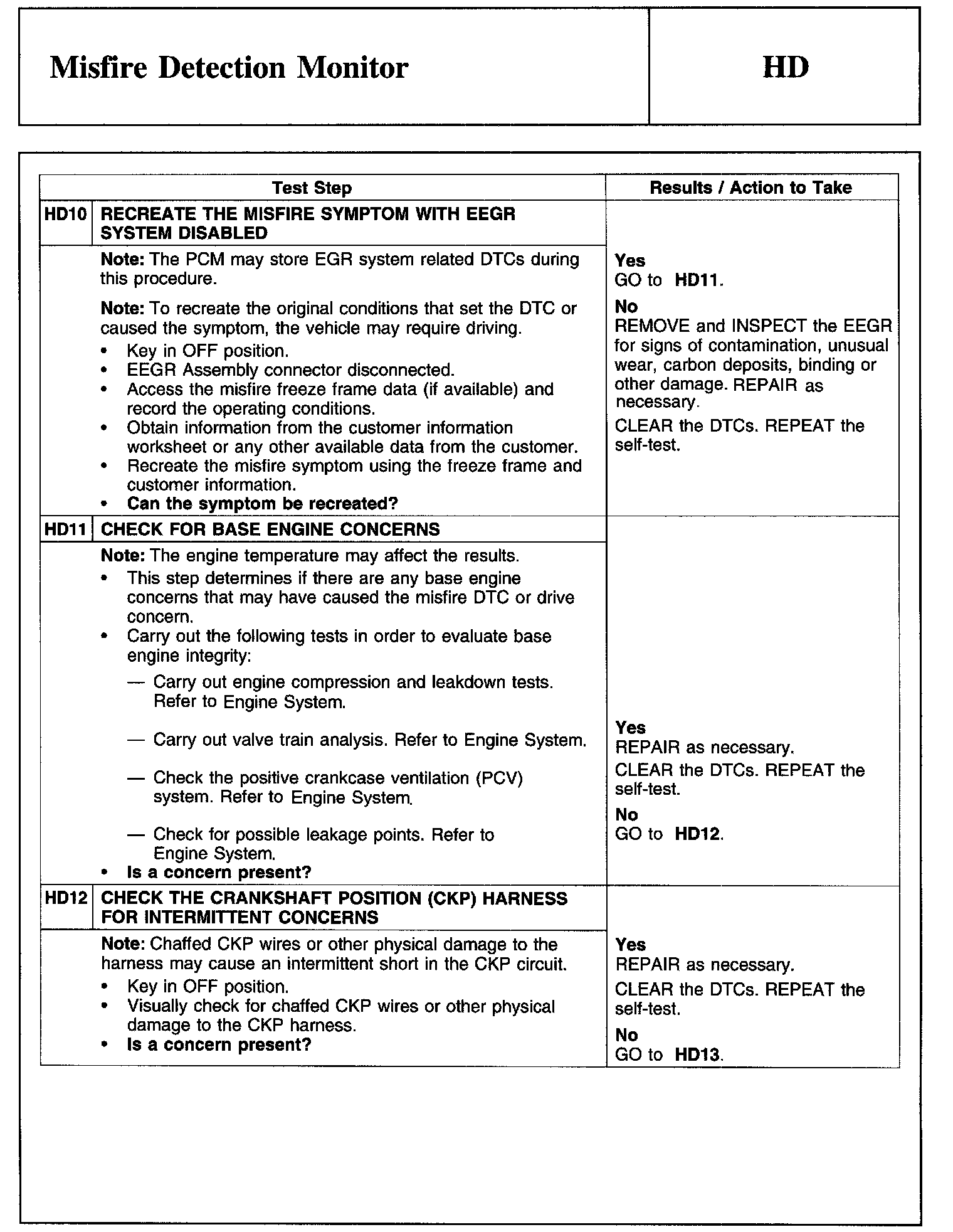

HD10-HD12:

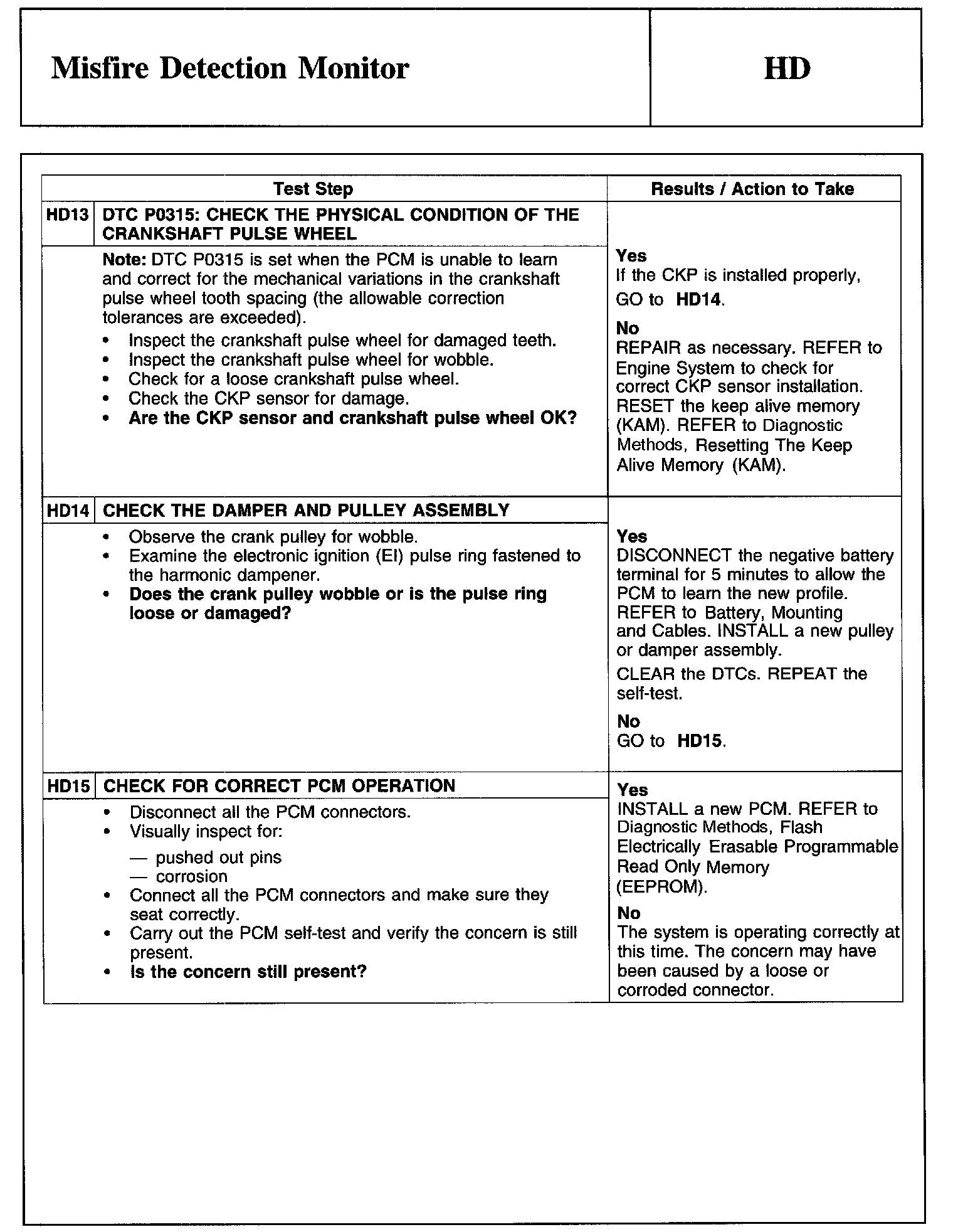

HD13-HD15:
