Tests FE: Ignition Switch Inputs

PINPOINT TEST FE: IGNITION SWITCH INPUTS

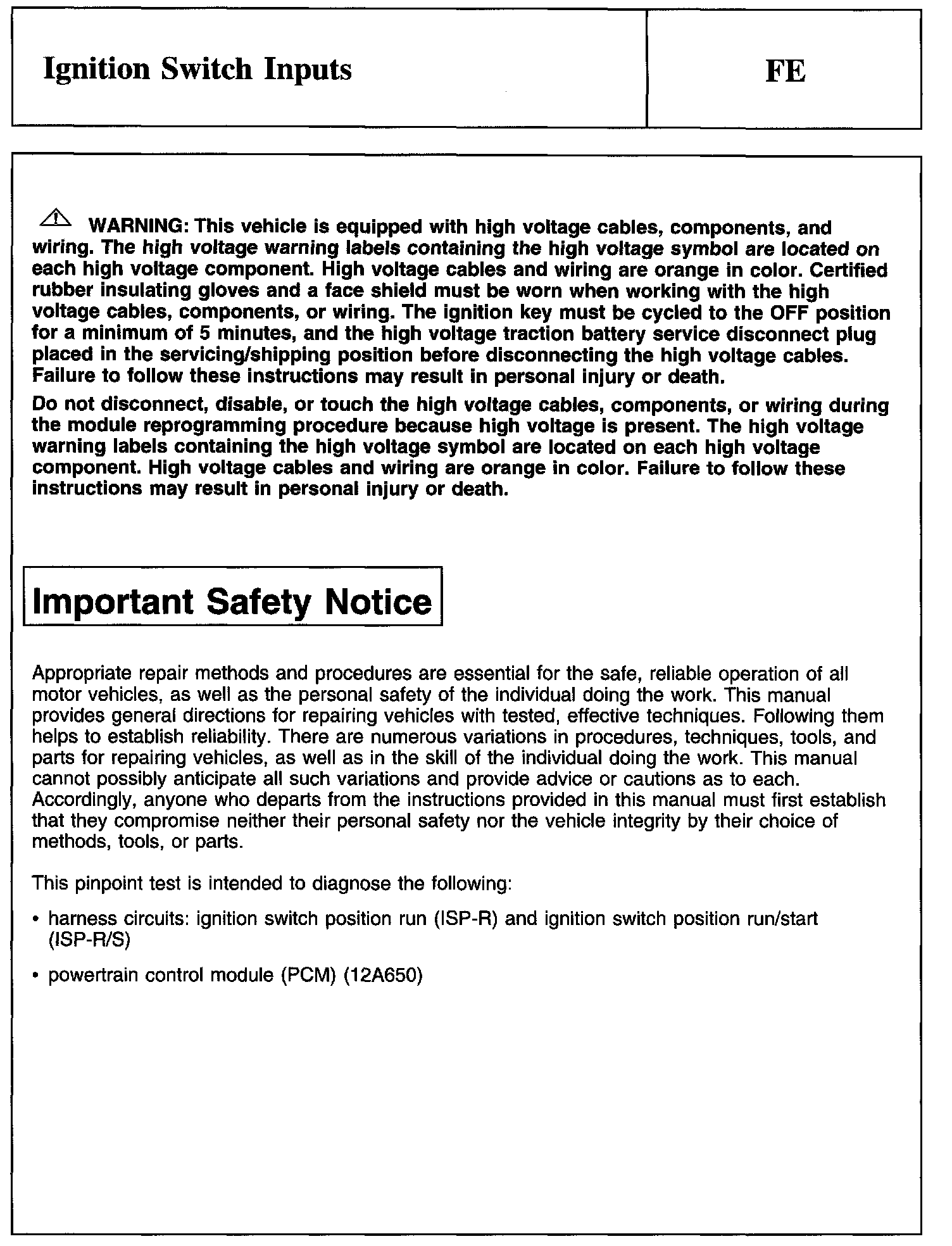

Warning And Important Safety Notice:

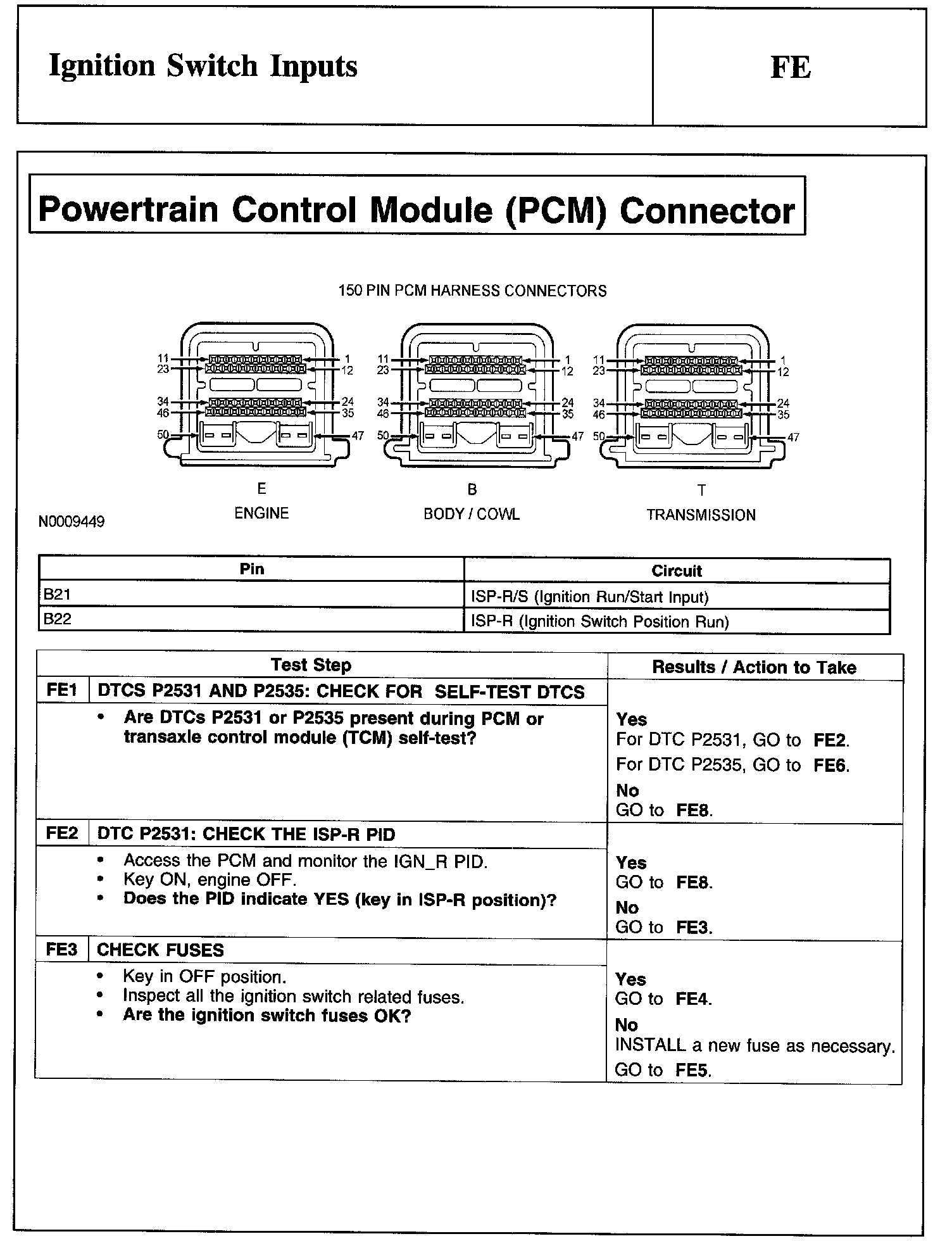

FE1-FE3:

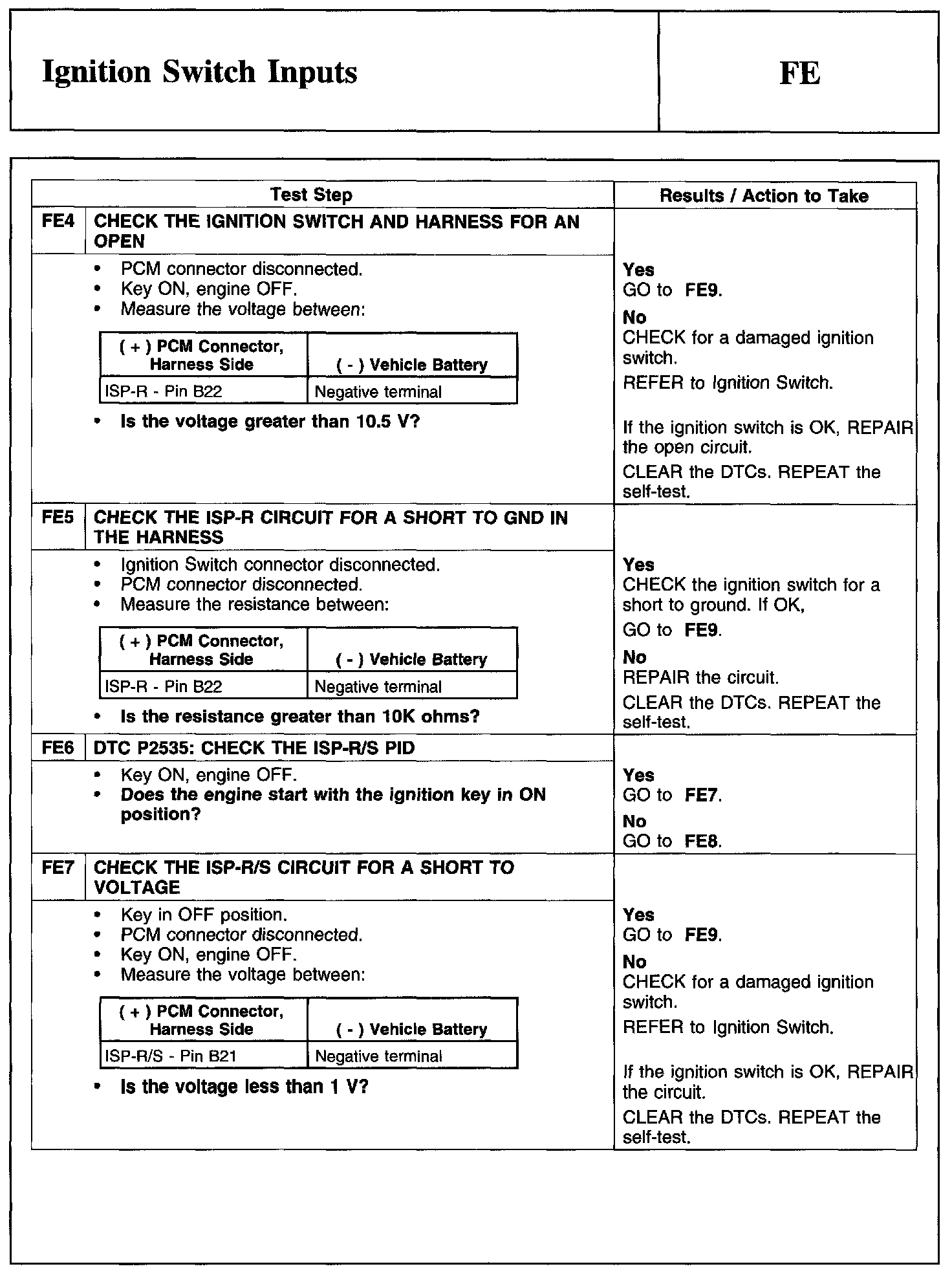

FE4-FE7:

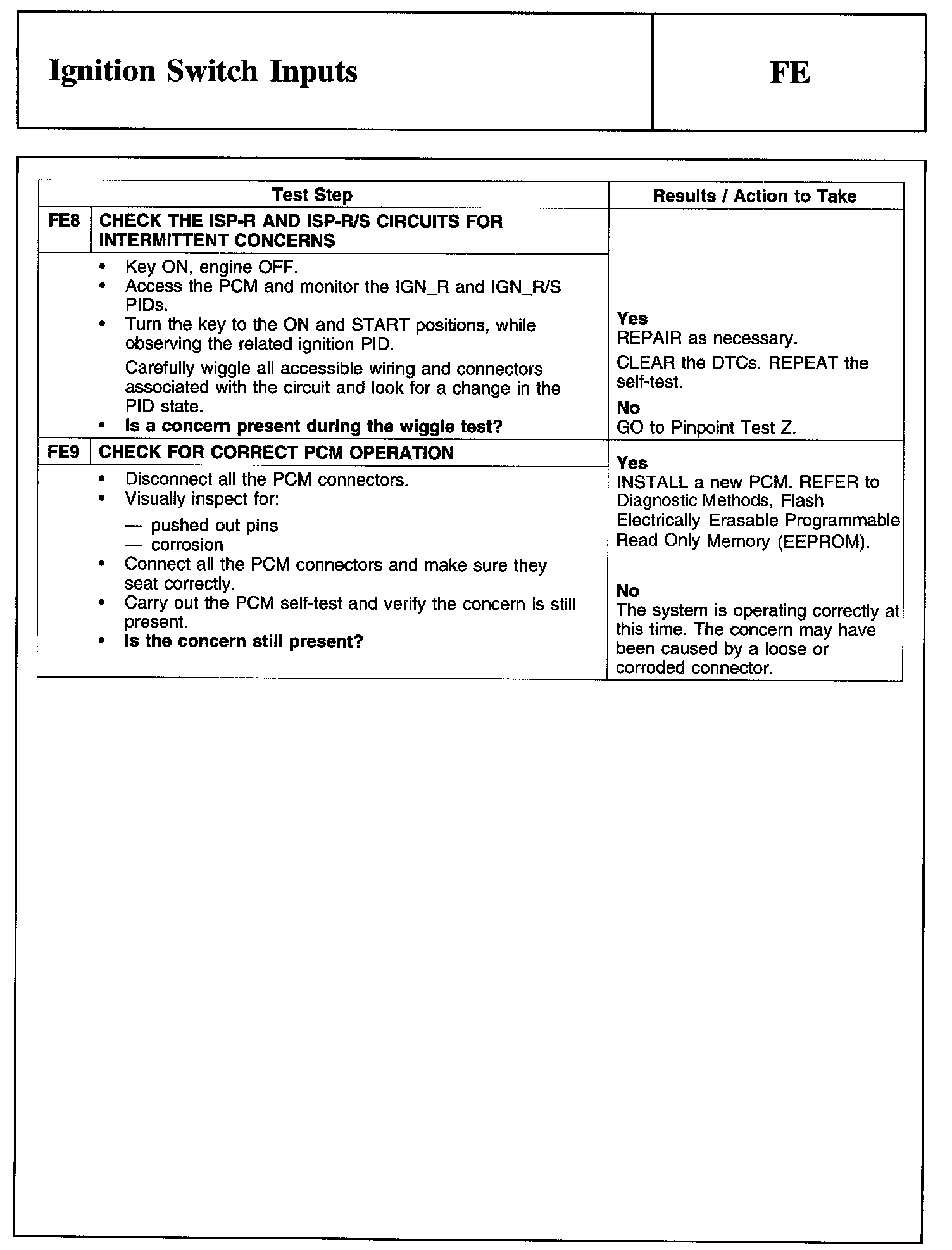

FE8-FE9:
