Test G: Panic Feature is Inoperative/Does Not Operate Correctly

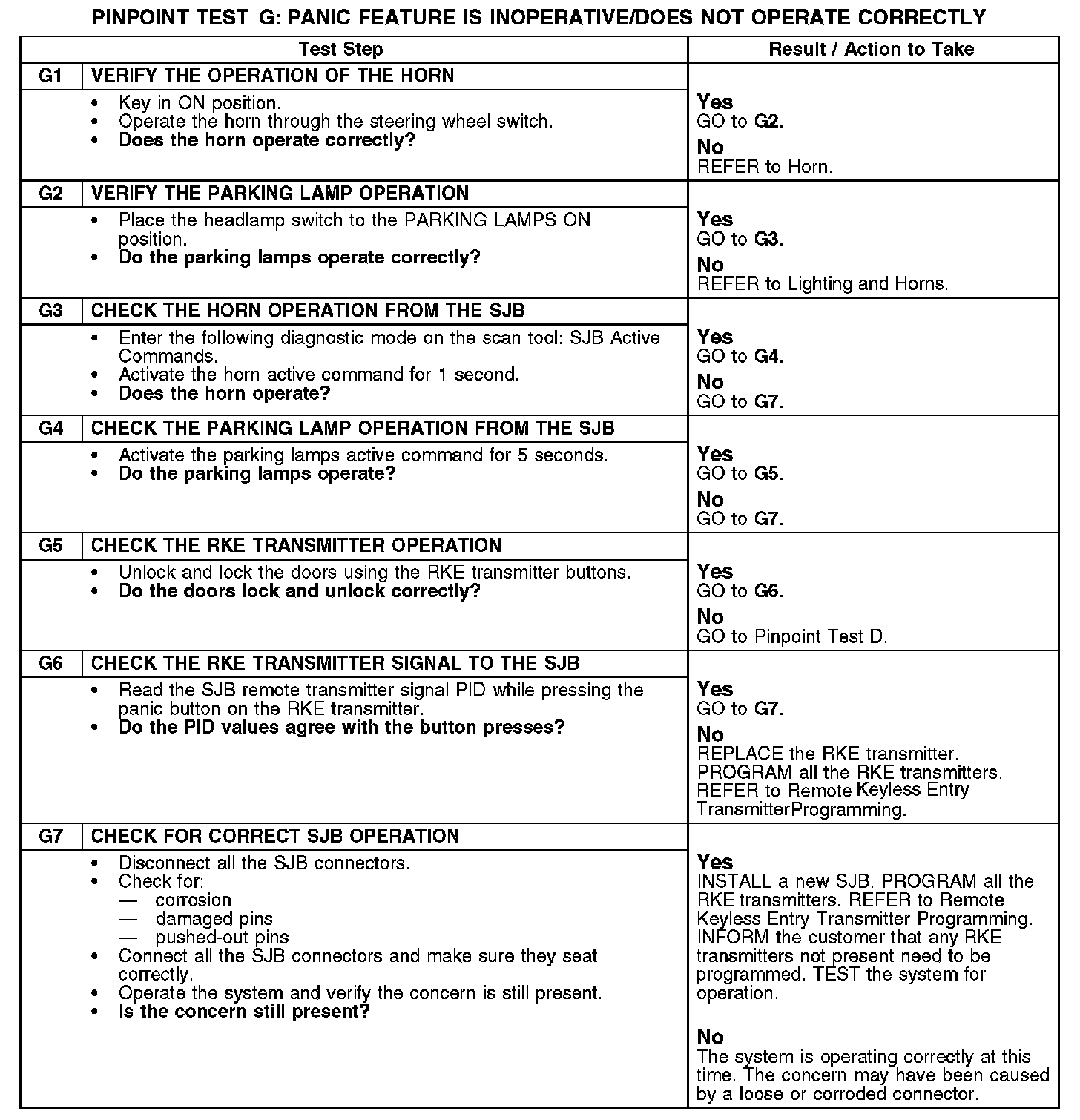

PINPOINT TEST G: PANIC FEATURE IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

G1-G7:

Normal Operation
When the remote keyless entry (RKE) transmitter panic button is pressed, the smart junction box (SJB) grounds the horn relay, which supplies voltage to circuit 1 (DB) to activate the horn. The SJB also grounds the park lamp relay, which supplies voltage to circuit 14 (BN) to activate the parking lamps.

Possible Causes
- RKE transmitter
- SJB
