Coil On Plug Connectors

Fig 1: Coil On Plug 1 Connector End View (C111)

G05182515

Courtesy of FORD MOTOR CO.

Fig 2: Coil On Plug 2 Connector End View (C112)

G05182516

Courtesy of FORD MOTOR CO.

Fig 3: Coil On Plug 3 Connector End View (C113)

G05182517

Courtesy of FORD MOTOR CO.

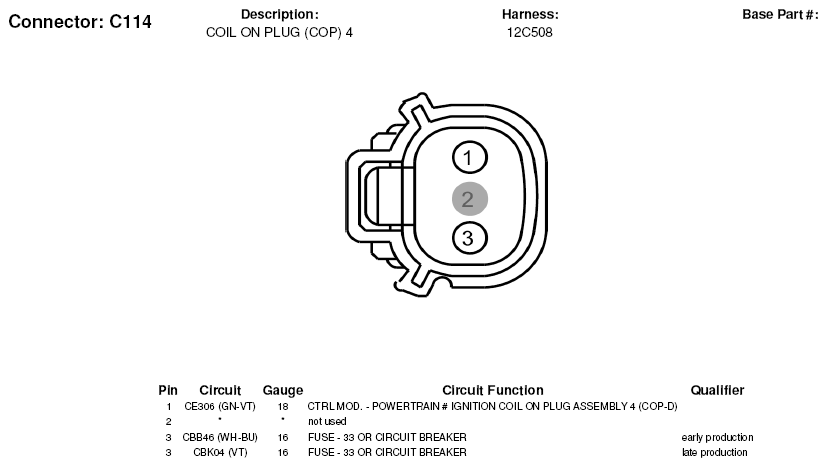

Fig 4: Coil On Plug 4 Connector End View (C114)

G05182518

Courtesy of FORD MOTOR CO.

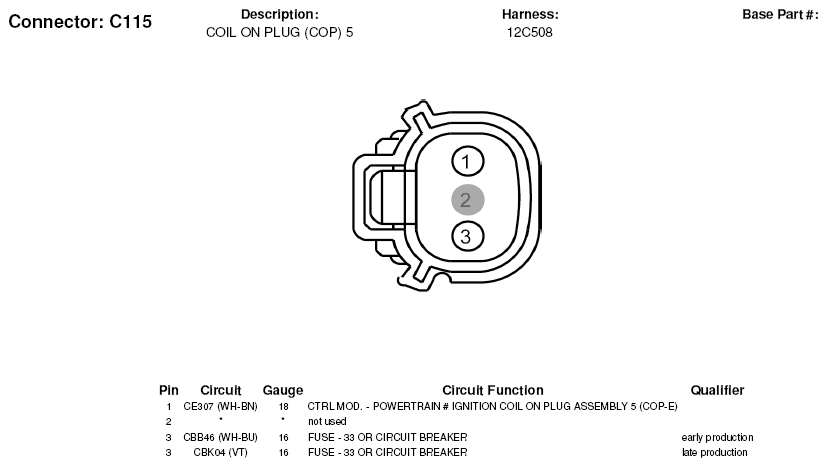

Fig 5: Coil On Plug 5 Connector End View (C115)

G05182519

Courtesy of FORD MOTOR CO.

Fig 6: Coil On Plug 6 Connector End View (C116)

G05182520

Courtesy of FORD MOTOR CO.
