Roof Opening Panel Motor Connector

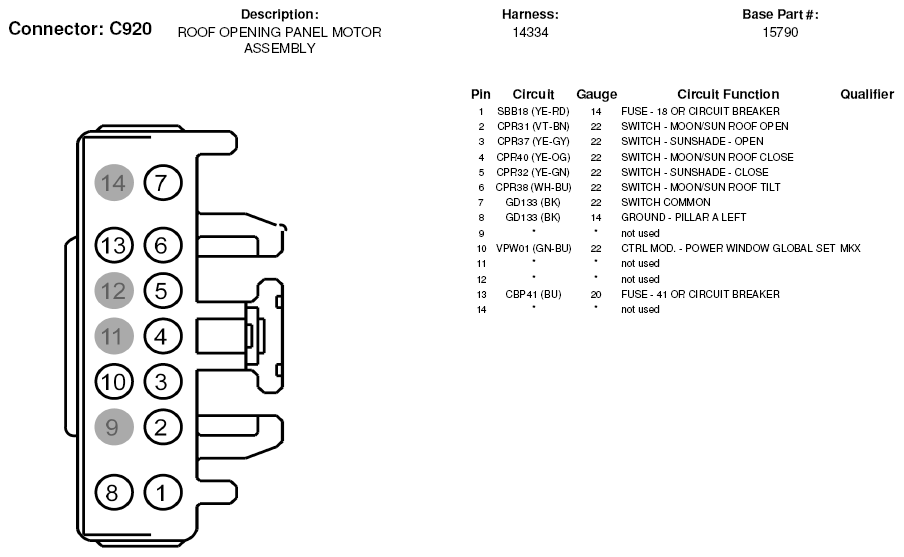

Fig 1: Roof Opening Panel Motor Connector End View (C920)
Courtesy of FORD MOTOR CO.
