Power Seat Release Switch Connector

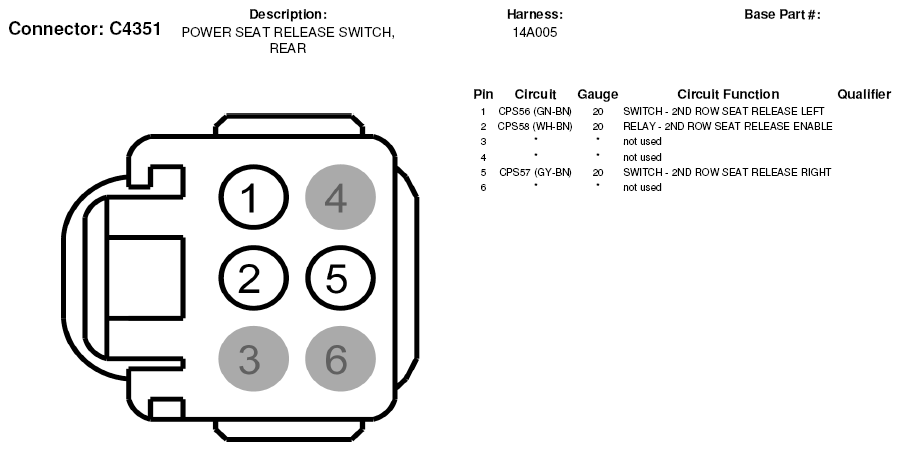

Fig 1: Power Seat Release Switch Connector End View (C4351)
G05182831Courtesy of FORD MOTOR CO.
