Heated Seat Element Connector

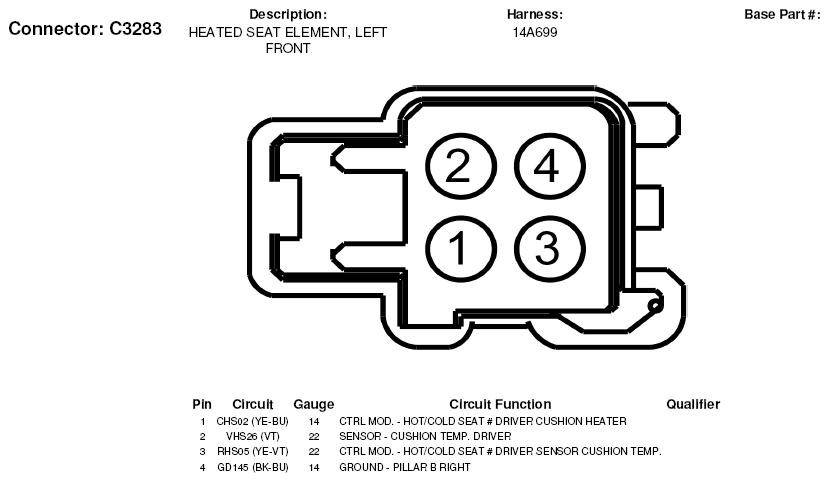

Fig 1: Heated Seat Element Connector End View (C3283)
G05182780Courtesy of FORD MOTOR CO.

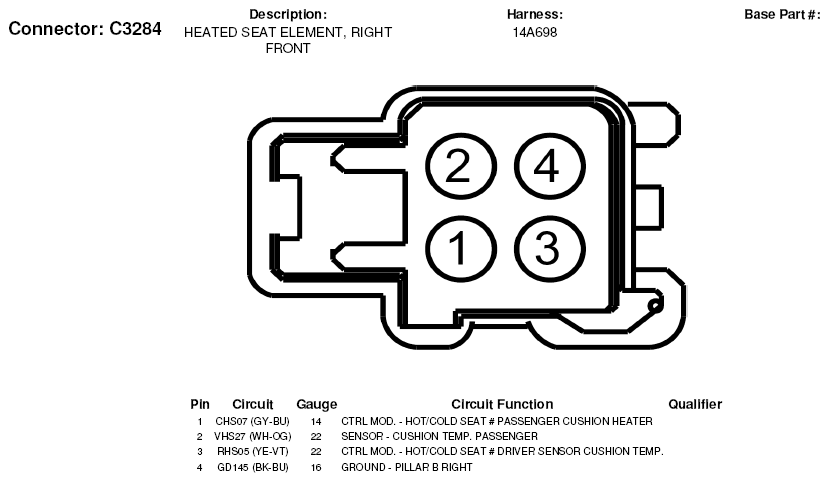

Fig 2: Heated Seat Element Connector End View (C3284)
G05182781Courtesy of FORD MOTOR CO.
