Window Adjust Switch Connectors

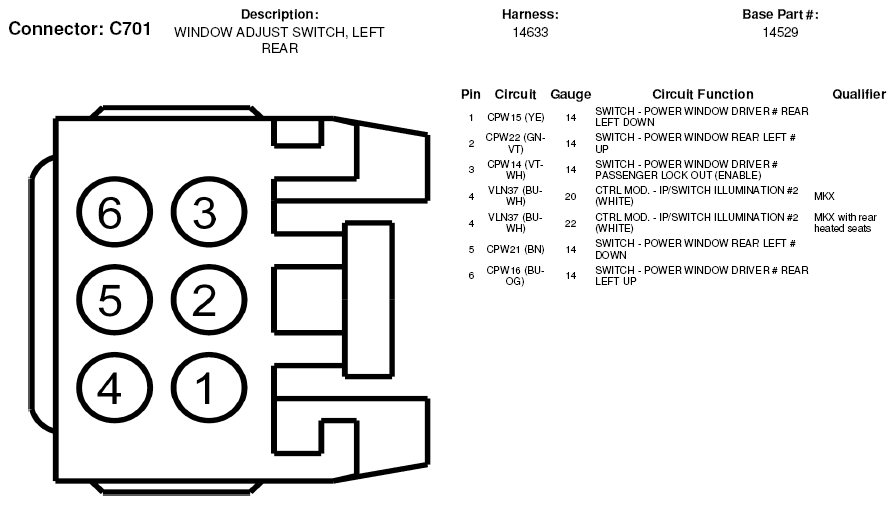

Fig 1: Window Adjust Switch Connector End View (C701)
G05182668Courtesy of FORD MOTOR CO.
Fig 2: Window Adjust Switch Connector End View (C801)
G05182674Courtesy of FORD MOTOR CO.
