Trailer Tow Connector

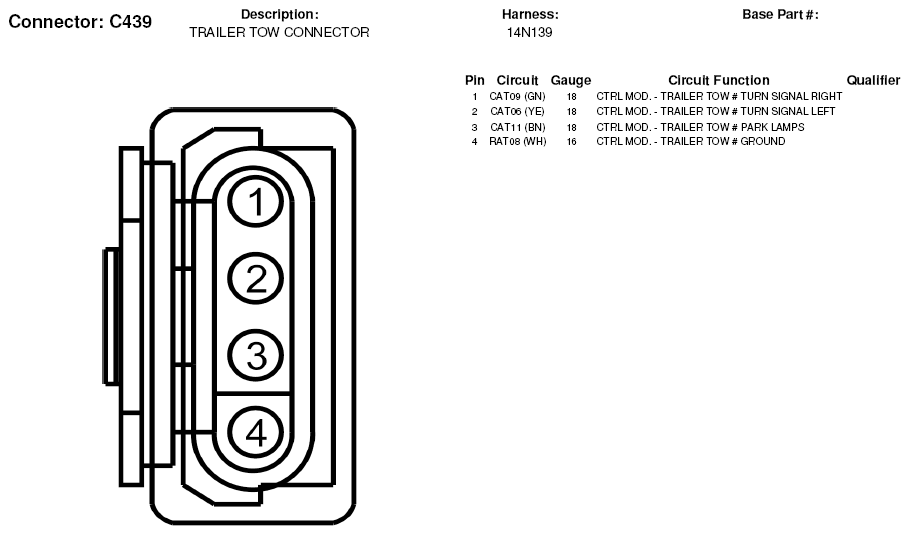

Fig 1: Trailer Tow Connector Connector End View (C439)
Courtesy of FORD MOTOR CO.
