Speaker Connectors

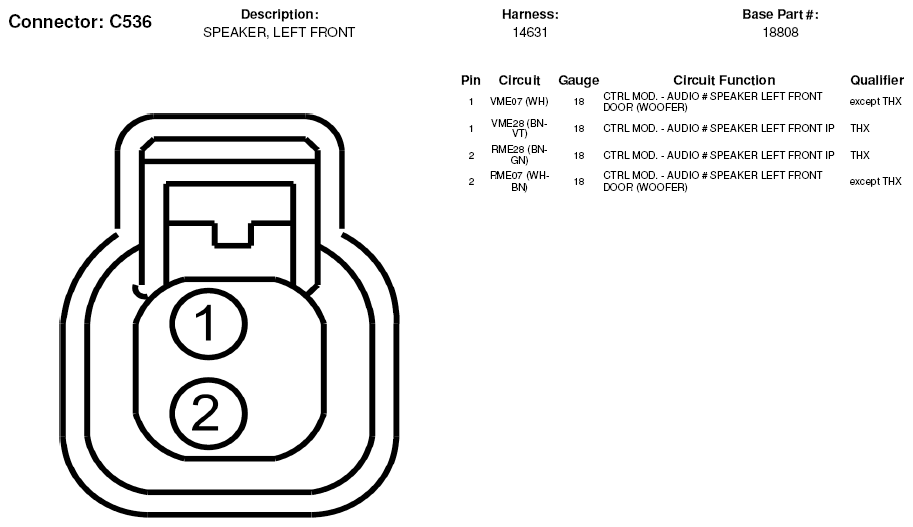

Fig 1: Speaker Connector End View (C536)

G05182650

Courtesy of FORD MOTOR CO.

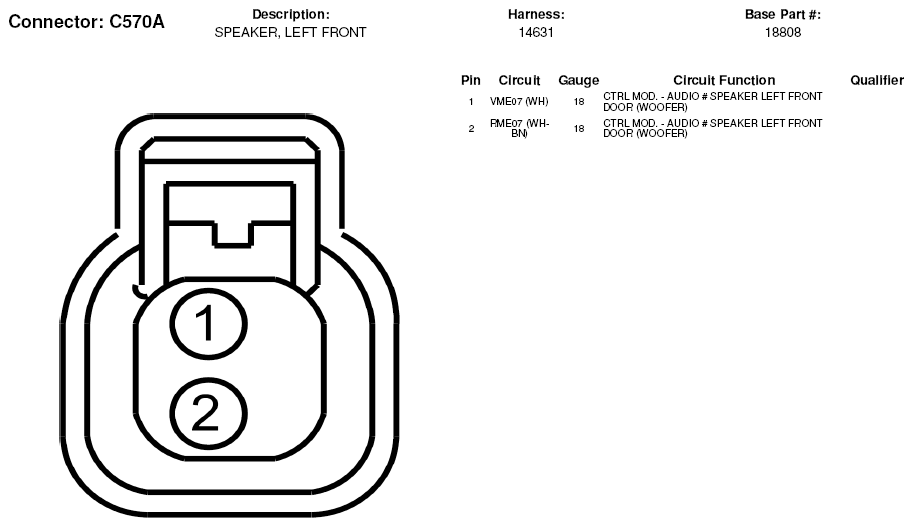

Fig 2: Speaker Connector End View (C570A)

G05182653

Courtesy of FORD MOTOR CO.

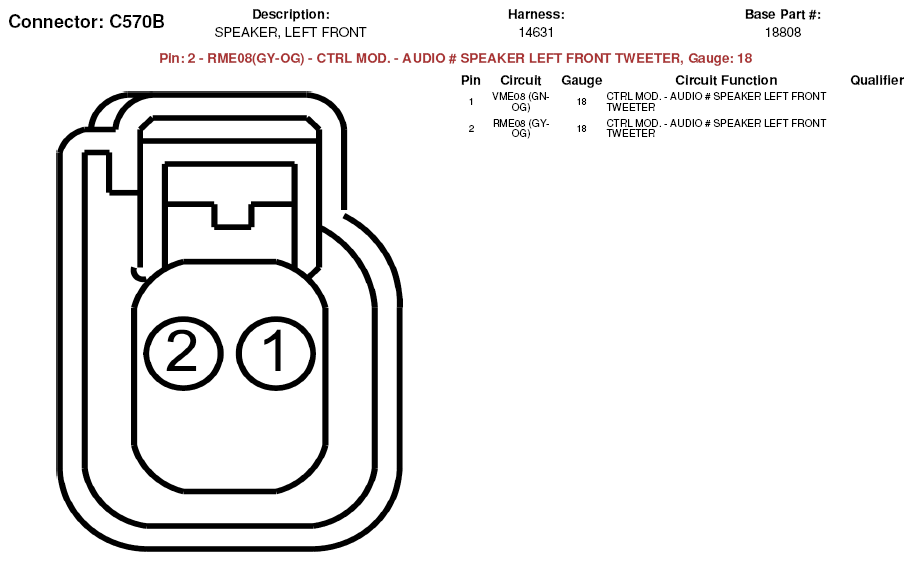

Fig 3: Speaker Connector End View (C570B)

G05182654

Courtesy of FORD MOTOR CO.

Fig 4: Speaker Connector End View (C612A)

G05182659

Courtesy of FORD MOTOR CO.

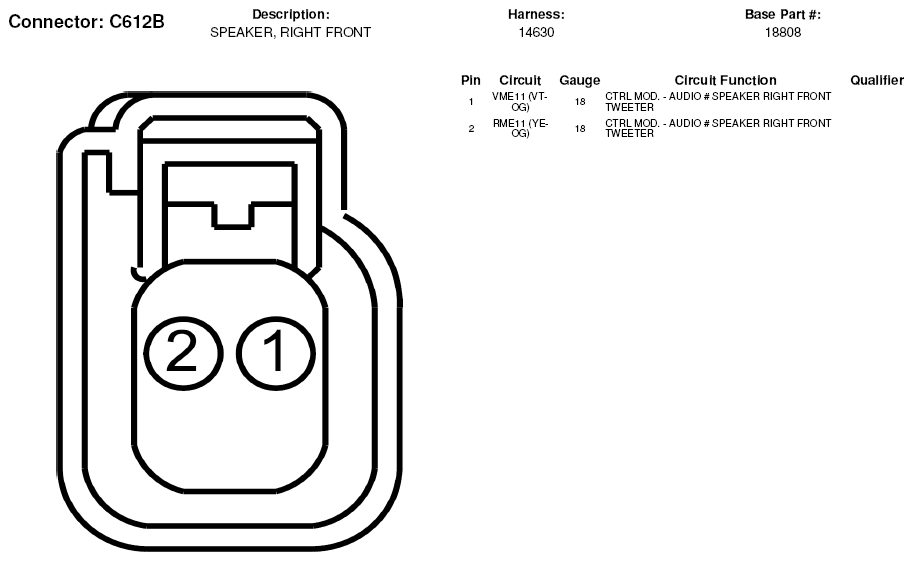

Fig 5: Speaker Connector End View (C612B)

G05182660

Courtesy of FORD MOTOR CO.

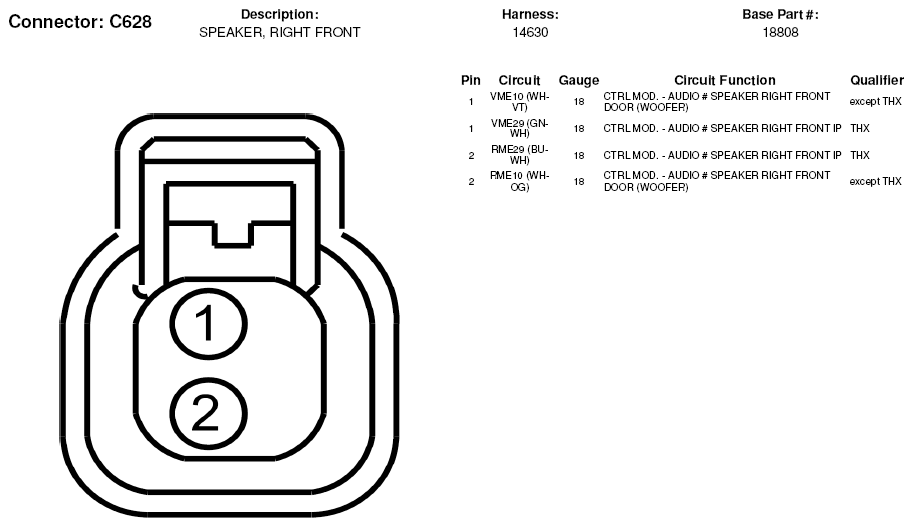

Fig 6: Speaker Connector End View (C628)

G05182664

Courtesy of FORD MOTOR CO.

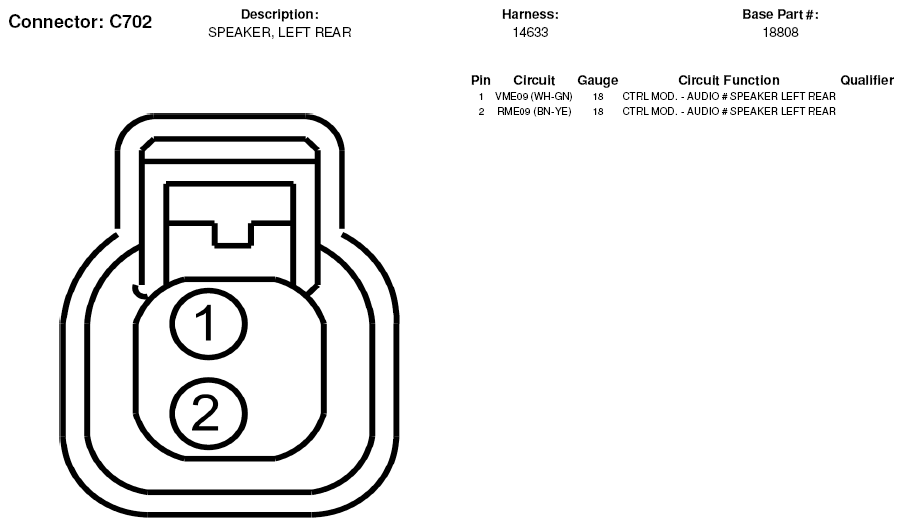

Fig 7: Speaker Connector End View (C702)

G05182669

Courtesy of FORD MOTOR CO.

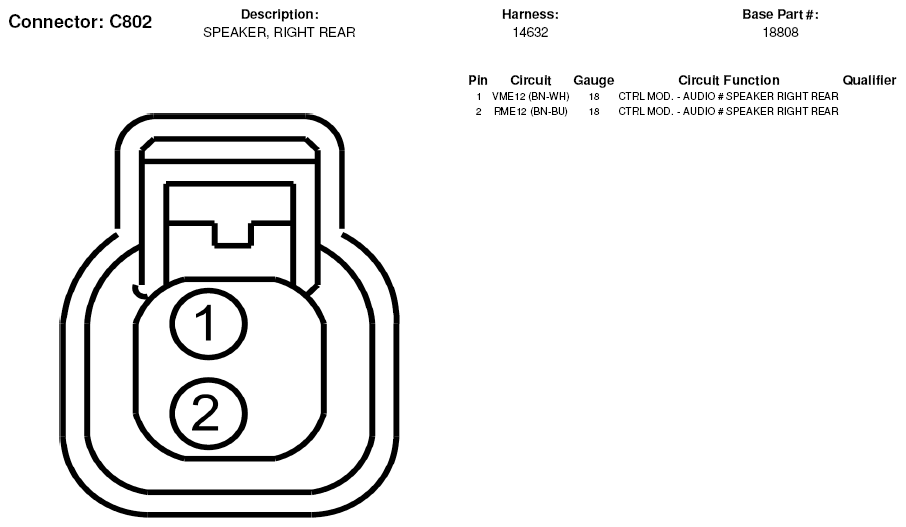

Fig 8: Speaker Connector End View (C802)

G05182675

Courtesy of FORD MOTOR CO.
