Reversing Lamp Connectors

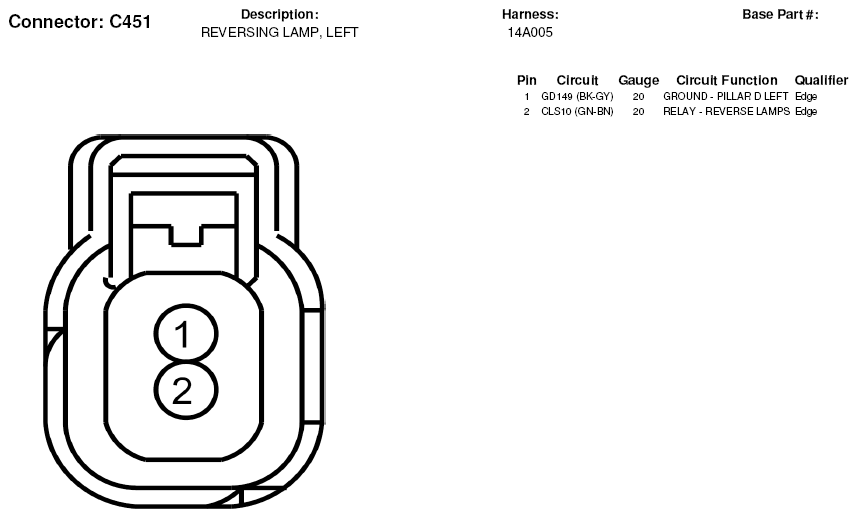

Fig 1: Reversing Lamp Connector End View (C451)
G05182629Courtesy of FORD MOTOR CO.

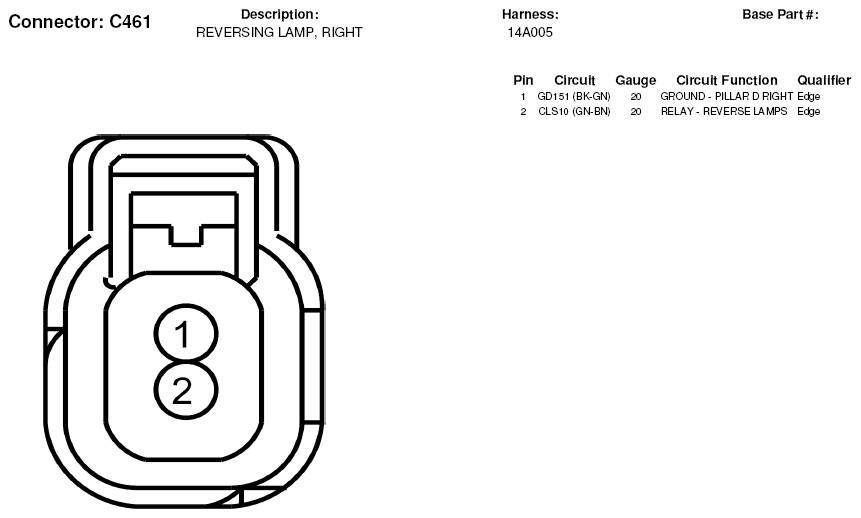

Fig 2: Reversing Lamp Connector End View (C461)
G05182631Courtesy of FORD MOTOR CO.

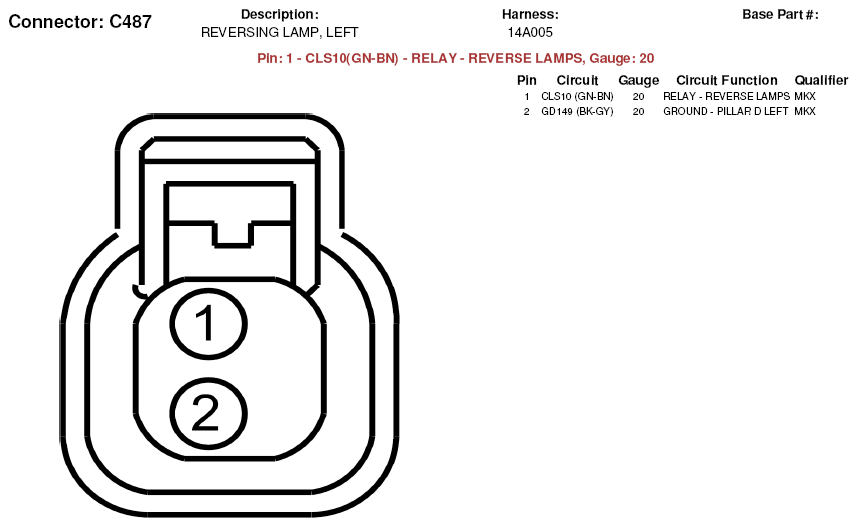

Fig 3: Reversing Lamp Connector End View (C487)
G05182636Courtesy of FORD MOTOR CO.

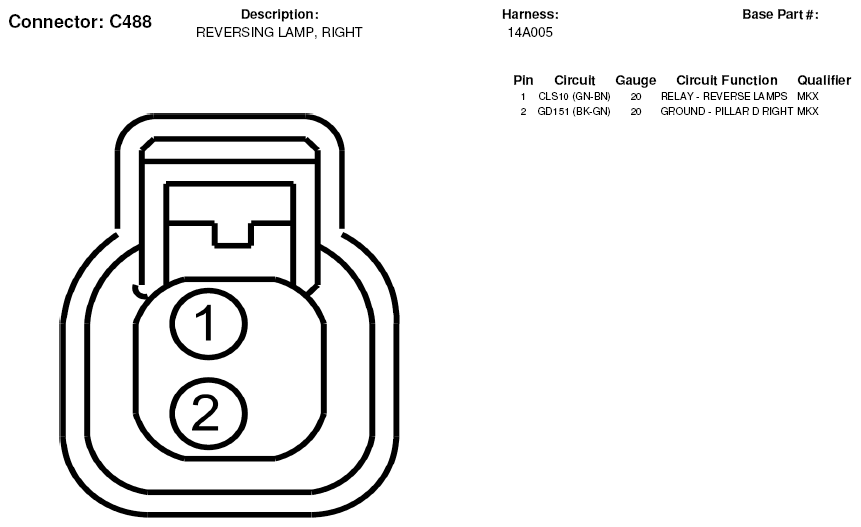

Fig 4: Reversing Lamp Connector End View (C488)
G05182637Courtesy of FORD MOTOR CO.
