Liftgate Switch / Decklid Switch Connector

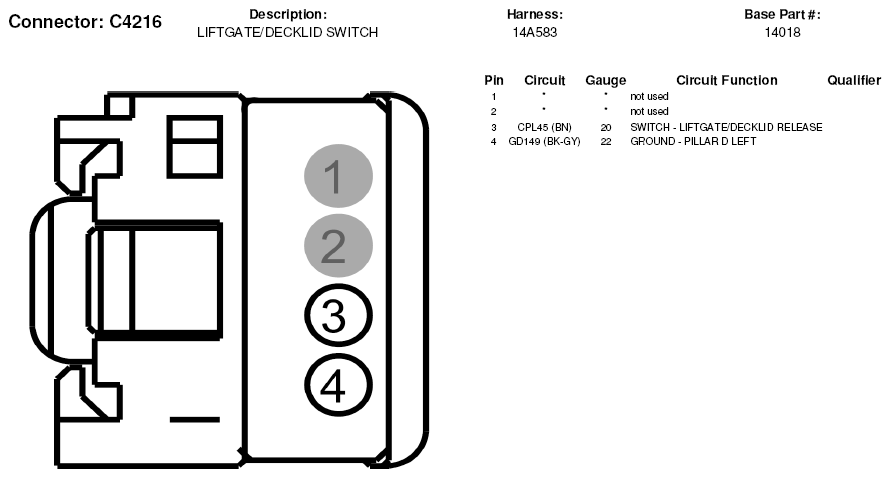

Fig 1: Liftgate Switch / Decklid Switch Connector End View (C4216)
G05182818Courtesy of FORD MOTOR CO.
