Driver Seat Front Height Connector

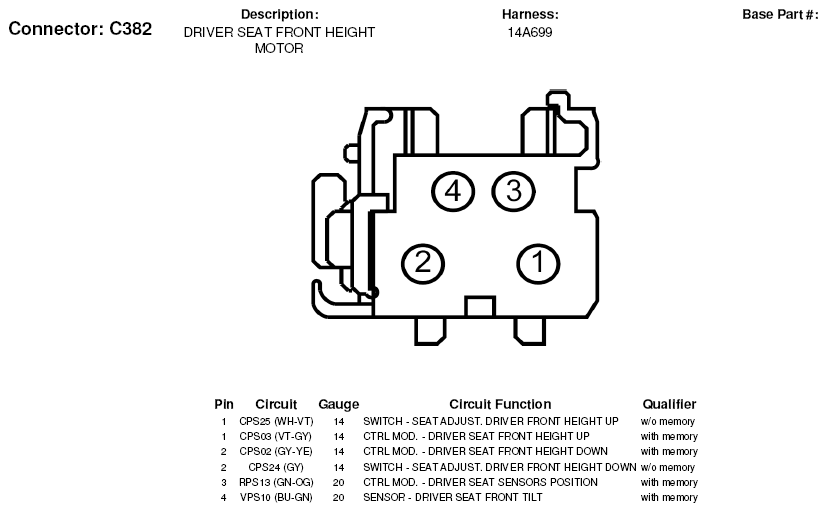

Fig 1: Driver Seat Front Height Connector End View (C382)
Courtesy of FORD MOTOR CO.
