Climate Controlled Seat Backrest Connector

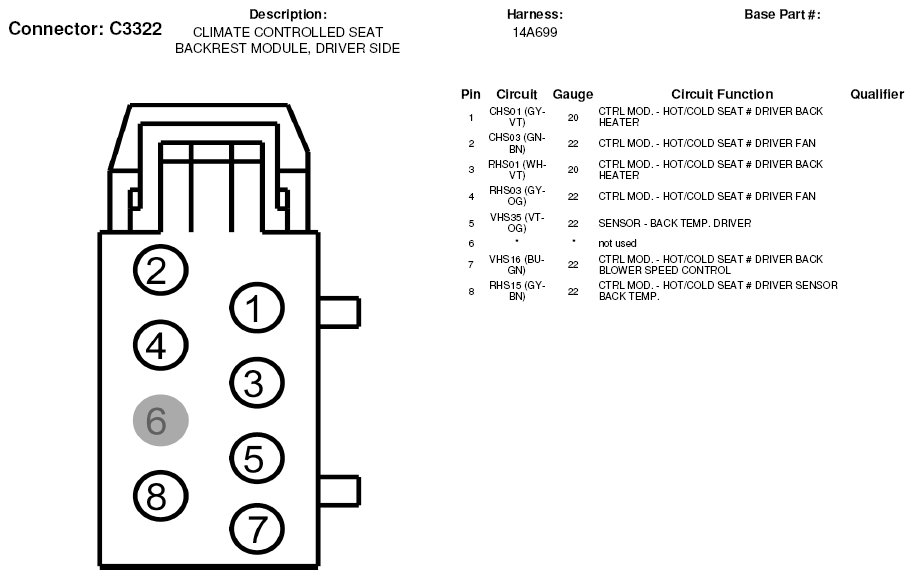

Fig 1: Climate Controlled Seat Backrest Connector End View (C3322)
G05182789Courtesy of FORD MOTOR CO.

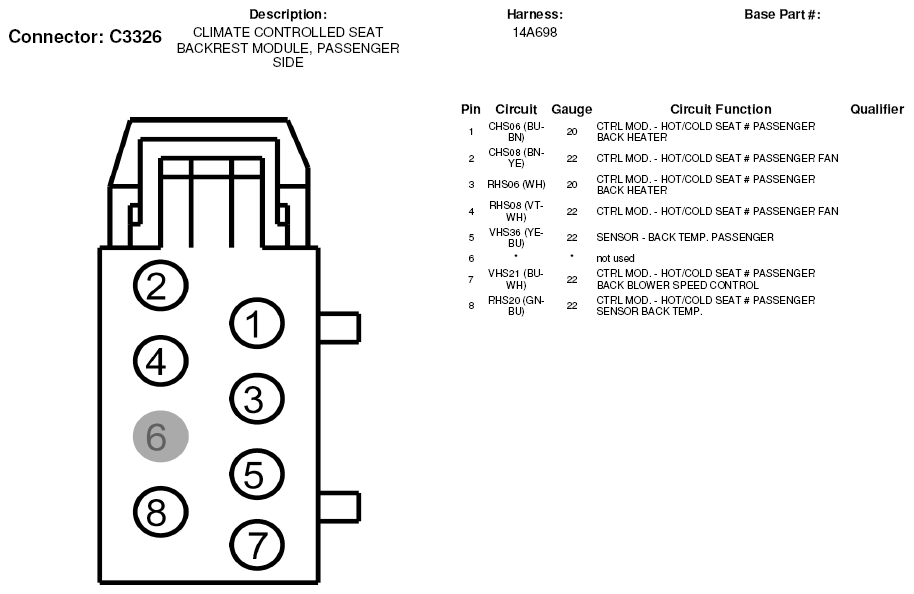

Fig 2: Climate Controlled Seat Backrest Connector End View (C3326)
G05182793Courtesy of FORD MOTOR CO.
