Restraints Control Module Connectors

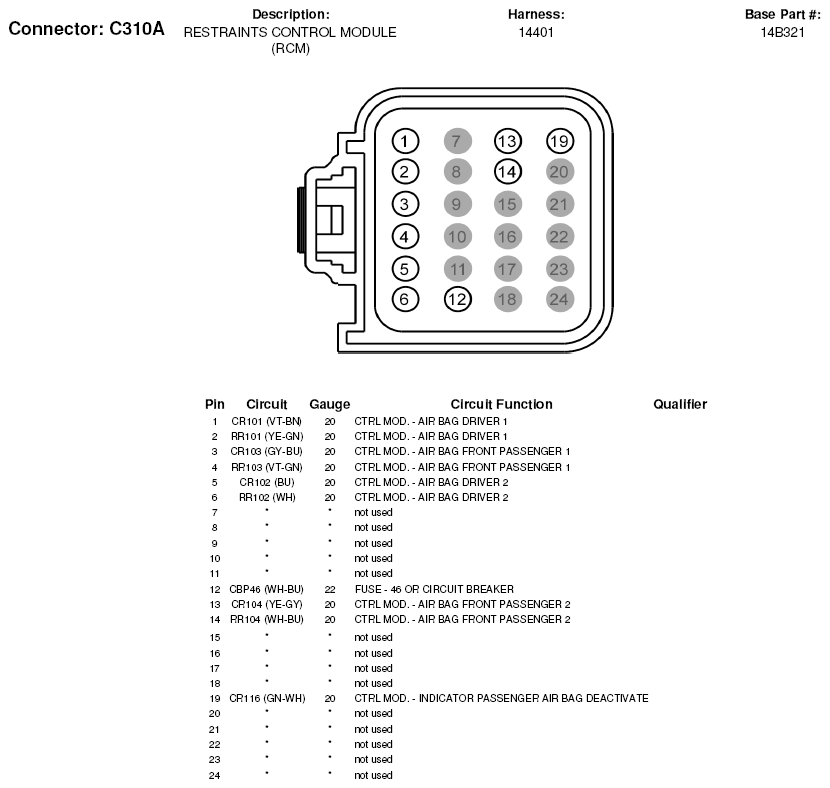

Fig 1: Restraints Control Module Connector End View (C310A)
G05182597Courtesy of FORD MOTOR CO.

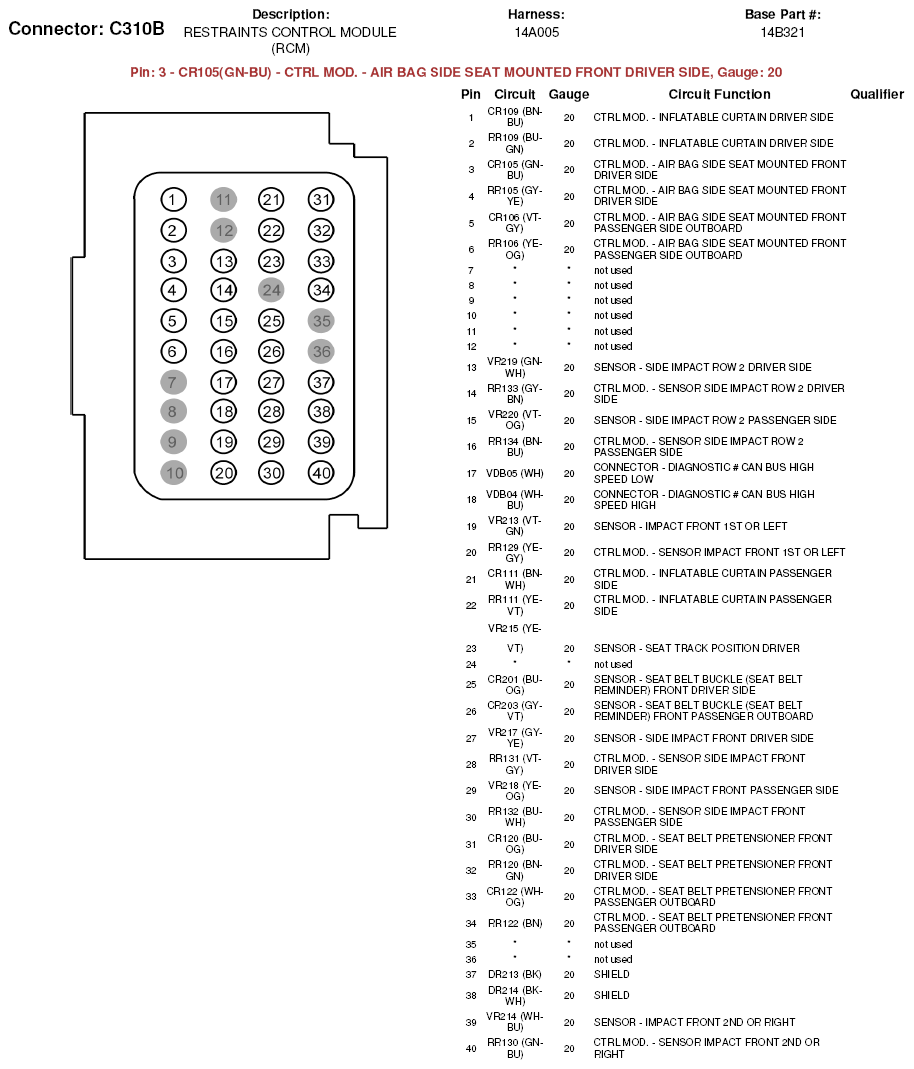

Fig 2: Restraints Control Module Connector End View (C310B)
G05182598Courtesy of FORD MOTOR CO.
