Tests QA: Unable to Activate Self-Test/Network Communication Error

PINPOINT TEST QA: UNABLE TO ACTIVATE SELF-TEST/NETWORK COMMUNICATION ERROR

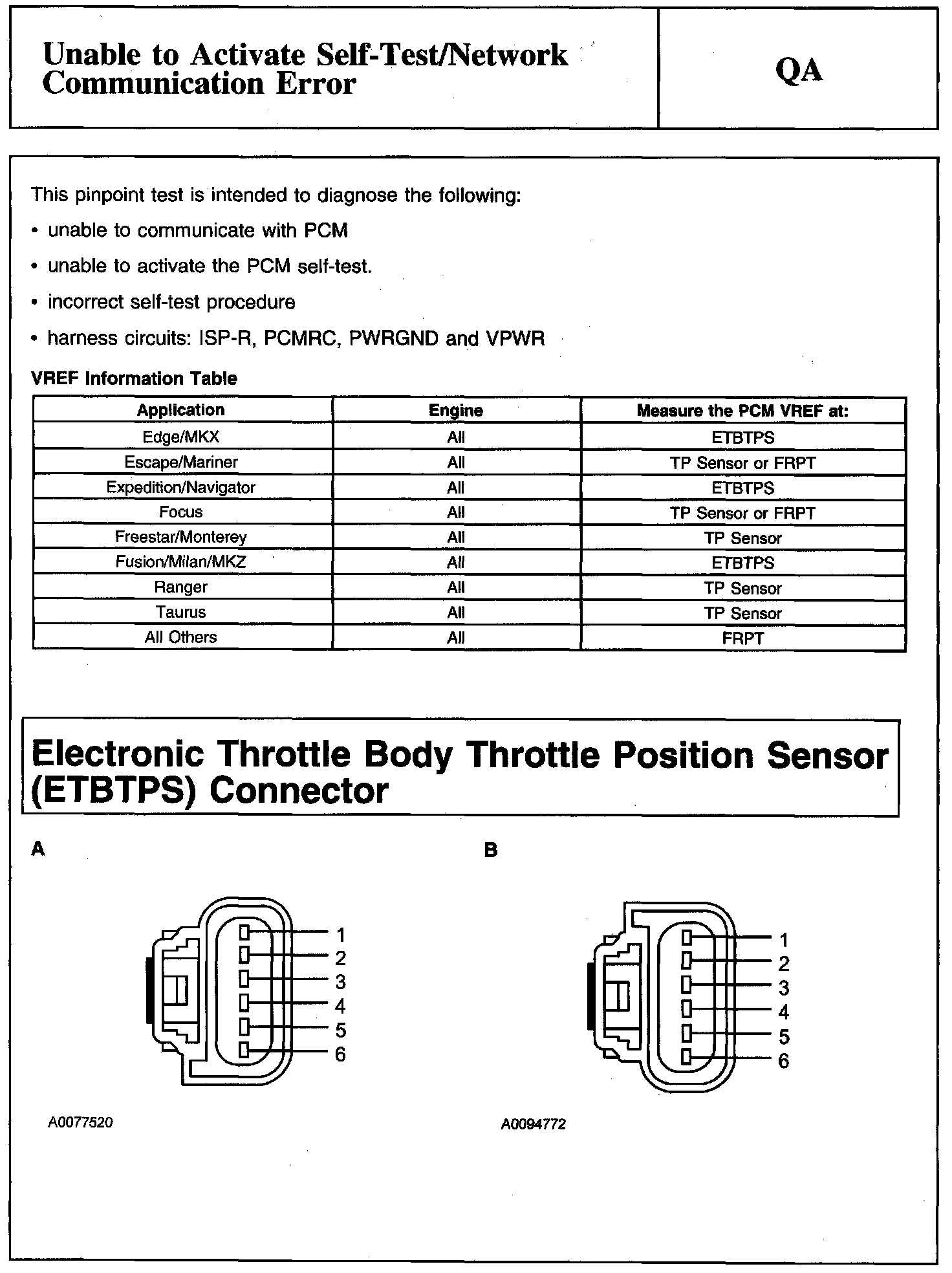

VREF Information Table And Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector:

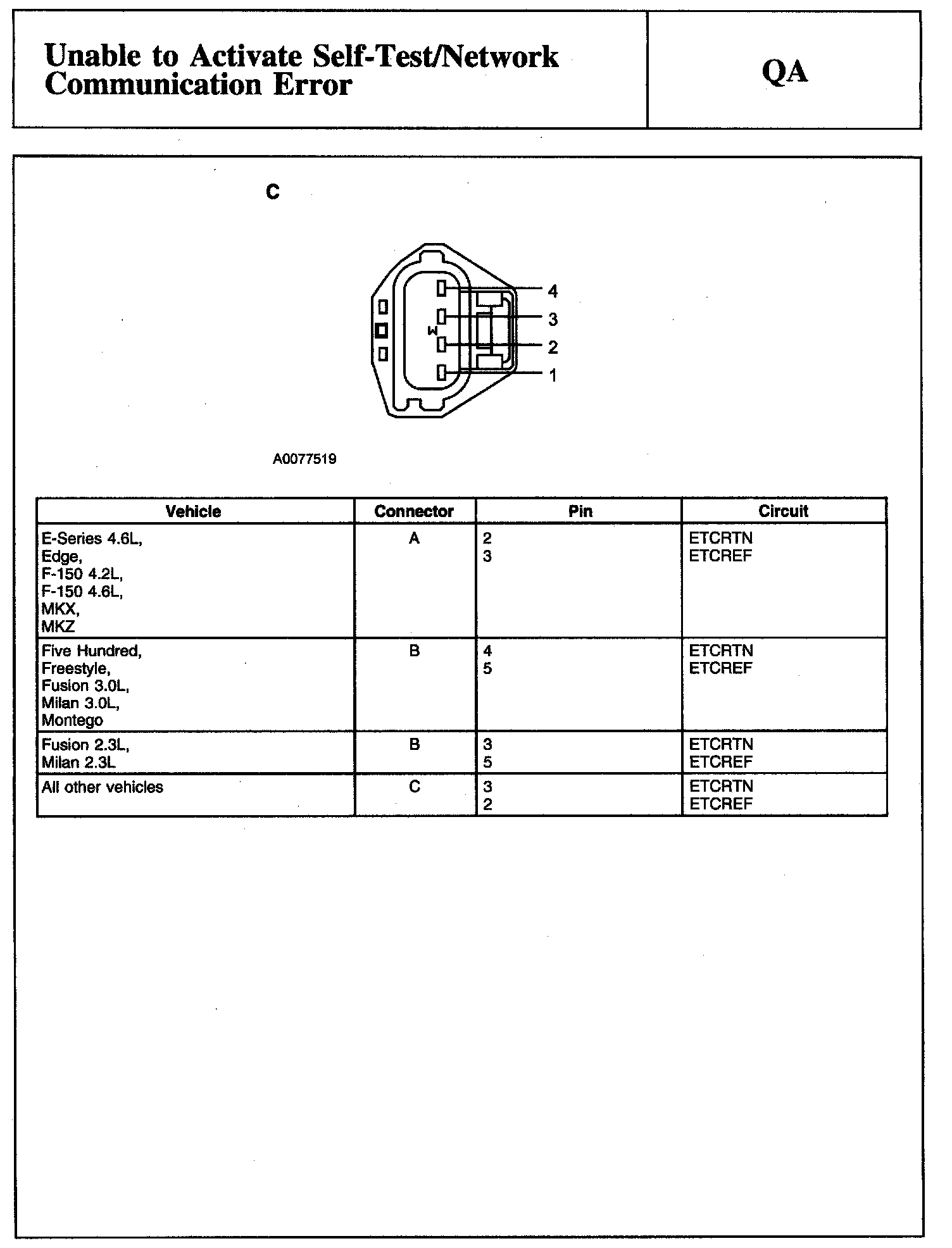

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector Continued:

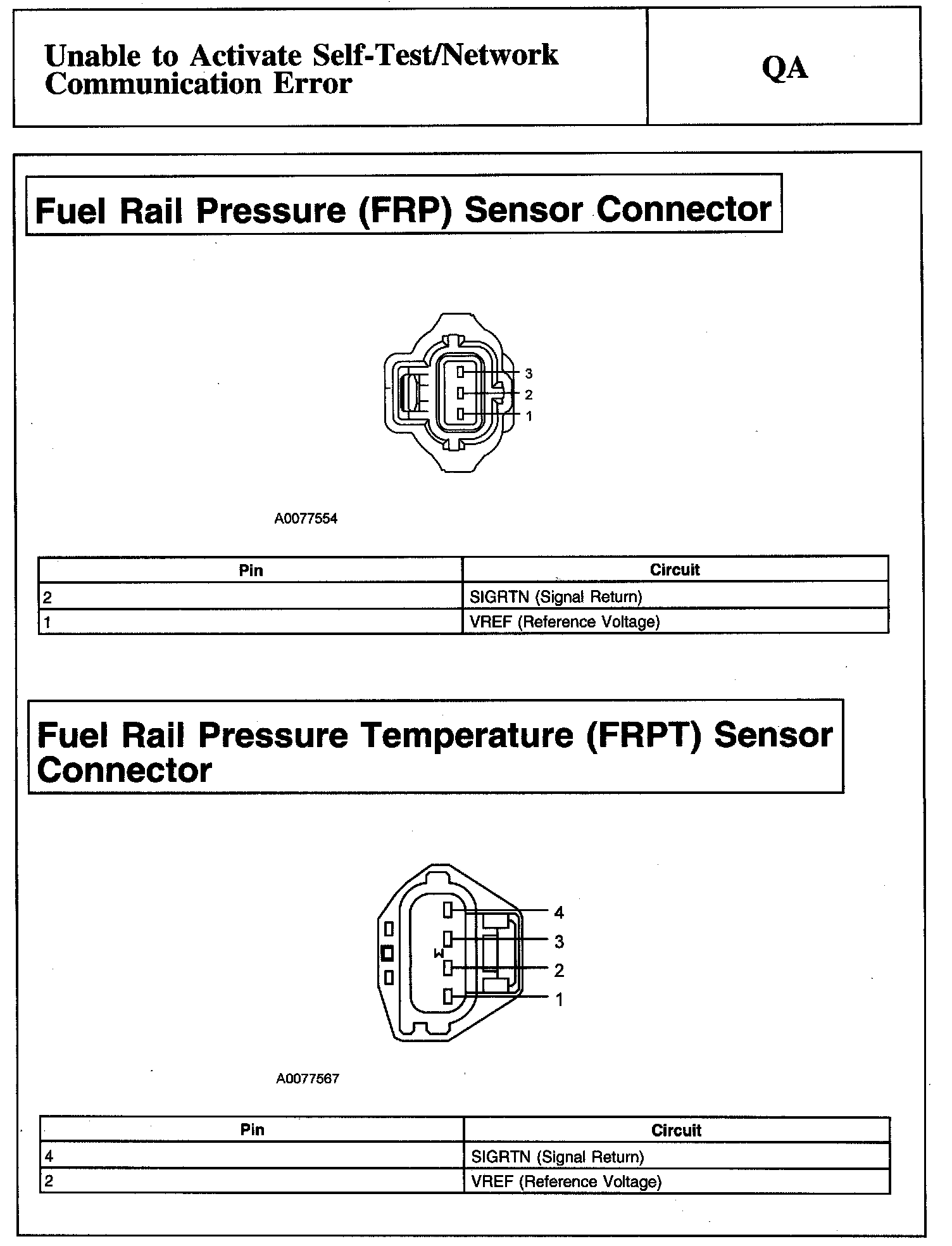

Fuel Rail Pressure (FRP) Sensor Connector And Fuel Rail Pressure Temperature (FRPT) Sensor Connector:

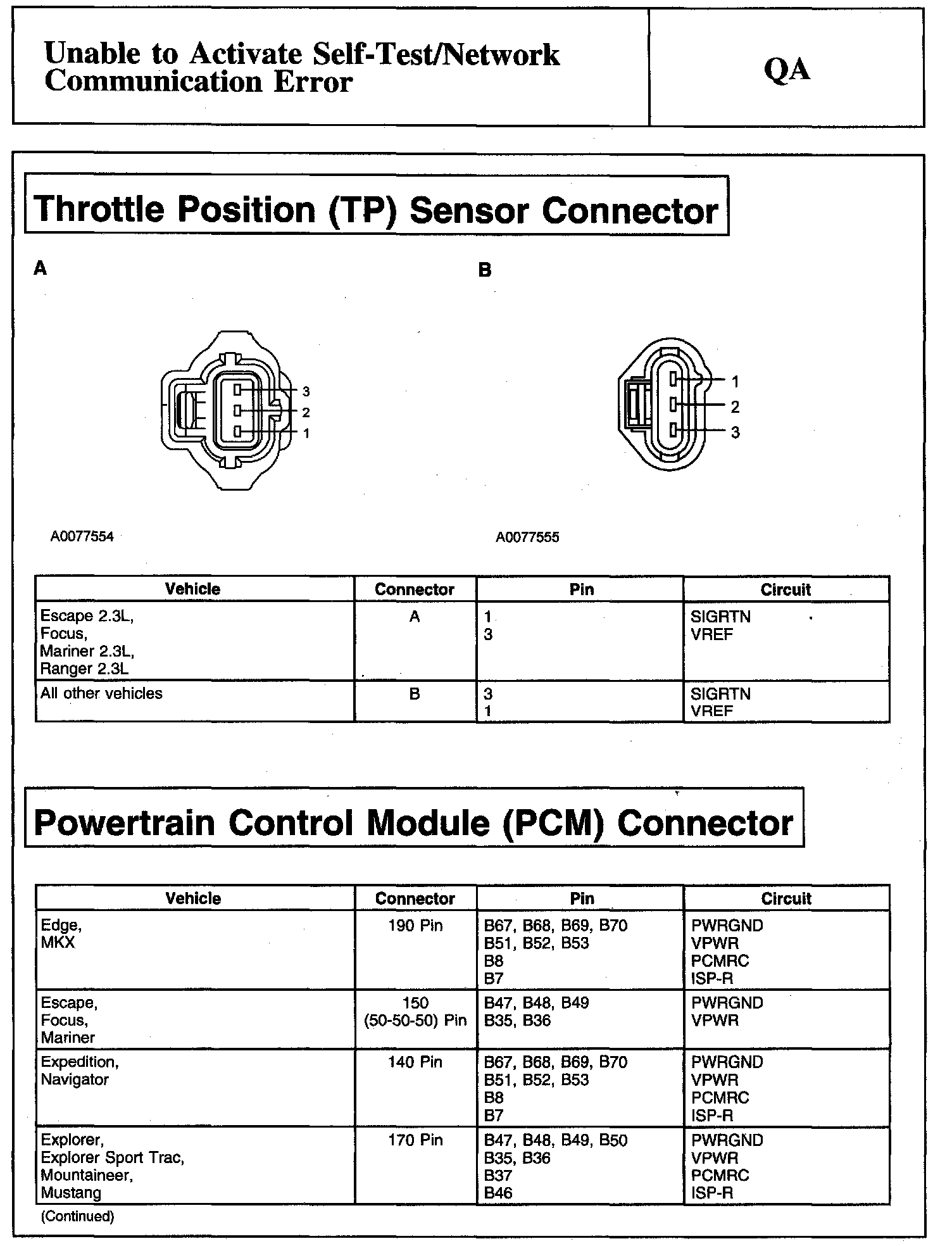

Throttle Position (TP) Sensor Connector And Powertrain Control Module (PCM) Connector:

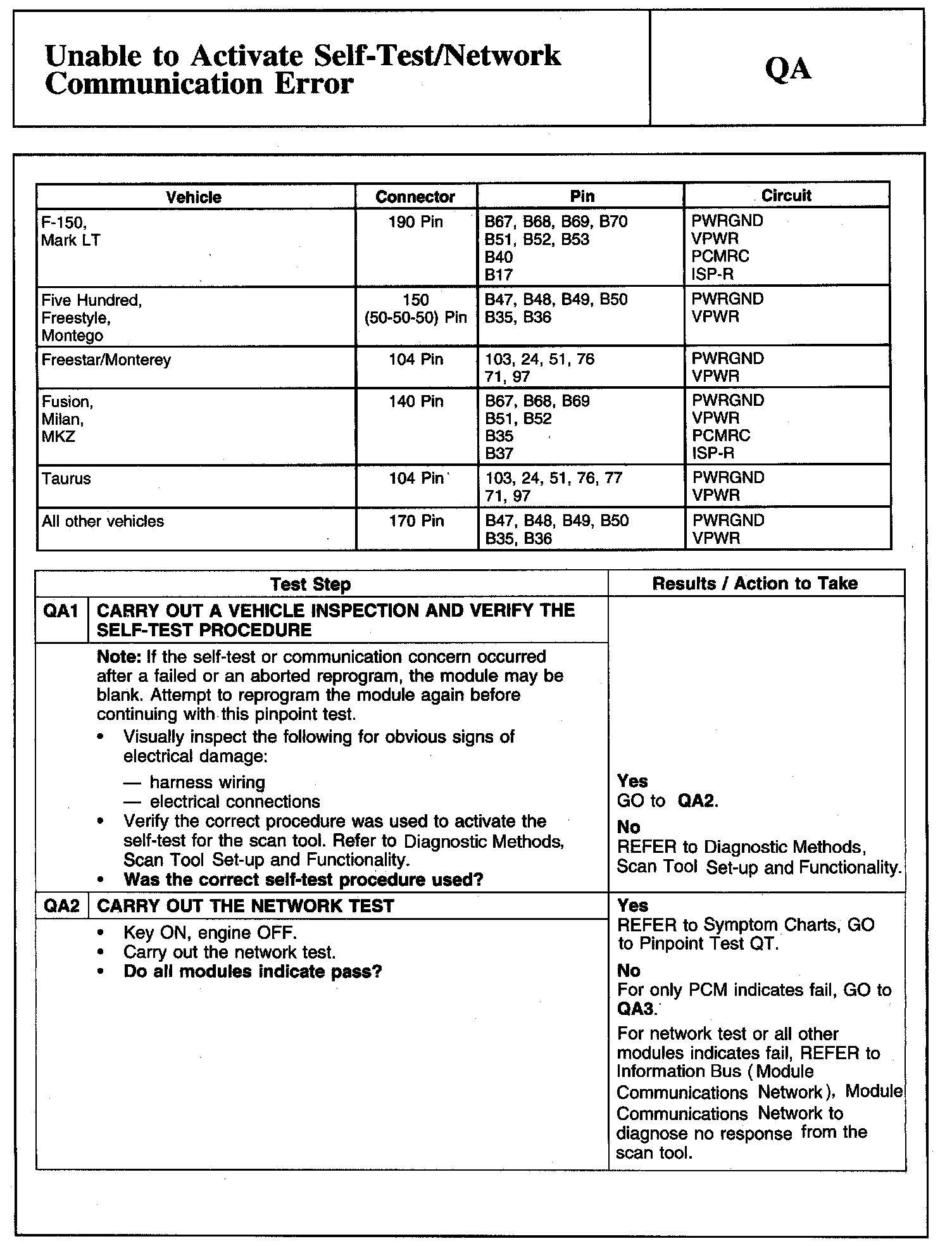

QA1-QA2:

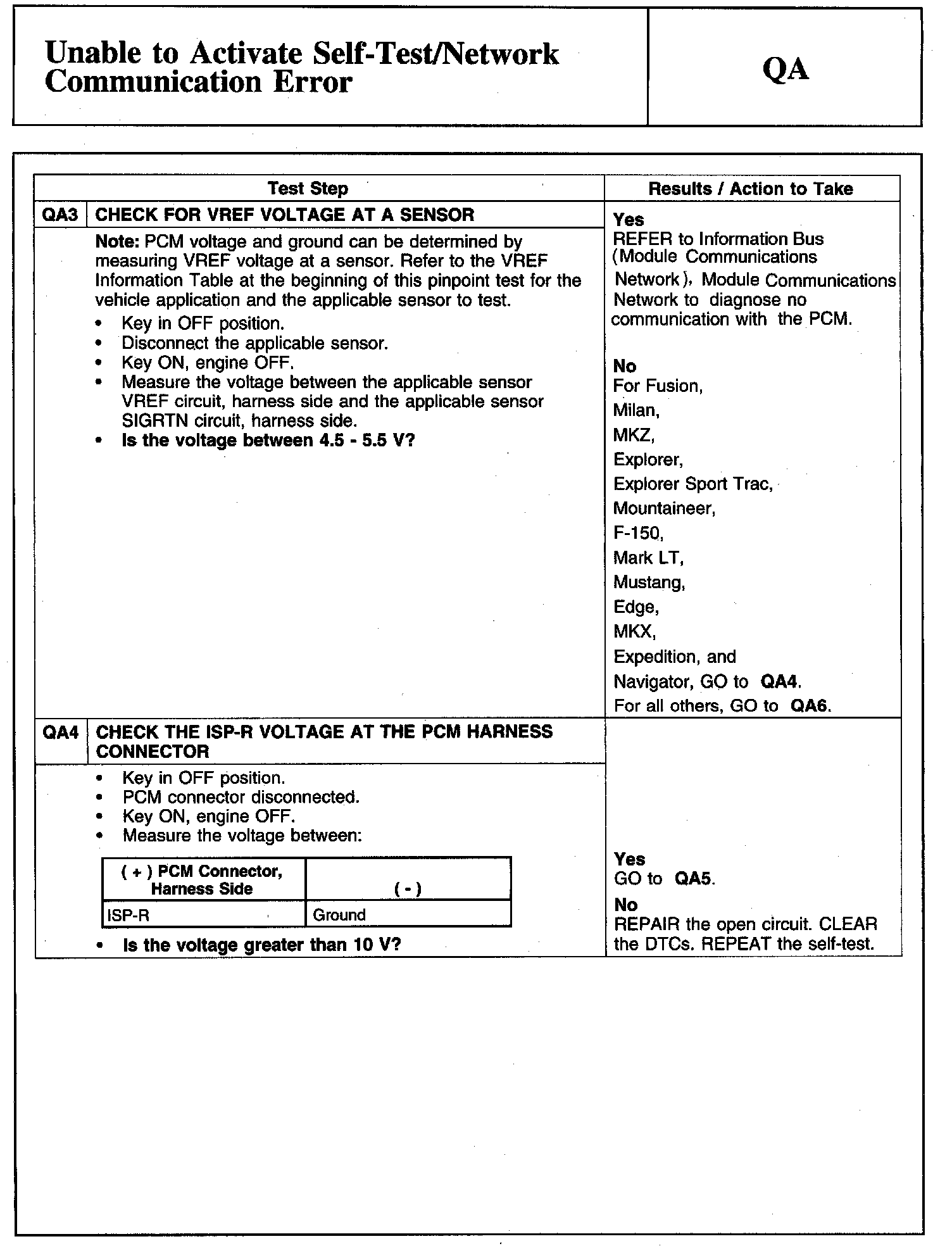

QA3-QA4:

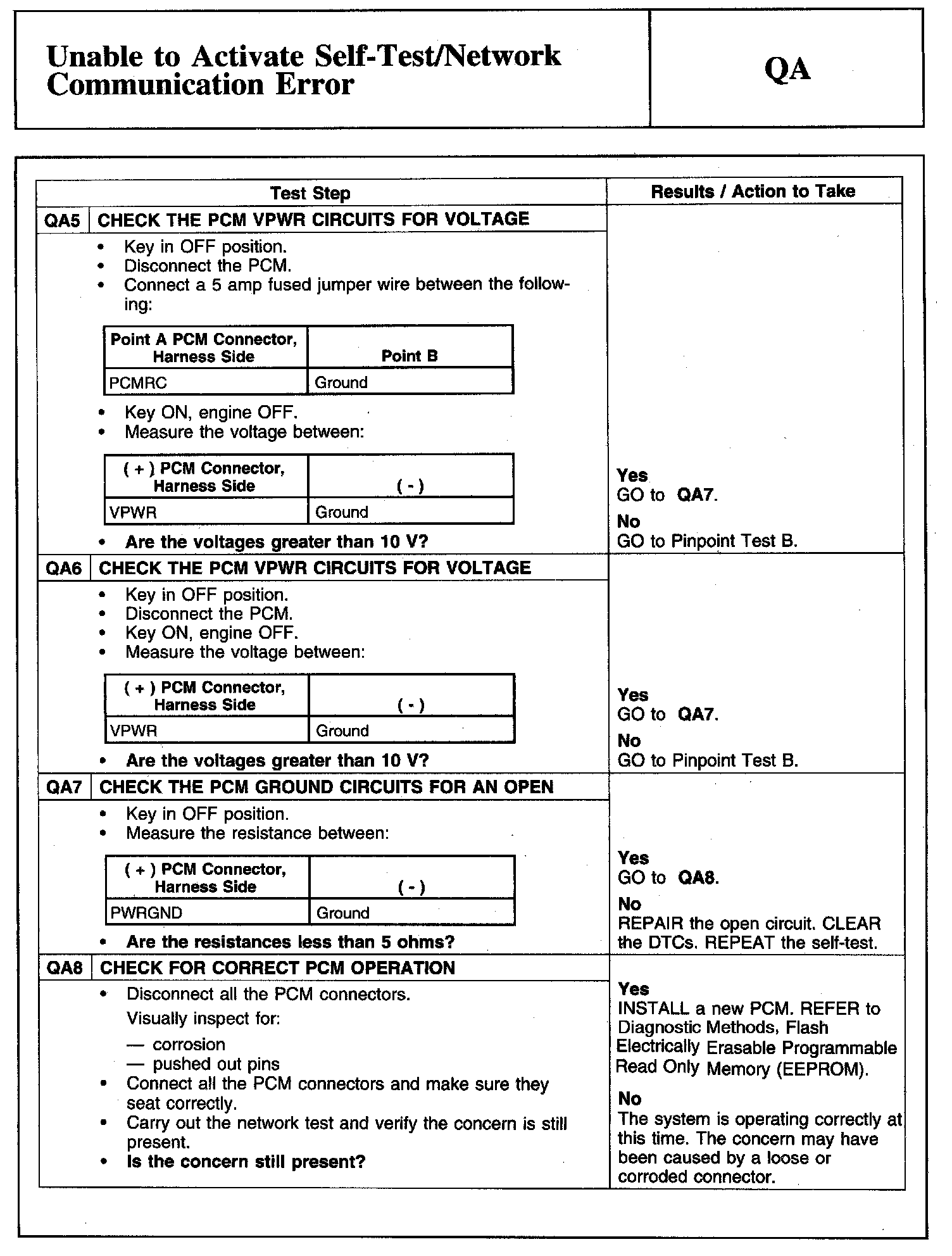

QA5-QA8:
