Tests HM: Secondary Air Injection (AIR) System

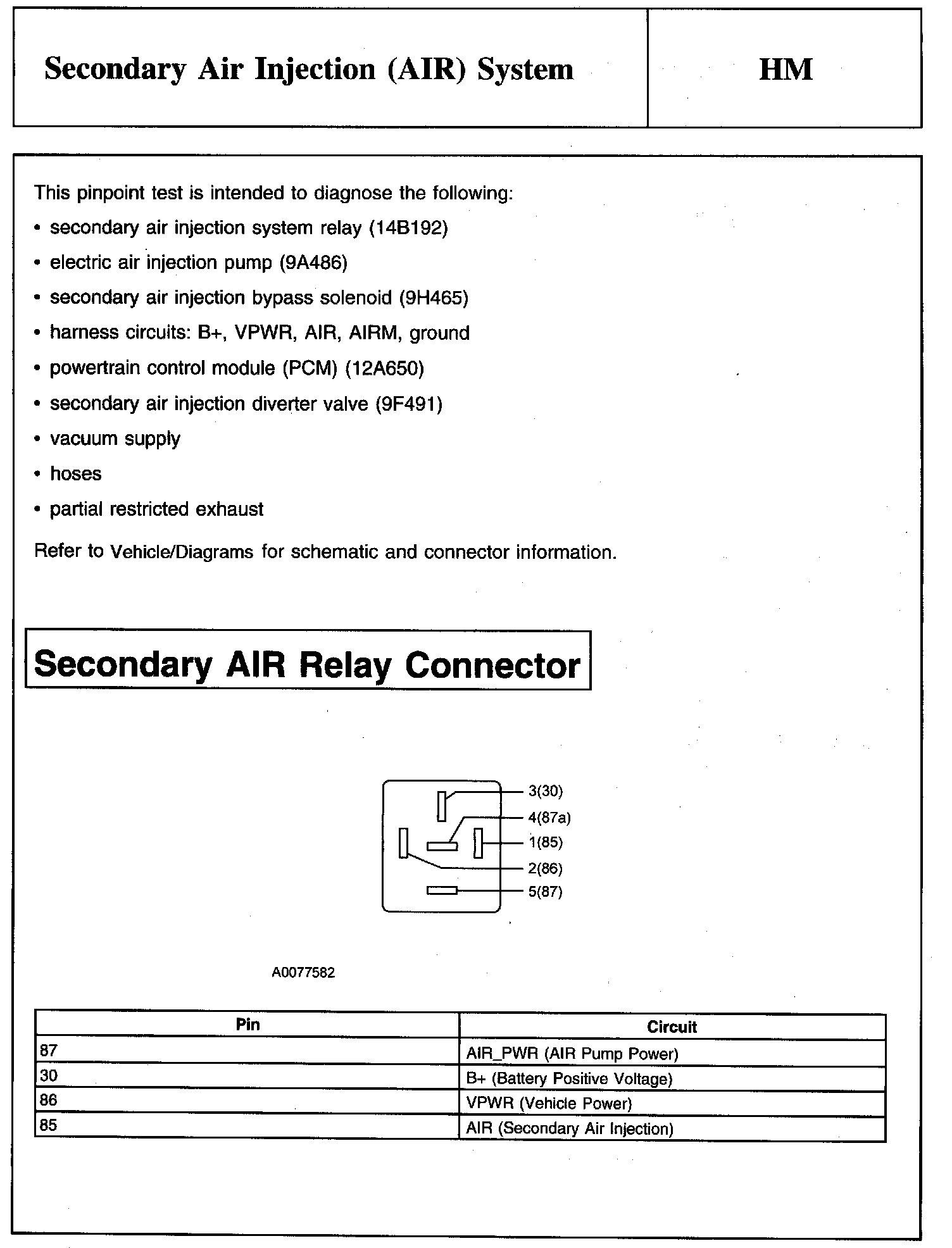

Secondary AIR Relay Connector:

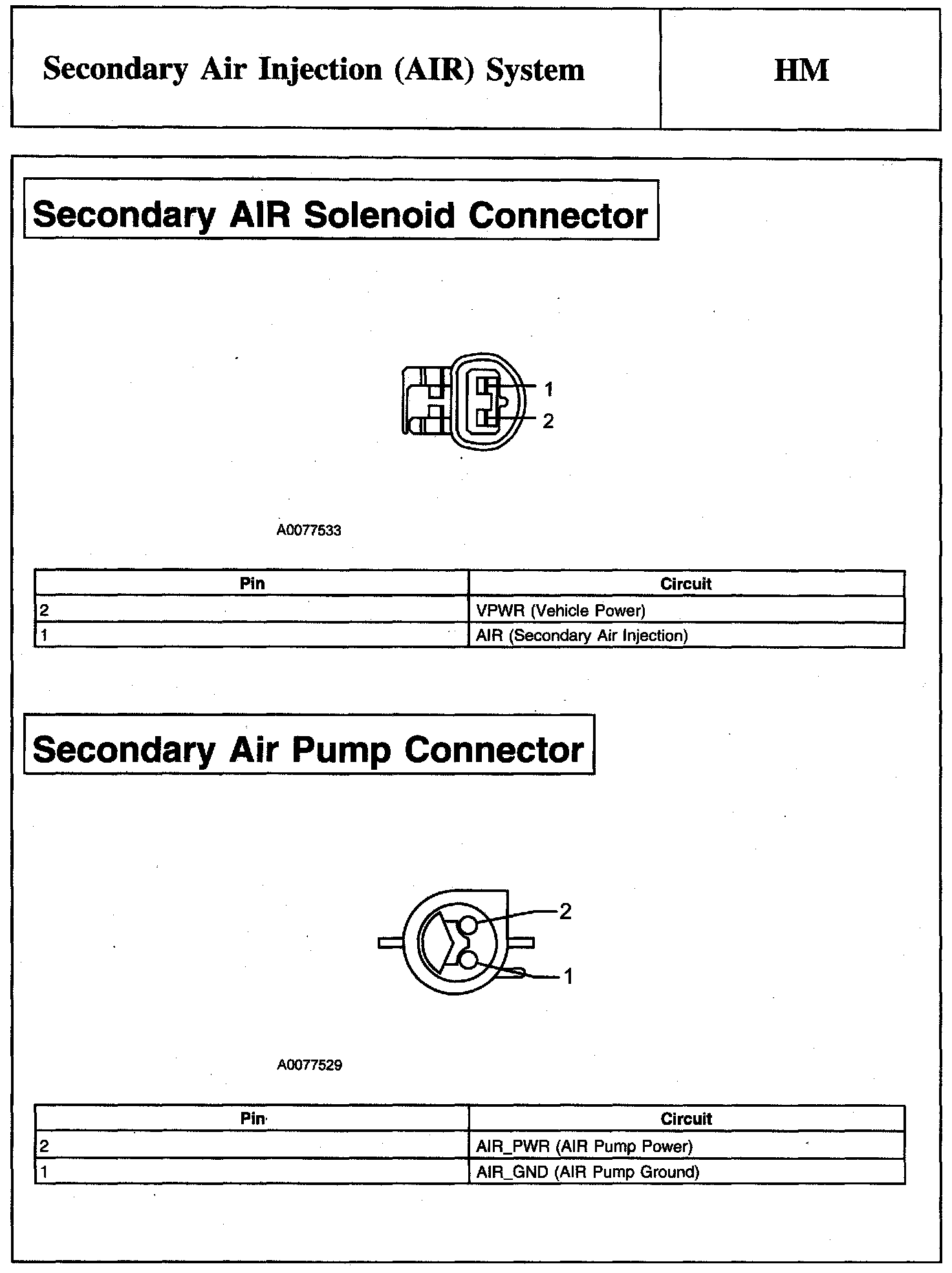

Secondary Air Solenoid Connector And Secondary Air Pump Connector:

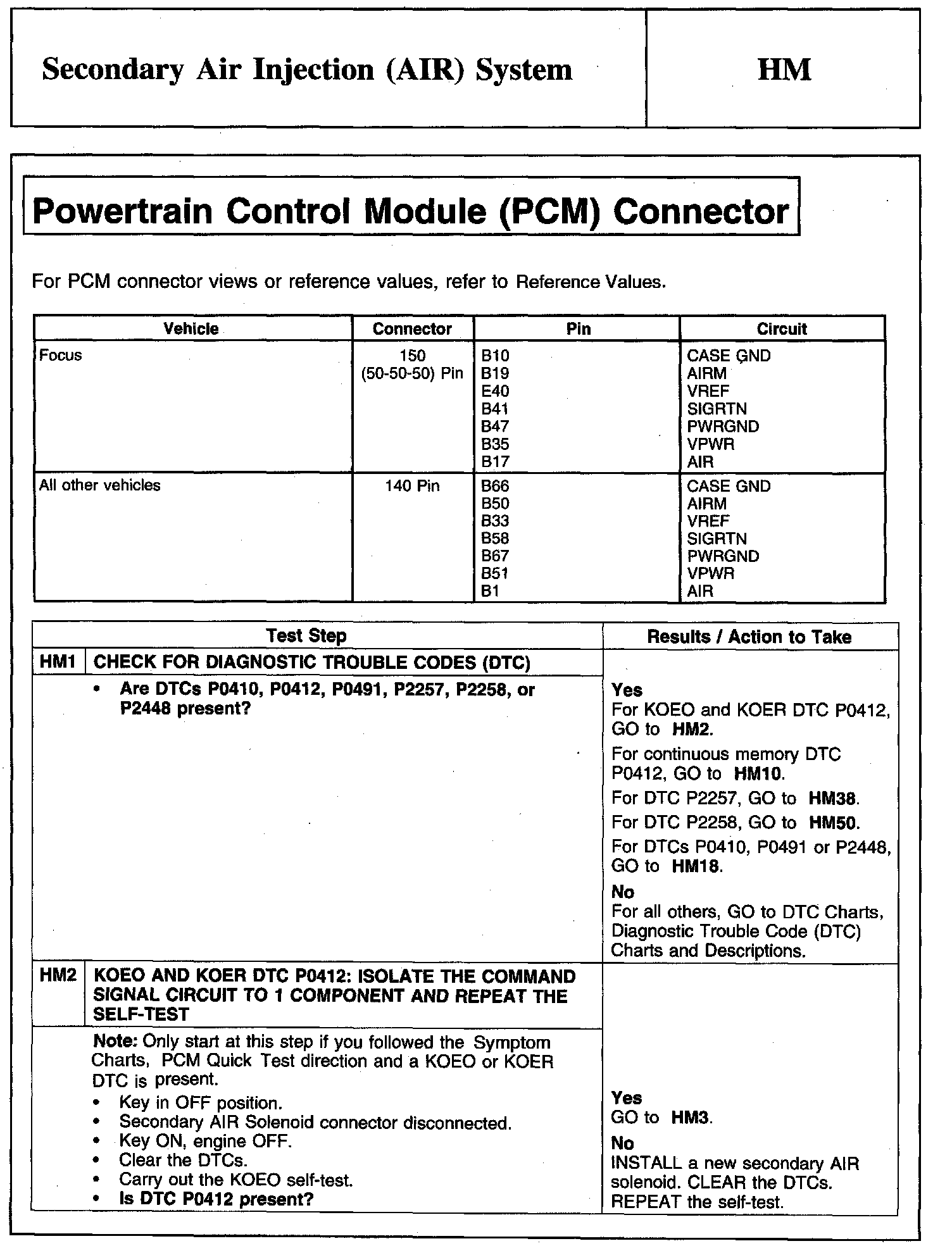

HM1-HM2:

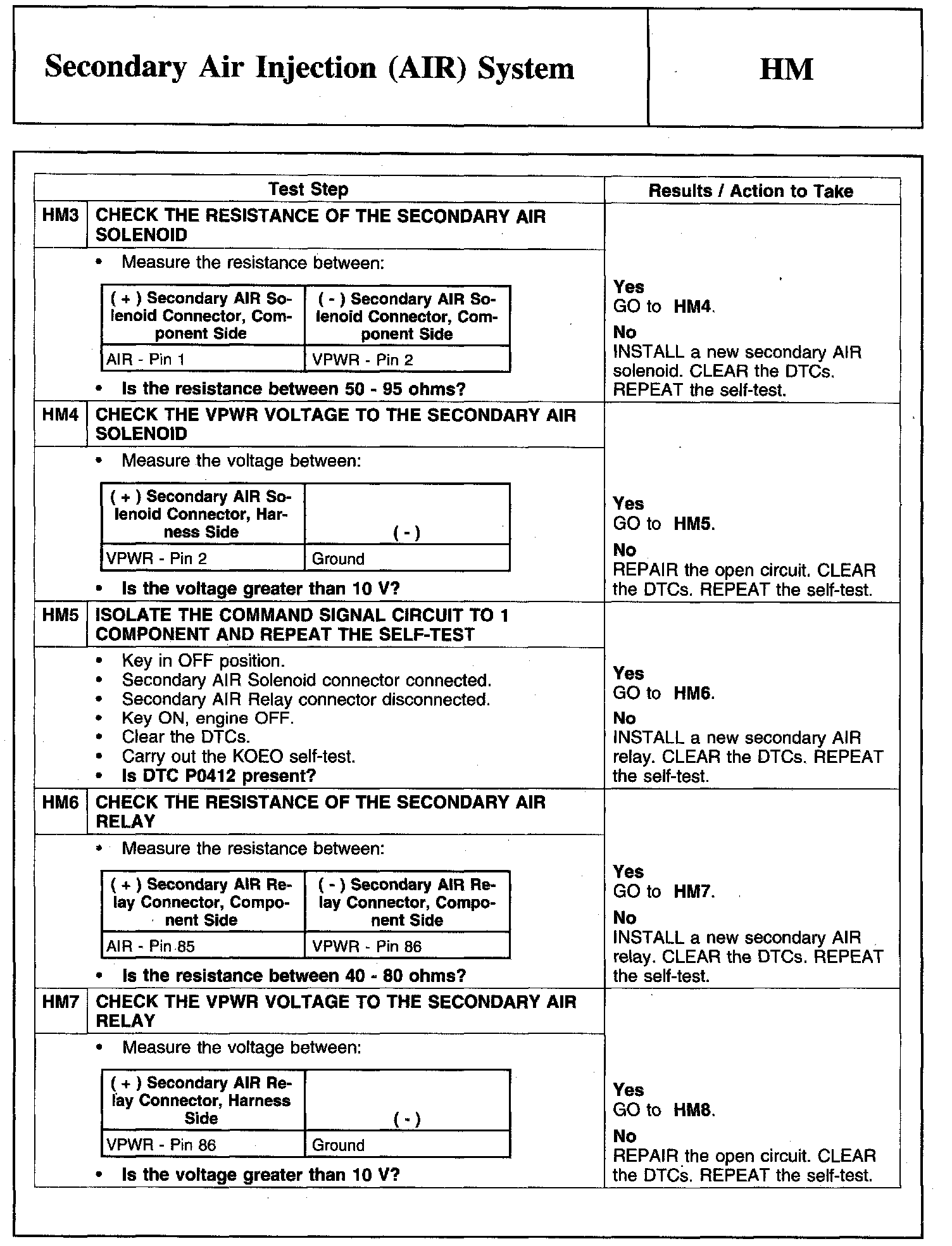

HM3-HM7:

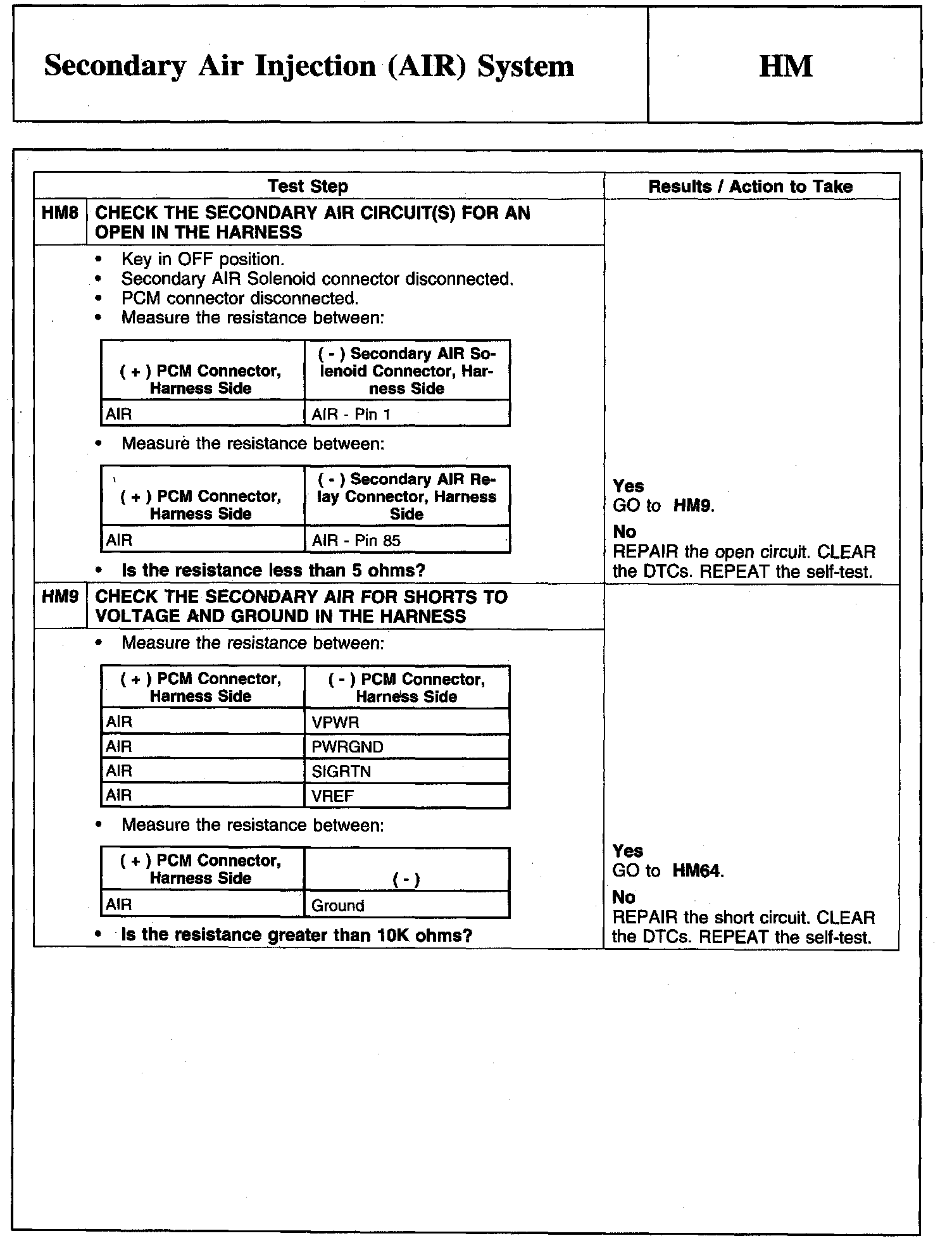

HM8-HM9:

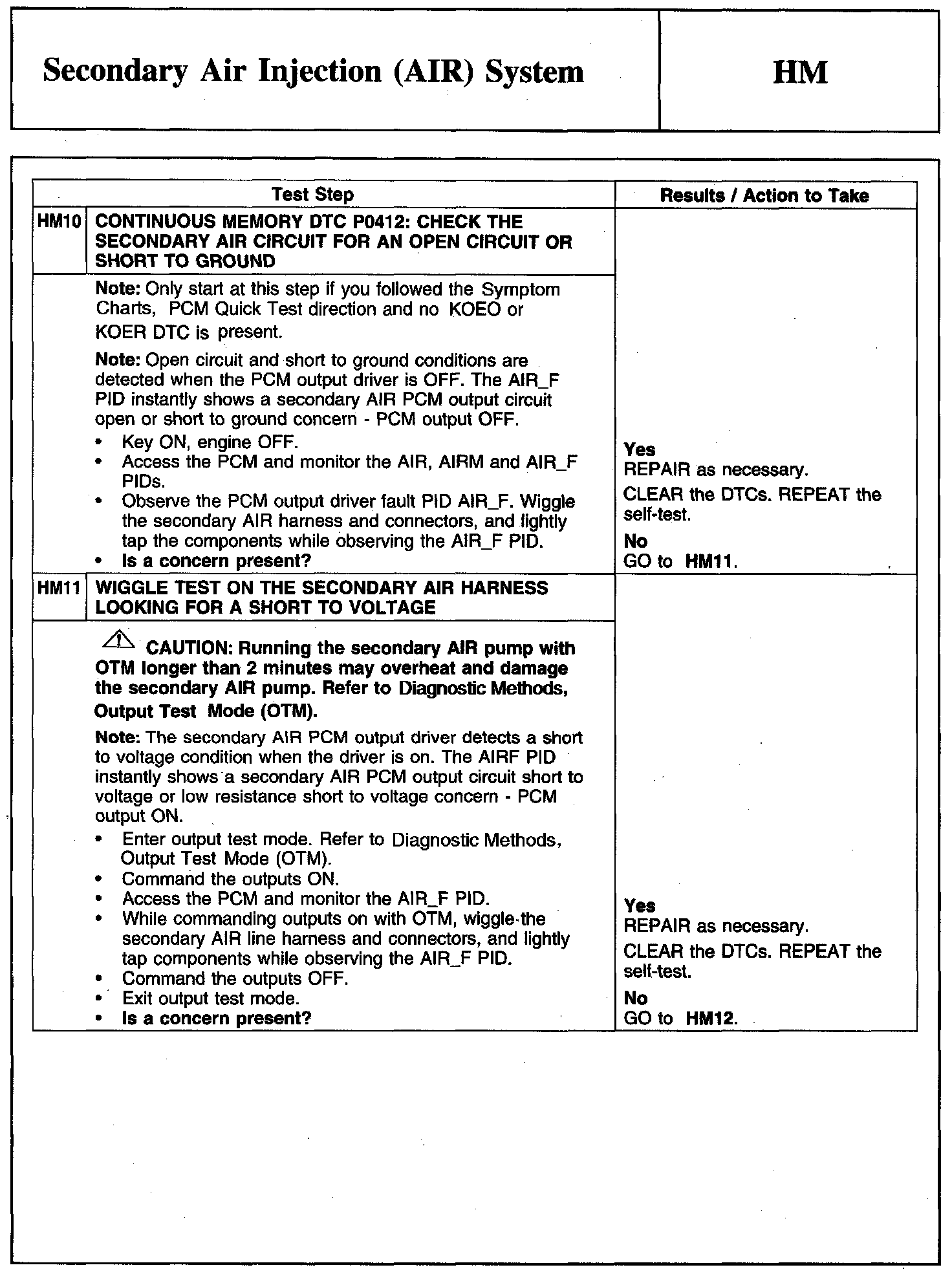

HM10-HM11:

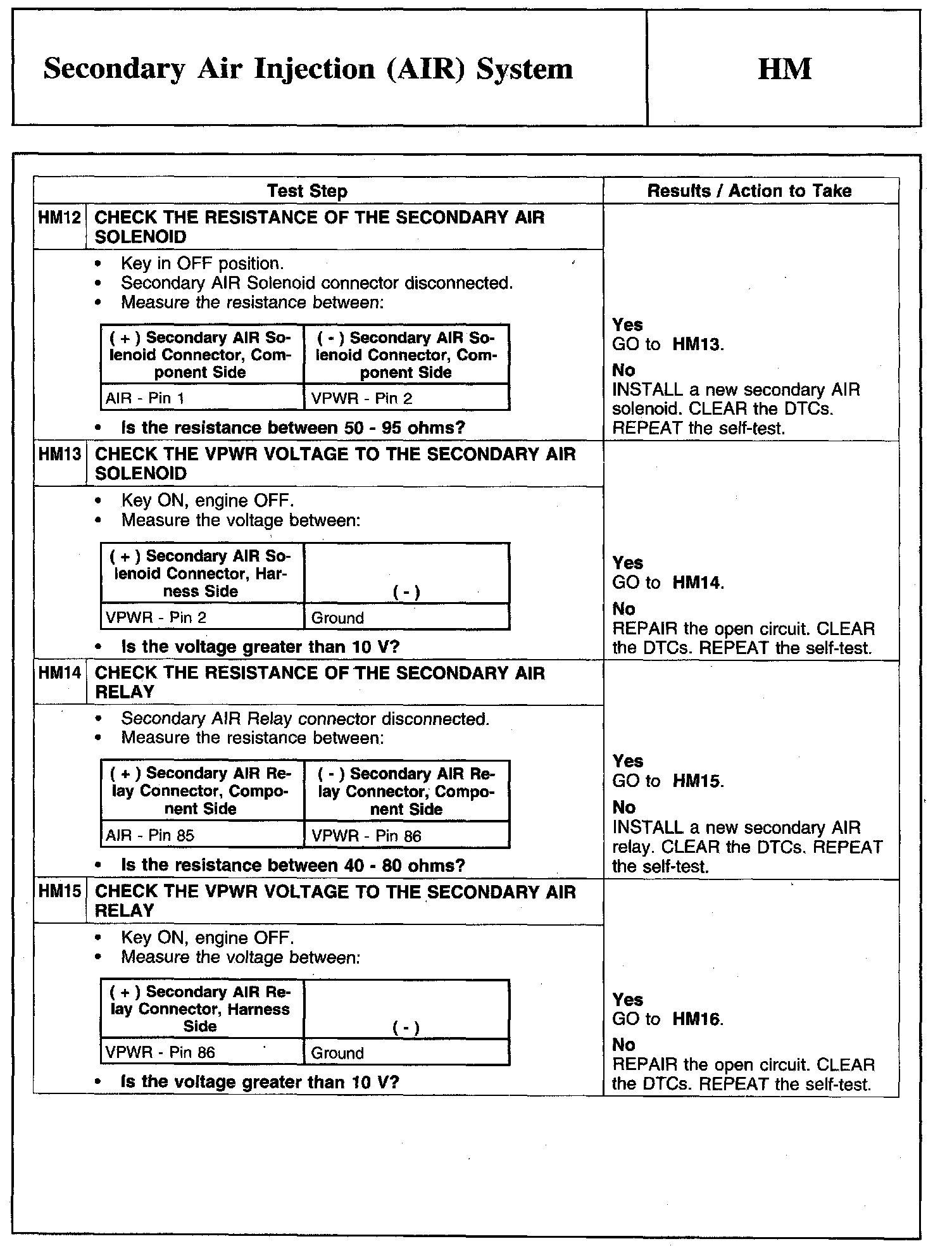

HM12-HM15:

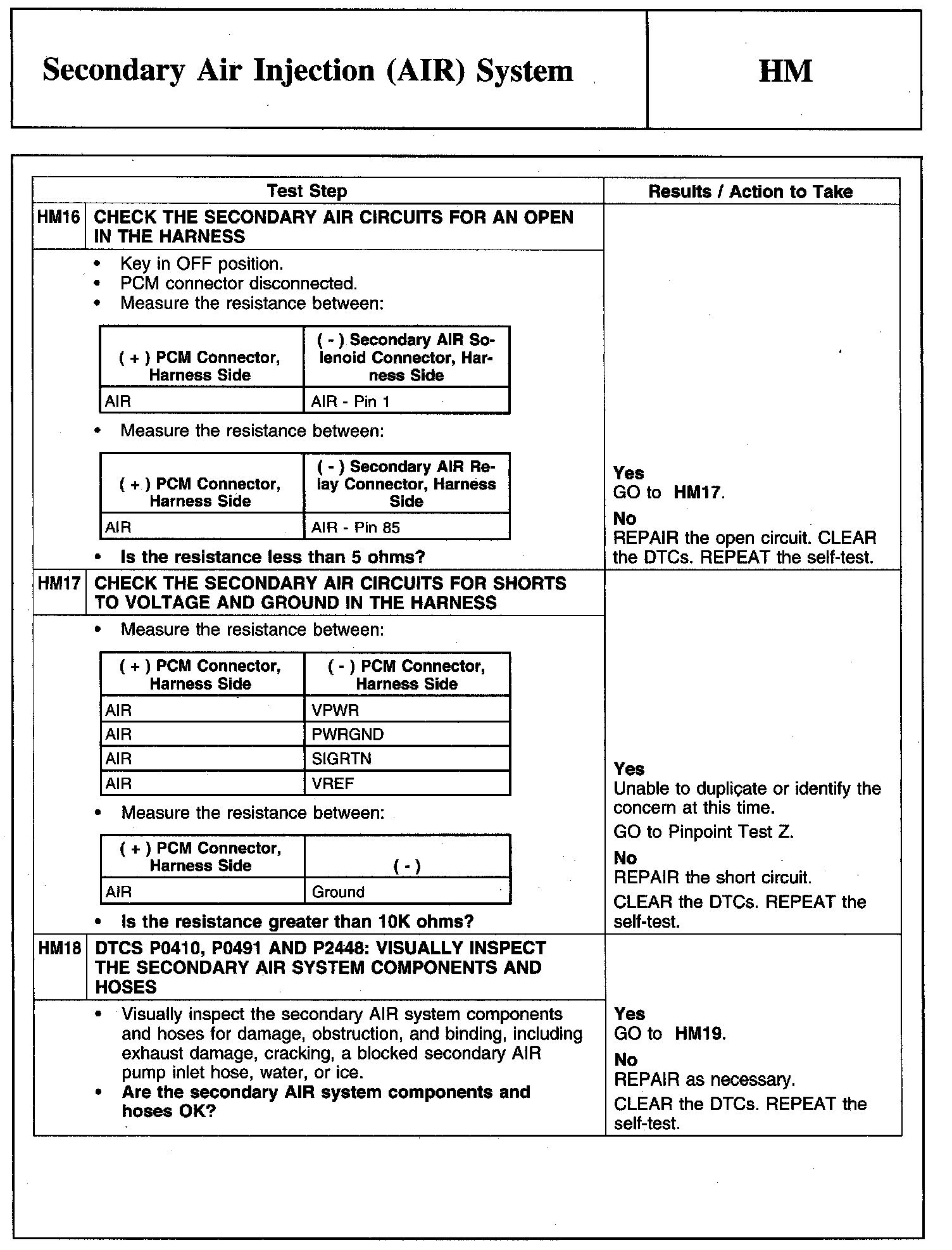

HM16-HM18:

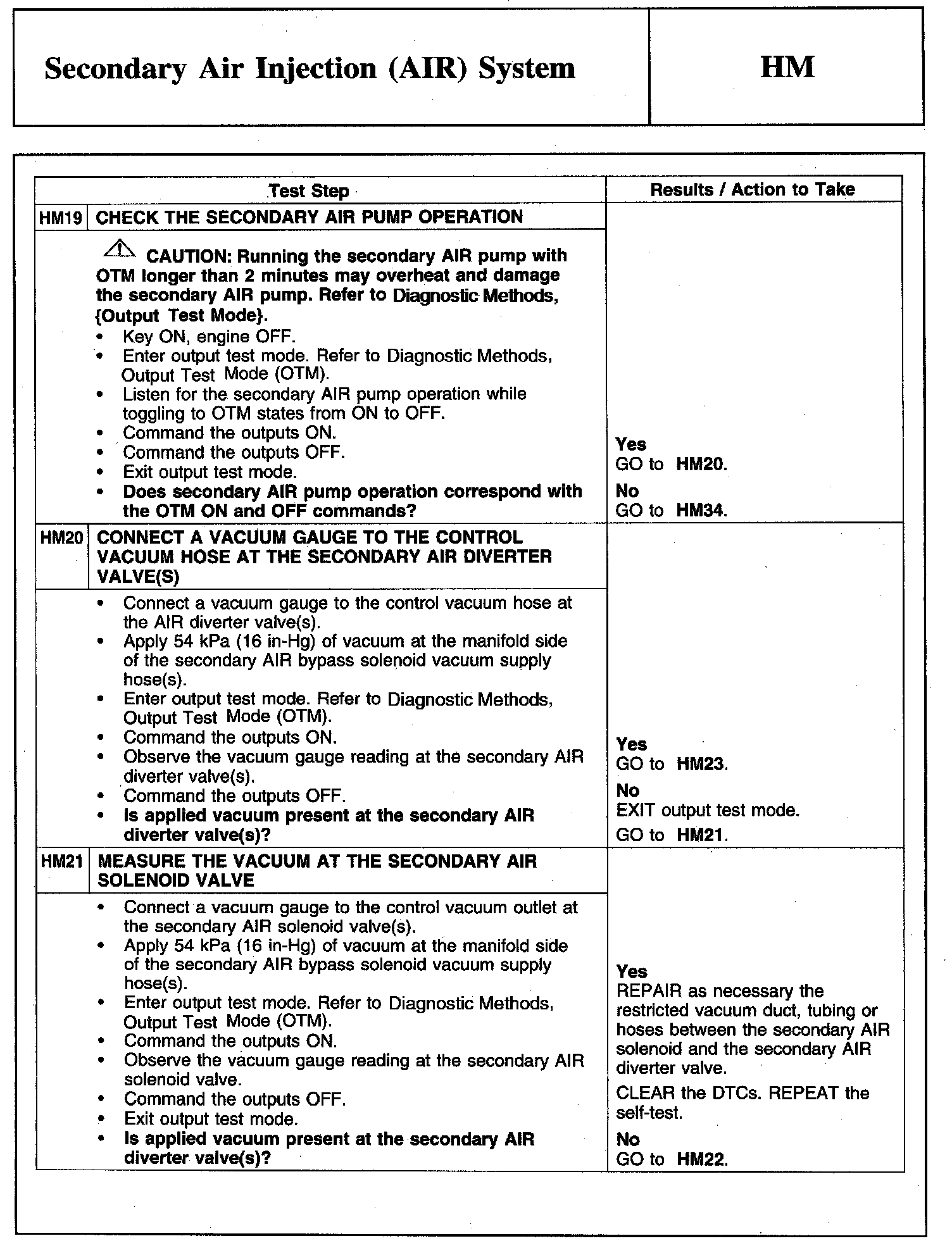

HM19-HM21:

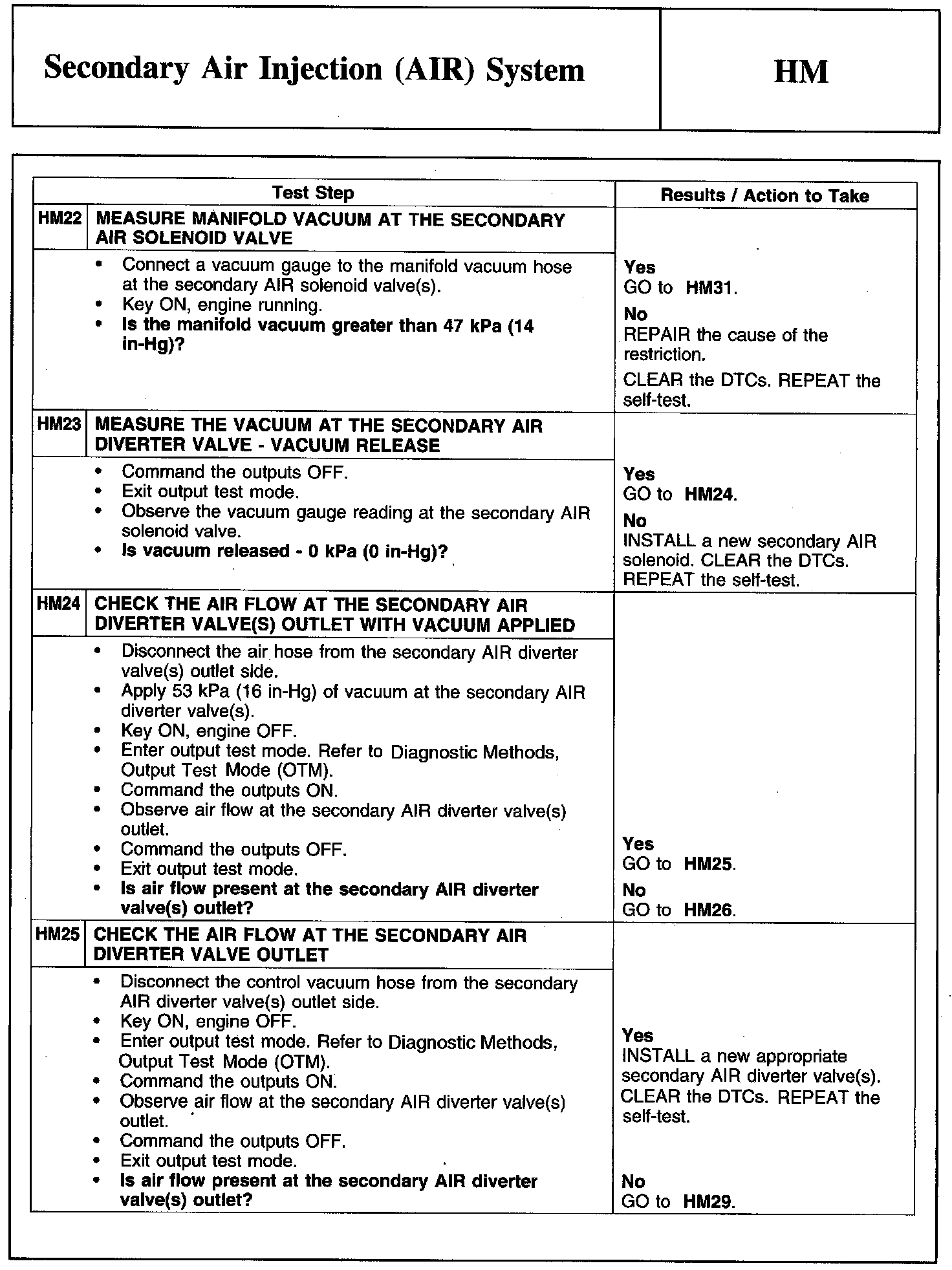

HM22-HM25:

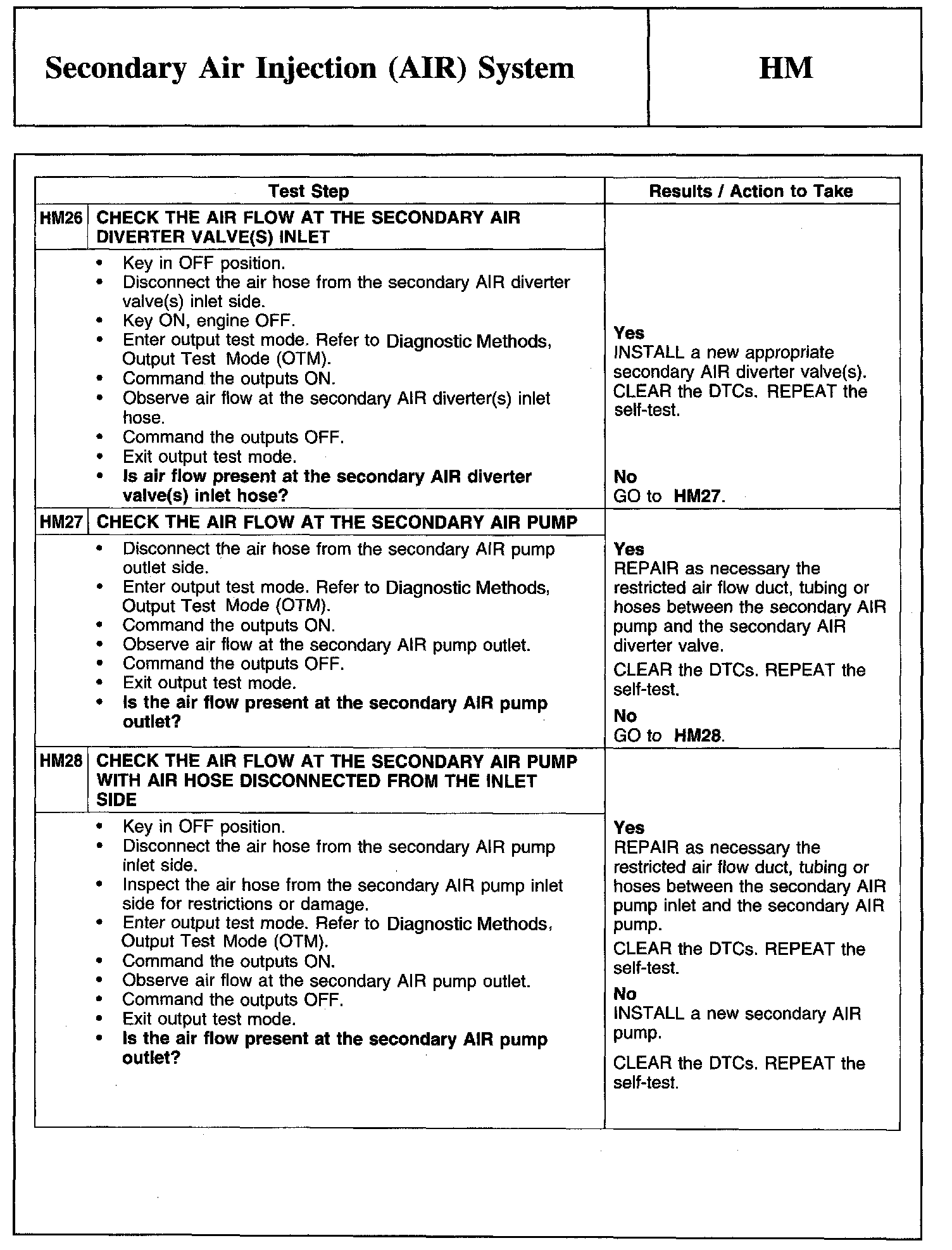

HM26-HM28:

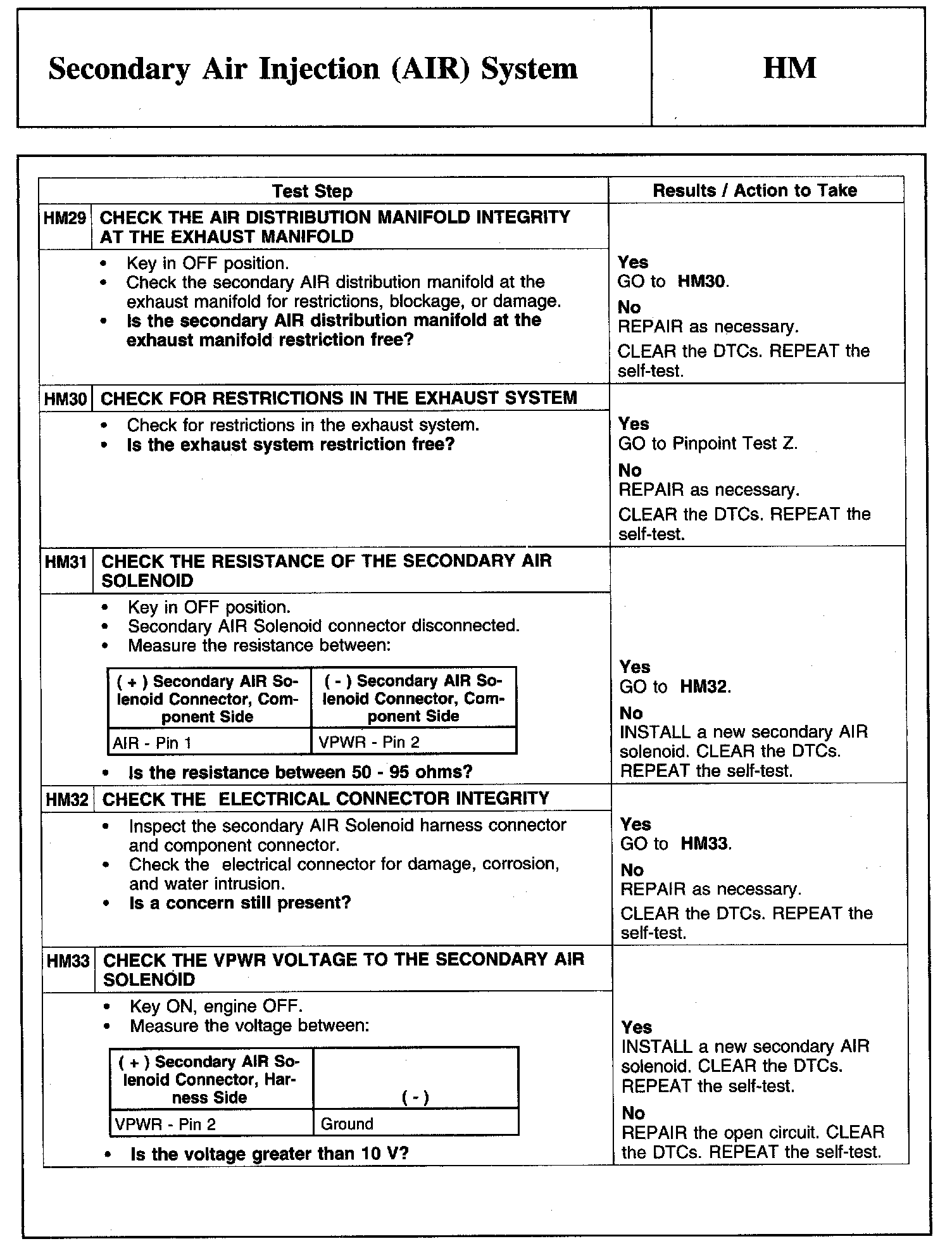

HM29-HM33:

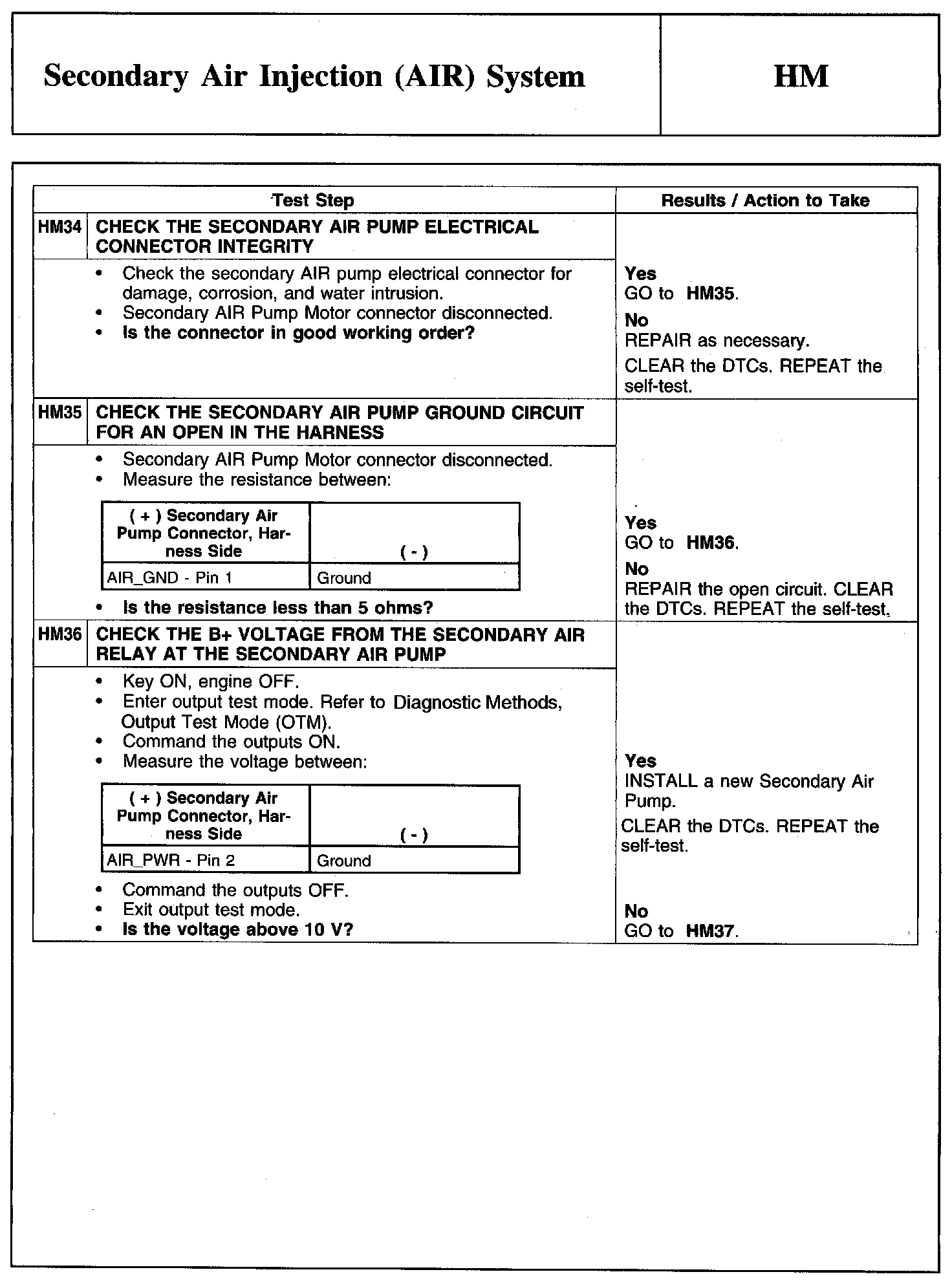

HM34-HM36:

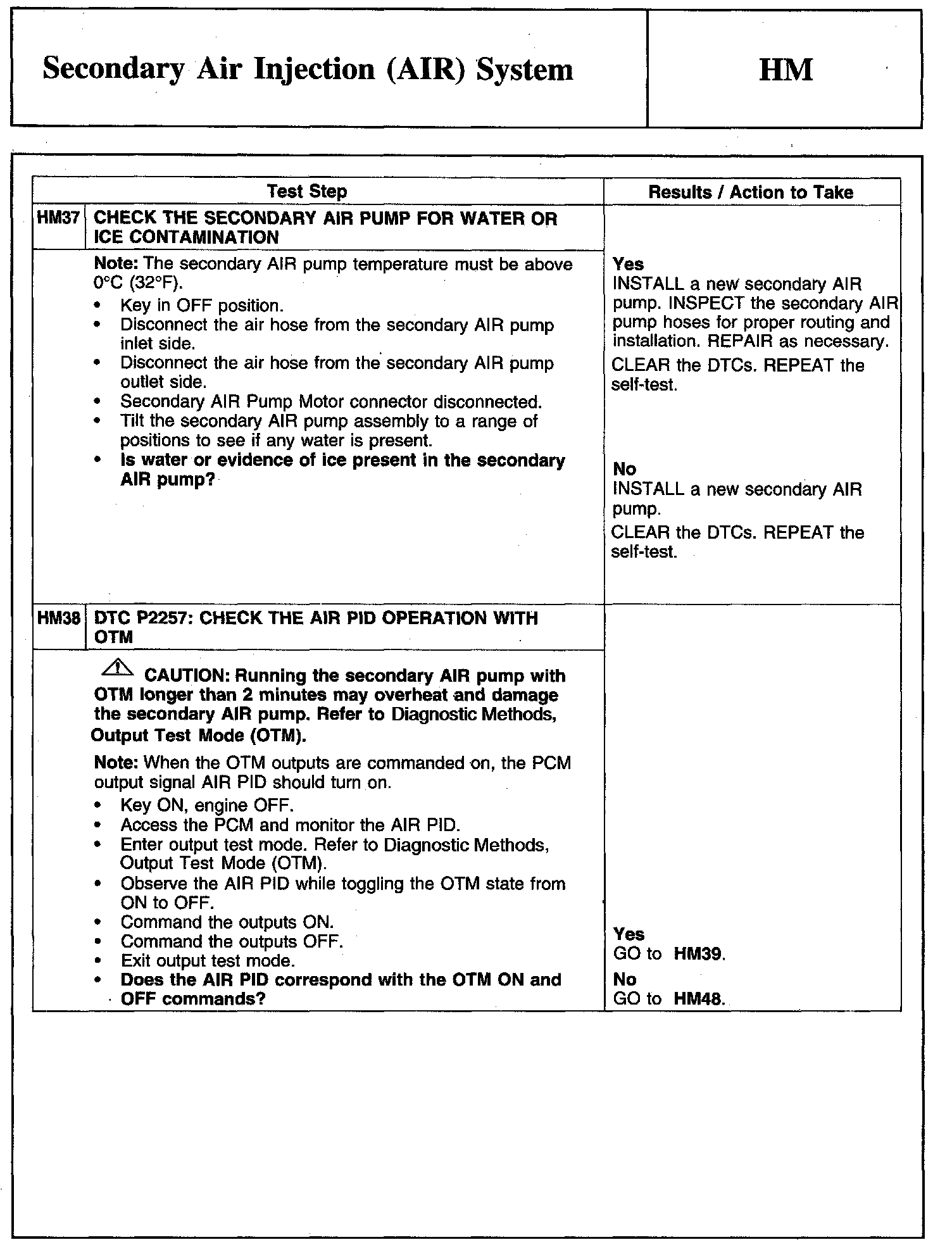

HM37-HM38:

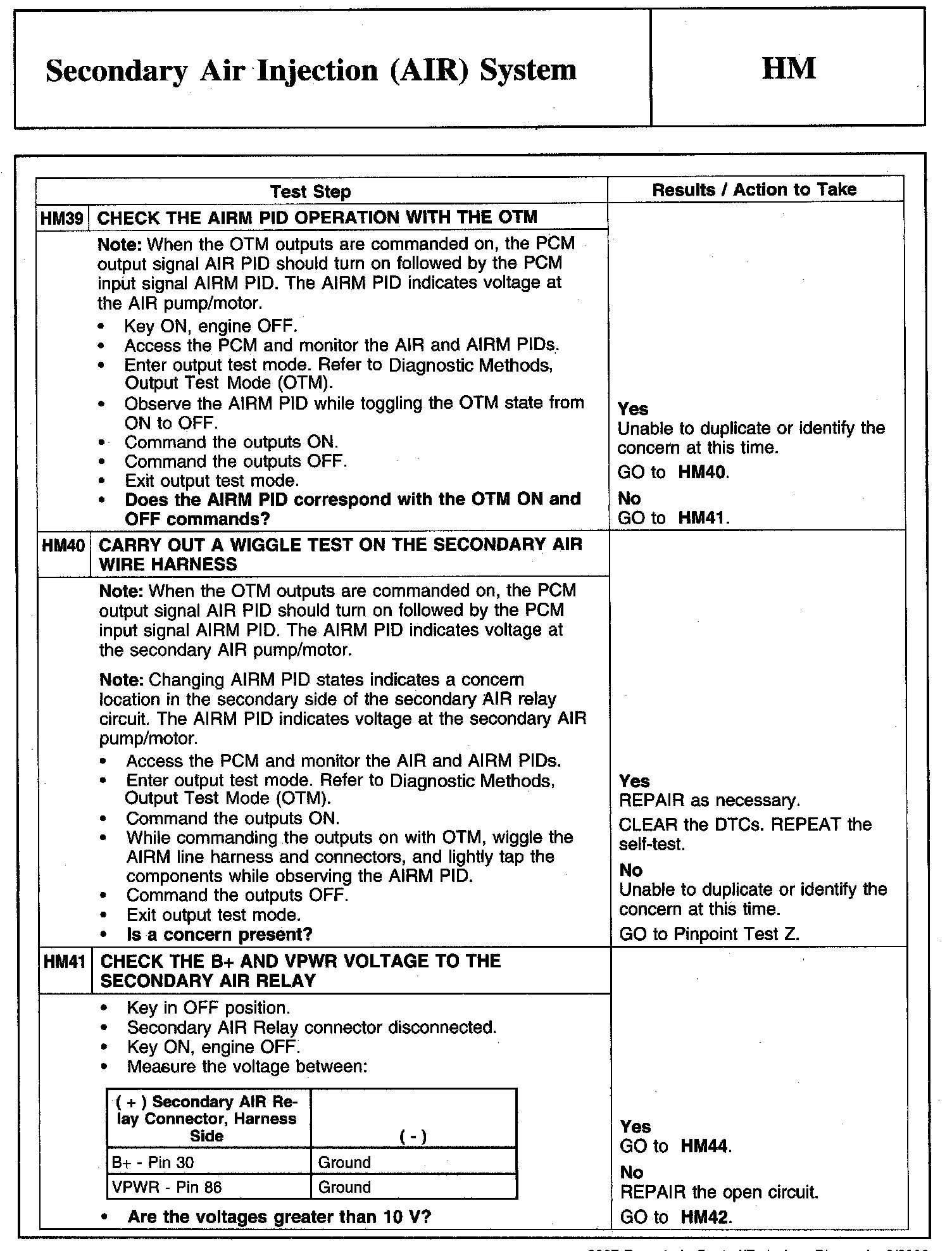

HM39-HM41:

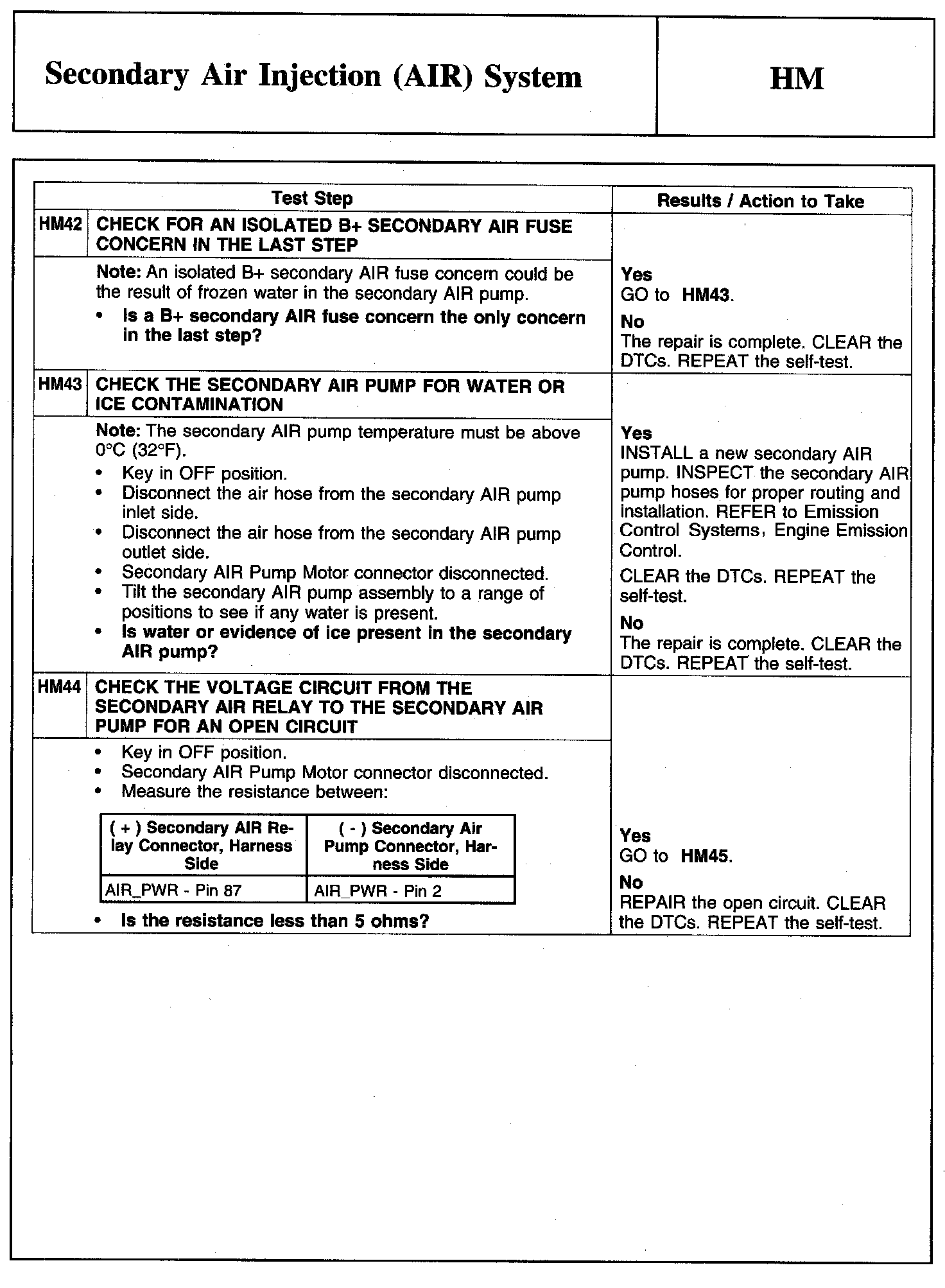

HM42-HM44:

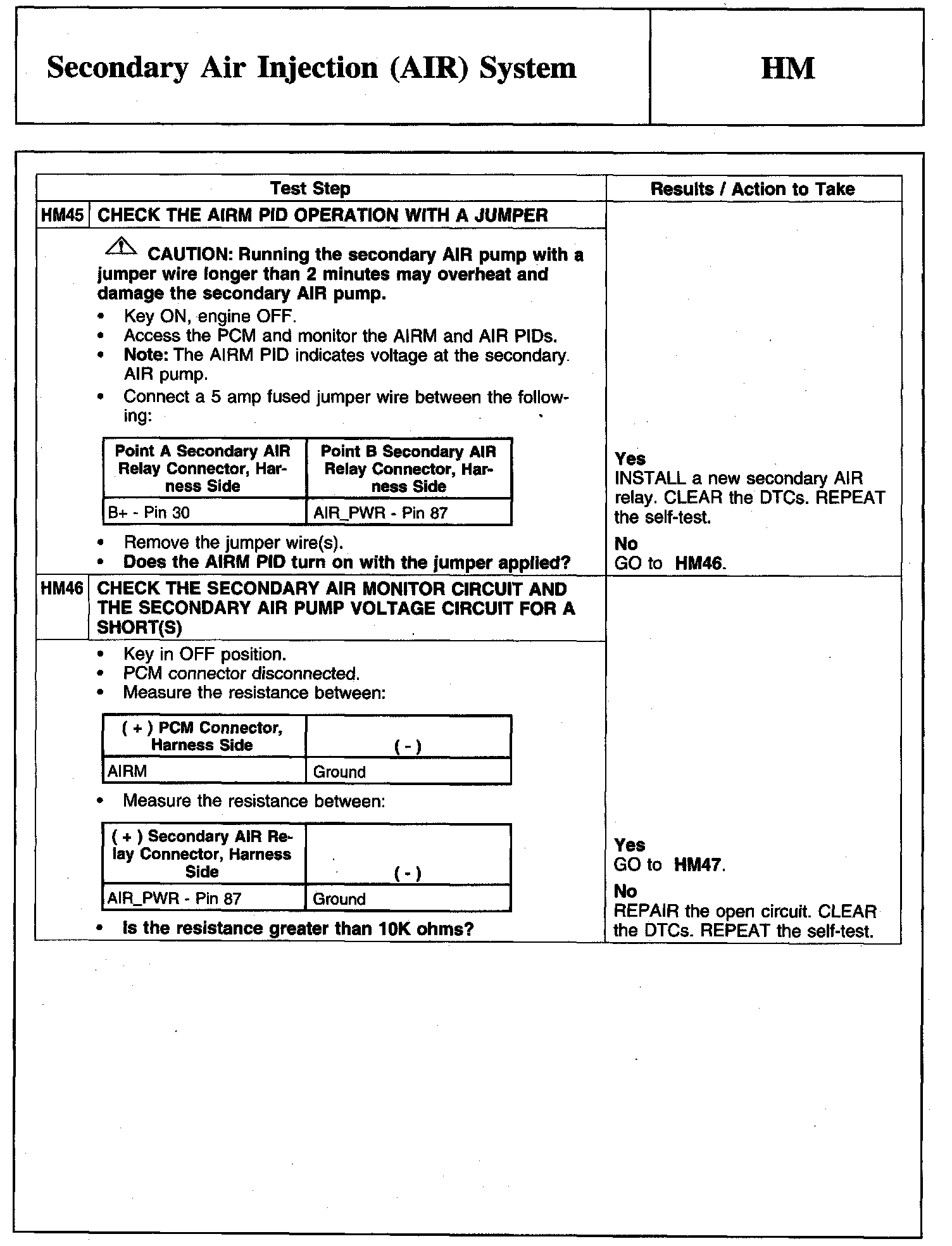

HM45-HM46:

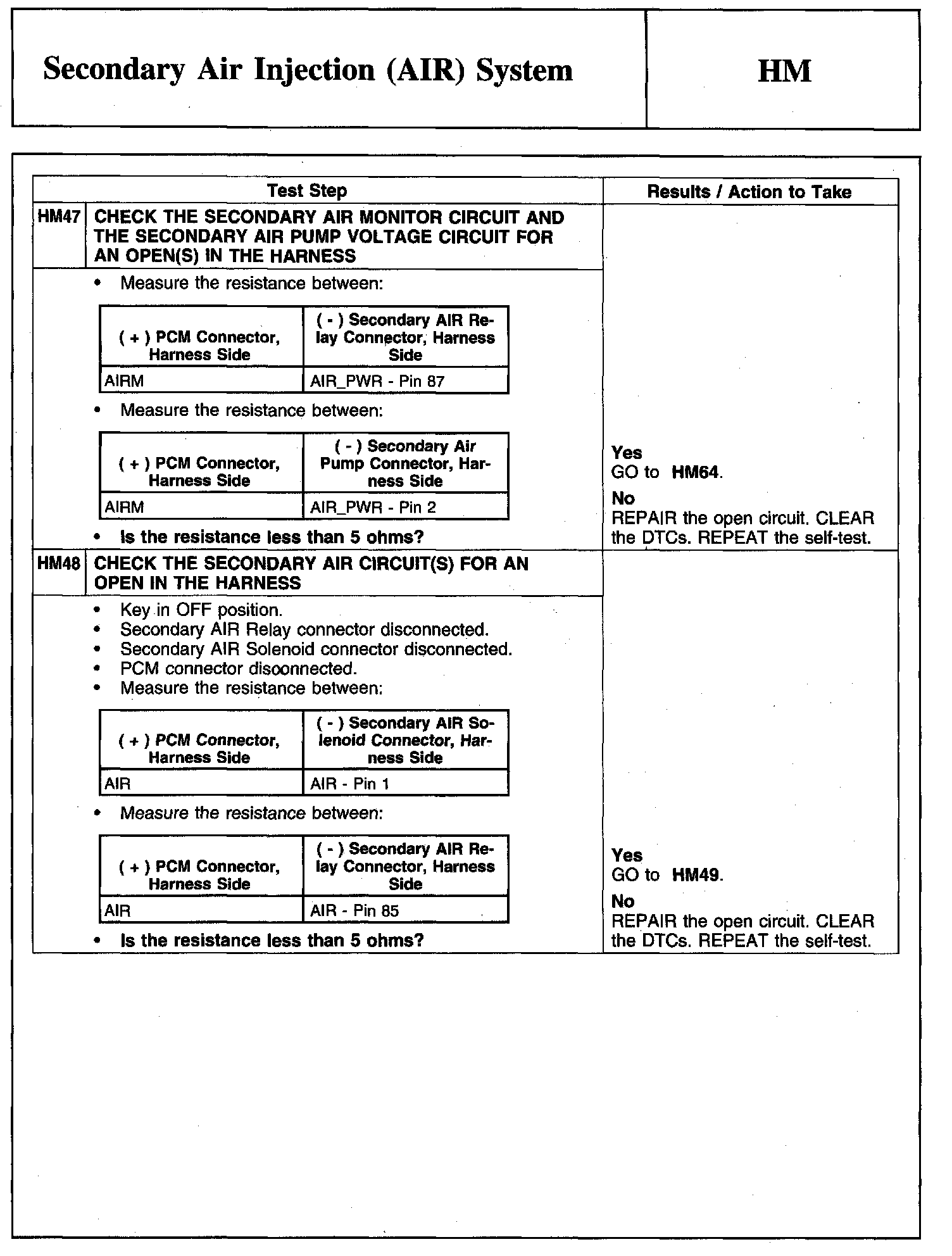

HM47-HM48:

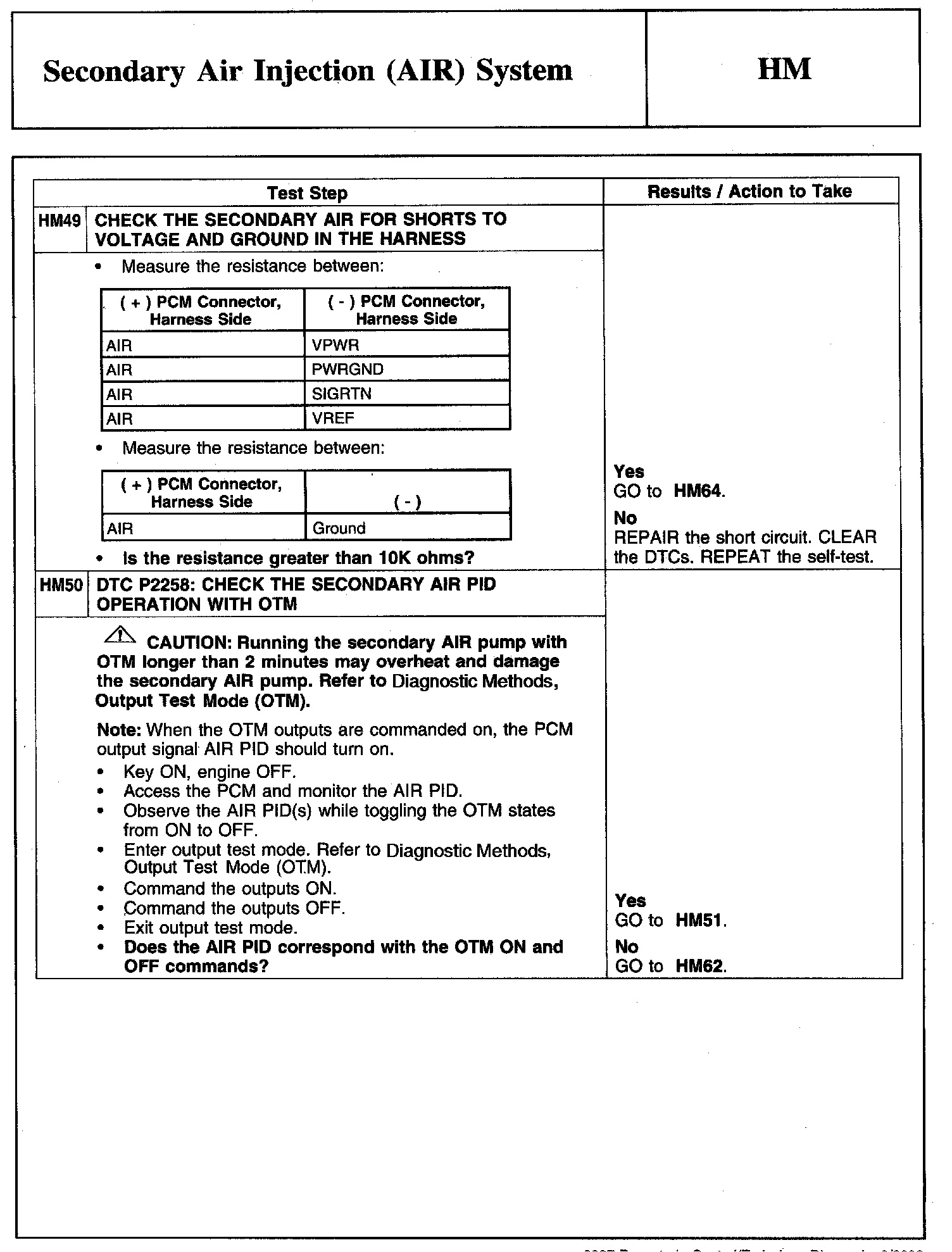

HM49-HM50:

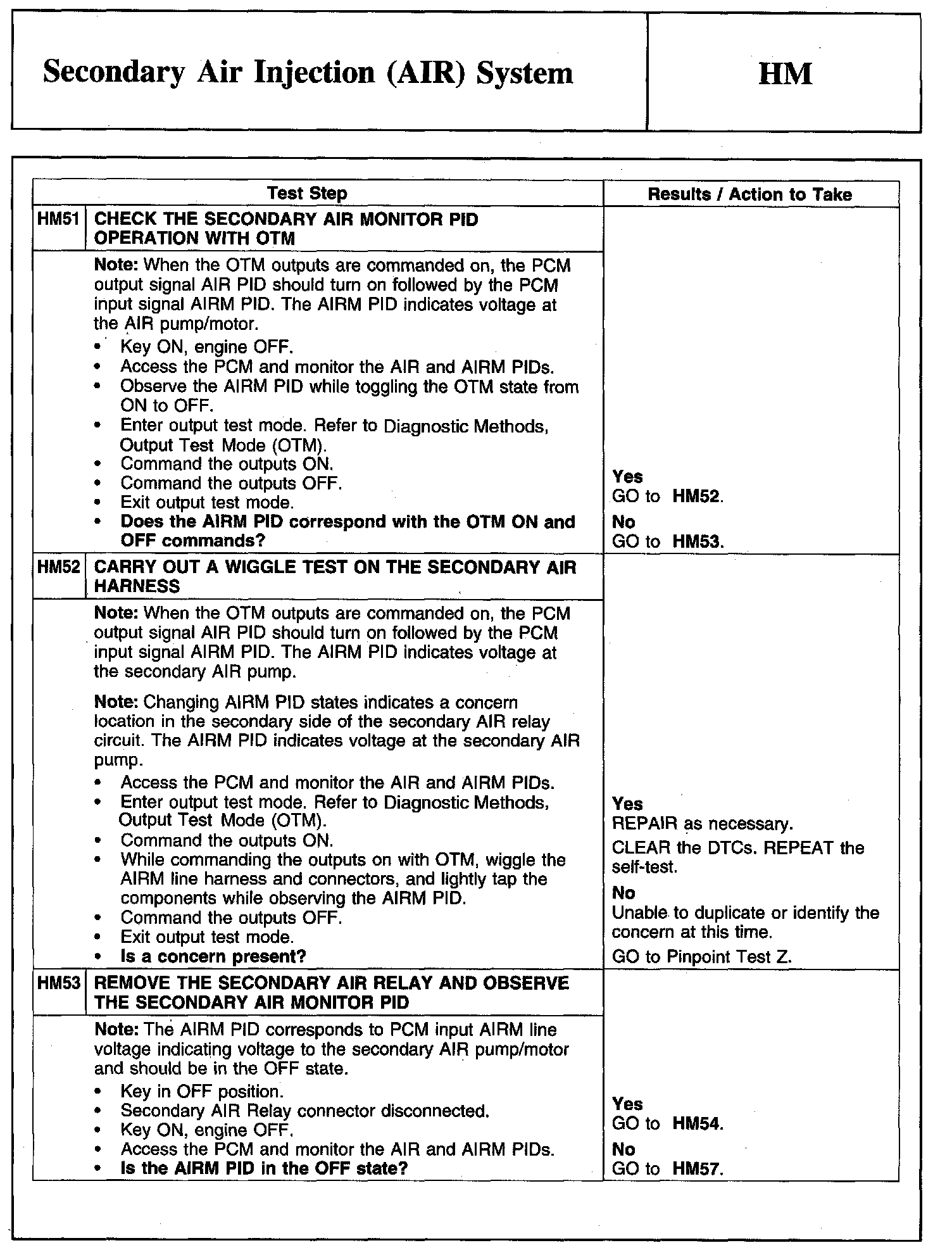

HM51-HM53:

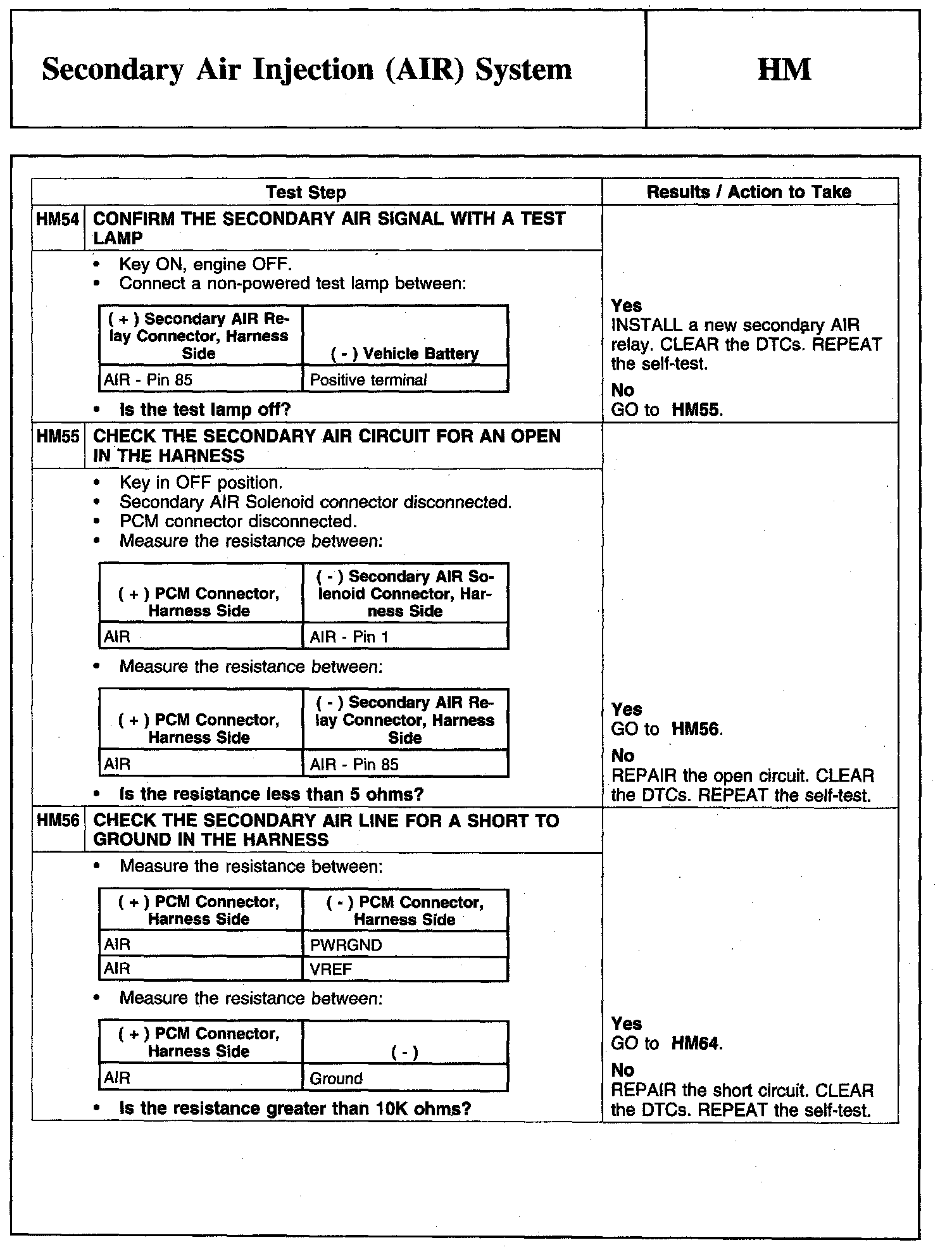

HM54-HM56:

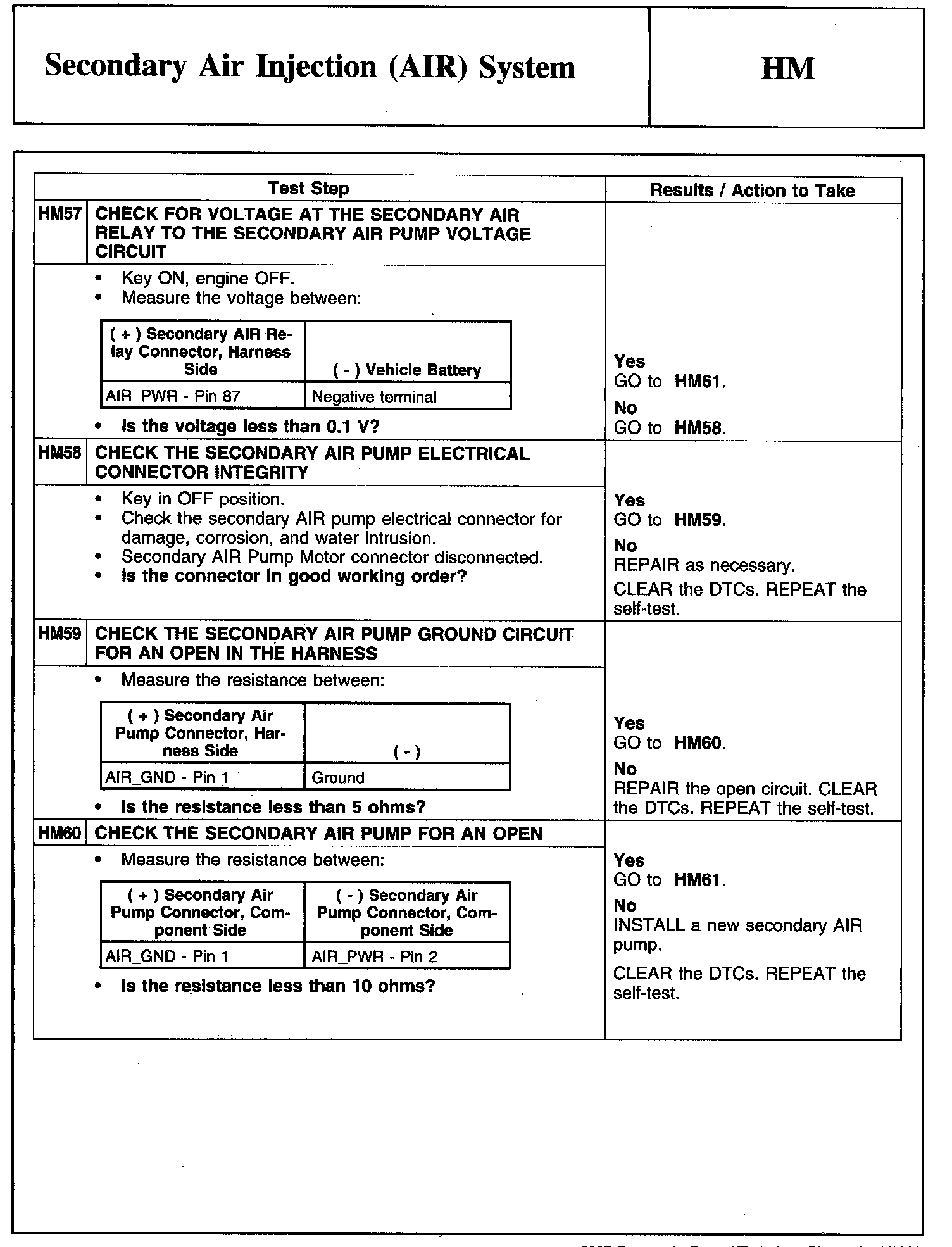

HM57-HM60:

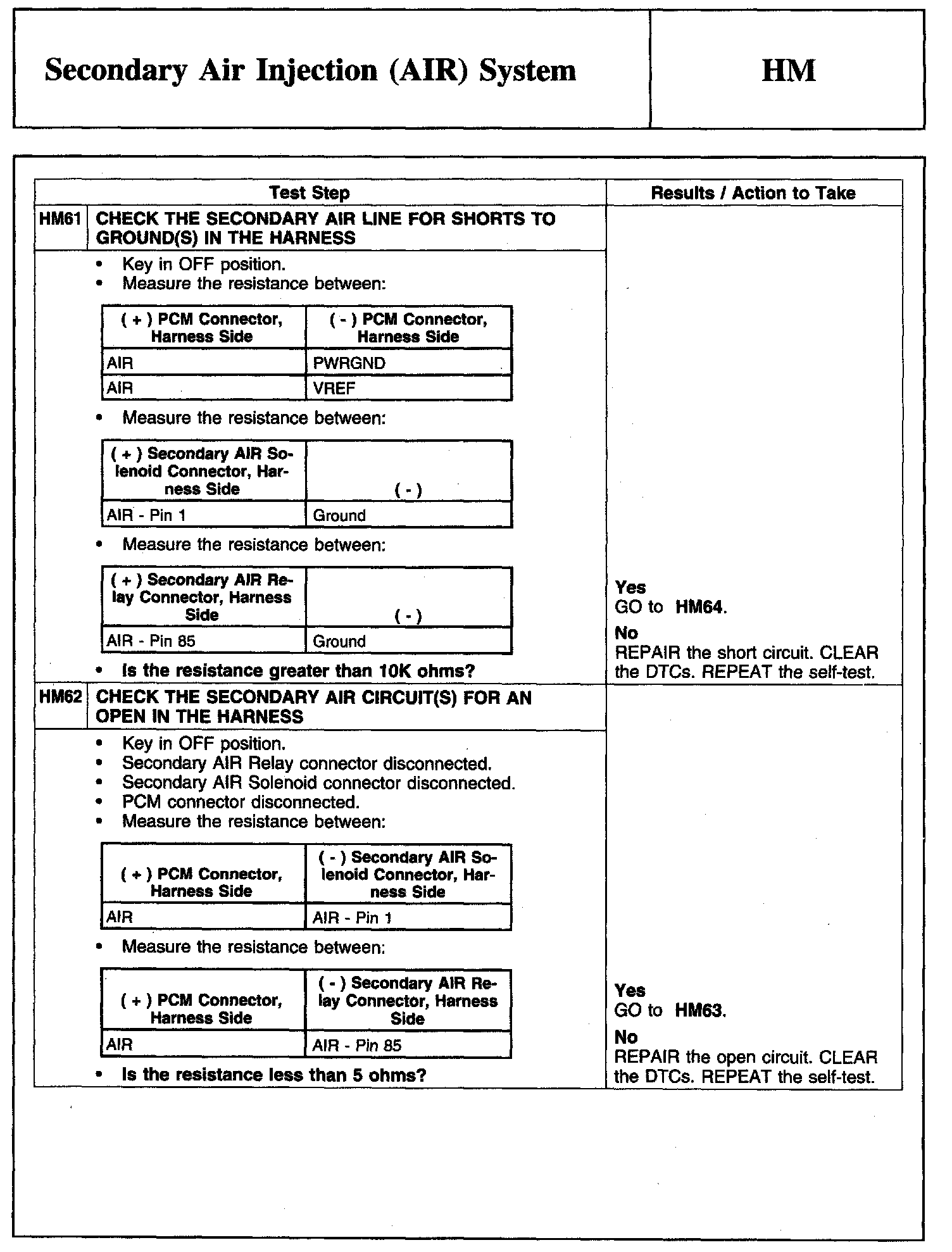

HM61-HM62:

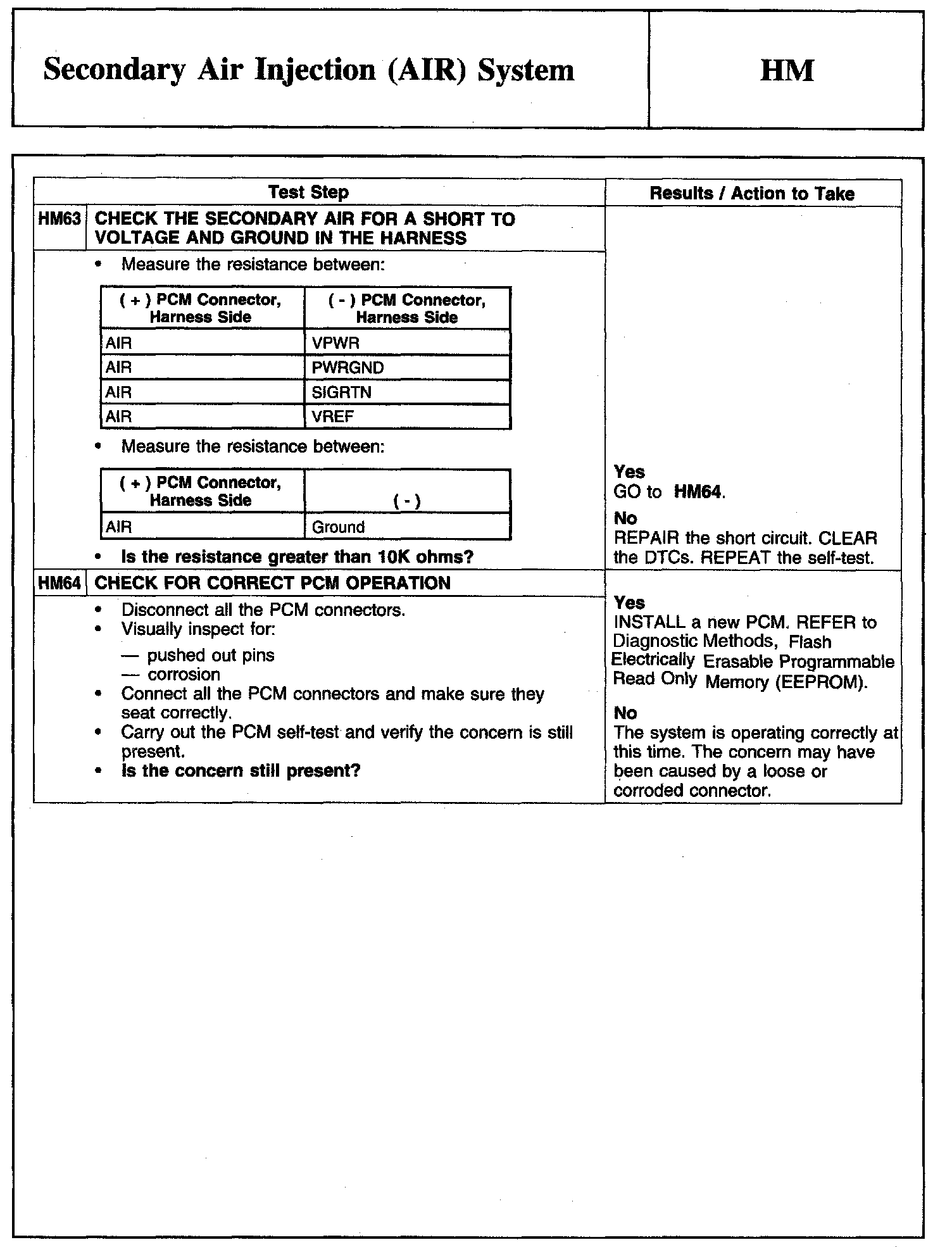

HM63-HM64:
