Power Door Lock Switch: Service and Repair

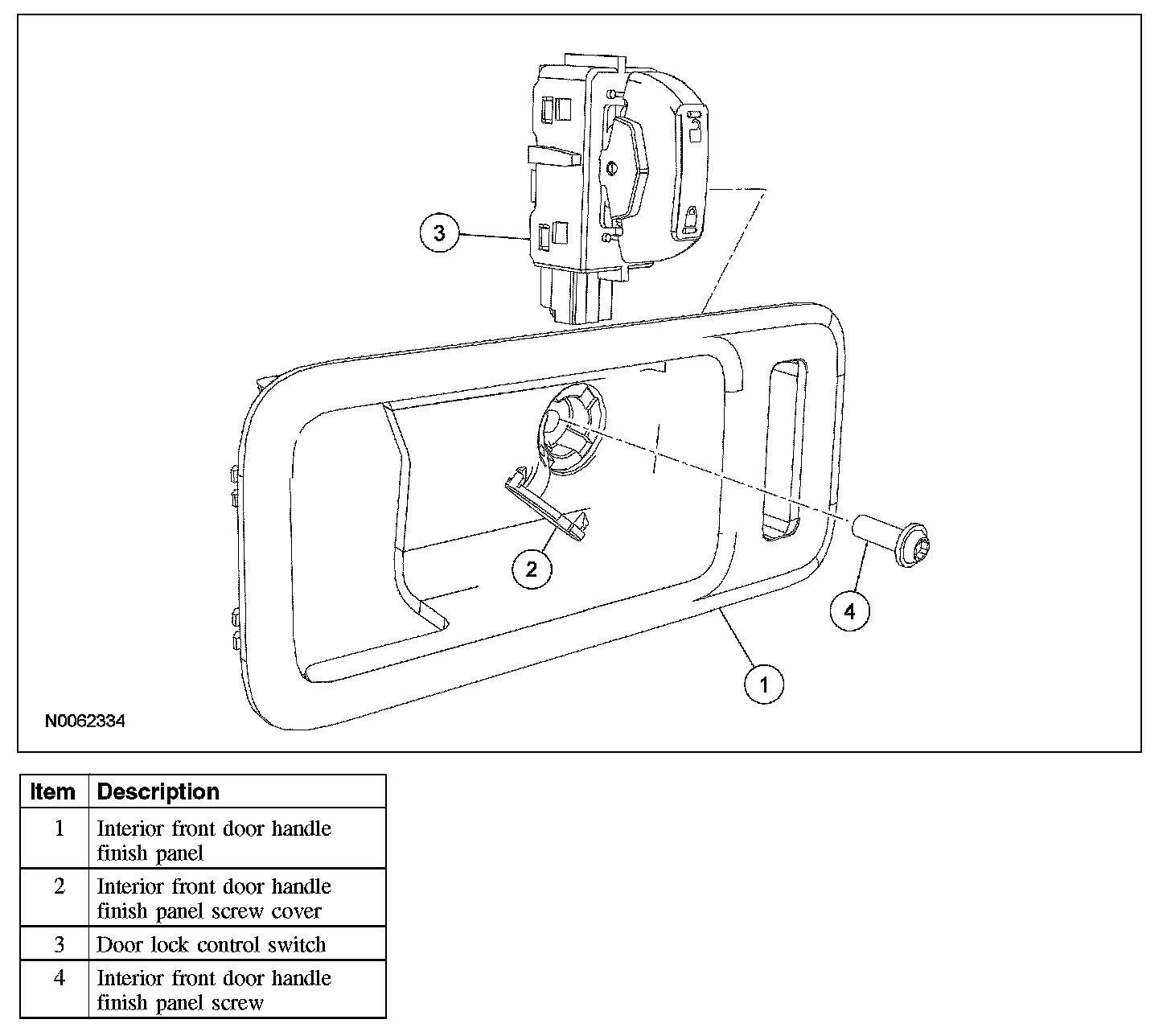

DOOR LOCK CONTROL SWITCH

Removal and Installation
1. Open the cover, remove the screw and position the interior front door handle finish panel aside.
2. Disconnect the door lock control switch electrical connector.
3. Release the locking clips and remove the door lock control switch.
4. To install, reverse the removal procedure.
