Test Q: Injection Control Pressure (ICP) Sensor

PINPOINT TEST Q: INJECTION CONTROL PRESSURE (ICP) SENSOR

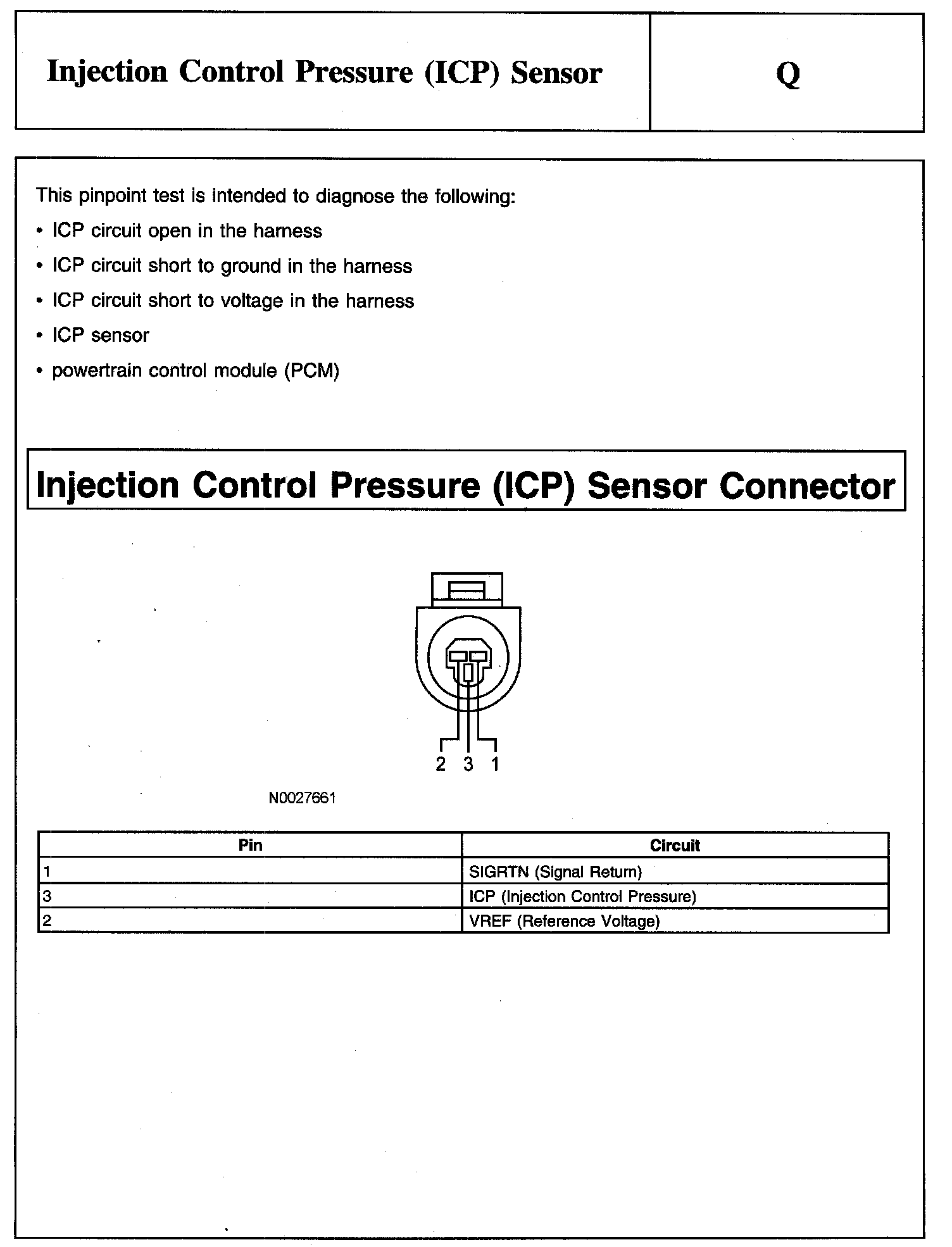

Injection Control Pressure (ICP) Sensor Connector:

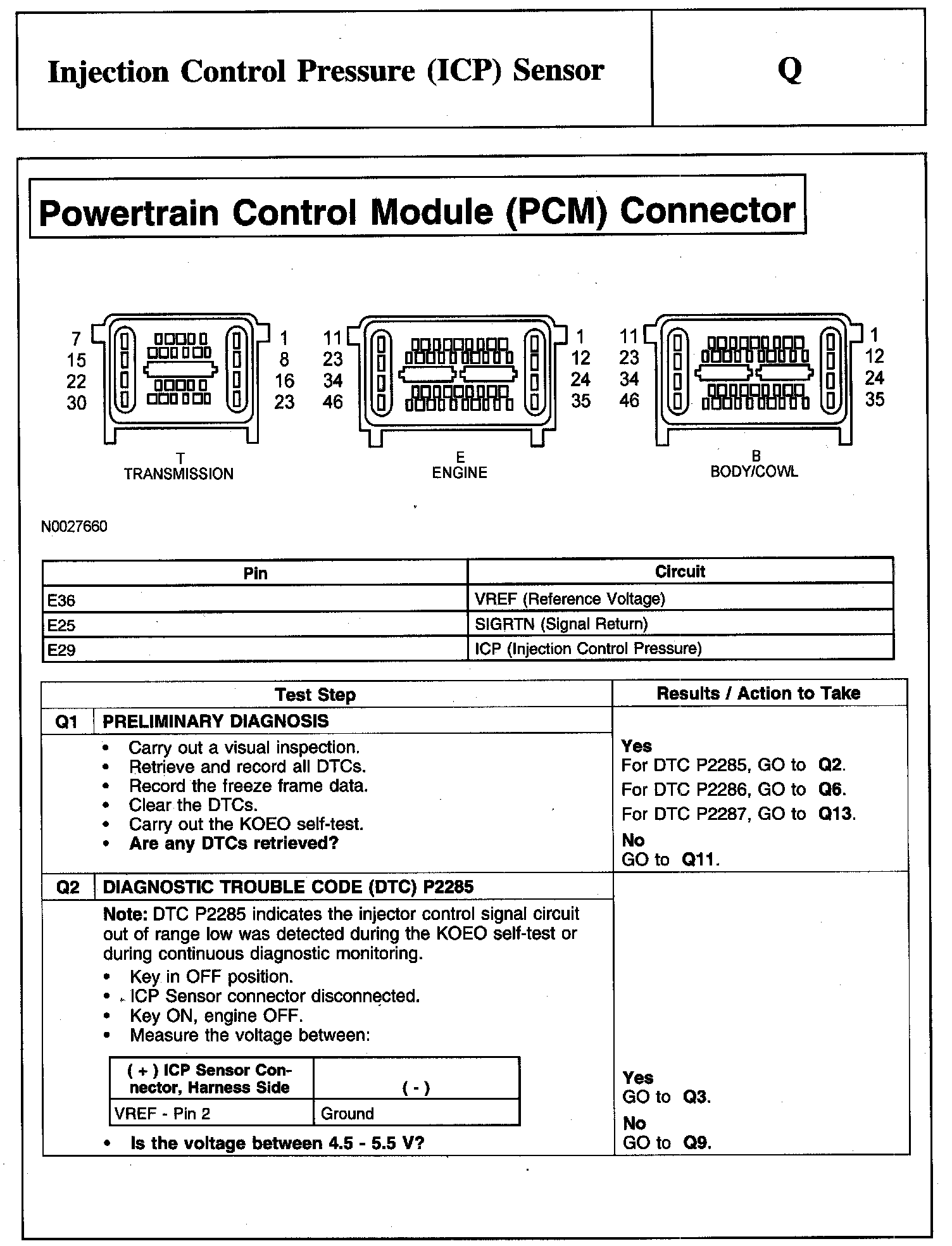

Q1-Q2:

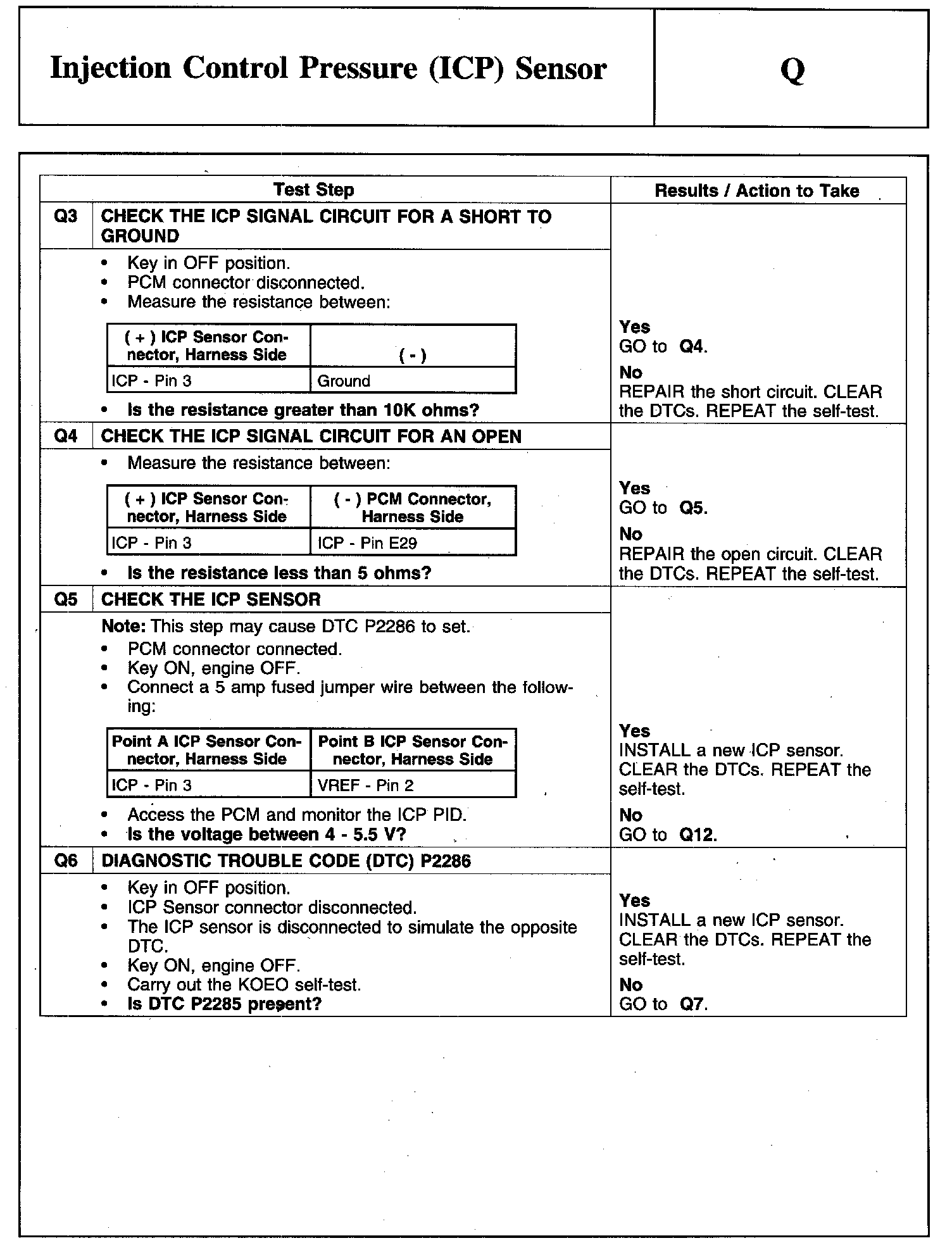

Q3-Q6:

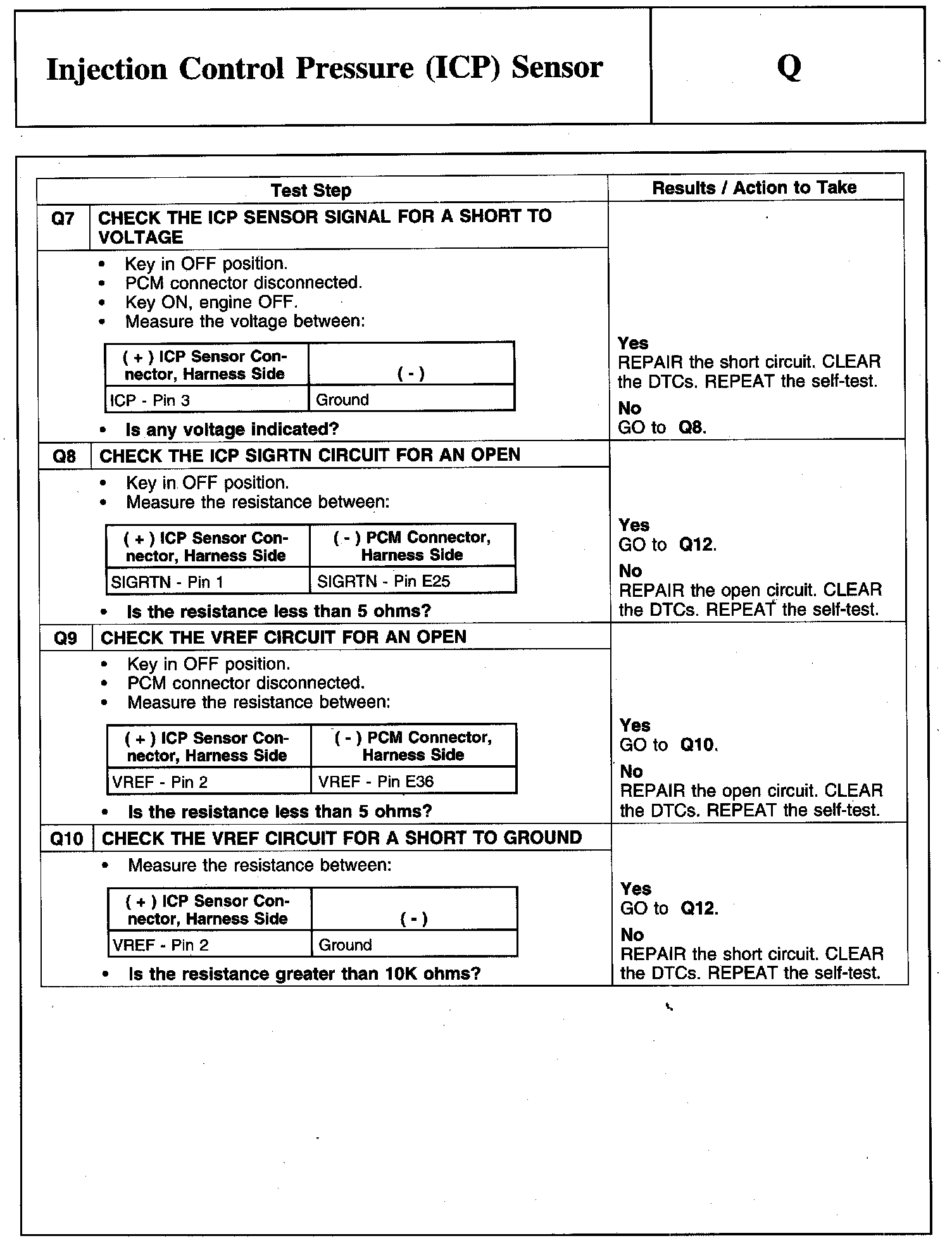

Q7-Q10:

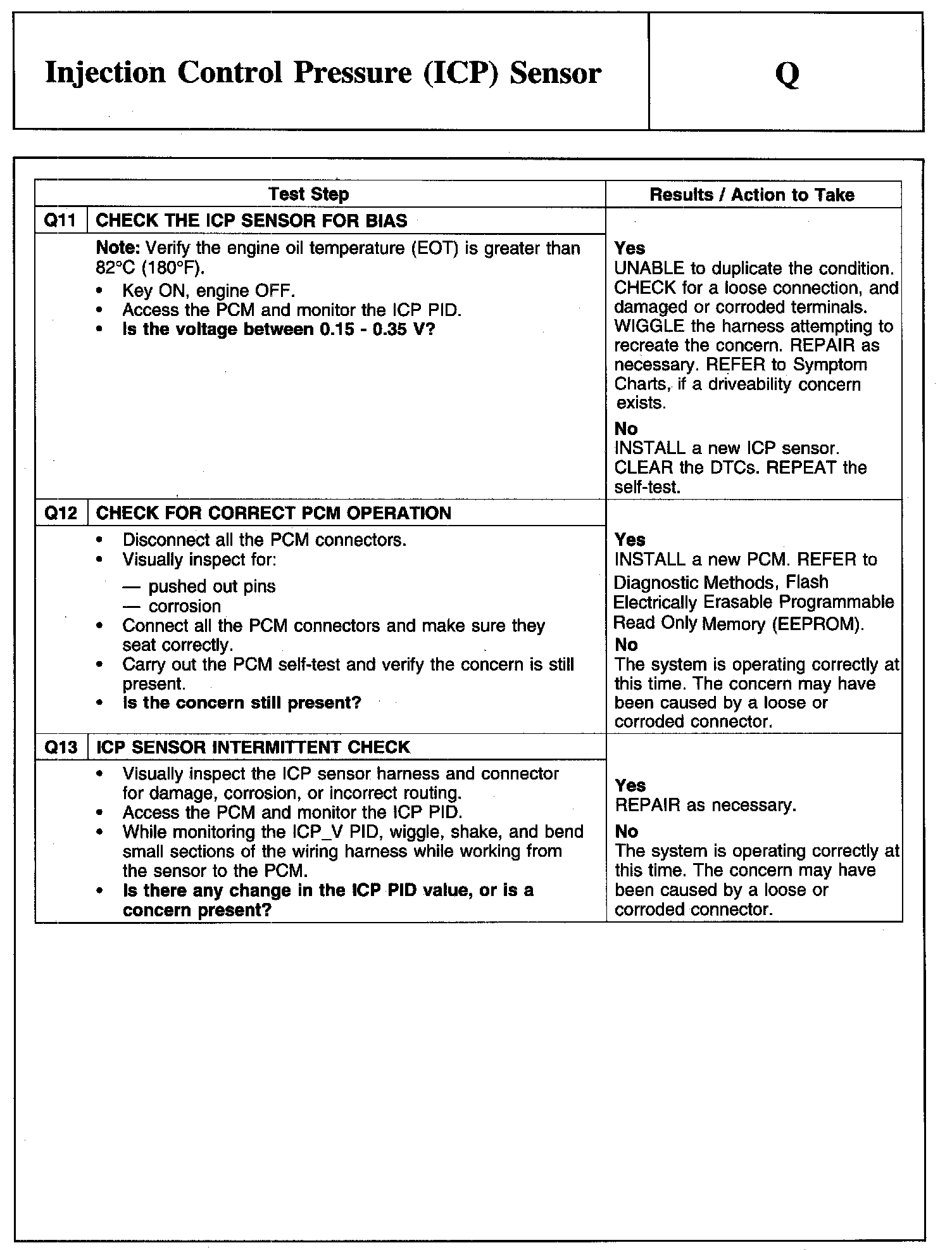

Q11-Q13:
