Test A: Powertrain Control Module (PCM) Power Relay



PINPOINT TEST A: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

This pinpoint test is intended to diagnose the following:

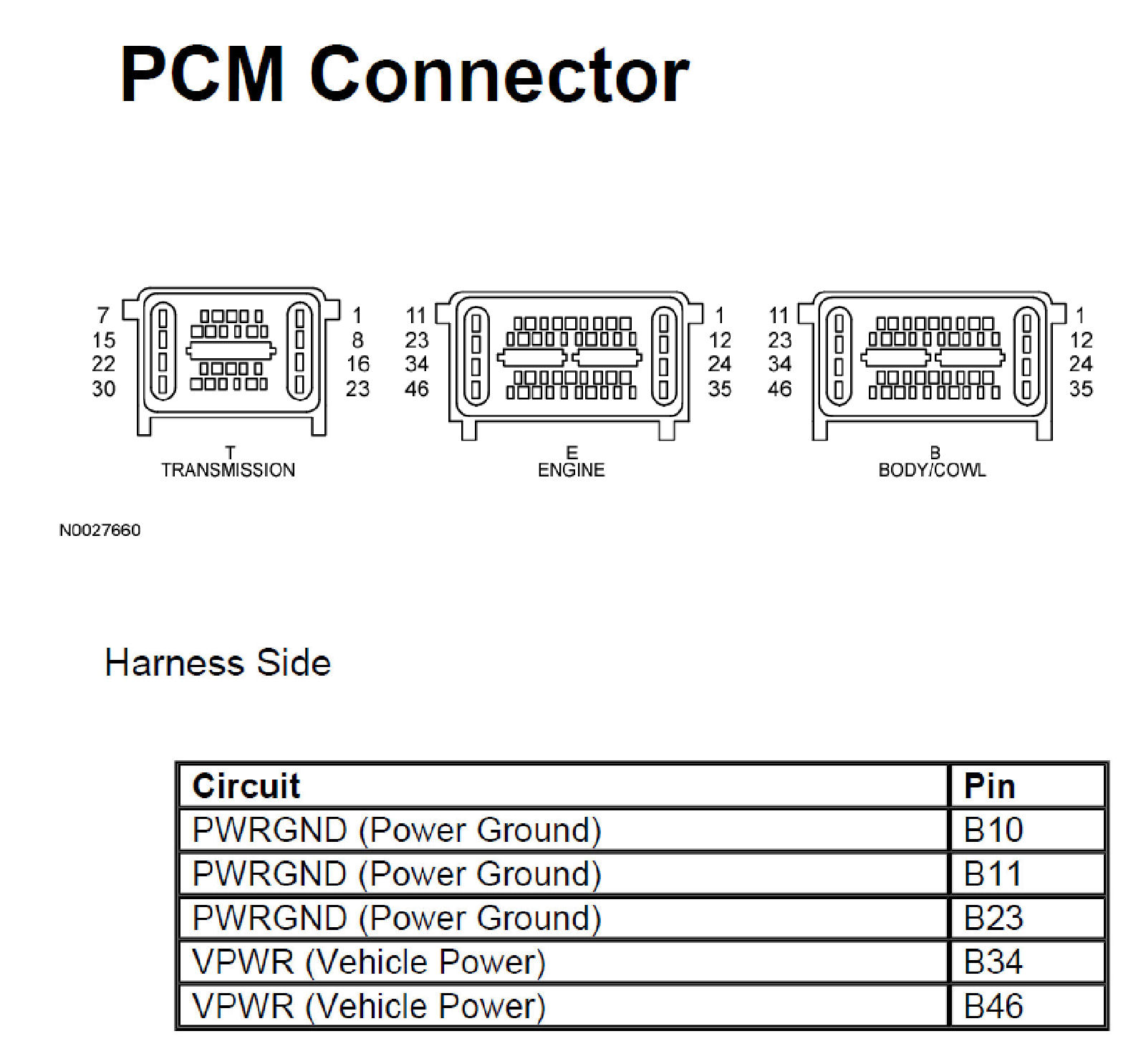

^ harness circuits: B+, IGN START/RUN, VPWR, GND and PWRGND

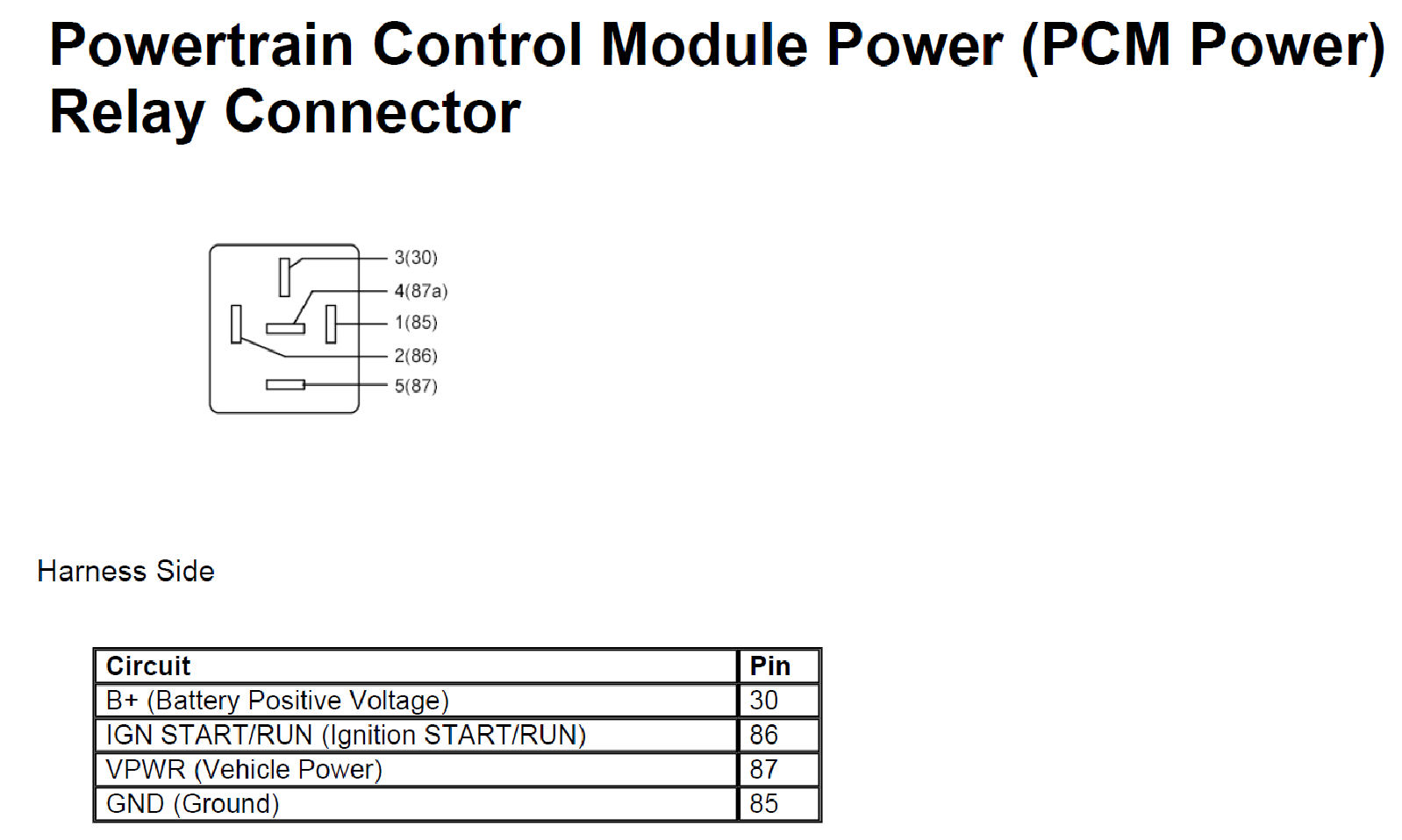

^ PCM power relay PCM









A1:

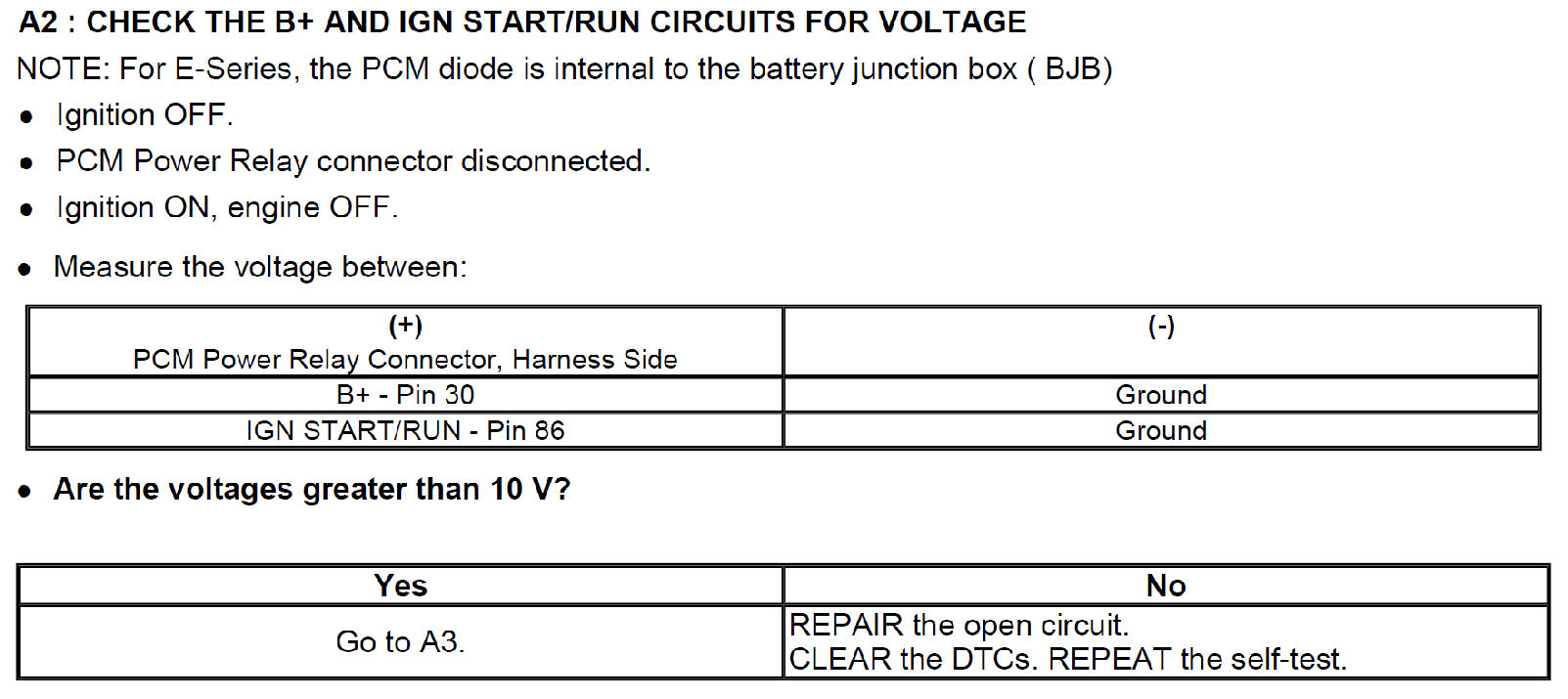

A2:

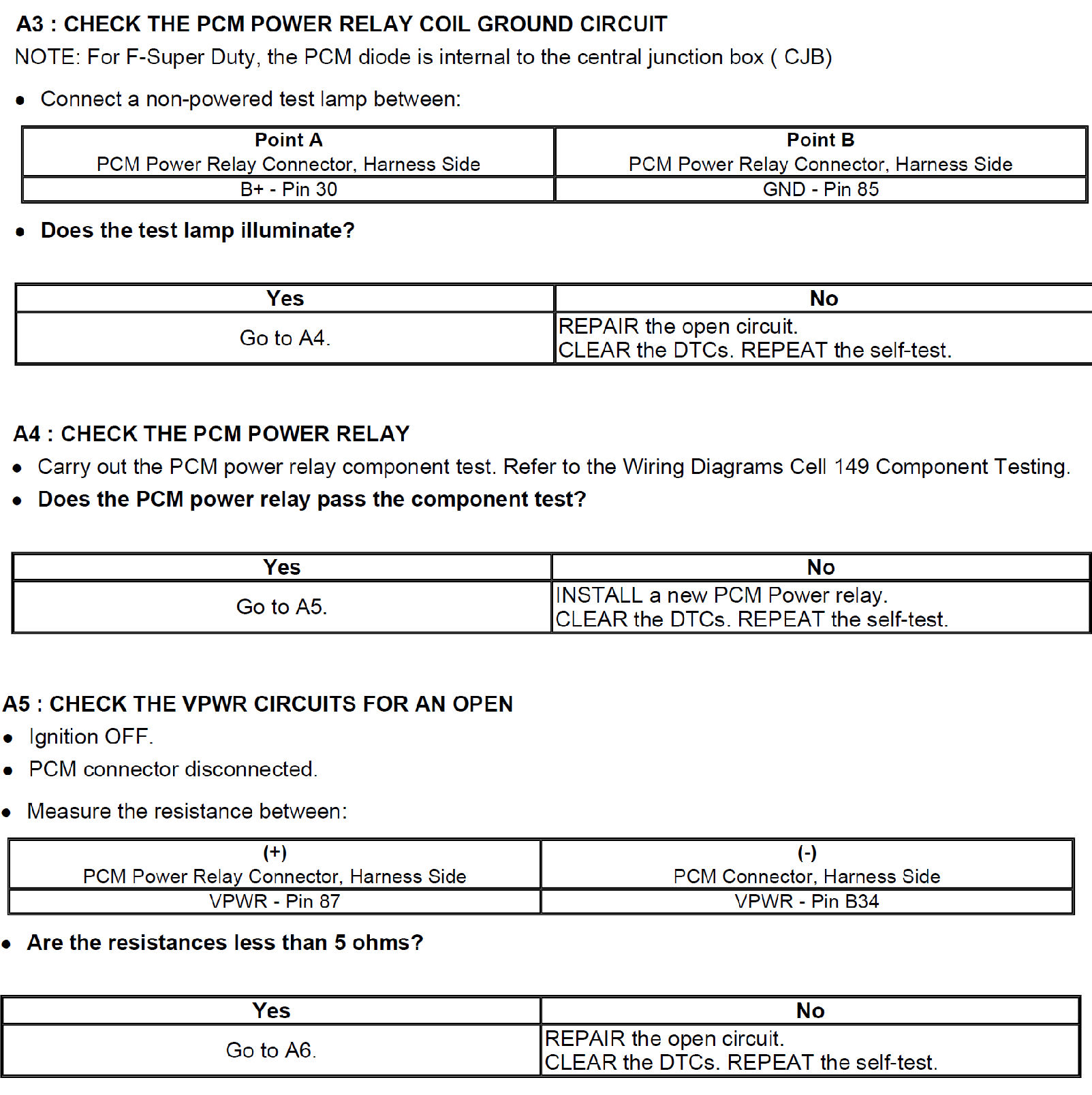

A3 - A5:





A6 - A7:
