Torque Specifications

Torque Specifications

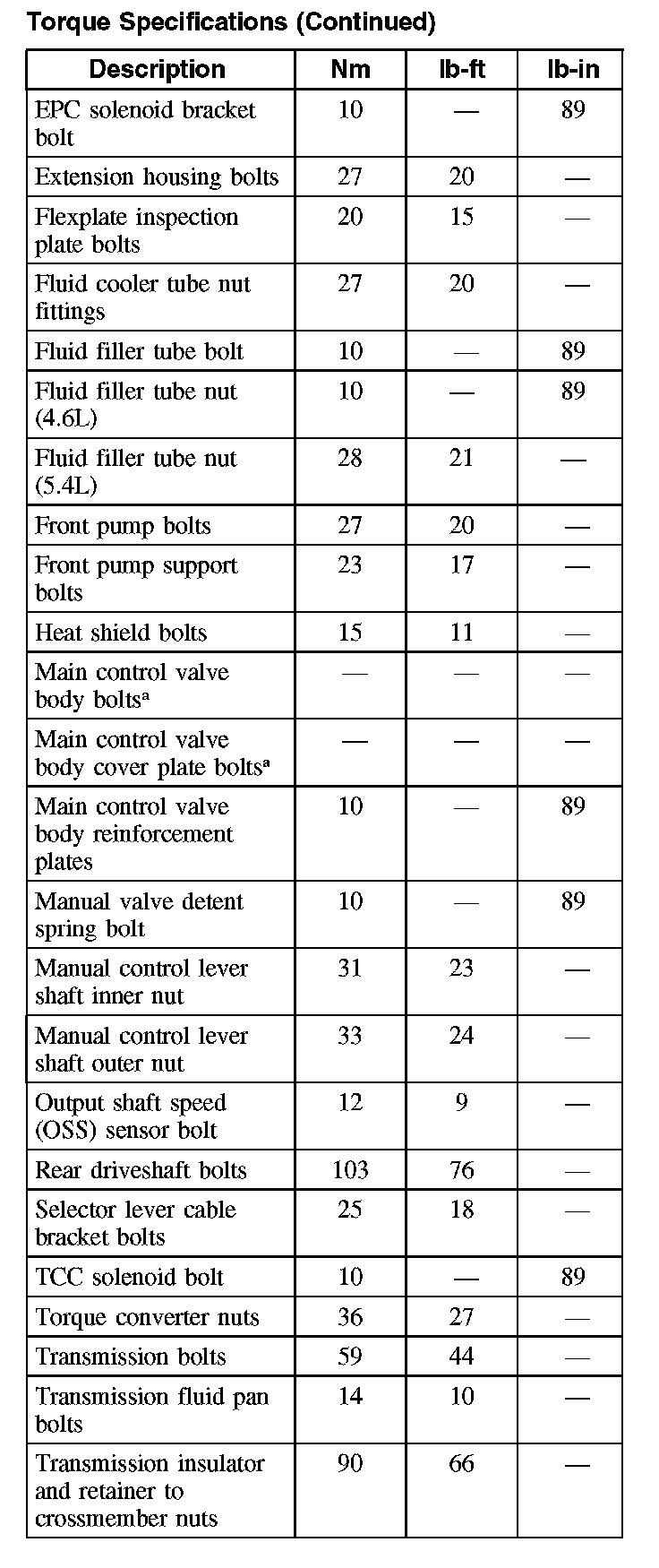

Torque Specifications (Part 1):




Torque Specifications (Part 2):




Torque Specifications (Part 3):
