System Diagram

Engine - Lower End

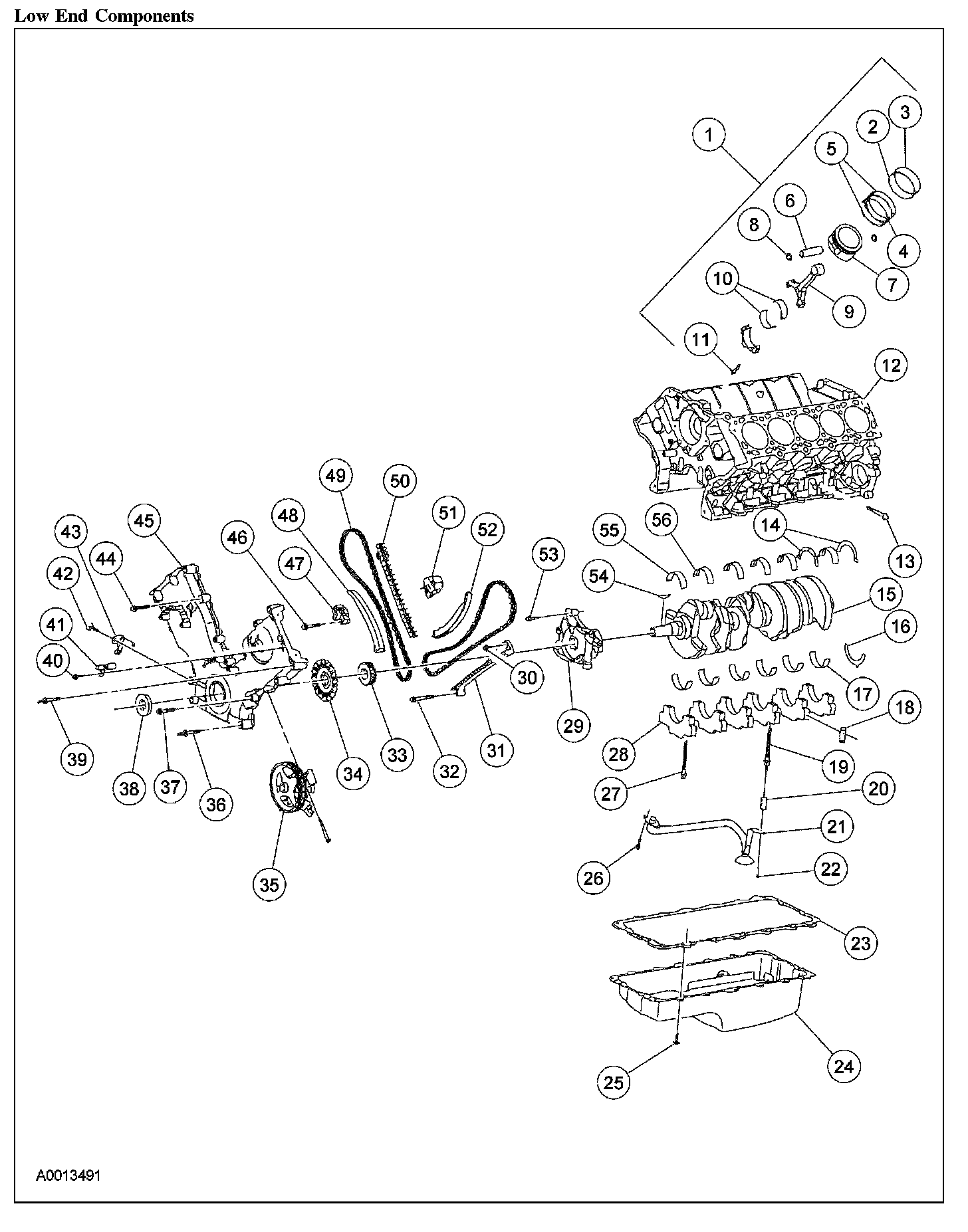

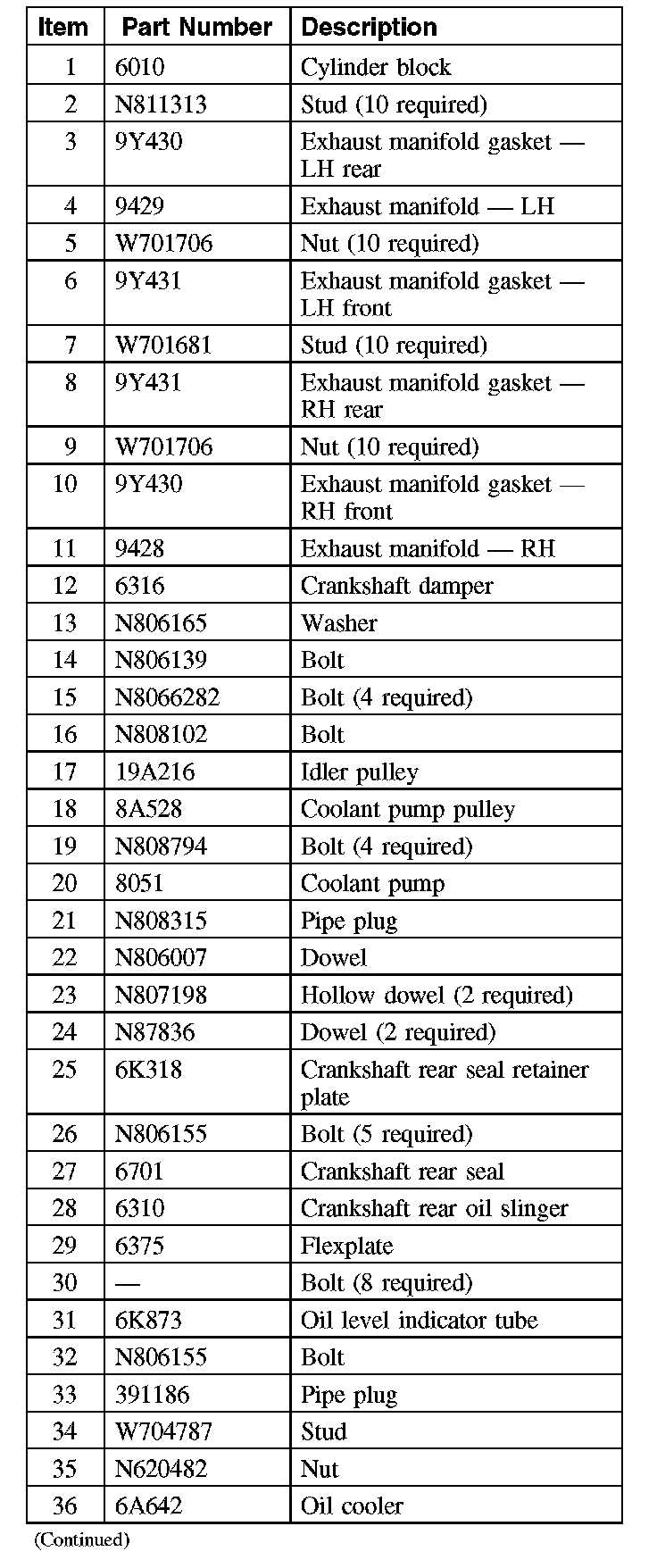

Low End Components (Part 1):




Low End Components (Part 2):

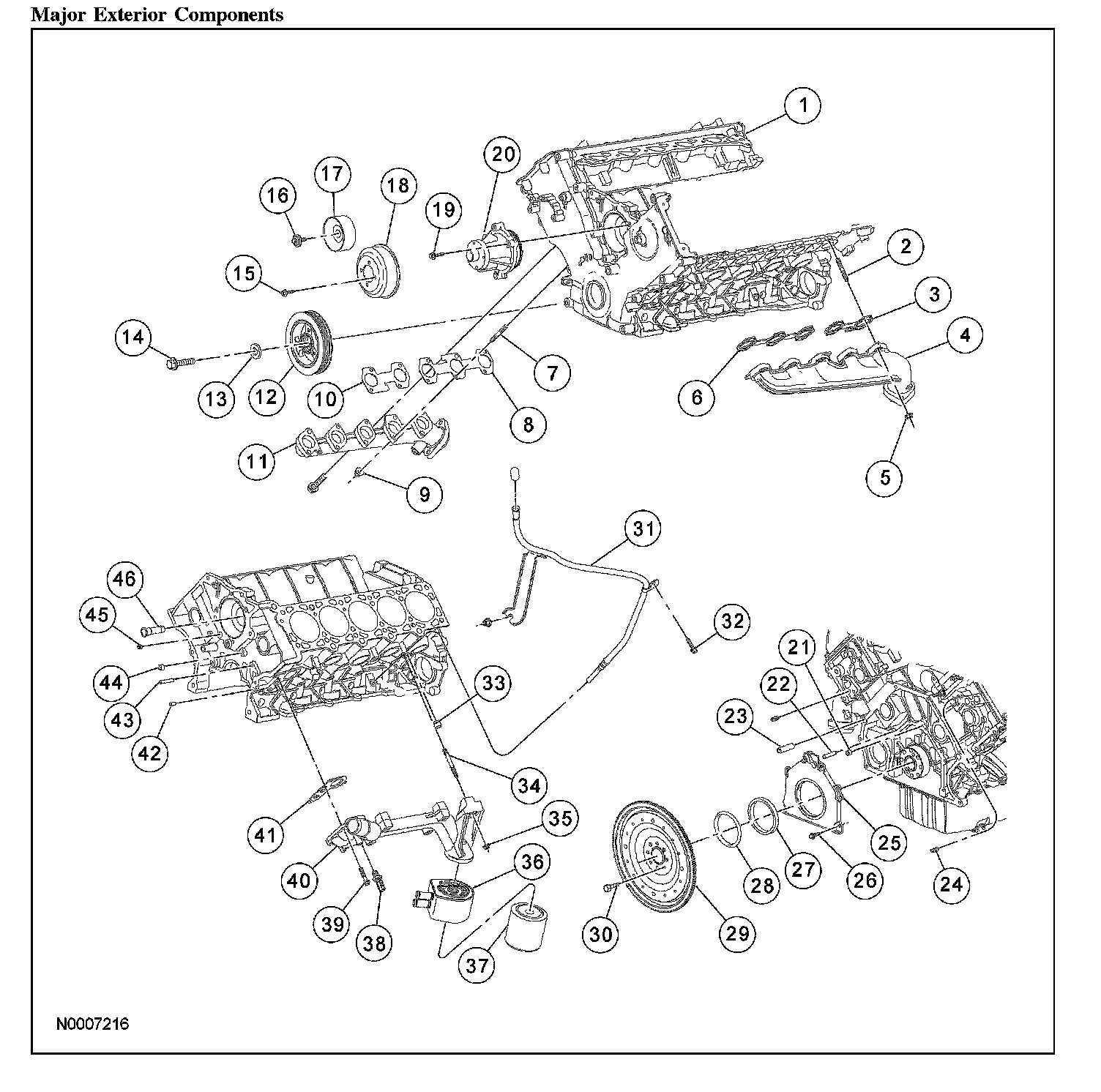

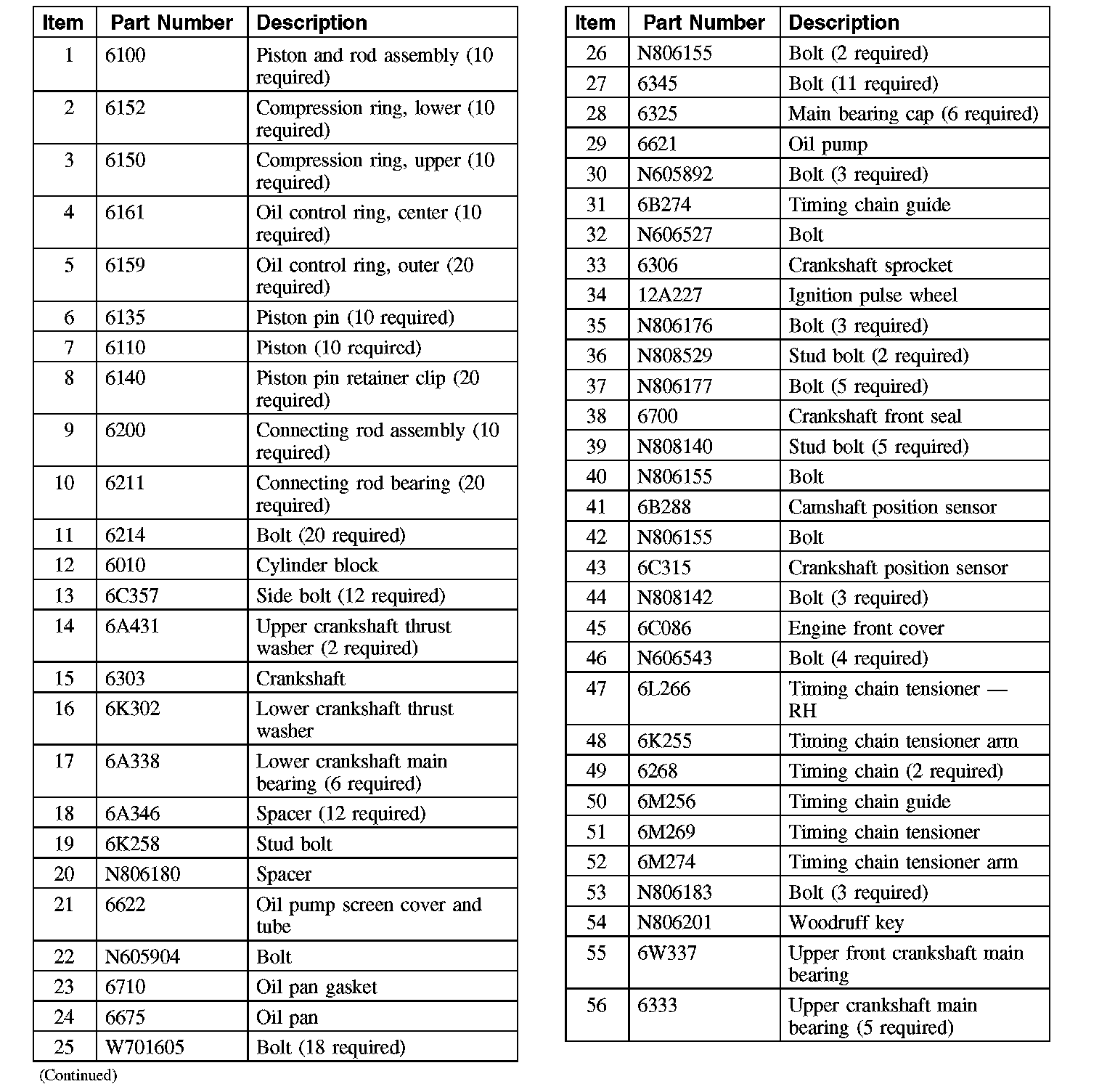

Major Exterior Components (Part 1):




Major Exterior Components (Part 2):




Major Exterior Components (Part 3):
