Battery Tray

BATTERY TRAY

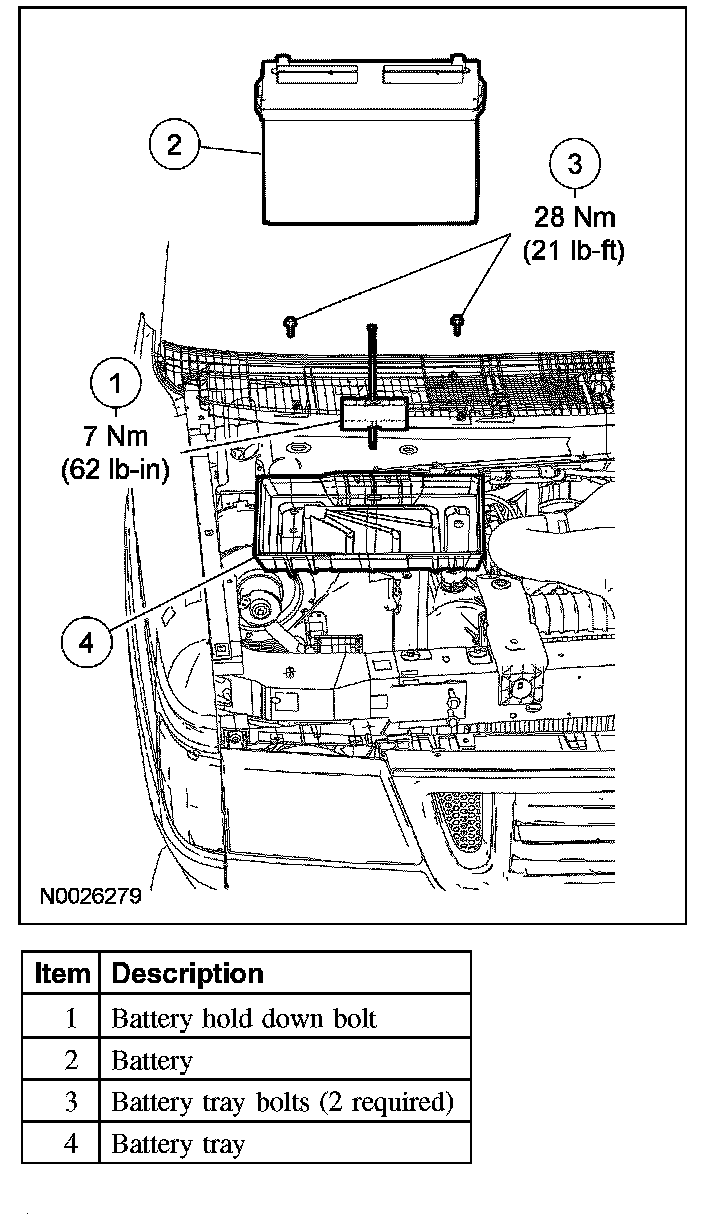

Exploded View

Removal and Installation
1. Remove the battery.
2. Remove the 2 bolts and the battery tray.
- To install, tighten to 28 Nm (21 lb-ft).

3. To install, reverse the removal procedure.
