Selector Lever: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

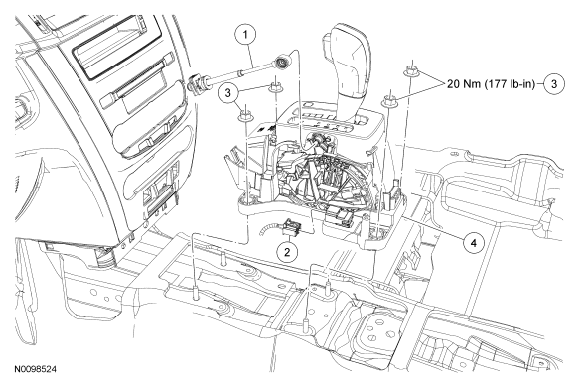

Fig 1: Selector Lever Replacement Components With Torque Specifications
G06275780Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 7E395 Selector lever cable
2 14489 Selector lever electrical connector
3 W714098 Selector lever nuts (4 required)
4 7K004 Selector lever assembly
