Selector Lever Cable: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

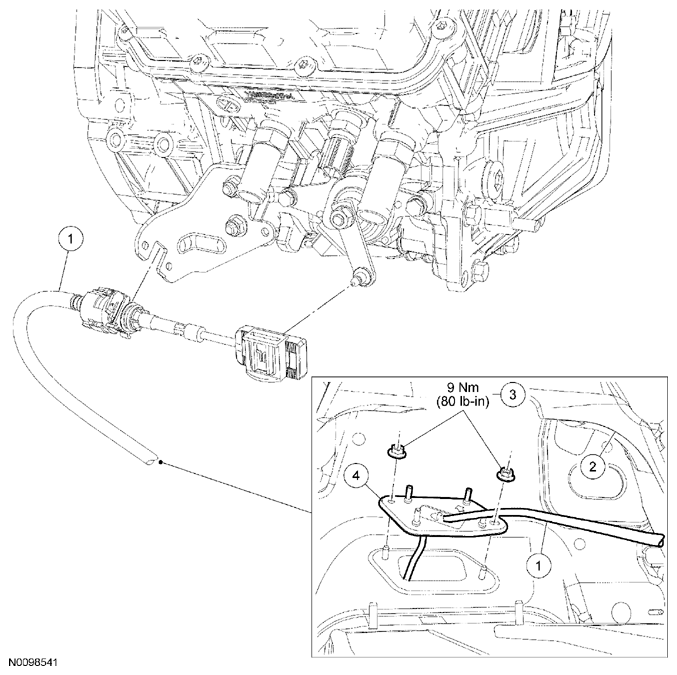

Fig 1: Selector Lever Cable Replacement Components With Torque Specifications
G07786429Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 7E395 Selector lever cable
2 54017A40 Insulation blanket
3 W707142 Selector lever cable grommet retaining nuts
4 57809 Selector lever cable grommet
