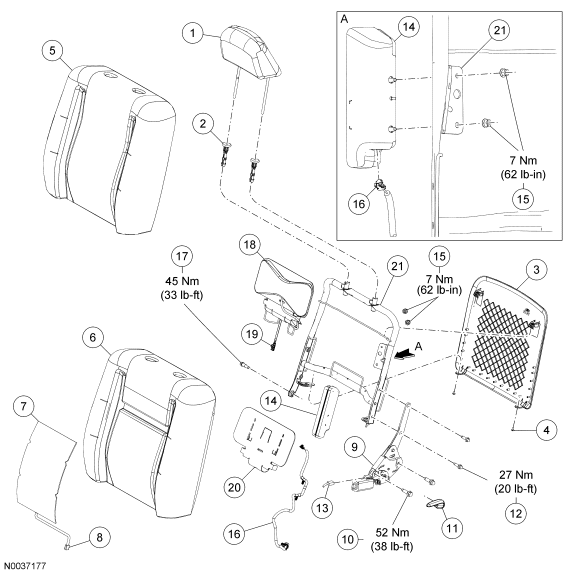

Seat - Exploded View, Front
NOTE:
Driver seat shown, passenger seat similar.
NOTE:
Front 50 percent seat shown, 40 percent seat similar.
NOTE:
The torque specification for power recliner-to-seat track bolts is shown. For manual recliner-to-seat track bolts, tighten to 55 Nm (41 lb-ft). For additional information, refer to the appropriate procedure steps.
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint assembly |
| 2 | 610A18 | Head restraint guide (2 required) |
| 3 | 60770 | Seat back trim panel (Police only) |
| 4 | - | Seat back trim panel screw (2 required, Police only) |
| 5 | 64416 | Backrest trim cover |
| 6 | 64810 | Backrest foam pad |
| 7 | - | Backrest heater pad (if equipped, part of 64810) |
| 8 | - | Electrical connector (if equipped, part of 64810) |
| 9 | 62648/62649 | Recliner assembly (power shown, if equipped) |
| 10 | N803463 | Recliner-to-seat track bolt (2 required) |
| 11 | 61198 | Recliner handle |
| 12 | N803463 | Recliner-to-backrest frame bolt (2 required) |
| 13 | - | Electrical connector (if equipped) |
| 14 | 611D10 | Side air bag module (if equipped) |
| 15 | N620480 | Side air bag module nuts (2 required, if equipped) |
| 16 | 14716 | Side air bag module wiring harness (if equipped) |
| 17 | N808123 | Pivot bolt |
| 18 | 65500 | Lumbar assembly, power (if equipped) |
| 19 | - | Electrical connector (if equipped) |
| 20 | - | Lumbar support |
| 21 | 61018 | Backrest frame |
NOTE:

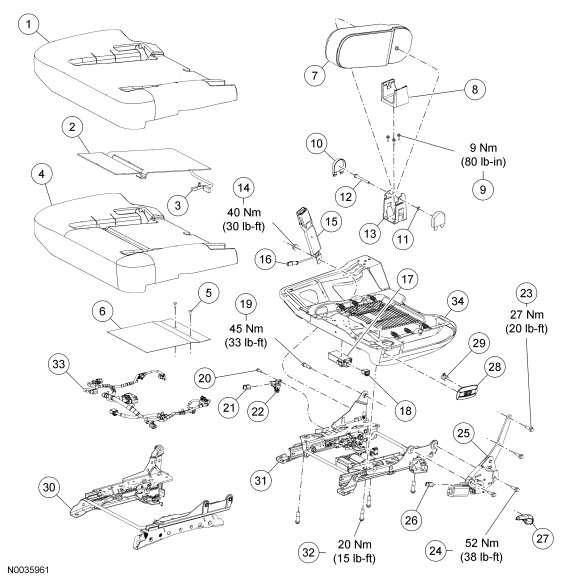

Driver seat shown. For disassembly and assembly of the passenger seat cushion, refer to Occupant Classification Sensor procedure in SUPPLEMENTAL RESTRAINT SYSTEM
.
NOTE:
Front 50 percent seat shown, 40 percent seat similar.
NOTE:
The torque specification for power recliner-to-seat track bolts is shown. For manual recliner-to-seat track bolts, tighten to 55 Nm (41 lb-ft). For additional information, refer to the appropriate procedure steps.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Cushion trim cover |
| 2 | - | Cushion heater pad (if equipped, part of 632A22 on driver seat only) |
| 3 | - | Electrical connector (if equipped) |
| 4 | 632A22 | Cushion foam pad |
| 5 | - | Pushpin |
| 6 | - | Mat |
| 7 | 65478/644A18 | Armrest (if equipped) |
| 8 | 672A32 | Armrest cover trim (if equipped) |
| 9 | N611624 | Armrest bracket bolt (3 required, if equipped) |
| 10 | 672A28 | Pin cover (2 required, if equipped) |
| 11 | W623464 | Retaining clip (if equipped) |
| 12 | 65476 | Pin (if equipped) |
| 13 | 63076 | Armrest bracket (if equipped) |
| 14 | - | Nut, safety belt buckle |
| 15 | 61202/61203 | Safety belt buckle with buckle switch, driver/safety belt buckle with belt tension sensor, passenger |
| 16 | - | Electrical connector |
| 17 | 14C724 | Heated seat module (if equipped) |
| 18 | - | Electrical connector |
| 19 | N808123 | Pivot bolt |
| 20 | - | Bolt, seat position sensor (driver only) |
| 21 | - | Electrical connector (driver only) |
| 22 | - | Seat position sensor (driver only) |
| 23 | N803463 | Recliner-to-backrest bolt (2 required) |
| 24 | N803463 | Recliner-to-seat track bolt (2 required) |
| 25 | 62648/62649 | Recliner, power (if equipped) |
| 26 | 62648/62649 | Electrical connector (if equipped) |
| 27 | 61198 | Recliner handle, manual |
| 28 | - | Lumbar control switch |
| 29 | - | Electrical connector |
| 30 | 61704/61705 | Manual seat track |
| 31 | 61710 | Power seat track |
| 32 | N802906 | Seat track-to-cushion frame bolt (4 required) |
| 33 | 14A699 | Seat wiring harness |
| 34 | 63100 | Cushion frame |
- For additional information, refer to the following procedures.
