Power Steering Pump: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

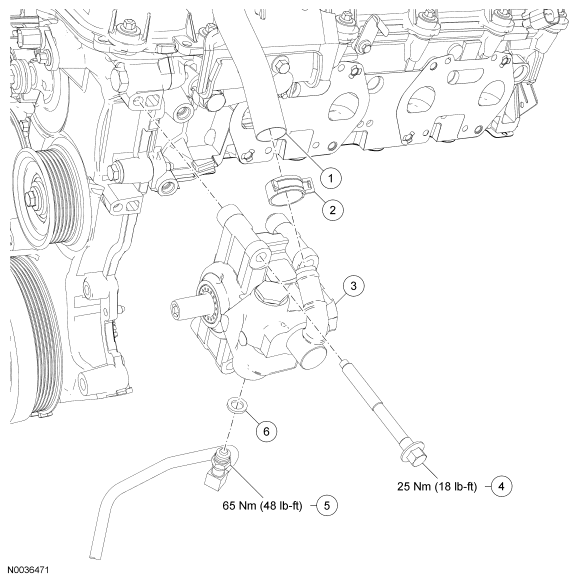

| Item | Part Number | Description |
|---|---|---|
| 1 | 3691 | Power steering supply hose |
| 2 | 8287 | Clamp |
| 3 | 3A674 | Power steering pump |
| 4 | W707225 | Power steering pump bolt (4 required) |
| 5 | - | Power steering pressure line fitting (part of 3A719) |
| 6 | 388898 | Power steering pressure line Teflon® O-ring seal |
