Overhead Console Connectors

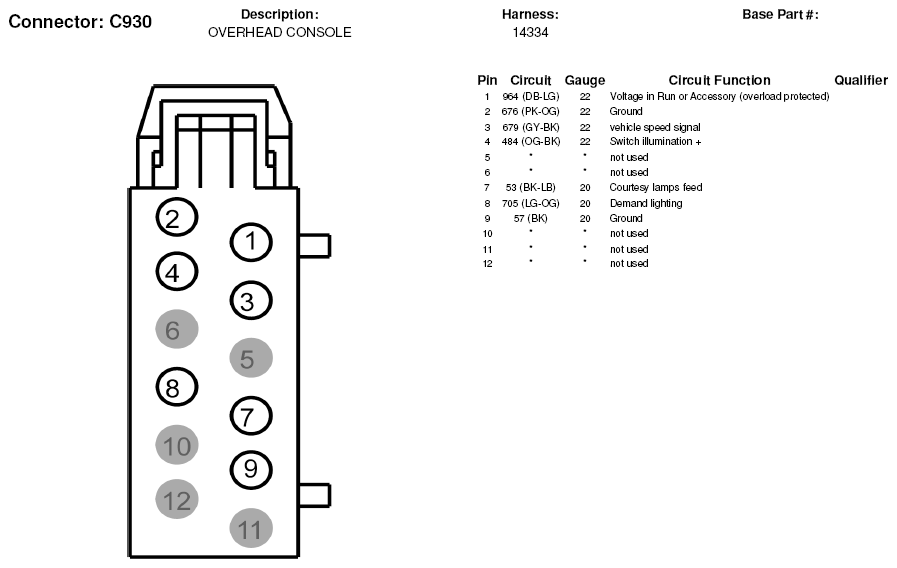

Fig 1: Overhead Console Connector End View (C930)
G05178159Courtesy of FORD MOTOR CO.

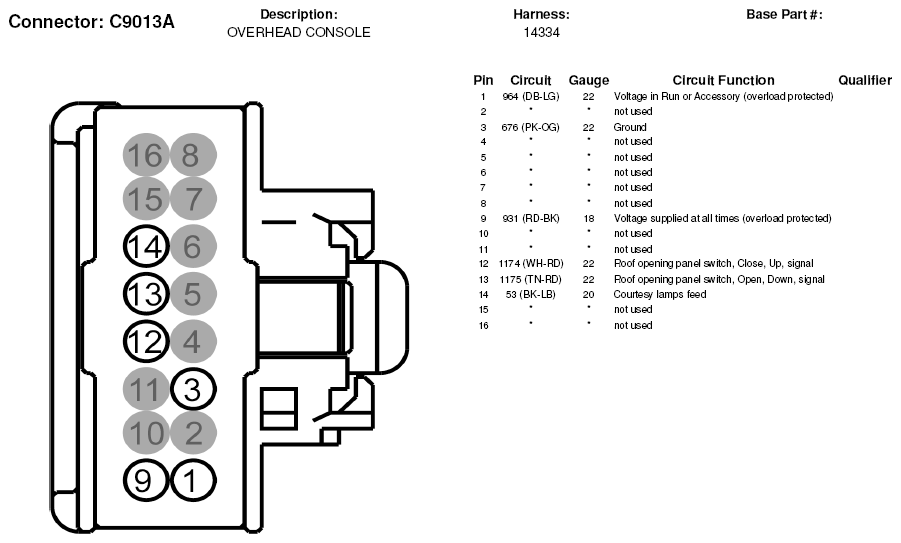

Fig 2: Overhead Console Connector End View (C9013A)
G05178283Courtesy of FORD MOTOR CO.

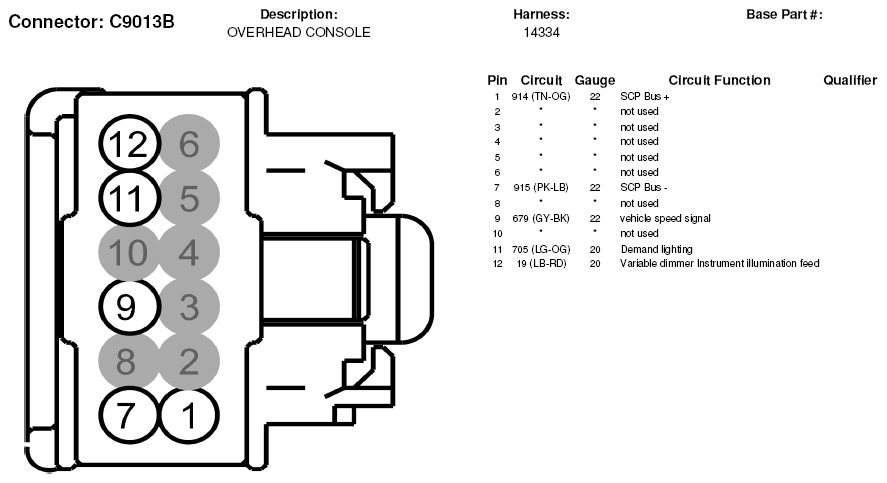

Fig 3: Overhead Console Connector End View (C9013B)
G05178284Courtesy of FORD MOTOR CO.
