Parking Brake System

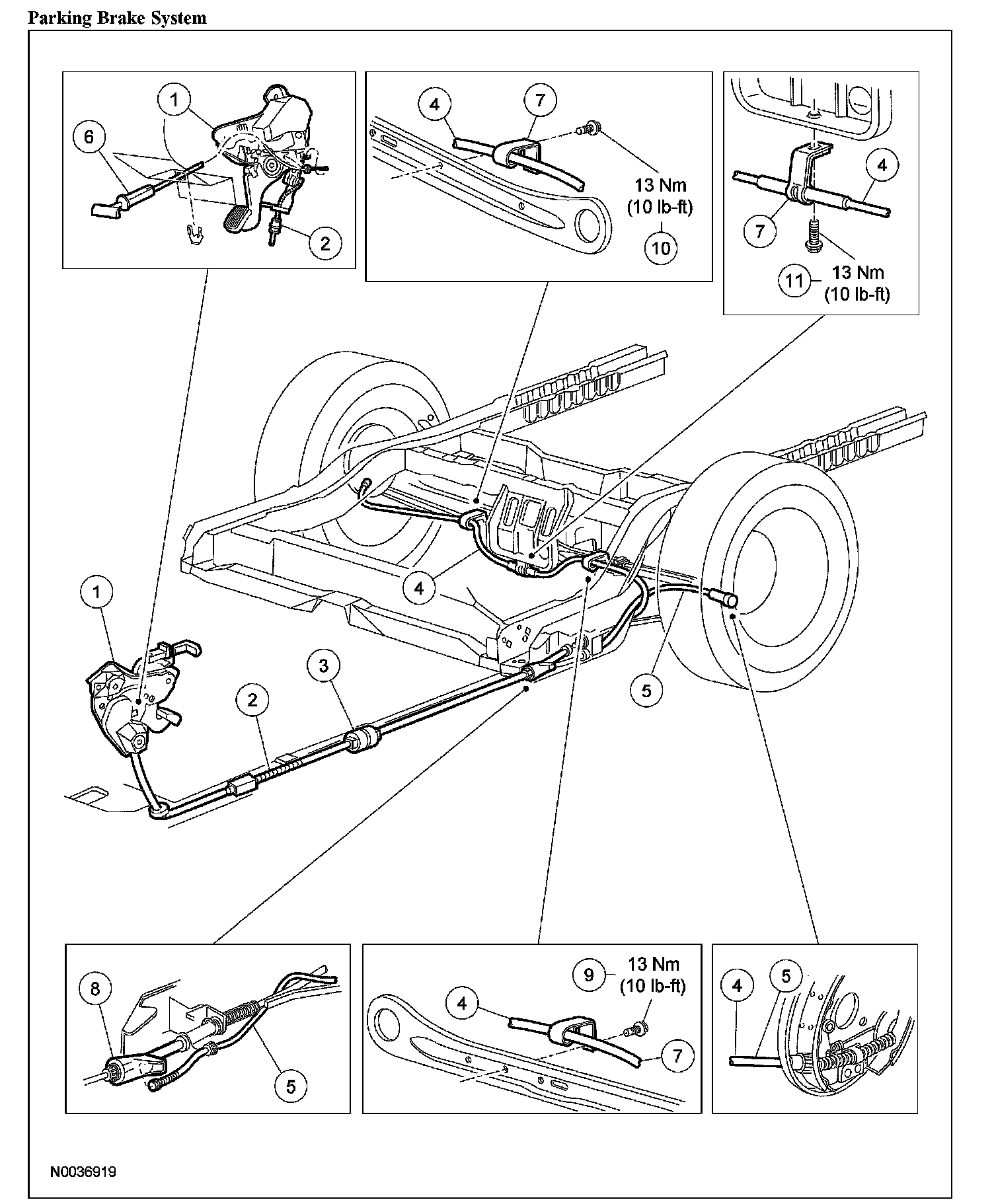

Parking Brake - Exploded View
Parking Brake - Exploded View:
Parking Brake - Exploded View:
