Connector Views
Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.
Fig 2: Crankshaft Position Sensor Connector End View (C101)
Courtesy of FORD MOTOR CO.
Fig 3: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.
Fig 4: Knock Sensor Connector End View (C108)
Courtesy of FORD MOTOR CO.
Fig 5: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.
Fig 6: Speed Control Servo Connector End View (C122)
Courtesy of FORD MOTOR CO.
Fig 7: EVAP Canister Purge Valve Connector End View (C123)
Courtesy of FORD MOTOR CO.
Fig 8: Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.
Fig 9: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.
Fig 10: Anti-Theft Hood Switch Connector End View (C127)
Courtesy of FORD MOTOR CO.
Fig 11: Mass Air Flow (MAF) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.
Fig 12: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.
Fig 13: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.

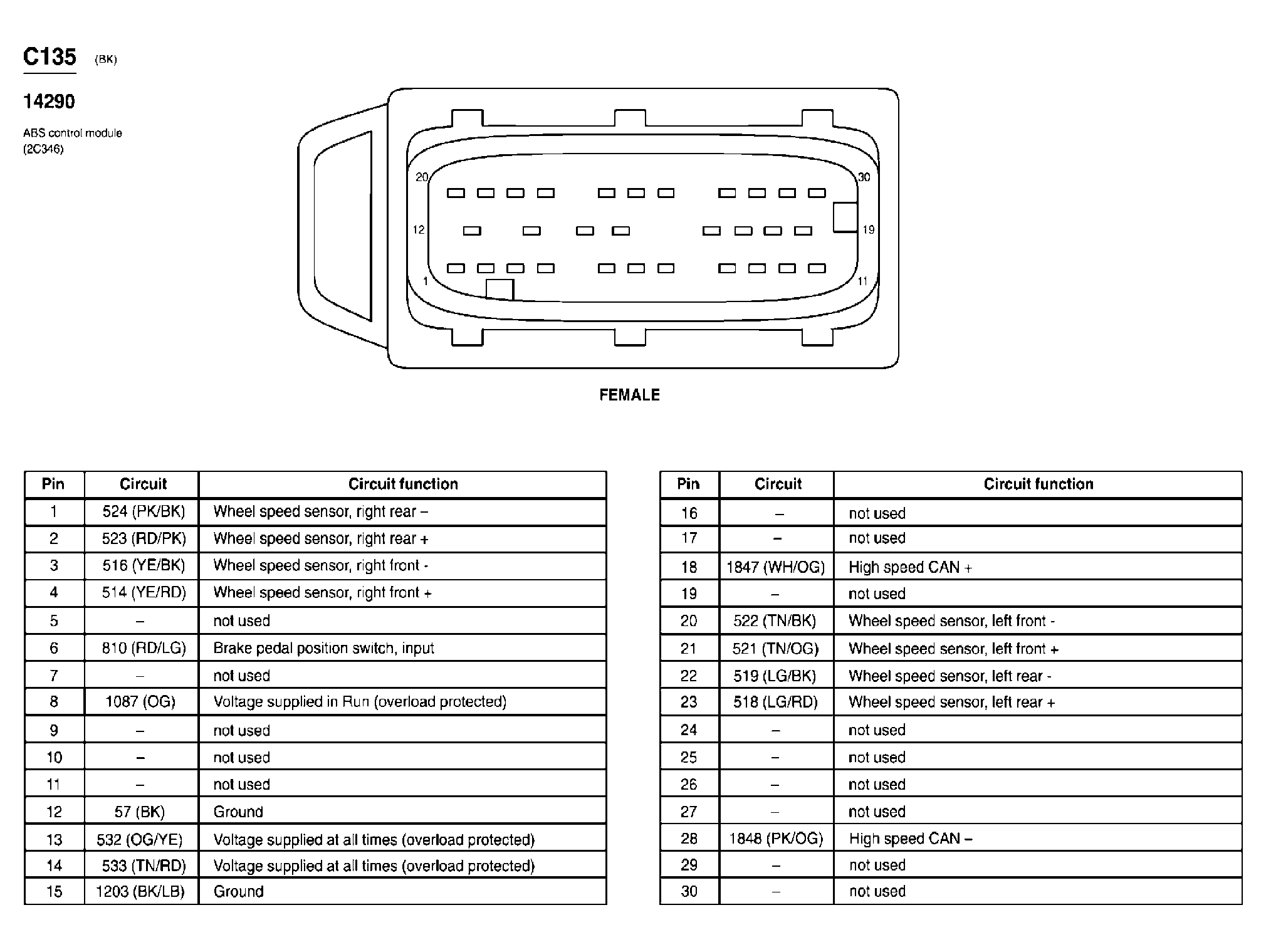

Fig 14: ABS Control Module Connector End View (C135)
Courtesy of FORD MOTOR CO.
Fig 15: Windshield Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.
Fig 16: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.

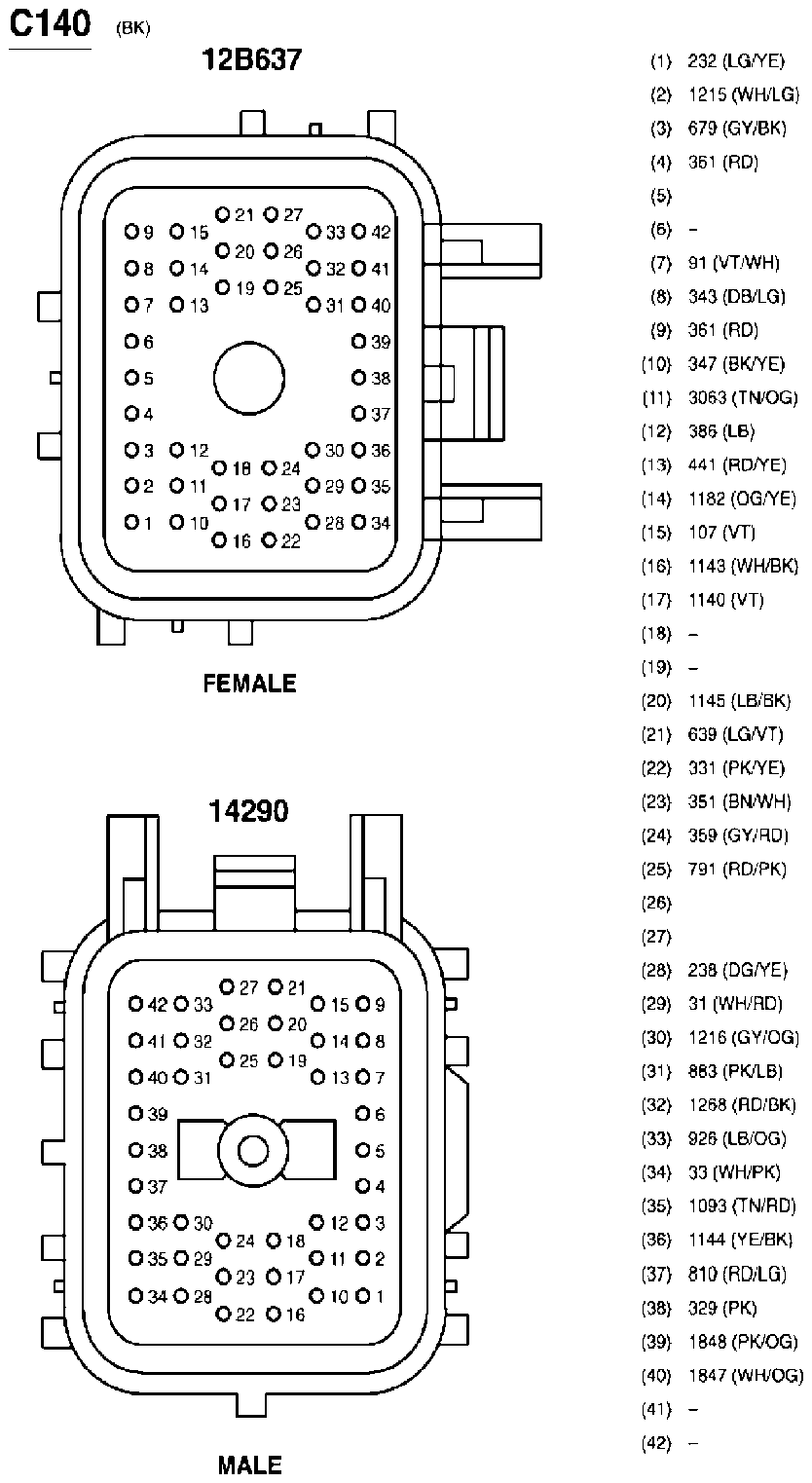

Fig 17: Inline Connector End View (C140)
Courtesy of FORD MOTOR CO.
Fig 18: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.
Fig 19: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.
Fig 20: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
Courtesy of FORD MOTOR CO.
Fig 21: Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.
Fig 22: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.

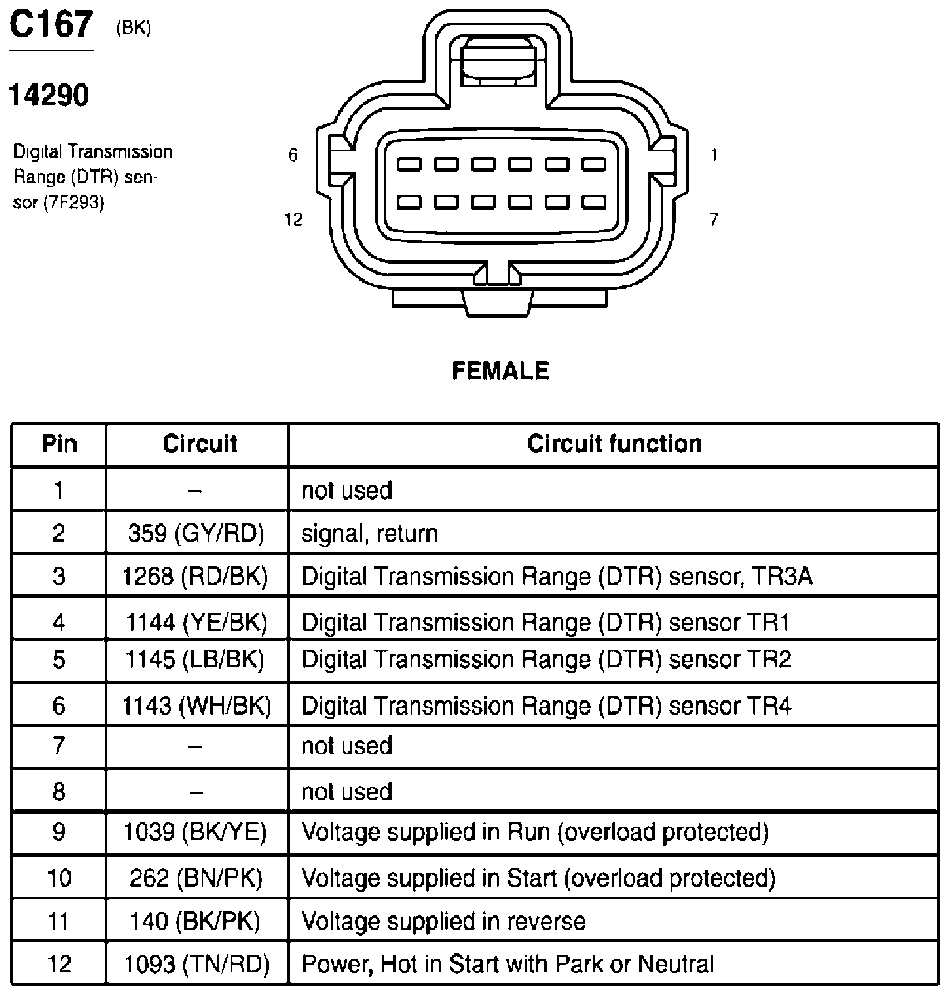

Fig 23: Digital Transmission Range (DTR) Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.
Fig 24: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.
Fig 25: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.
Fig 26: Ignition Transformer Capacitor Connector End View (C174)
Courtesy of FORD MOTOR CO.

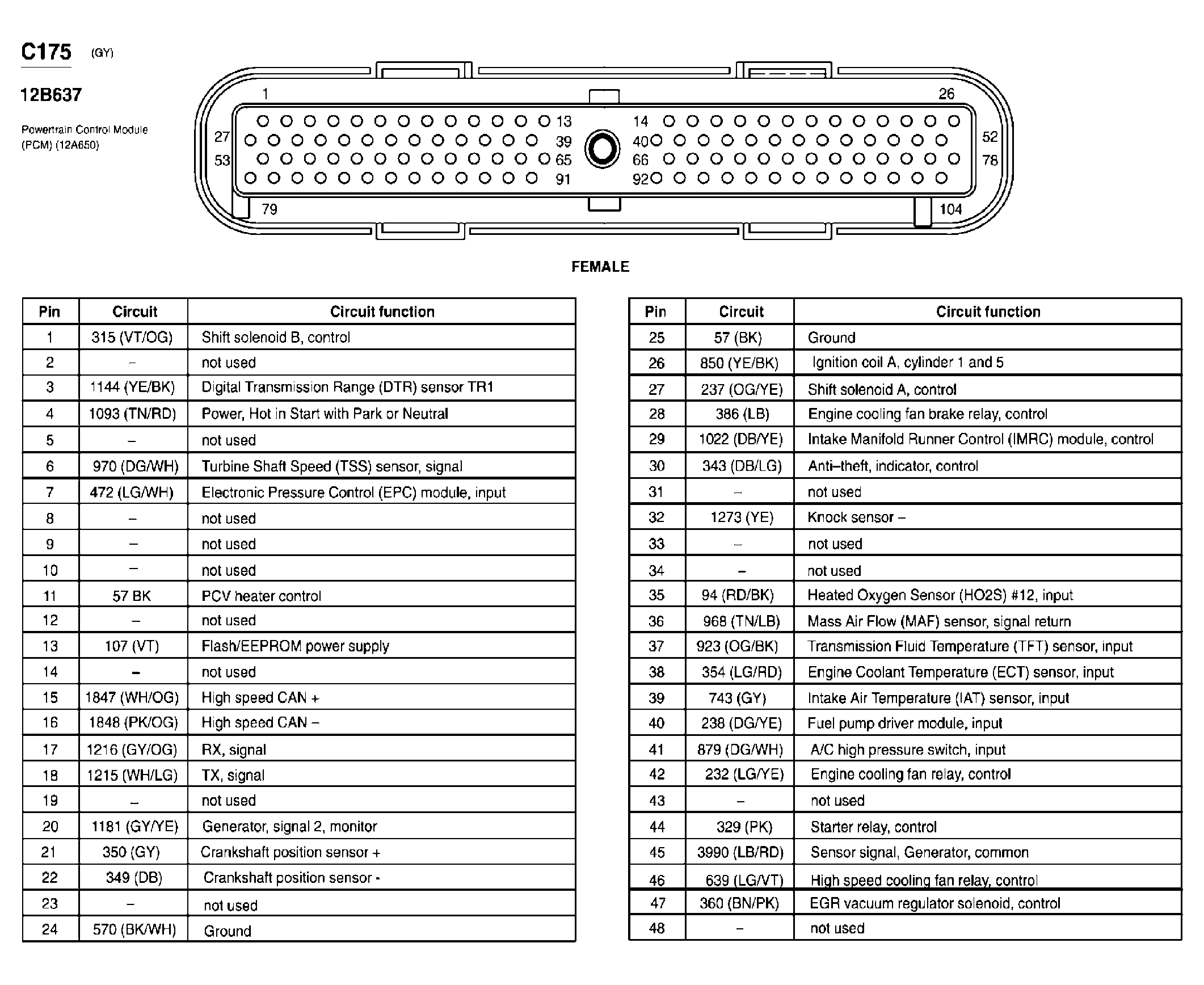

Fig 27: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)
Courtesy of FORD MOTOR CO.

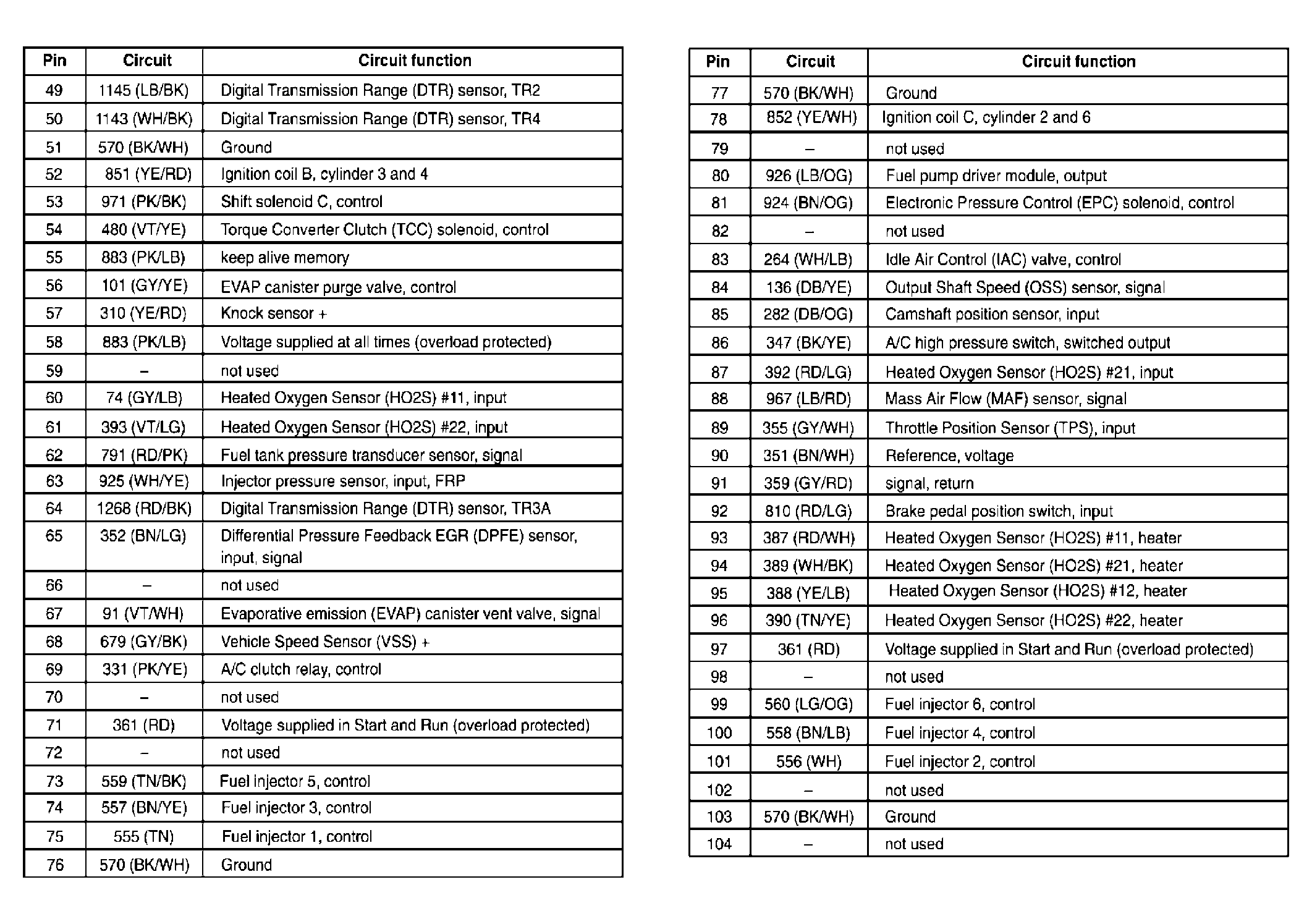

Fig 28: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)
Courtesy of FORD MOTOR CO.
Fig 29: Forward Crash Sensor Connector End View (C177)
Courtesy of FORD MOTOR CO.
Fig 30: Camshaft Position Sensor Connector End View (C180)
Courtesy of FORD MOTOR CO.
Fig 31: Fuel Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.
Fig 32: Fuel Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.
Fig 33: Fuel Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.
Fig 34: Fuel Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.
Fig 35: Fuel Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.
Fig 36: Fuel Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.
Fig 37: Throttle Position Sensor (TPS) Connector End View (C189)
Courtesy of FORD MOTOR CO.
Fig 38: Heated Positive Crankcase Ventilation (PCV) Valve Connector End View (C190)
Courtesy of FORD MOTOR CO.
Fig 39: Output Shaft Speed (OSS) Sensor Connector End View (C193)
Courtesy of FORD MOTOR CO.
Fig 40: Starter Motor Connector End View (C197a)
Courtesy of FORD MOTOR CO.
Fig 41: Starter Motor Connector End View (C197b)
Courtesy of FORD MOTOR CO.
Fig 42: Ambient Air Temperature Sensor Connector End View (C198)
Courtesy of FORD MOTOR CO.

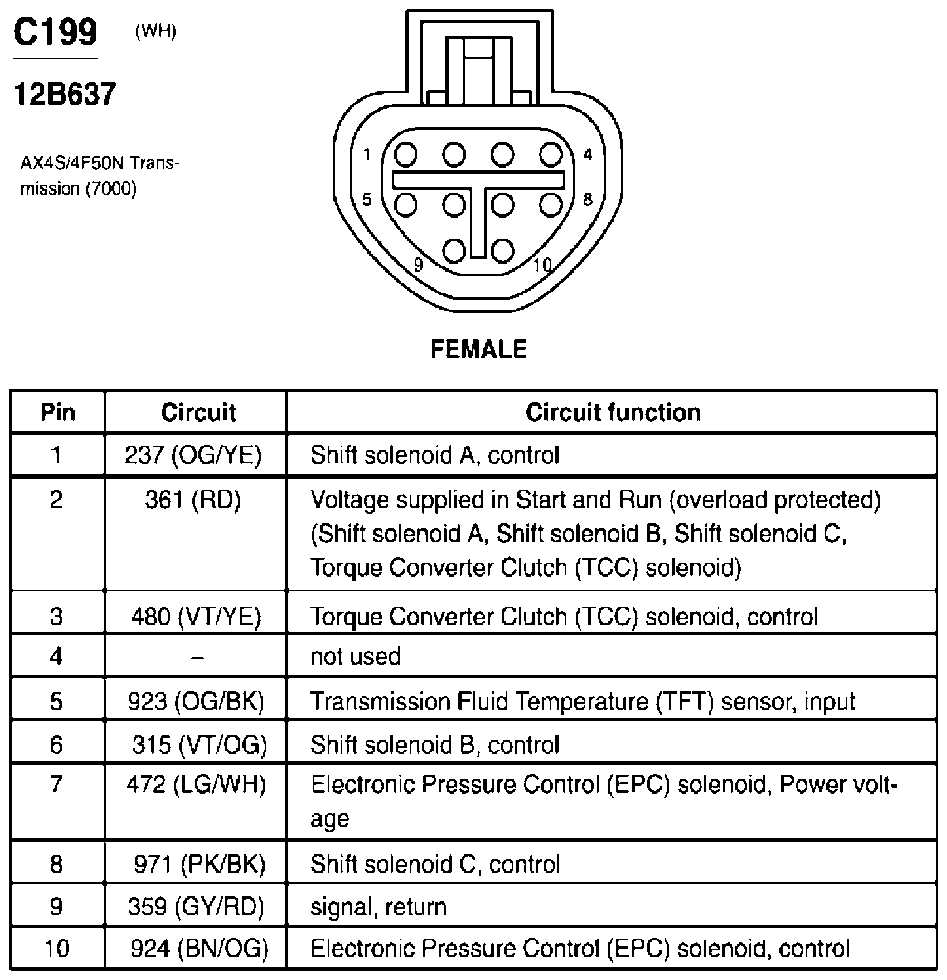

Fig 43: AX4S/4F50N Transmission Connector End View (C199)
Courtesy of FORD MOTOR CO.
Fig 44: Multifunction Switch Connector End View (C202a)
Courtesy of FORD MOTOR CO.
Fig 45: Multifunction Switch Connector End View (C202b)
Courtesy of FORD MOTOR CO.
Fig 46: Multifunction Switch Connector End View (C202c)
Courtesy of FORD MOTOR CO.
Fig 47: Main Light Switch Connector End View (C205a)
Courtesy of FORD MOTOR CO.
Fig 48: Main Light Switch Connector End View (C205b)
Courtesy of FORD MOTOR CO.
Fig 49: Luggage Compartment Lid Release Switch Connector End View (C207)
Courtesy of FORD MOTOR CO.

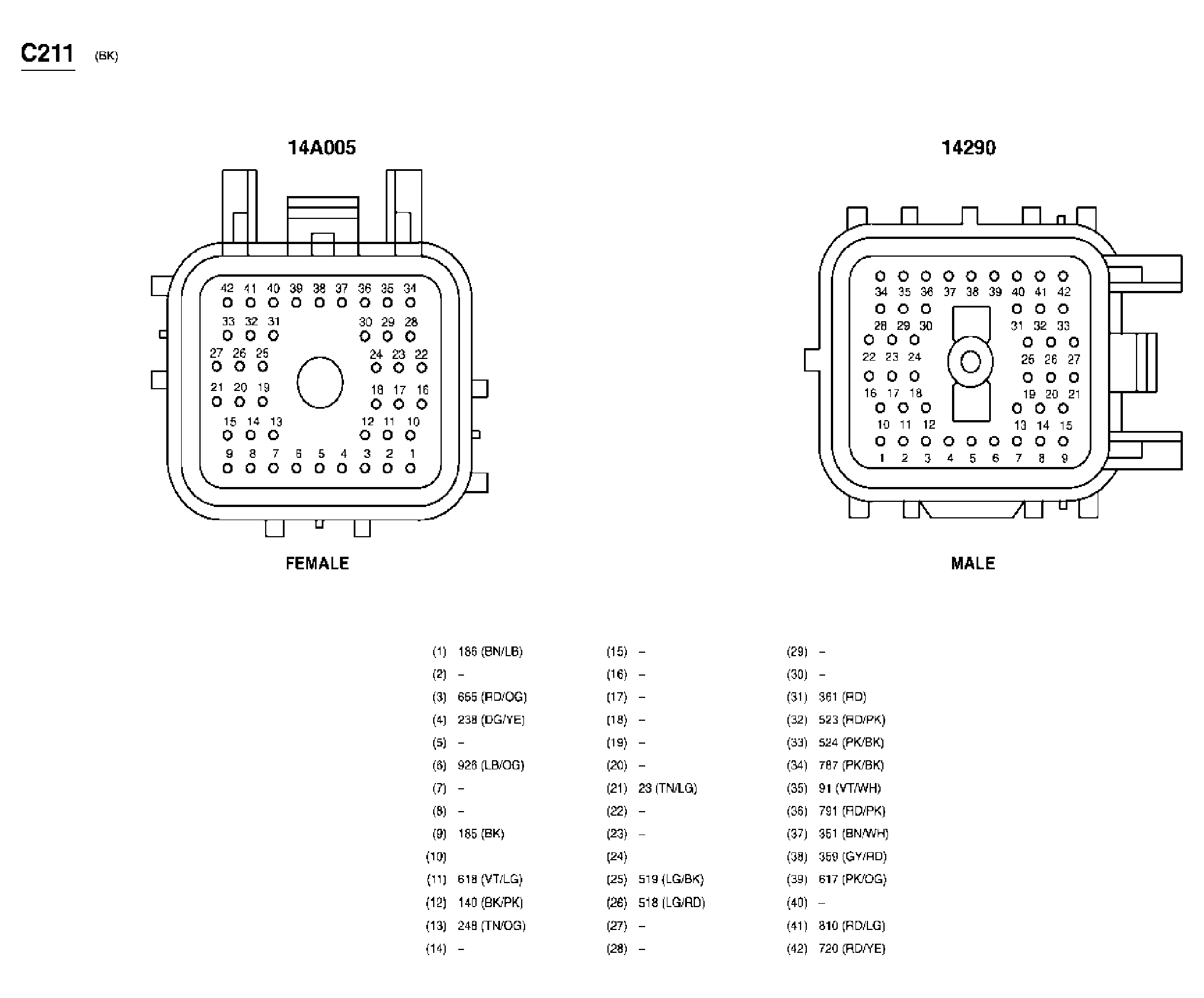

Fig 50: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.
Fig 51: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.
Fig 52: Inline Connector End View (C214)
Courtesy of FORD MOTOR CO.
Fig 53: Air Bag Sliding Contact Connector End View (C218a)
Courtesy of FORD MOTOR CO.
Fig 54: Air Bag Sliding Contact Connector End View (C218b)
Courtesy of FORD MOTOR CO.
Fig 55: Inline Connector End View (C219)
Courtesy of FORD MOTOR CO.

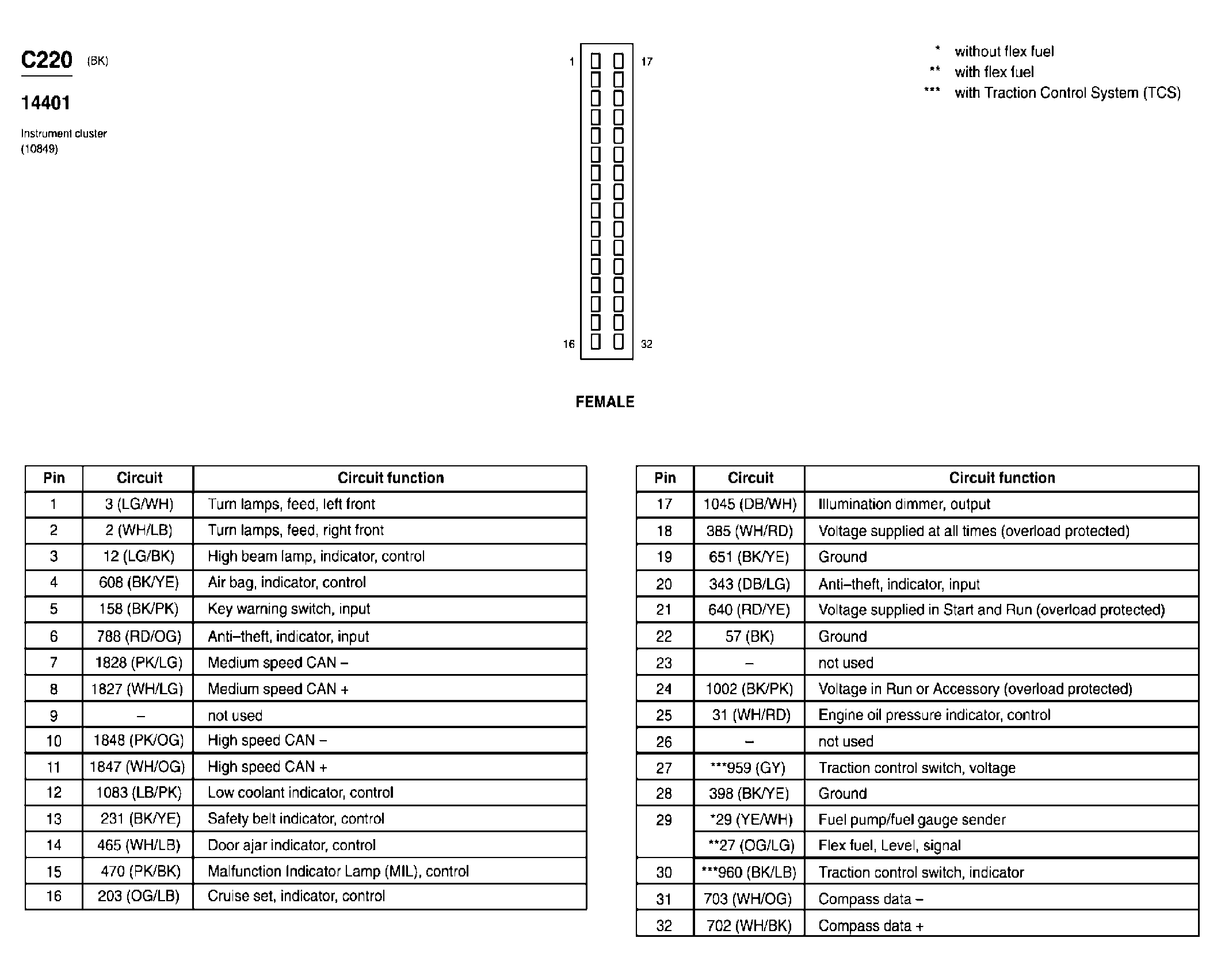

Fig 56: Instrument Cluster Connector End View (C220)
Courtesy of FORD MOTOR CO.

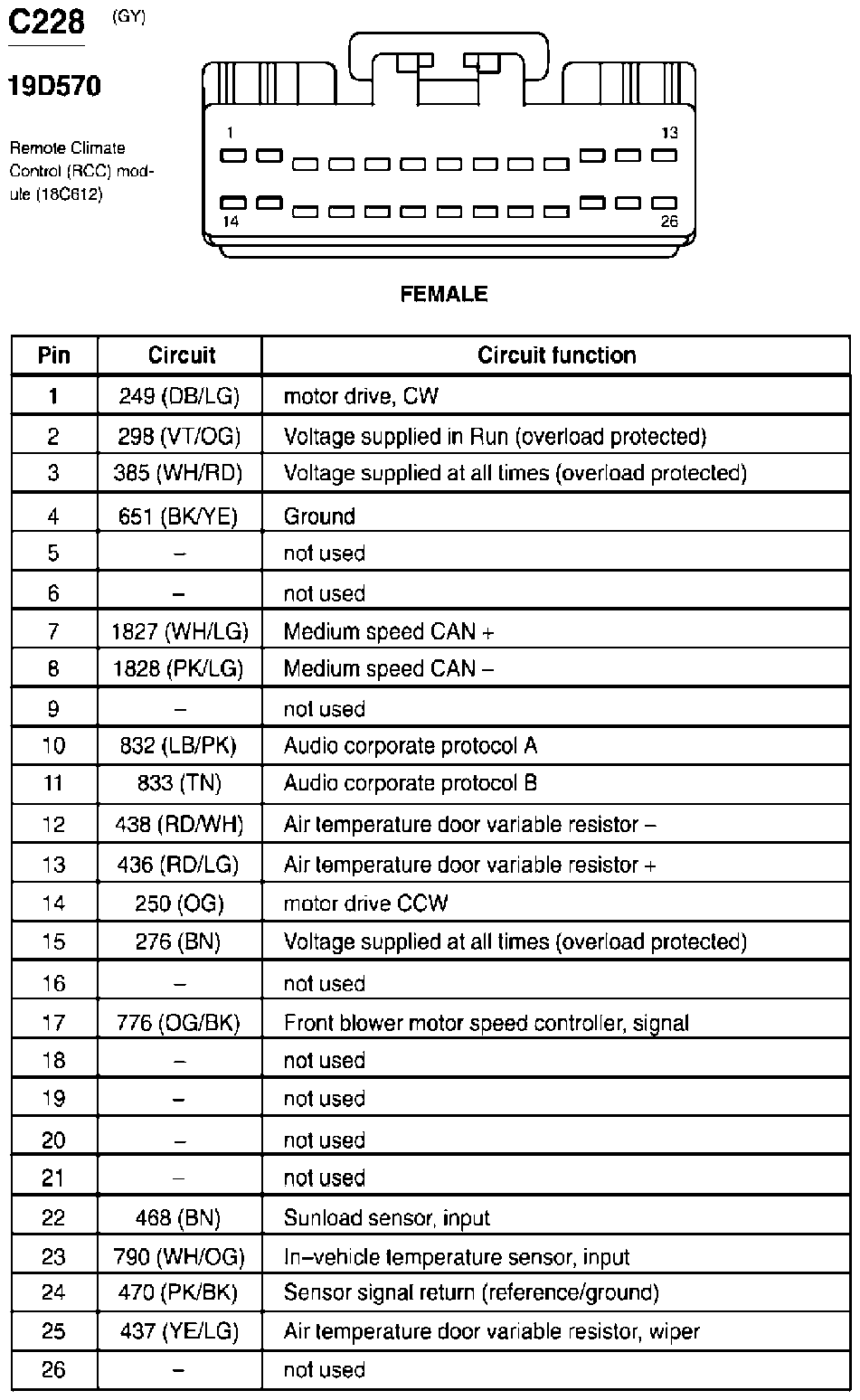

Fig 57: Remote Climate Control (RCC) Module Connector End View (C228)
Courtesy of FORD MOTOR CO.
Fig 58: In-Vehicle Temperature Sensor Connector End View (C233)
Courtesy of FORD MOTOR CO.
Fig 59: CD Changer Connector End View (C243)
Courtesy of FORD MOTOR CO.
Fig 60: Data Link Connector (DLC) Connector End View (C251)
Courtesy of FORD MOTOR CO.
Fig 61: Passive Anti Theft Transceiver Module Connector End View (C252)
Courtesy of FORD MOTOR CO.
Fig 62: Message Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.
Fig 63: Glove Box Lamp Connector End View (C254)
Courtesy of FORD MOTOR CO.
Fig 64: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.

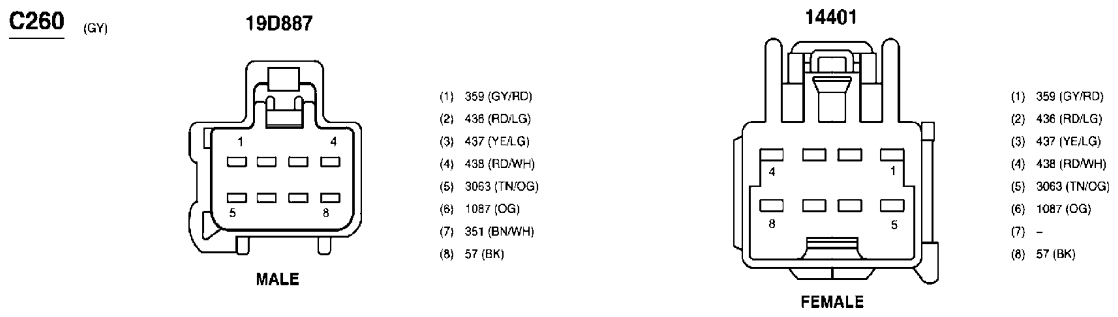

Fig 65: Inline Connector End View (C260)
Courtesy of FORD MOTOR CO.

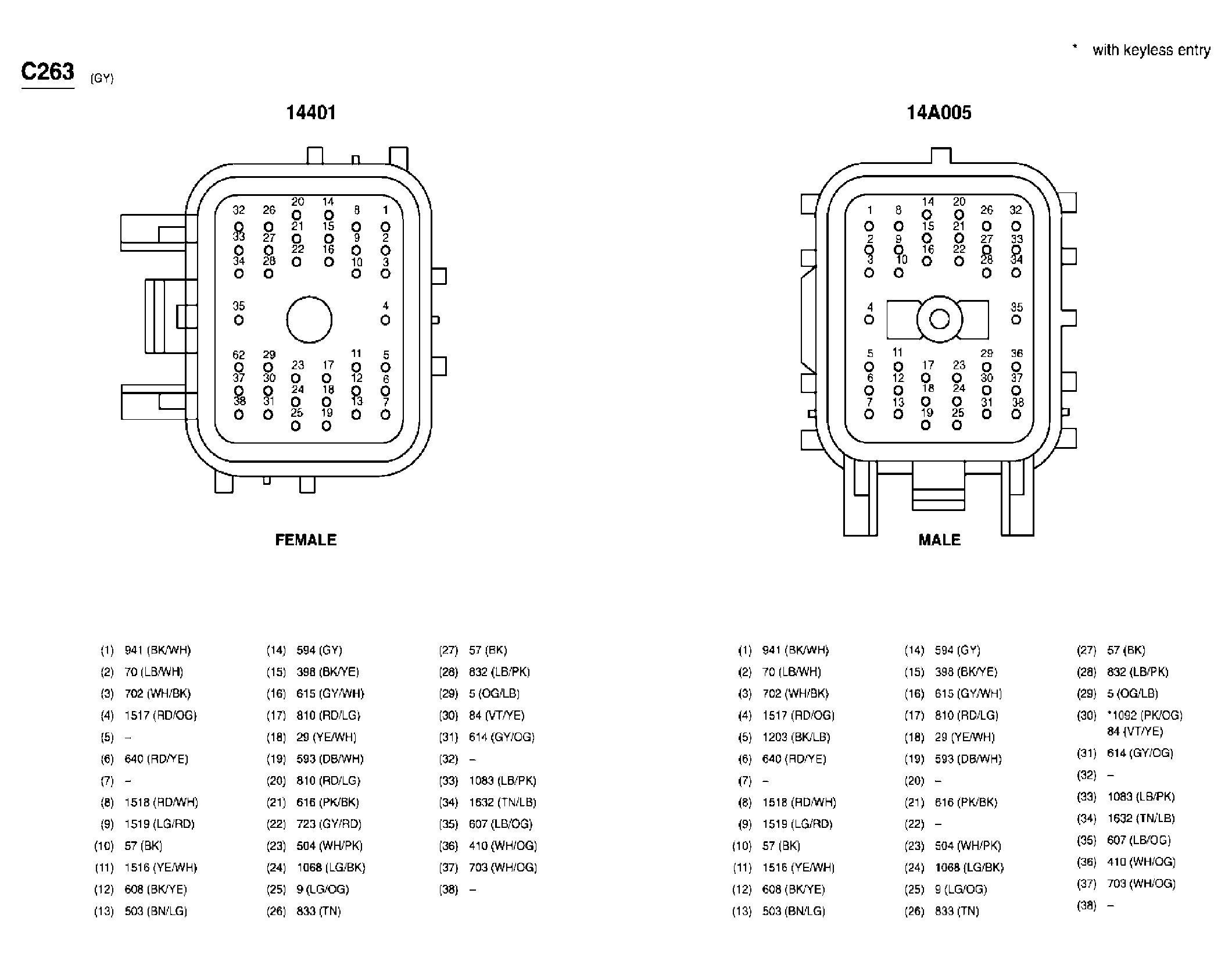

Fig 66: Inline Connector End View (C263)
Courtesy of FORD MOTOR CO.

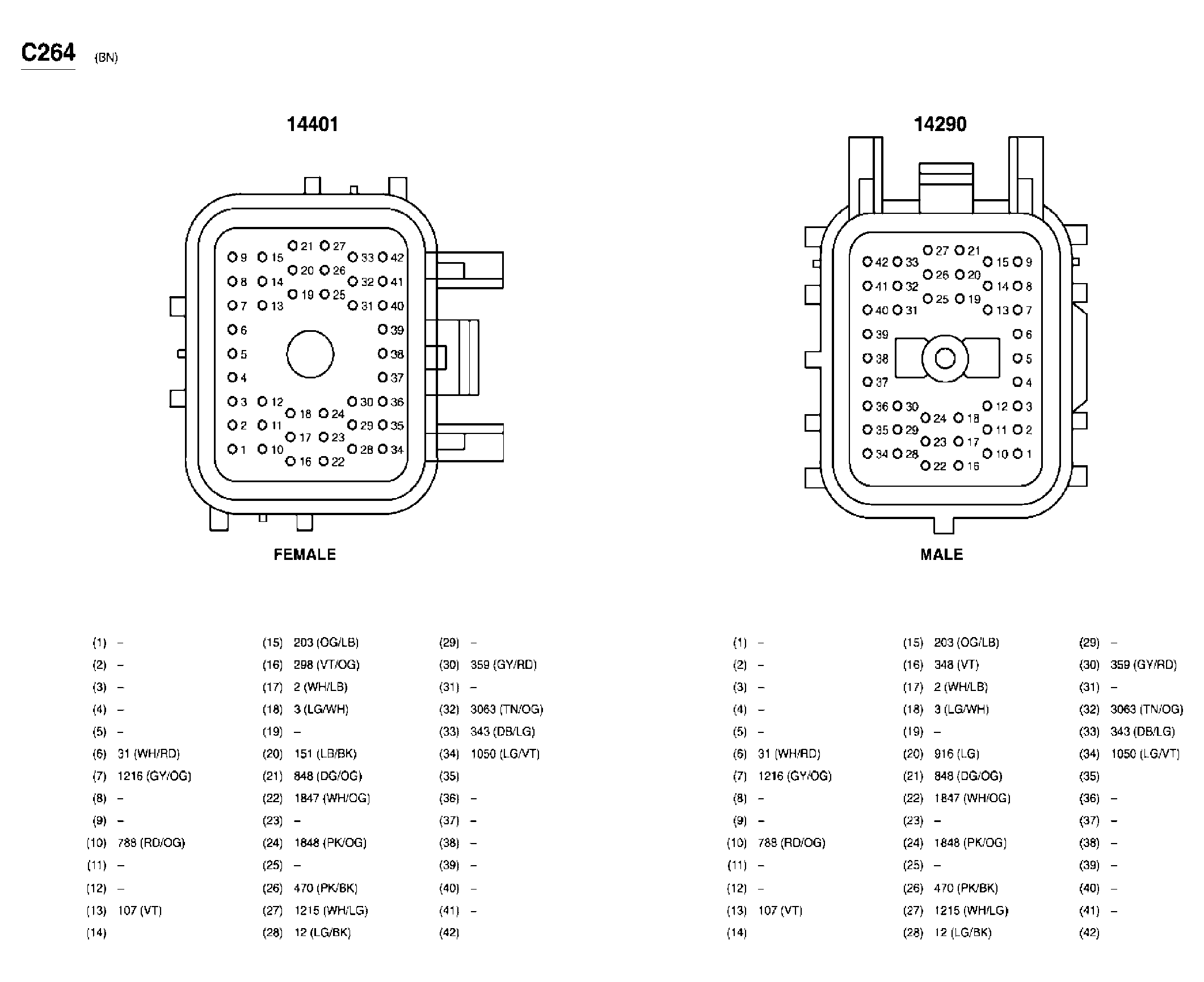

Fig 67: Inline Connector End View (C264)
Courtesy of FORD MOTOR CO.
Fig 68: Inline Connector End View (C265)
Courtesy of FORD MOTOR CO.
Fig 69: Front Blower Motor Speed Controller Connector End View (C271a)
Courtesy of FORD MOTOR CO.
Fig 70: Deactivator Switch Connector End View (C277)
Courtesy of FORD MOTOR CO.
Fig 71: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.
Fig 72: Traction Control Switch Connector End View (C280)
Courtesy of FORD MOTOR CO.
Fig 73: Autolamp/Sunload Sensor Connector End View (C287)
Courtesy of FORD MOTOR CO.

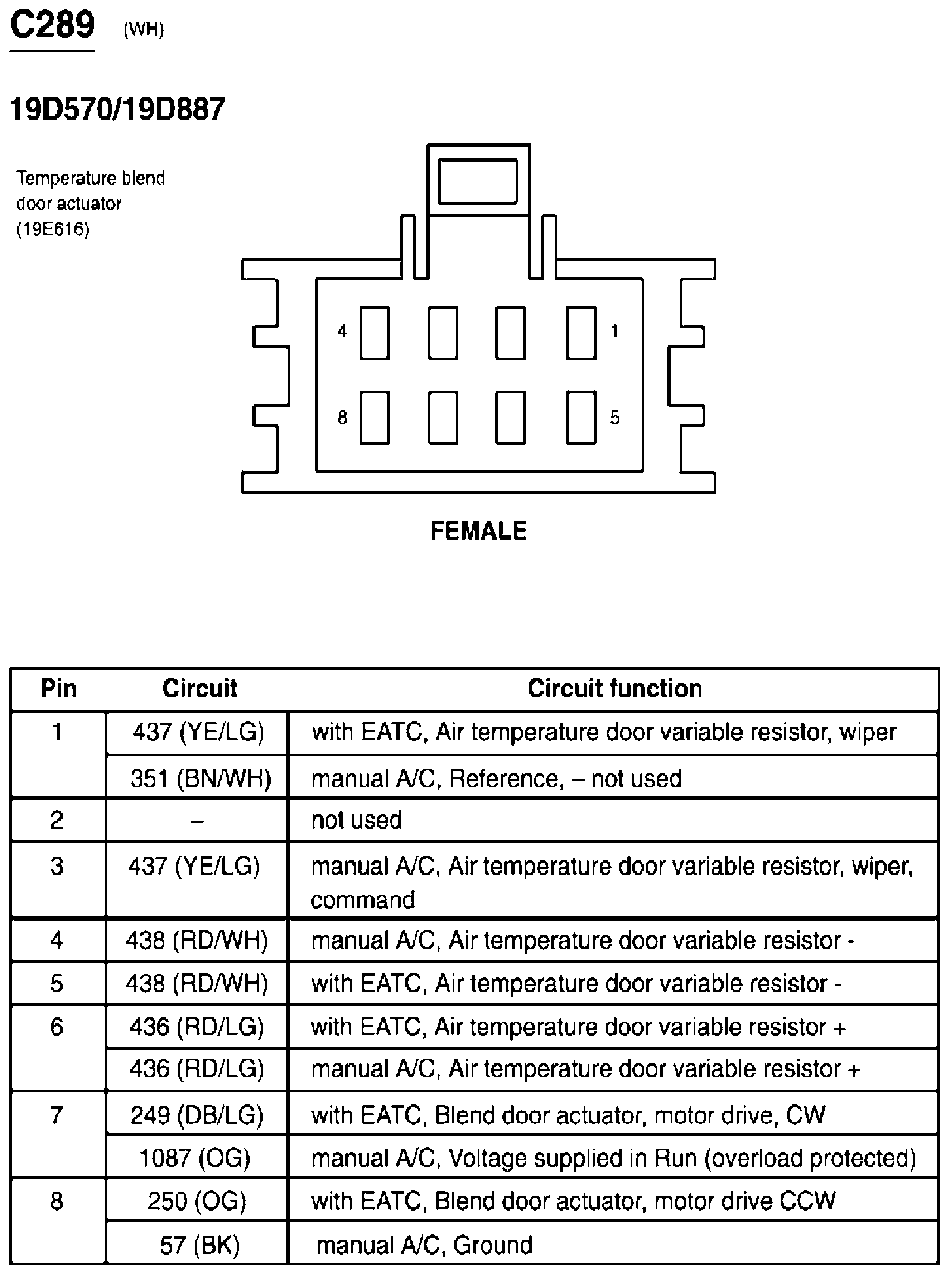

Fig 74: Temperature Blend Door Actuator Connector End View (C289)
Courtesy of FORD MOTOR CO.
Fig 75: Inline Connector End View (C291)
Courtesy of FORD MOTOR CO.
Fig 76: Front Blower Motor Resistor Assembly Connector End View (C293)
Courtesy of FORD MOTOR CO.
Fig 77: Function Selector Switch Assembly Connector End View (C294a)
Courtesy of FORD MOTOR CO.
Fig 78: Function Selector Switch Assembly Connector End View (C2494b)
Courtesy of FORD MOTOR CO.
Fig 79: Function Selector Switch Assembly Connector End View (C294c)
Courtesy of FORD MOTOR CO.
Fig 80: Side Impact Sensor, Right Connector End View (C304)
Courtesy of FORD MOTOR CO.
Fig 81: Side Impact Sensor, Left Connector End View (C305)
Courtesy of FORD MOTOR CO.
Fig 82: Parking Brake Switch Connector End View (C306)
Courtesy of FORD MOTOR CO.

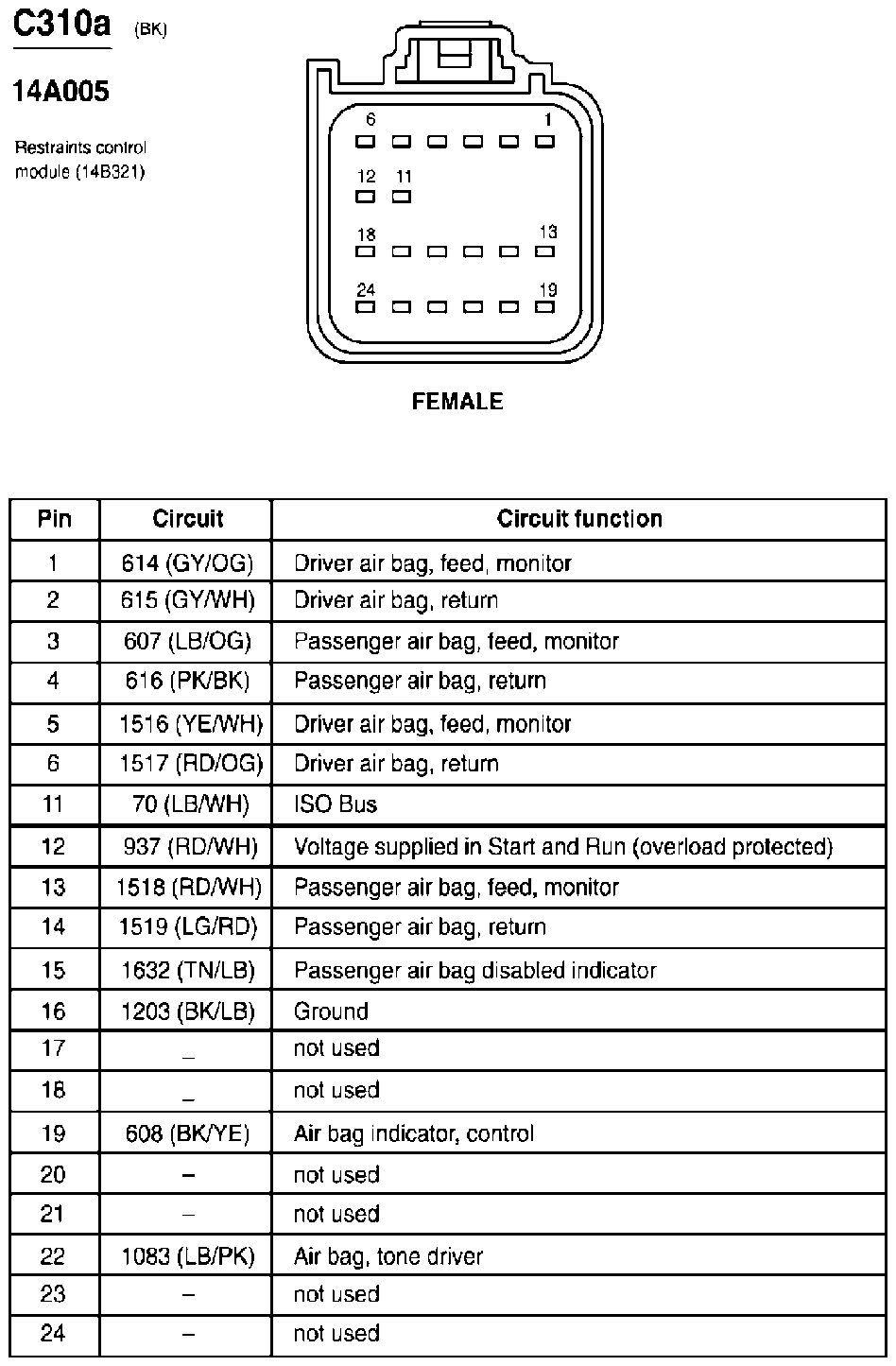

Fig 83: Restraints Control Module Connector End View (C310a)
Courtesy of FORD MOTOR CO.

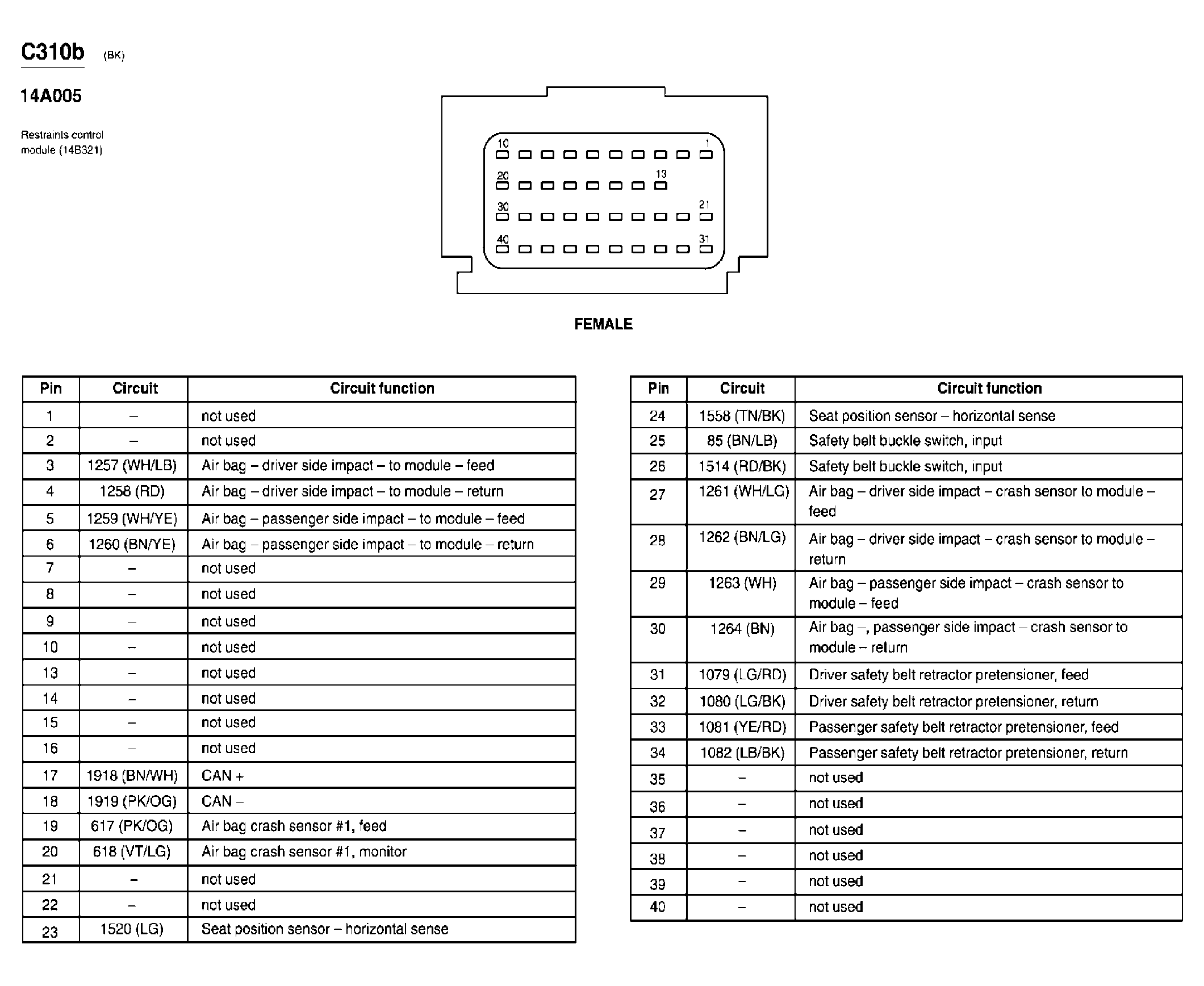

Fig 84: Restraints Control Module Connector End View (C310b)
Courtesy of FORD MOTOR CO.
Fig 85: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.
Fig 86: Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.
Fig 87: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.
Fig 88: Inline Connector End View (C316)
Courtesy of FORD MOTOR CO.
Fig 89: Cigar Lighter, Front Connector End View (C319)
Courtesy of FORD MOTOR CO.
Fig 90: Inline Connector End View (C327)
Courtesy of FORD MOTOR CO.
Fig 91: Seat Adjust Switch, Passenger Side Front Connector End View (C330)
Courtesy of FORD MOTOR CO.
Fig 92: Power Seat Motor Assembly, Right Connector End View (C332)
Courtesy of FORD MOTOR CO.
Fig 93: Side Air Bag Module, Right Connector End View (C337)
Courtesy of FORD MOTOR CO.
Fig 94: Seat Track Position Sensor, Left Connector End View (C356)
Courtesy of FORD MOTOR CO.
Fig 95: Power Seat Motor Assembly, Left Connector End View (C357)
Courtesy of FORD MOTOR CO.
Fig 96: Seat Track Position Sensor, Left Connector End View (C358)
Courtesy of FORD MOTOR CO.
Fig 97: Seat Adjust Switch, Driver Side Front Connector End View (C360)
Courtesy of FORD MOTOR CO.
Fig 98: Side Air Bag Module, Left Connector End View (C367)
Courtesy of FORD MOTOR CO.
Fig 99: Ashtray Illumination Lamp Connector End View (C370)
Courtesy of FORD MOTOR CO.
Fig 100: Power Point Connector End View (C380)
Courtesy of FORD MOTOR CO.
Fig 101: Safety Belt Assembly, Left Connector End View (C381)
Courtesy of FORD MOTOR CO.
Fig 102: Rear Control Unit (RCU) Connector End View (C388a)
Courtesy of FORD MOTOR CO.
Fig 103: Rear Control Unit (RCU) Connector End View (C388b)
Courtesy of FORD MOTOR CO.
Fig 104: Rear Control Unit (RCU) Connector End View (C388c)
Courtesy of FORD MOTOR CO.
Fig 105: Safety Belt Assembly, Right Connector End View (C389)
Courtesy of FORD MOTOR CO.
Fig 106: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)
Courtesy of FORD MOTOR CO.
Fig 107: Rear Window Defrost Grid Connector End View (C402a)
Courtesy of FORD MOTOR CO.
Fig 108: Rear Window Defrost Grid Connector End View (C402b)
Courtesy of FORD MOTOR CO.
Fig 109: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.
Fig 110: Park/Stop/Turn Lamp, Left Rear Connector End View (C412)
Courtesy of FORD MOTOR CO.
Fig 111: Park/Turn Lamp, Right Rear Connector End View (C415)
Courtesy of FORD MOTOR CO.
Fig 112: Wheel Speed Sensor, Right Rear Connector End View (C426)
Courtesy of FORD MOTOR CO.
Fig 113: Luggage Compartment Lamp Connector End View (C428)
Courtesy of FORD MOTOR CO.
Fig 114: Luggage Compartment Lid Release Solenoid Connector End View (C430)
Courtesy of FORD MOTOR CO.
Fig 115: Inline Connector End View (C431)
Courtesy of FORD MOTOR CO.
Fig 116: Inline Connector End View (C432)
Courtesy of FORD MOTOR CO.
Fig 117: Fuel Pump Driver Module Connector End View (C433)
Courtesy of FORD MOTOR CO.
Fig 118: Fuel Sender Connector End View (C434)
Courtesy of FORD MOTOR CO.
Fig 119: Fuel Tank Pressure Transducer Sensor Connector End View (C435)
Courtesy of FORD MOTOR CO.
Fig 120: Wheel Speed Sensor, Left Rear Connector End View (C440)
Courtesy of FORD MOTOR CO.
Fig 121: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
Courtesy of FORD MOTOR CO.
Fig 122: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.
Fig 123: License Plate Lamp, Left Connector End View (C452)
Courtesy of FORD MOTOR CO.
Fig 124: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.
Fig 125: License Plate Lamp, Right Connector End View (C462)
Courtesy of FORD MOTOR CO.
Fig 126: High Mounted Stoplamp Connector End View (C475)
Courtesy of FORD MOTOR CO.
Fig 127: Anti-Theft Luggage Compartment Switch Connector End View (C483)
Courtesy of FORD MOTOR CO.
Fig 128: Speaker, Left Rear Connector End View (C484)
Courtesy of FORD MOTOR CO.
Fig 129: Speaker, Right Rear Connector End View (C485)
Courtesy of FORD MOTOR CO.
Fig 130: Key Pad Switch Assembly Connector End View (C500)
Courtesy of FORD MOTOR CO.
Fig 131: Lock Cylinder Switch, Left Connector End View (C502)
Courtesy of FORD MOTOR CO.
Fig 132: Master Window Adjust Switch Connector End View (C504a)
Courtesy of FORD MOTOR CO.
Fig 133: Master Window Adjust Switch Connector End View (C504b)
Courtesy of FORD MOTOR CO.
Fig 134: Door Lock Switch, Driver Side Connector End View (C505)
Courtesy of FORD MOTOR CO.

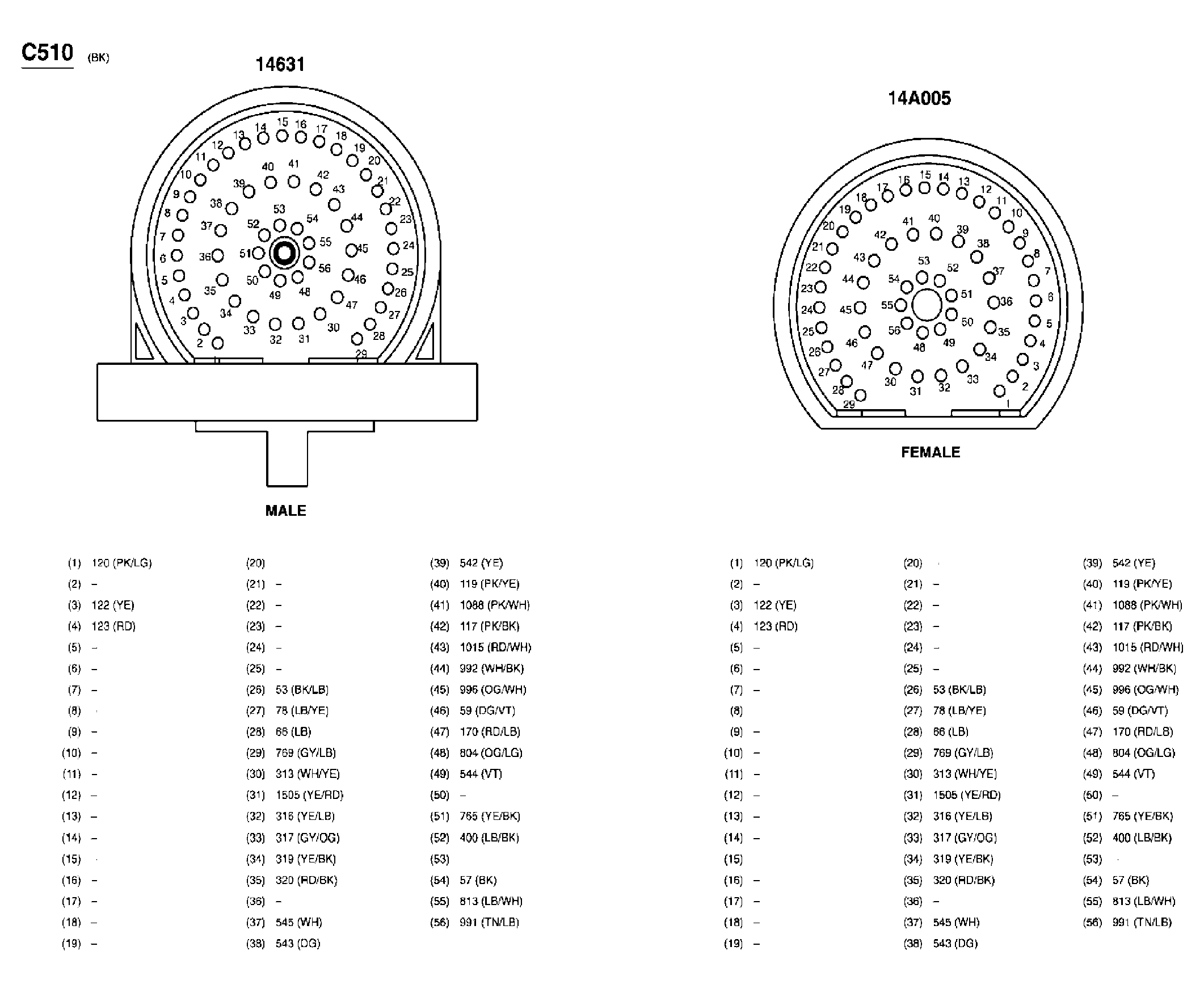

Fig 135: Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.
Fig 136: Tweeter, Left Front Connector End View (C513)
Courtesy of FORD MOTOR CO.
Fig 137: Exterior Rear View Mirror, Driver Side Connector End View (C520)
Courtesy of FORD MOTOR CO.
Fig 138: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.
Fig 139: Power Window Motor, Driver Side Front Connector End View (C524)
Courtesy of FORD MOTOR CO.
Fig 140: Door Lock Actuator, Left Front Connector End View (C525)
Courtesy of FORD MOTOR CO.
Fig 141: Door Ajar Switch, Left Front Connector End View (C526)
Courtesy of FORD MOTOR CO.
Fig 142: Exterior Rear View Mirror Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.
Fig 143: Exterior Rear View Mirror, Passenger Side Connector End View (C601)
Courtesy of FORD MOTOR CO.
Fig 144: Door Ajar Switch, Right Rear Connector End View (C602)
Courtesy of FORD MOTOR CO.
Fig 145: Door Lock Actuator, Right Front Connector End View (C603)
Courtesy of FORD MOTOR CO.
Fig 146: Window Adjust Switch, Passenger Side Connector End View (C604)
Courtesy of FORD MOTOR CO.
Fig 147: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.
Fig 148: Power Window Motor, Passenger Side Front Connector End View (C608)
Courtesy of FORD MOTOR CO.
Fig 149: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.
Fig 150: Tweeter, Right Front Connector End View (C613)
Courtesy of FORD MOTOR CO.
Fig 151: Window Adjust Switch, Left Rear Connector End View (C701)
Courtesy of FORD MOTOR CO.
Fig 152: Power Window Motor, Left Rear Connector End View (C703)
Courtesy of FORD MOTOR CO.
Fig 153: Door Lock Actuator, Left Rear Connector End View (C704)
Courtesy of FORD MOTOR CO.
Fig 154: Inline Connector End View (C710)
Courtesy of FORD MOTOR CO.
Fig 155: Door Ajar Switch, Left Rear Connector End View (C715)
Courtesy of FORD MOTOR CO.
Fig 156: Window Adjust Switch, Right Rear Connector End View (C801)
Courtesy of FORD MOTOR CO.
Fig 157: Power Window Motor, Right Rear Connector End View (C803)
Courtesy of FORD MOTOR CO.
Fig 158: Door Lock Actuator, Right Rear Connector End View (C804)
Courtesy of FORD MOTOR CO.
Fig 159: Inline Connector End View (C810)
Courtesy of FORD MOTOR CO.
Fig 160: Door Ajar Switch, Right Rear Connector End View (C820)
Courtesy of FORD MOTOR CO.
Fig 161: Map Reading Lamps Connector End View (C901)
Courtesy of FORD MOTOR CO.
Fig 162: Vanity Mirror Lamp, Right Connector End View (C906)
Courtesy of FORD MOTOR CO.
Fig 163: Vanity Mirror Lamp, Left Connector End View (C907)
Courtesy of FORD MOTOR CO.
Fig 164: Electronic Compass Connector End View (C909)
Courtesy of FORD MOTOR CO.
Fig 165: Electrochromatic Inside Mirror Unit Connector End View (C911)
Courtesy of FORD MOTOR CO.
Fig 166: Roof Opening Panel Switch Connector End View (C912)
Courtesy of FORD MOTOR CO.
Fig 167: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.
Fig 168: Interior Lamps, Front Connector End View (C918)
Courtesy of FORD MOTOR CO.
Fig 169: Inline Connector End View (C919)
Courtesy of FORD MOTOR CO.
Fig 170: Roof Opening Panel Module Connector End View (C921)
Courtesy of FORD MOTOR CO.
Fig 171: Inline Connector End View (C922)
Courtesy of FORD MOTOR CO.
Fig 172: Wiper High/Low Relay Connector End View (C1001)
Courtesy of FORD MOTOR CO.
Fig 173: Wiper Run/Park Relay Connector End View (C1002)
Courtesy of FORD MOTOR CO.
Fig 174: A/C Clutch Relay Connector End View (C1008)
Courtesy of FORD MOTOR CO.
Fig 175: PCM Power Relay Connector End View (C1016)
Courtesy of FORD MOTOR CO.
Fig 176: Starter Relay Connector End View (C1017)
Courtesy of FORD MOTOR CO.
Fig 177: Headlamp, Left Connector End View (C1021)
Courtesy of FORD MOTOR CO.
Fig 178: Park/Turn Lamp, Left Front Connector End View (C1023)
Courtesy of FORD MOTOR CO.
Fig 179: Engine Cooling Fan Resistor Connector End View (C1027)
Courtesy of FORD MOTOR CO.
Fig 180: Engine Cooling Fan Brake Relay Connector End View (C1028)
Courtesy of FORD MOTOR CO.
Fig 181: Battery Junction Box (BJB) Connector End View (C1035a)
Courtesy of FORD MOTOR CO.
Fig 182: Battery Junction Box (BJB) Connector End View (C1035b)
Courtesy of FORD MOTOR CO.
Fig 183: Headlamp, Right Connector End View (C1041)
Courtesy of FORD MOTOR CO.
Fig 184: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.
Fig 185: Fuel Pump Relay Connector End View (C1051)
Courtesy of FORD MOTOR CO.
Fig 186: Engine Cooling Fan Relay Connector End View (C1055)
Courtesy of FORD MOTOR CO.
Fig 187: High Speed Fan Control Relay Connector End View (C1056)
Courtesy of FORD MOTOR CO.
Fig 188: Low Speed Fan Control Relay Connector End View (C1058)
Courtesy of FORD MOTOR CO.
Fig 189: Dual Pressure Switch Connector End View (C1062)
Courtesy of FORD MOTOR CO.
Fig 190: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)
Courtesy of FORD MOTOR CO.
Fig 191: Ignition Coil Connector End View (C1065)
Courtesy of FORD MOTOR CO.
Fig 192: Idle Air Control (IAC) Valve Connector End View (C1066)
Courtesy of FORD MOTOR CO.
Fig 193: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)
Courtesy of FORD MOTOR CO.
Fig 194: EGR Vacuum Regulator Solenoid Connector End View (C1072)
Courtesy of FORD MOTOR CO.
Fig 195: Injector Pressure Sensor Connector End View (C1073)
Courtesy of FORD MOTOR CO.
Fig 196: Engine Cooling Fan Motor 1 Connector End View (C1074)
Courtesy of FORD MOTOR CO.
Fig 197: Engine Cooling Fan Motor 2 Connector End View (C1077)
Courtesy of FORD MOTOR CO.
Fig 198: Rear Window Defrost Relay 2 Connector End View (C1099)
Courtesy of FORD MOTOR CO.
Fig 199: Battery Connector End View (C1100a)
Courtesy of FORD MOTOR CO.
Fig 200: Battery Connector End View (C1100b)
Courtesy of FORD MOTOR CO.
Fig 201: Generator Connector End View (C1104a)
Courtesy of FORD MOTOR CO.
Fig 202: Generator Connector End View (C1104b)
Courtesy of FORD MOTOR CO.
Fig 203: Intake Manifold Runner Control (IMRC) Module Connector End View (C1286)
Courtesy of FORD MOTOR CO.
Fig 204: A/C Clutch Cycling Pressure Switch Connector End View (C1525)
Courtesy of FORD MOTOR CO.
Fig 205: Front Blower Motor Connector End View (C2004)
Courtesy of FORD MOTOR CO.
Fig 206: Flexible Fuel Sensor Module Connector End View (C2005)
Courtesy of FORD MOTOR CO.
Fig 207: Brake Shift Interlock Connector End View (C2008)
Courtesy of FORD MOTOR CO.

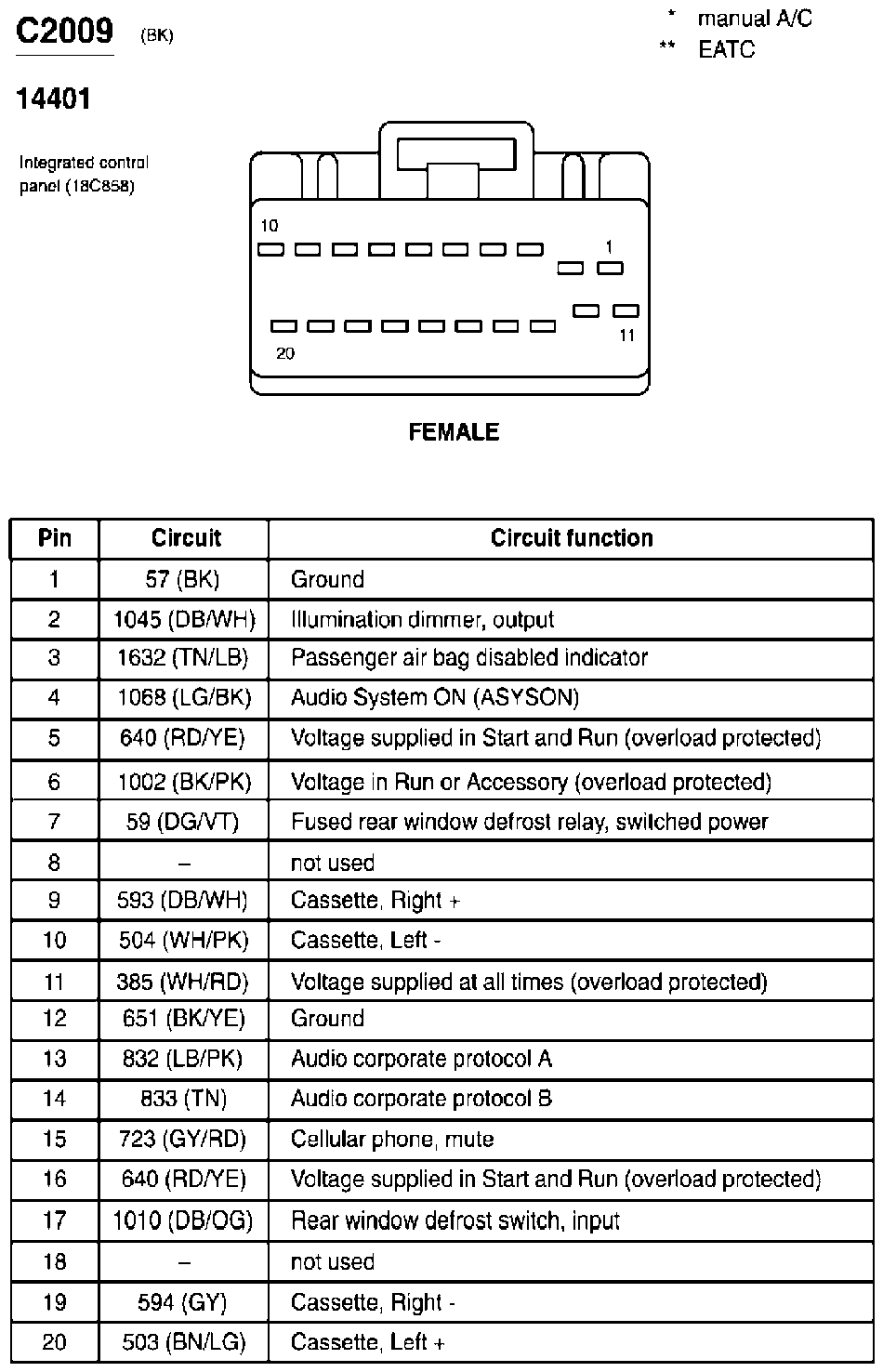

Fig 208: Integrated Control Panel Connector End View (C2009)
Courtesy of FORD MOTOR CO.
Fig 209: Blower Motor Relay Connector End View (C2017)
Courtesy of FORD MOTOR CO.
Fig 210: Rear Window Defrost Relay 1 Connector End View (C2021)
Courtesy of FORD MOTOR CO.
Fig 211: Electronic Flasher Module Connector End View (C2027)
Courtesy of FORD MOTOR CO.
Fig 212: Accessory Relay Connector End View (C2050)
Courtesy of FORD MOTOR CO.
Fig 213: One-Touch Window Relay Connector End View (C2051)
Courtesy of FORD MOTOR CO.

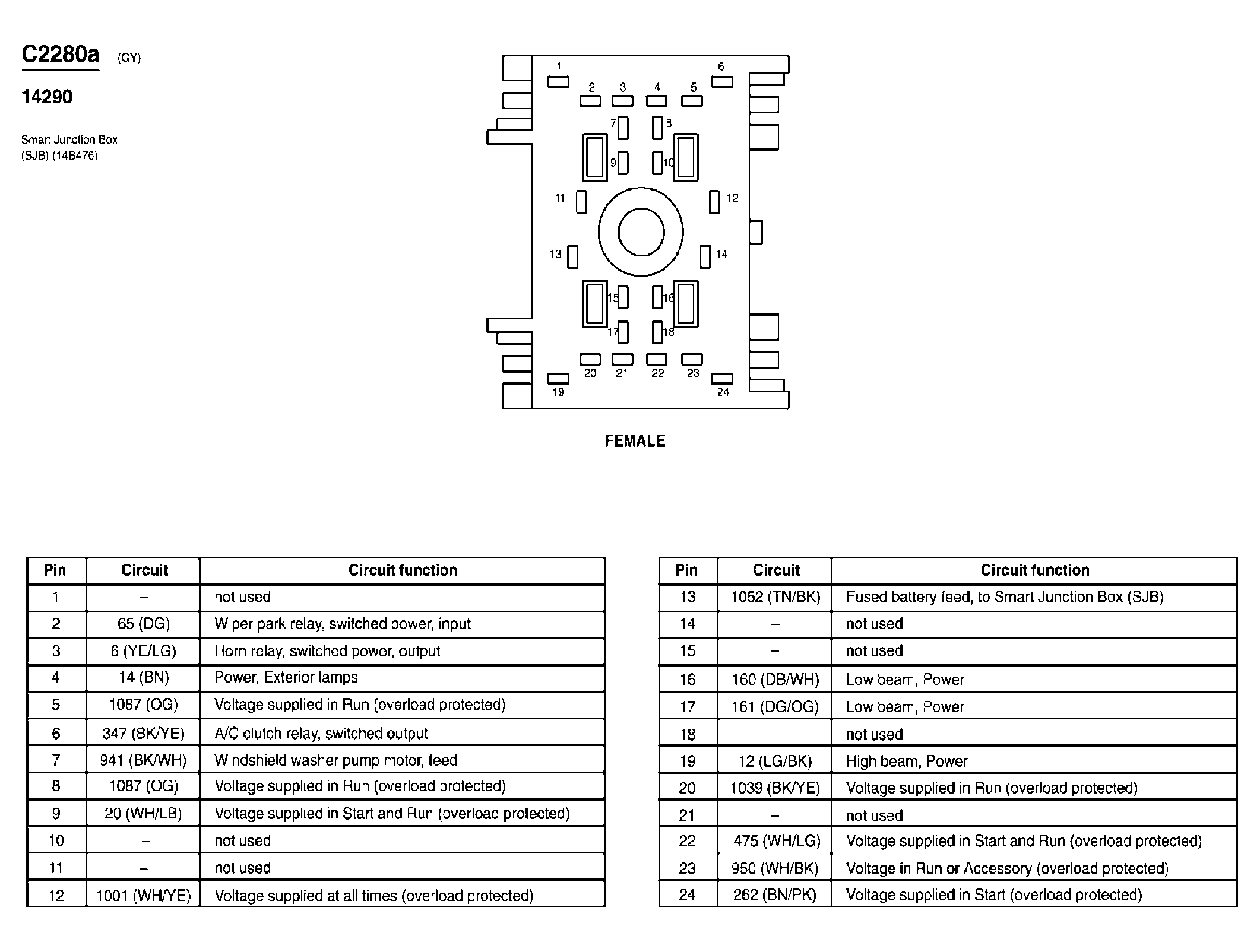

Fig 214: Smart Junction Box (SJB) Connector End View (C2280a)
Courtesy of FORD MOTOR CO.

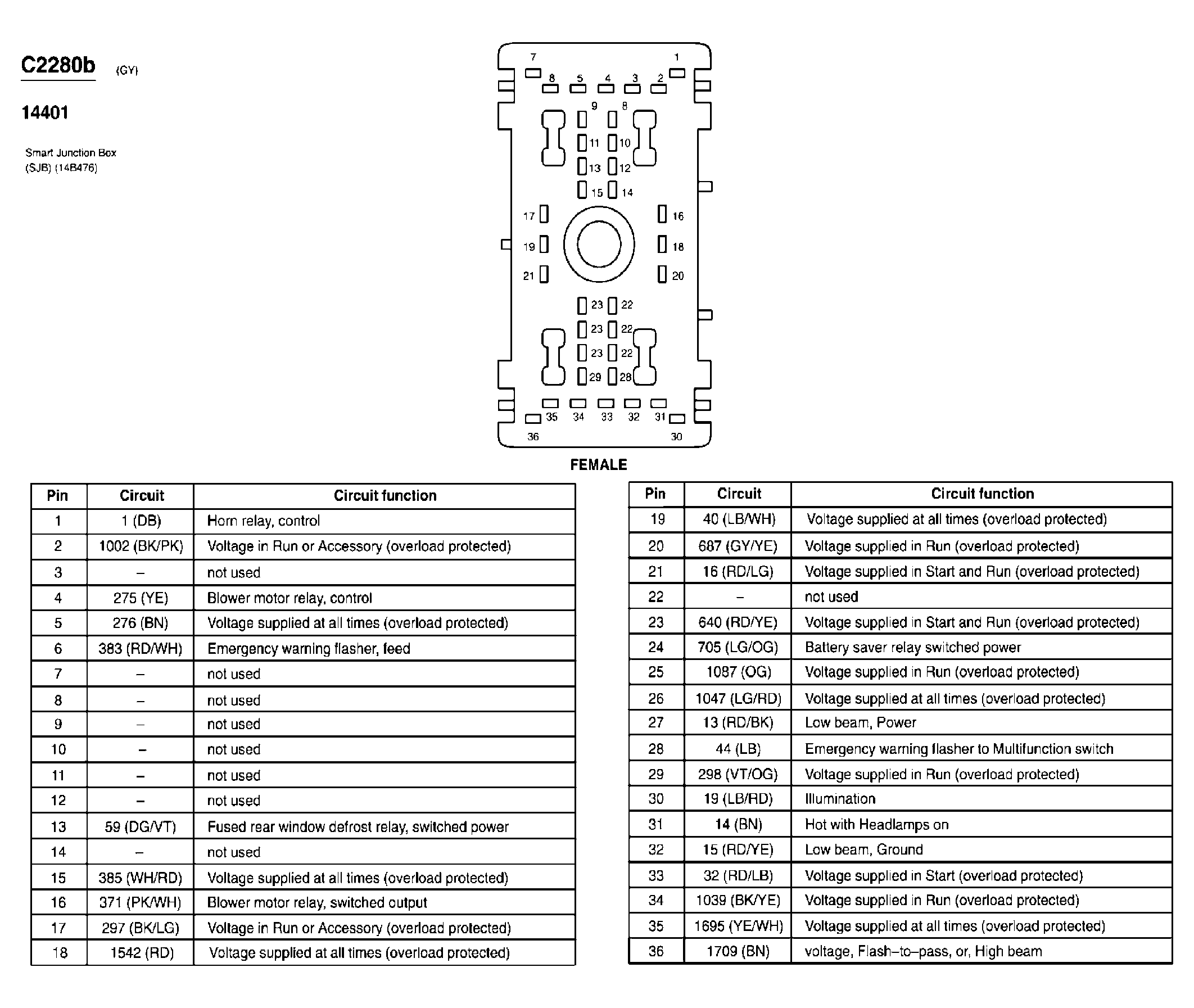

Fig 215: Smart Junction Box (SJB) Connector End View (C2280b)
Courtesy of FORD MOTOR CO.

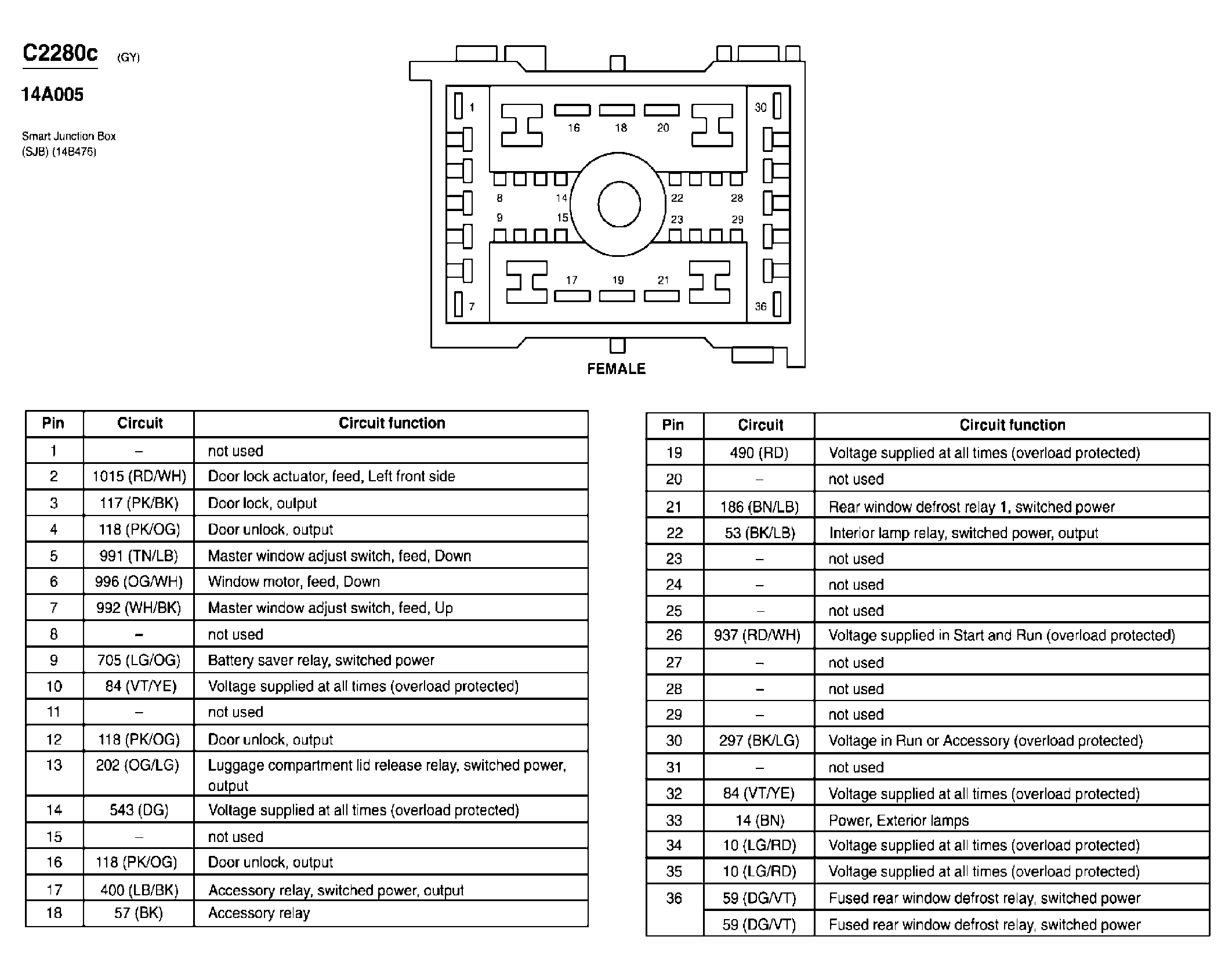

Fig 216: Smart Junction Box (SJB) Connector End View (C2280c)
Courtesy of FORD MOTOR CO.

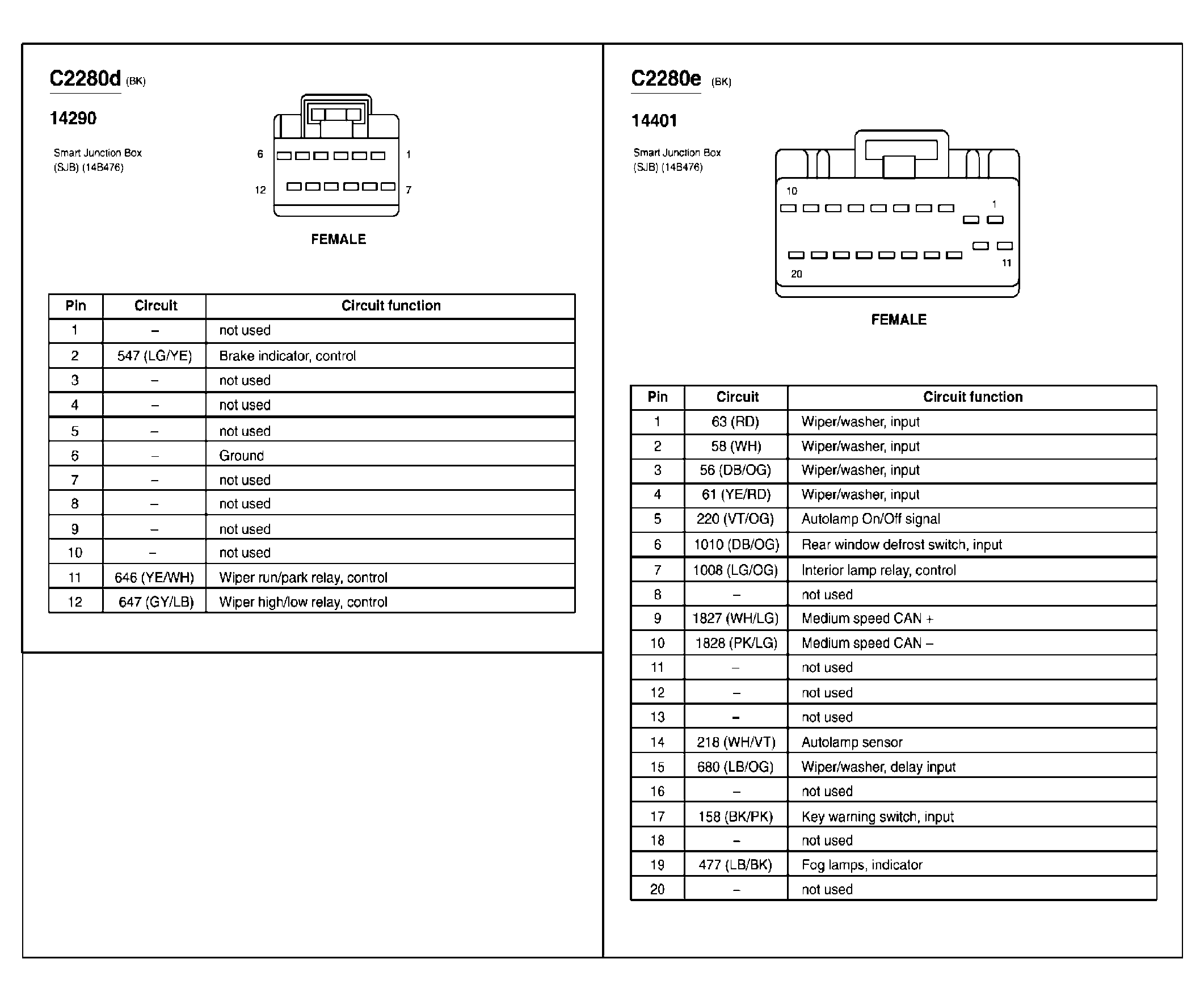

Fig 217: Smart Junction Box (SJB) Connector End View (C2280d)
Courtesy of FORD MOTOR CO.

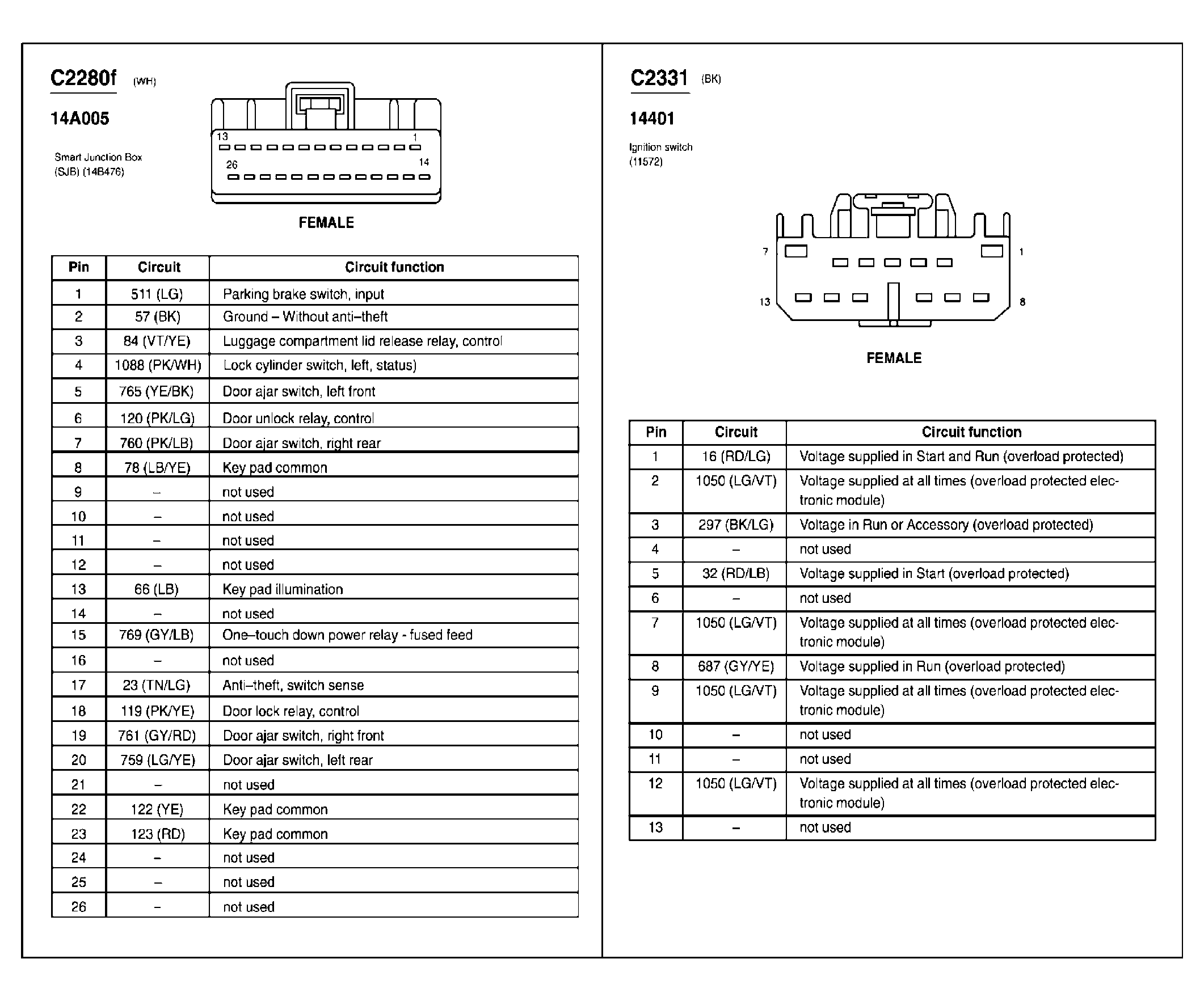

Fig 218: Smart Junction Box (SJB) Connector End View (C2280f)
Courtesy of FORD MOTOR CO.

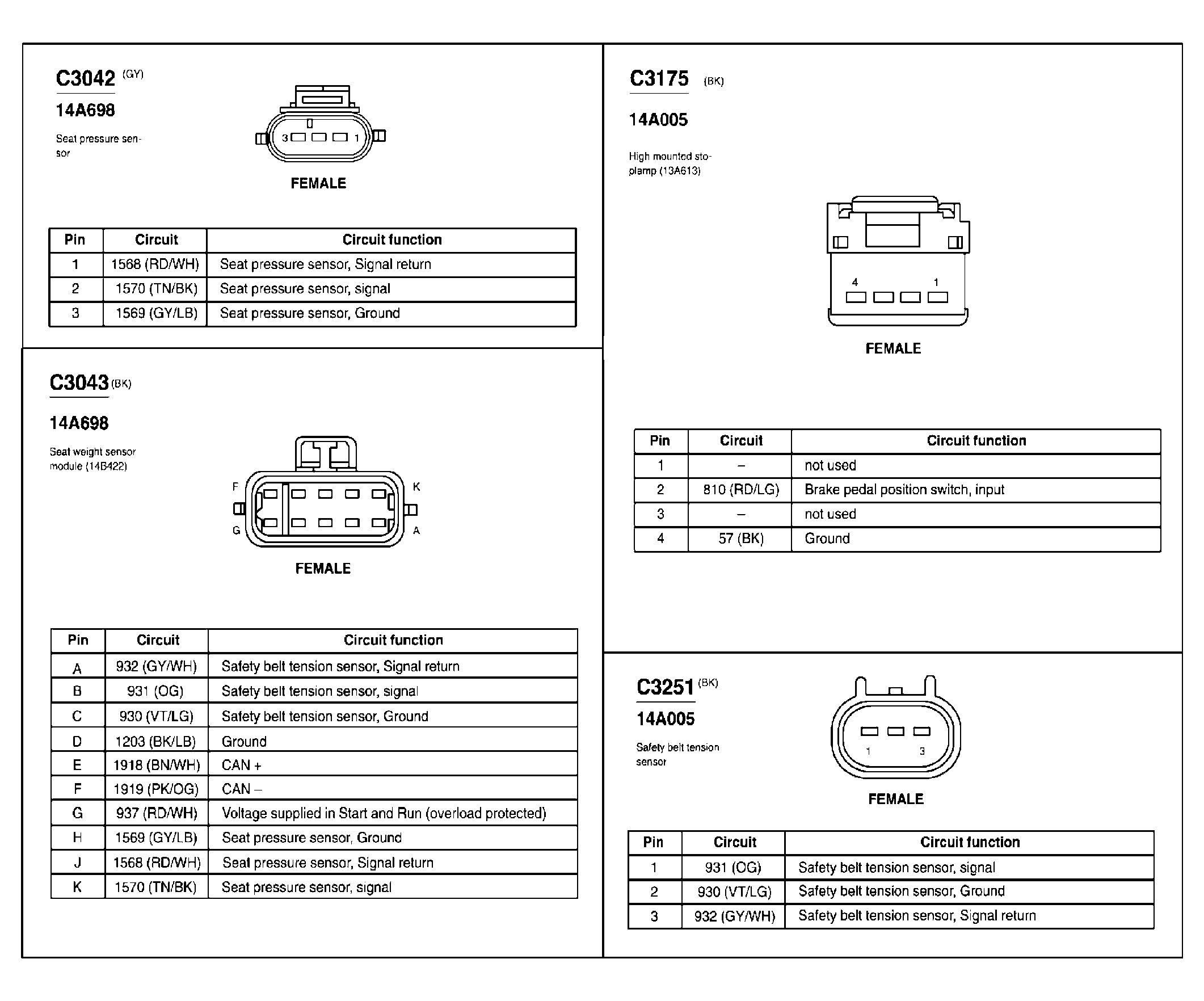

Fig 219: Seat Pressure Sensor Connector End View (C3042)
Courtesy of FORD MOTOR CO.
