Selector Lever Cable and Bracket - Column Shift: Notes

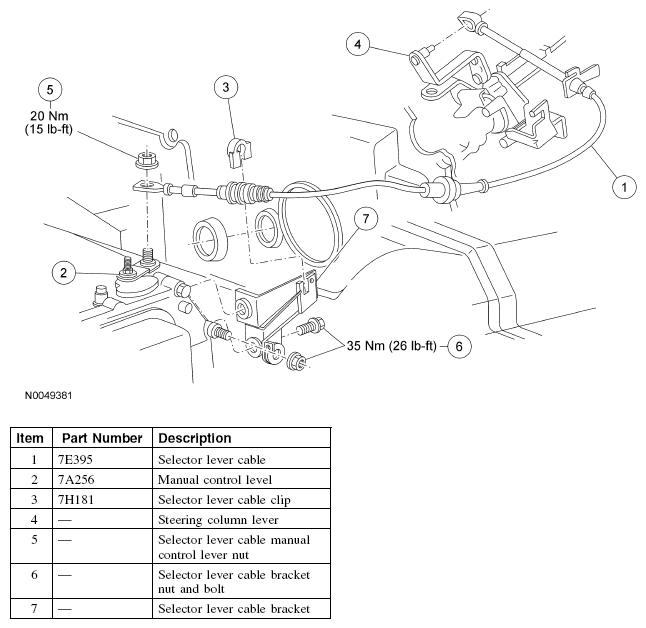

Fig 1: Disconnecting Selector Lever Cable And Bracket - Column Shift With Torque Specifications
G04710566Courtesy of FORD MOTOR CO.
