Idle Air Control (IAC) Valve: Notes

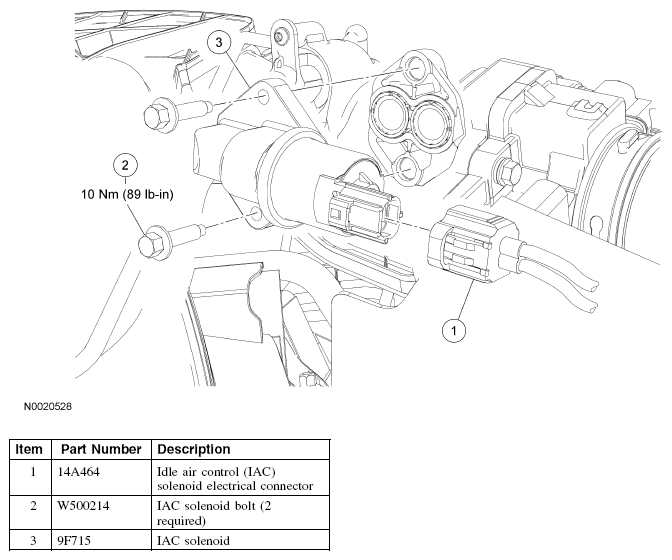

Fig 1: Idle Air Control (IAC) Valve Replacement Components With Torque Specifications
G04709661Courtesy of FORD MOTOR CO.
