Steering Column - Automatic Transmission: Notes

SPECIAL TOOL(S)

G04699964Courtesy of FORD MOTOR CO.
 Steering Column Locking Lever Tool
Shop Fabricated
MATERIAL SPECIFICATION

Item Specification
Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) ESA-M1C75-B

Steering Column Components

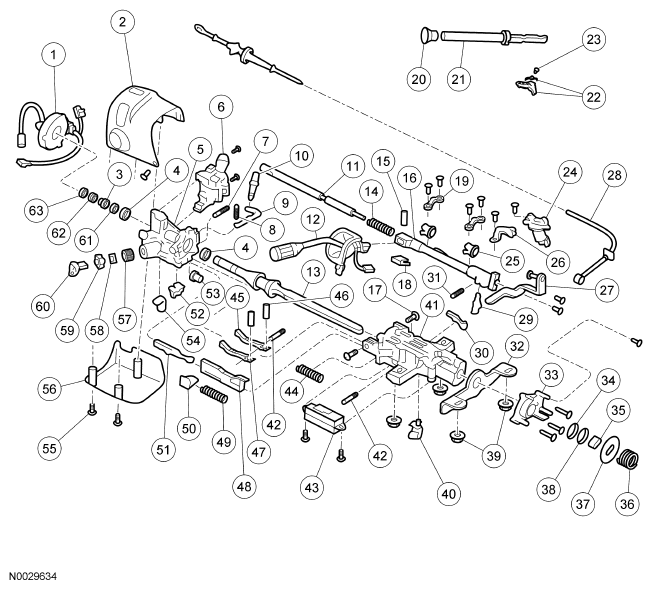

Fig 1: Exploded View Of Steering Column Components
G04699965Courtesy of FORD MOTOR CO.

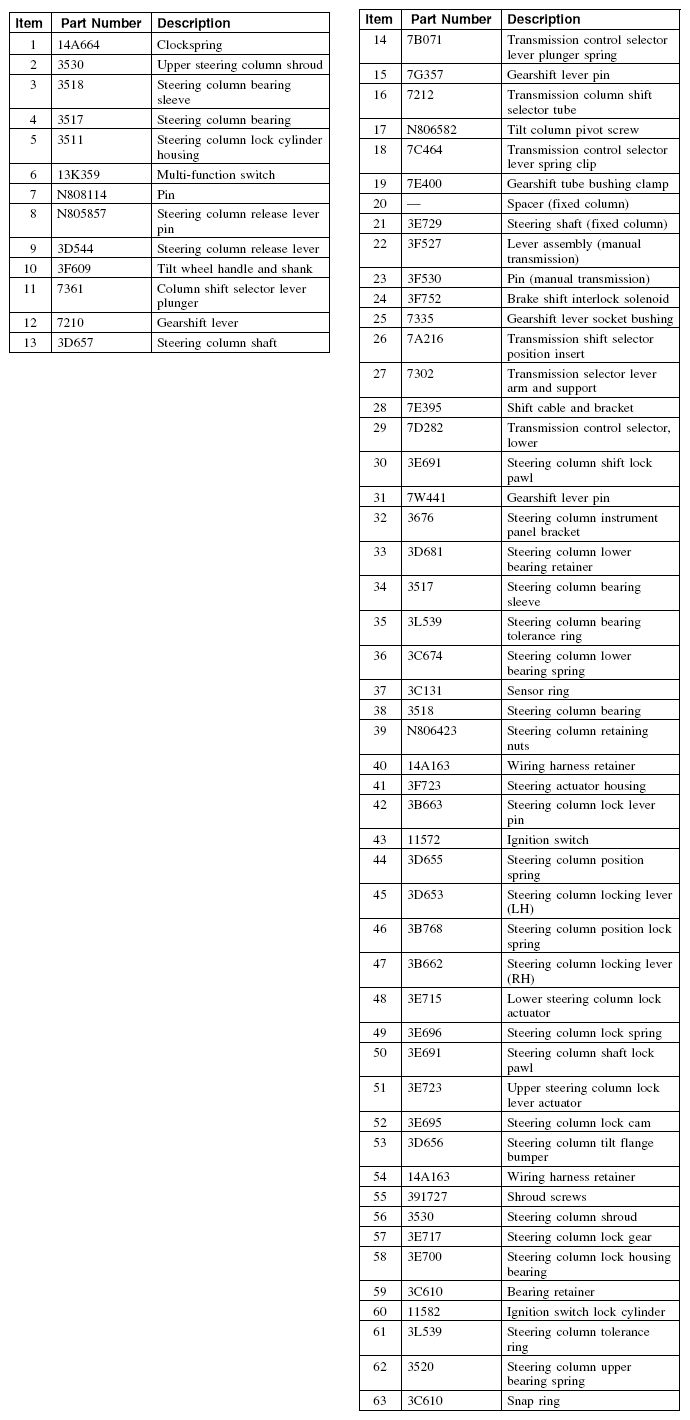

Fig 2: Identifying Steering Column Components Description Table
G04699966Courtesy of FORD MOTOR CO.
