Thermostat, Engine Cooling

Thermostat and Thermostat Housing - Exploded View

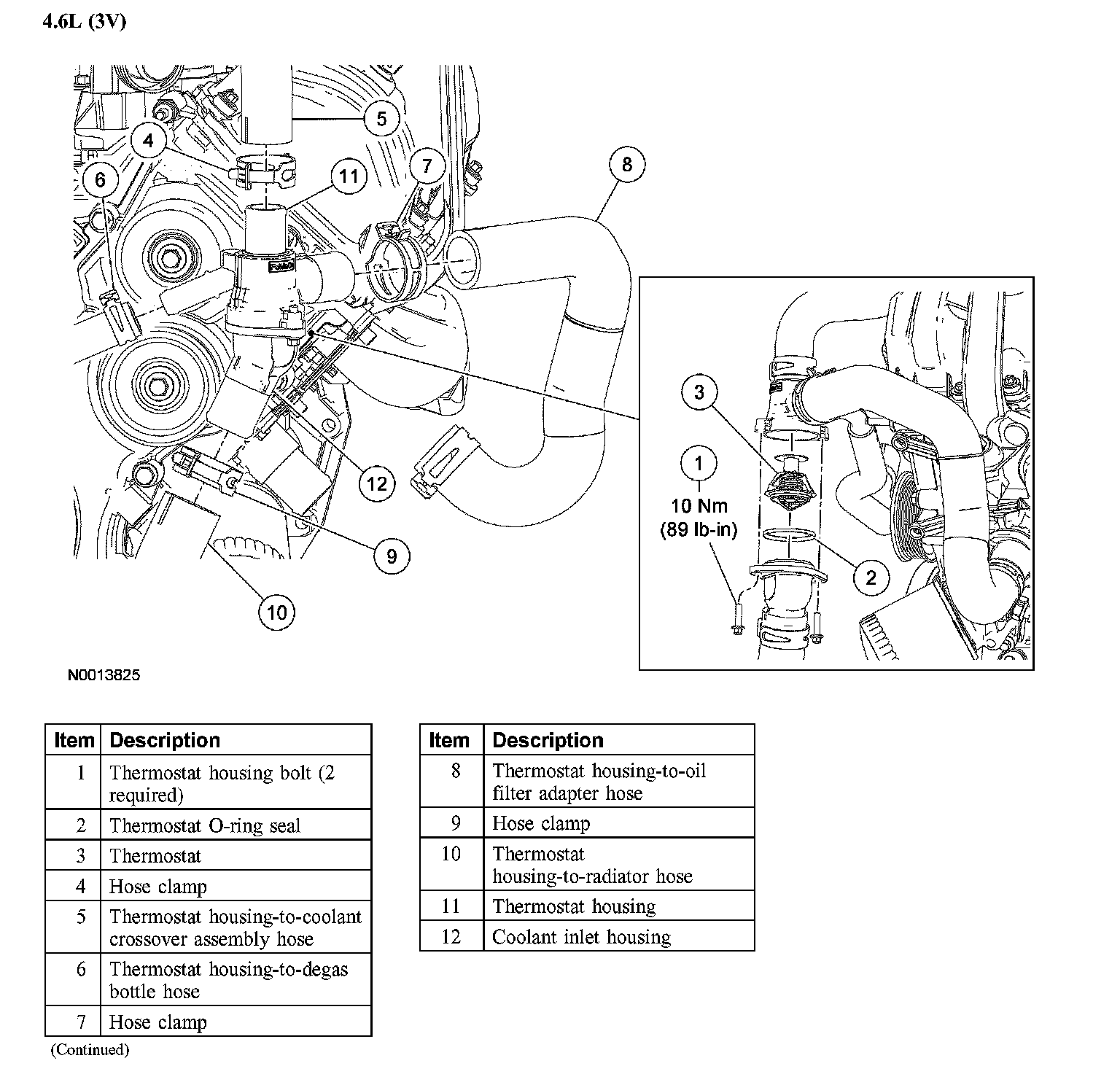

Thermostat and Thermostat Housing - Exploded View, 4.6L (3V):
