Exhaust System

Exhaust System - Exploded View

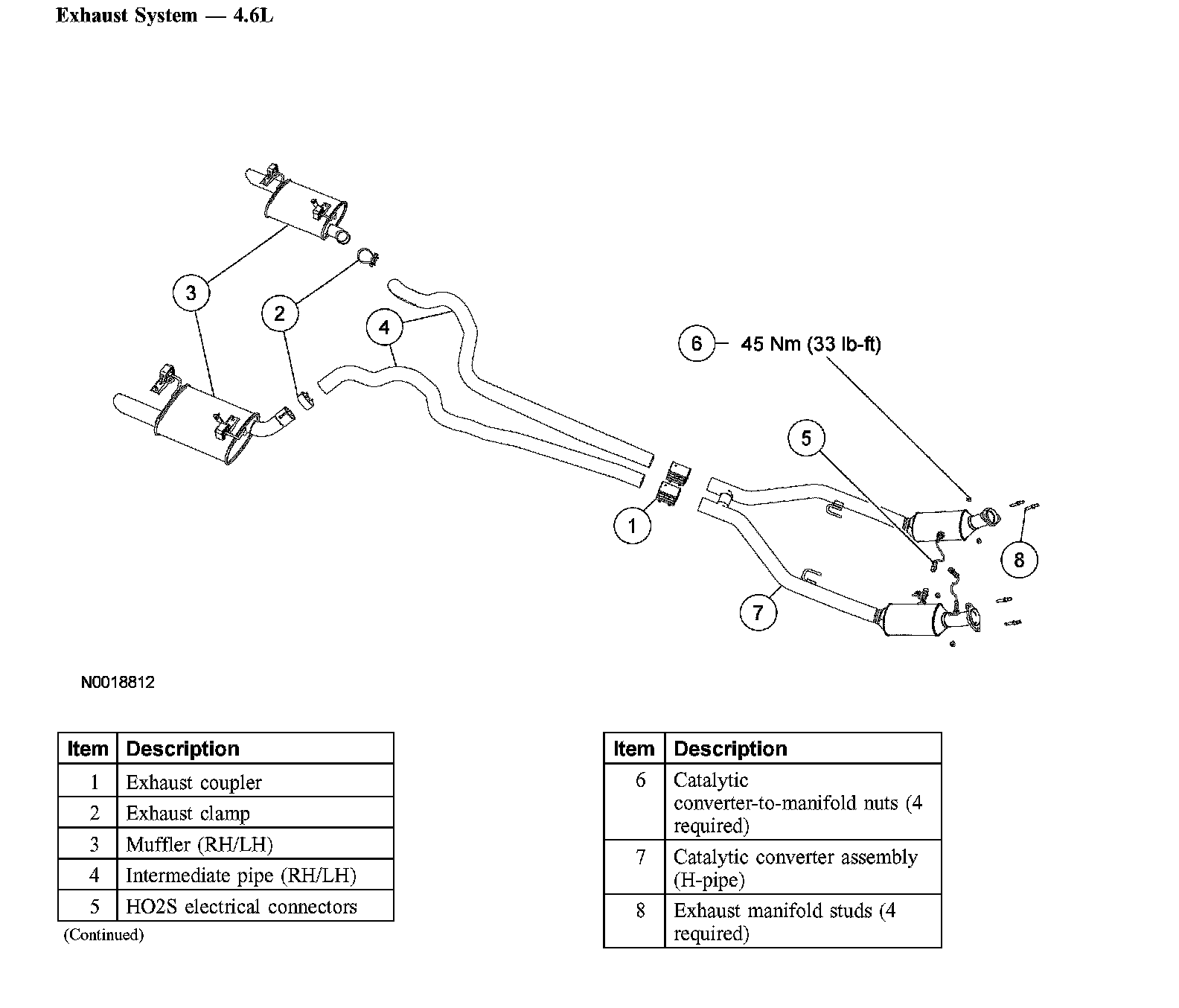

Exhaust System - Exploded View, 4.6L:

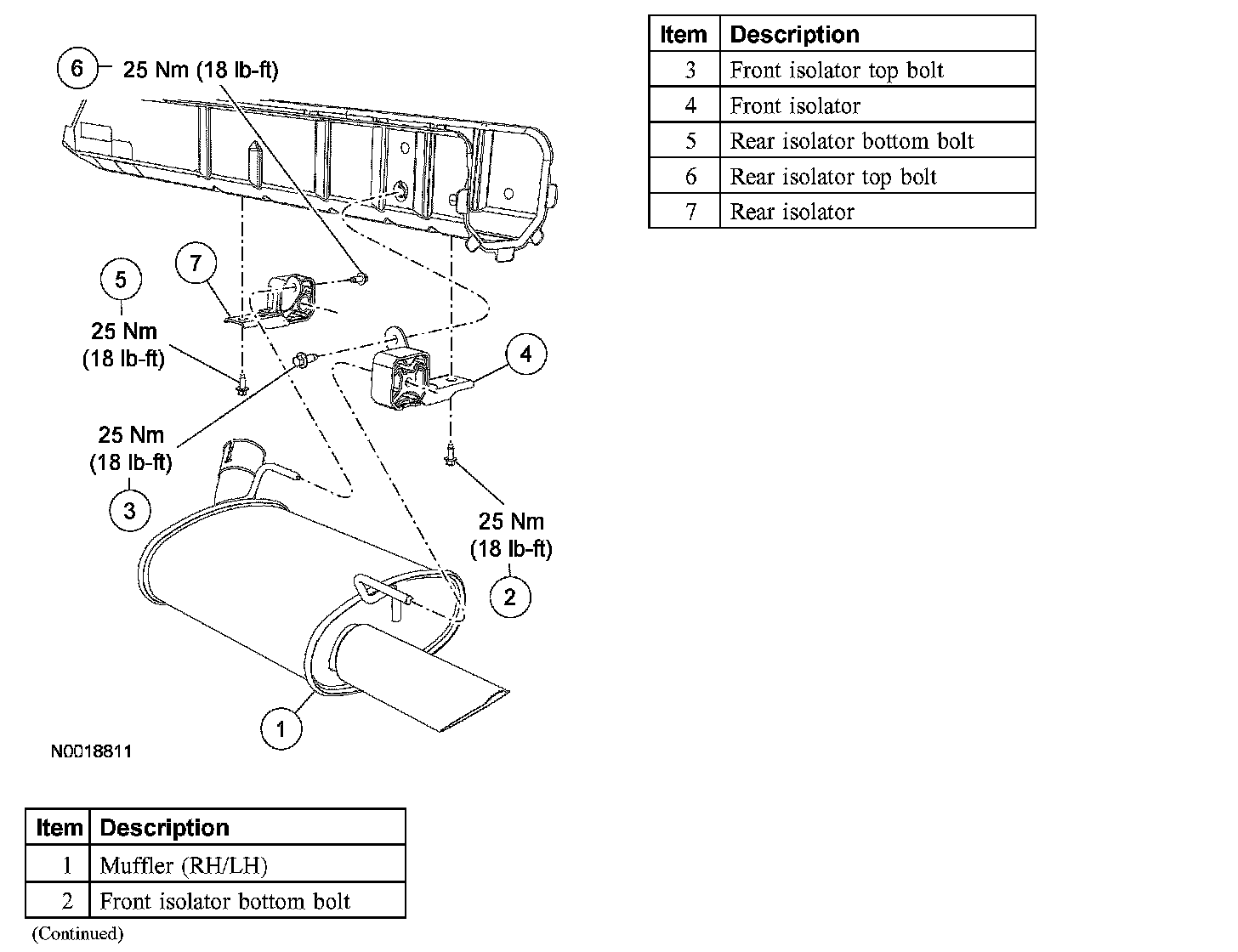

Exhaust System - Exploded View, 4.6L:
