System Diagram

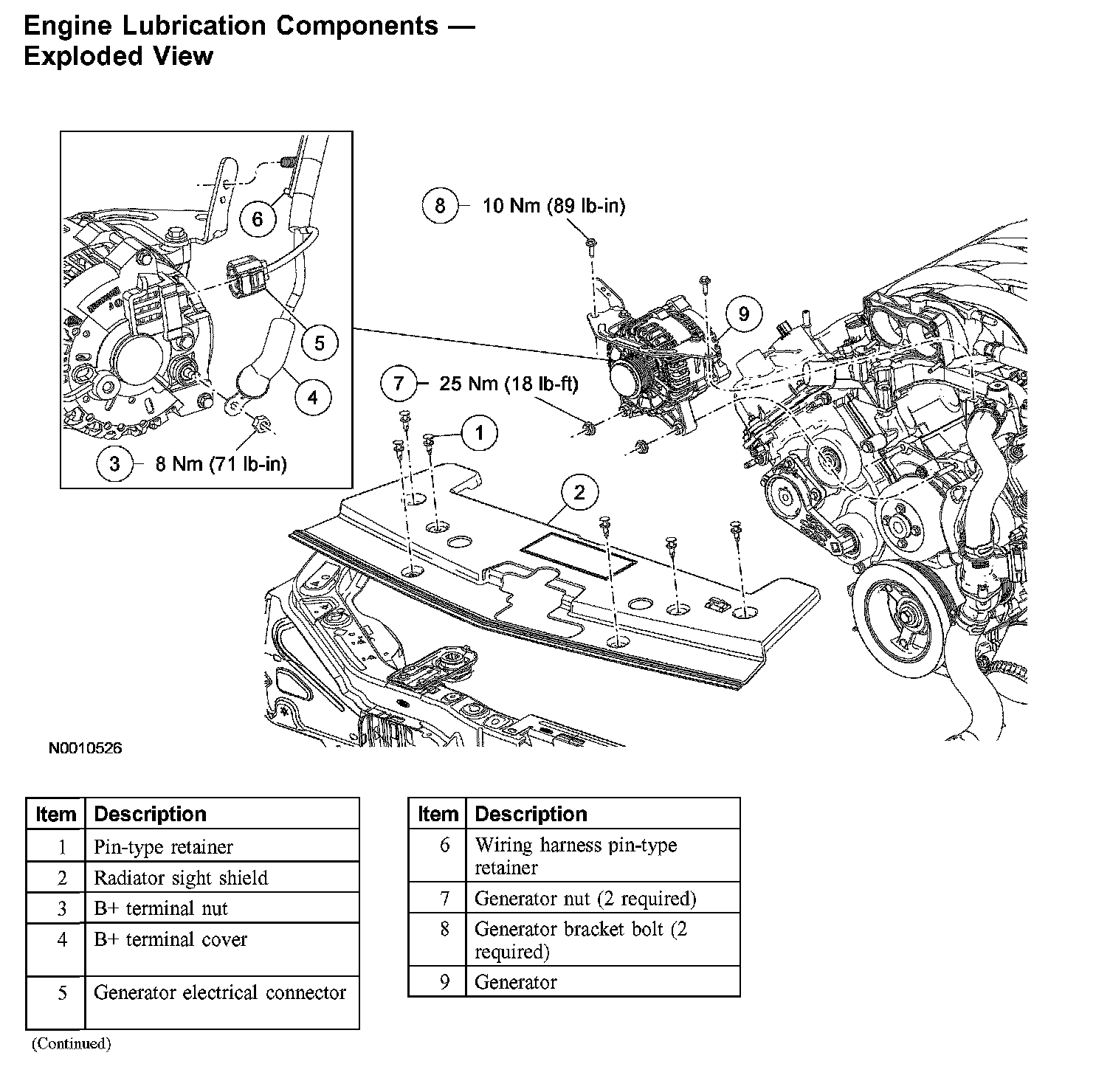

Engine Lubrication Components - Exploded View

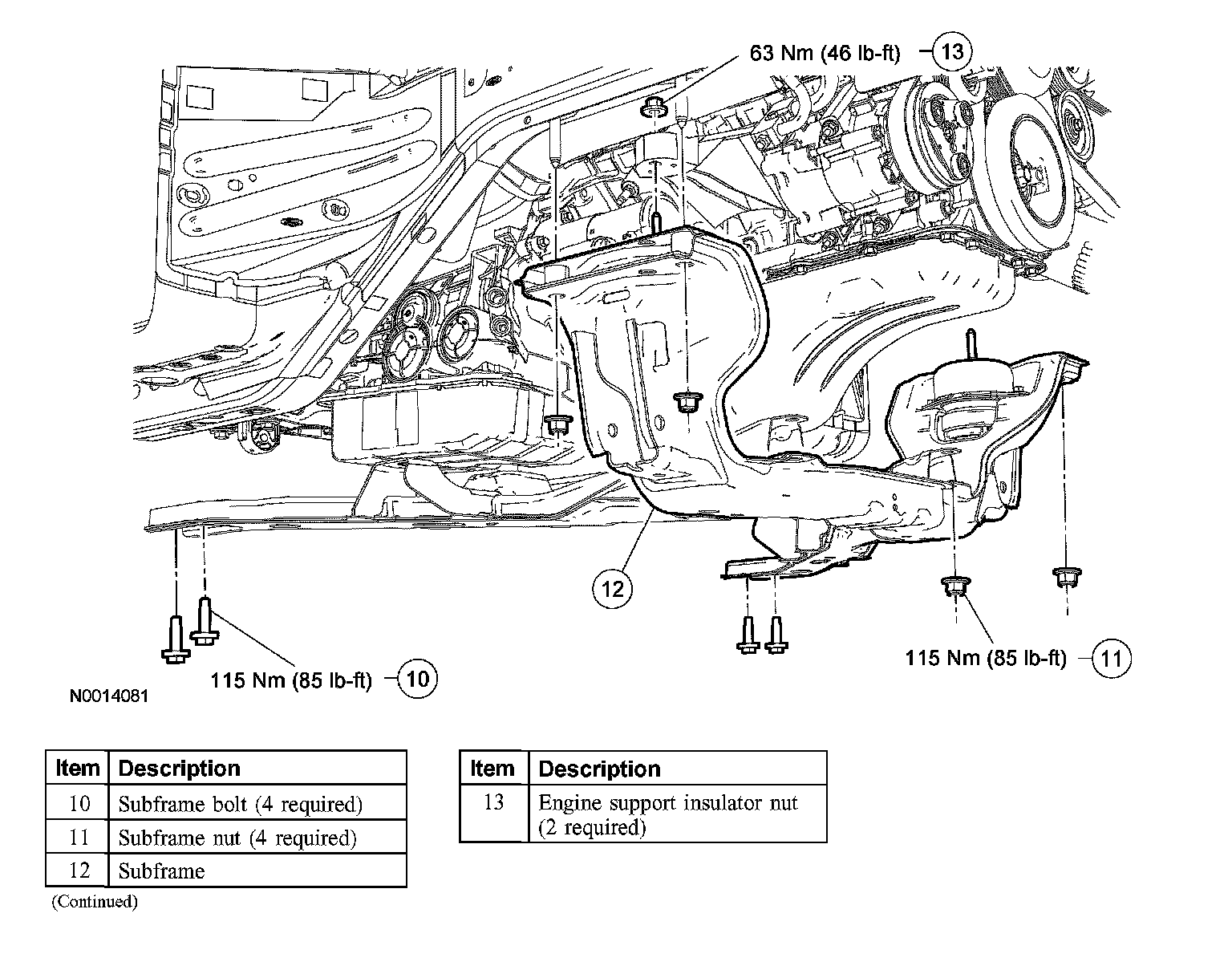

Engine Lubrication Components - Exploded View:

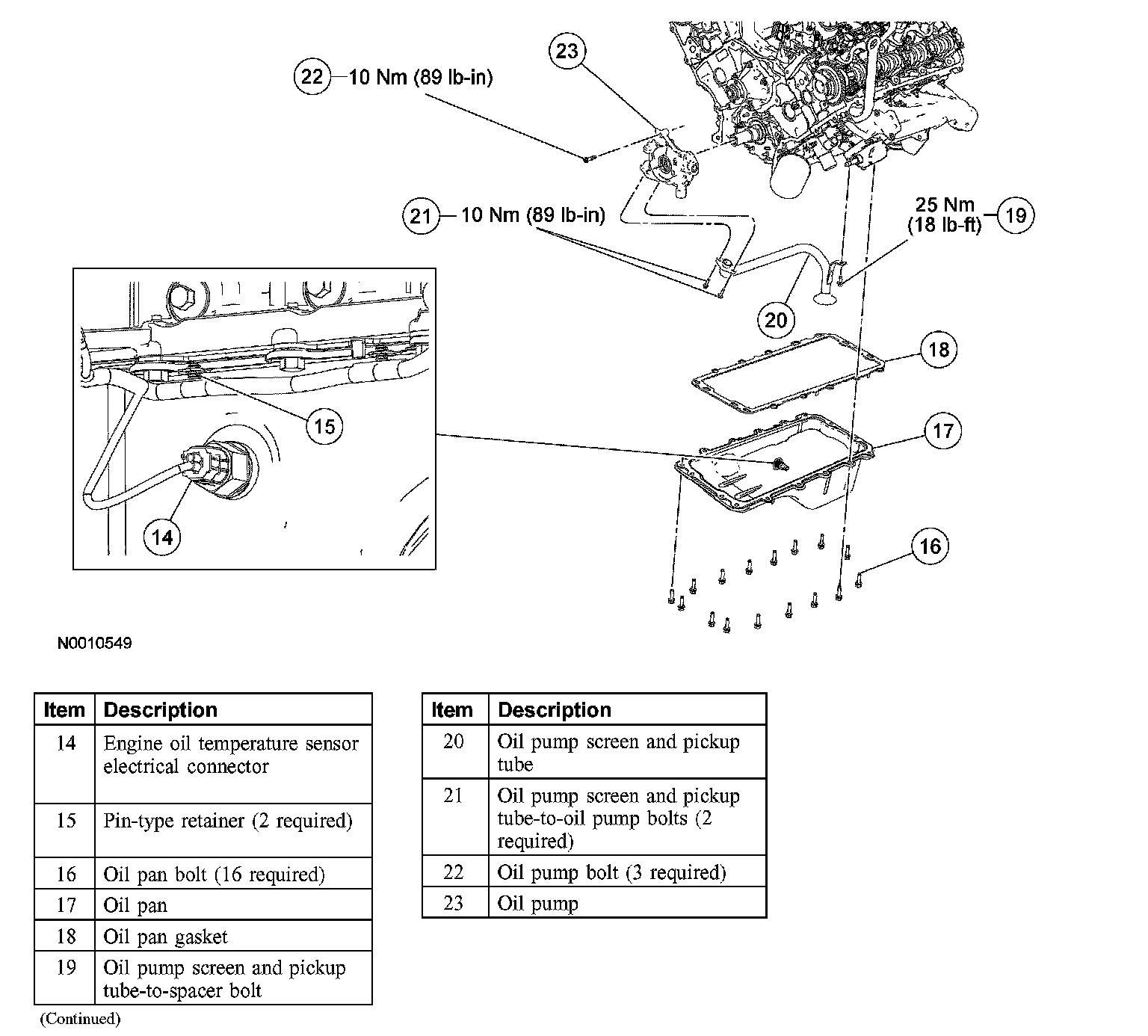

Engine Lubrication Components - Exploded View:




Engine Lubrication Components - Exploded View:
