Diagnostic Trouble Code Descriptions

DIAGNOSTIC TROUBLE CODE CHART

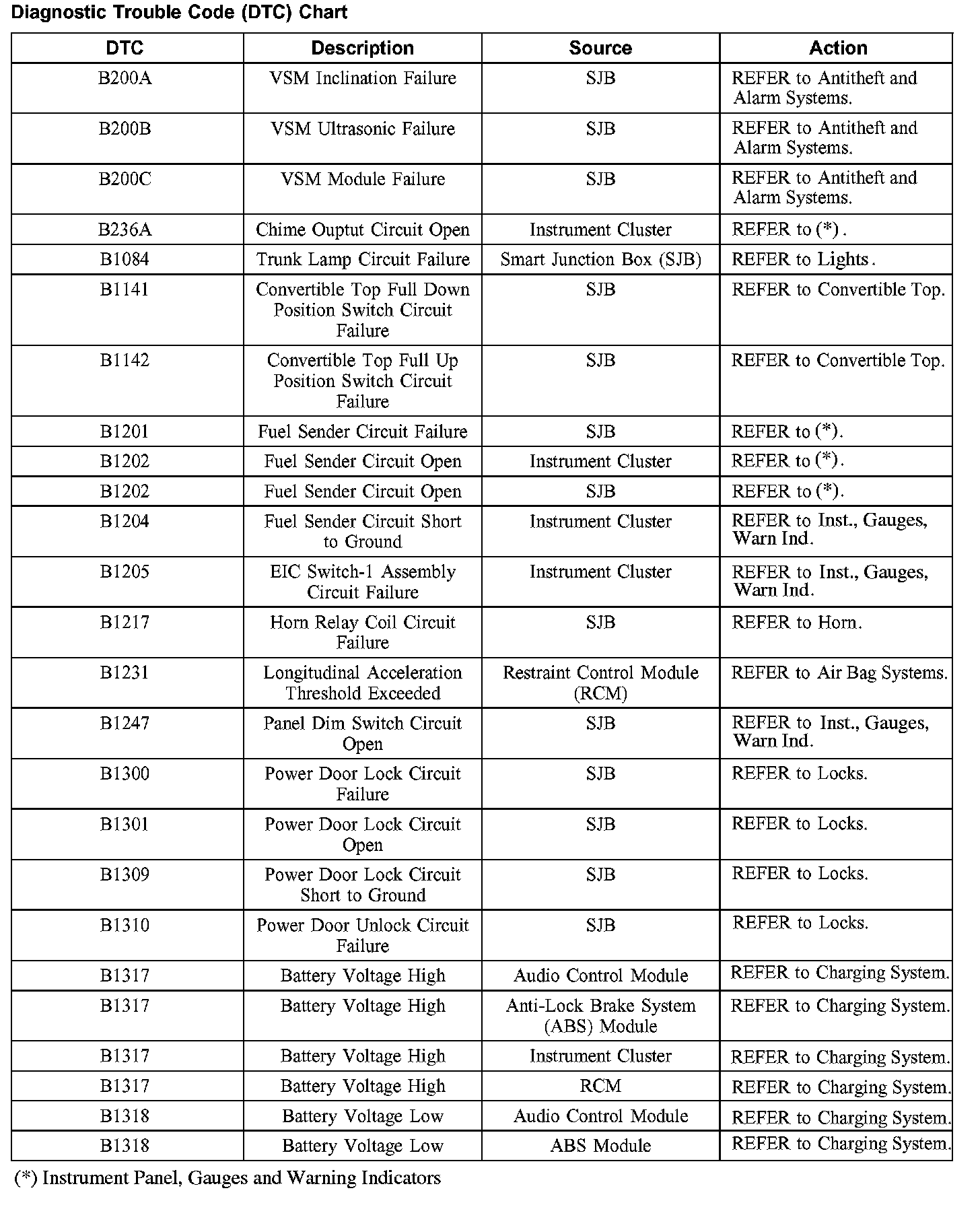

B200A-B1318:

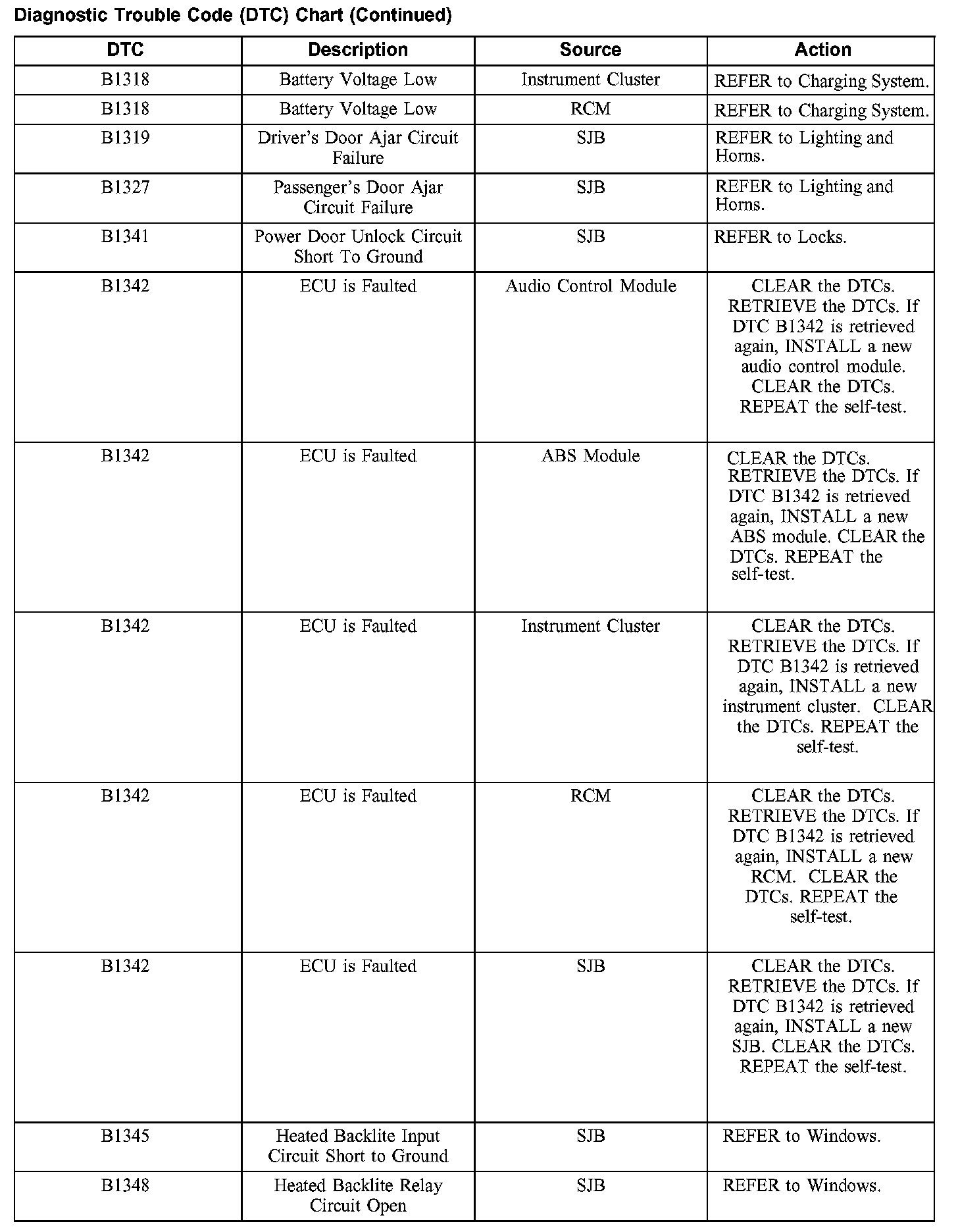

B1318-B1348:

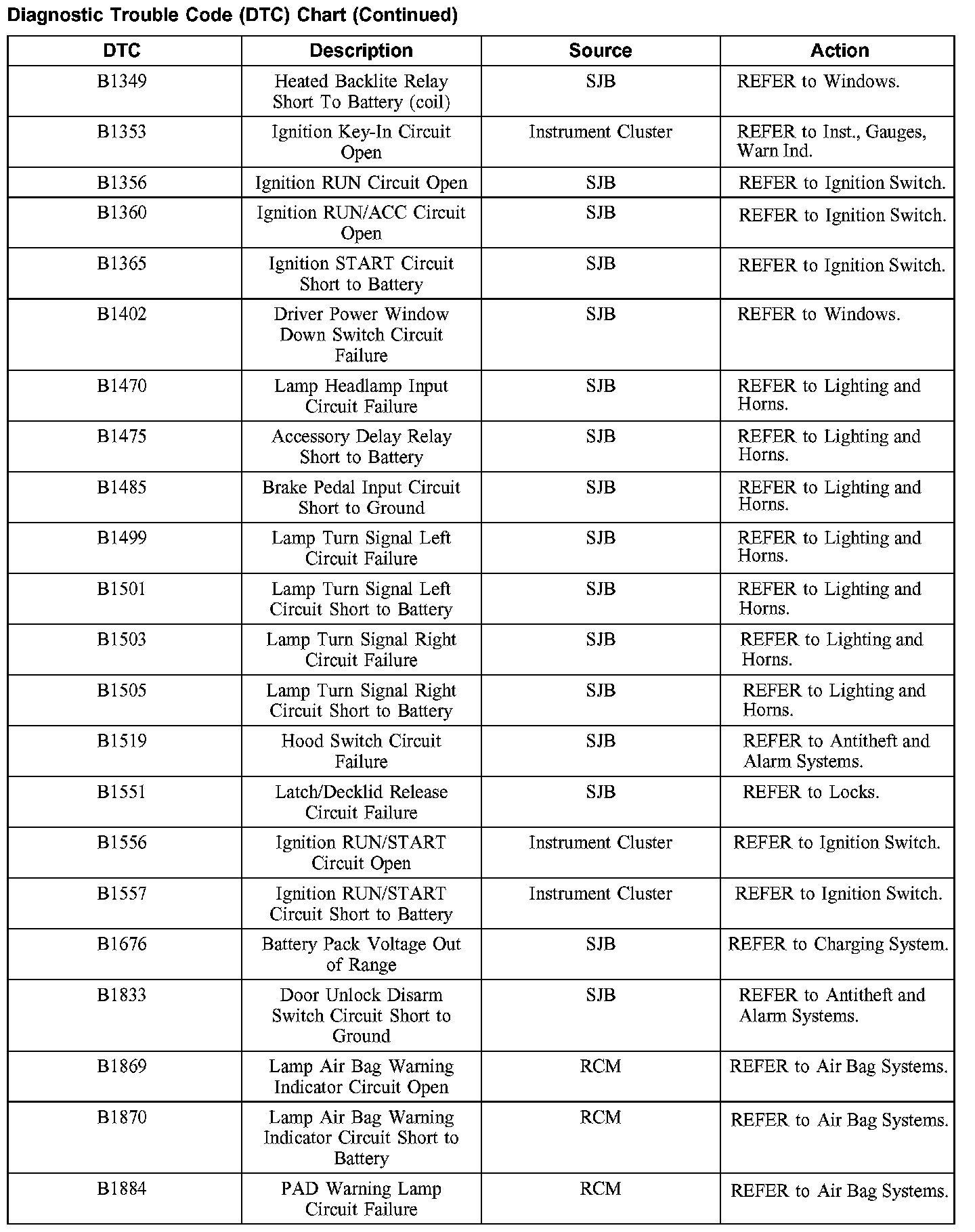

B1349-B1884:

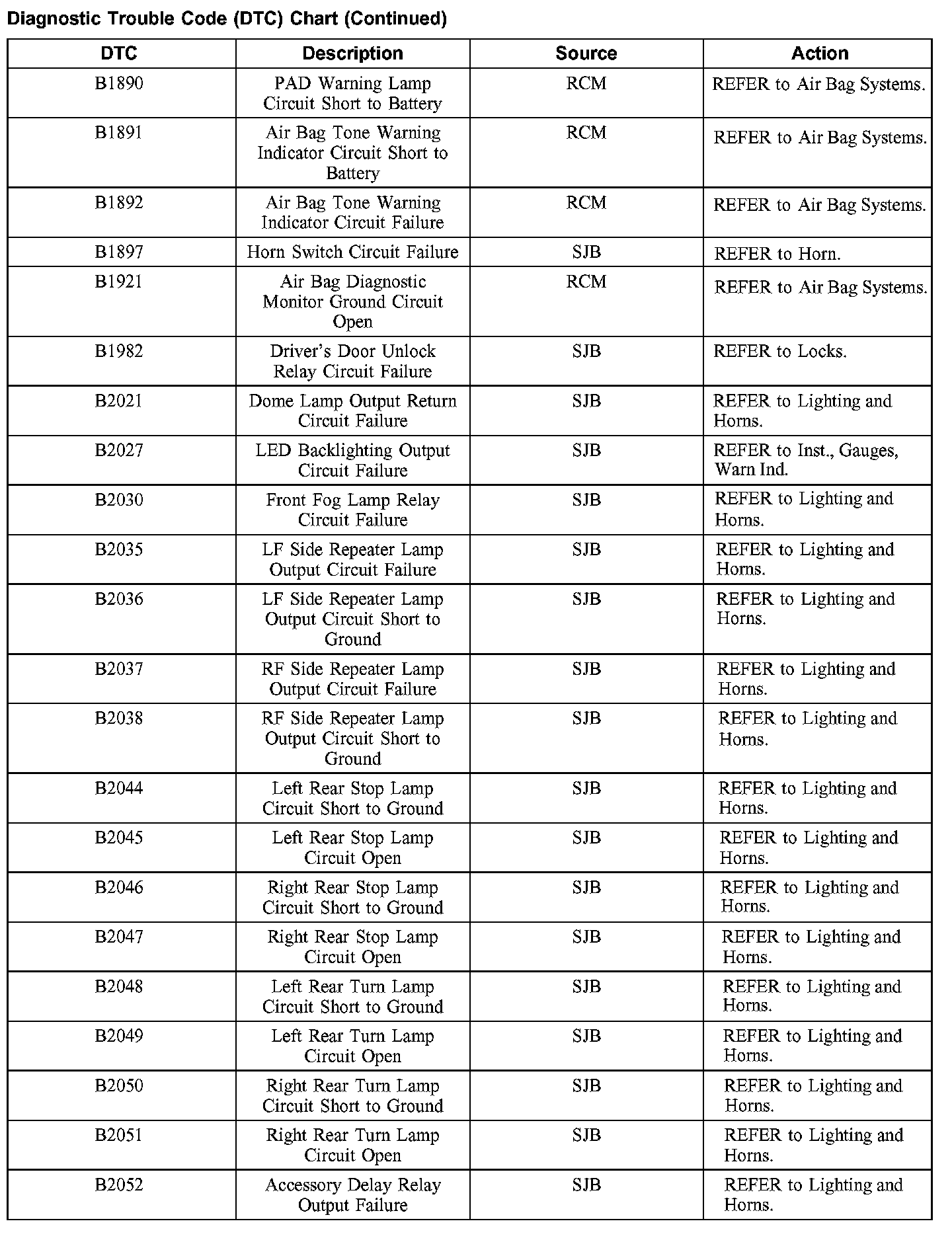

B1890-B2052:

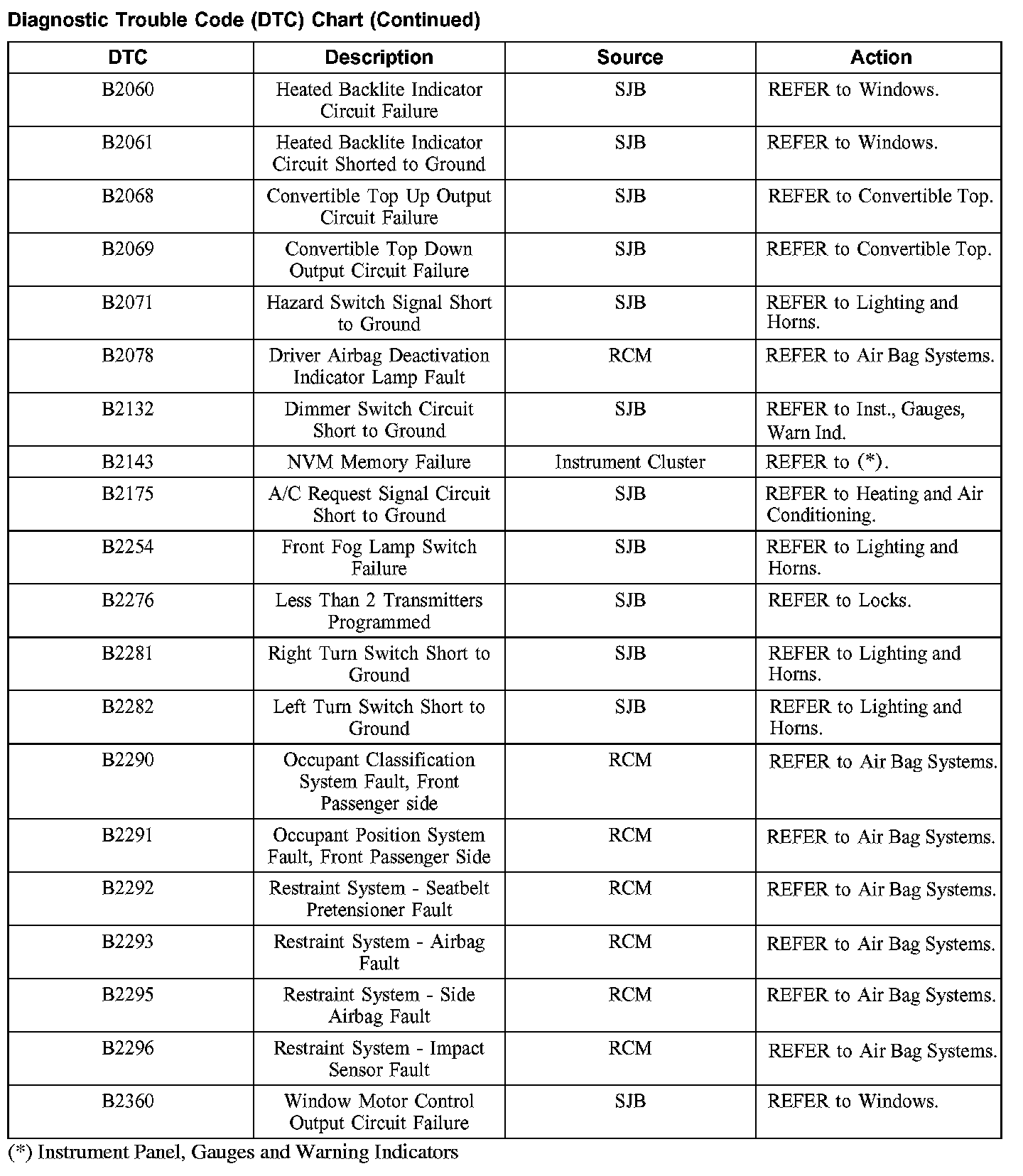

B2060-B2360:

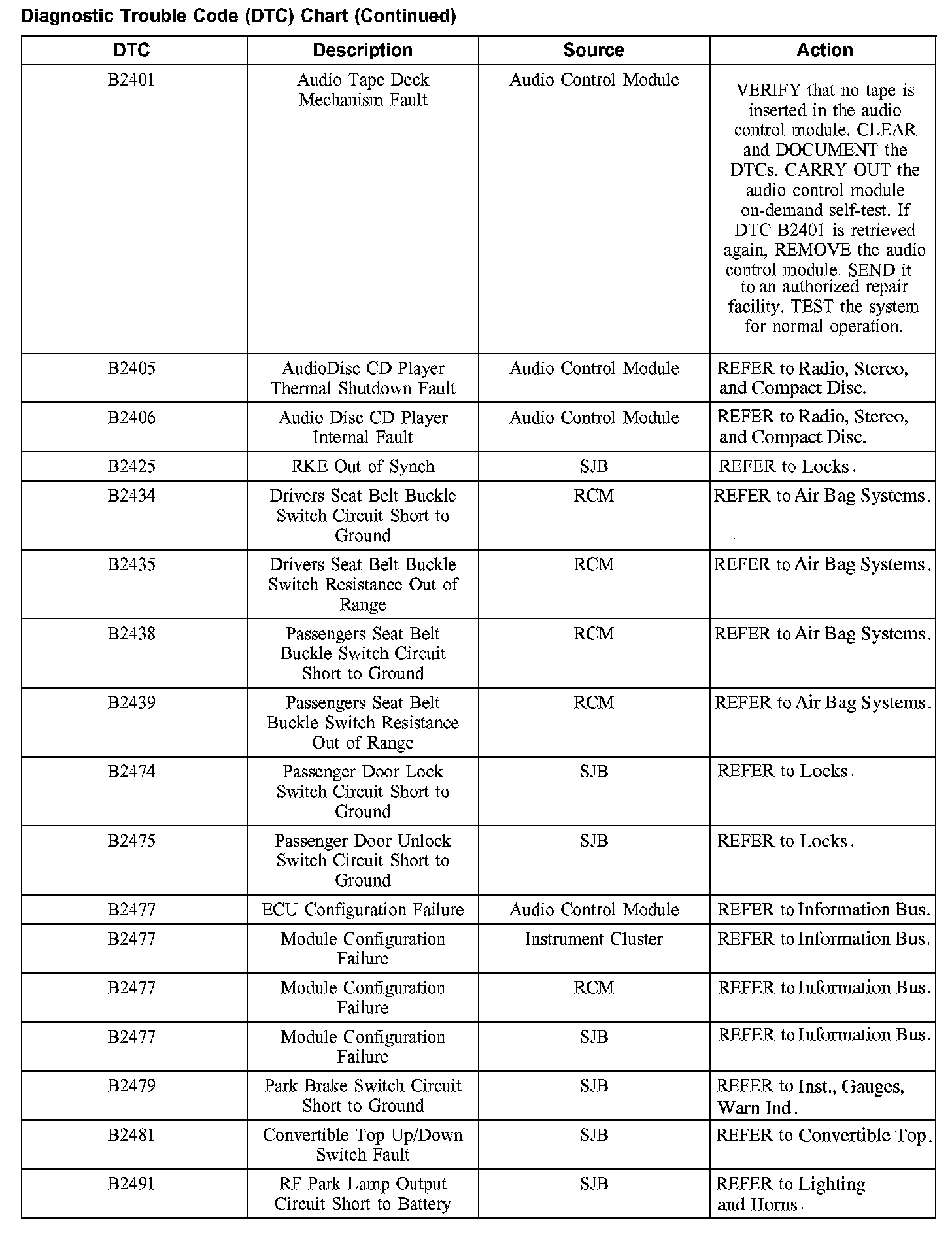

B2401-B2491:

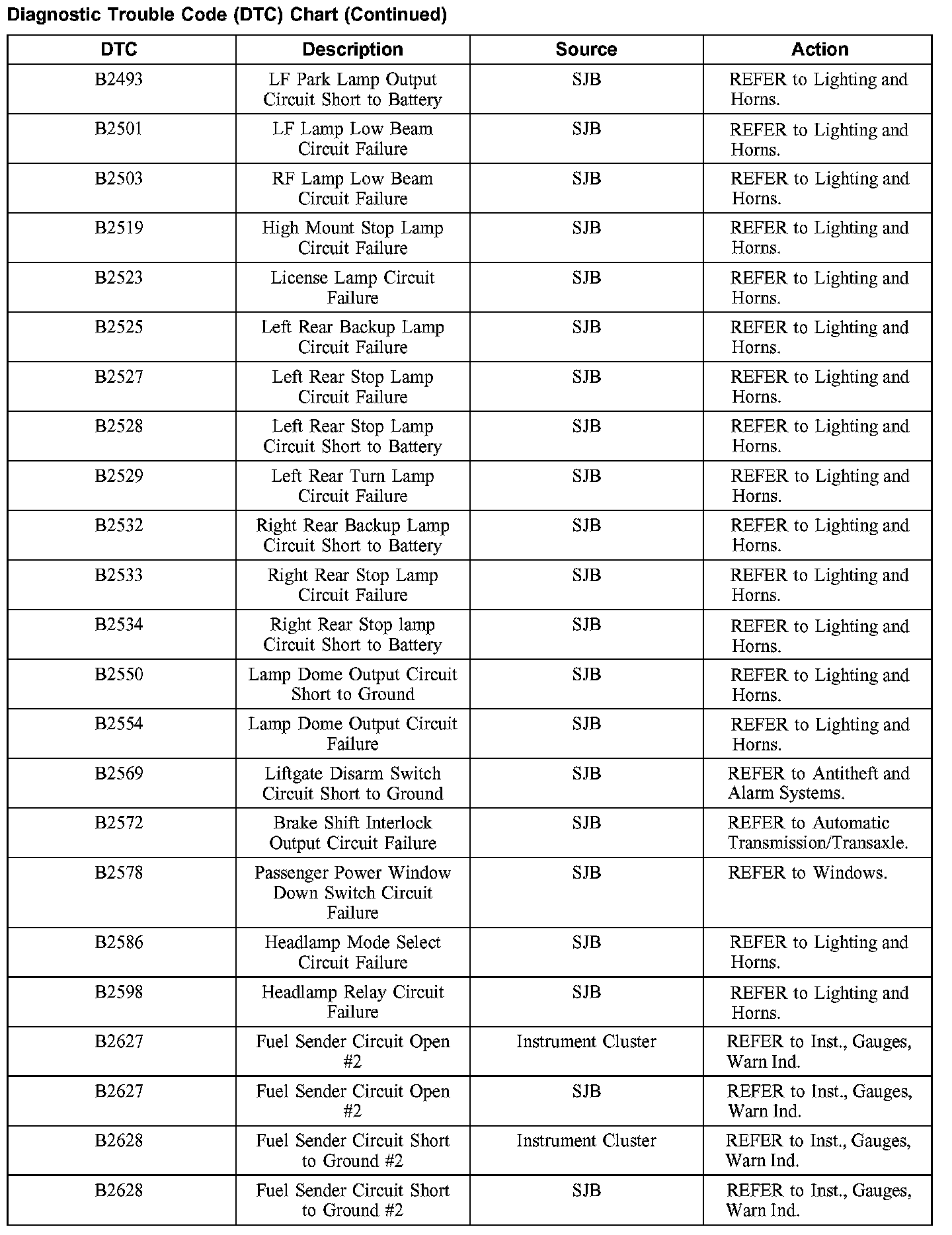

B2493-B2628:

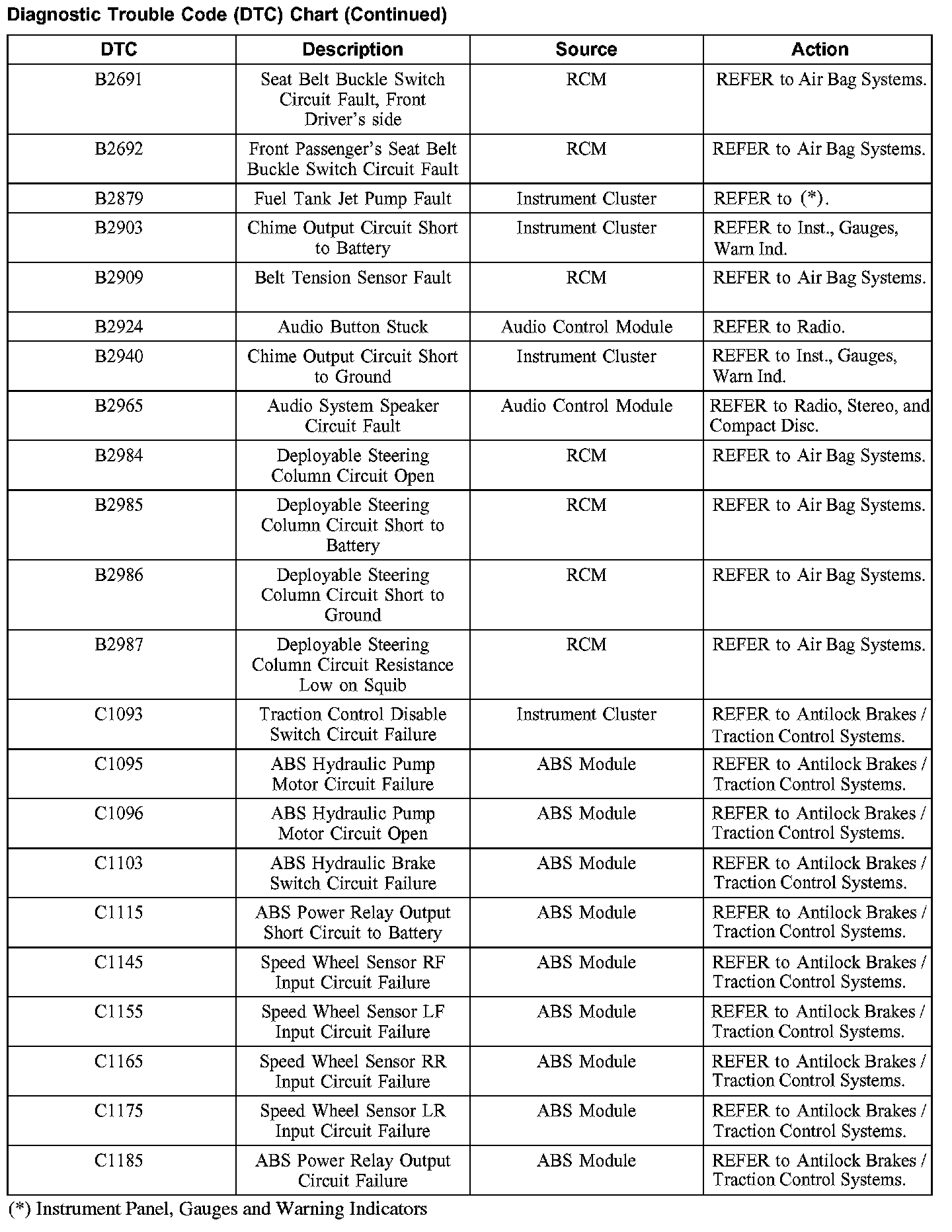

B2691-C1185:

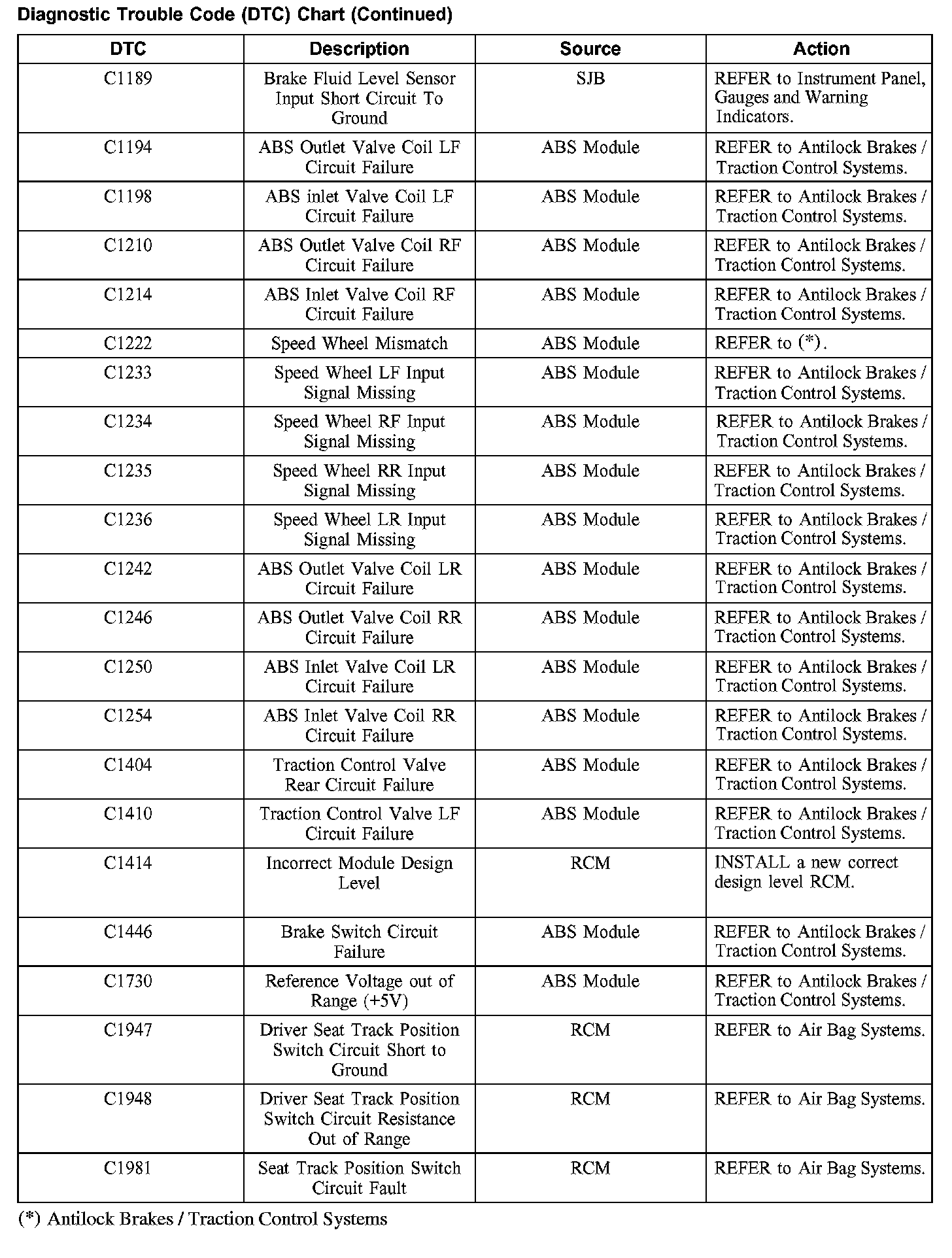

C1189-C1981:

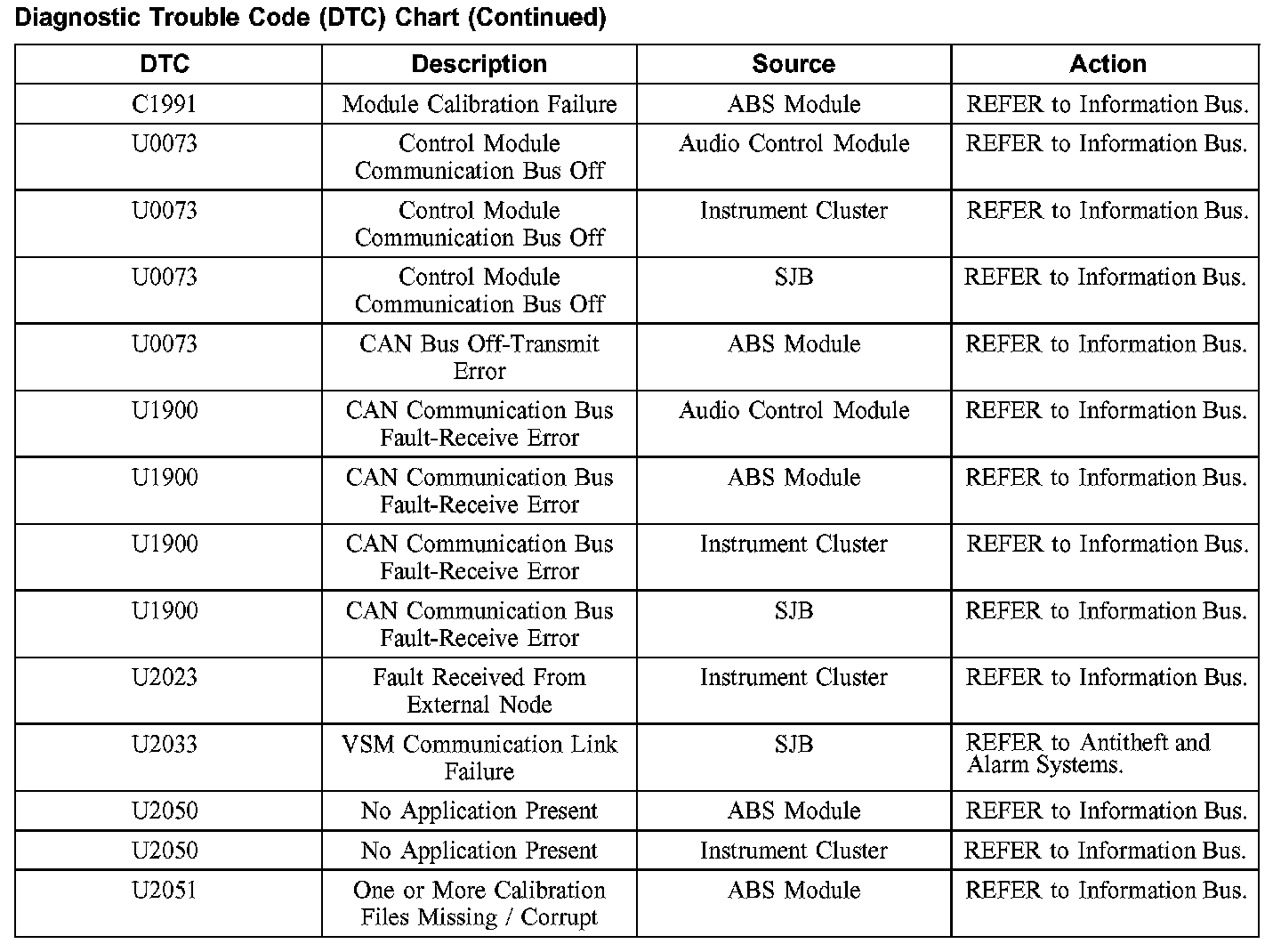

C1991-U2051:
