Power Steering Fluid Cooler: Notes

MATERIAL SPECIFICATION

Item Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) MERCON®
NOTE: 4.0L shown, 4.6L and 5.4L similar.

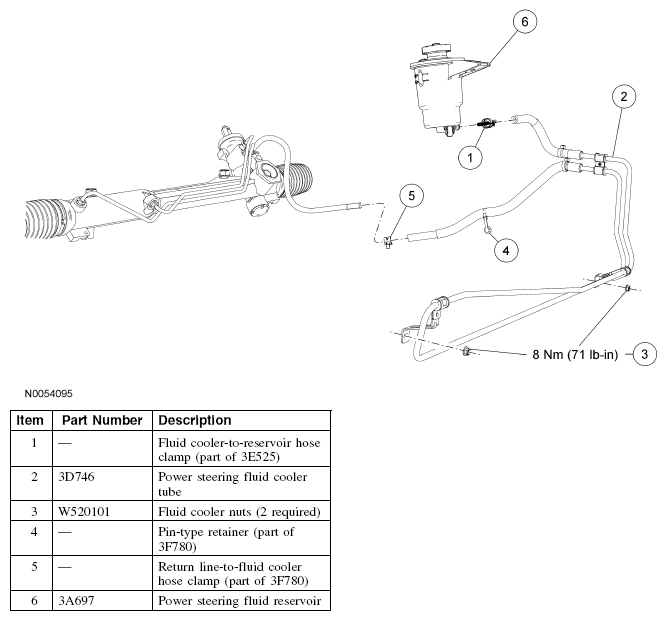

Fig 1: Power Steering Fluid Cooler Replacement Components - With Torque Specifications
G04694561
