Connector Views

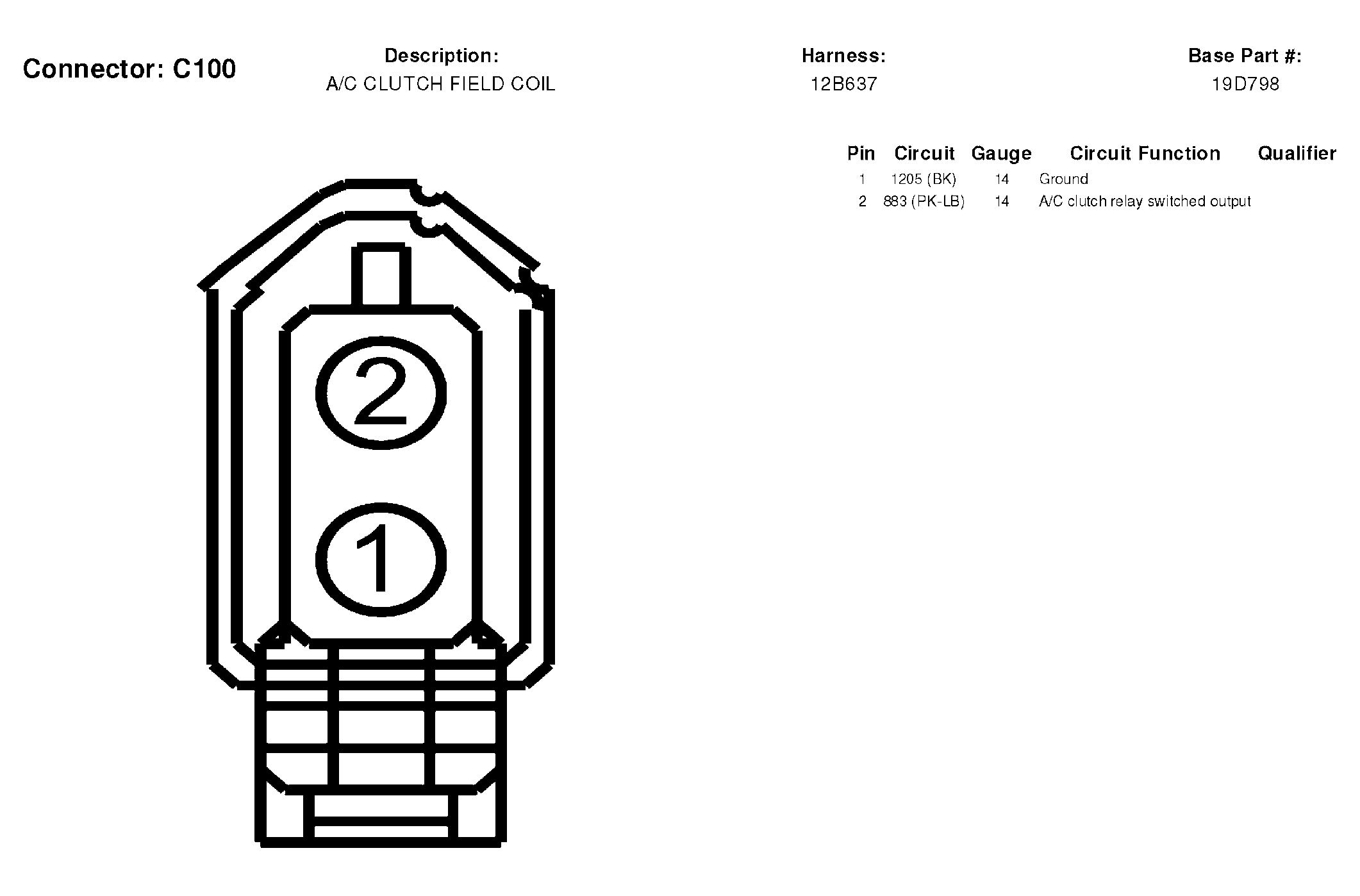

Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.

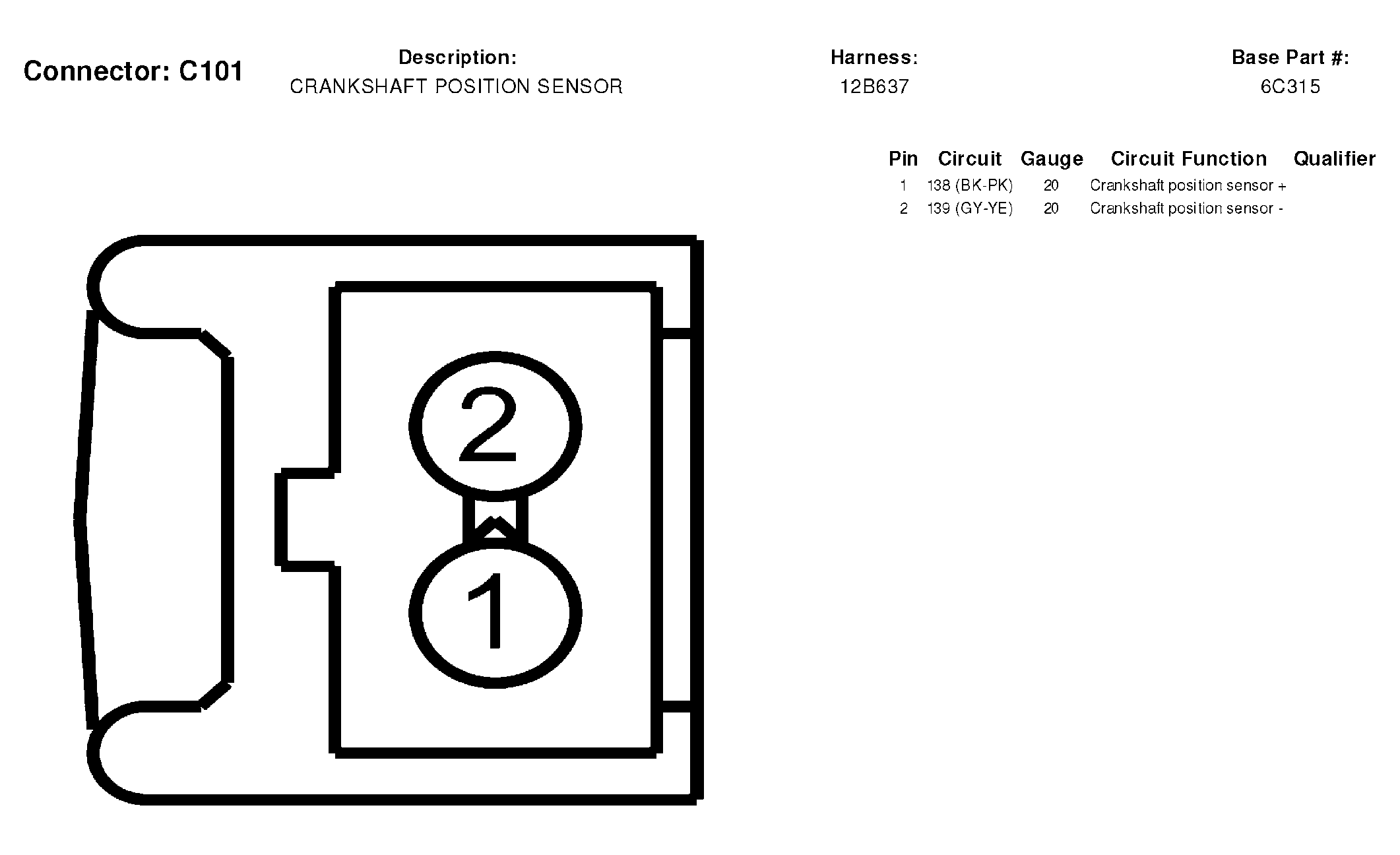

Fig 2: Crankshaft Position Sensor Connector End View (C101)
Courtesy of FORD MOTOR CO.

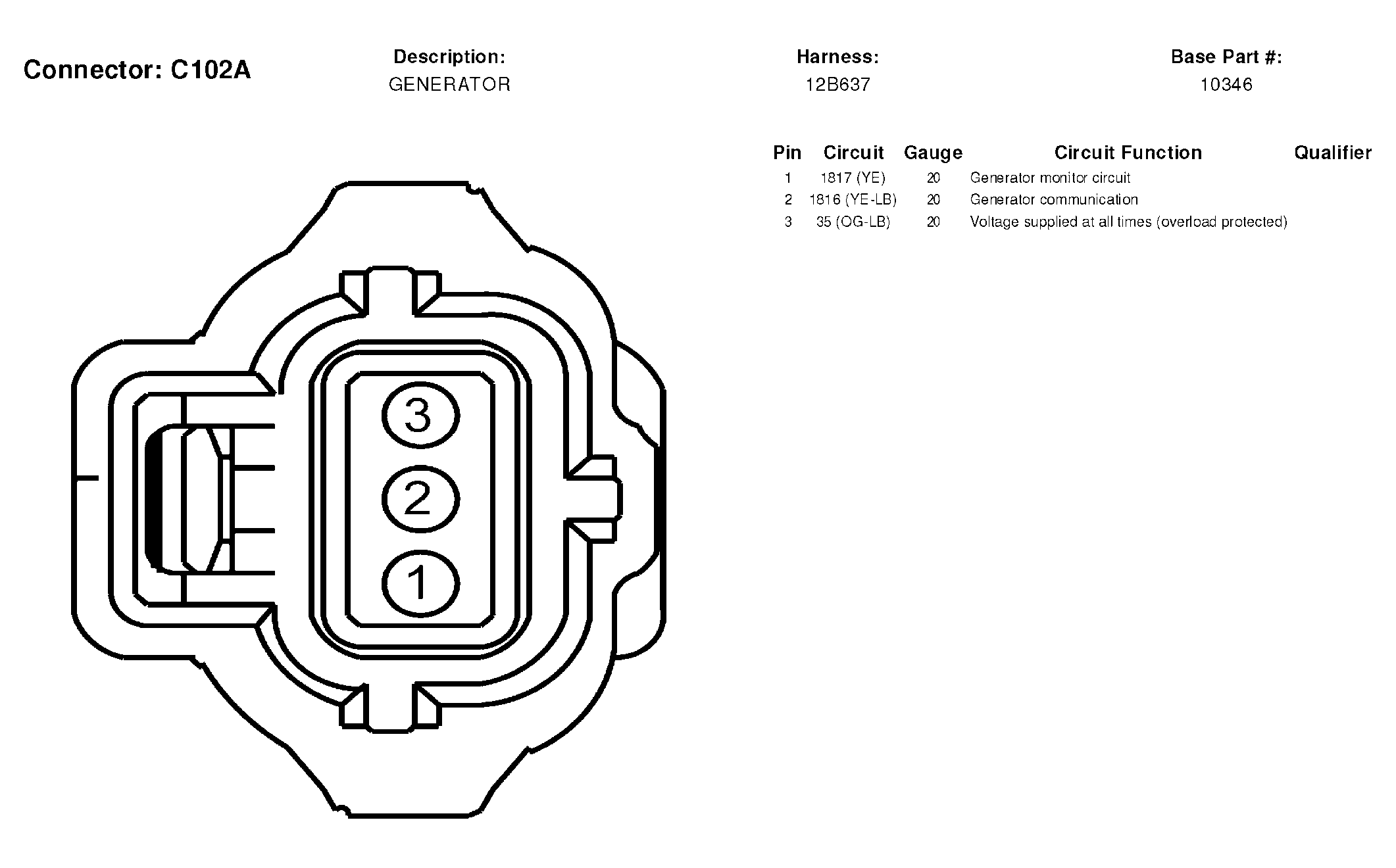

Fig 3: Generator Connector End View (C102A)
Courtesy of FORD MOTOR CO.

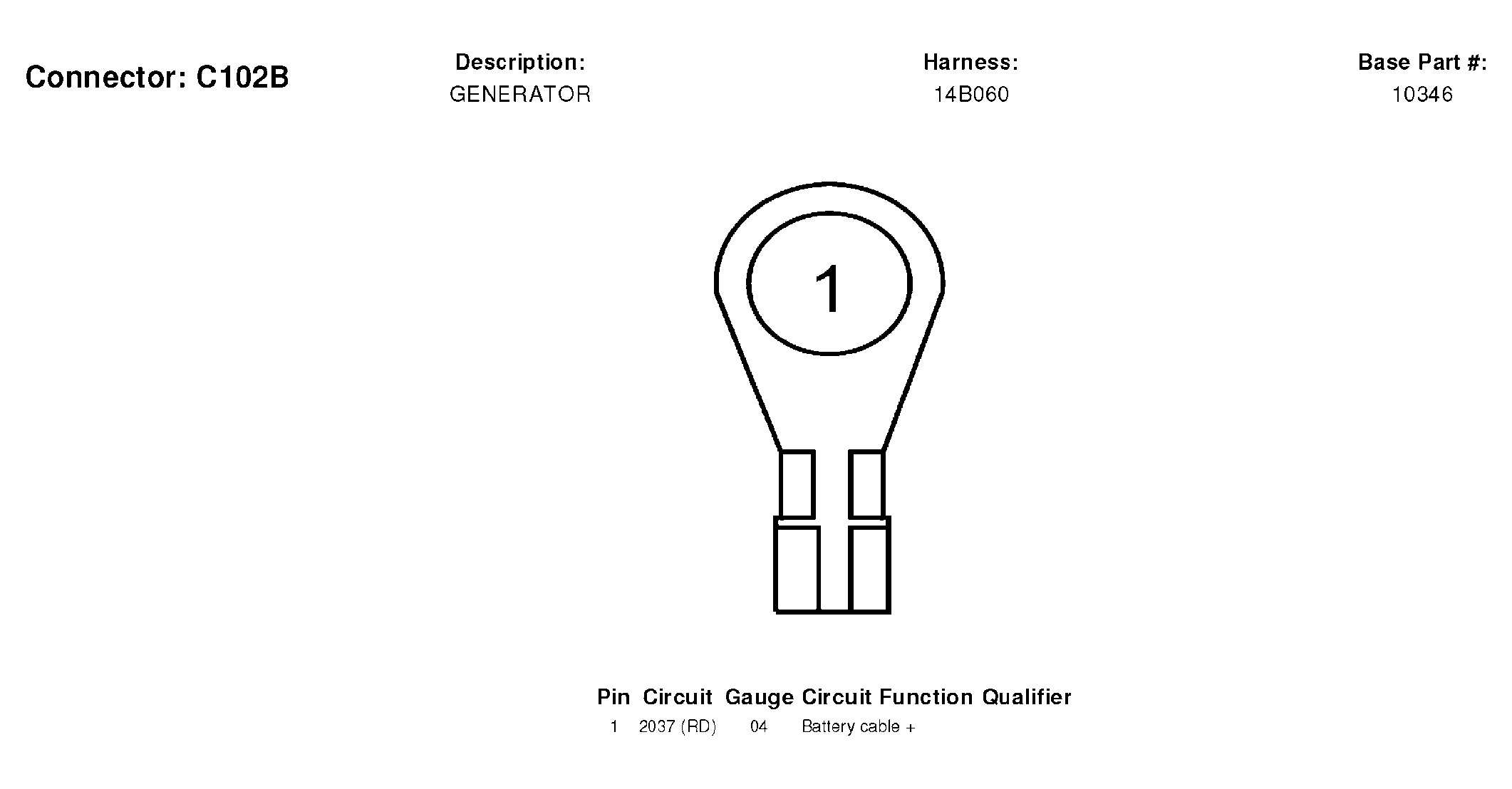

Fig 4: Generator Connector End View (C102B)
Courtesy of FORD MOTOR CO.

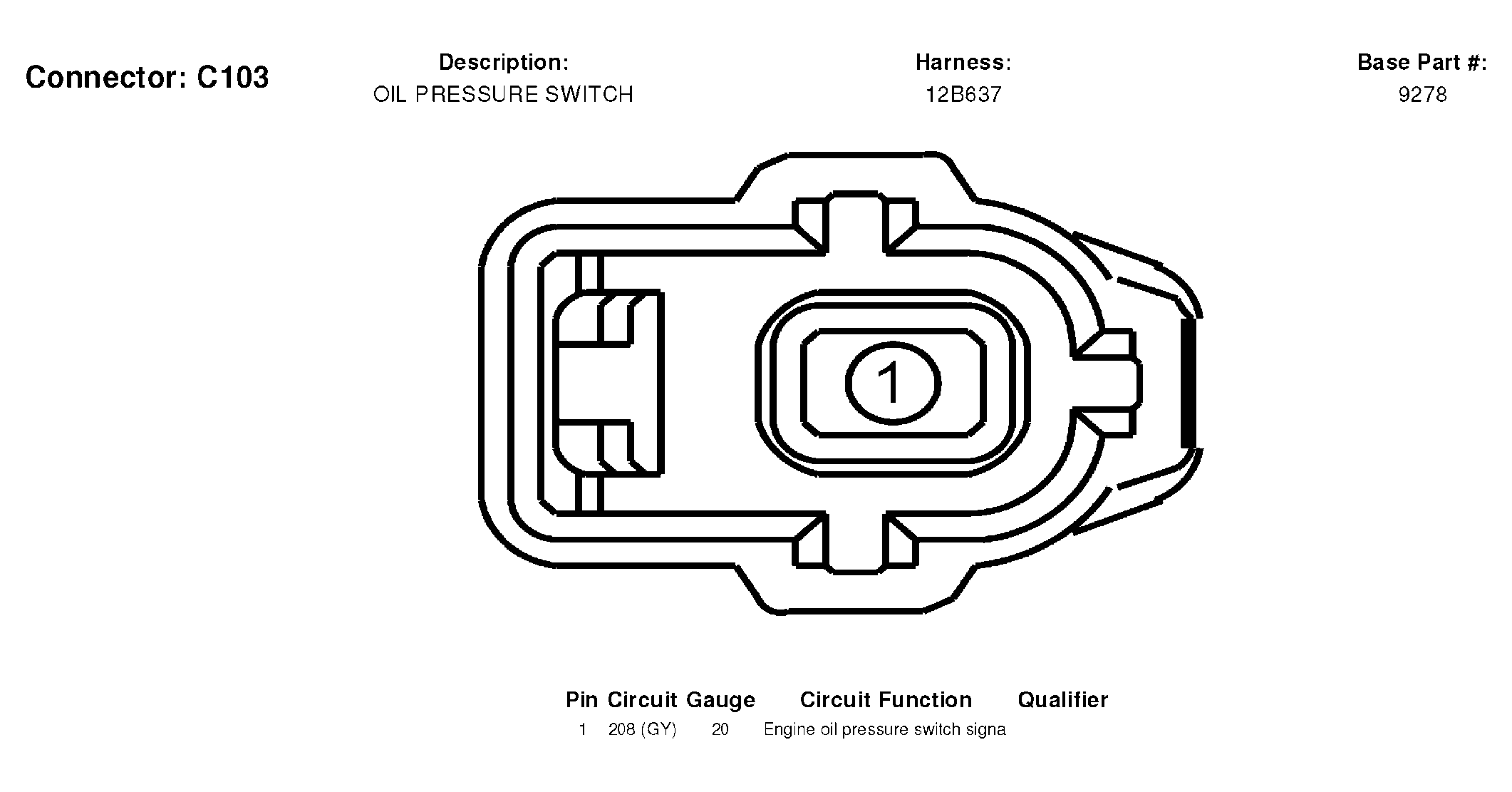

Fig 5: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.

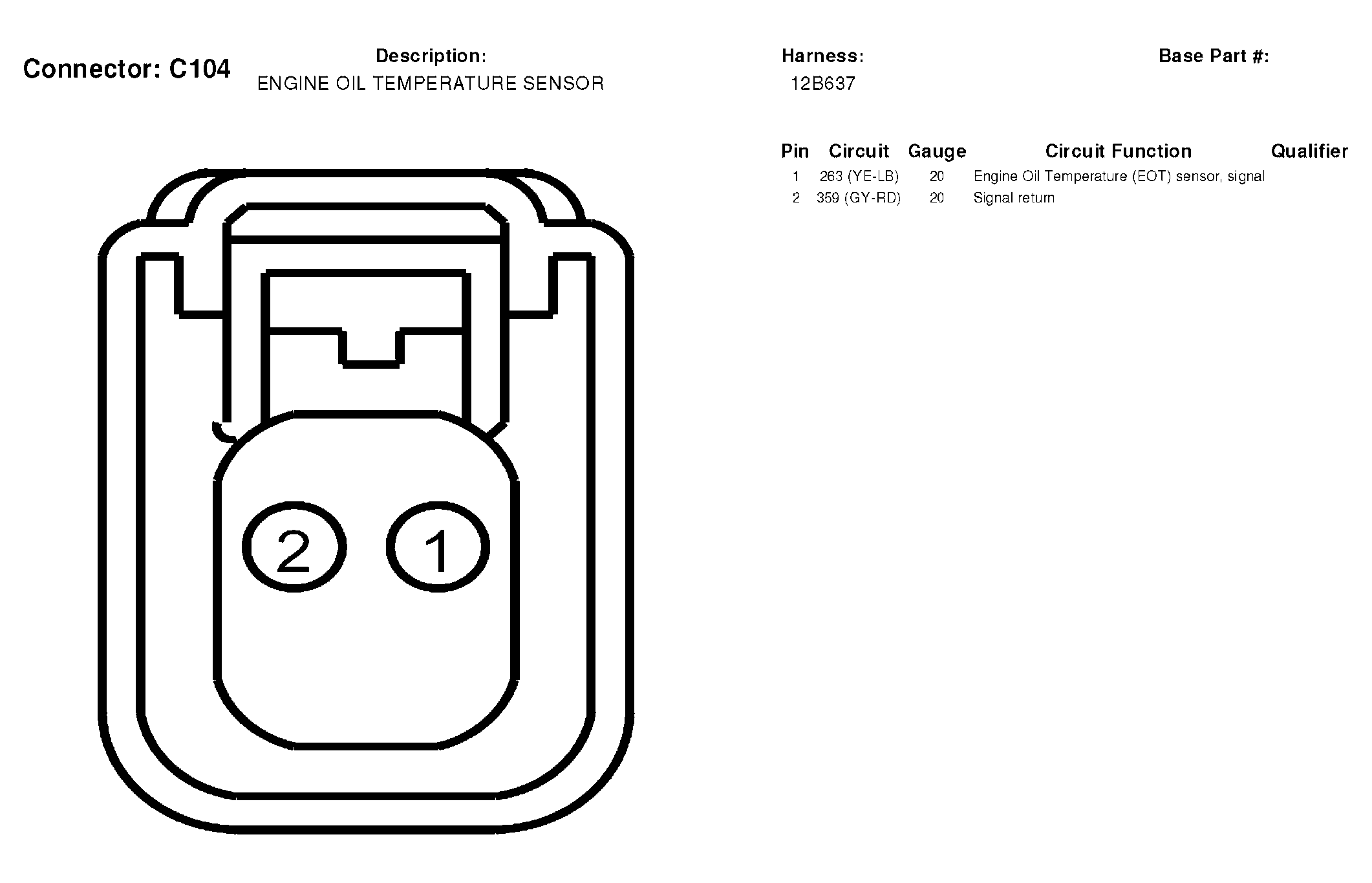

Fig 6: Engine Oil Temperature Sensor Connector End View (C104)
Courtesy of FORD MOTOR CO.

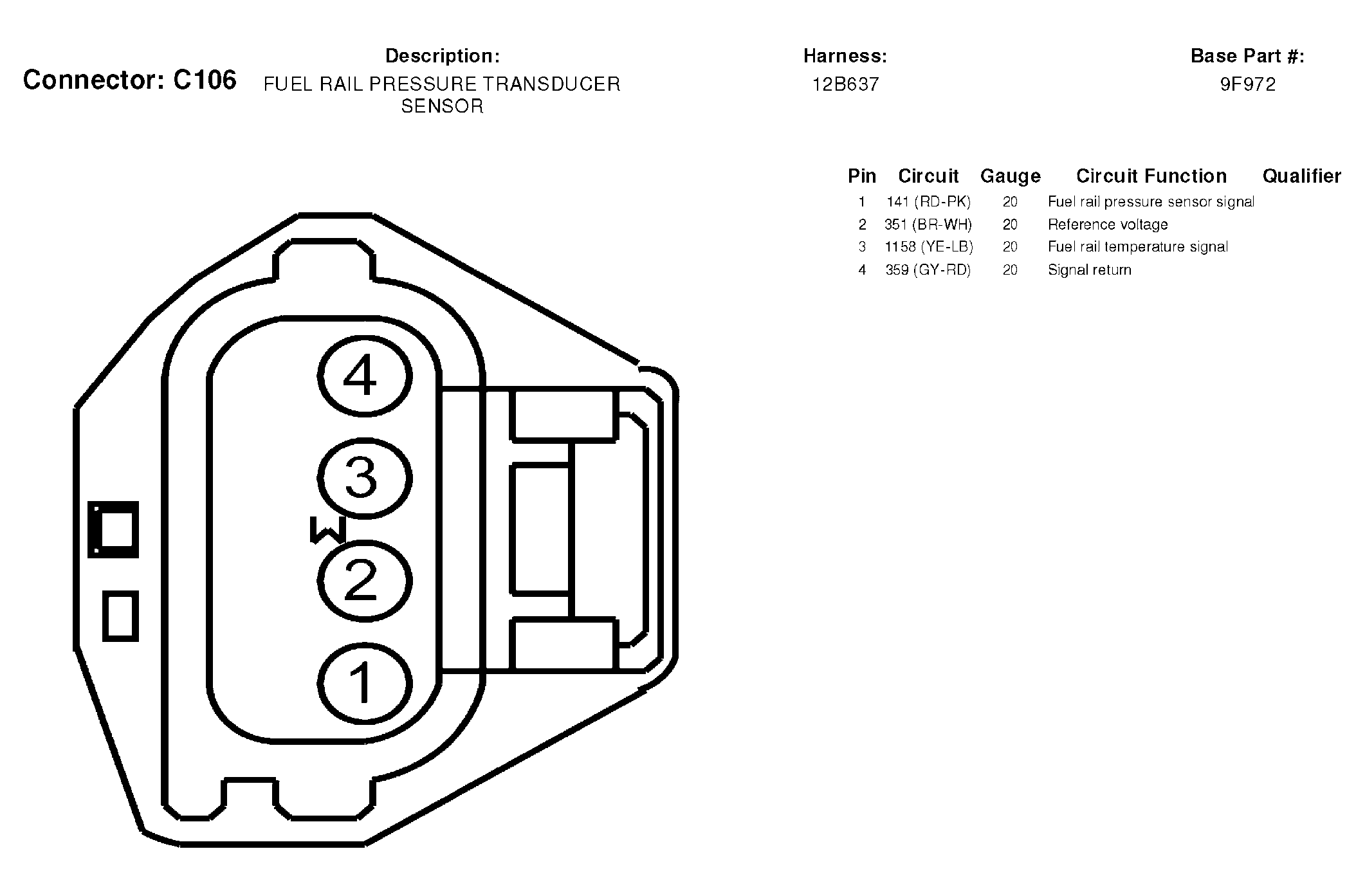

Fig 7: Fuel Rail Pressure Transducer Sensor Connector End View (C106)
Courtesy of FORD MOTOR CO.

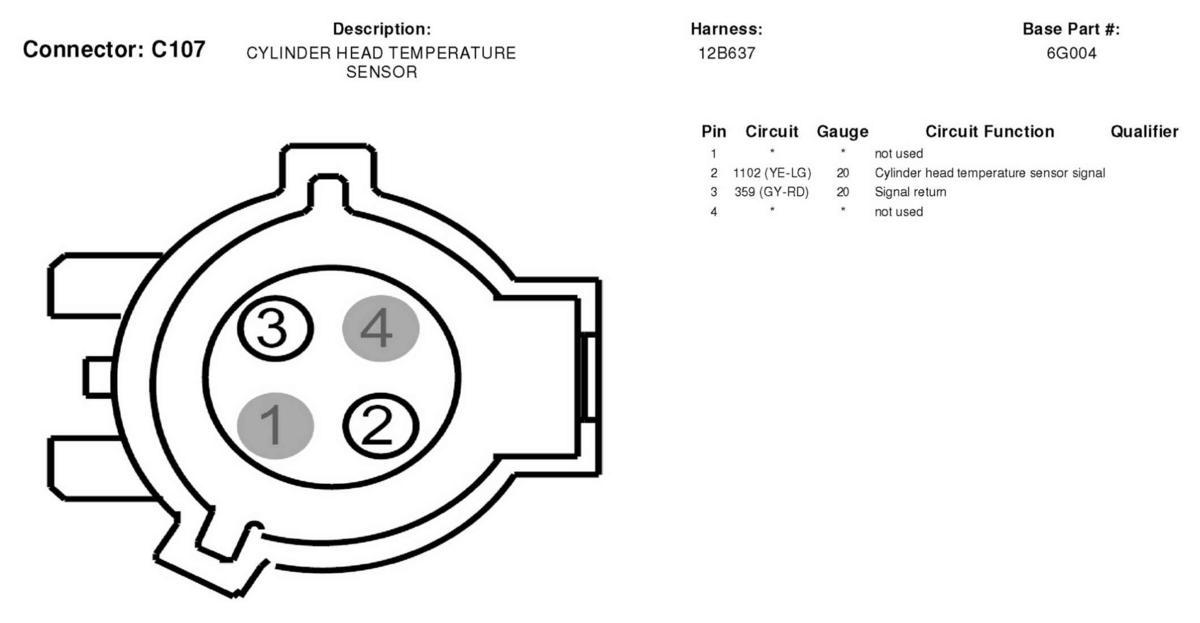

Fig 8: Cylinder Head Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.

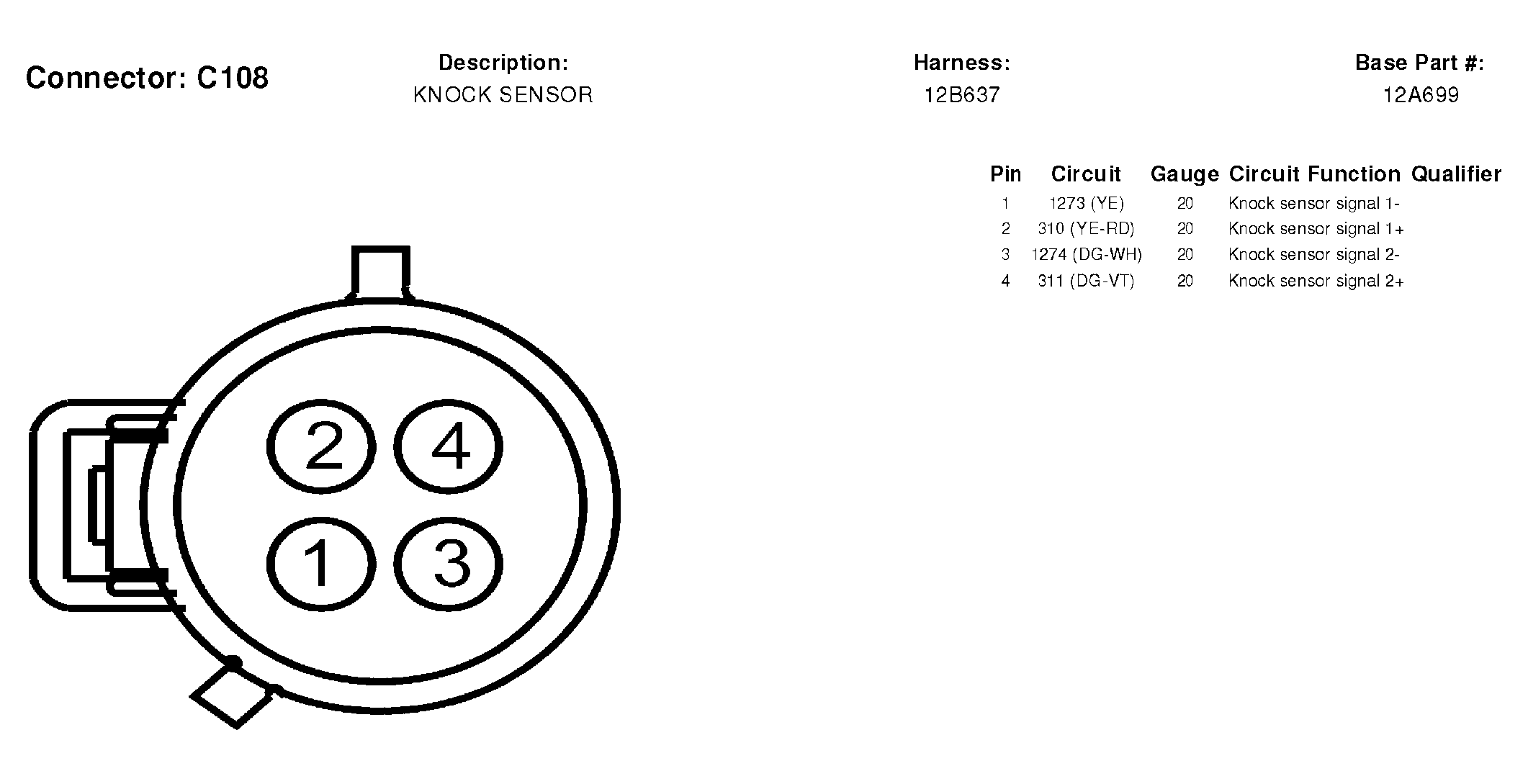

Fig 9: Knock Sensor Connector End View (C108)
Courtesy of FORD MOTOR CO.

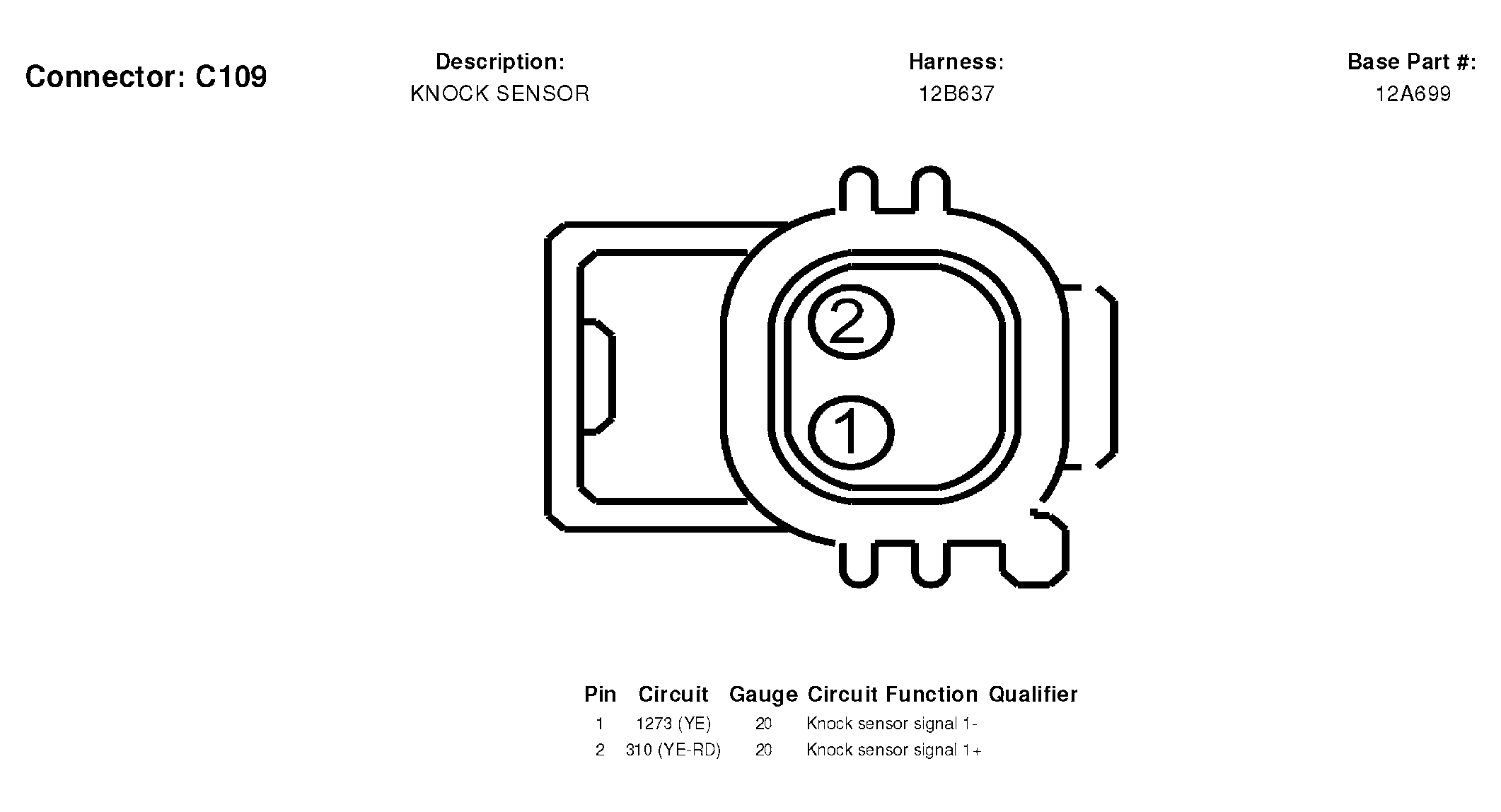

Fig 10: Knock Sensor Connector End View (C109)
Courtesy of FORD MOTOR CO.

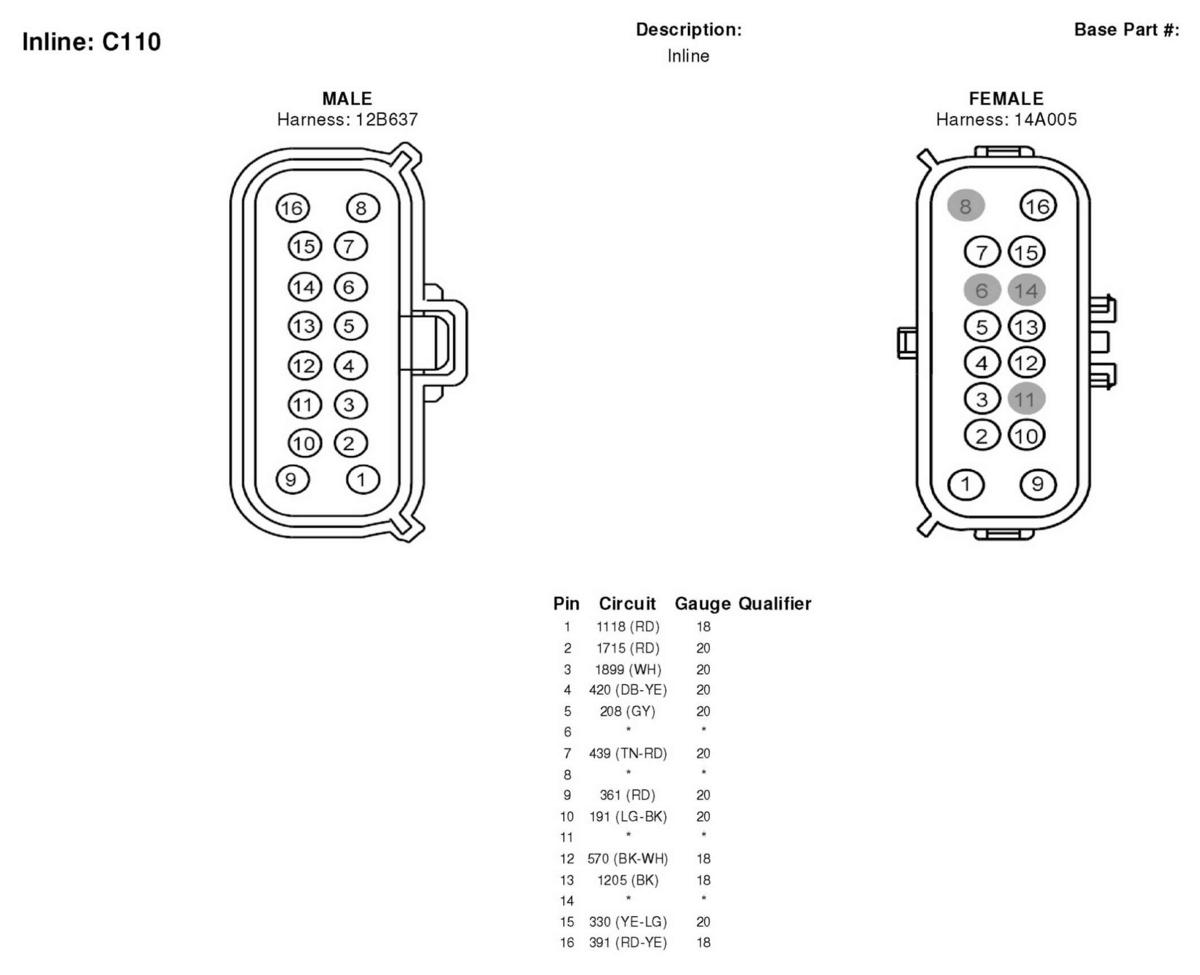

Fig 11: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.

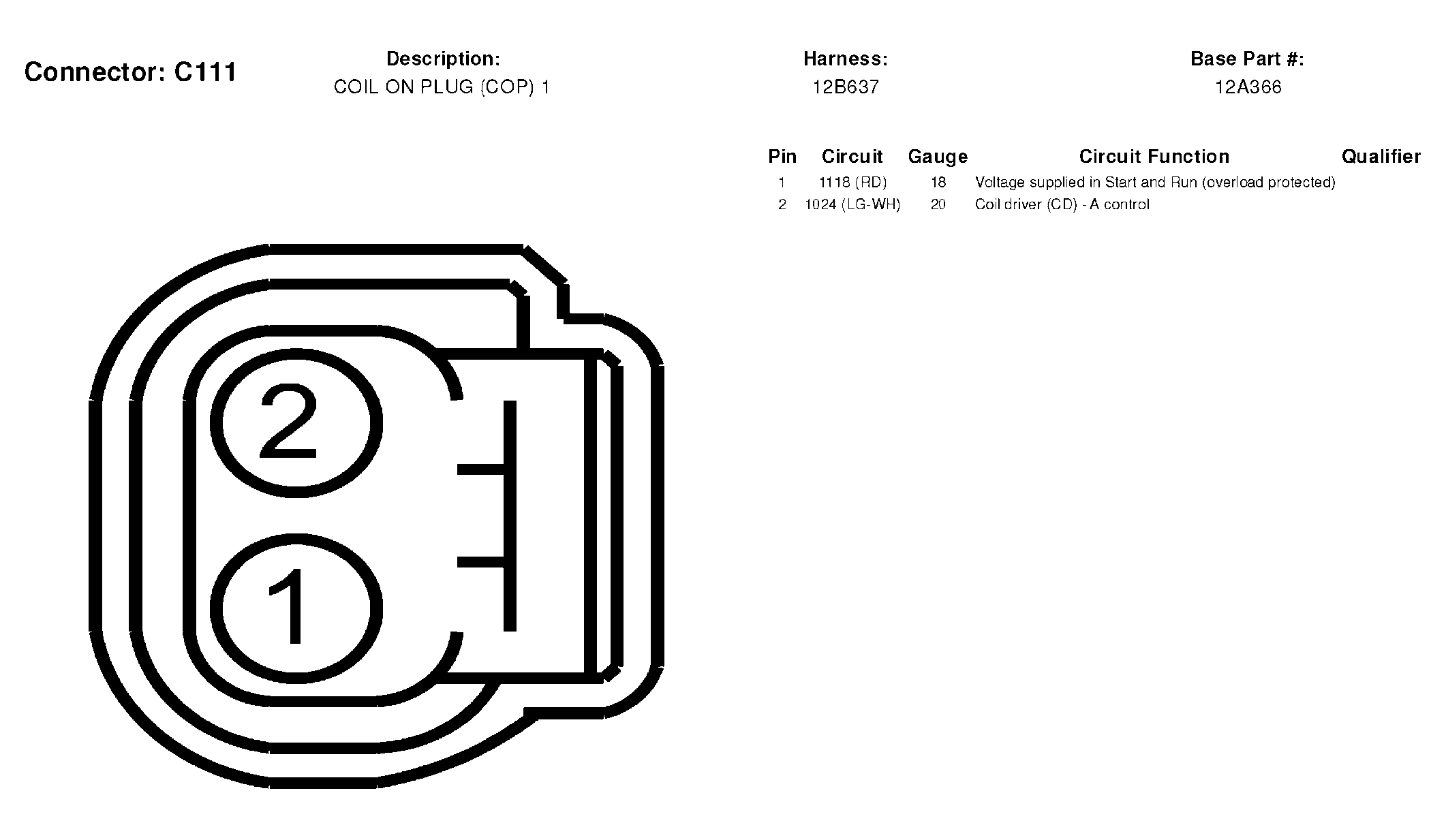

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)
Courtesy of FORD MOTOR CO.
Fig 13: Coil On Plug (COP) 2 Connector End View (C112)
Courtesy of FORD MOTOR CO.
Fig 14: Coil On Plug (COP) 3 Connector End View (C113)
Courtesy of FORD MOTOR CO.
Fig 15: Coil On Plug (COP) 4 Connector End View (C114)
Courtesy of FORD MOTOR CO.

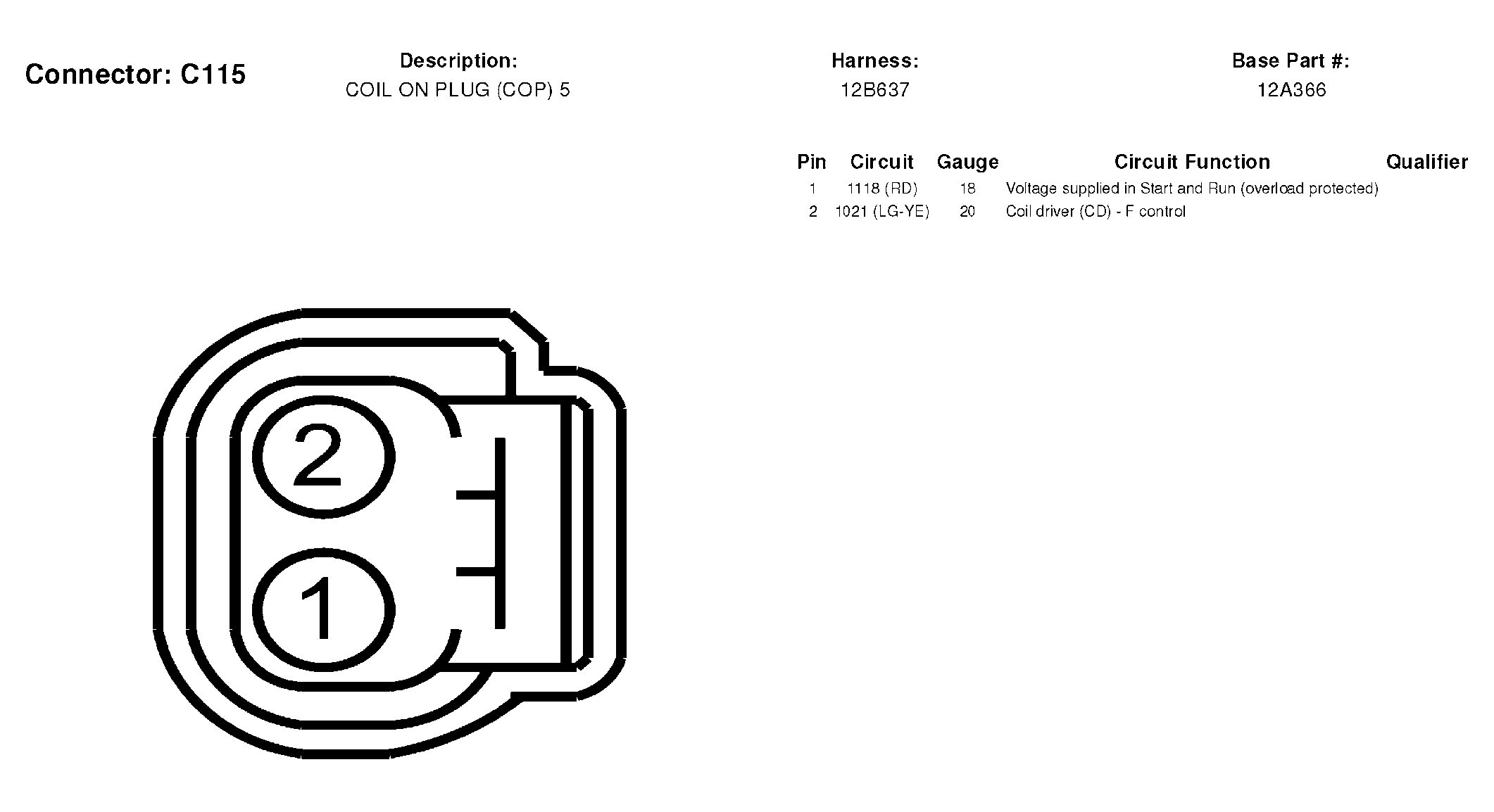

Fig 16: Coil On Plug (COP) 5 Connector End View (C115)
Courtesy of FORD MOTOR CO.
Fig 17: Coil On Plug (COP) 6 Connector End View (C116)
Courtesy of FORD MOTOR CO.

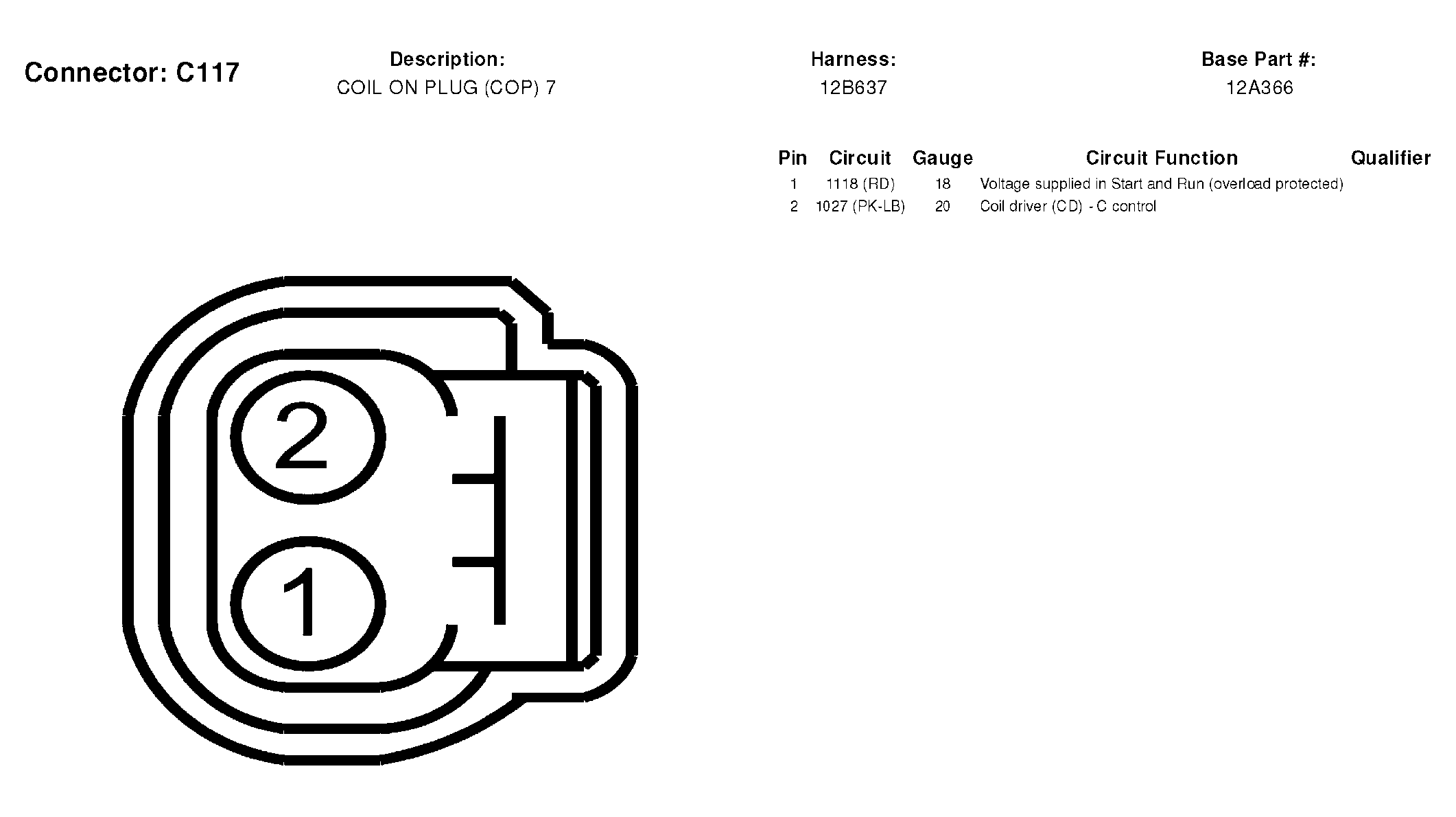

Fig 18: Coil On Plug (COP) 7 Connector End View (C117)
Courtesy of FORD MOTOR CO.

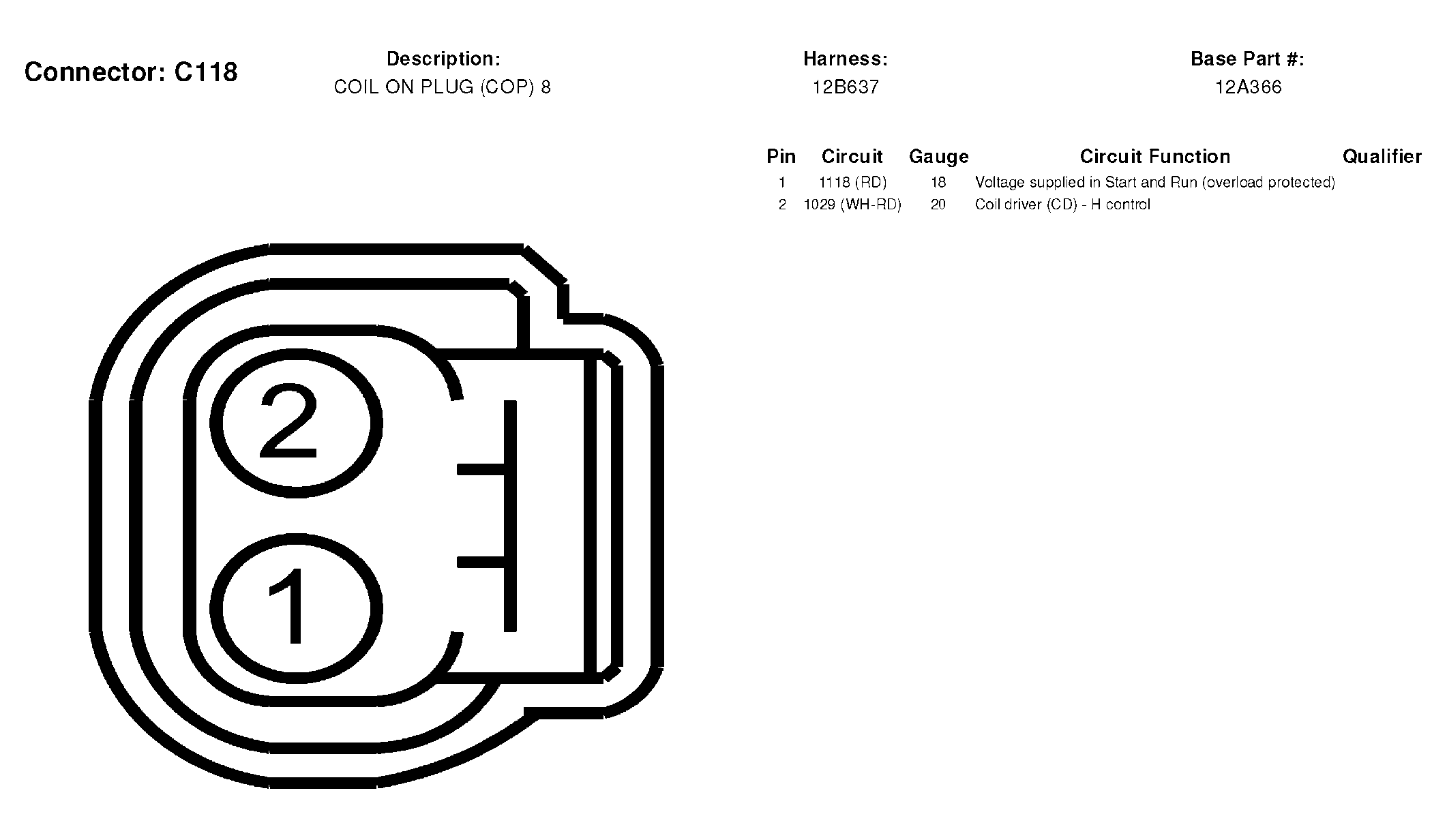

Fig 19: Coil On Plug (COP) 8 Connector End View (C118)
Courtesy of FORD MOTOR CO.

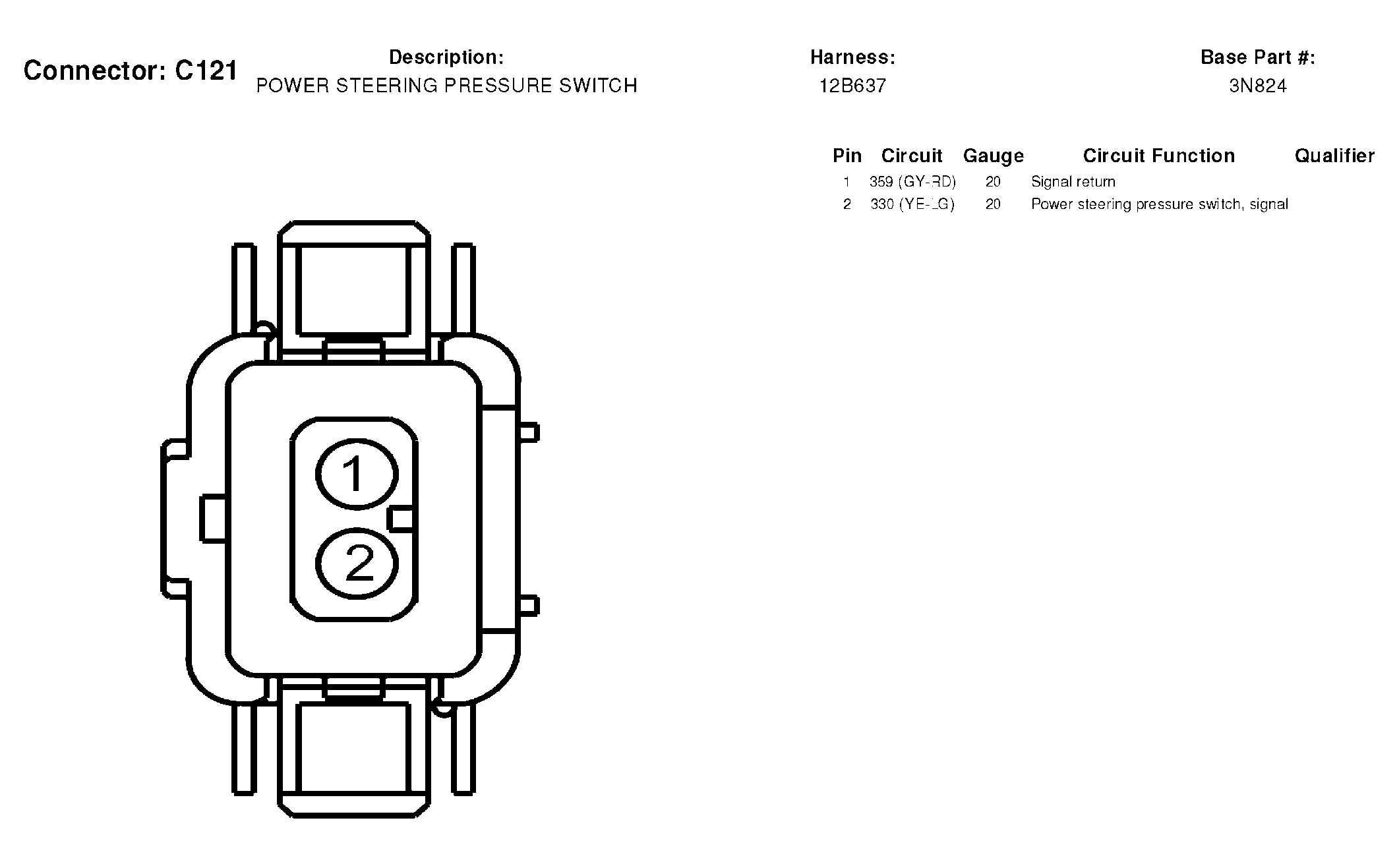

Fig 20: Power Steering Pressure Switch Connector End View (C121)
Courtesy of FORD MOTOR CO.

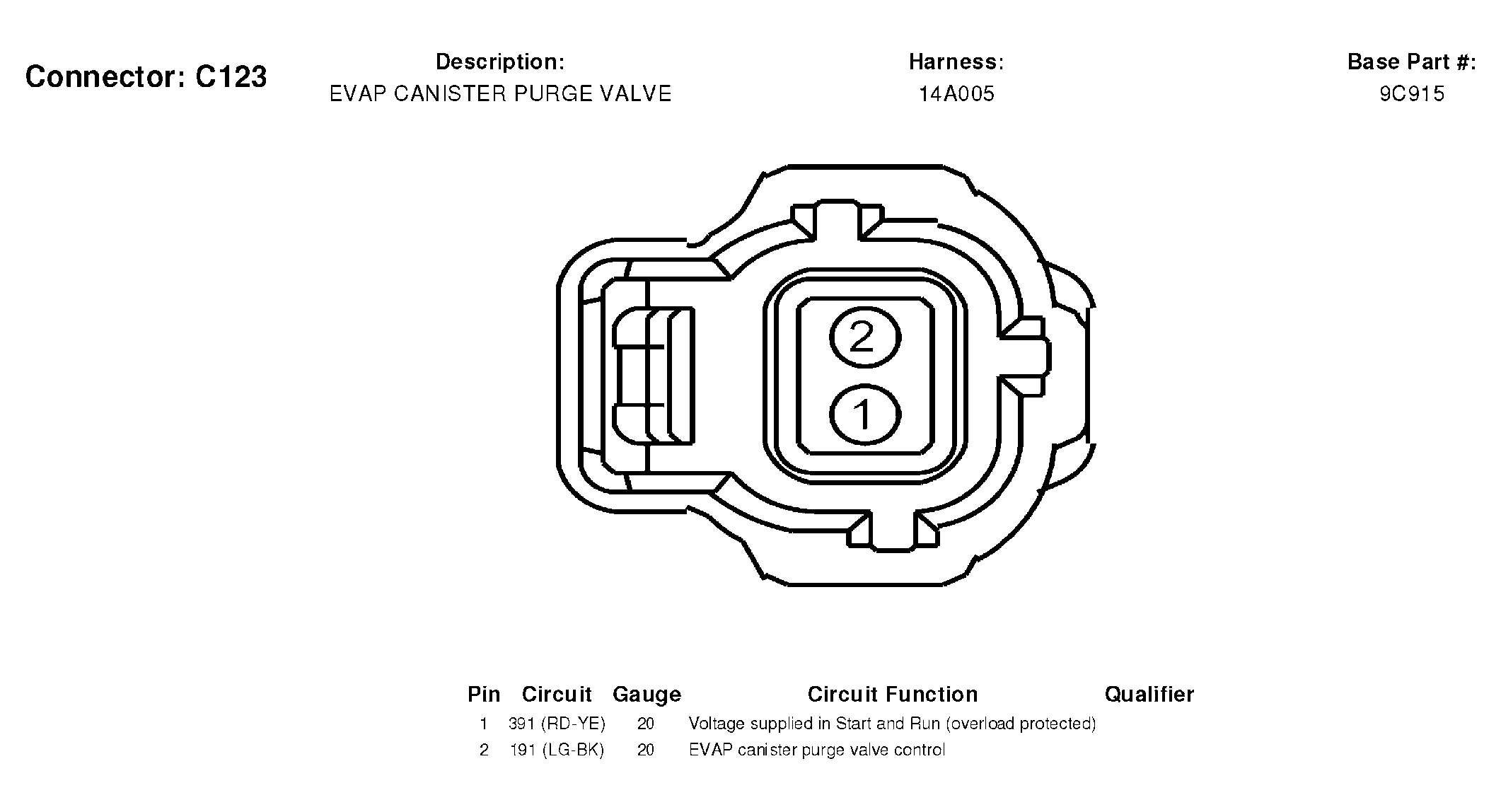

Fig 21: EVAP Canister Purge Valve Connector End View (C123)
Courtesy of FORD MOTOR CO.

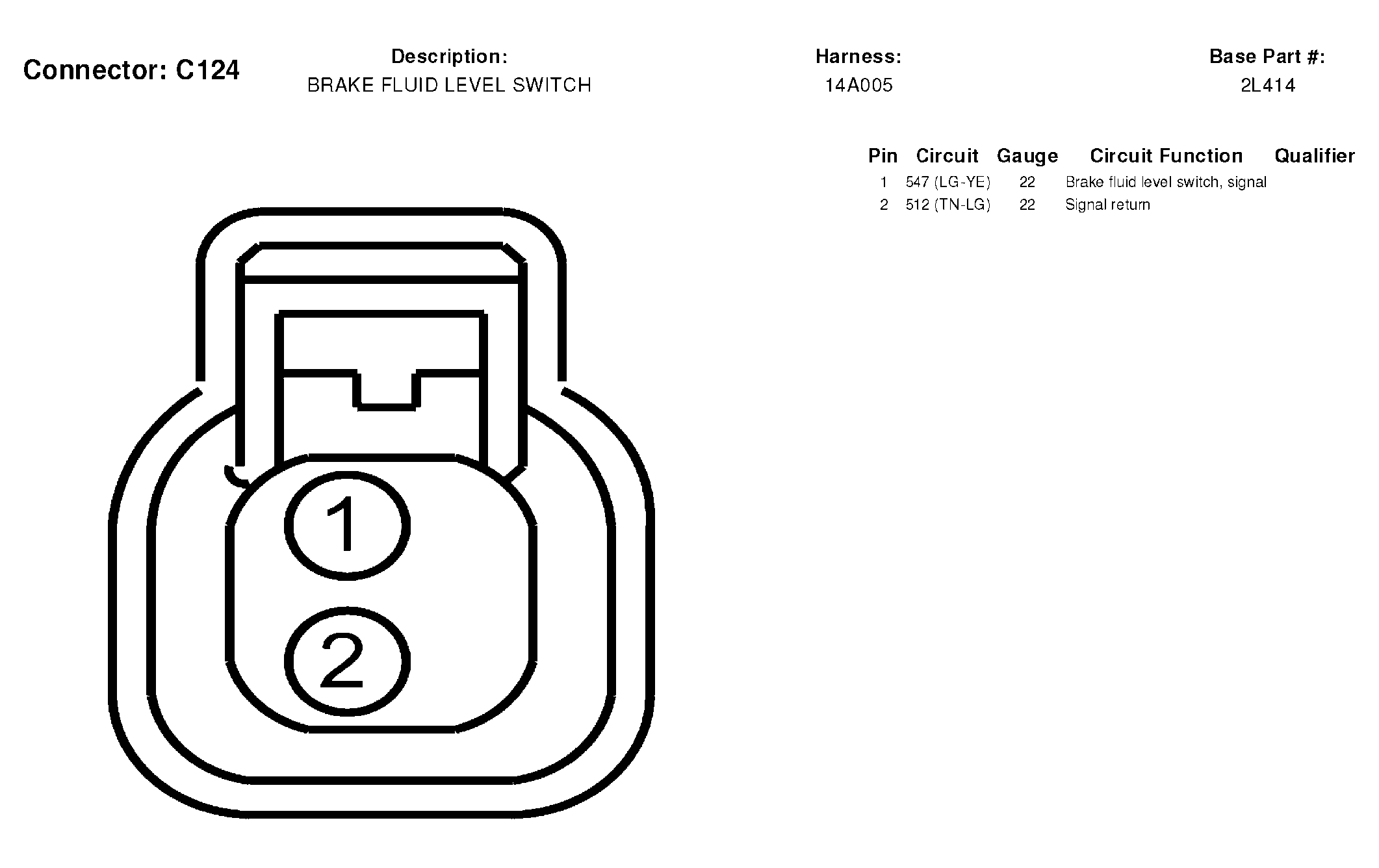

Fig 22: Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.

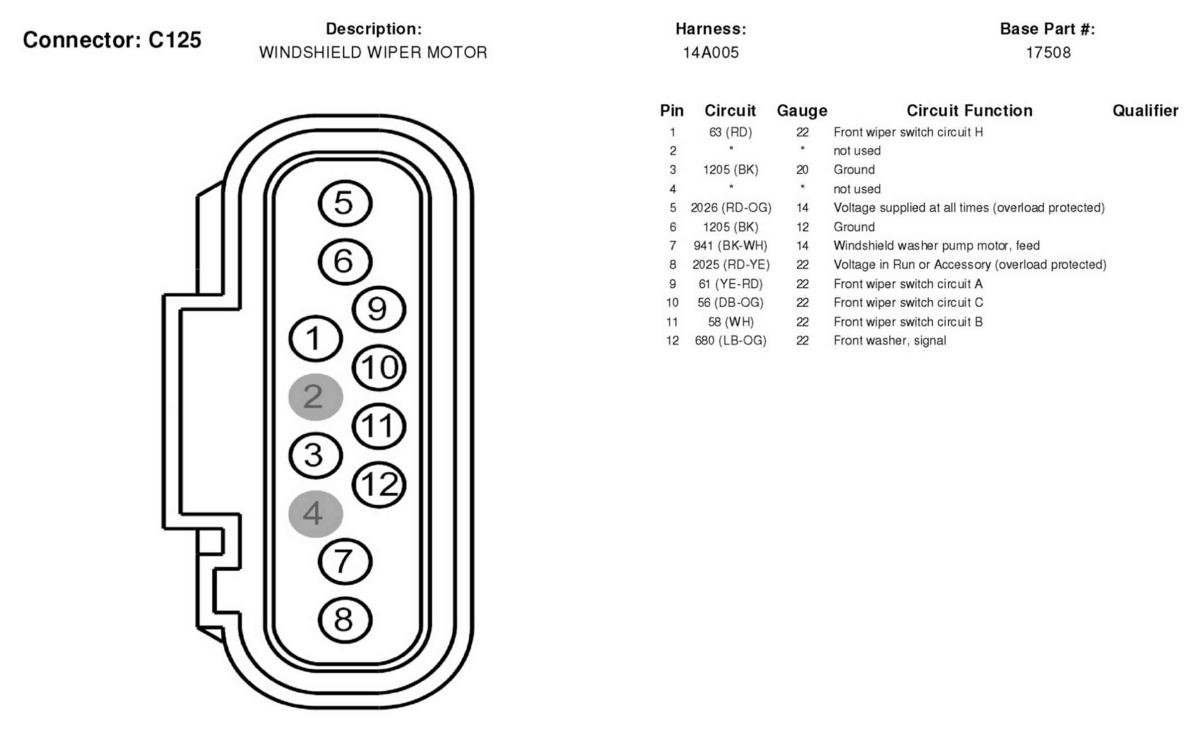

Fig 23: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.
Fig 24: Anti-Theft Hood Switch Connector End View (C127)
Courtesy of FORD MOTOR CO.

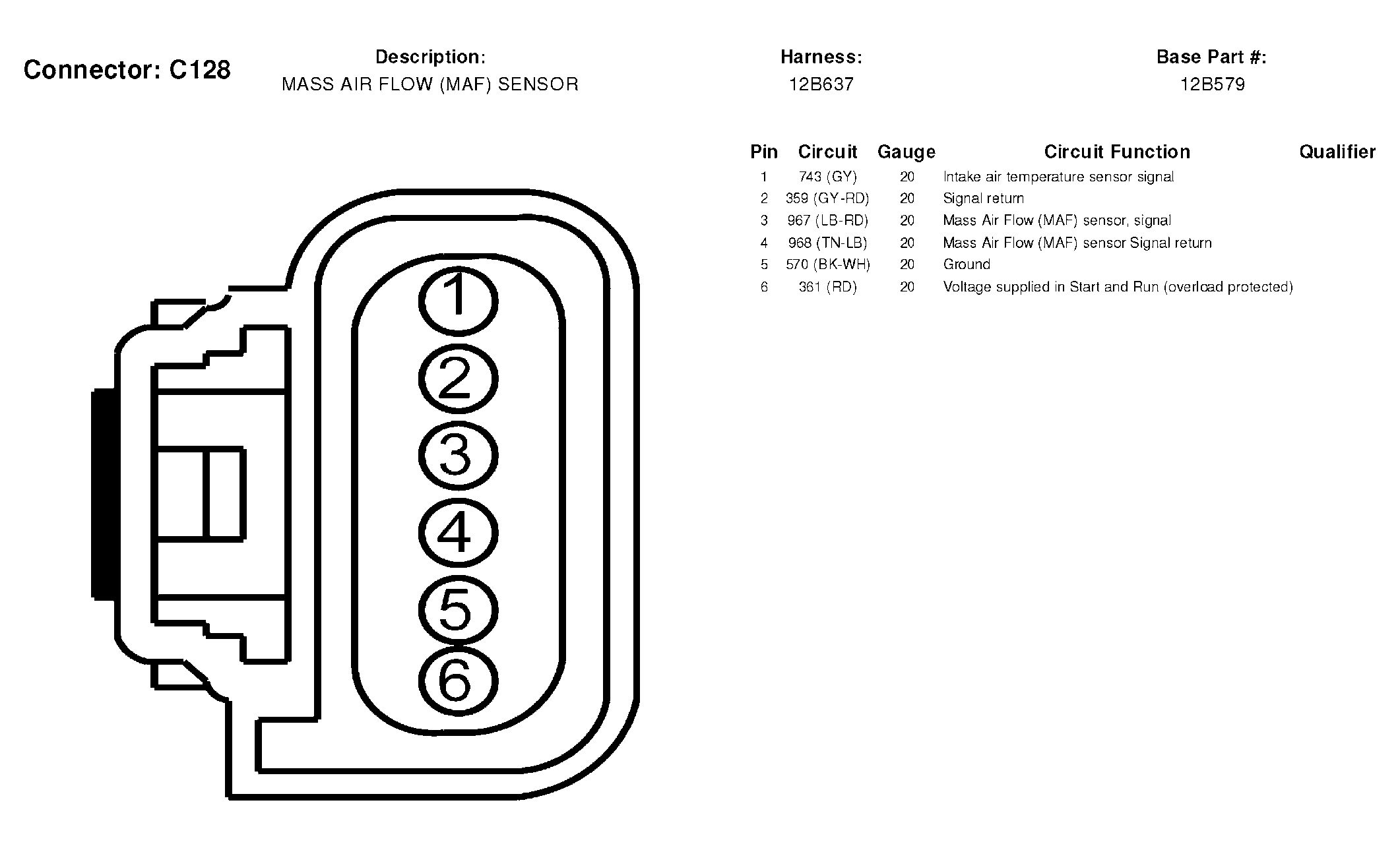

Fig 25: Mass Air Flow (MAF) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.

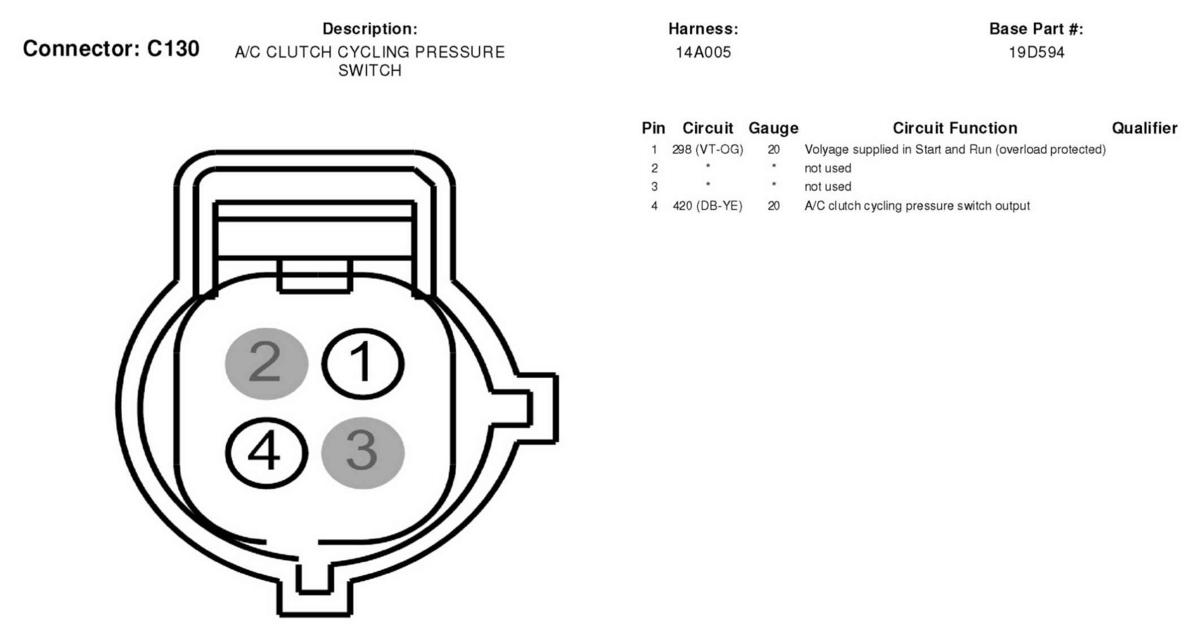

Fig 26: A/C Clutch Cycling Pressure Switch Connector End View (C130)
Courtesy of FORD MOTOR CO.

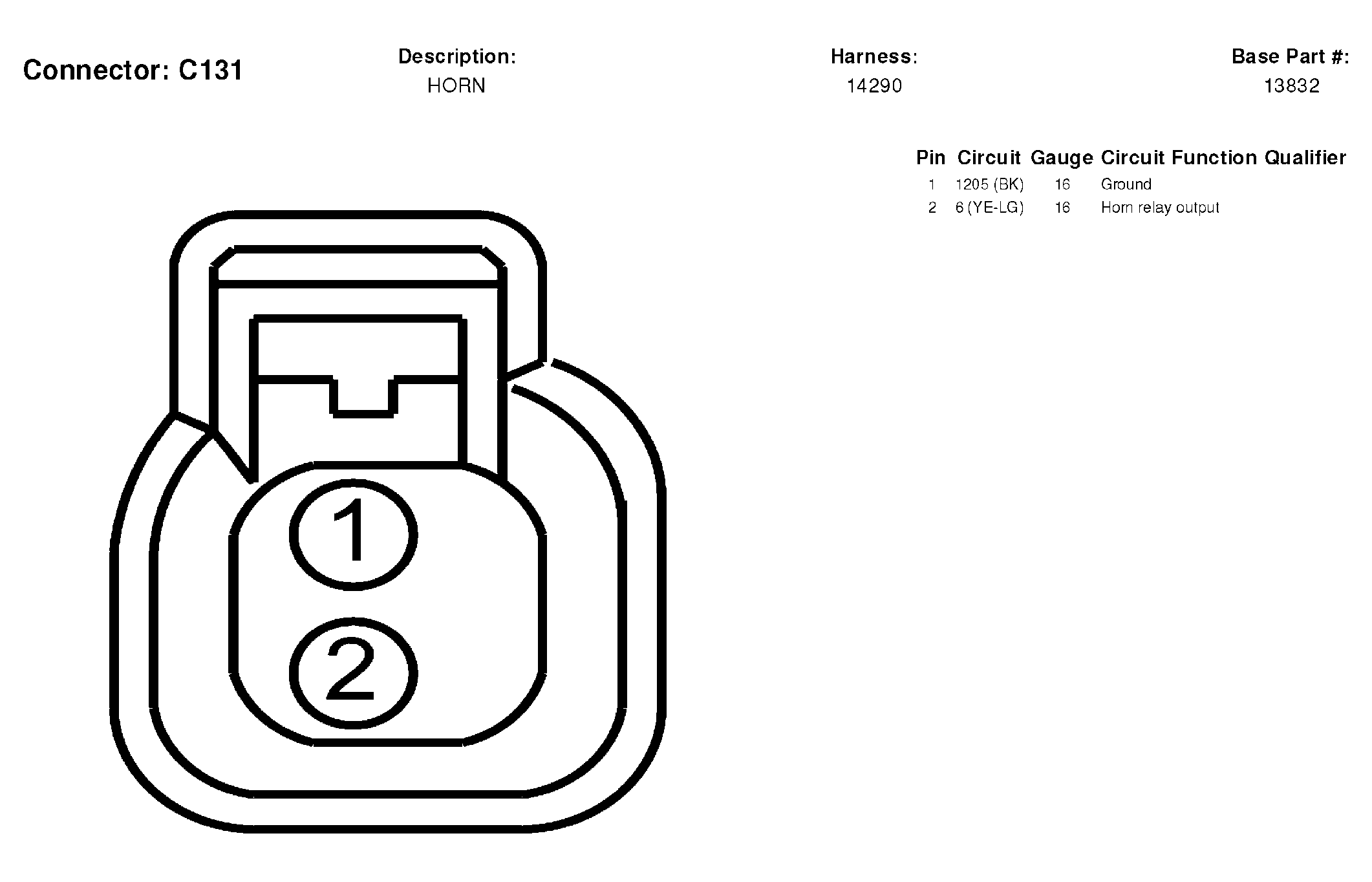

Fig 27: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.

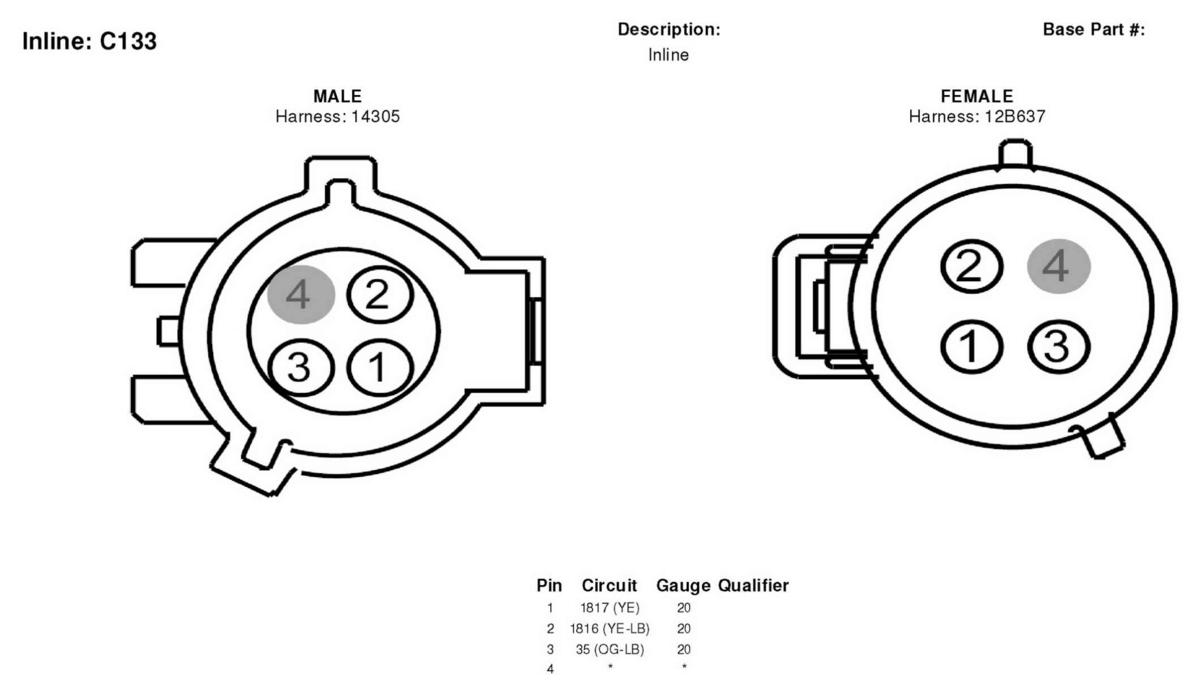

Fig 28: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.

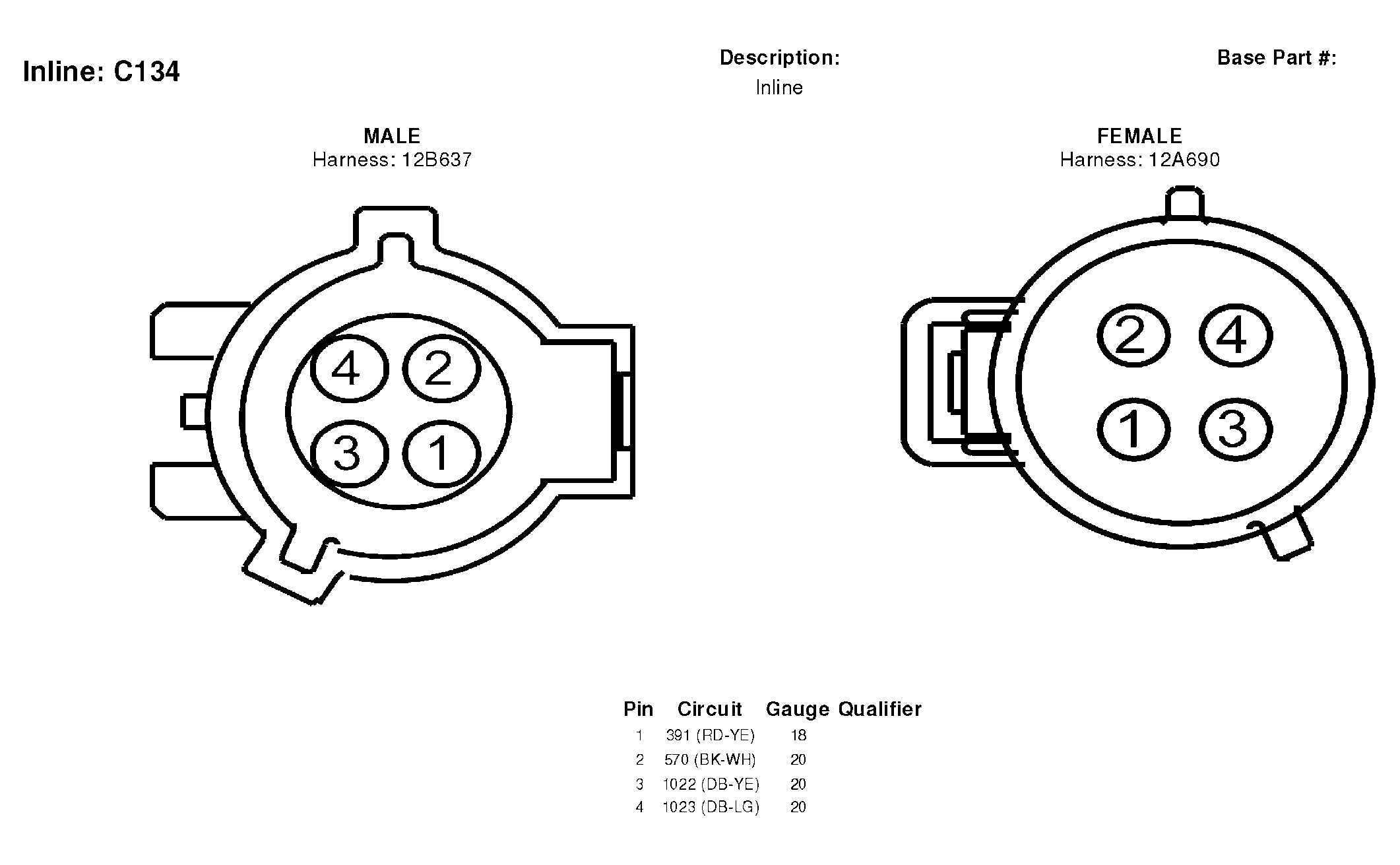

Fig 29: Inline Connector End View (C134)
Courtesy of FORD MOTOR CO.

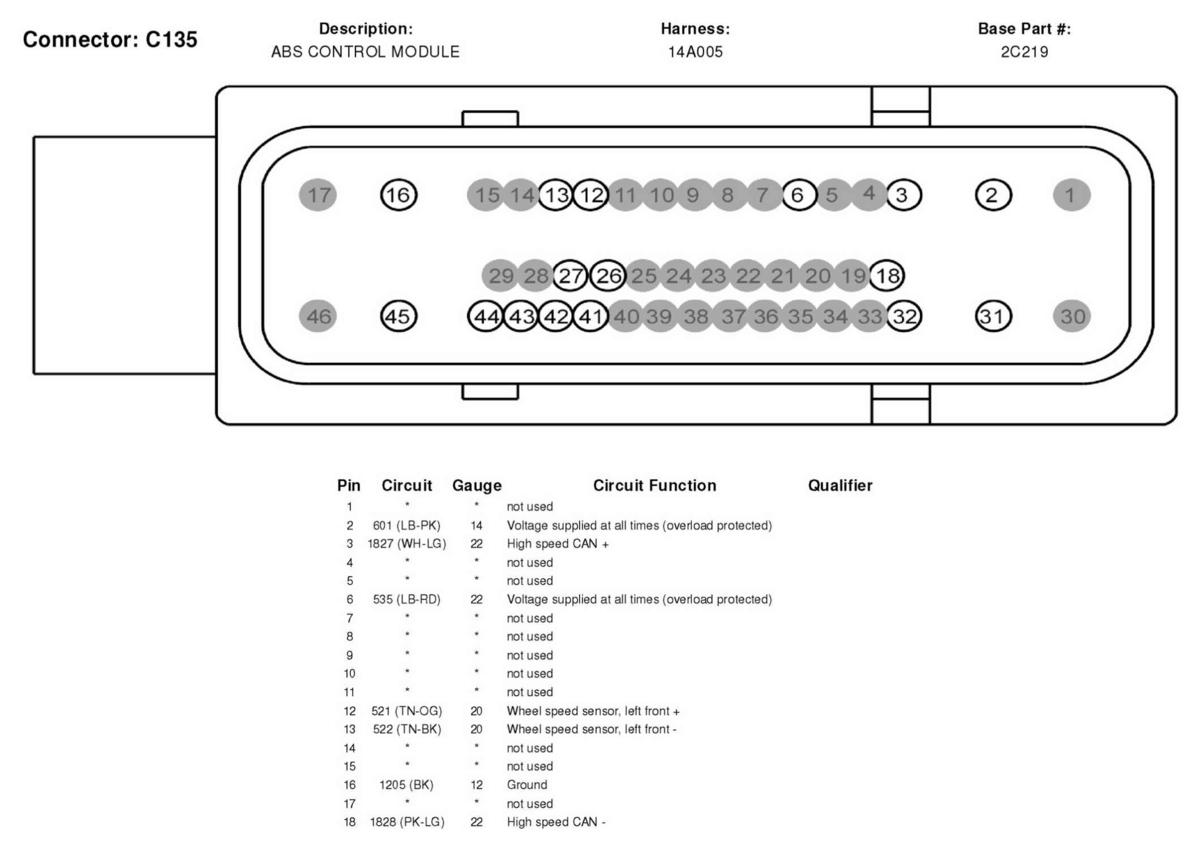

Fig 30: ABS Control Module Connector End View (C135) (1 Of 2)
Courtesy of FORD MOTOR CO.

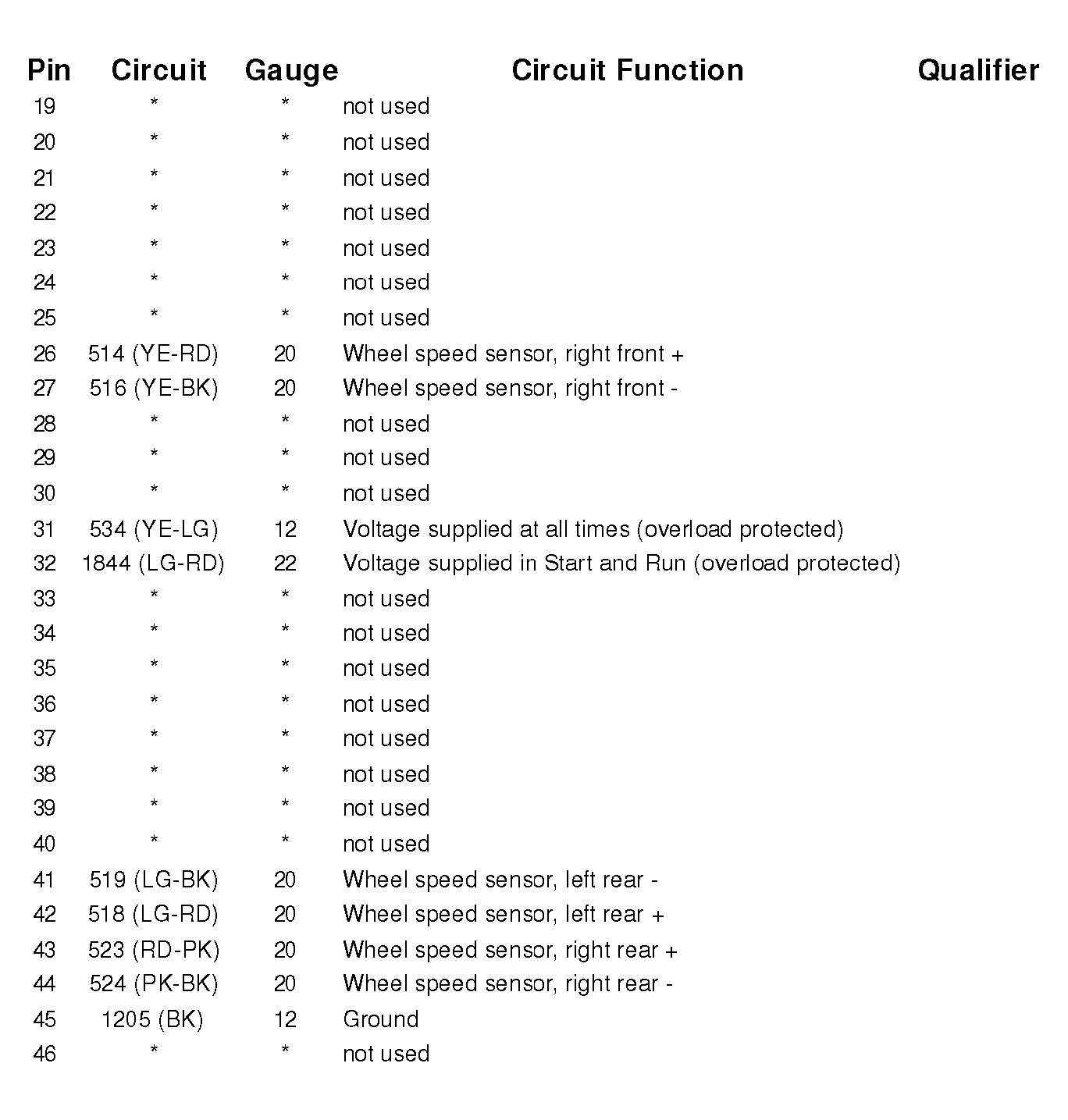

Fig 31: ABS Control Module Connector End View (C135) (2 Of 2)
Courtesy of FORD MOTOR CO.

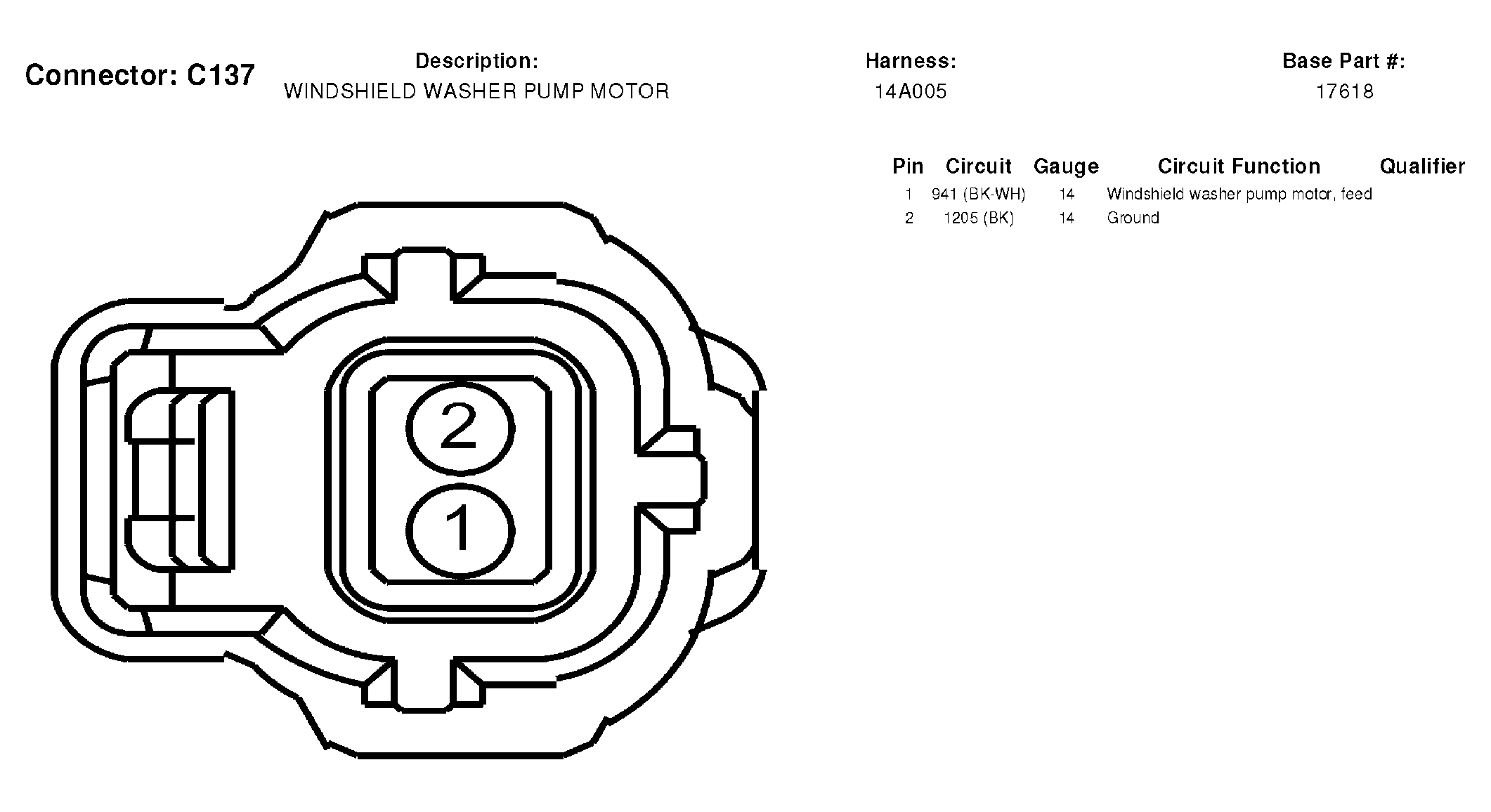

Fig 32: Windshield Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.

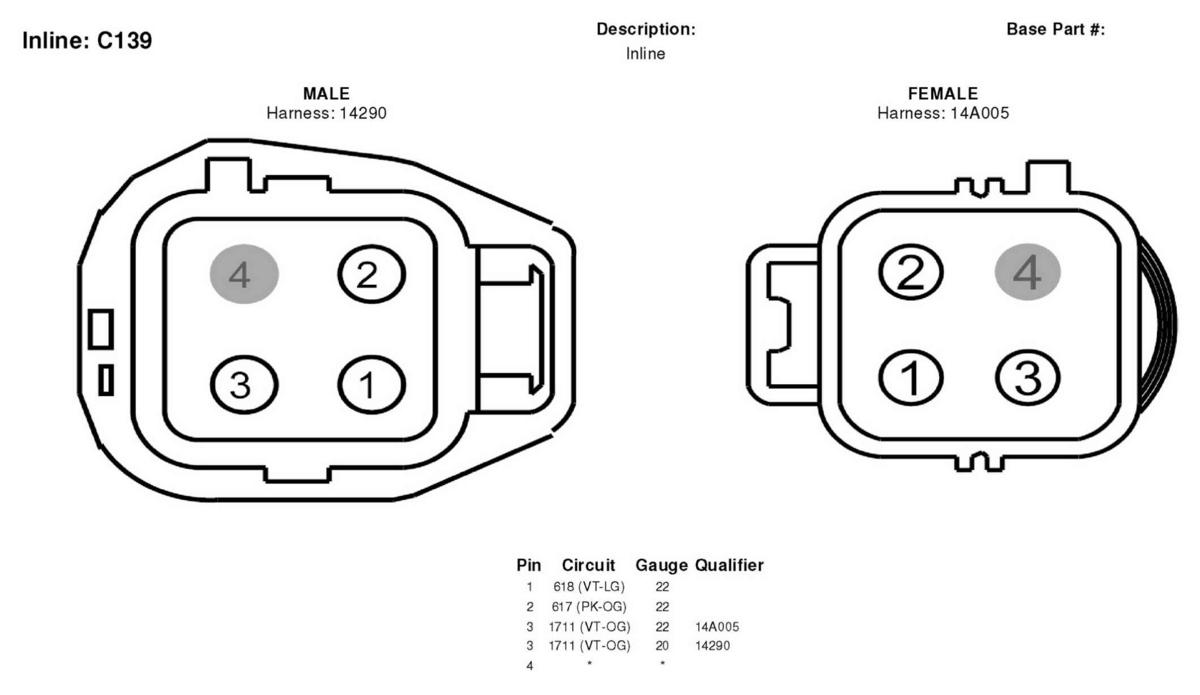

Fig 33: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.

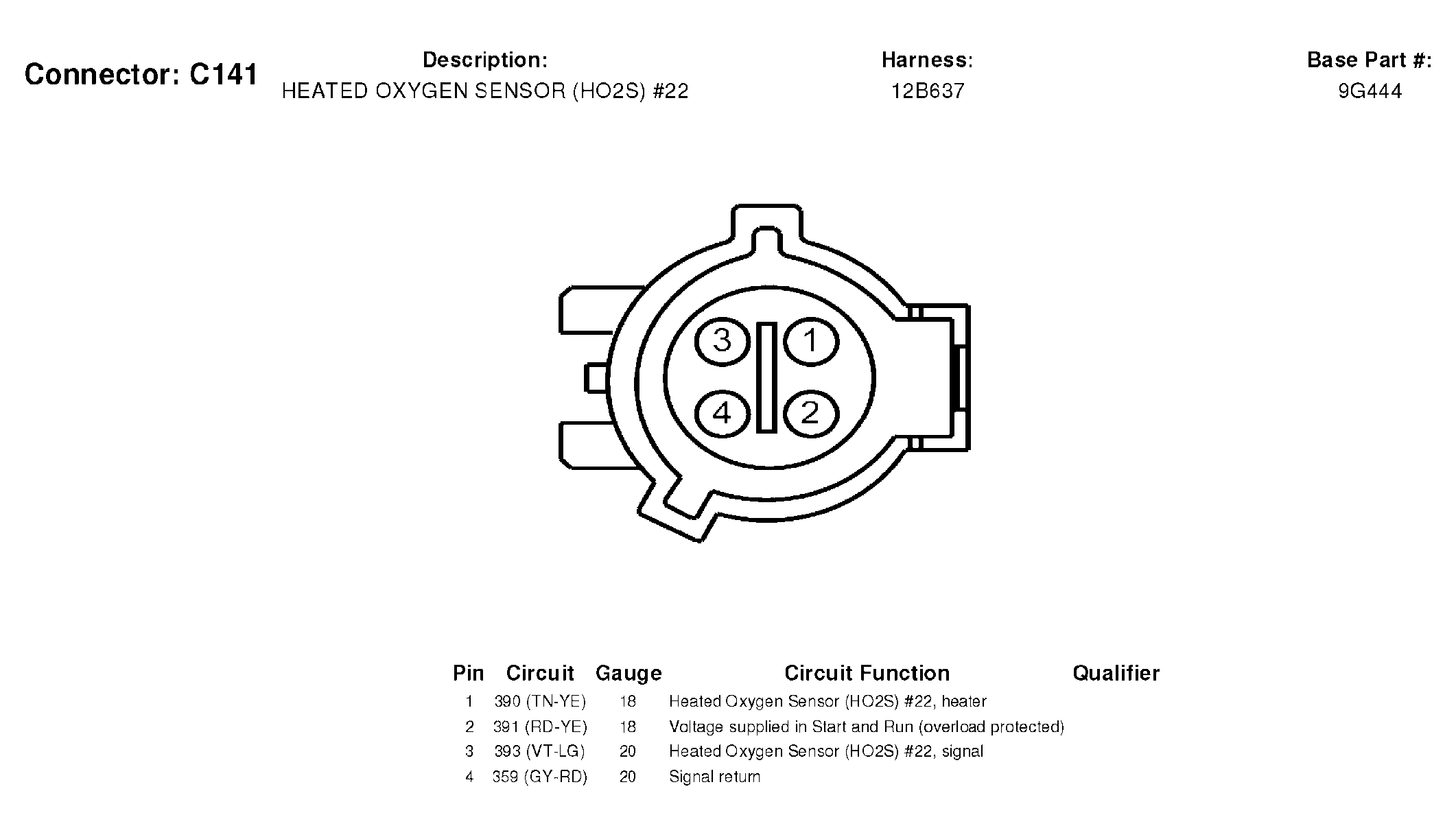

Fig 34: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.

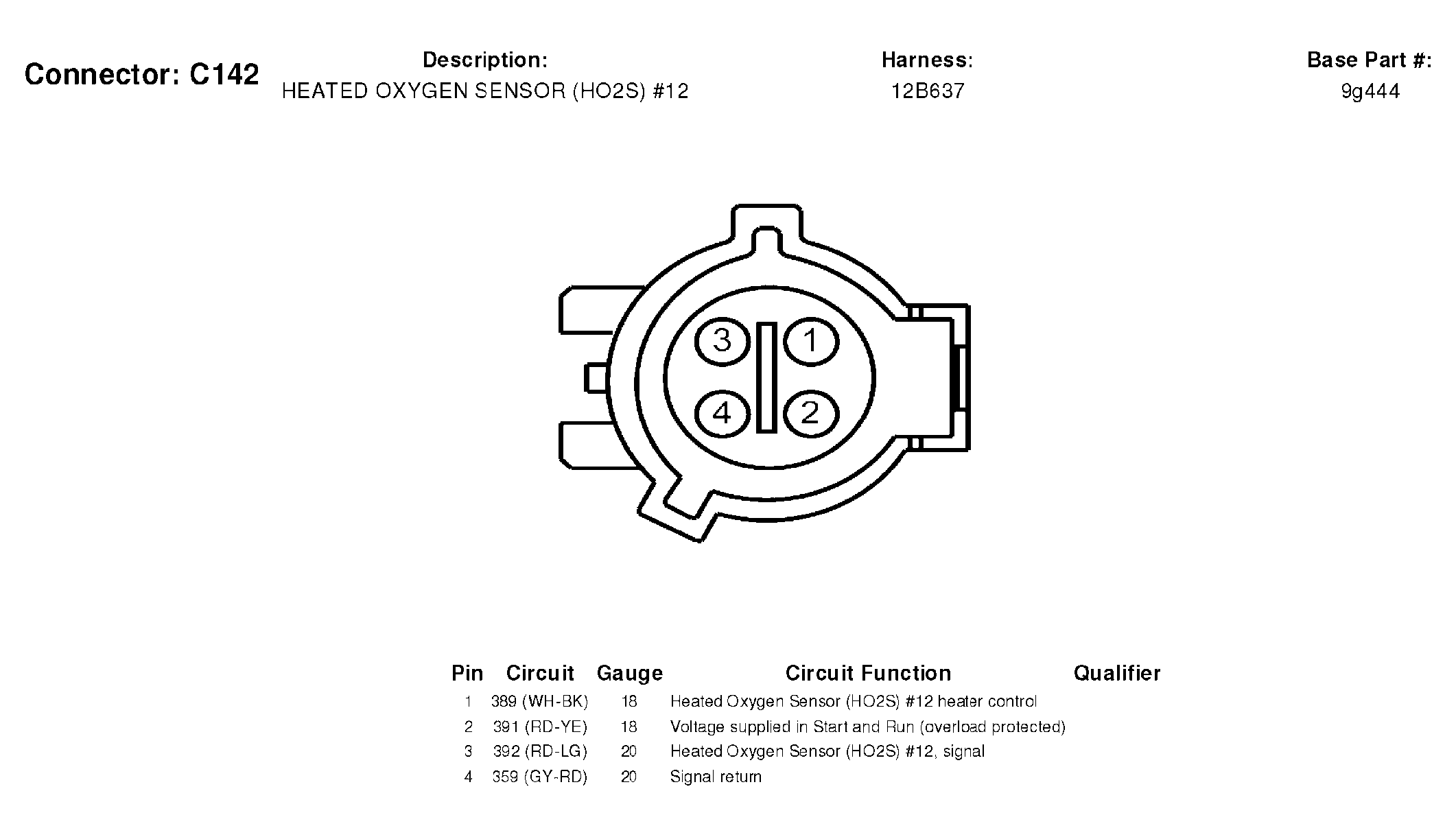

Fig 35: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.

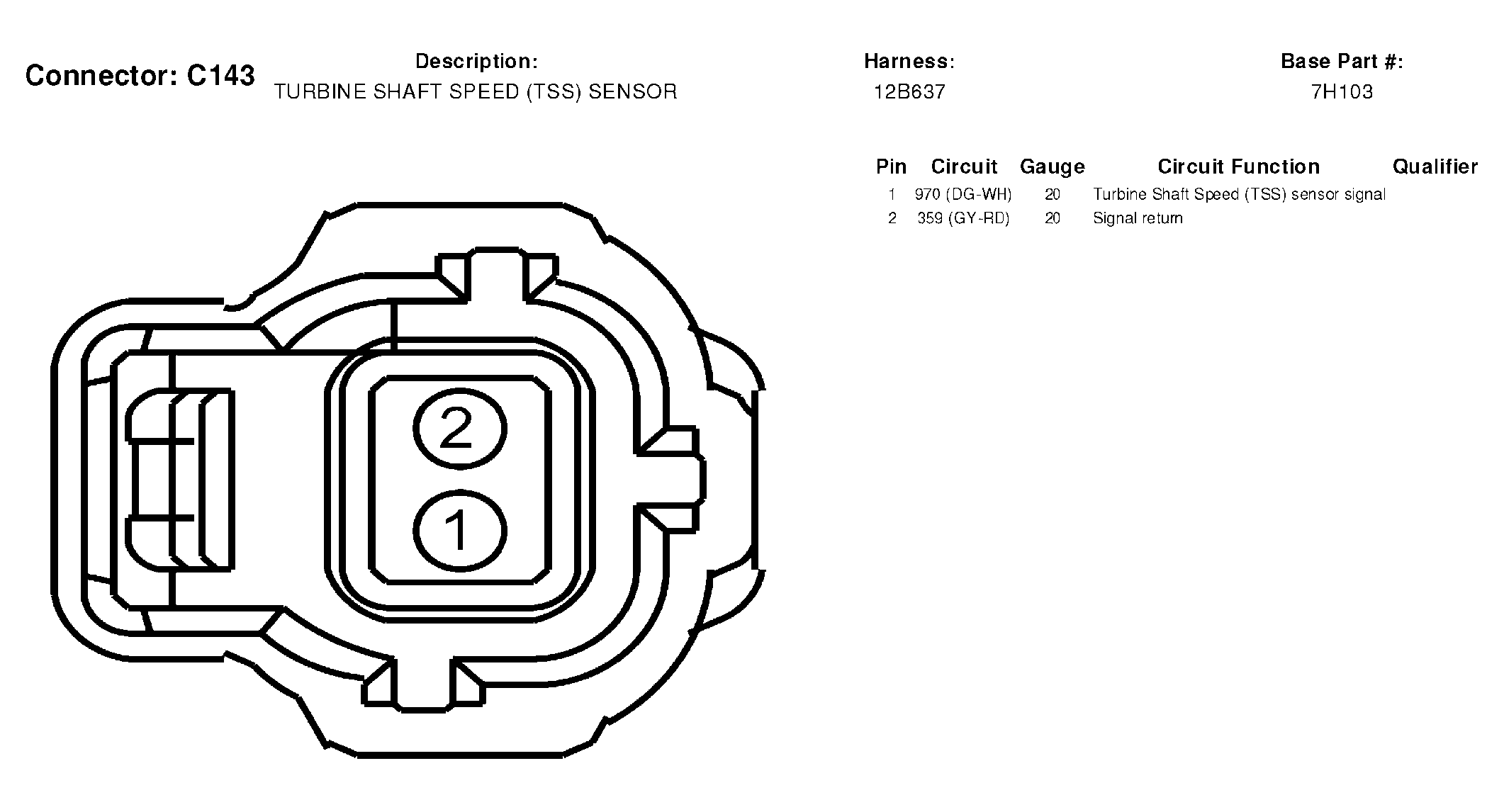

Fig 36: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
Courtesy of FORD MOTOR CO.

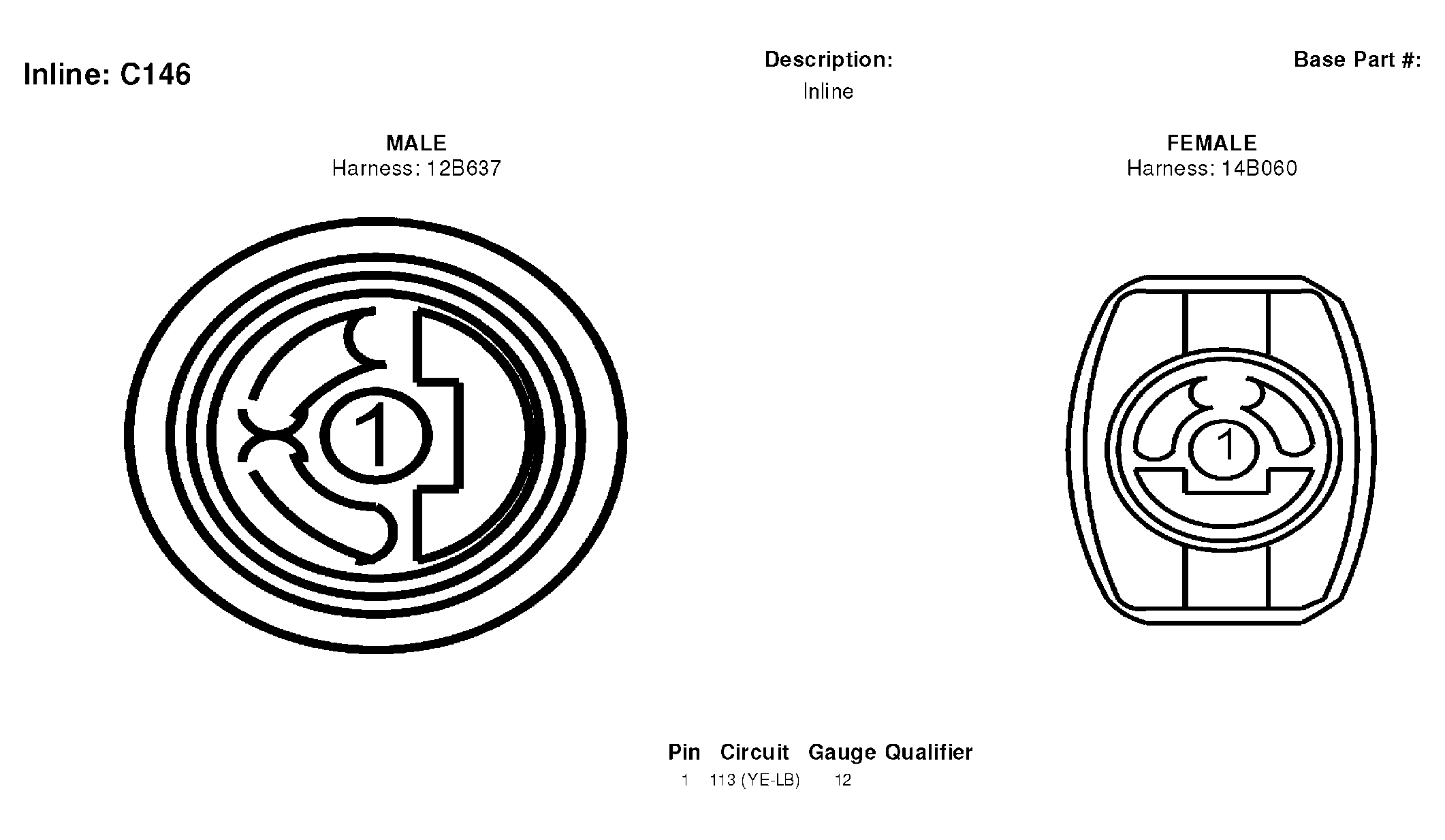

Fig 37: Inline Connector End View (C146)
Courtesy of FORD MOTOR CO.

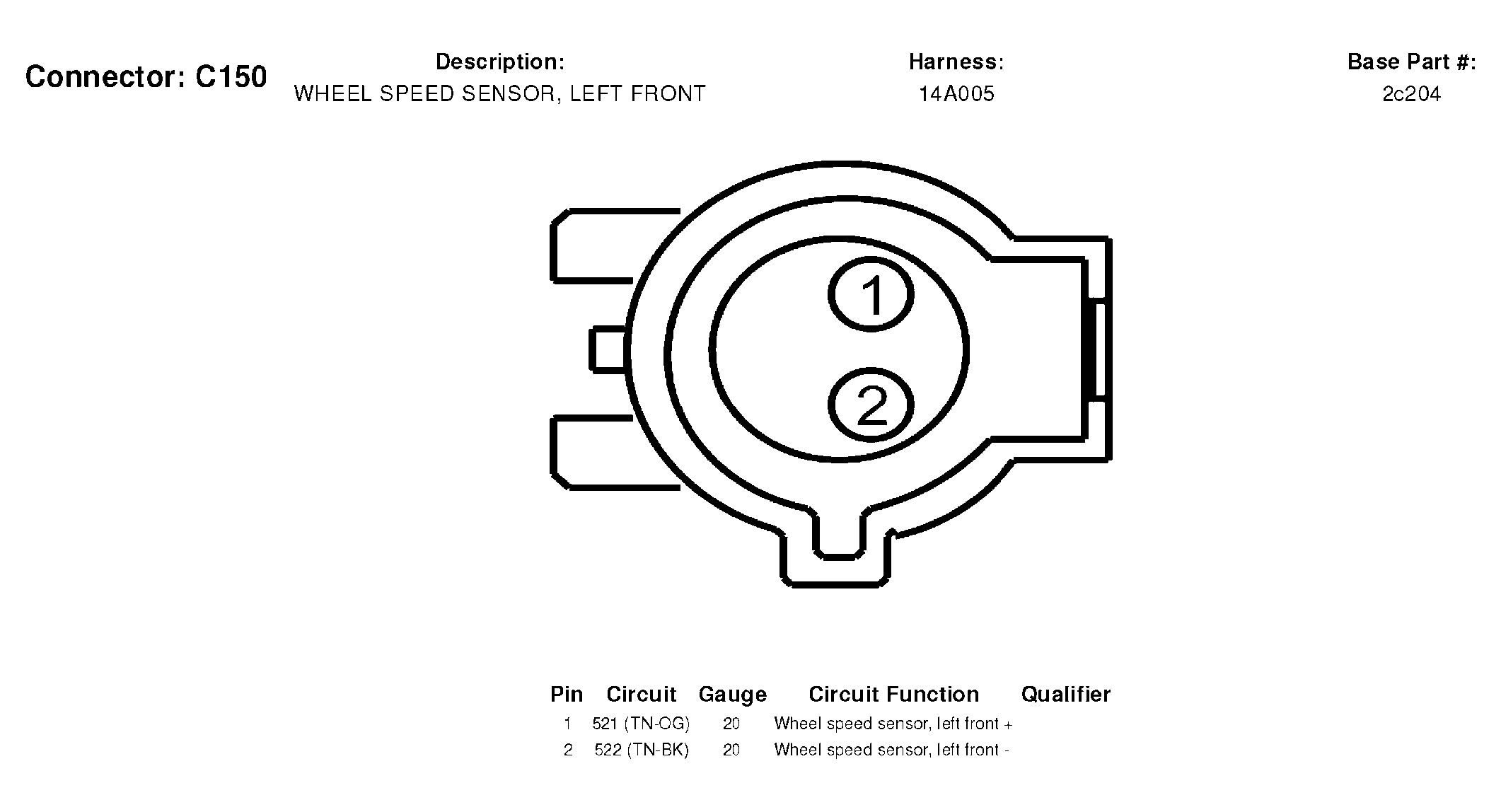

Fig 38: Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.

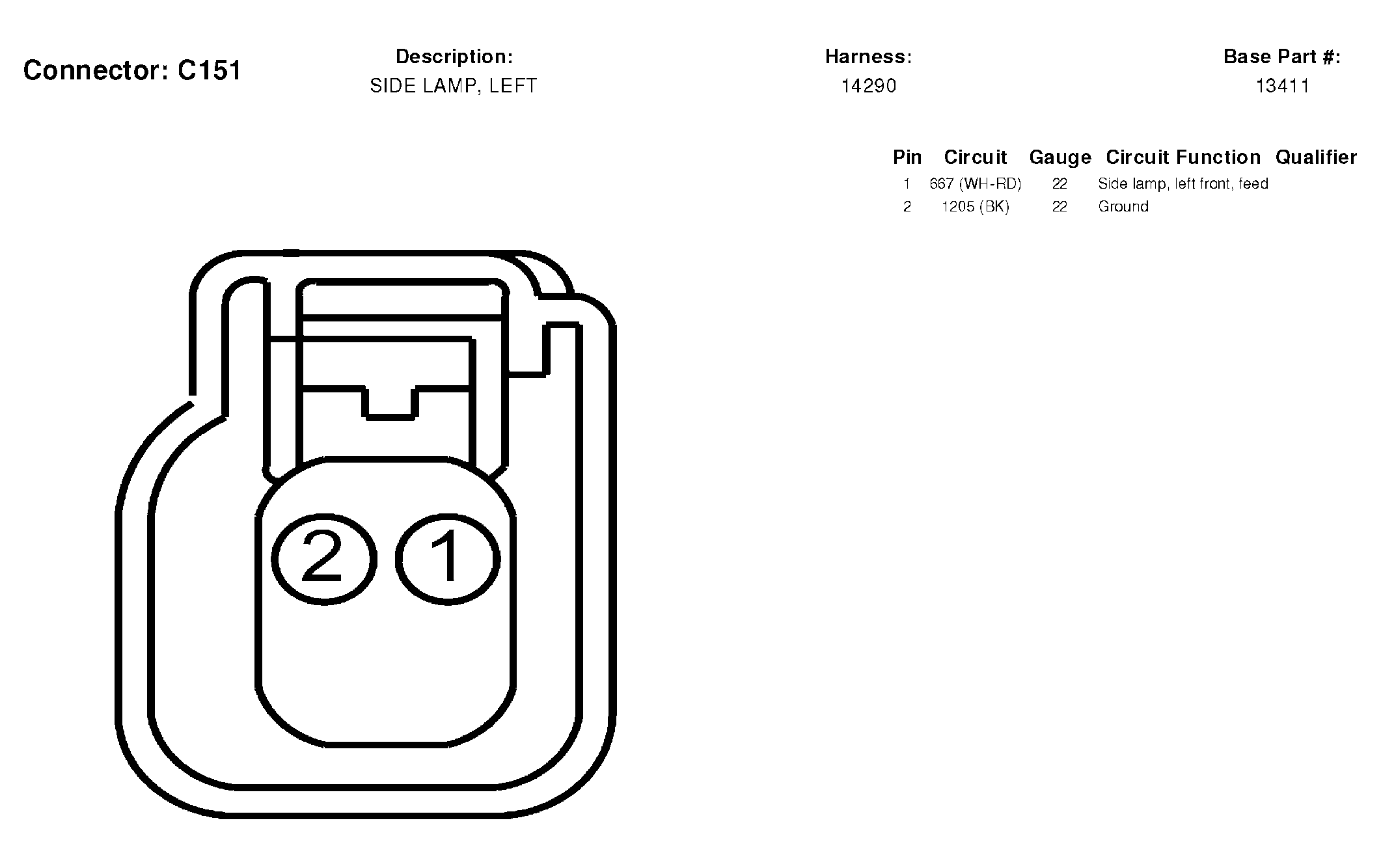

Fig 39: Side Lamp, Left Connector End View (C151)
Courtesy of FORD MOTOR CO.

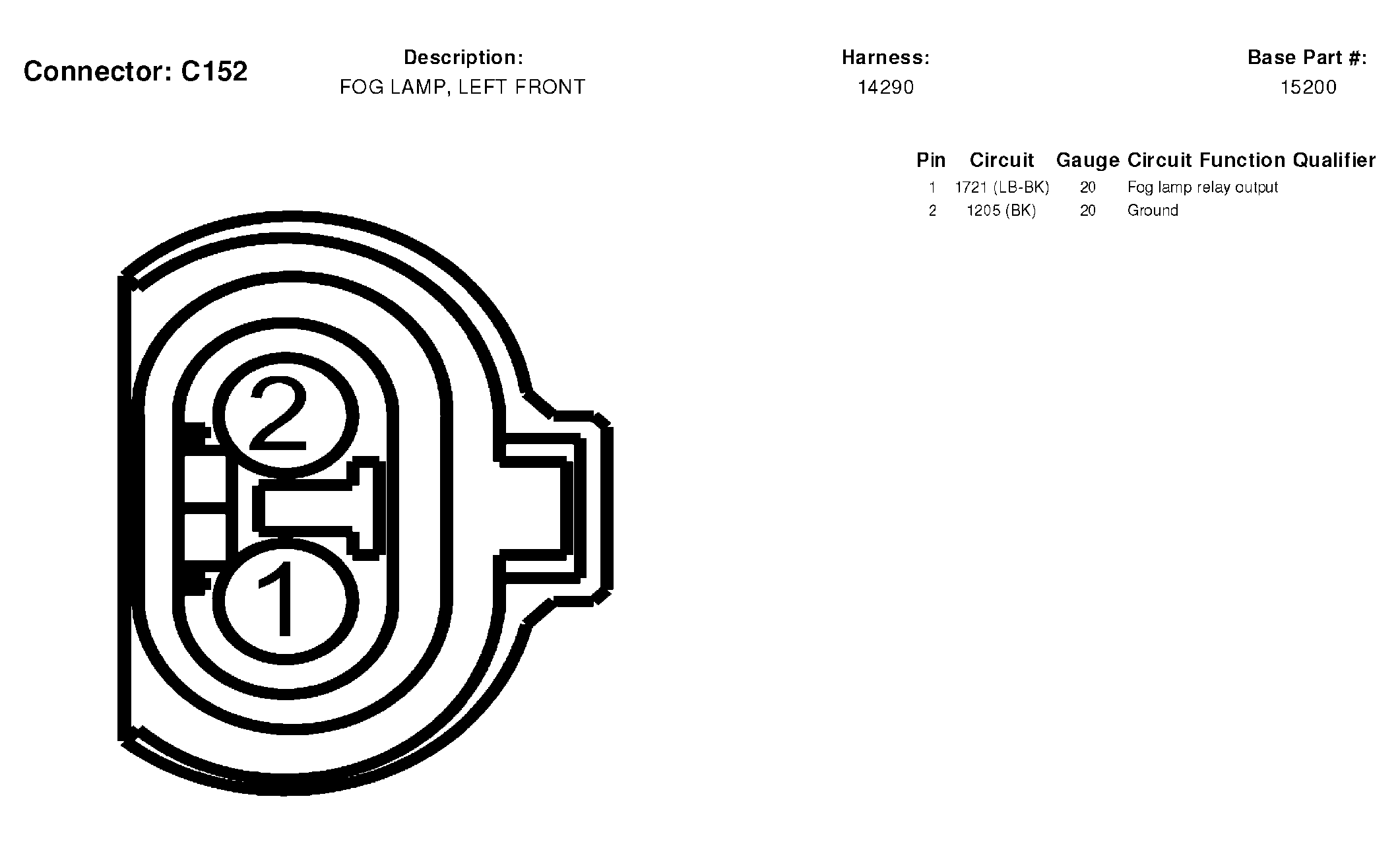

Fig 40: Fog Lamp, Left Front Connector End View (C152)
Courtesy of FORD MOTOR CO.
Fig 41: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.

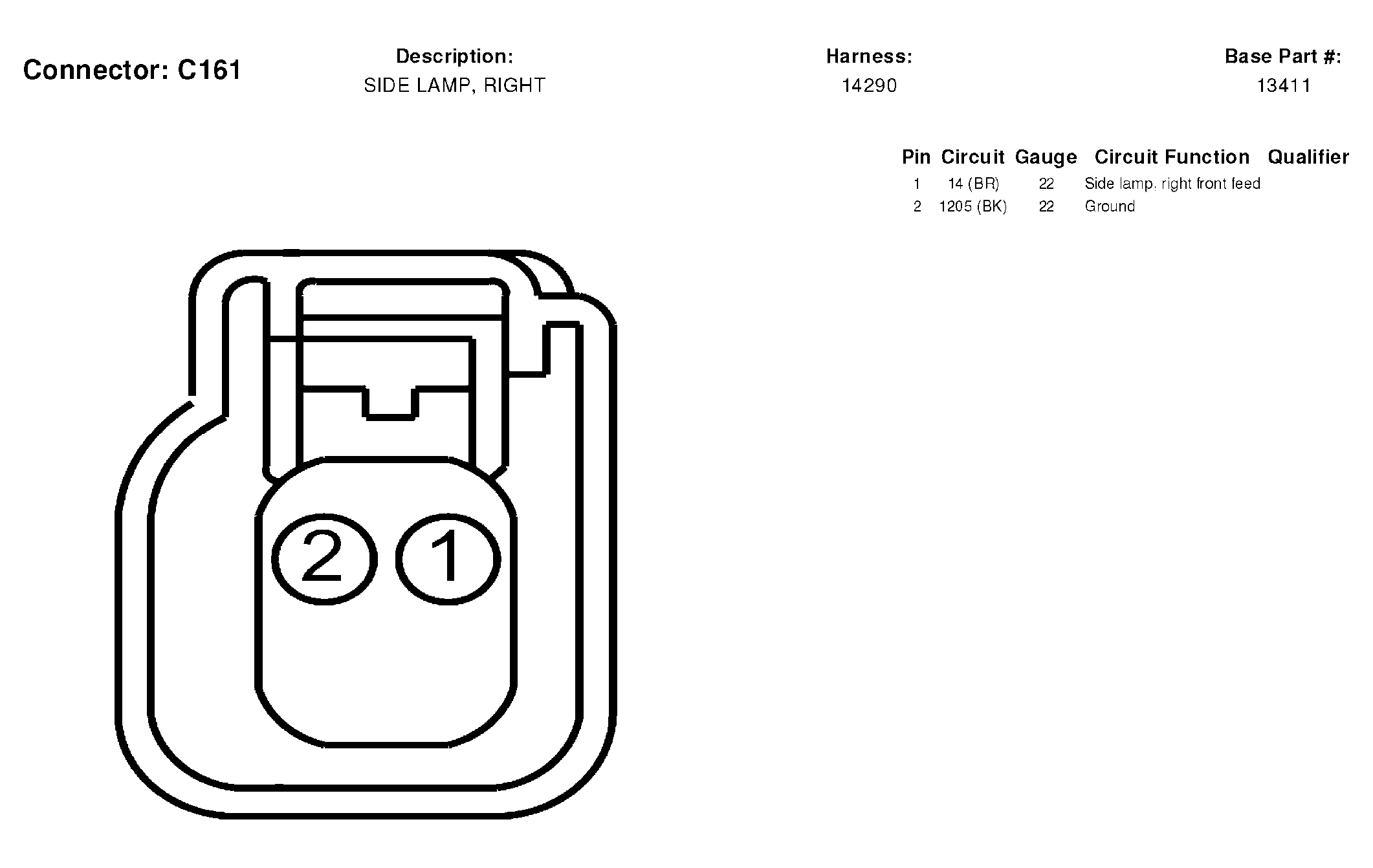

Fig 42: Side Lamp, Right Connector End View (C161)
Courtesy of FORD MOTOR CO.

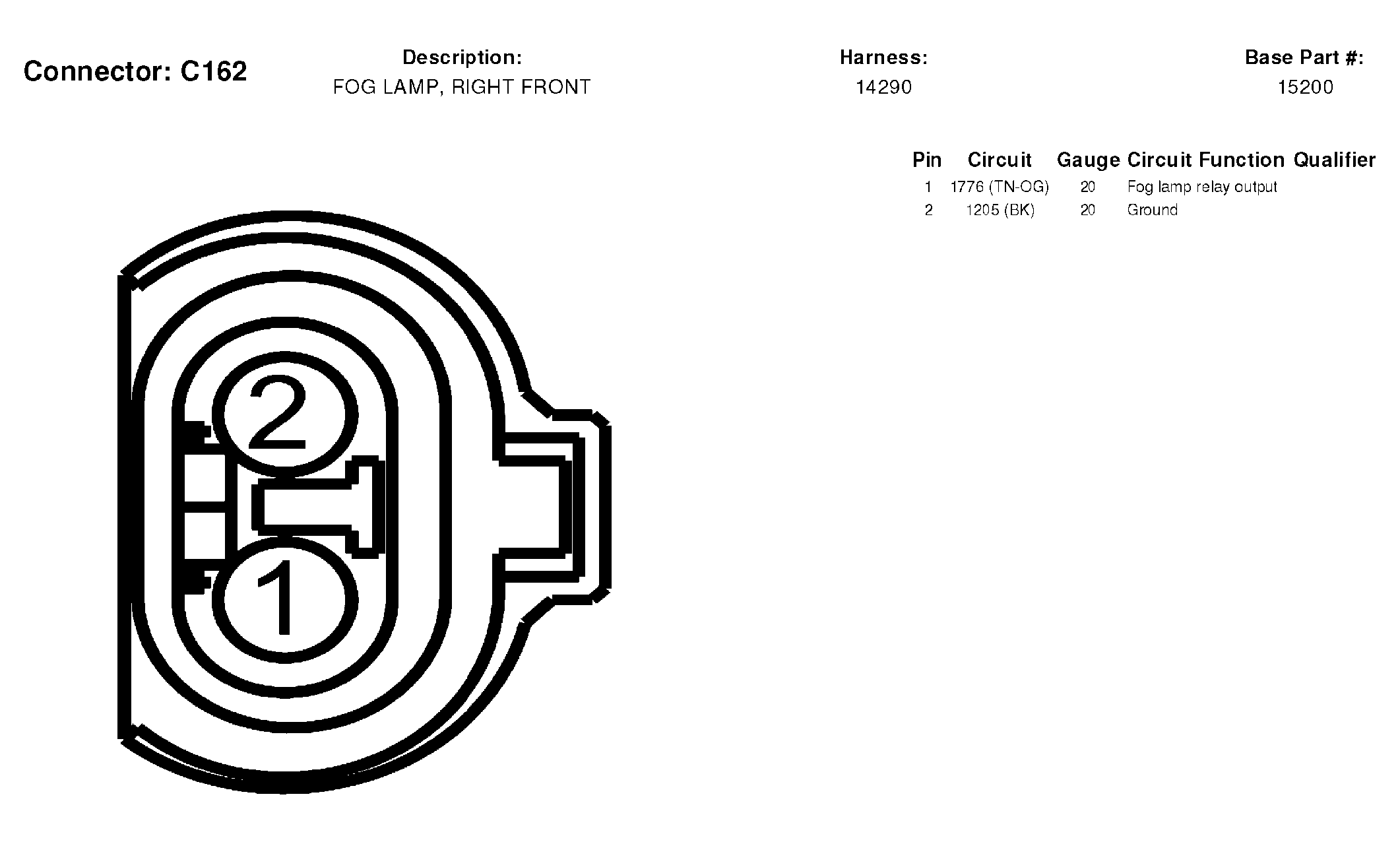

Fig 43: Fog Lamp, Right Front Connector End View (C162)
Courtesy of FORD MOTOR CO.

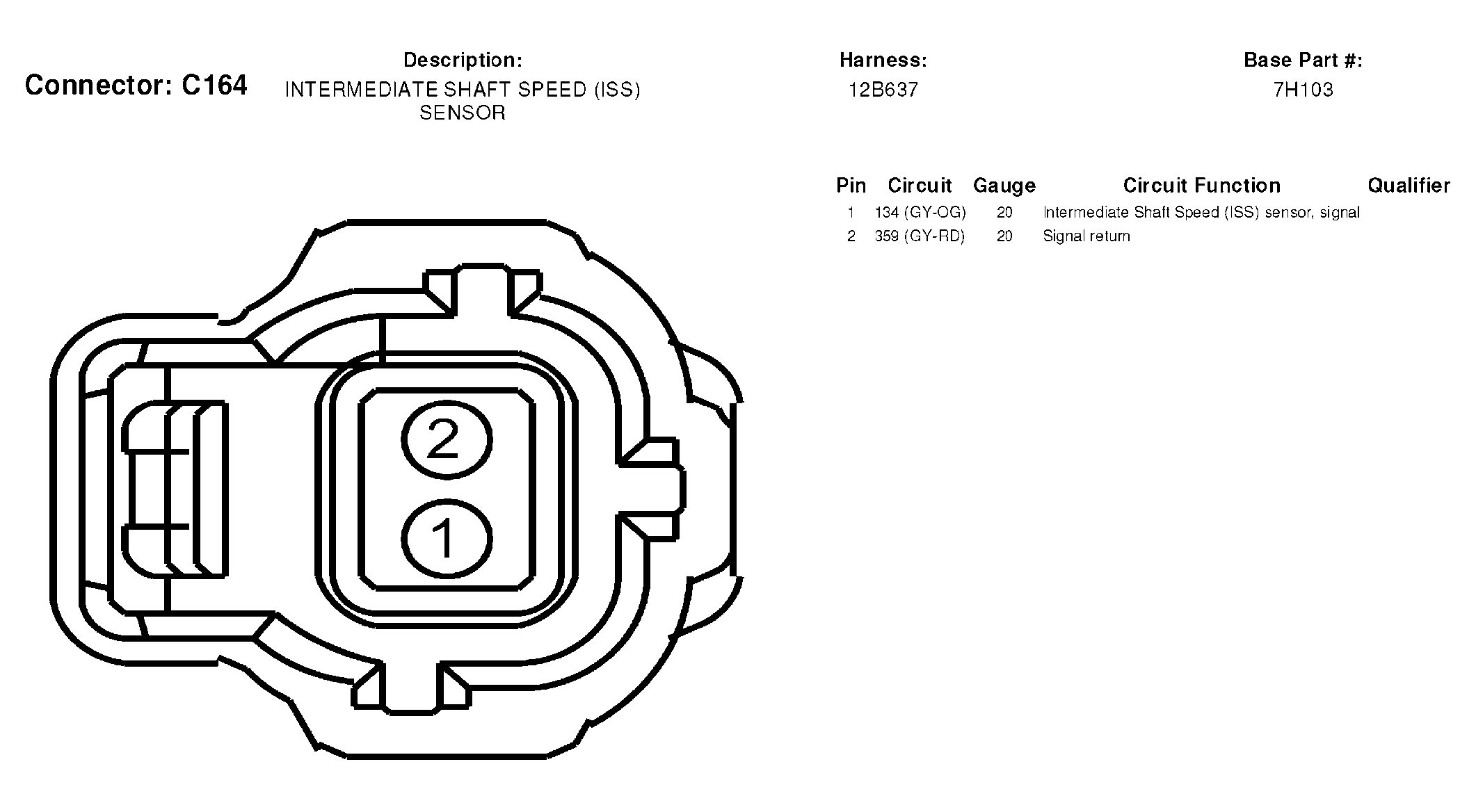

Fig 44: Intermediate Shaft Speed (ISS) Sensor Connector End View (C164)
Courtesy of FORD MOTOR CO.

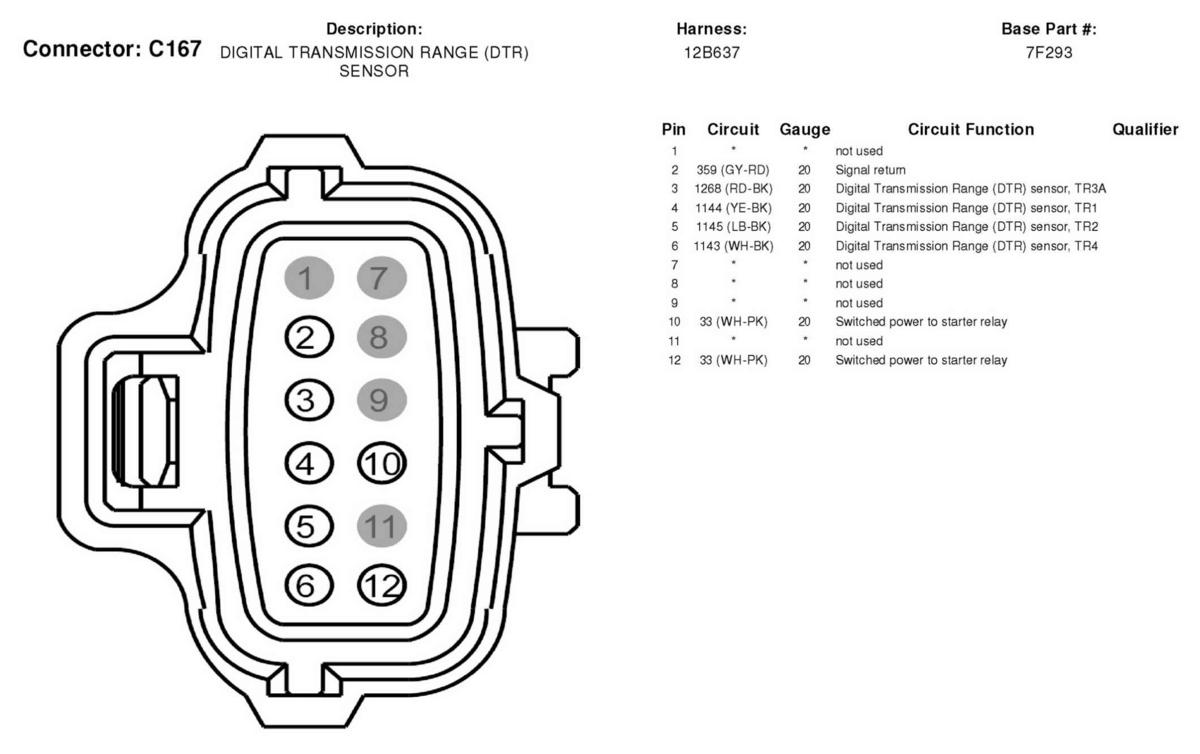

Fig 45: Digital Transmission Range (DTR) Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.

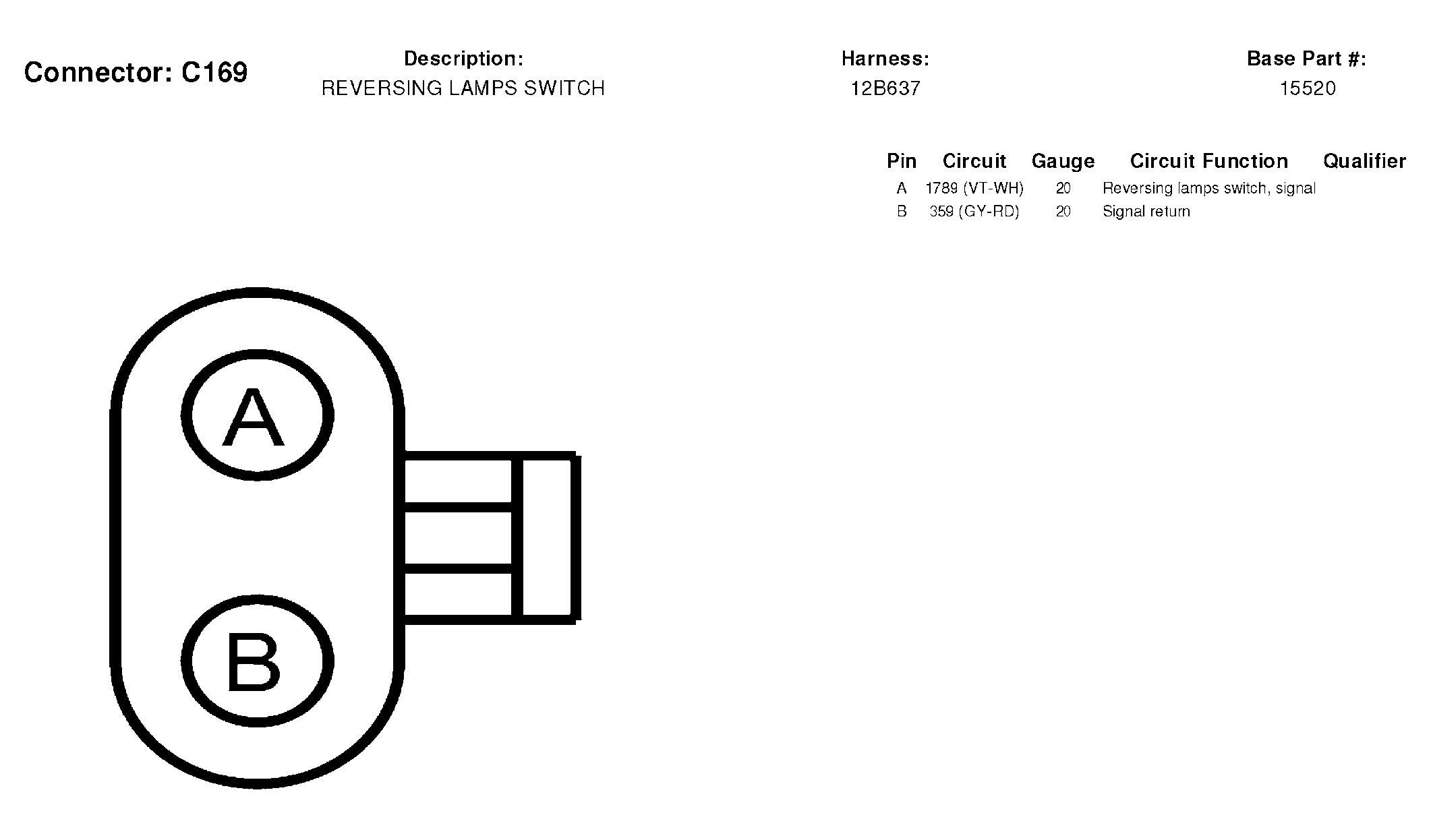

Fig 46: Reversing Lamps Switch Connector End View (C169)
Courtesy of FORD MOTOR CO.

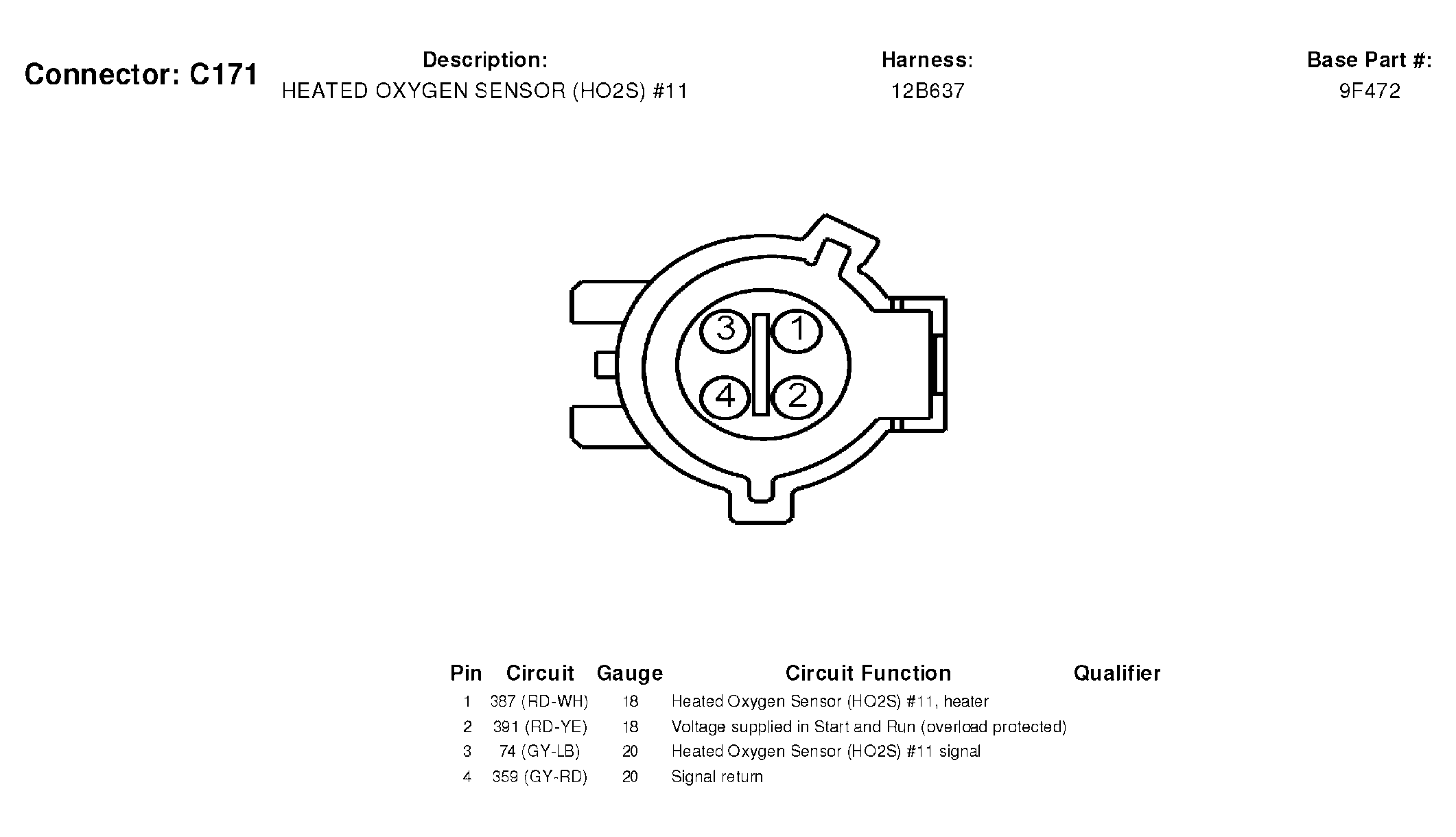

Fig 47: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.
Fig 48: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.

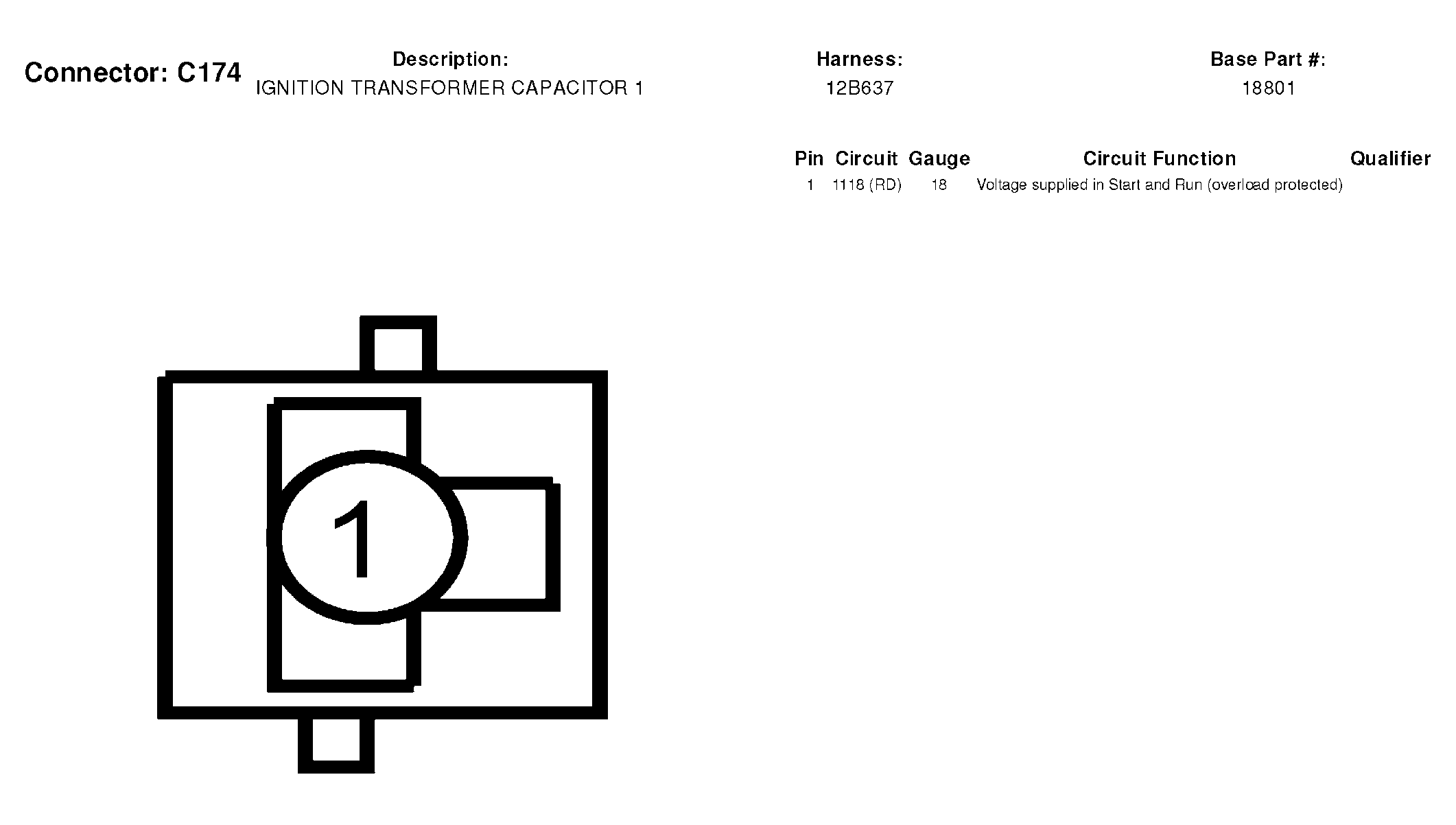

Fig 49: Ignition Transformer Capacitor 1 Connector End View (C174)
Courtesy of FORD MOTOR CO.

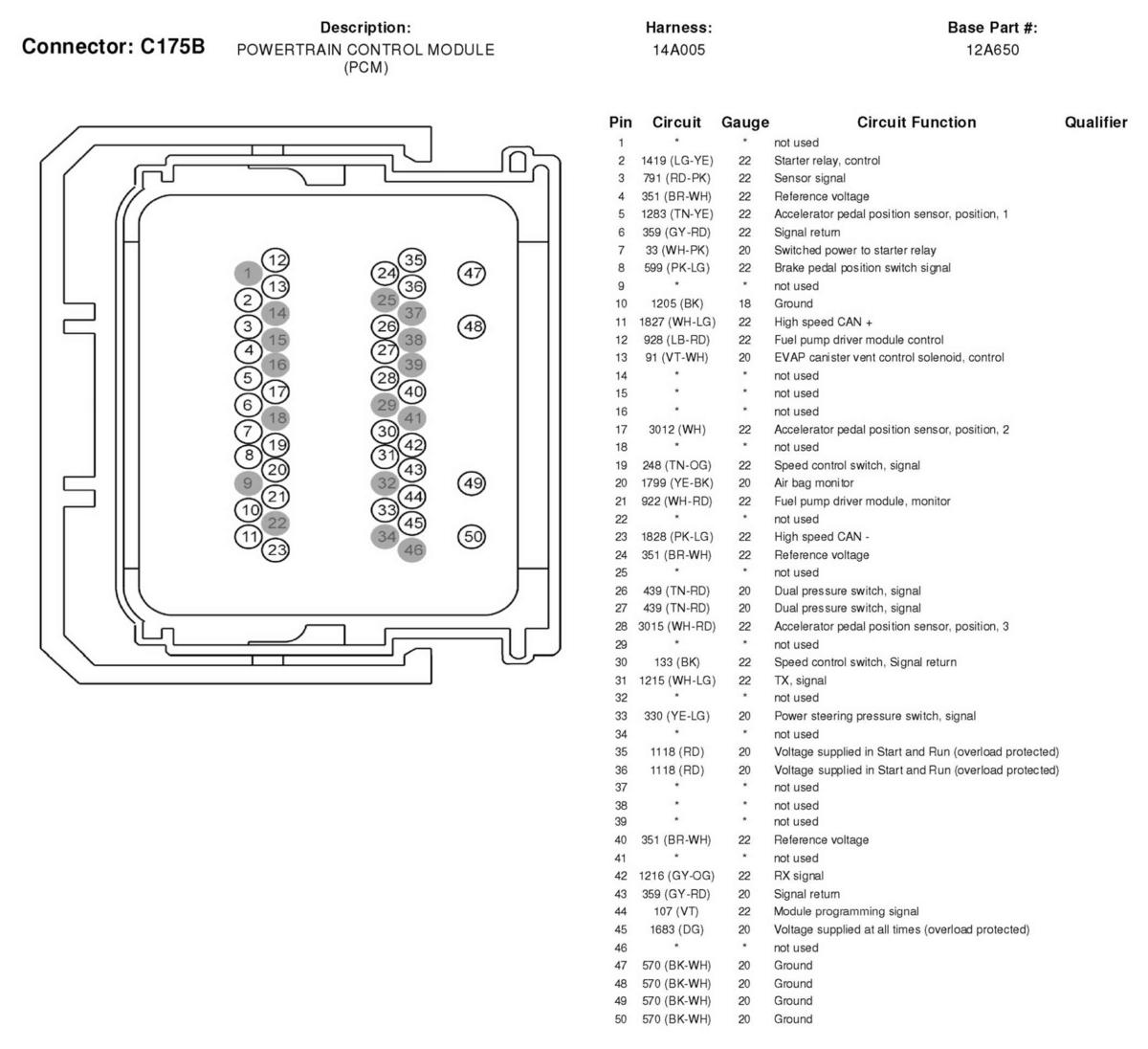

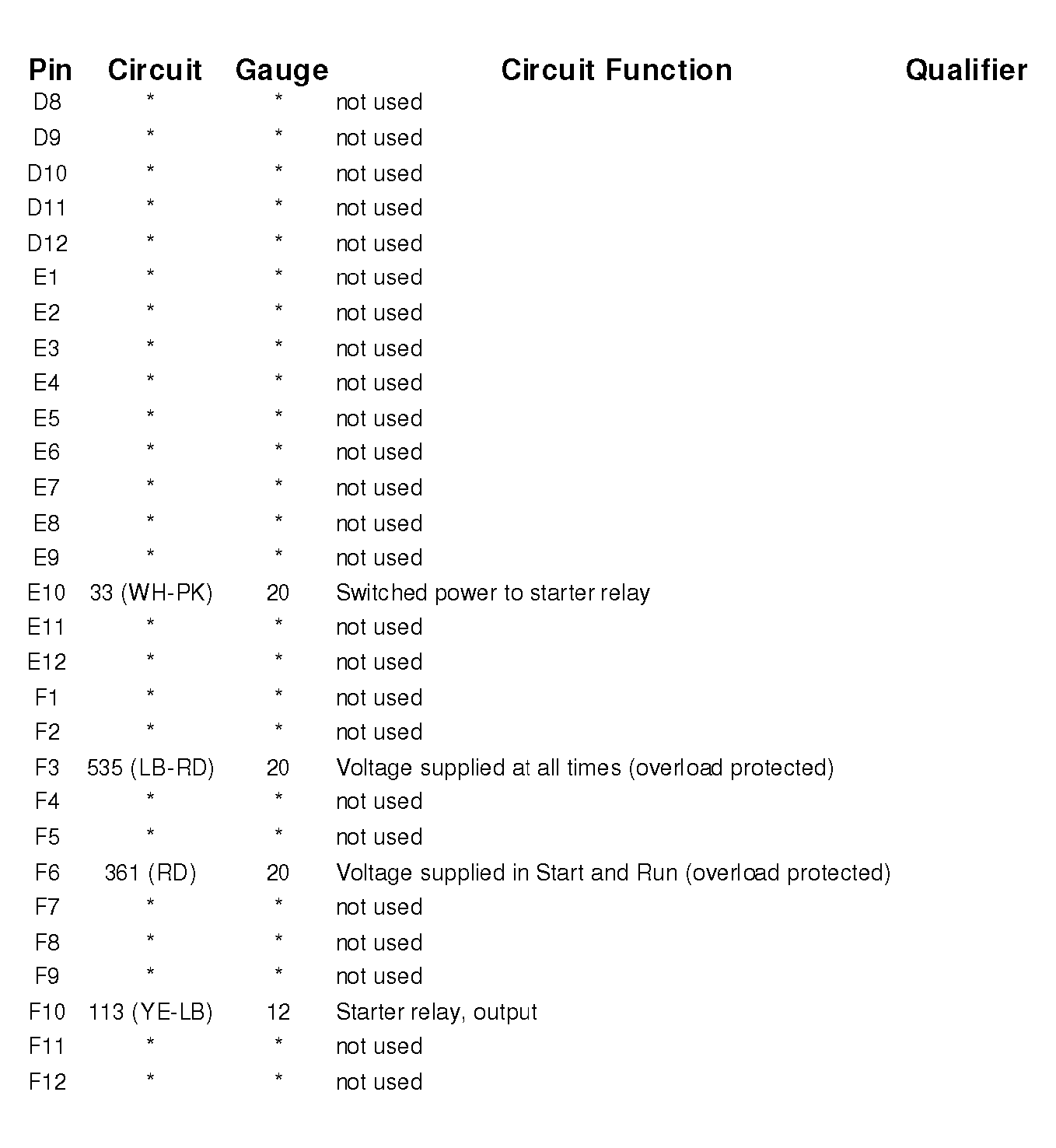

Fig 50: Powertrain Control Module (PCM) Connector End View (C175B)
Courtesy of FORD MOTOR CO.

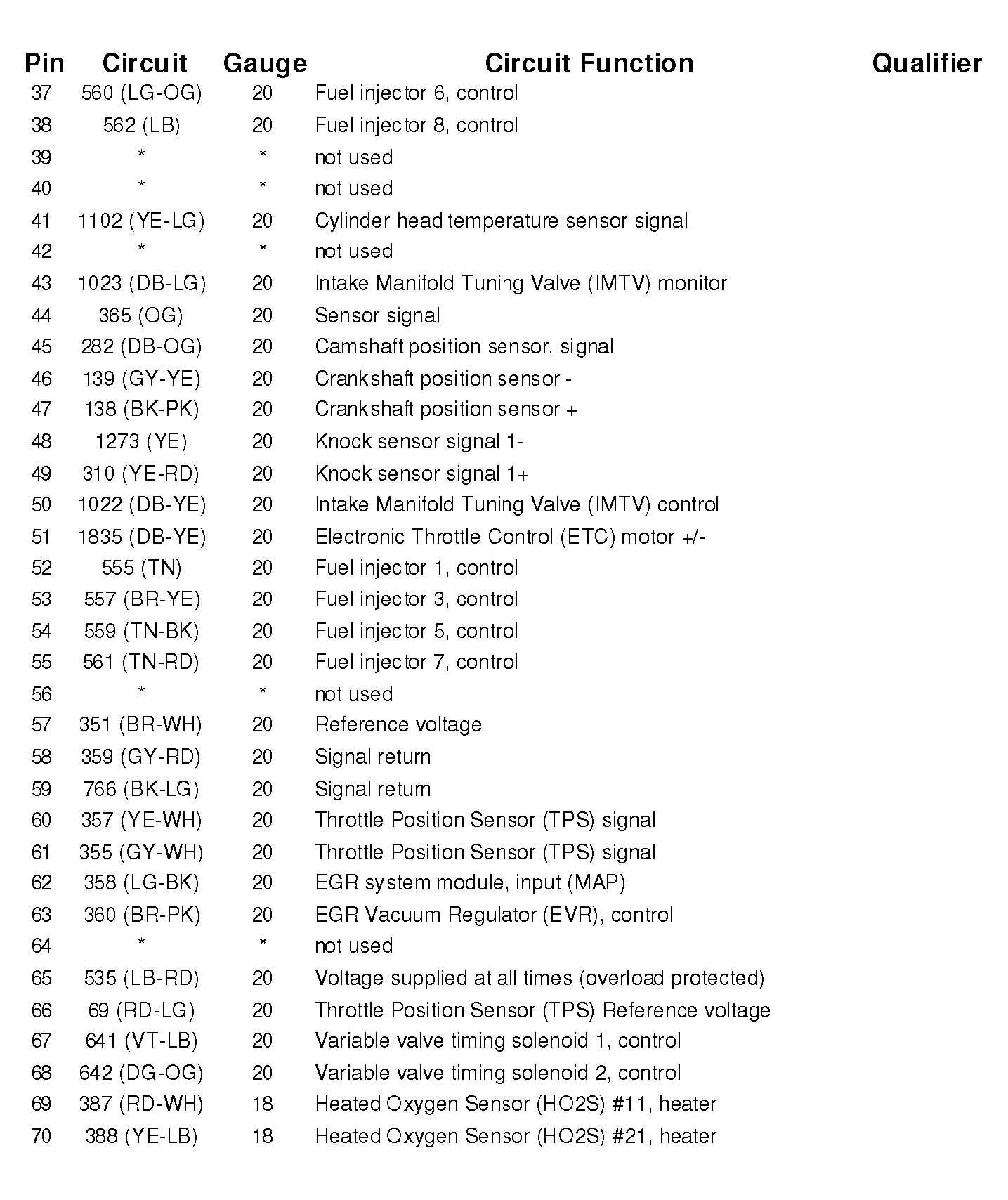

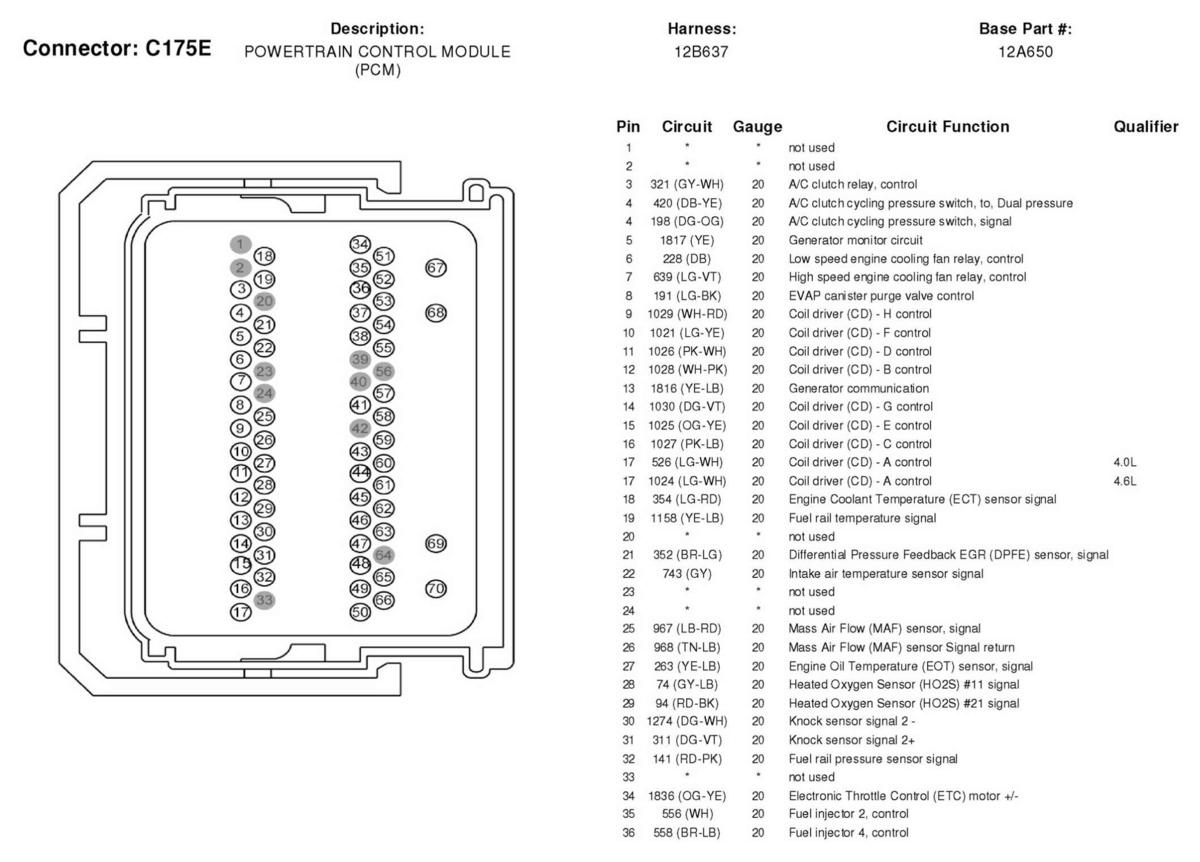

Fig 51: Powertrain Control Module (PCM) Connector End View (C175E) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 52: Powertrain Control Module (PCM) Connector End View (C175E) (2 Of 2)
Courtesy of FORD MOTOR CO.

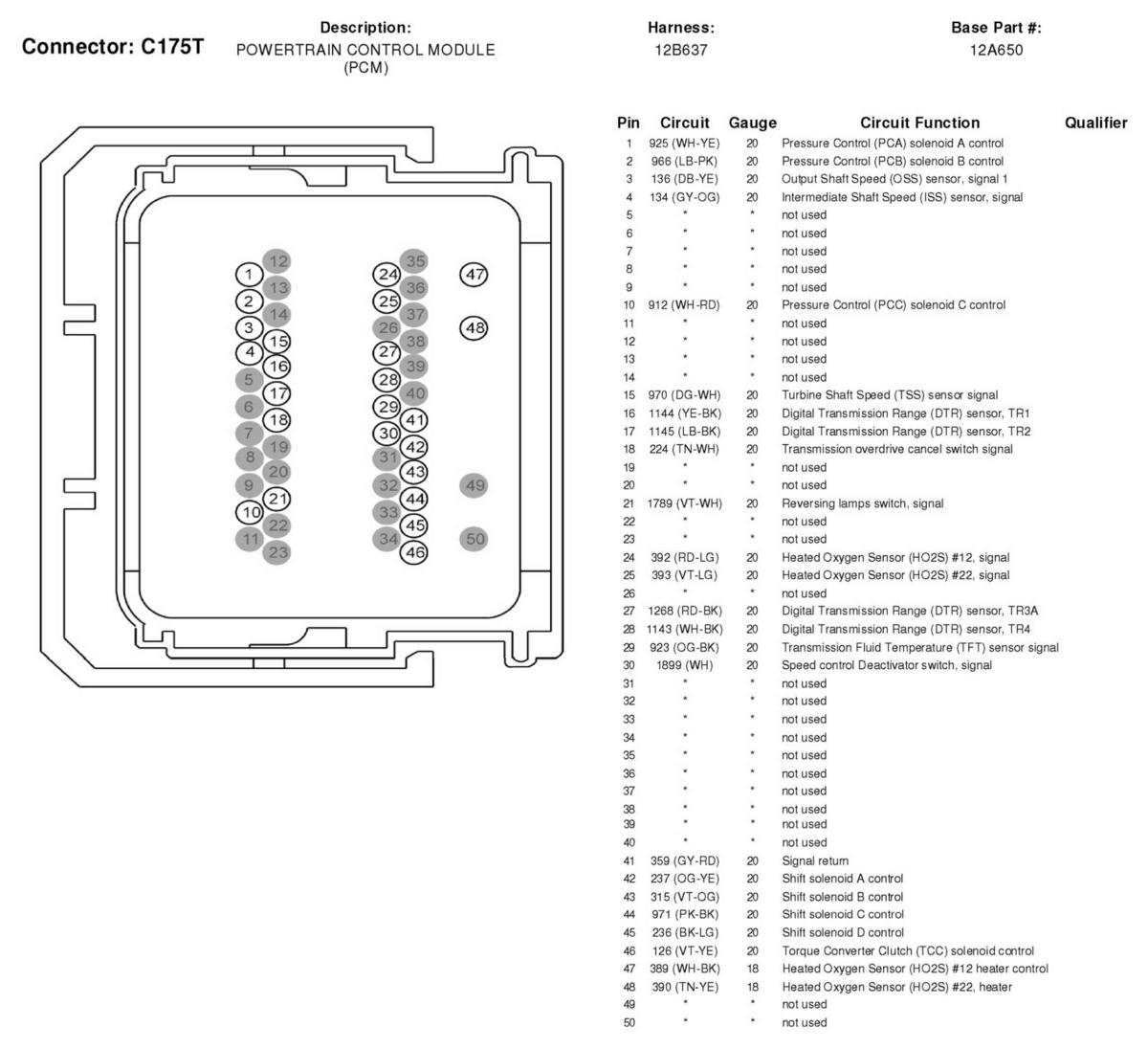

Fig 53: Powertrain Control Module (PCM) Connector End View (C175T)
Courtesy of FORD MOTOR CO.

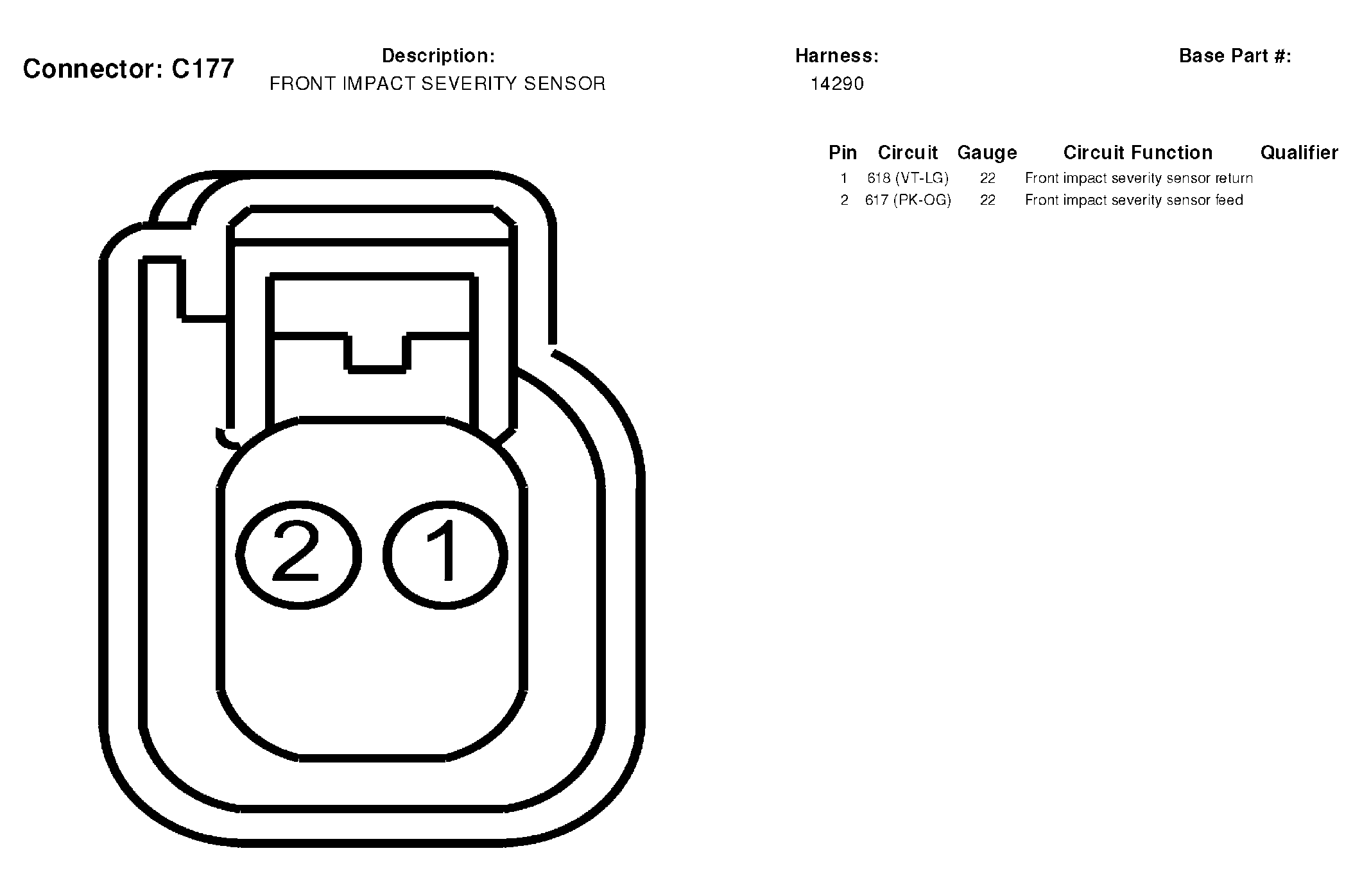

Fig 54: Front Impact Severity Sensor Connector End View (C177)
Courtesy of FORD MOTOR CO.

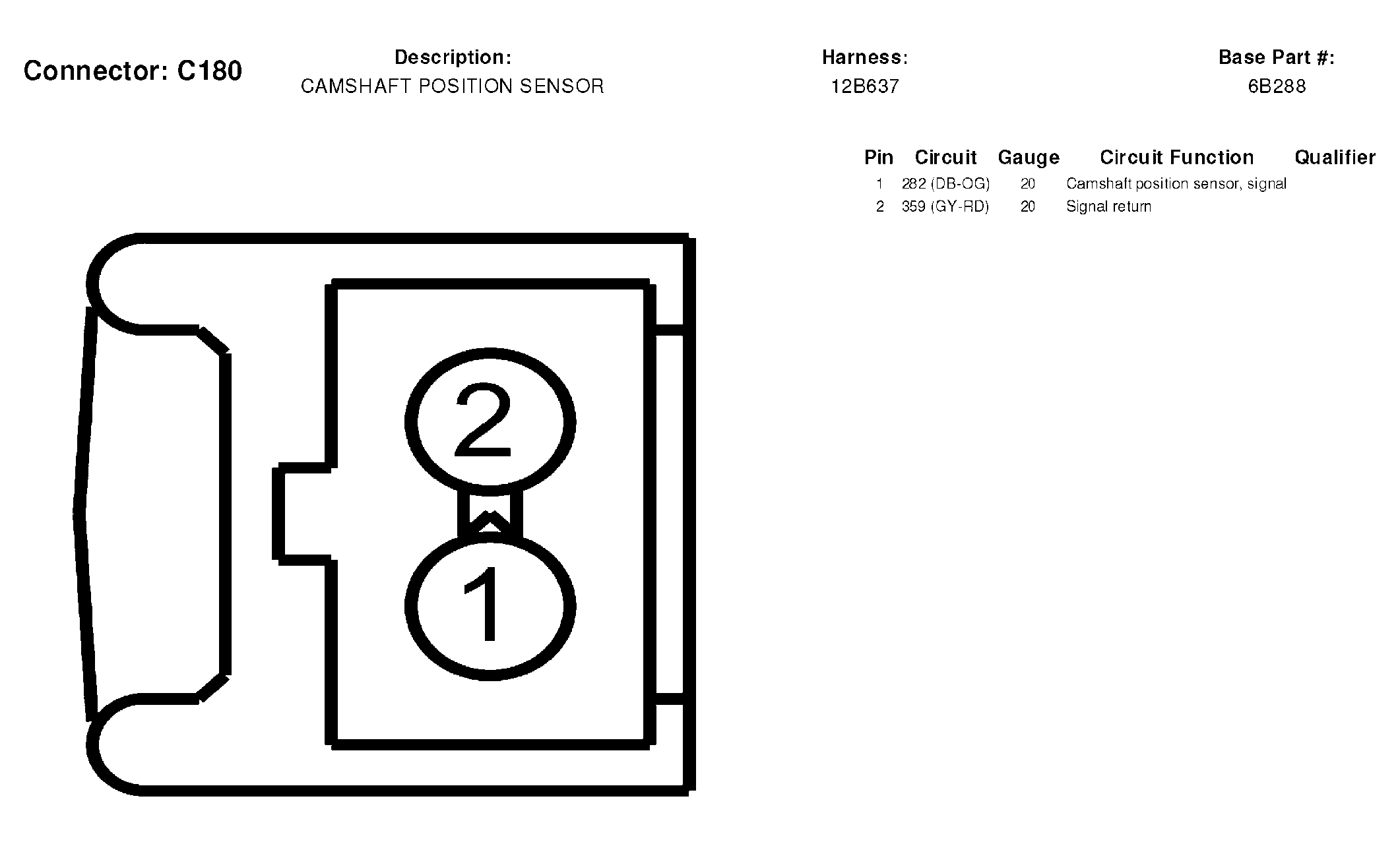

Fig 55: Camshaft Position Sensor Connector End View (C180)
Courtesy of FORD MOTOR CO.

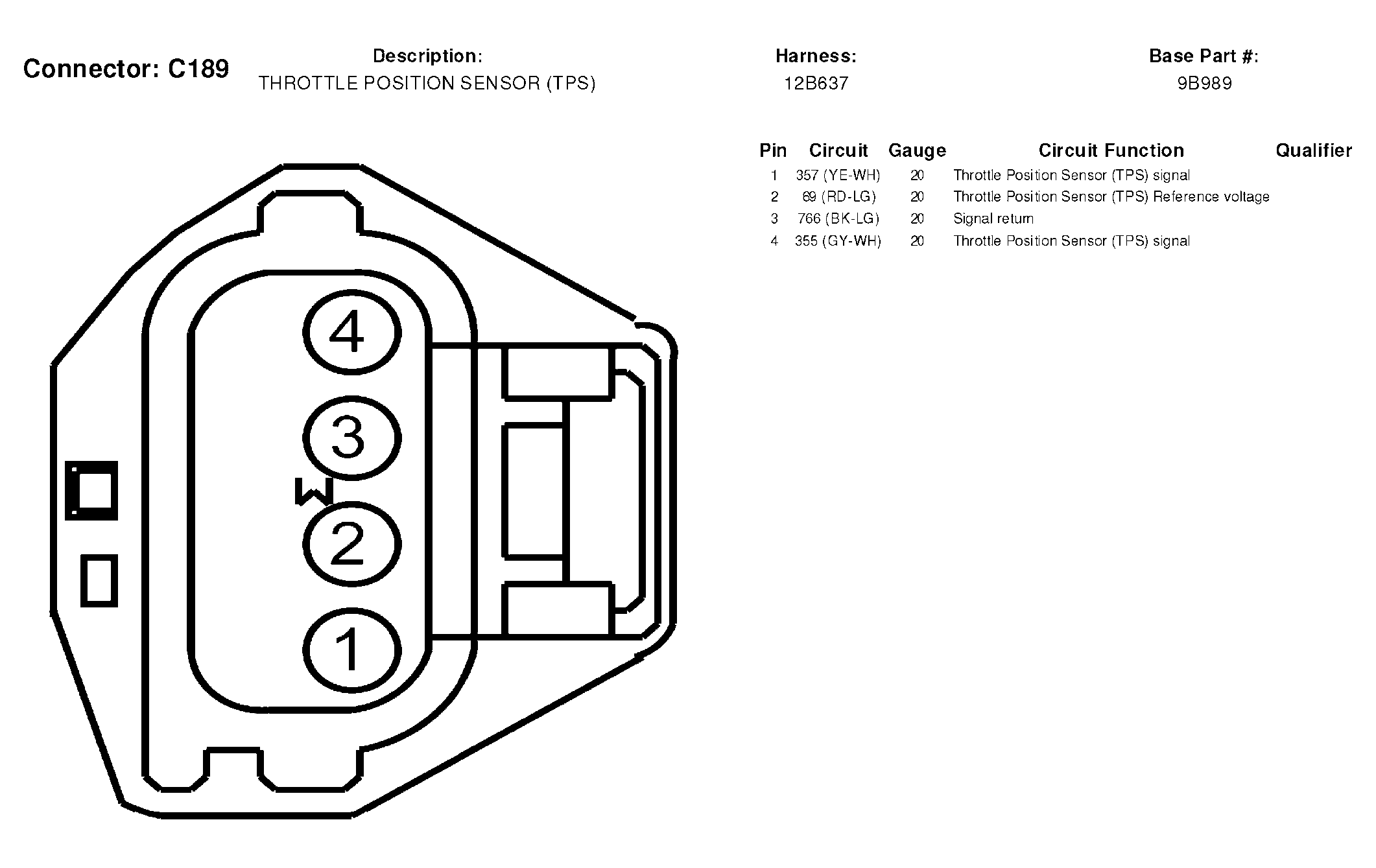

Fig 56: Throttle Position Sensor (TPS) Connector End View (C189)
Courtesy of FORD MOTOR CO.

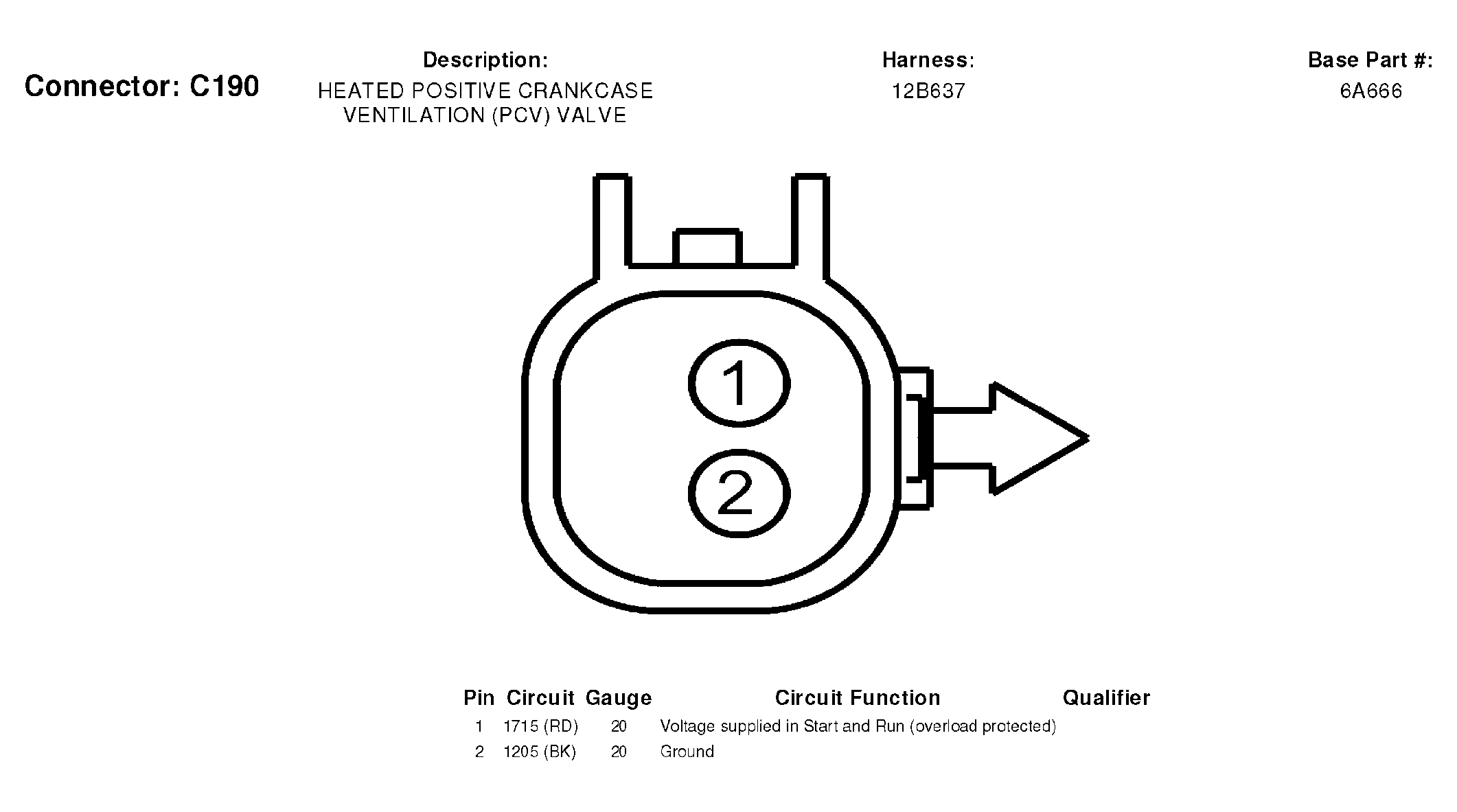

Fig 57: Heated Positive Crankcase Ventilation (PCV) Valve Connector End View (C190)
Courtesy of FORD MOTOR CO.

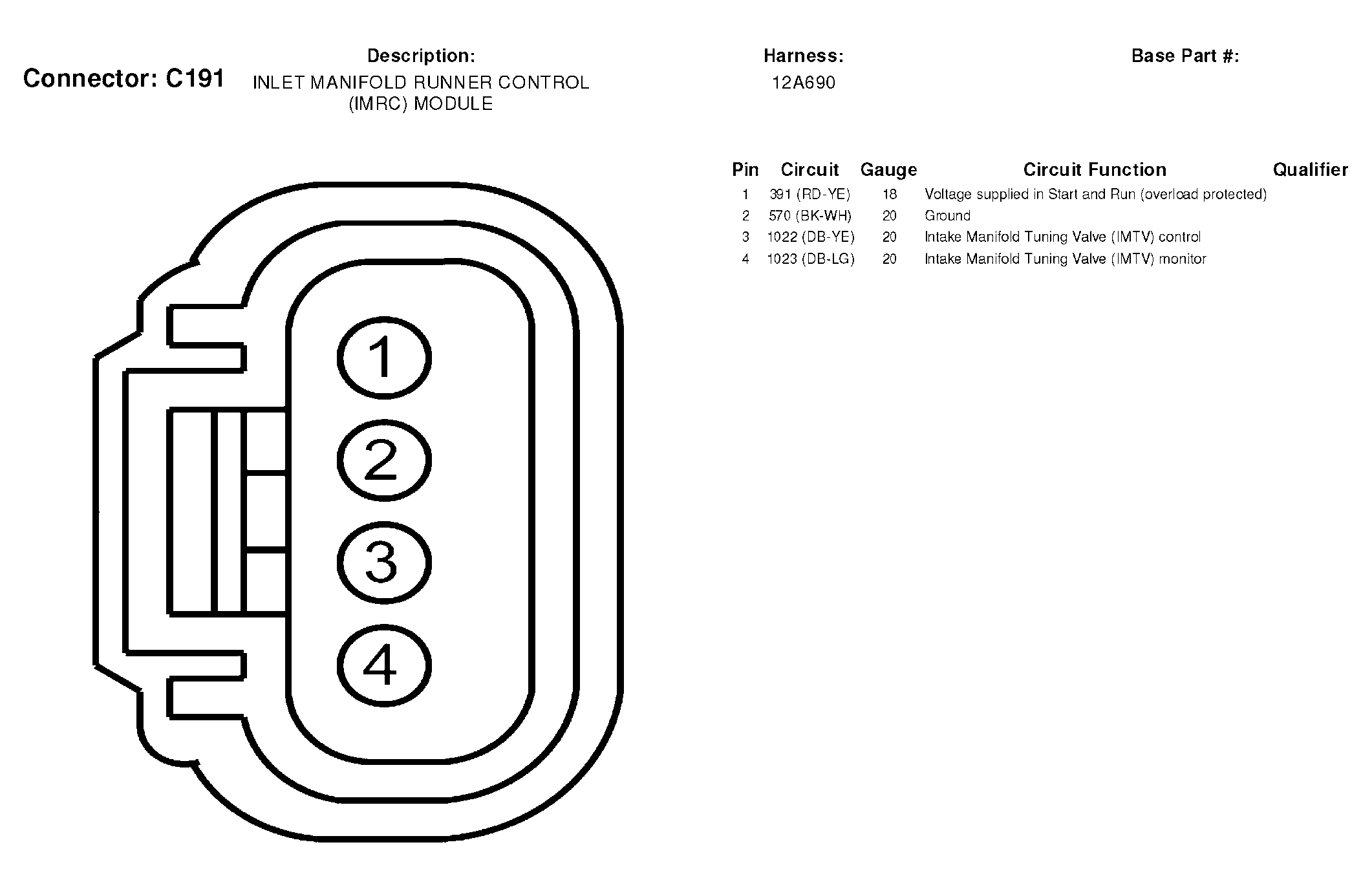

Fig 58: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)
Courtesy of FORD MOTOR CO.
Fig 59: Output Shaft Speed (OSS) Sensor Connector End View (C193)
Courtesy of FORD MOTOR CO.
Fig 60: Ignition Transformer Capacitor 2 Connector End View (C194)
Courtesy of FORD MOTOR CO.
Fig 61: Starter Motor Connector End View (C197A)
Courtesy of FORD MOTOR CO.
Fig 62: Starter Motor Connector End View (C197B)
Courtesy of FORD MOTOR CO.

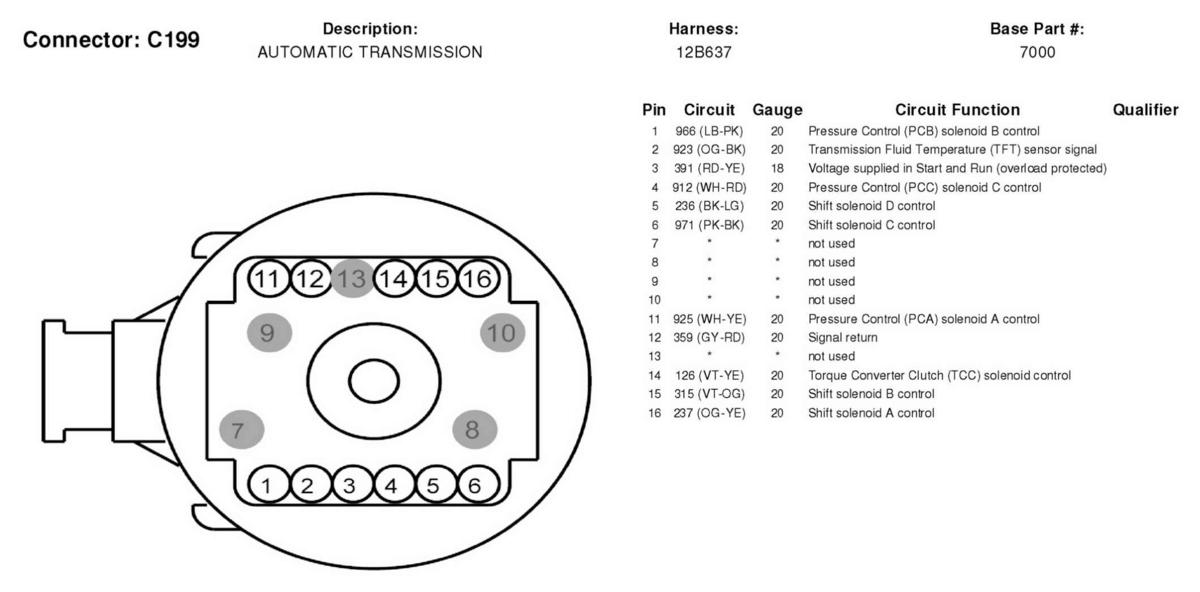

Fig 63: Automatic Transmission Connector End View (C199)
Courtesy of FORD MOTOR CO.

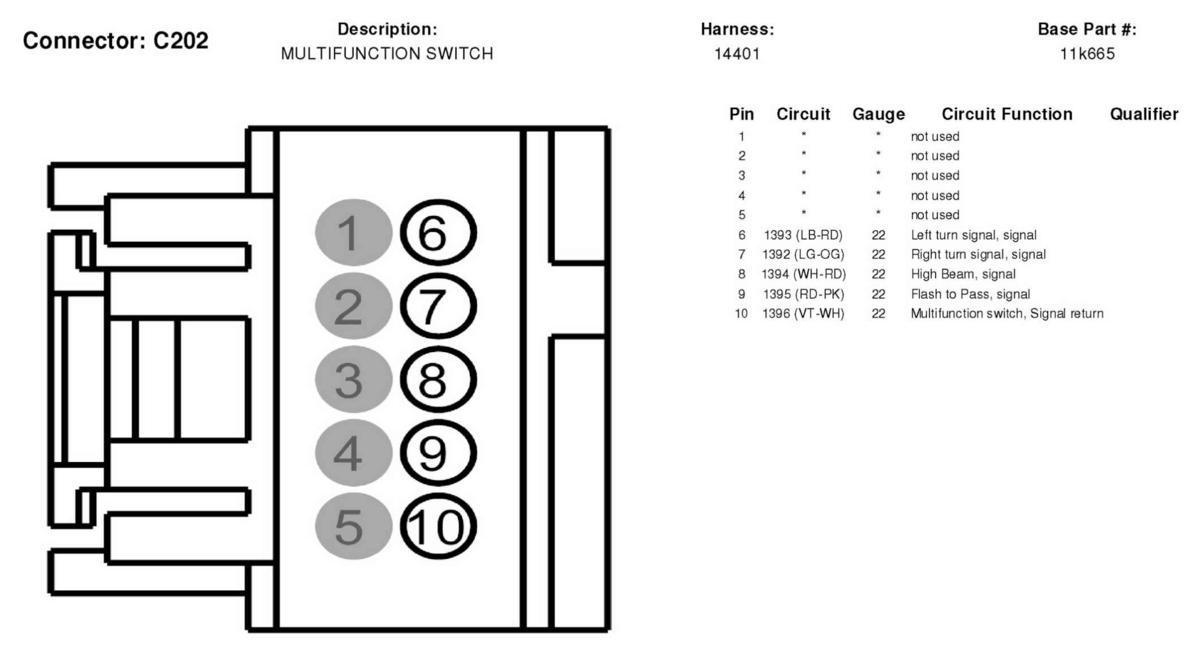

Fig 64: Multifunction Switch Connector End View (C202)
Courtesy of FORD MOTOR CO.

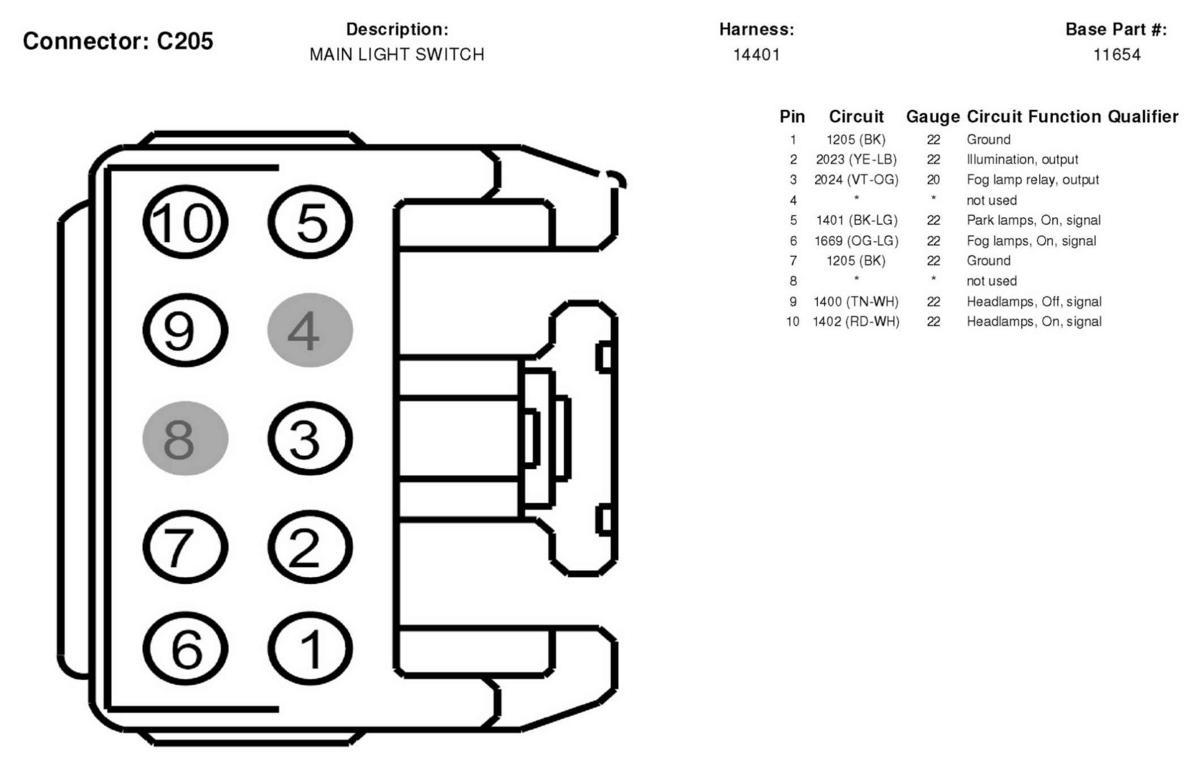

Fig 65: Main Light Switch Connector End View (C205)
Courtesy of FORD MOTOR CO.

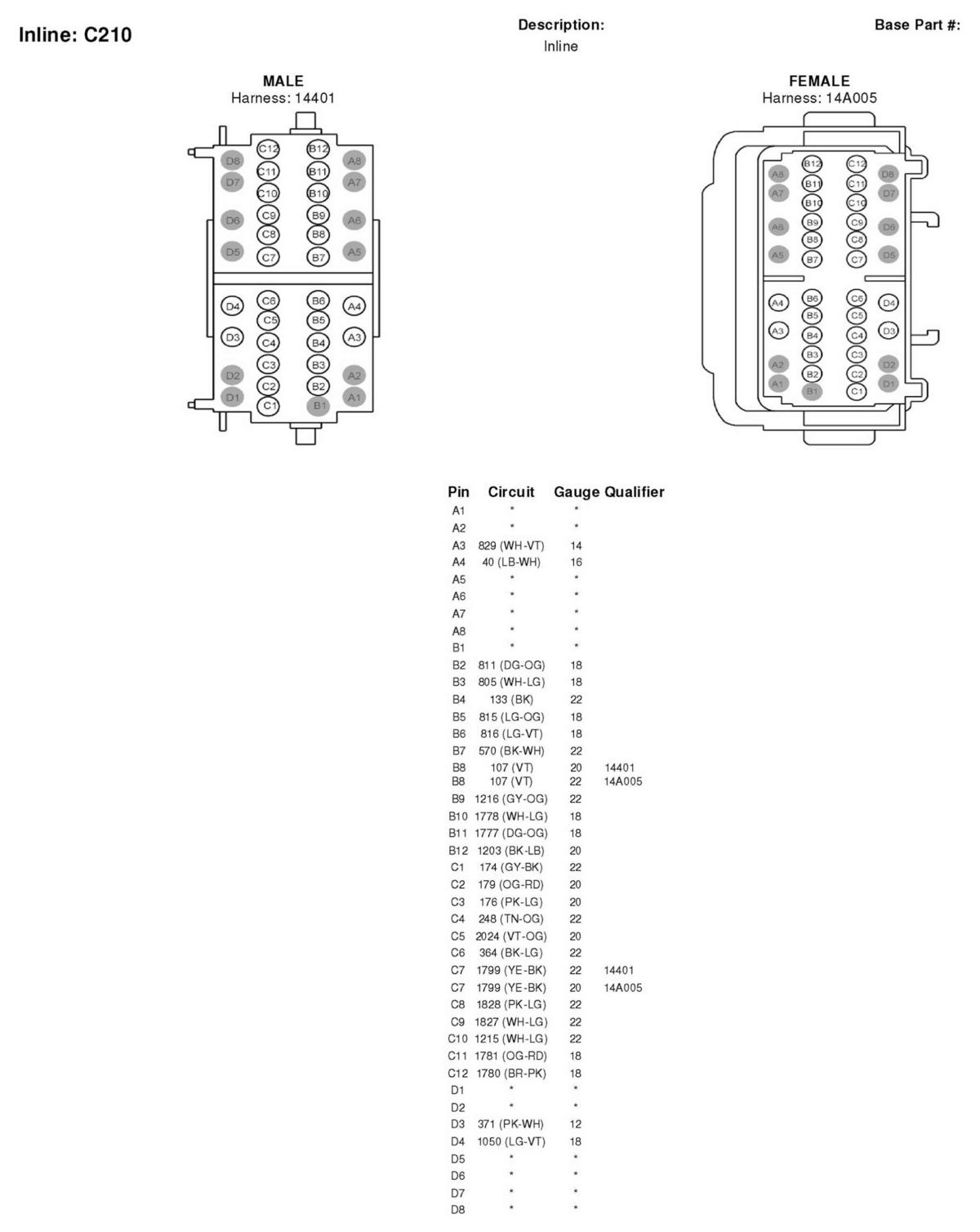

Fig 66: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

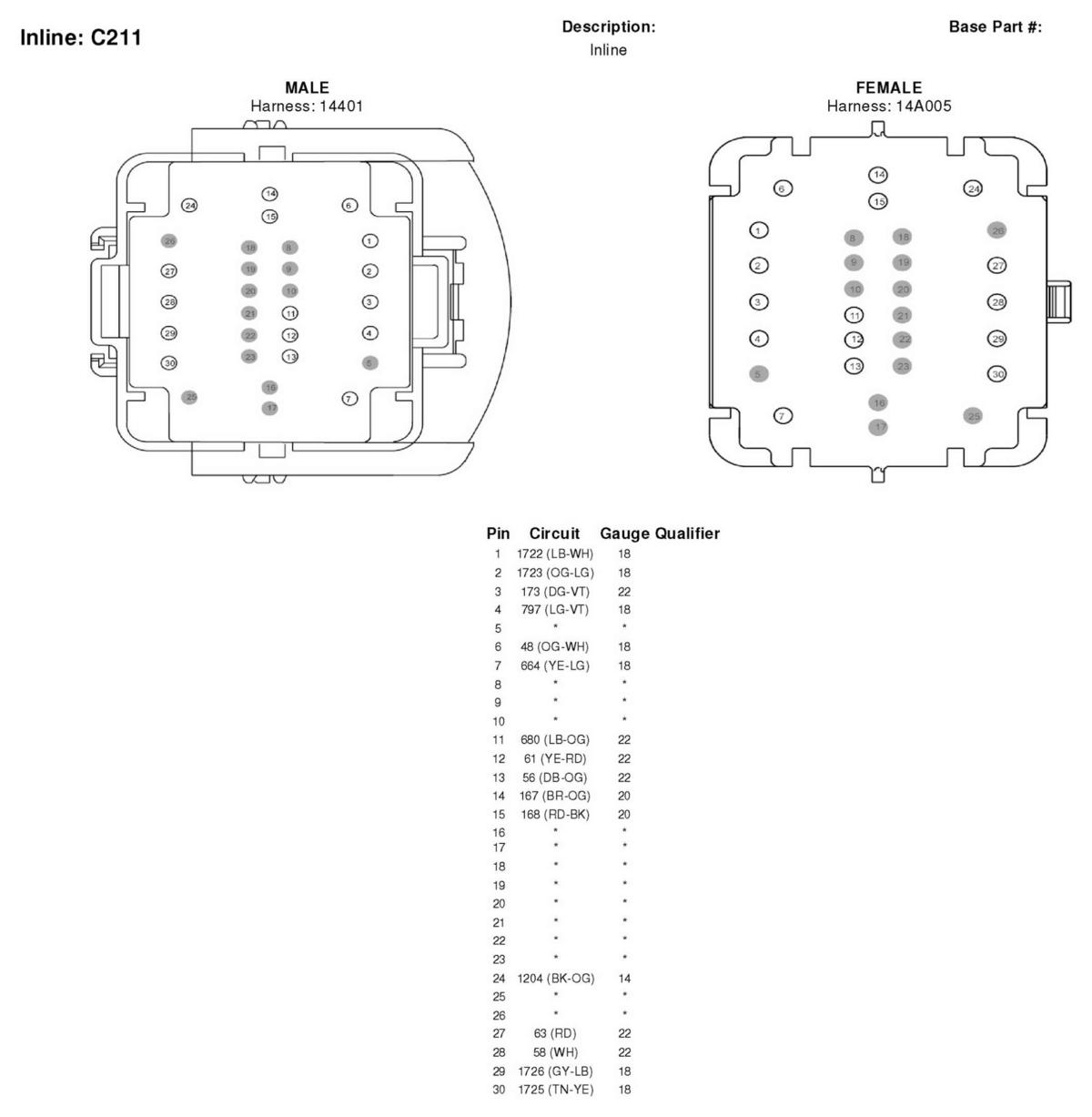

Fig 67: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

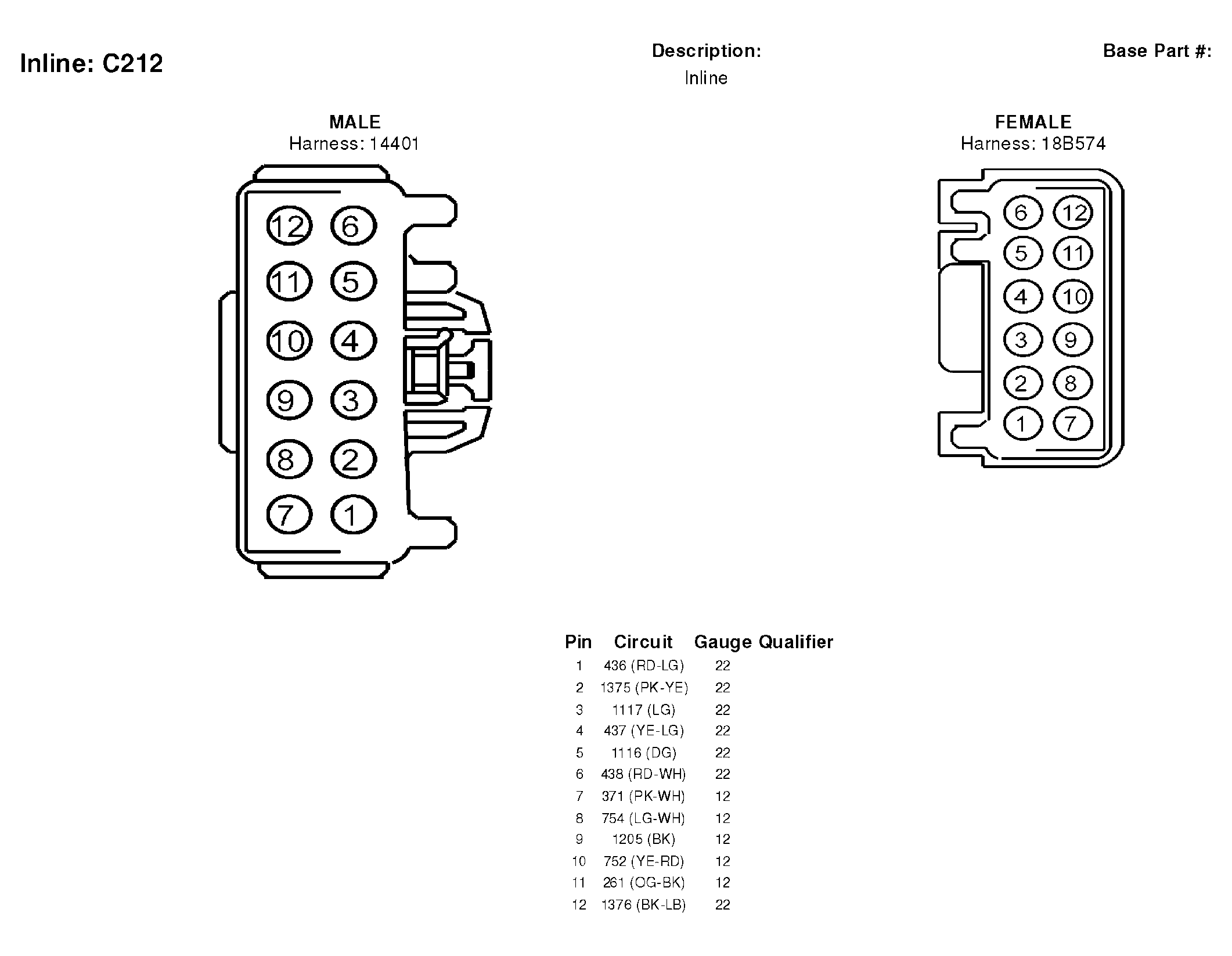

Fig 68: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

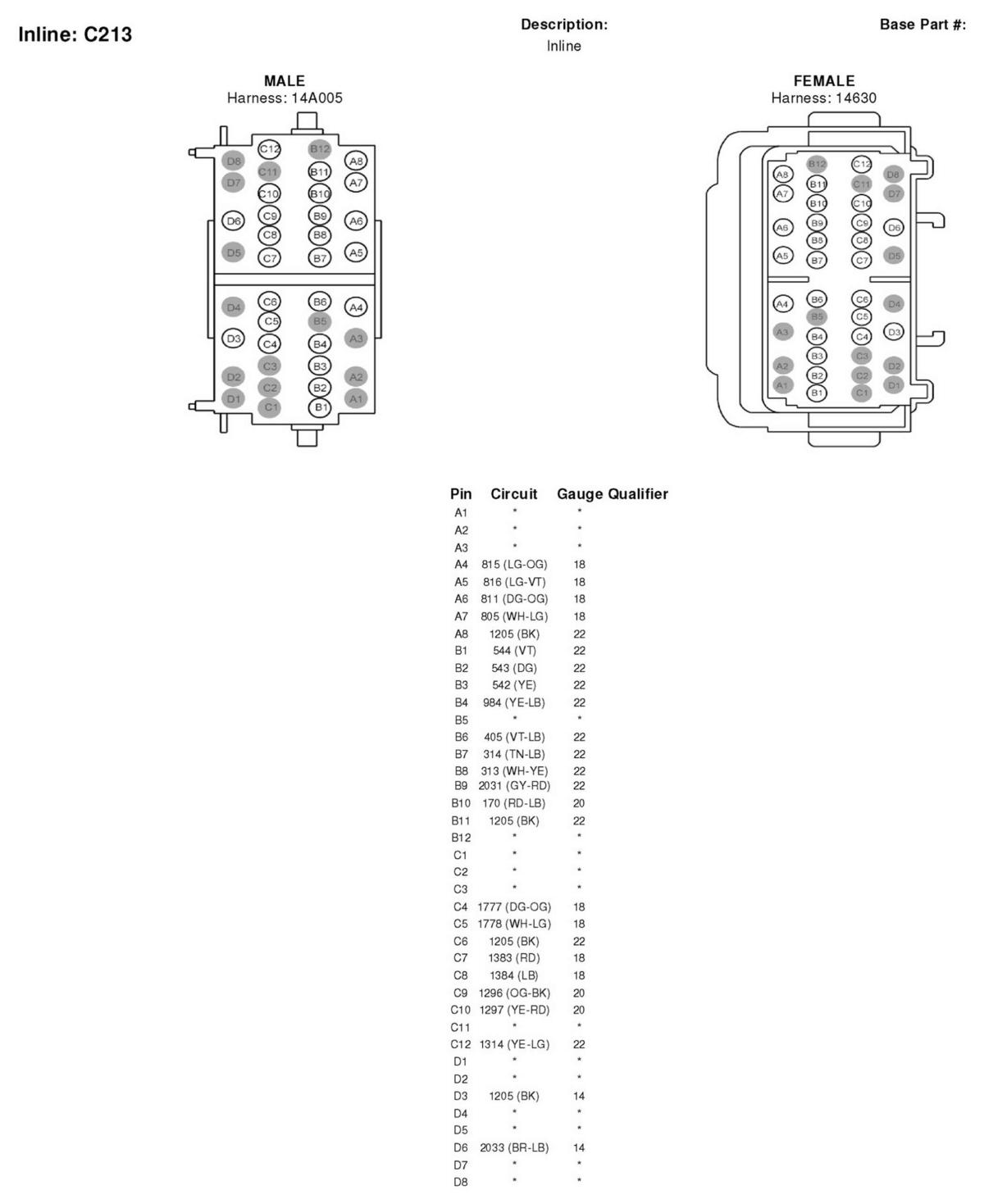

Fig 69: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.

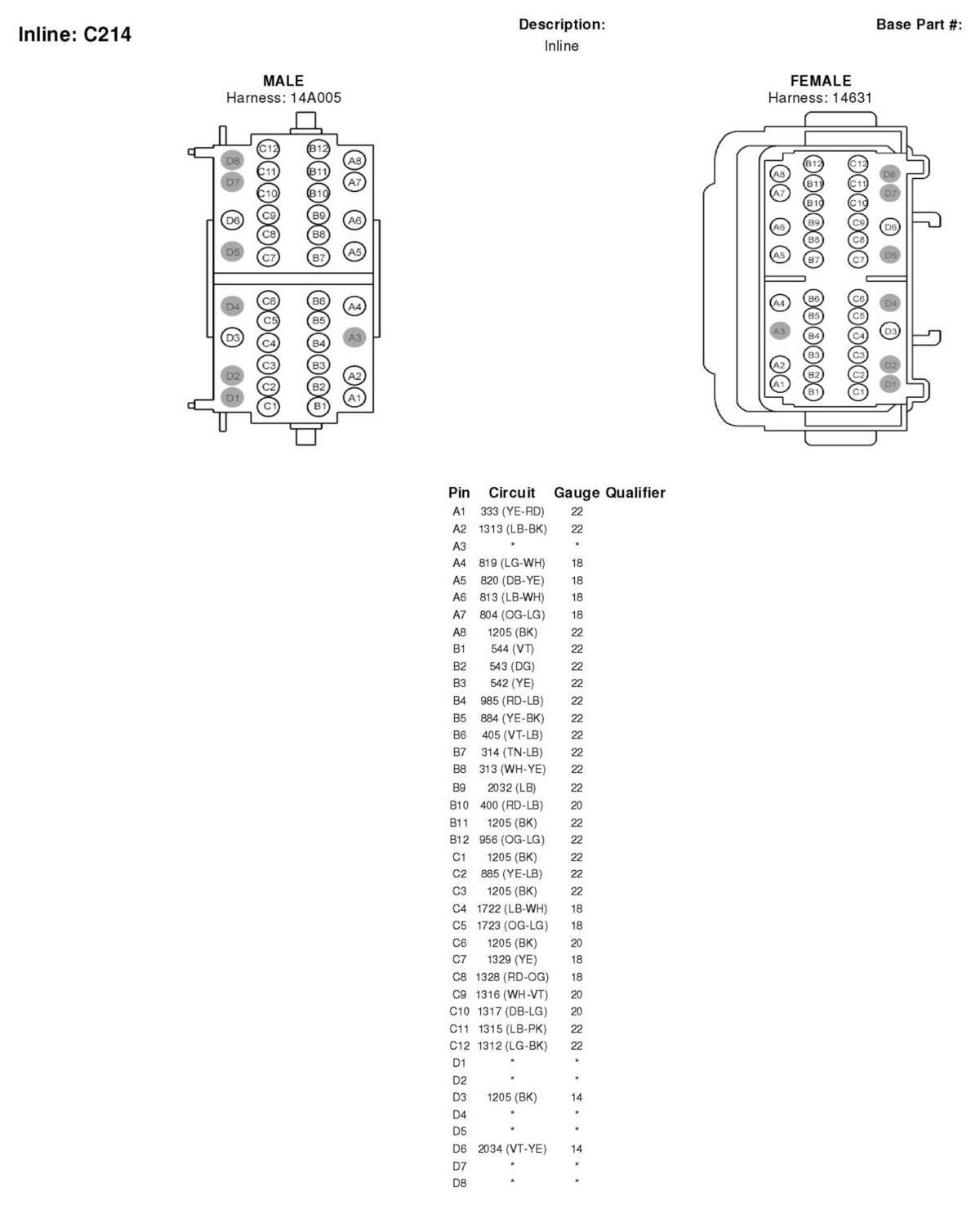

Fig 70: Inline Connector End View (C214)
Courtesy of FORD MOTOR CO.

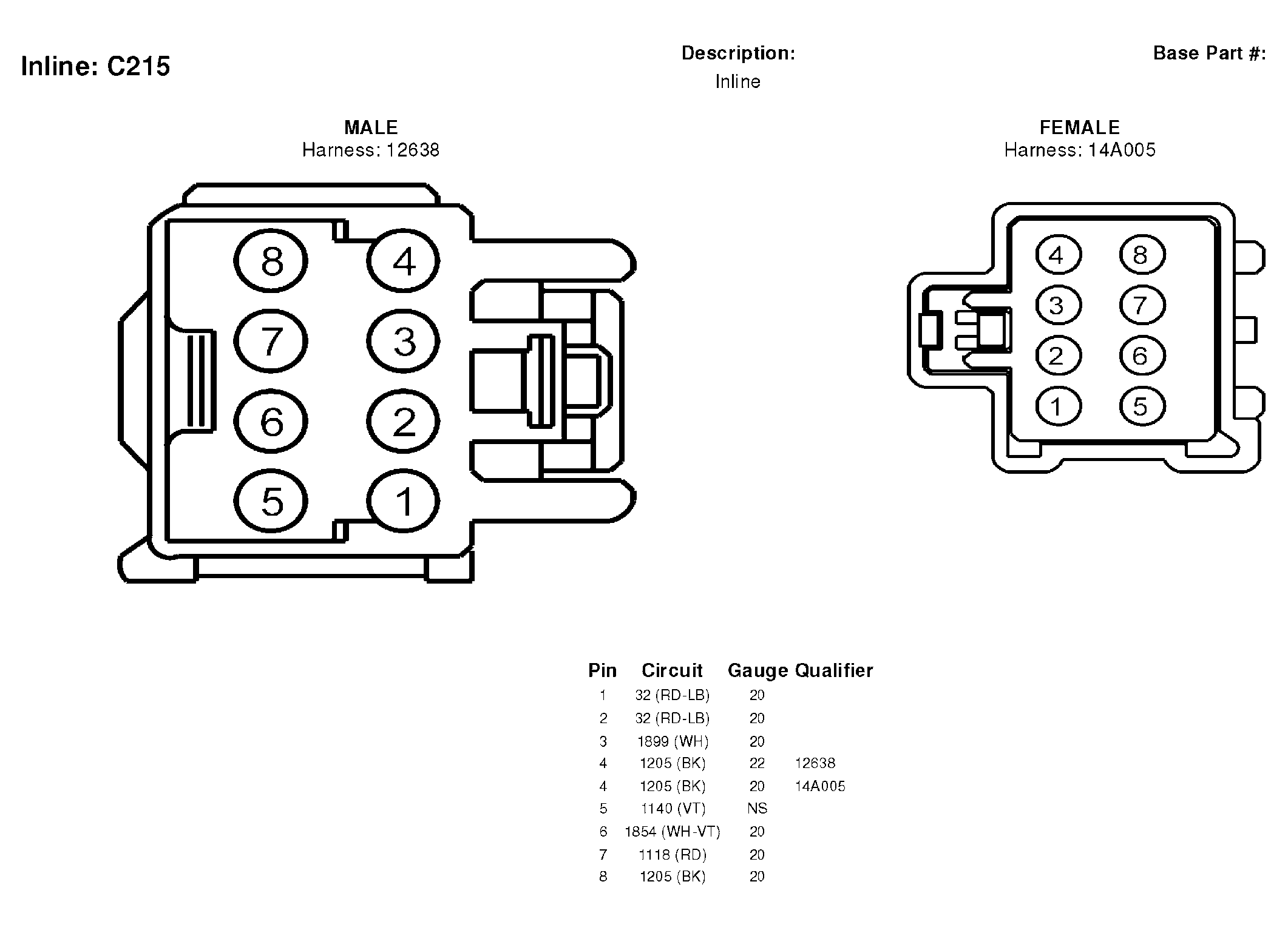

Fig 71: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.

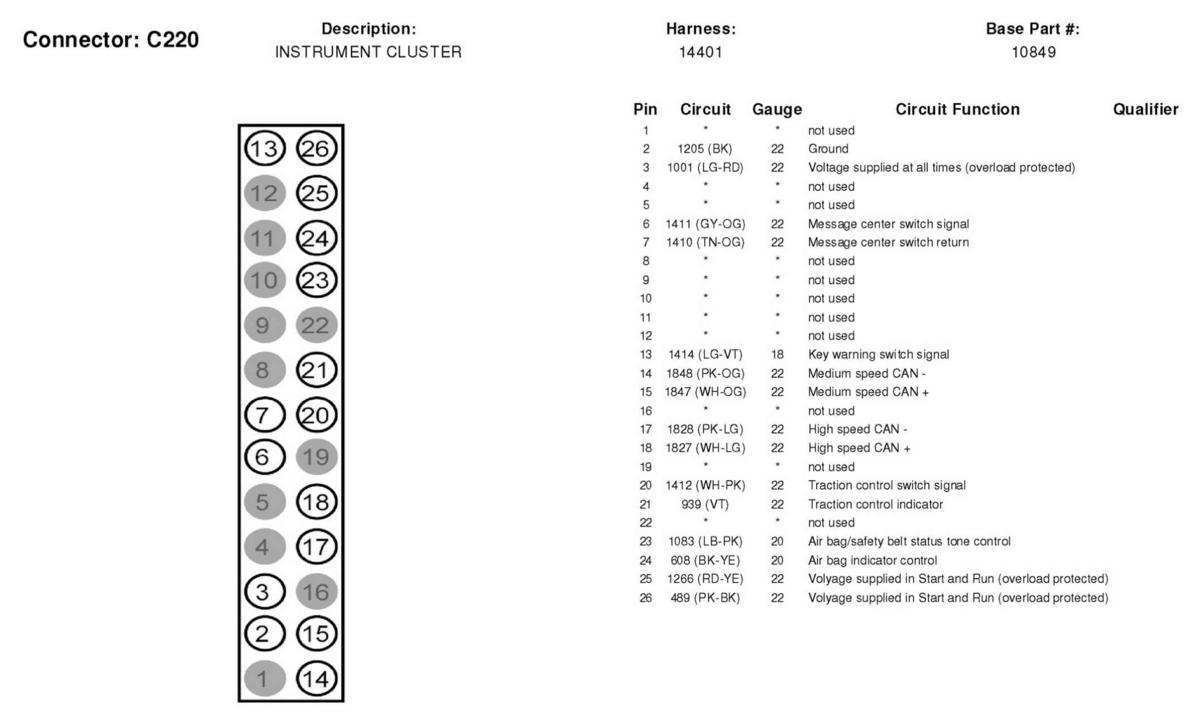

Fig 72: Instrument Cluster Connector End View (C220)
Courtesy of FORD MOTOR CO.

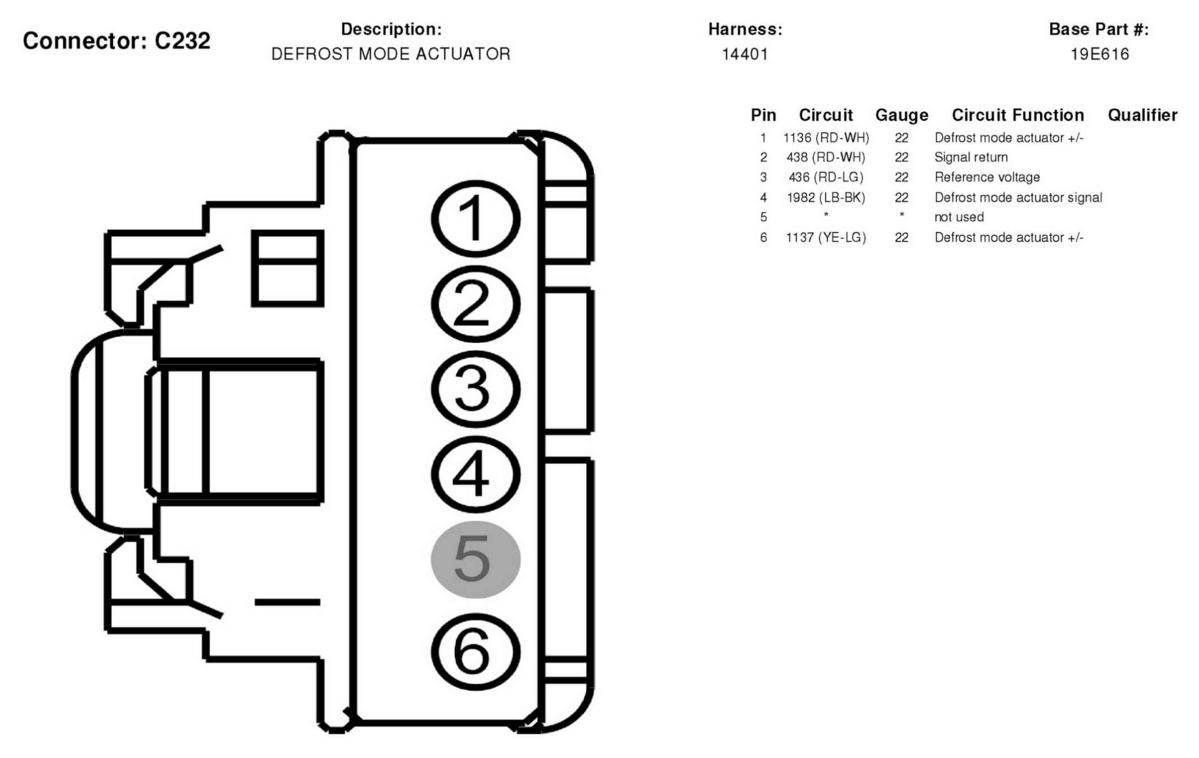

Fig 73: Defrost Mode Actuator Connector End View (C232)
Courtesy of FORD MOTOR CO.

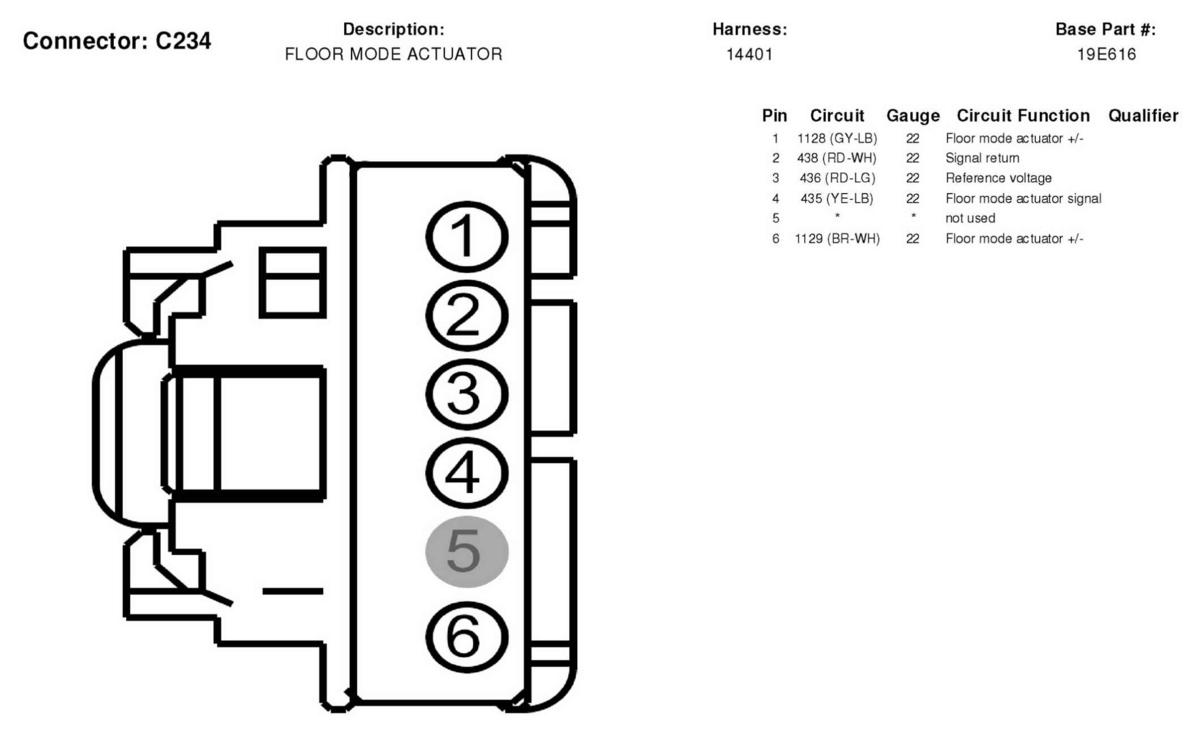

Fig 74: Floor Mode Actuator Connector End View (C234)
Courtesy of FORD MOTOR CO.

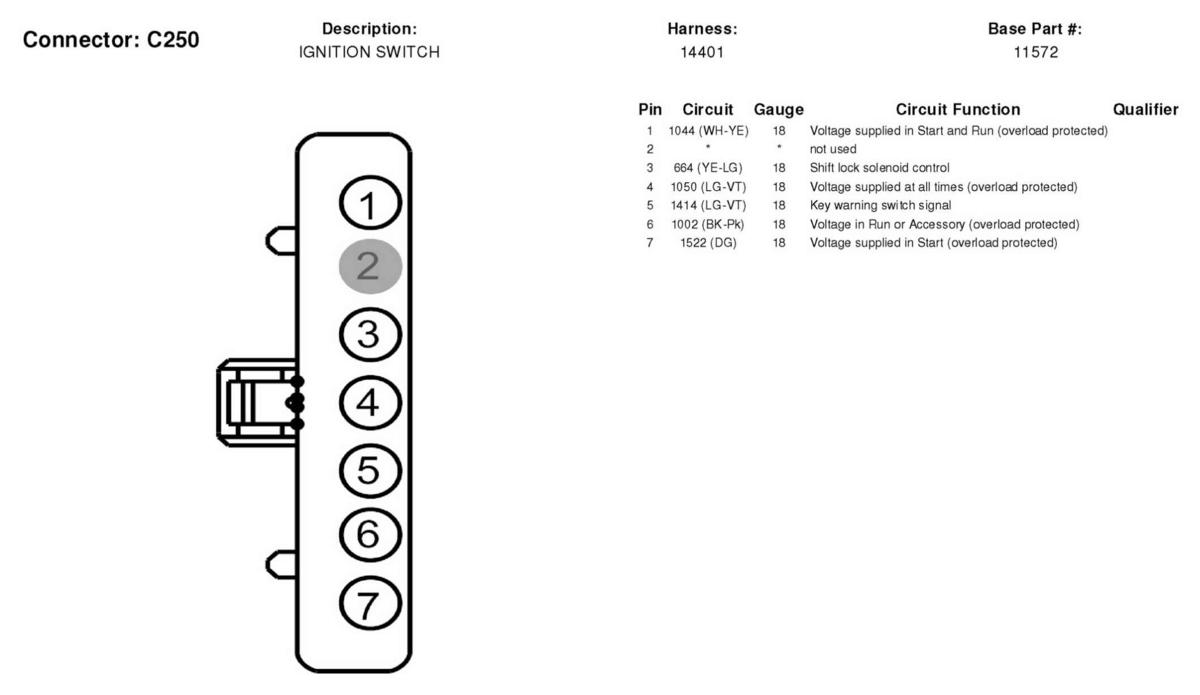

Fig 75: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.

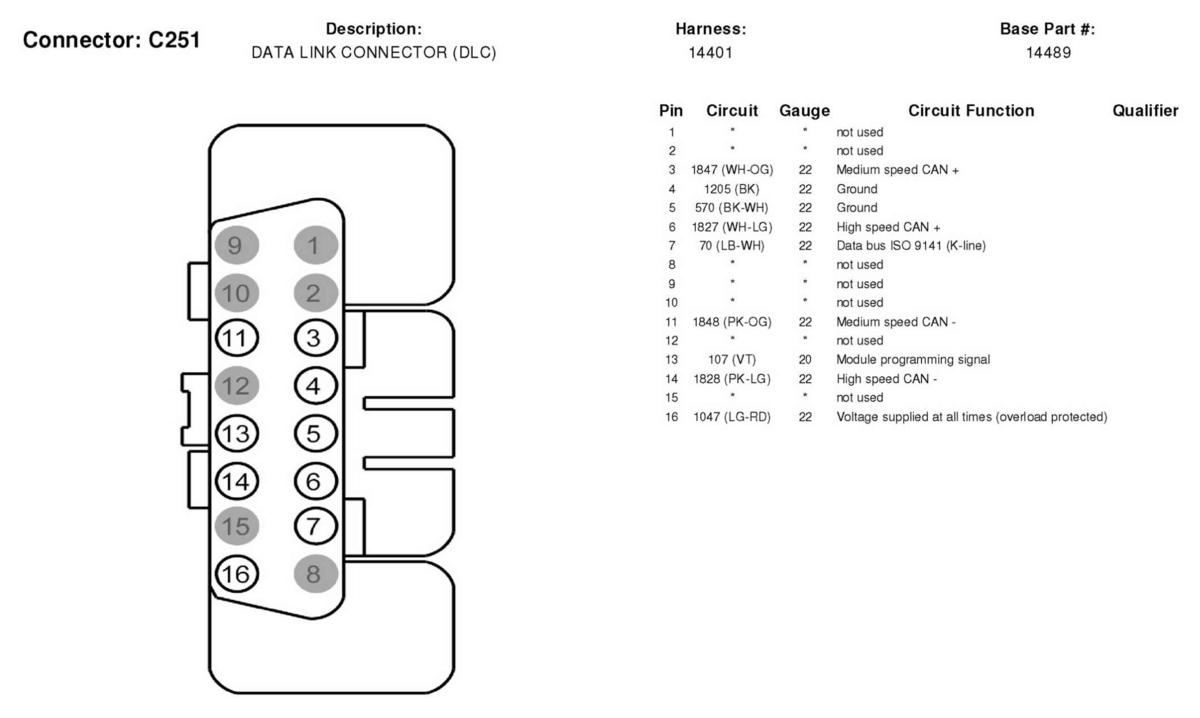

Fig 76: Data Link Connector (DLC) Connector End View (C251)
Courtesy of FORD MOTOR CO.

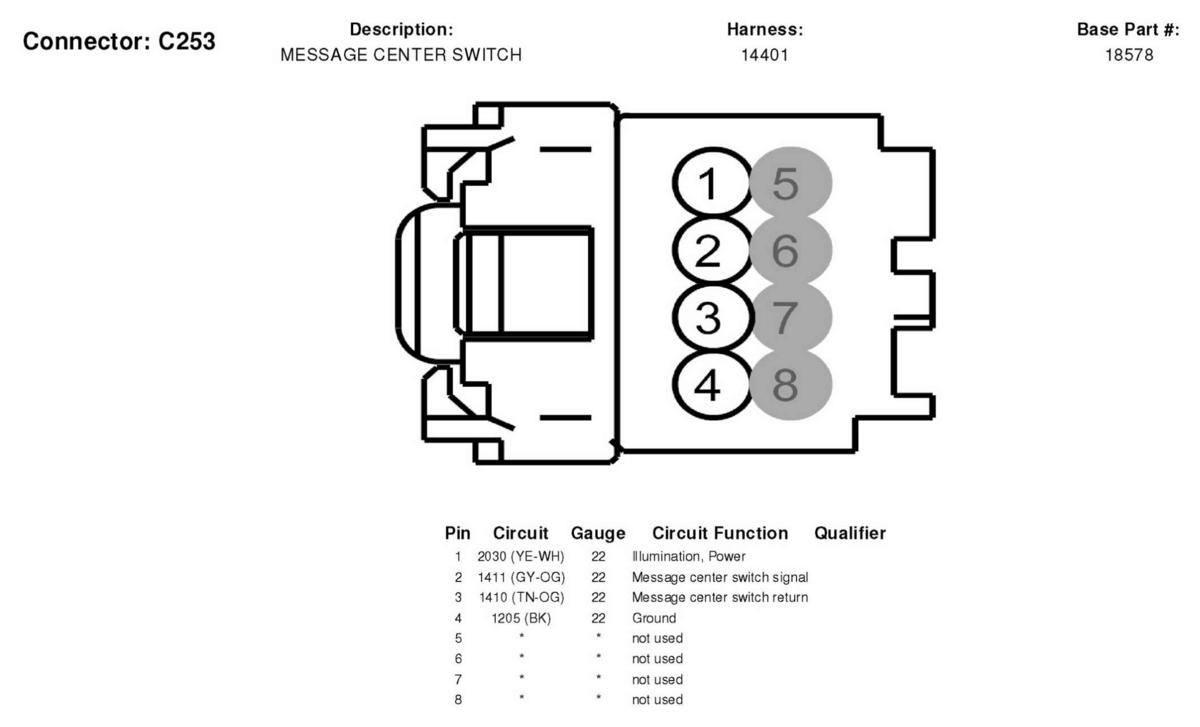

Fig 77: Massage Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.

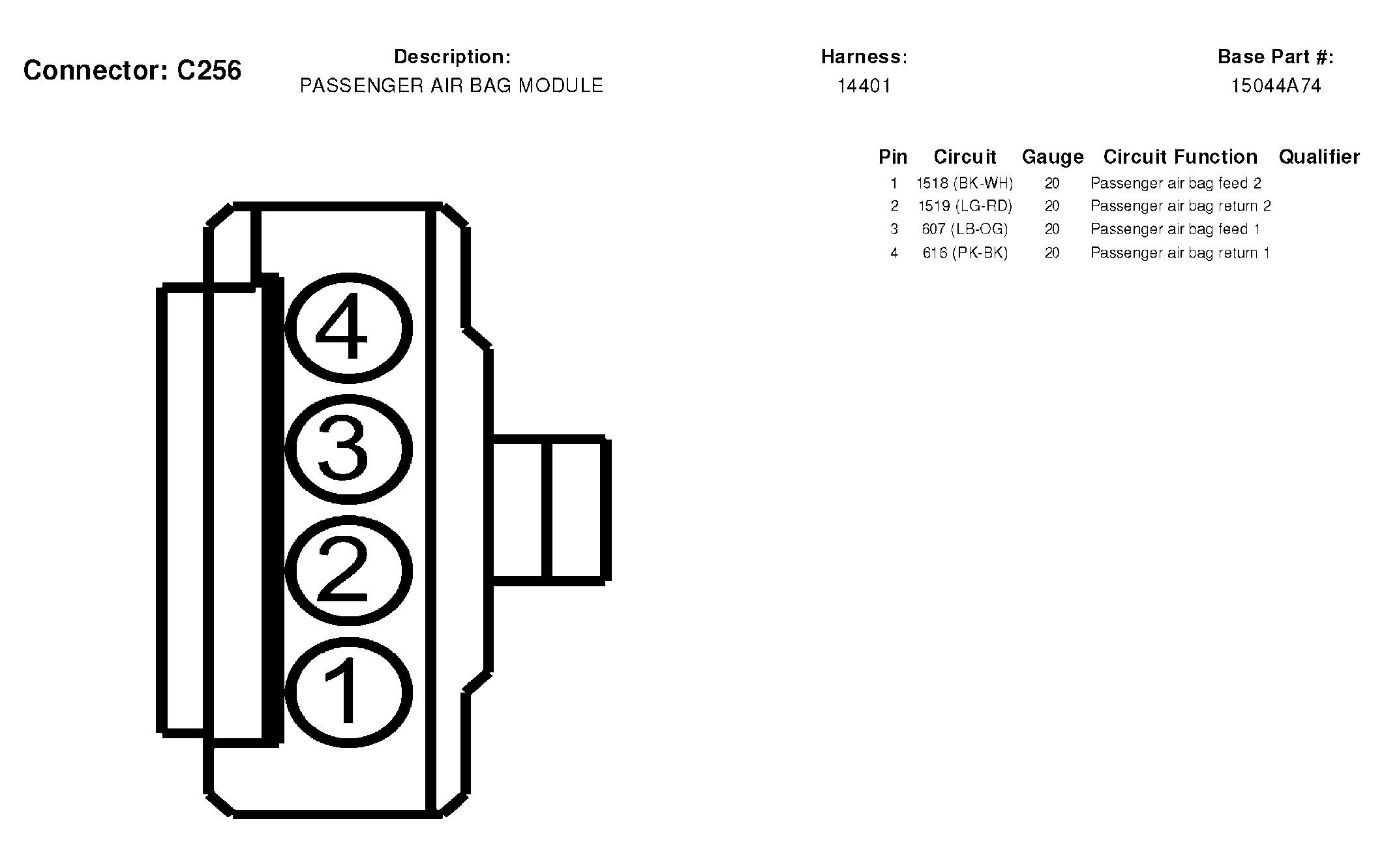

Fig 78: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.

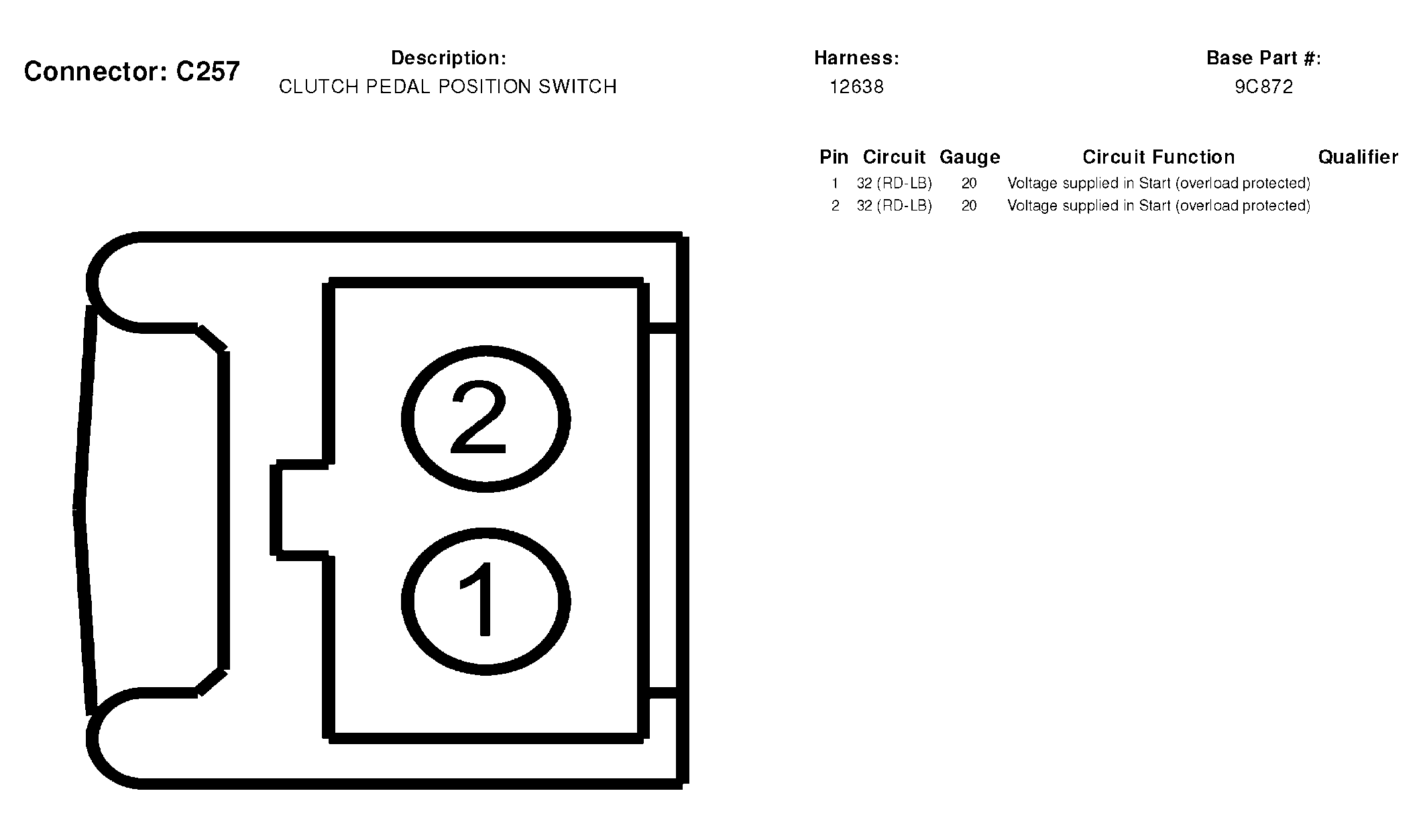

Fig 79: Clutch Pedal Position Switch Connector End View (C257)
Courtesy of FORD MOTOR CO.

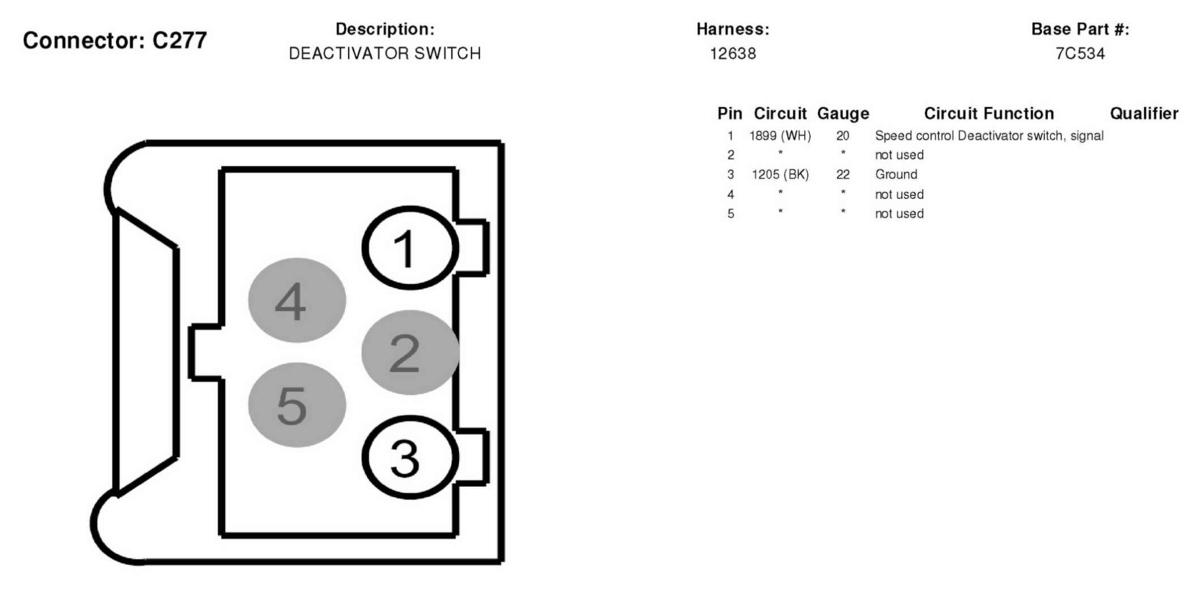

Fig 80: Deactivator Switch Connector End View (C277)
Courtesy of FORD MOTOR CO.

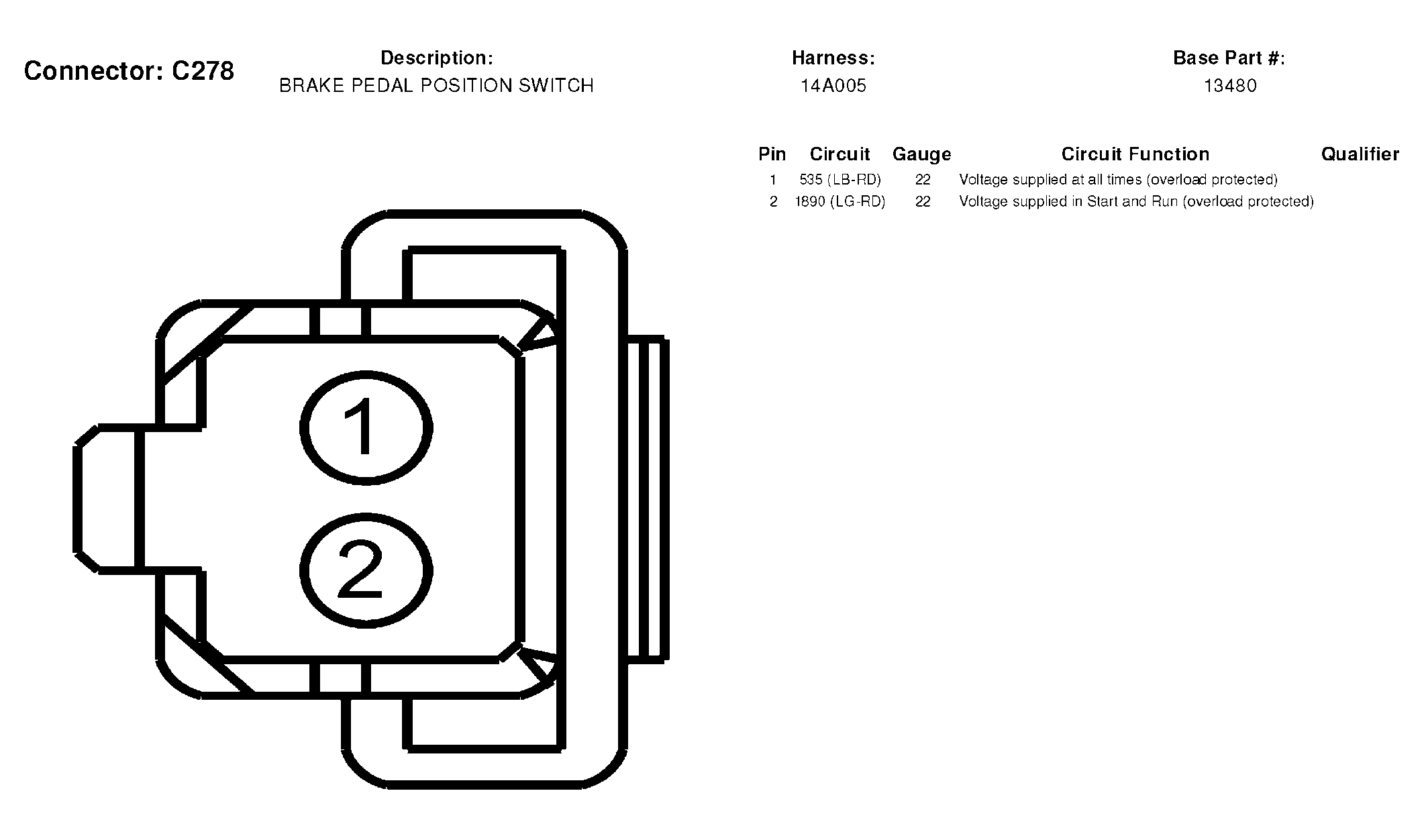

Fig 81: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.

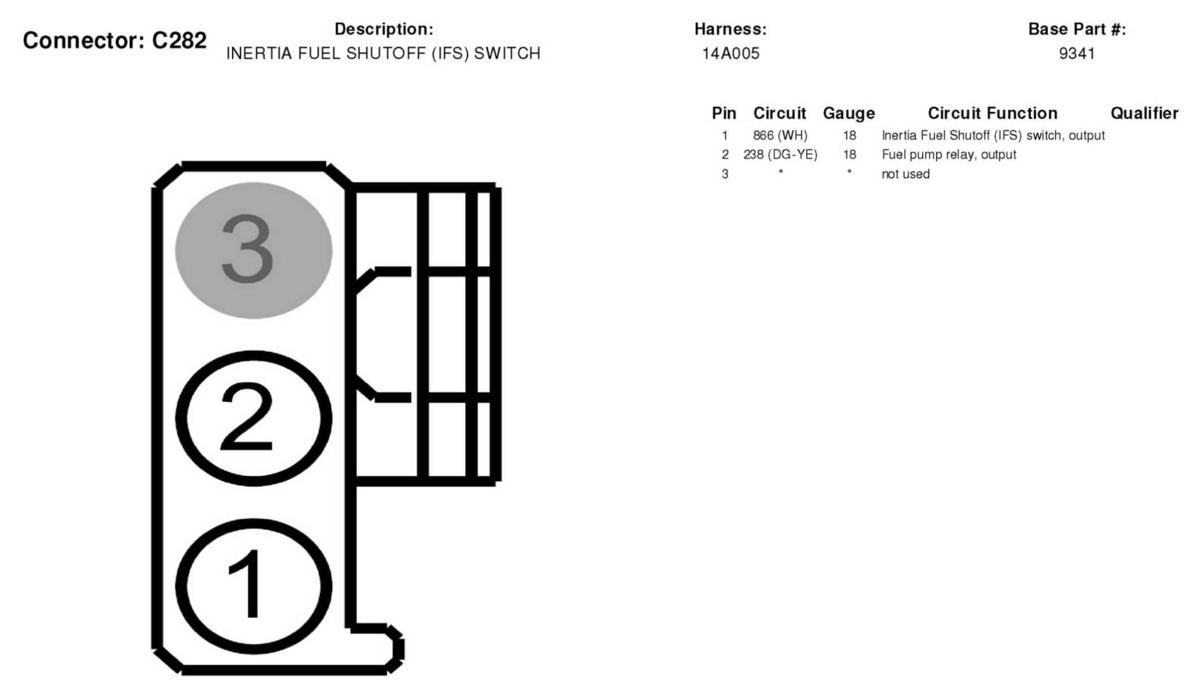

Fig 82: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)
Courtesy of FORD MOTOR CO.

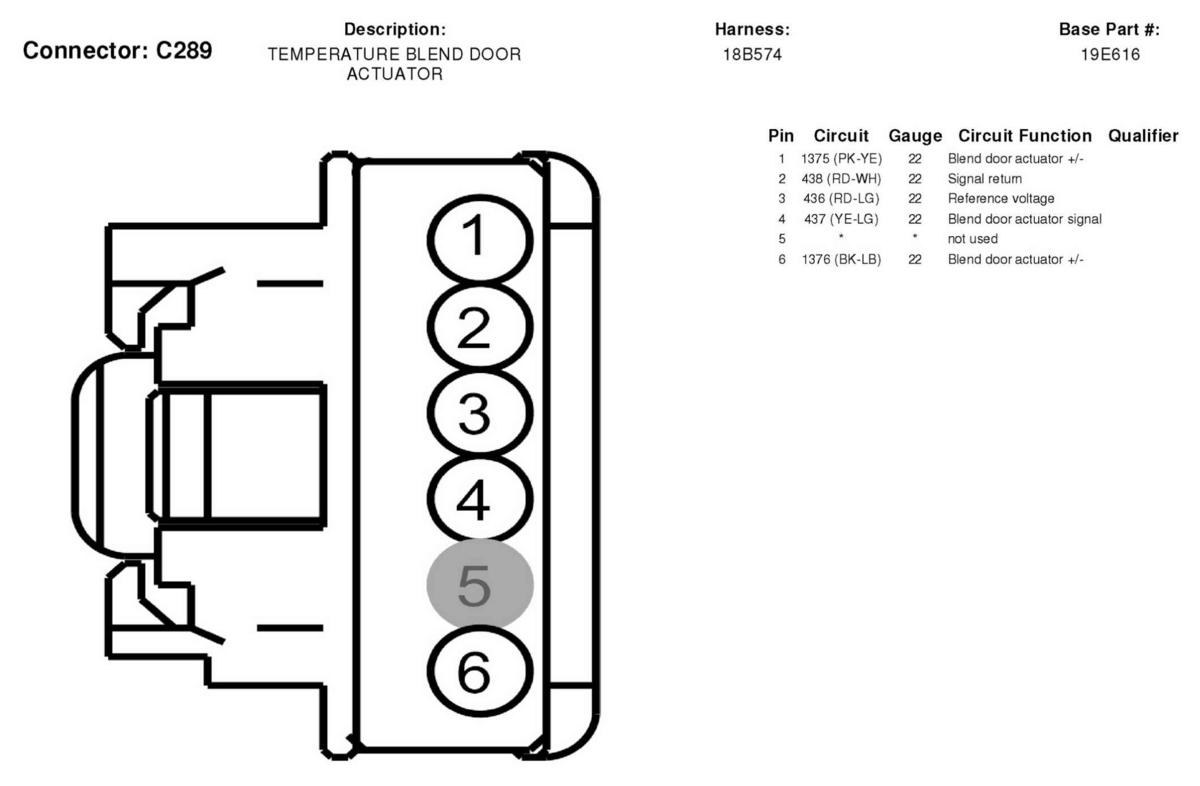

Fig 83: Temperature Blend Door Actuator Connector End View (C289)
Courtesy of FORD MOTOR CO.

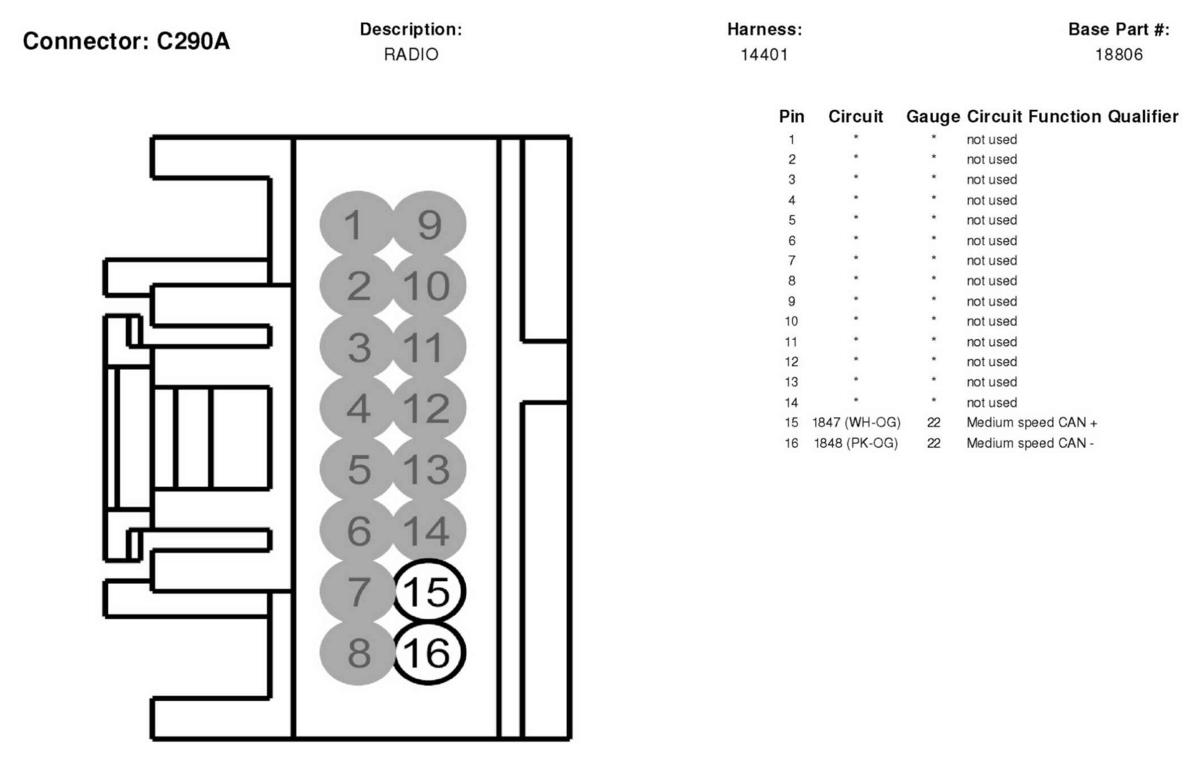

Fig 84: Radio Connector End View (C290A)
Courtesy of FORD MOTOR CO.

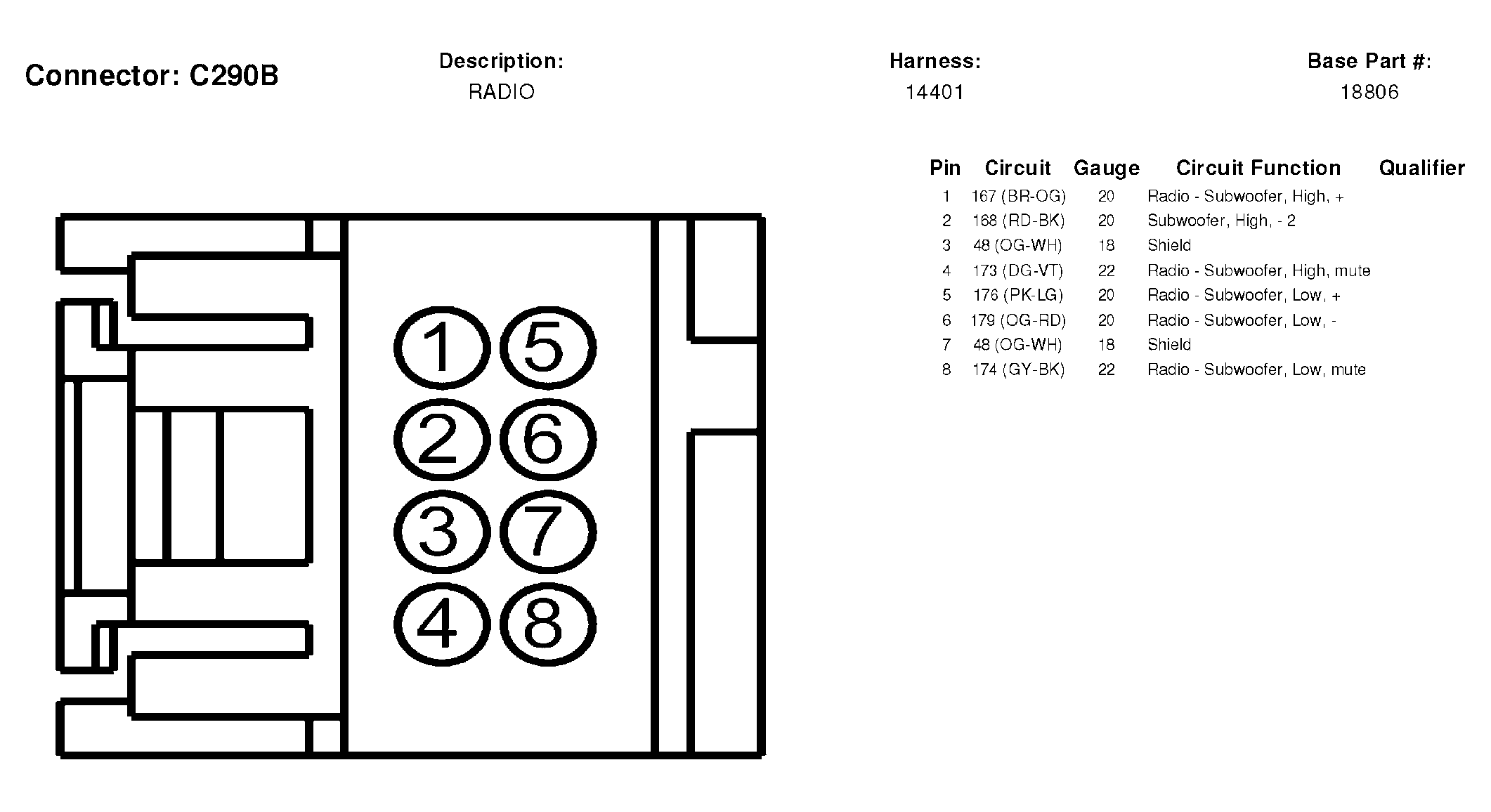

Fig 85: Radio Connector End View (C290B)
Courtesy of FORD MOTOR CO.

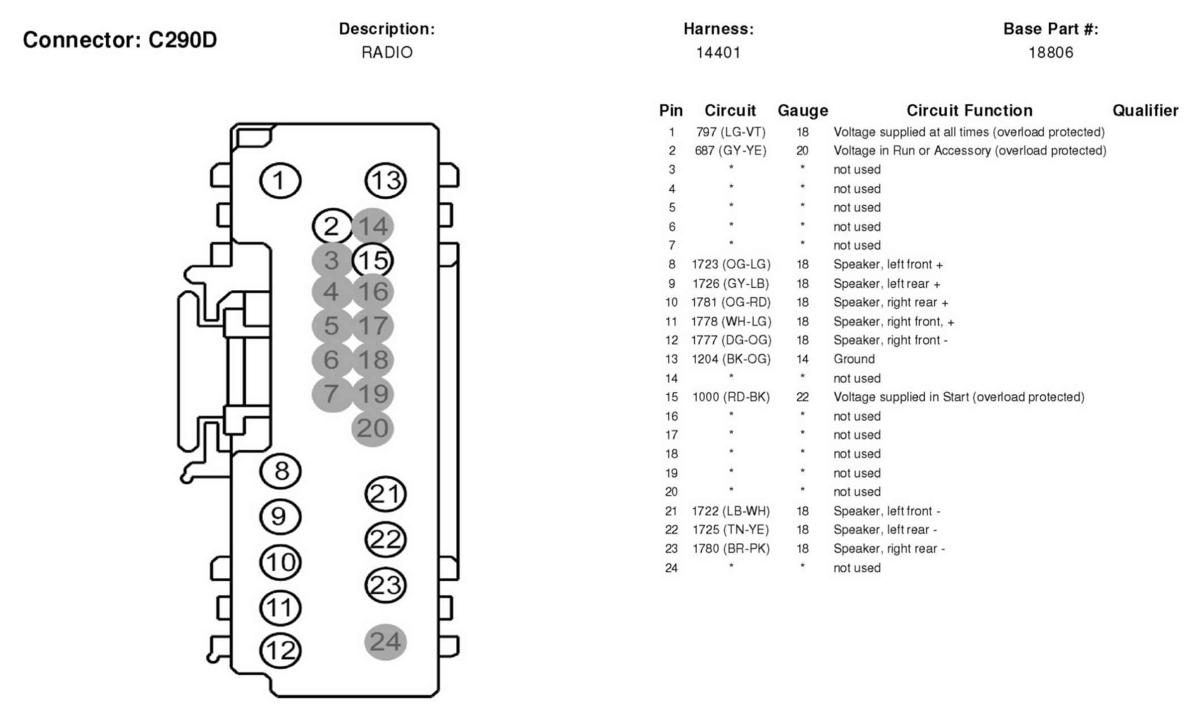

Fig 86: Radio Connector End View (C290D)
Courtesy of FORD MOTOR CO.

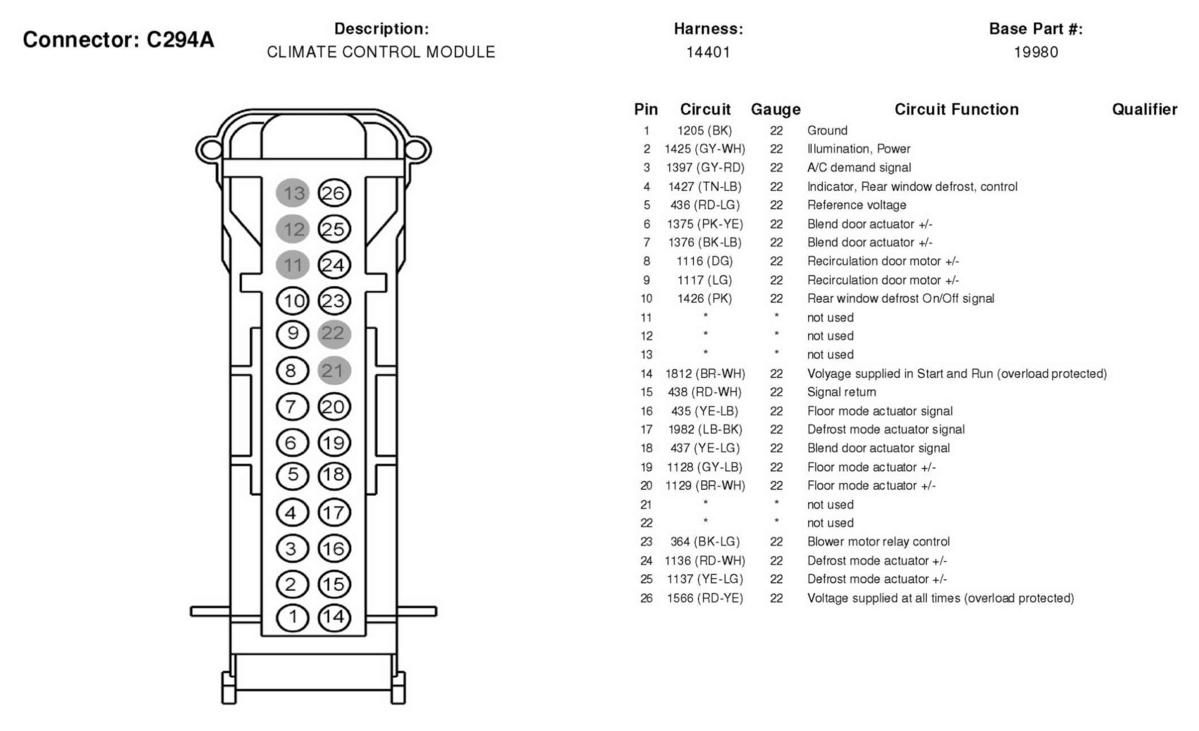

Fig 87: Climate Control Module Connector End View (C294A)
Courtesy of FORD MOTOR CO.

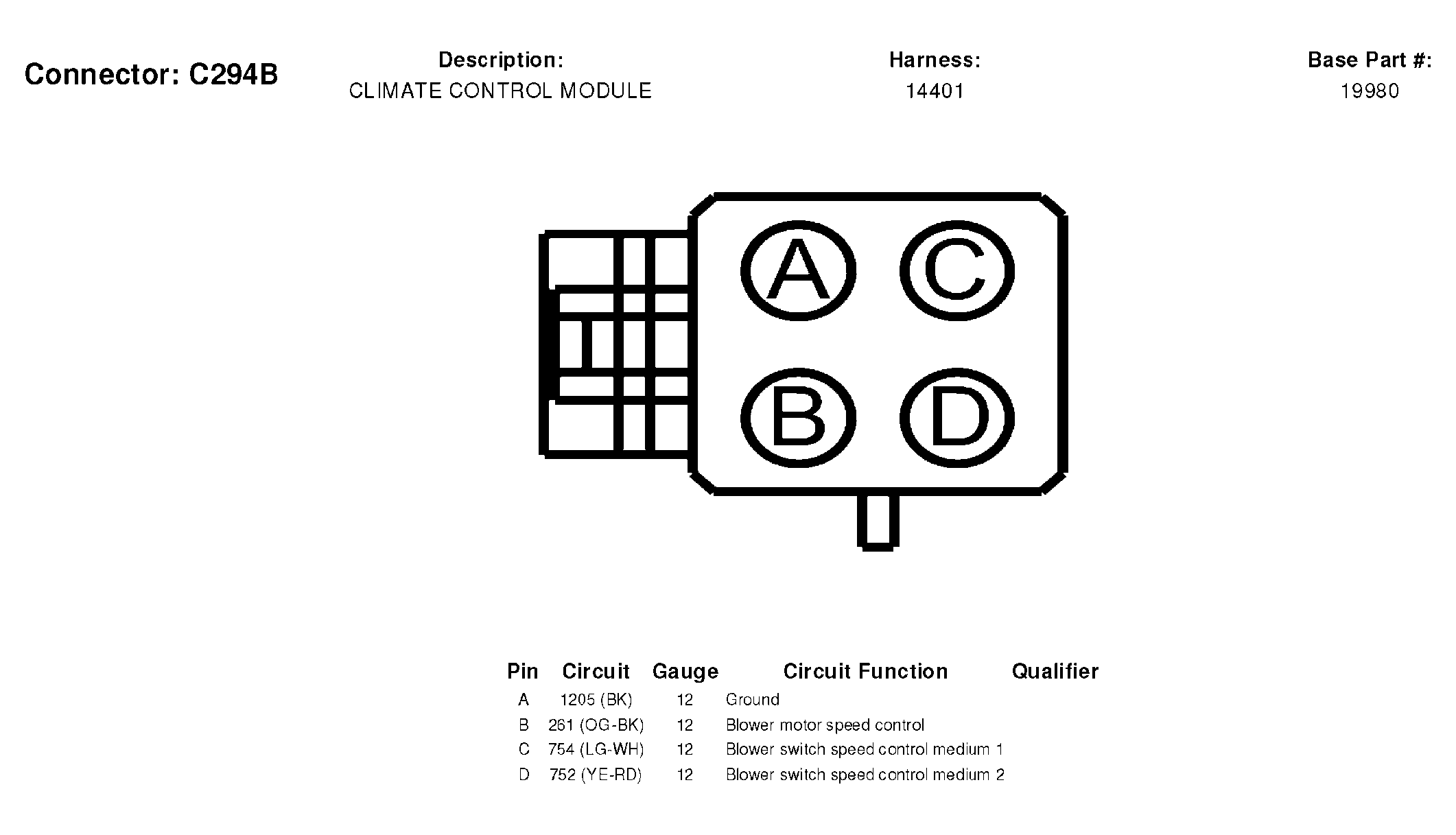

Fig 88: Climate Control Module Connector End View (C294B)
Courtesy of FORD MOTOR CO.

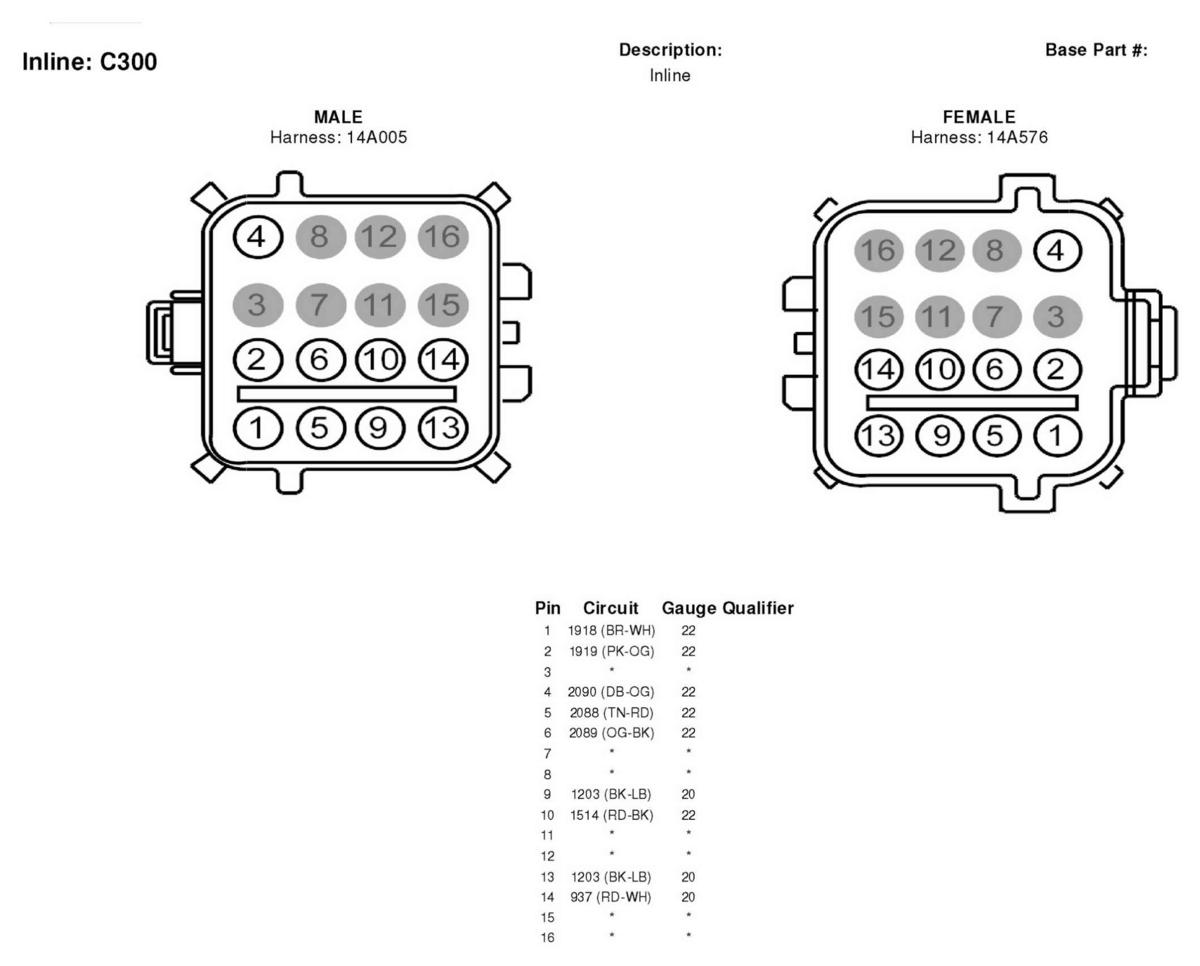

Fig 89: Inline Connector End View (C300)
Courtesy of FORD MOTOR CO.

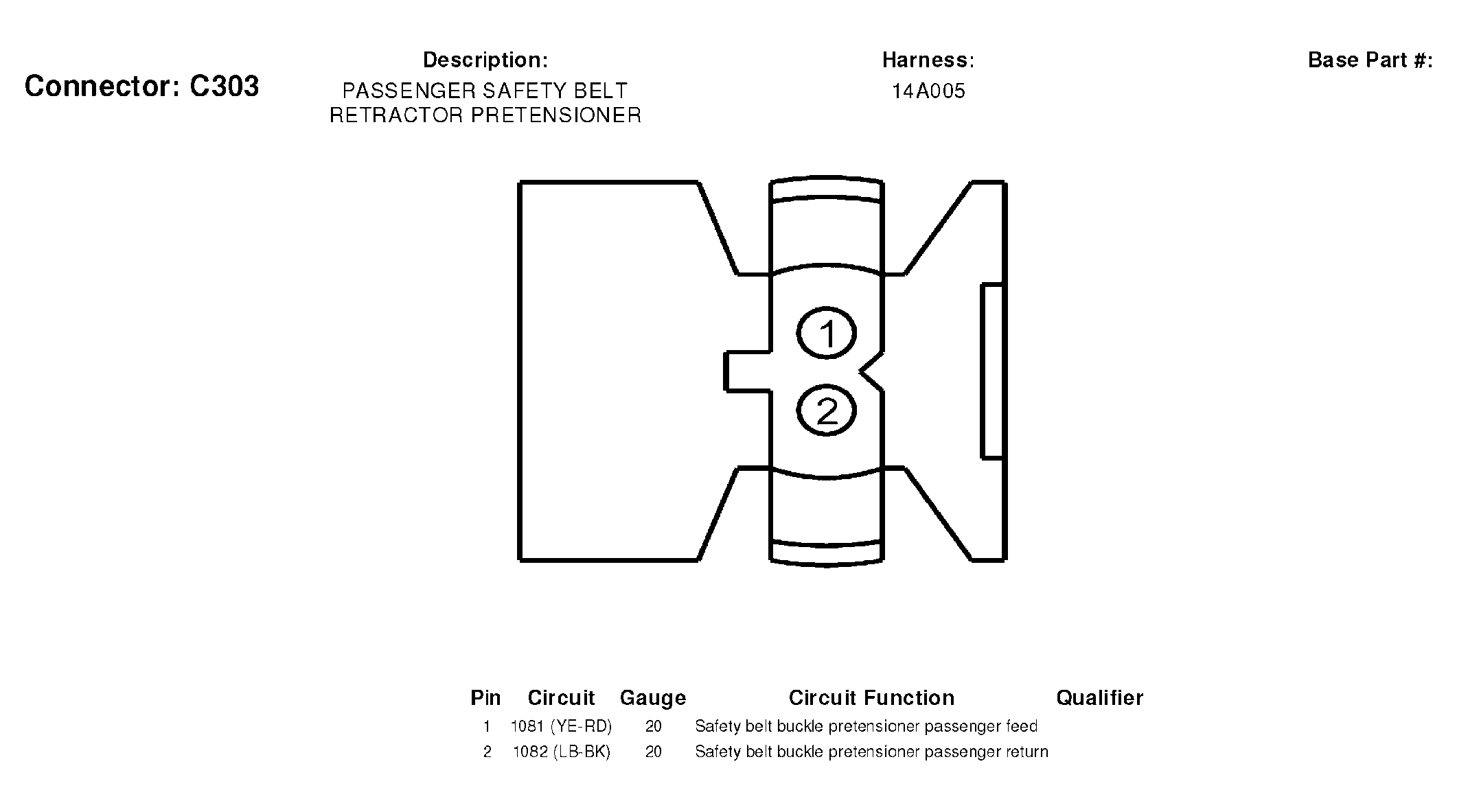

Fig 90: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
Courtesy of FORD MOTOR CO.

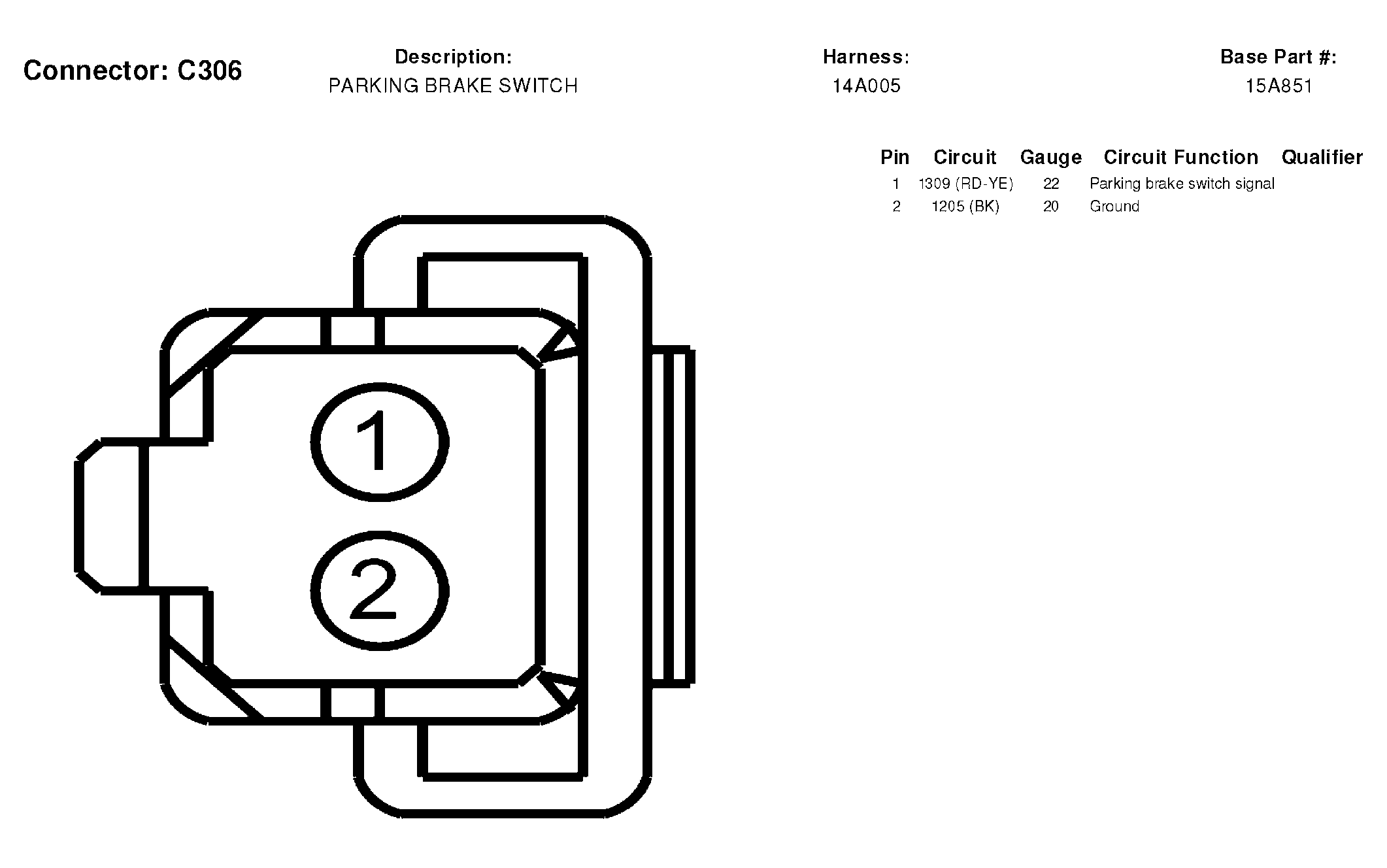

Fig 91: Parking Brake Switch Connector End View (C306)
Courtesy of FORD MOTOR CO.

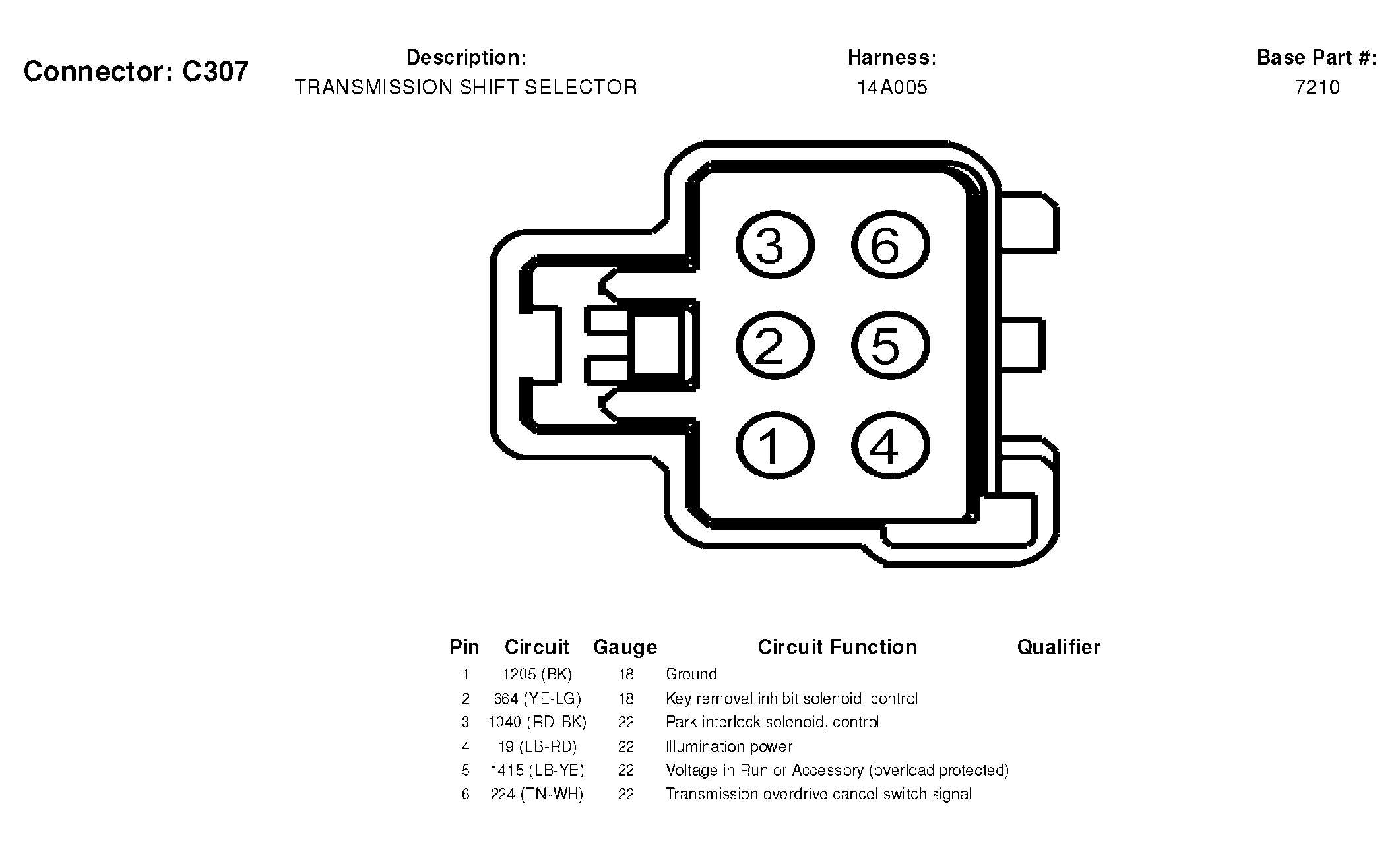

Fig 92: Transmission Shift Selector Connector End View (C307)
Courtesy of FORD MOTOR CO.

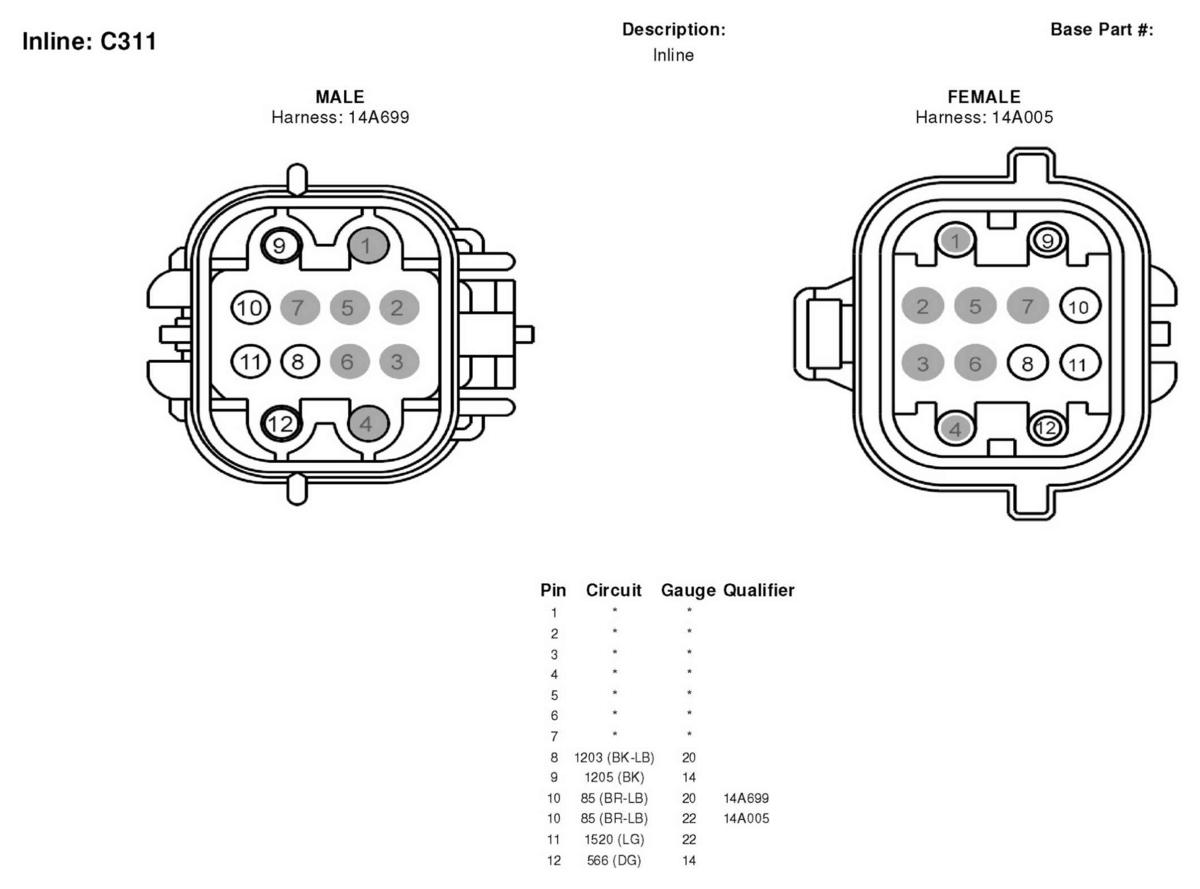

Fig 93: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

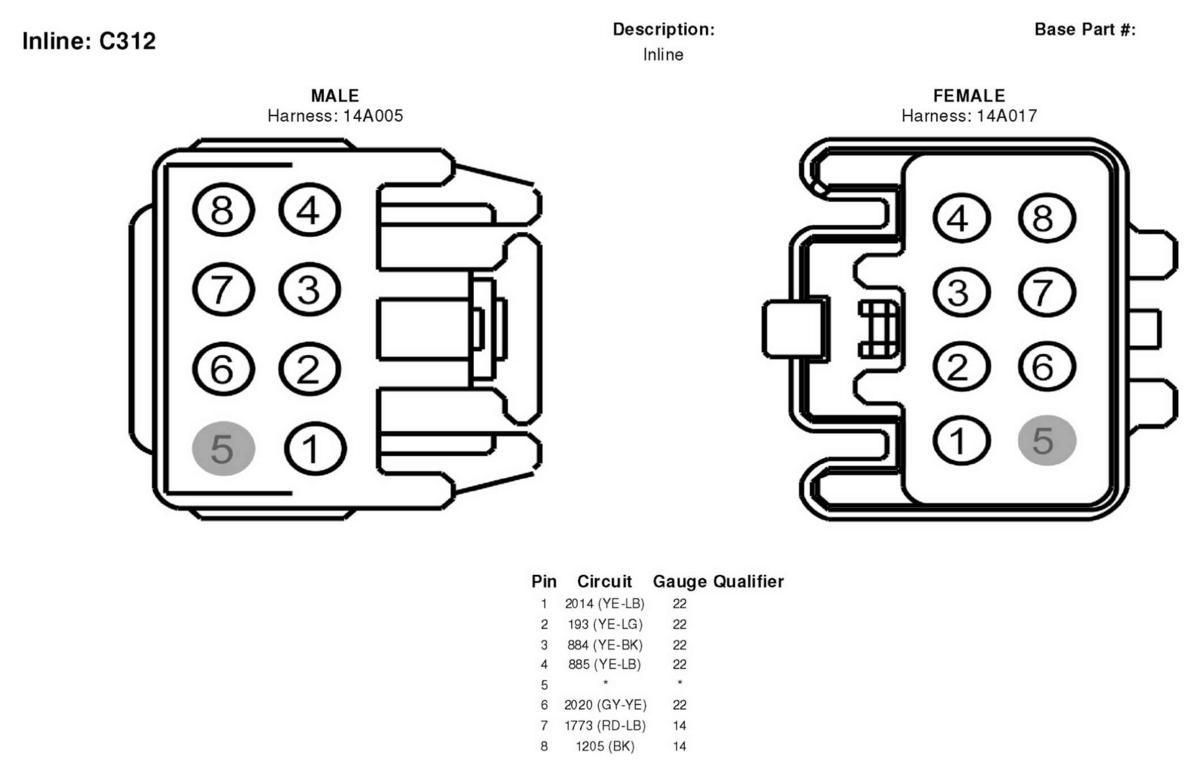

Fig 94: Inline Connector End View (C312)
Courtesy of FORD MOTOR CO.
Fig 95: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.

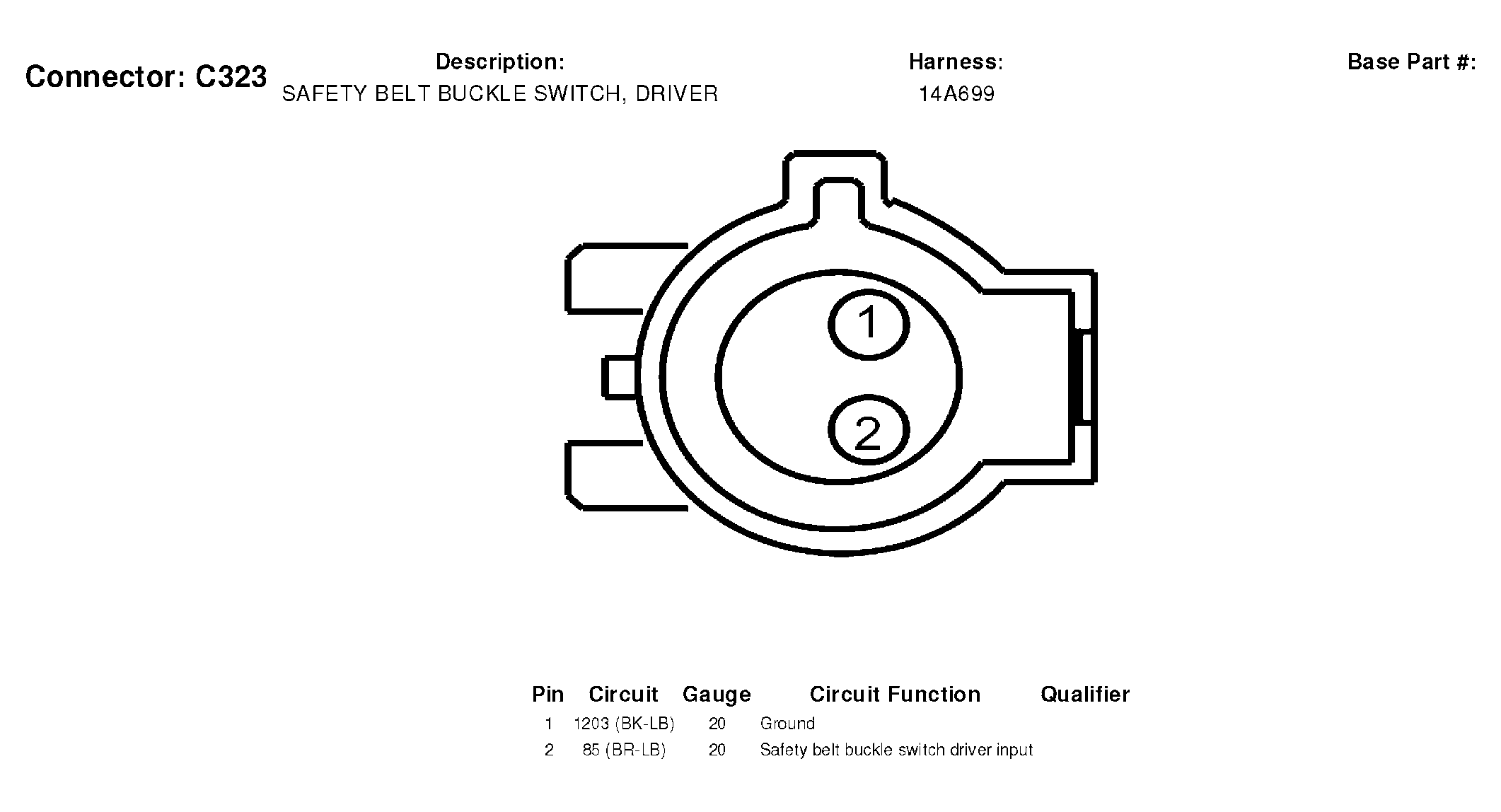

Fig 96: Safety Belt Buckle Switch, Driver Connector End View (C323)
Courtesy of FORD MOTOR CO.
Fig 97: Side Air Bag Module, Right Connector End View (C337)
Courtesy of FORD MOTOR CO.

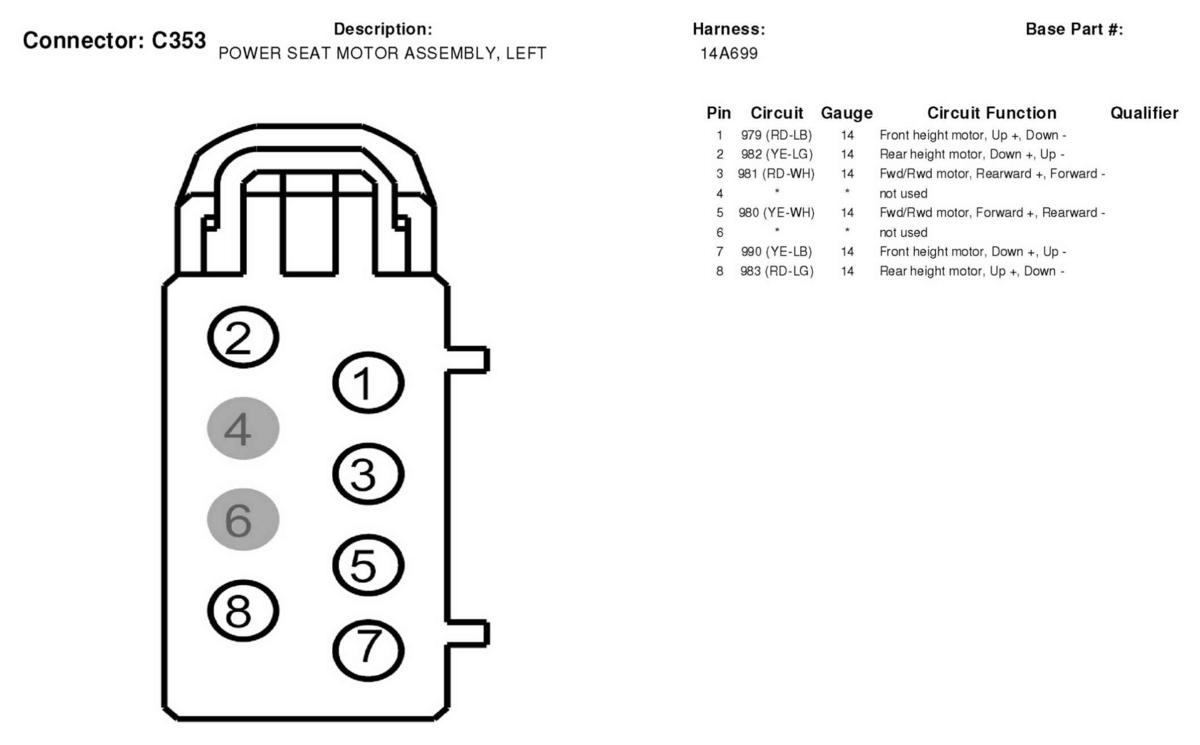

Fig 98: Power Seat Motor Assembly, Left Connector End View (C353)
Courtesy of FORD MOTOR CO.
Fig 99: Seat Position Sensor, Driver Connector End View (C356)
Courtesy of FORD MOTOR CO.

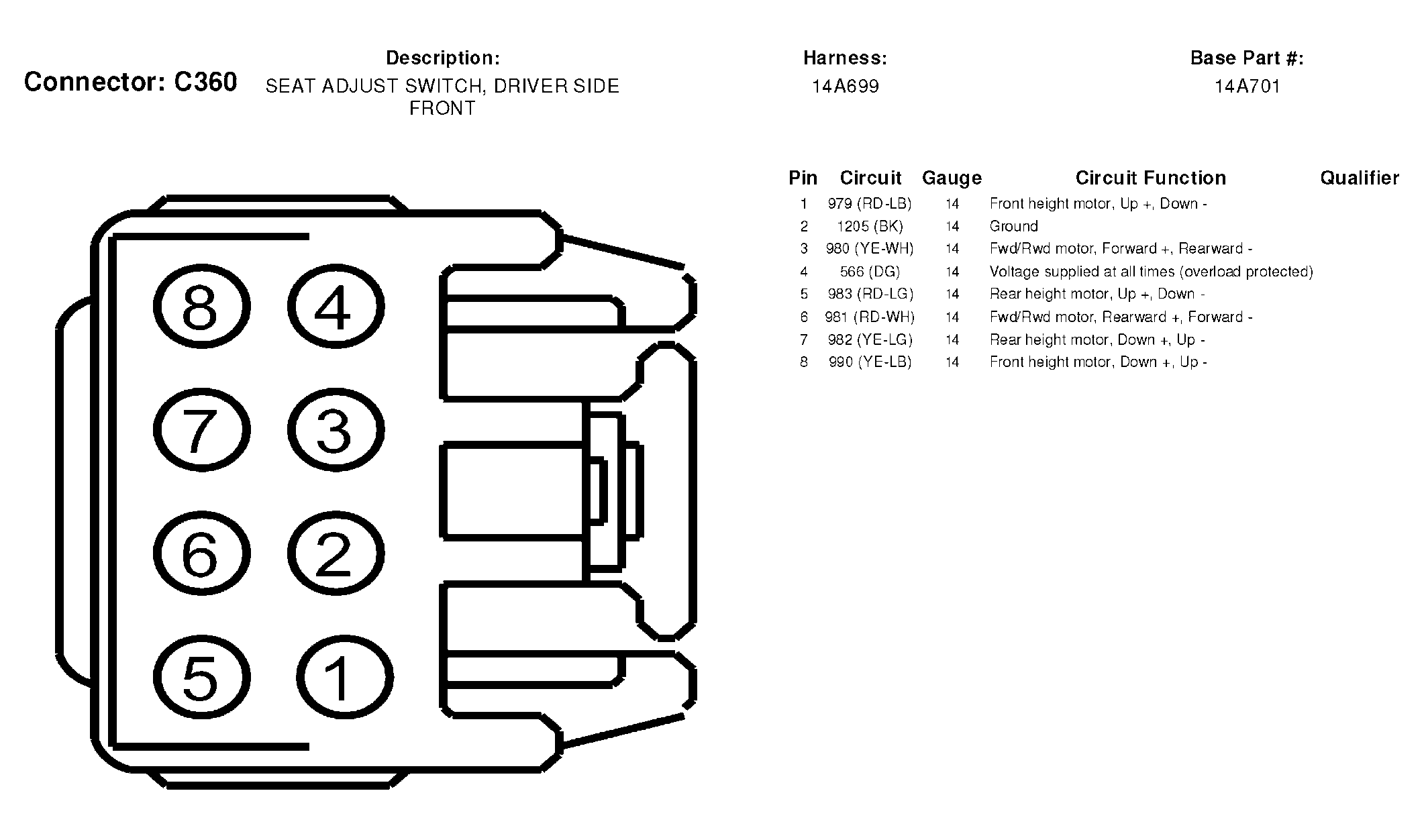

Fig 100: Seat Adjust Switch, Driver Side Front Connector End View (C360)
Courtesy of FORD MOTOR CO.

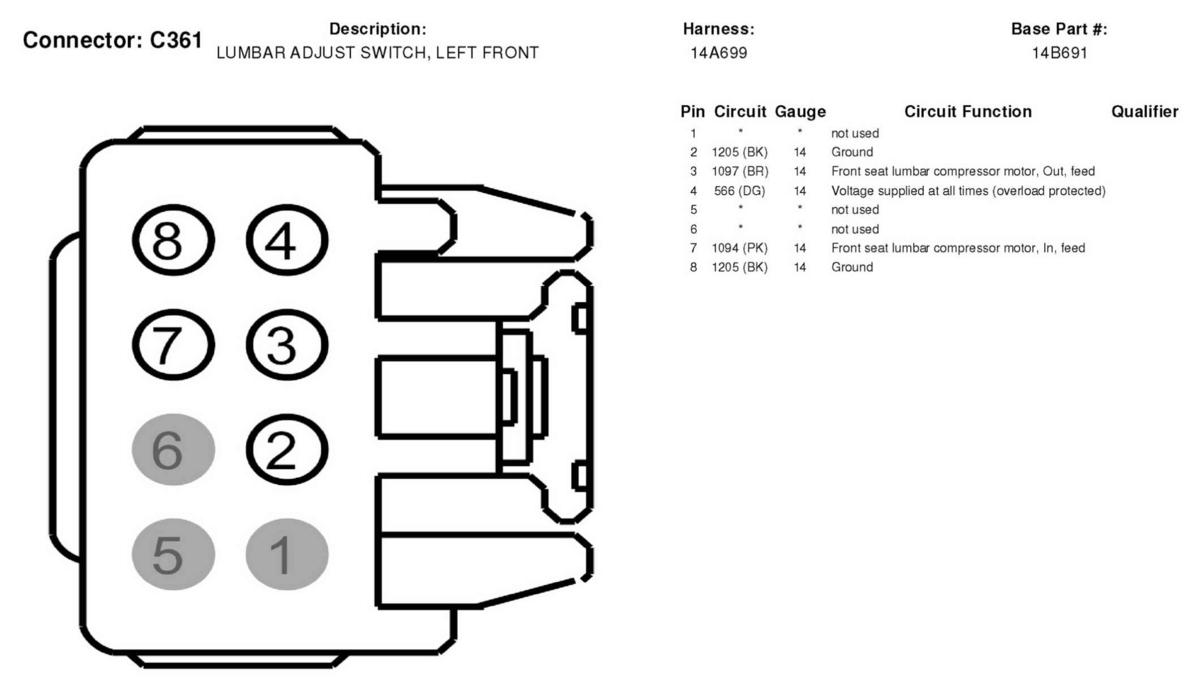

Fig 101: Lumbar Adjust Switch, Left Front Connector End View (C361)
Courtesy of FORD MOTOR CO.

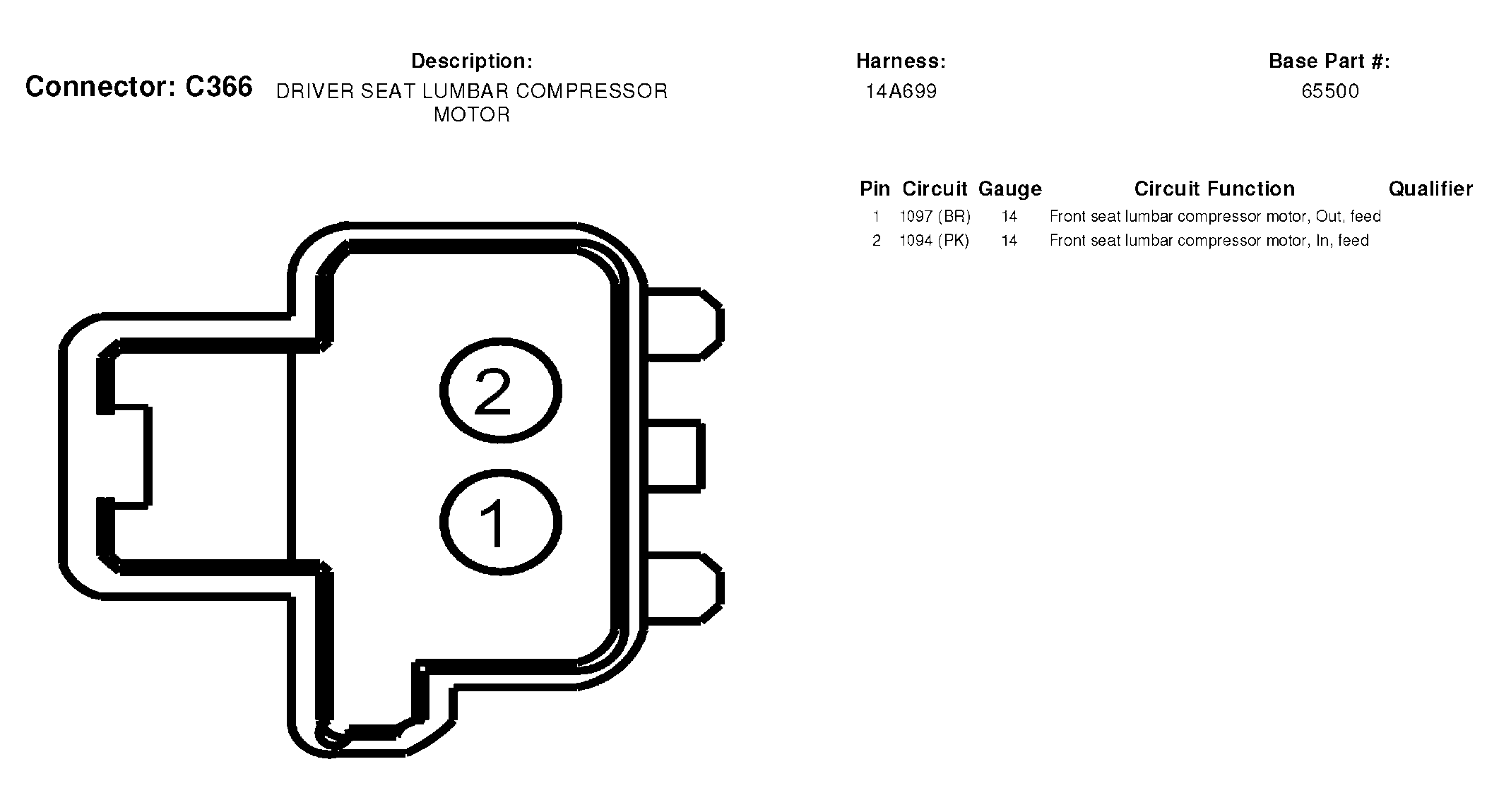

Fig 102: Driver Seat Lumbar Compressor Motor Connector End View (C366)
Courtesy of FORD MOTOR CO.

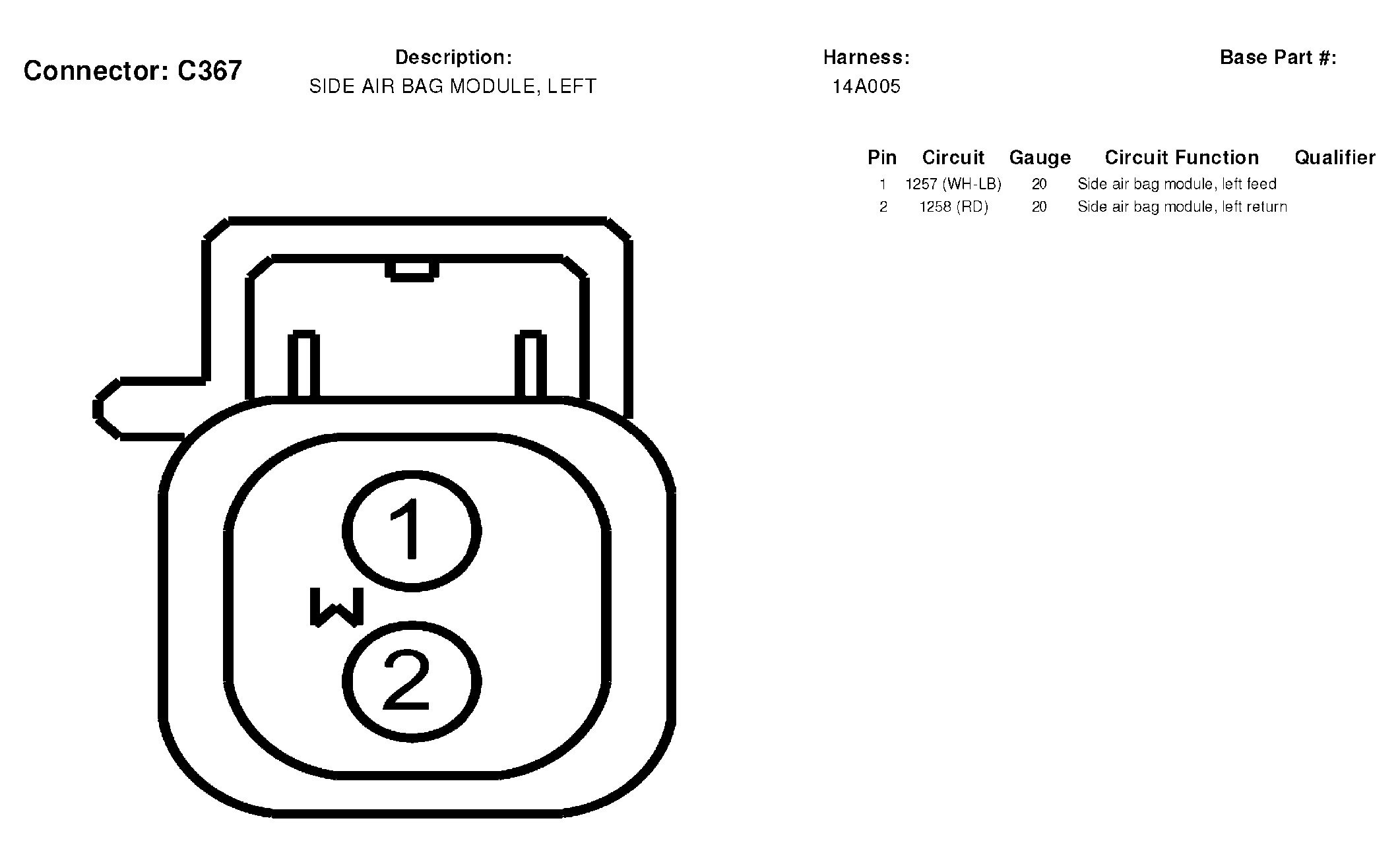

Fig 103: Side Air Bag Module, Left Connector End View (C367)
Courtesy of FORD MOTOR CO.

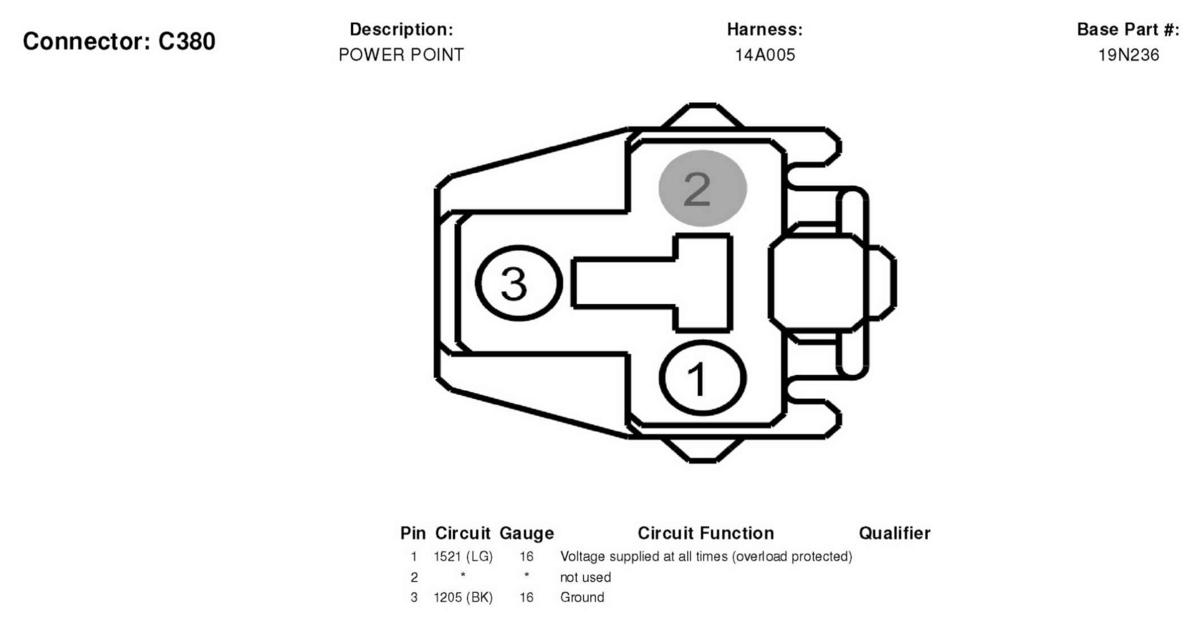

Fig 104: Power Point Connector End View (C380)
Courtesy of FORD MOTOR CO.
Fig 105: Speaker, Left Rear Connector End View (C395)
Courtesy of FORD MOTOR CO.
Fig 106: Speaker, Right Rear Connector End View (C396)
Courtesy of FORD MOTOR CO.

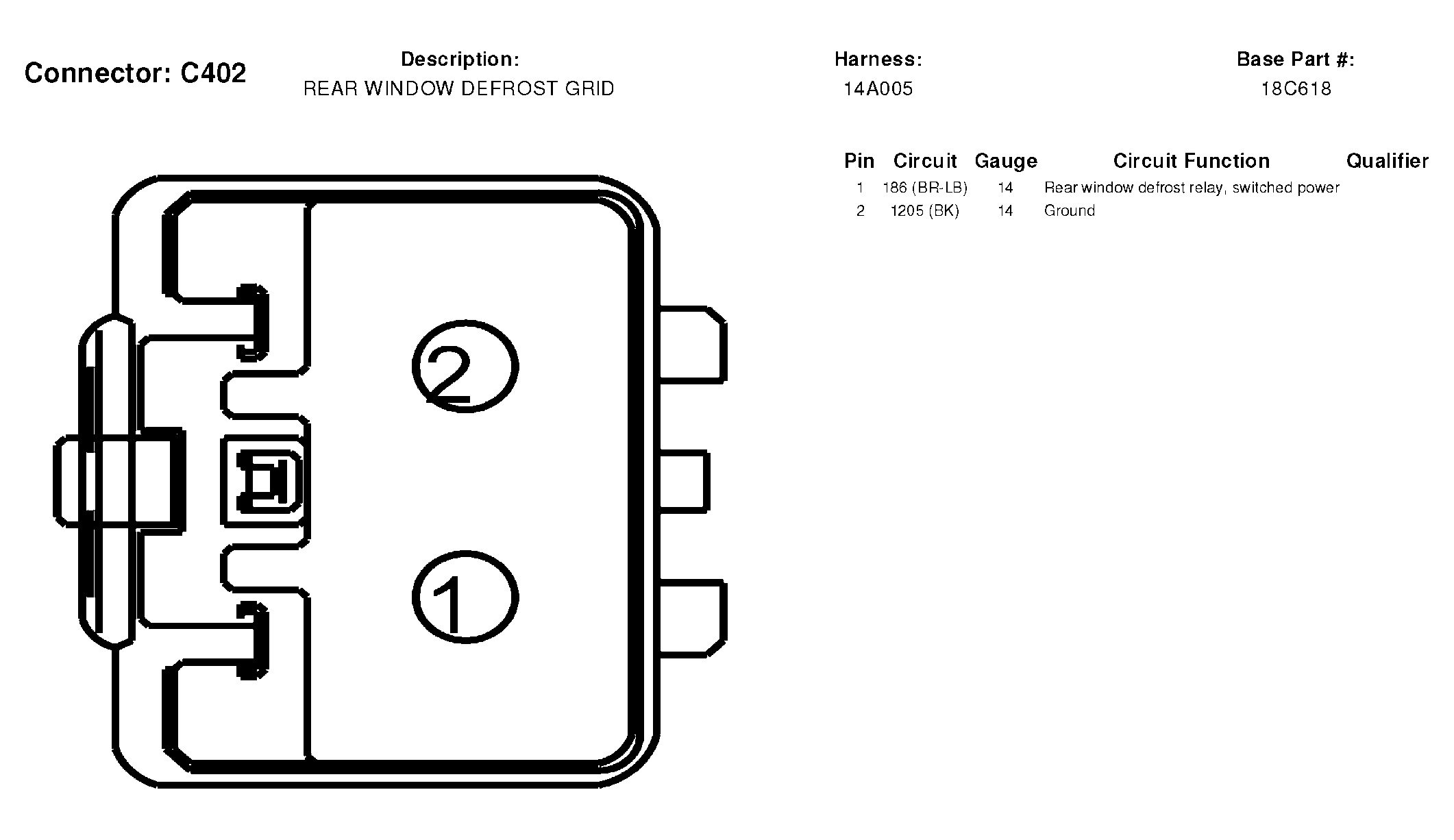

Fig 107: Rear Window Defrost Grid Connector End View (C402)
Courtesy of FORD MOTOR CO.

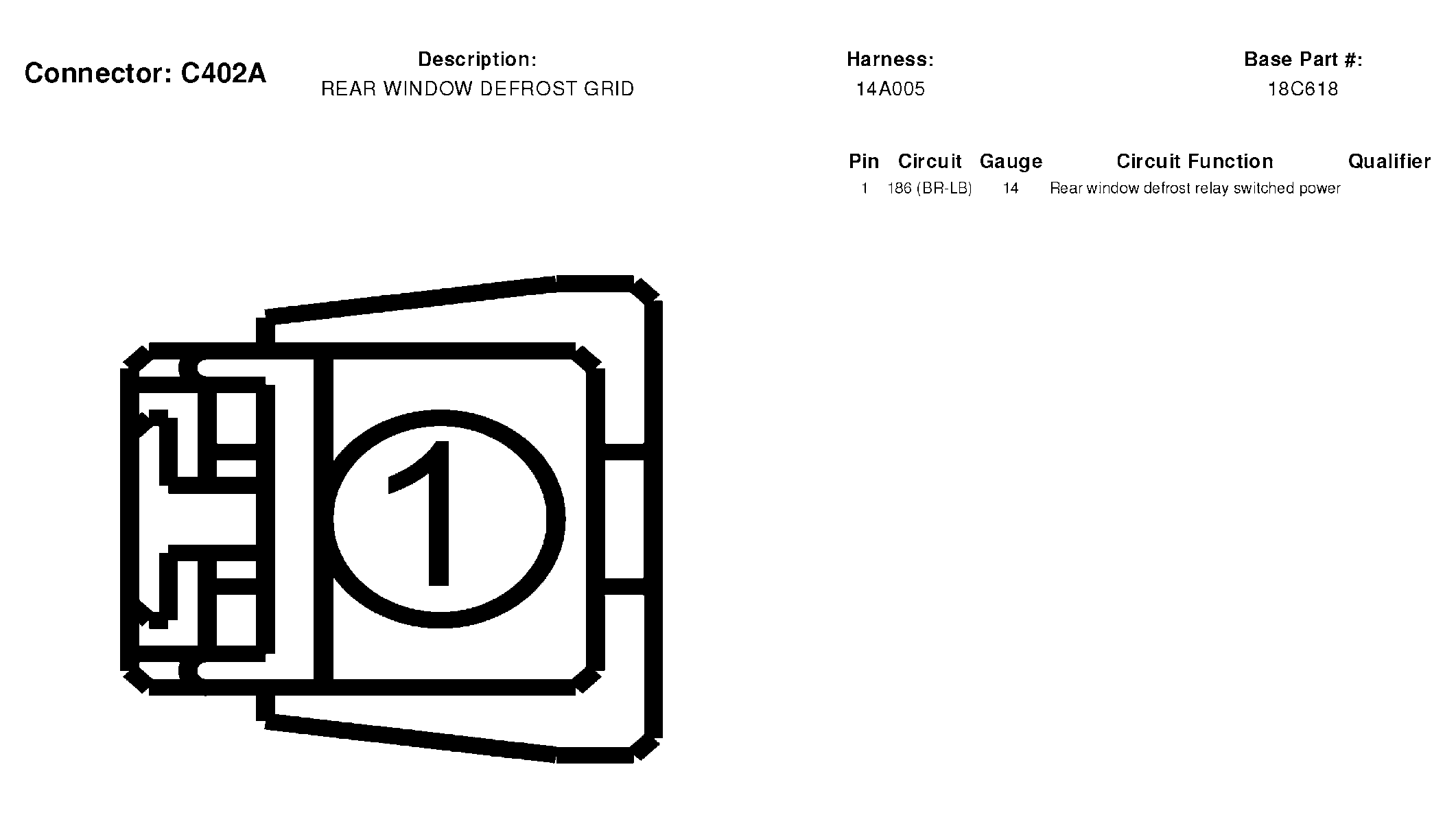

Fig 108: Rear Window Defrost Grid Connector End View (C402A)
Courtesy of FORD MOTOR CO.

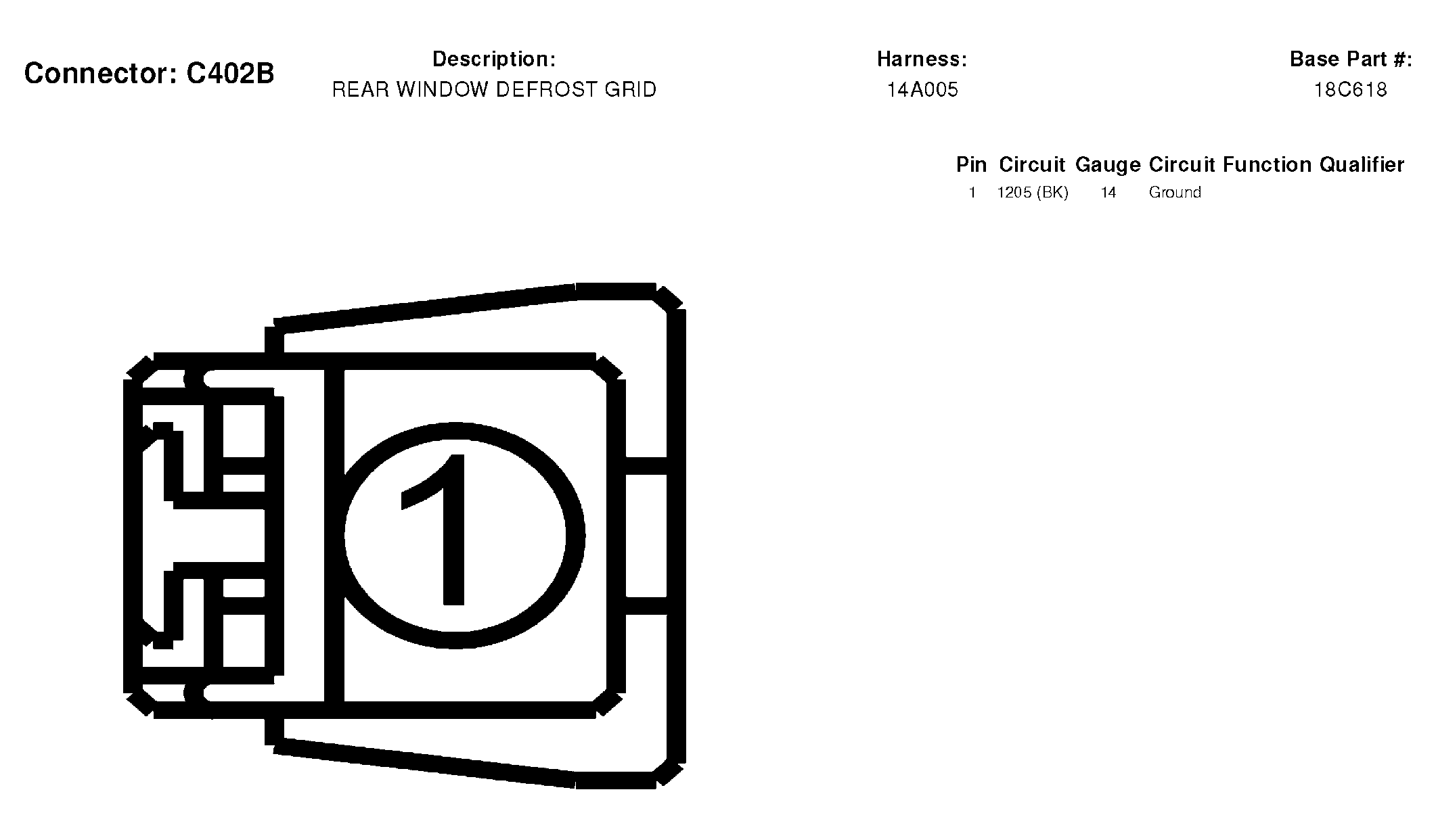

Fig 109: Rear Window Defrost Grid Connector End View (C402B)
Courtesy of FORD MOTOR CO.

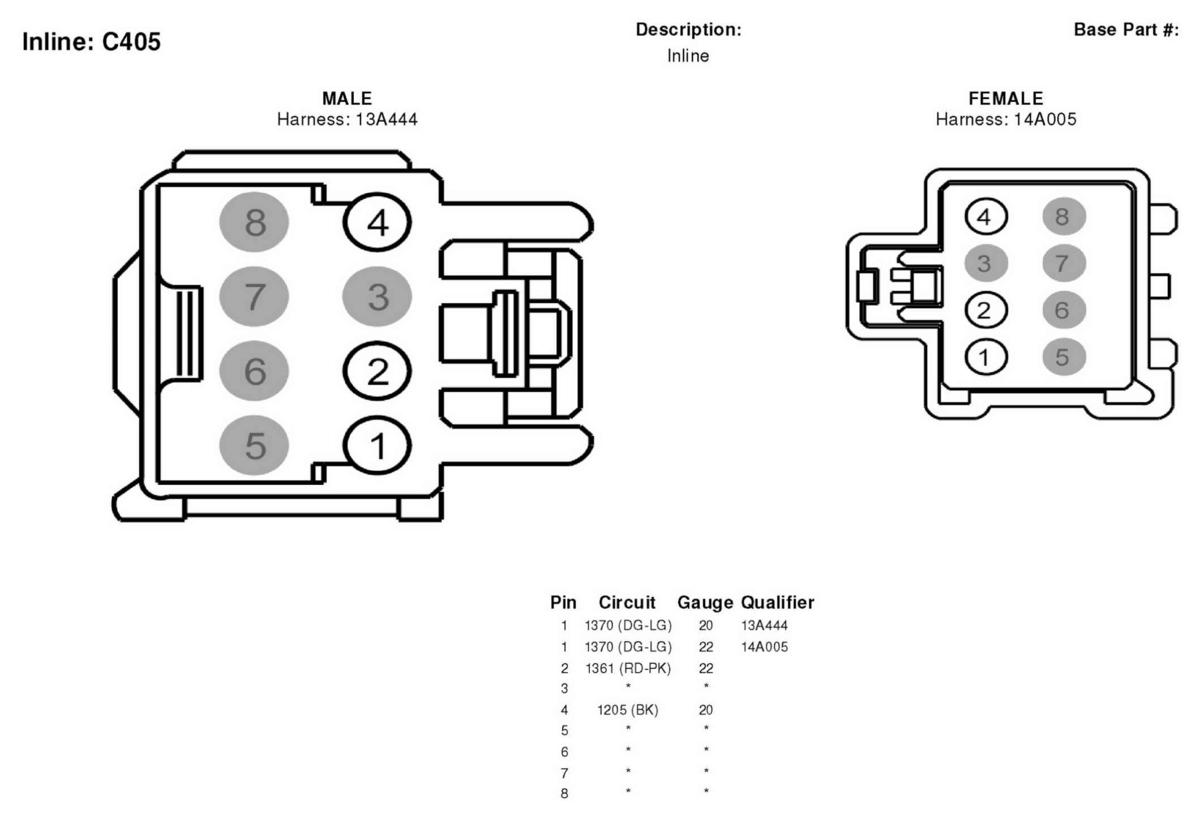

Fig 110: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.

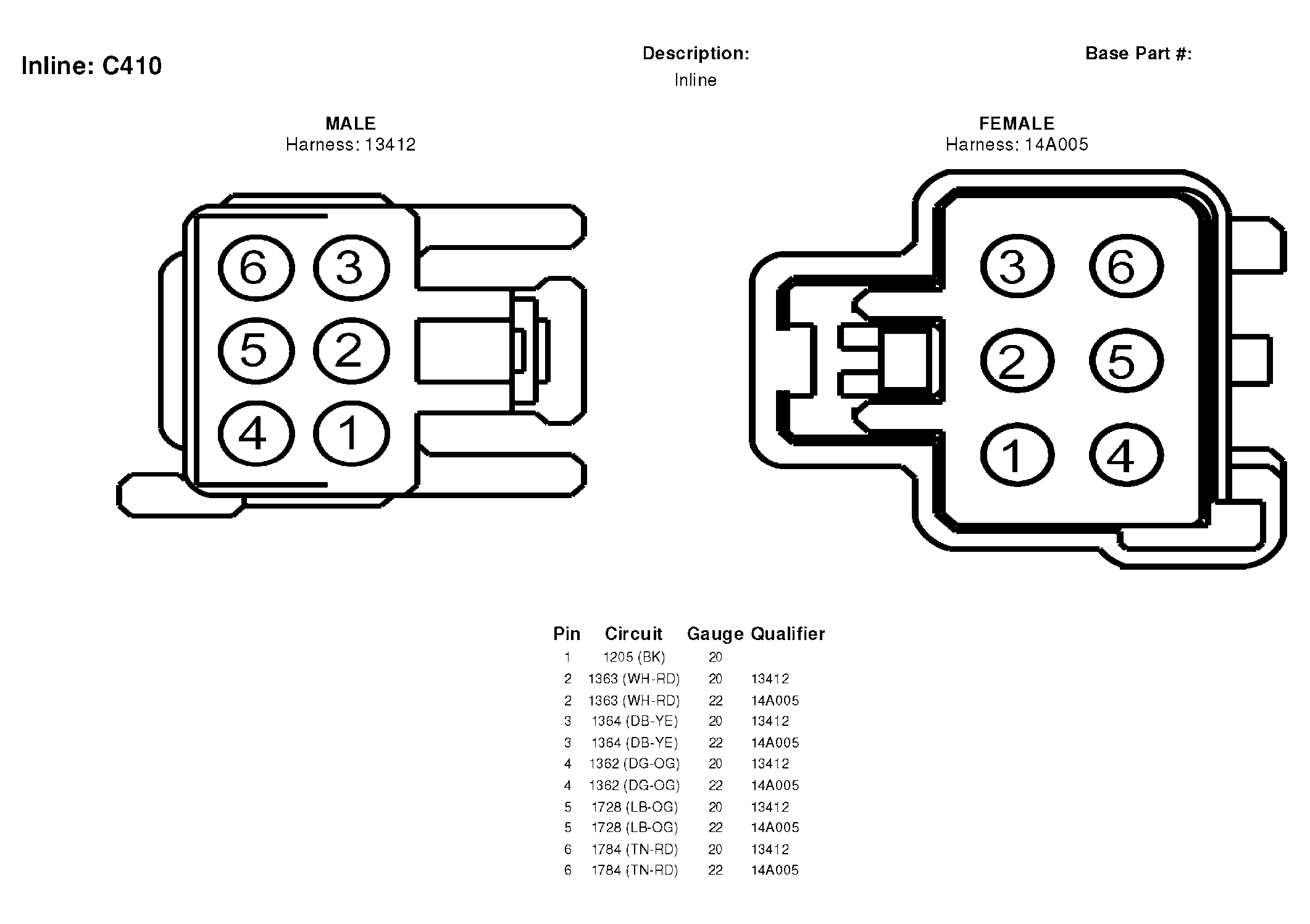

Fig 111: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.

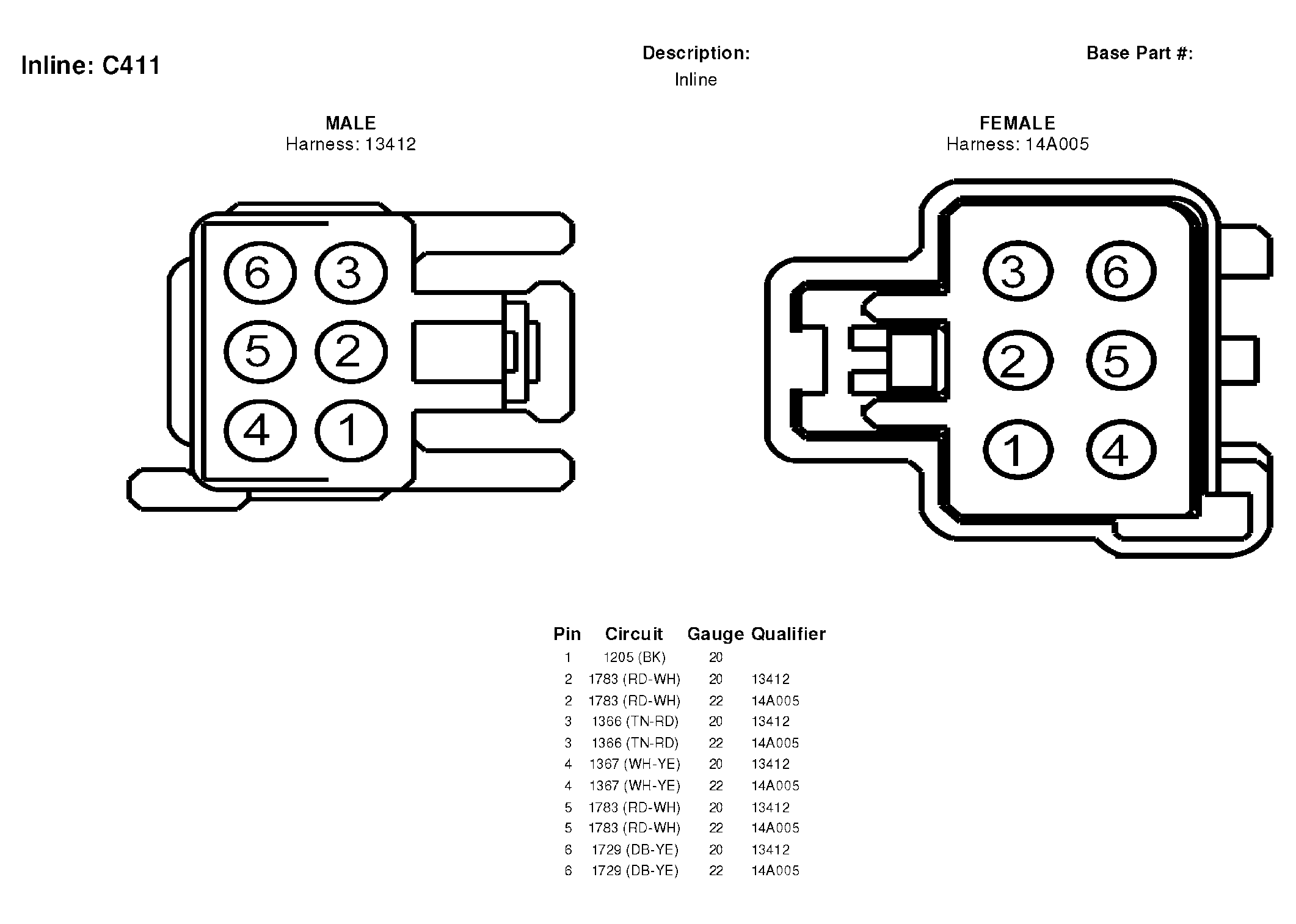

Fig 112: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.

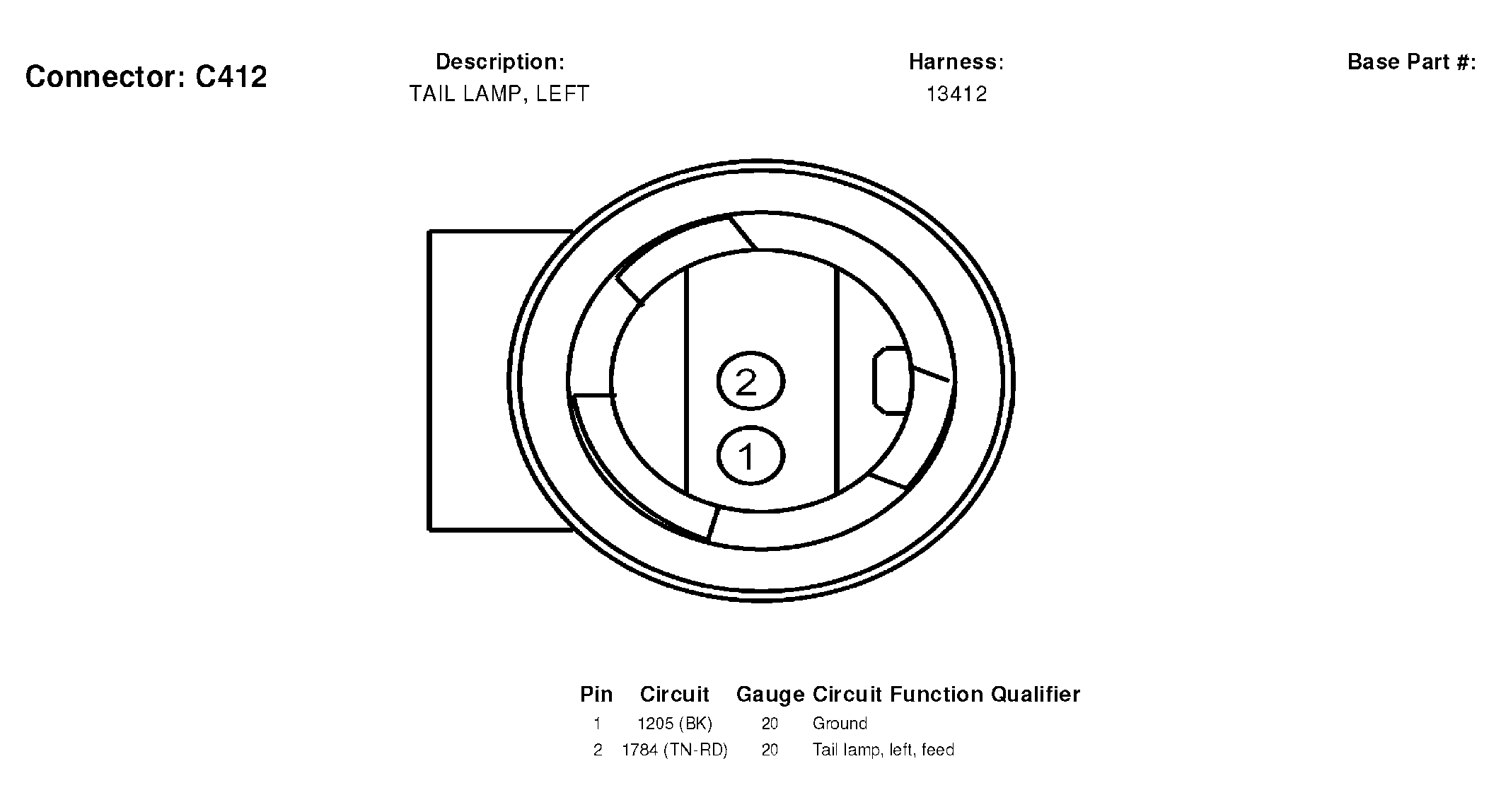

Fig 113: Tail Lamp, Left Connector End View (C412)
Courtesy of FORD MOTOR CO.

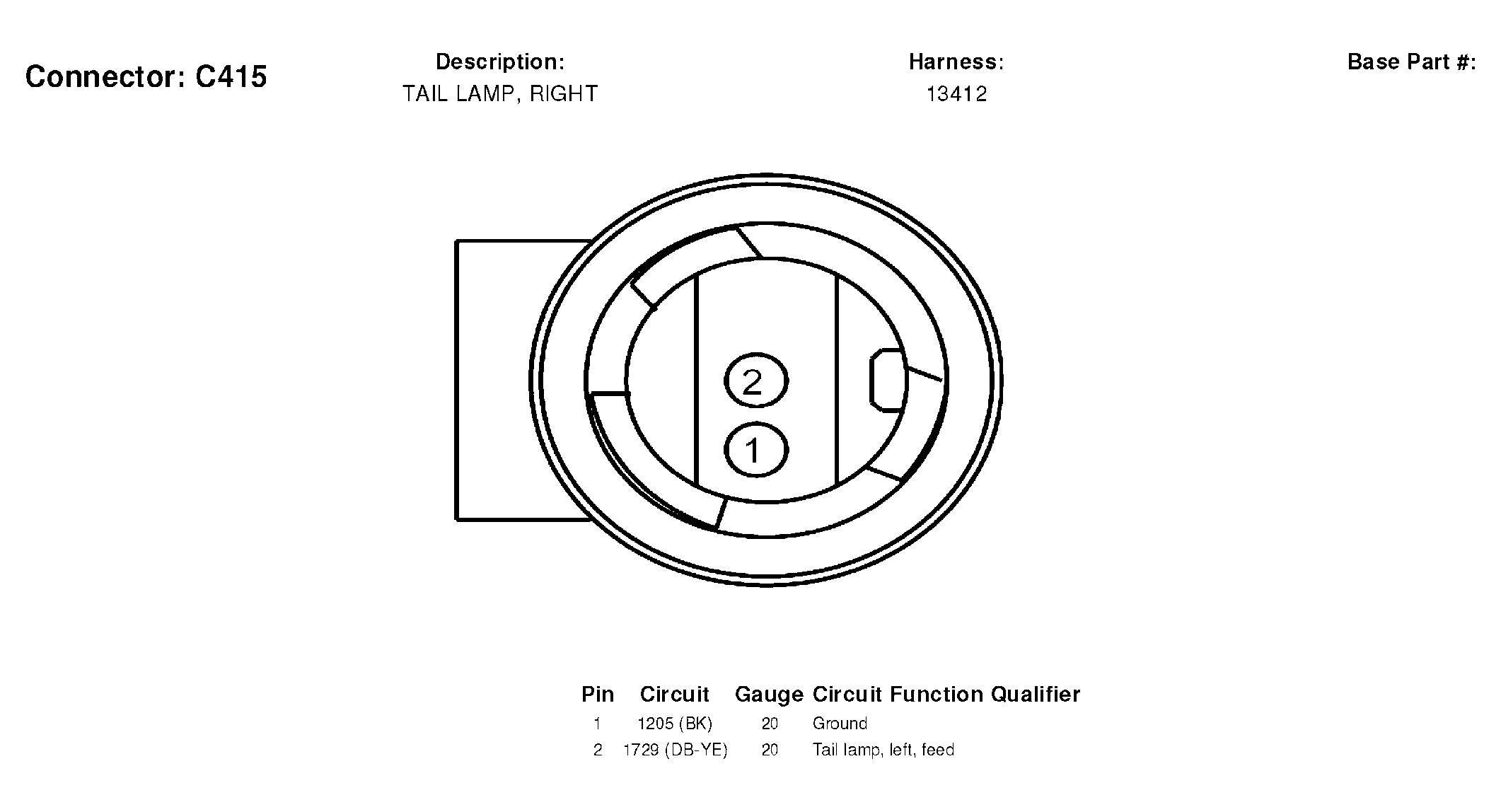

Fig 114: Tail Lamp, Right Connector End View (C415)
Courtesy of FORD MOTOR CO.

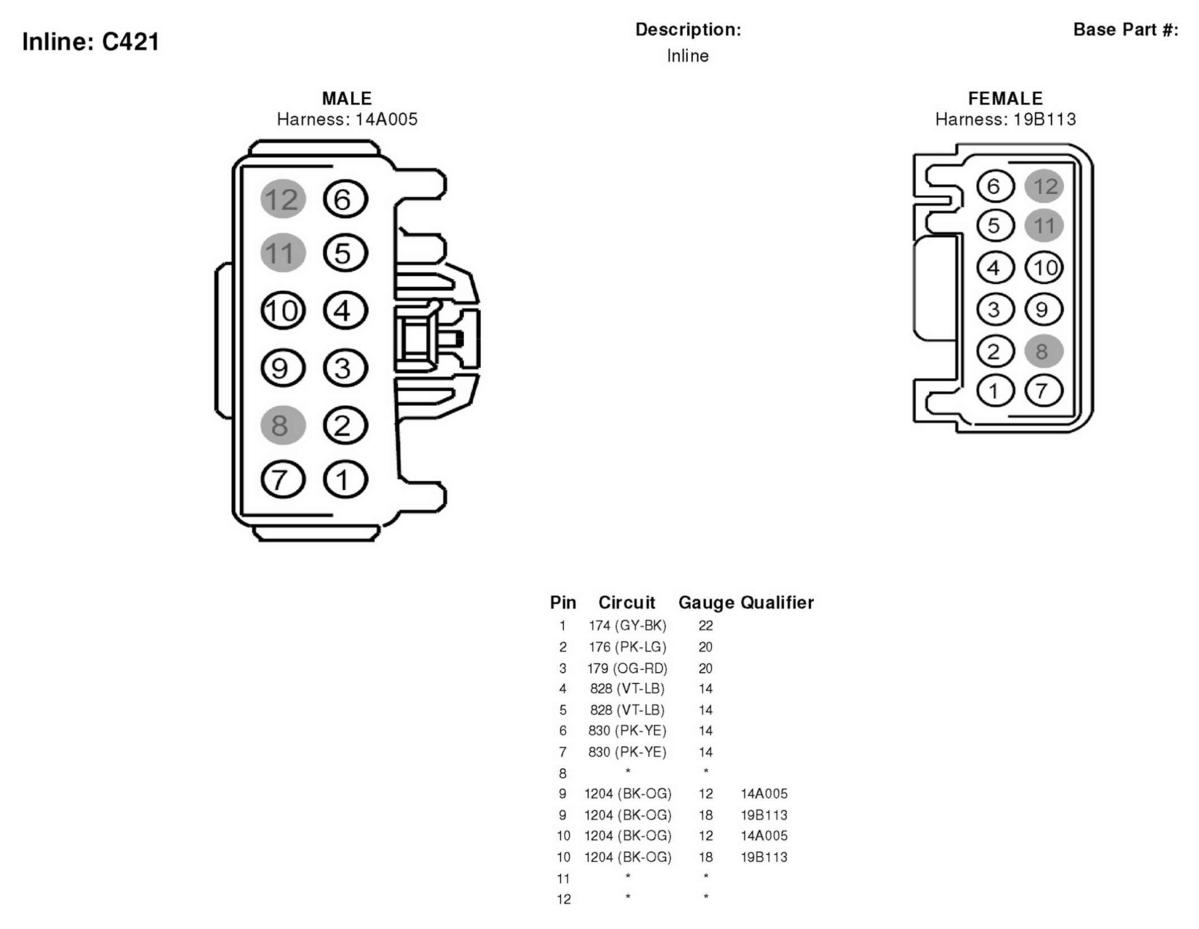

Fig 115: Inline Connector End View (C421)
Courtesy of FORD MOTOR CO.

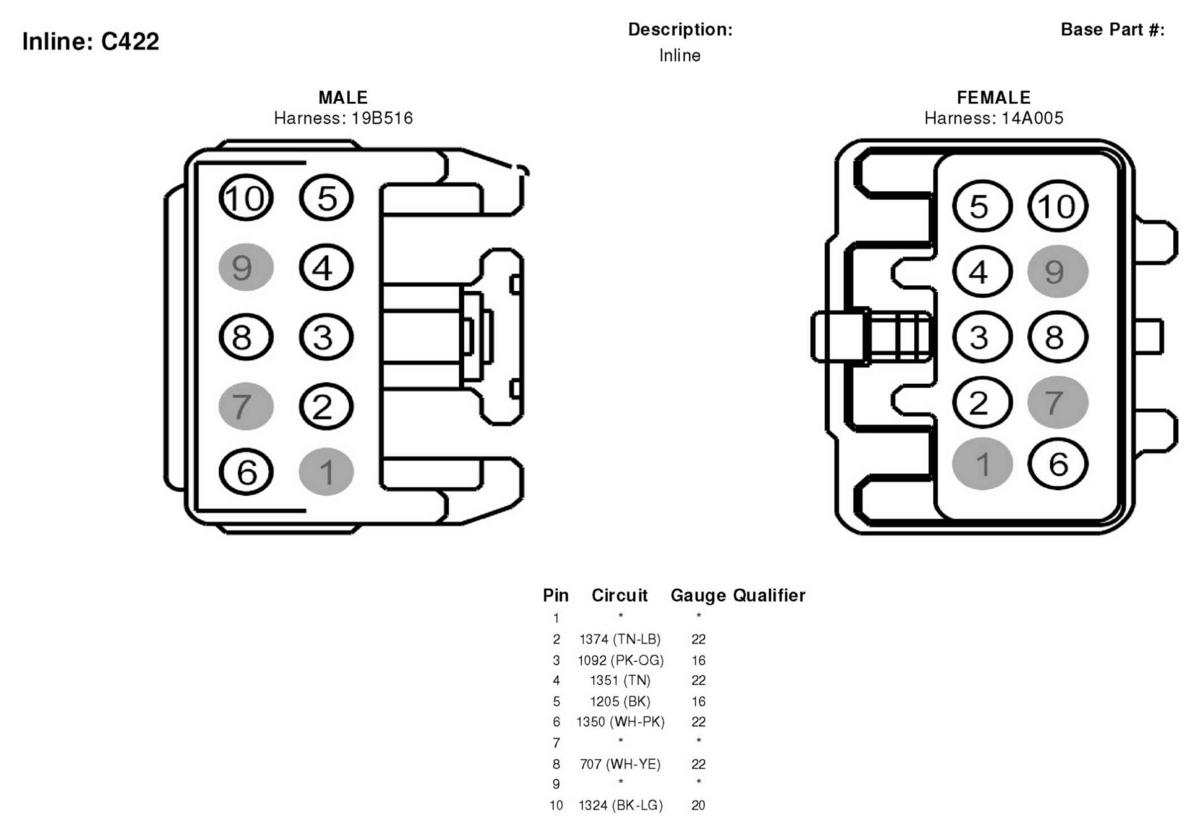

Fig 116: Inline Connector End View (C422)
Courtesy of FORD MOTOR CO.

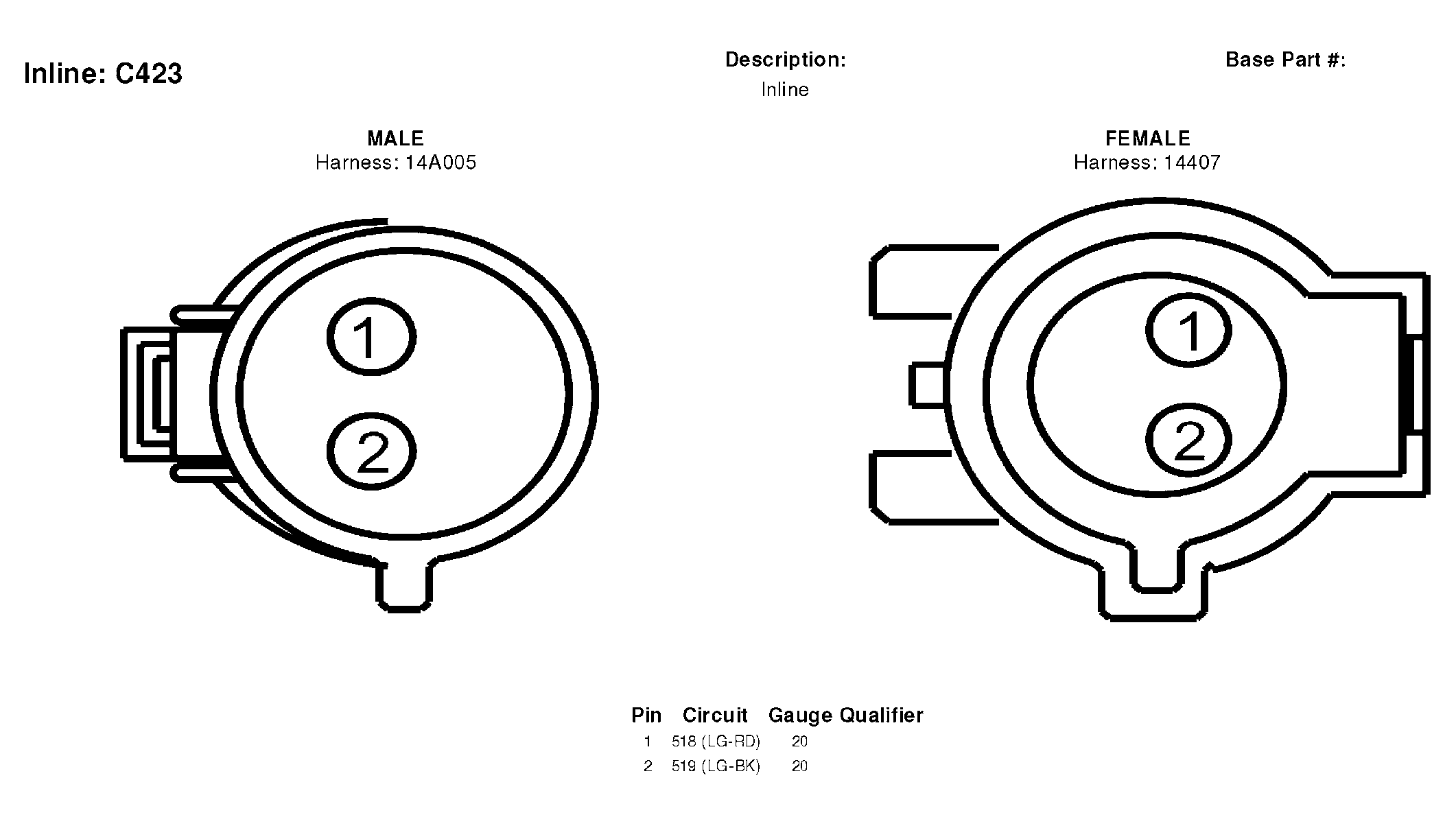

Fig 117: Inline Connector End View (C423)
Courtesy of FORD MOTOR CO.

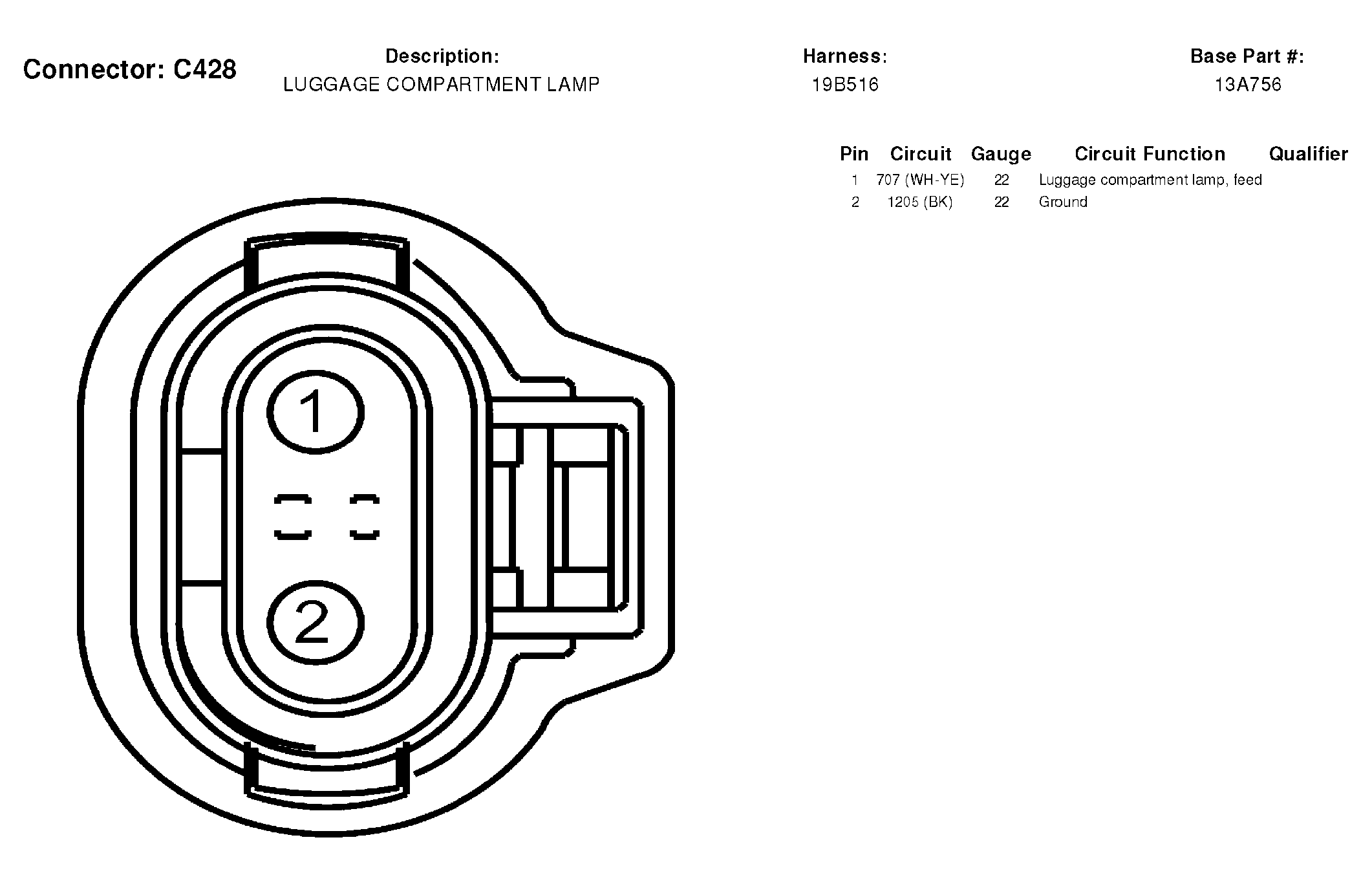

Fig 118: Luggage Compartment Lamp Connector End View (C428)
Courtesy of FORD MOTOR CO.

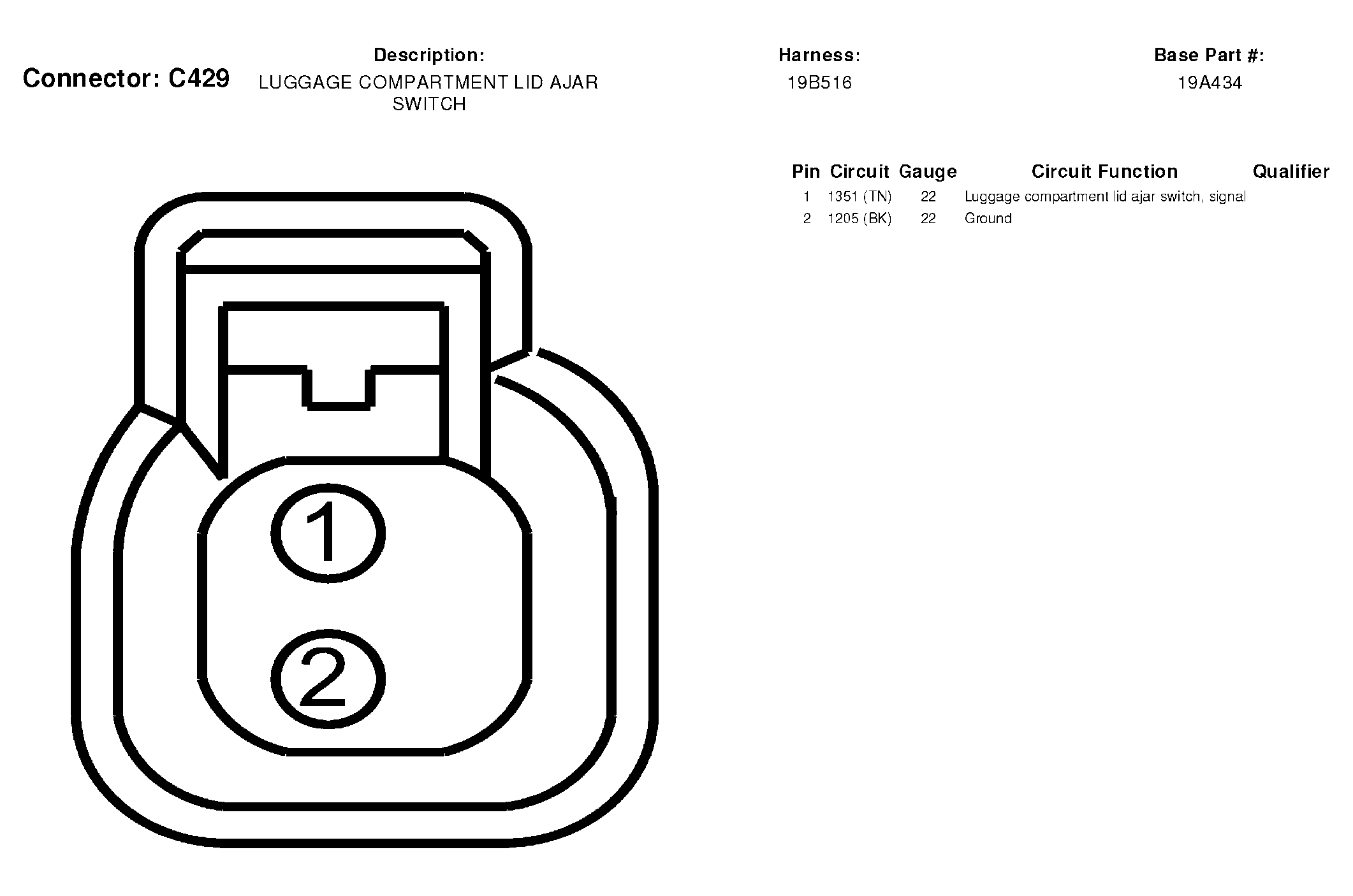

Fig 119: Luggage Compartment Lid Ajar Switch Connector End View (C429)
Courtesy of FORD MOTOR CO.

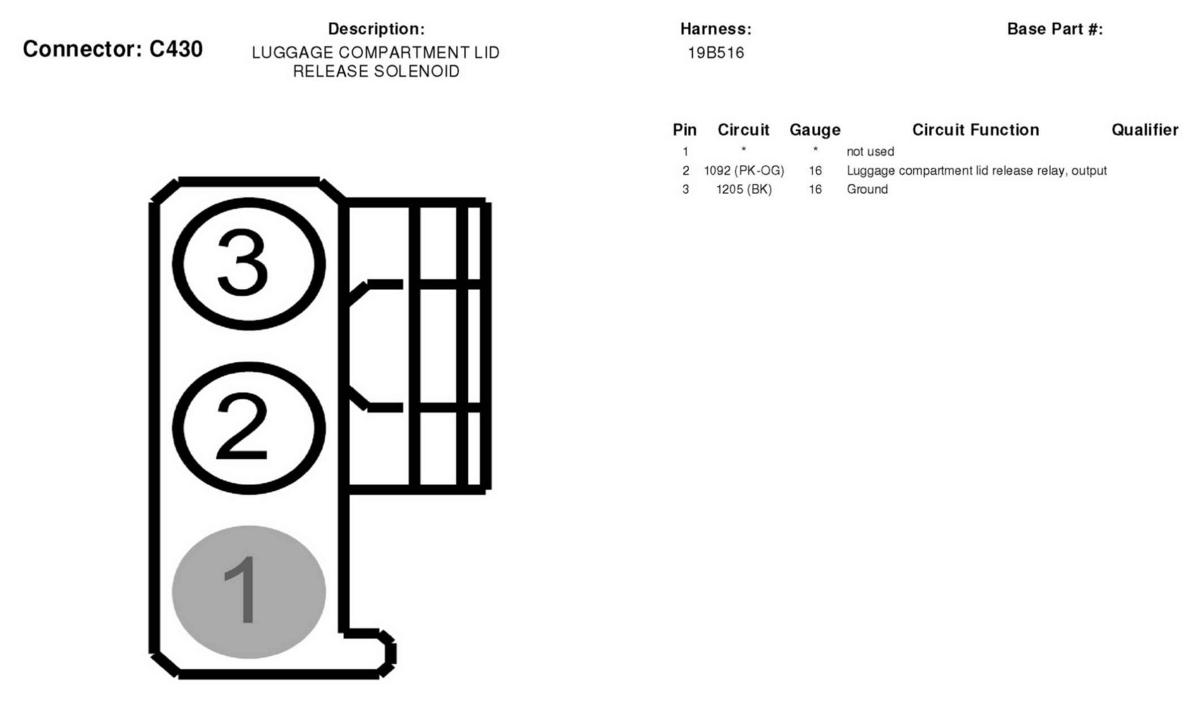

Fig 120: Luggage Compartment Lid Release Solenoid Connector End View (C430)
Courtesy of FORD MOTOR CO.

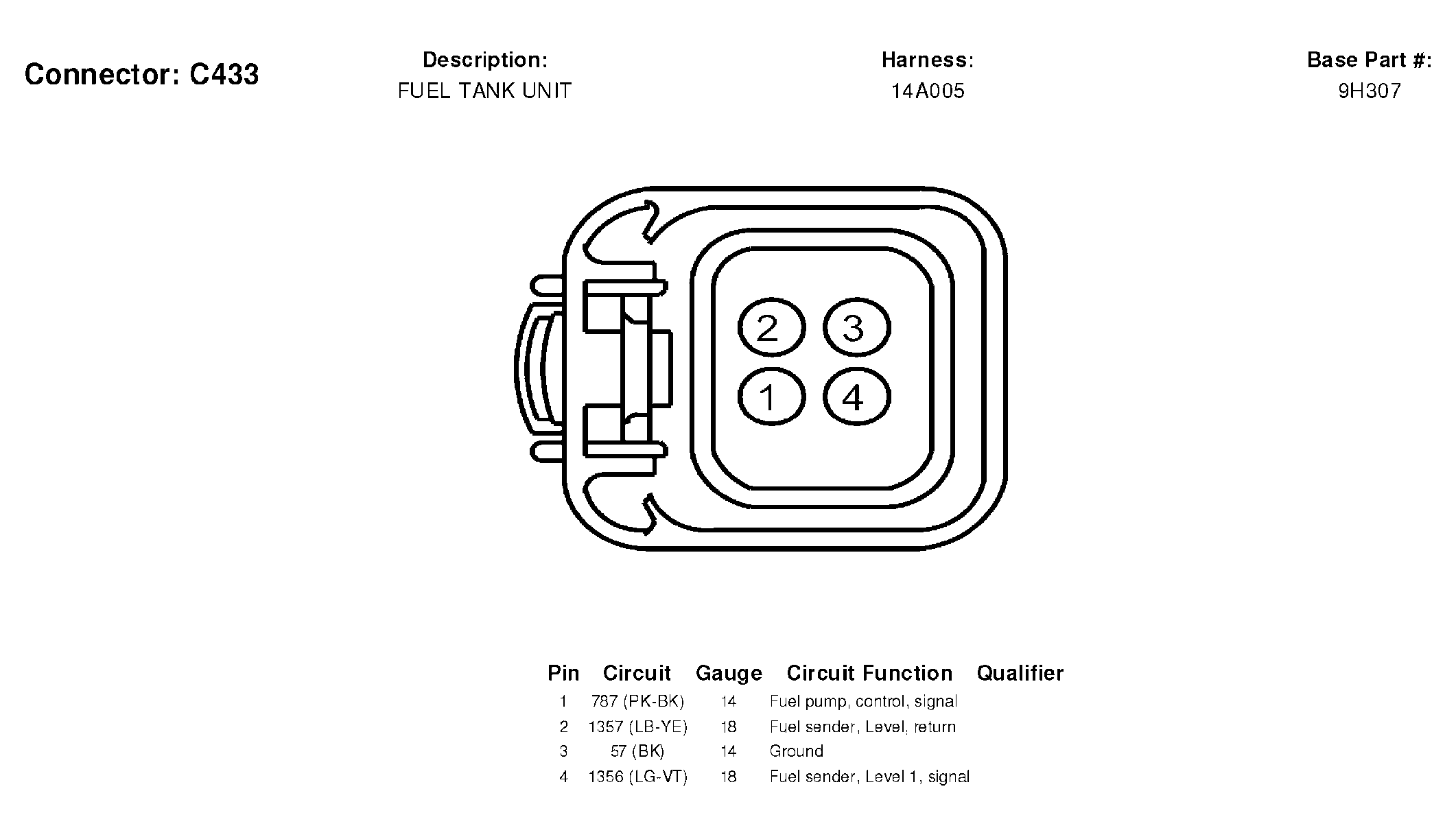

Fig 121: Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.

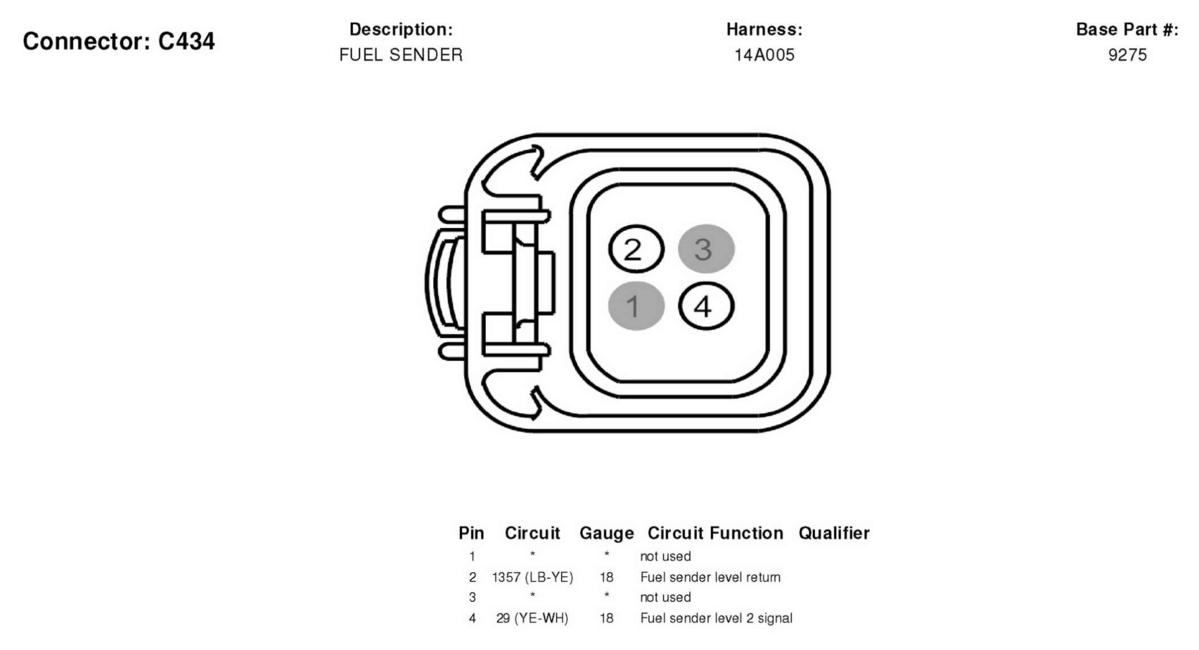

Fig 122: Fuel Sender Connector End View (C434)
Courtesy of FORD MOTOR CO.

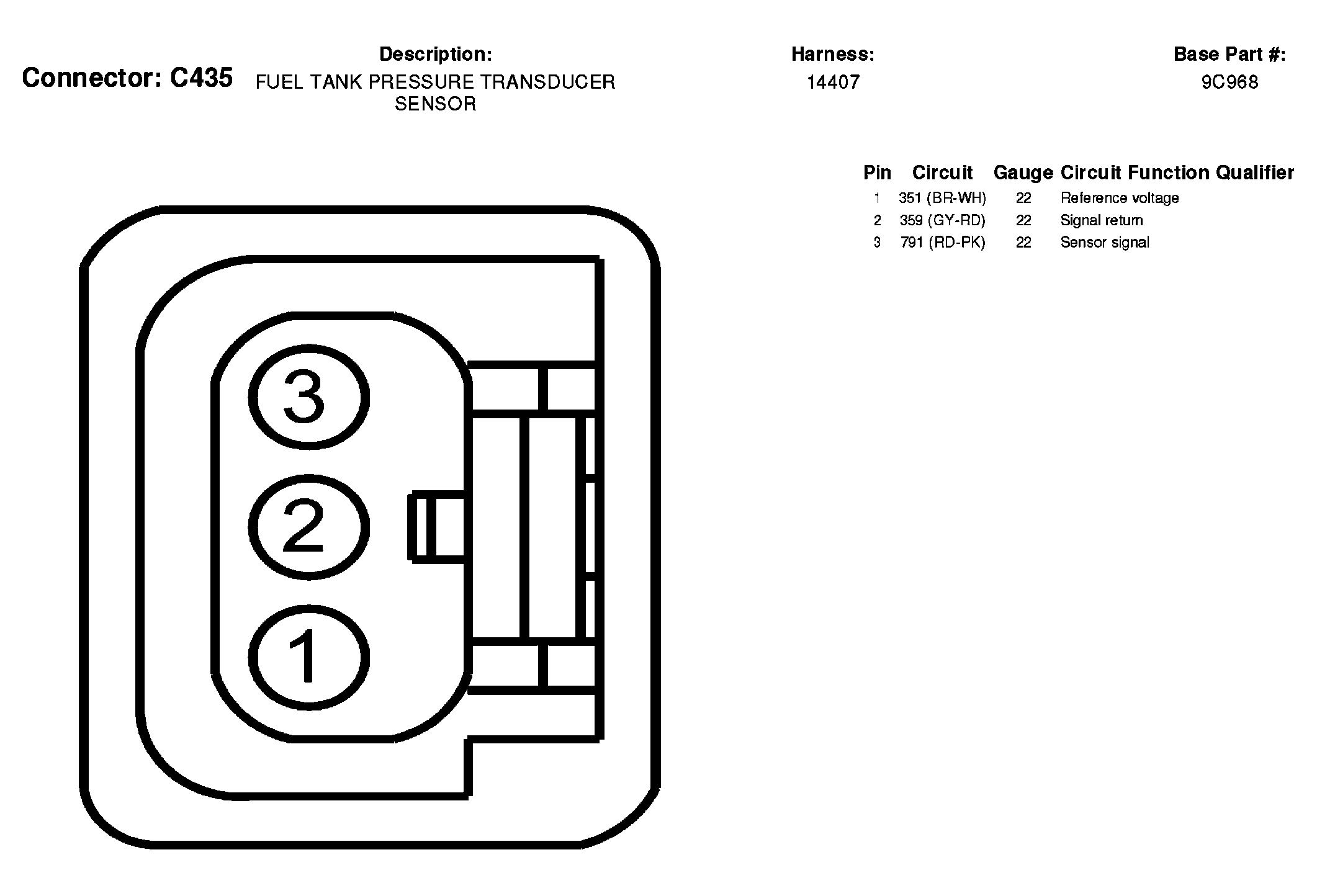

Fig 123: Fuel Tank Pressure Transducer Sensor Connector End View (C435)
Courtesy of FORD MOTOR CO.

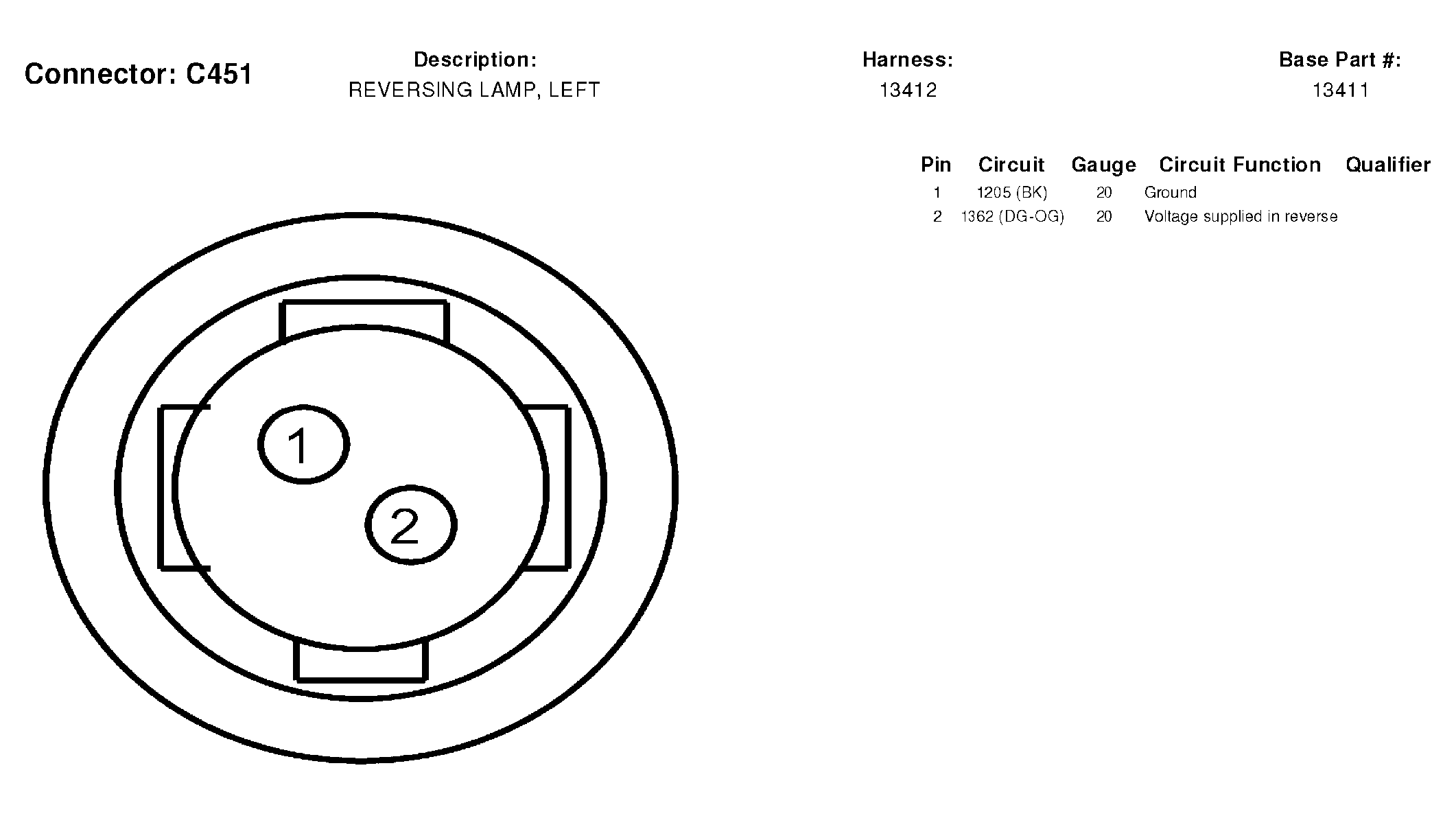

Fig 124: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.

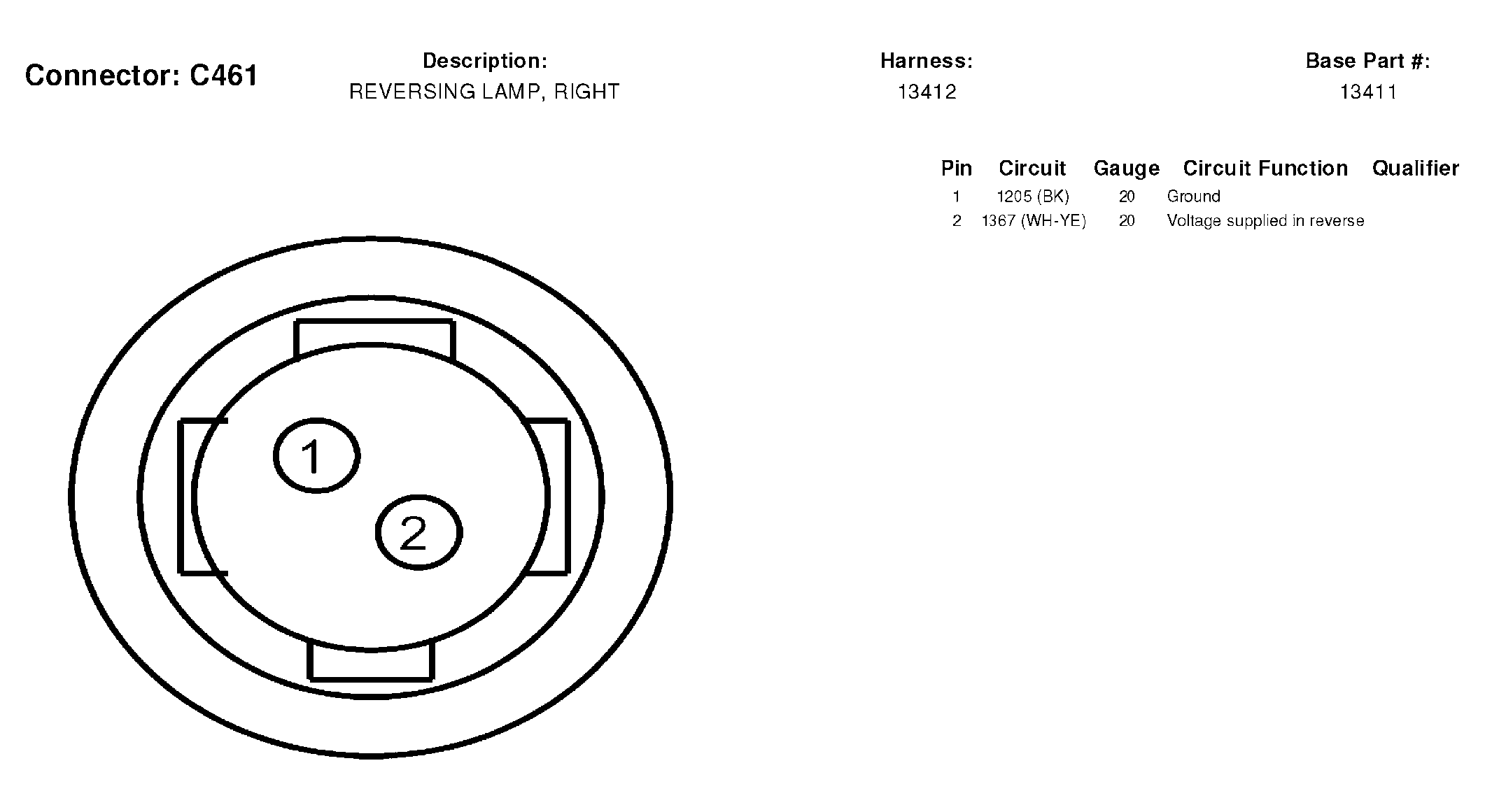

Fig 125: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.

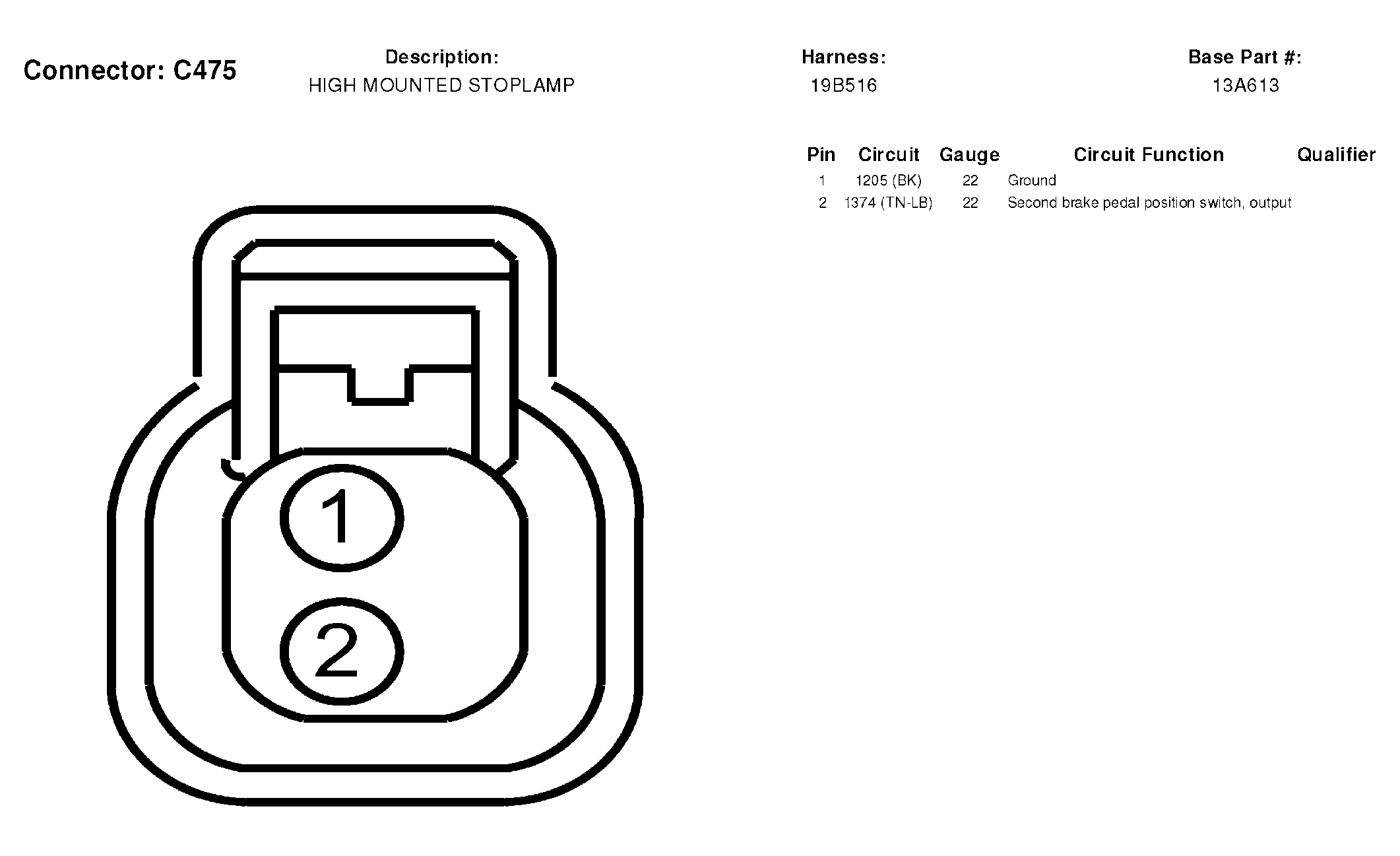

Fig 126: High Mounted Stoplamp Connector End View (C475)
Courtesy of FORD MOTOR CO.
Fig 127: Side Lamp, Left Rear Connector End View (C481)
Courtesy of FORD MOTOR CO.
Fig 128: Side Lamp, Right Rear Connector End View (C482)
Courtesy of FORD MOTOR CO.

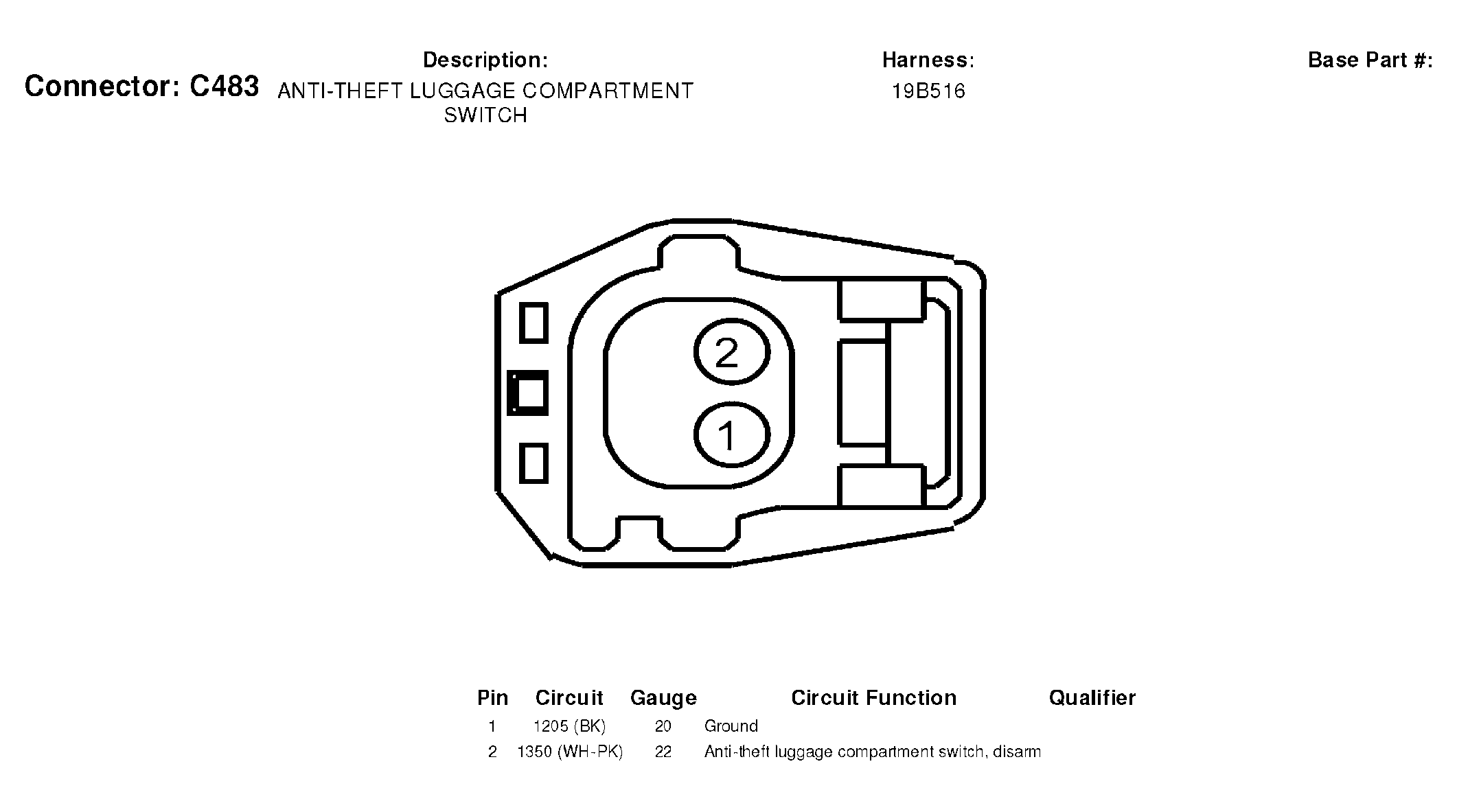

Fig 129: Anti-Theft Luggage Compartment Switch Connector End View (C483)
Courtesy of FORD MOTOR CO.
Fig 130: Speaker, Left Rear Connector End View (C484)
Courtesy of FORD MOTOR CO.

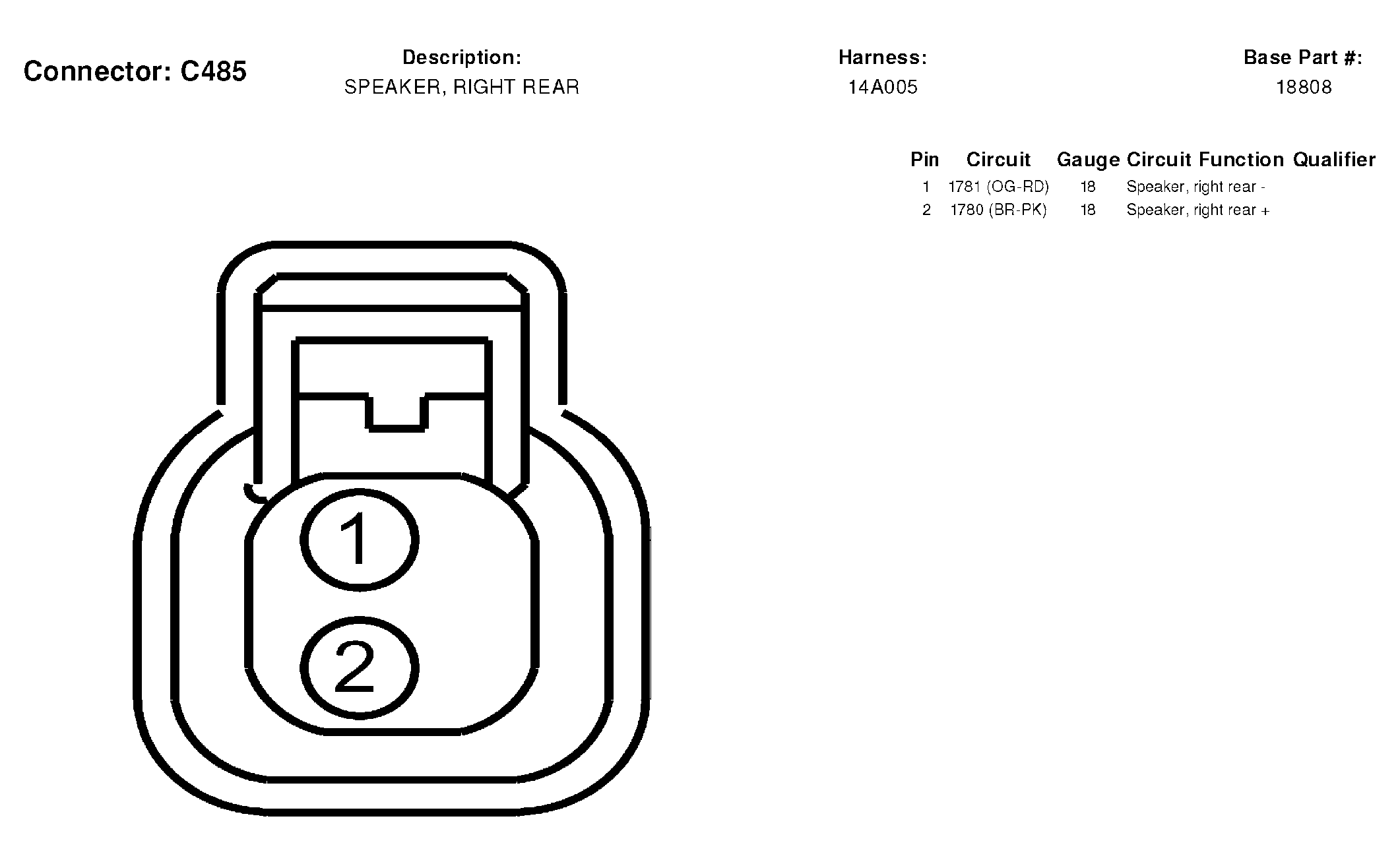

Fig 131: Speaker, Right Rear Connector End View (C485)
Courtesy of FORD MOTOR CO.

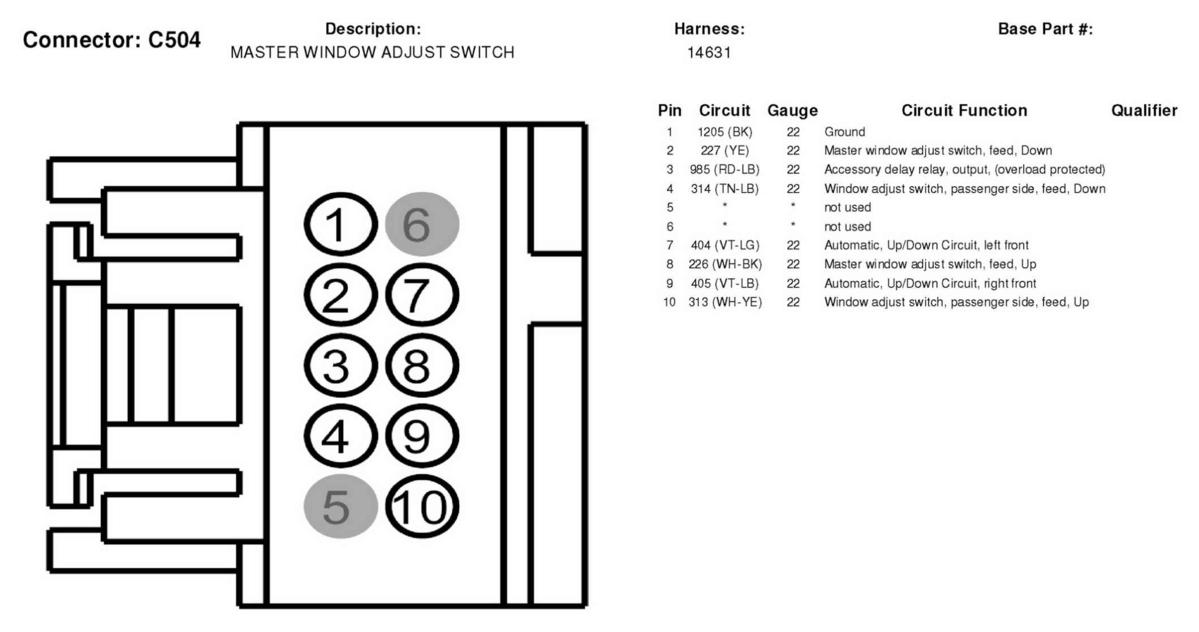

Fig 132: Master Window Adjust Switch Connector End View (C504)
Courtesy of FORD MOTOR CO.

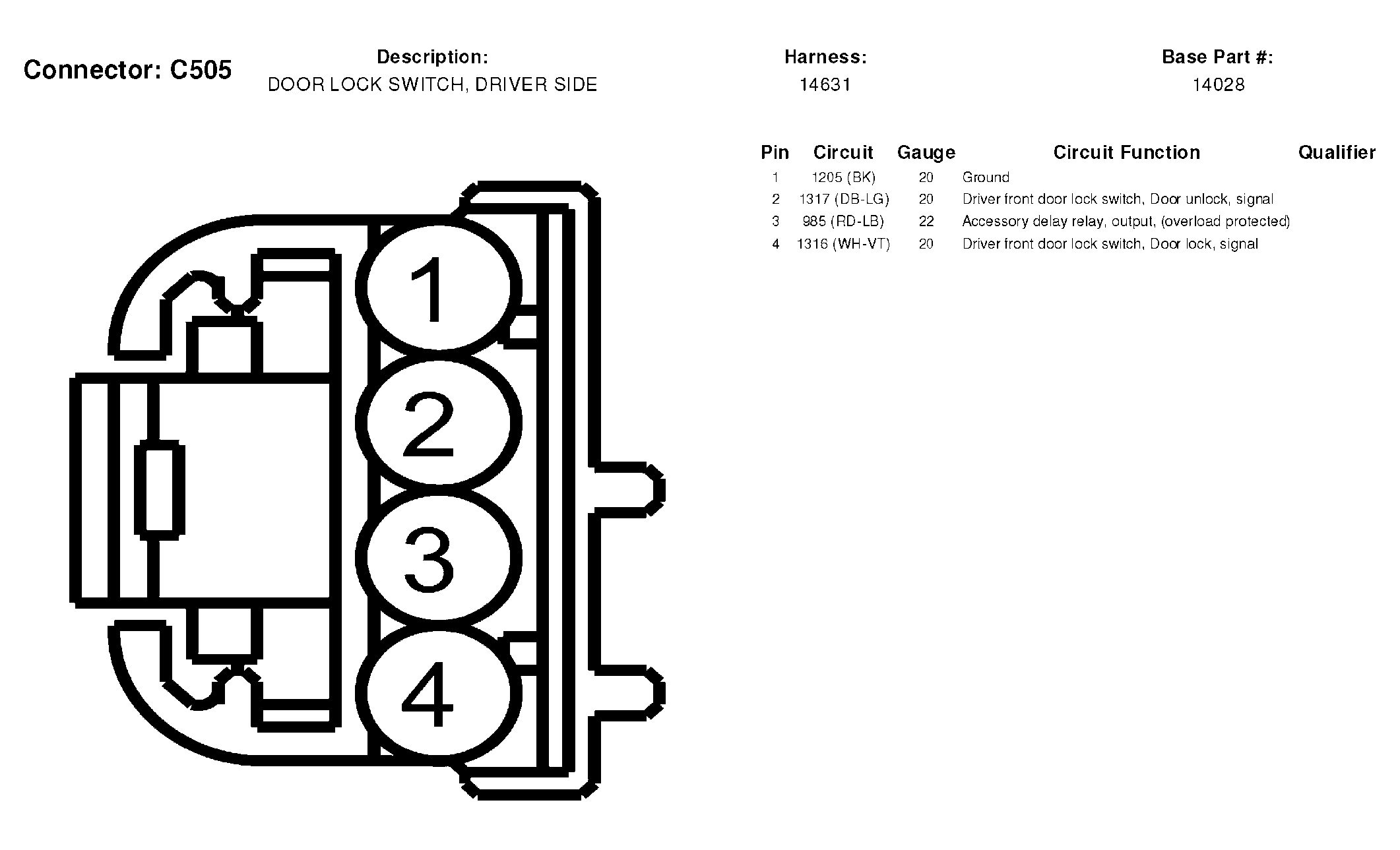

Fig 133: Door Lock Switch, Driver Side Connector End View (C505)
Courtesy of FORD MOTOR CO.

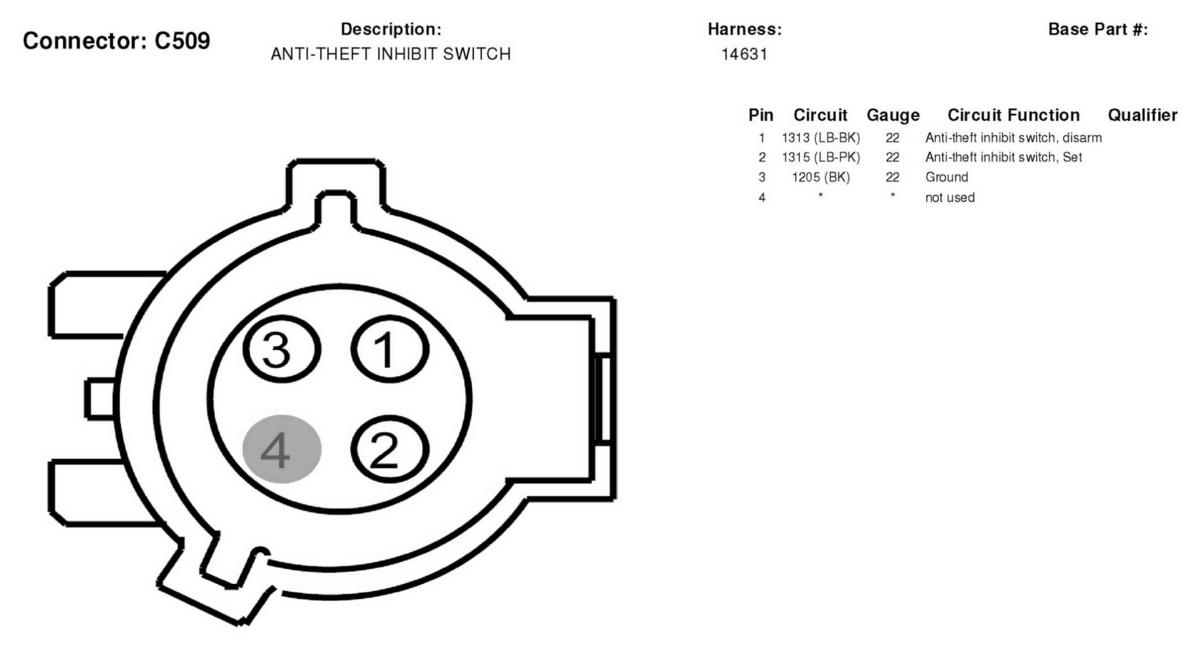

Fig 134: Anti-Theft Inhibit Switch Connector End View (C509)
Courtesy of FORD MOTOR CO.
Fig 135: Exterior Rear View Mirror, Left Connector End View (C516)
Courtesy of FORD MOTOR CO.

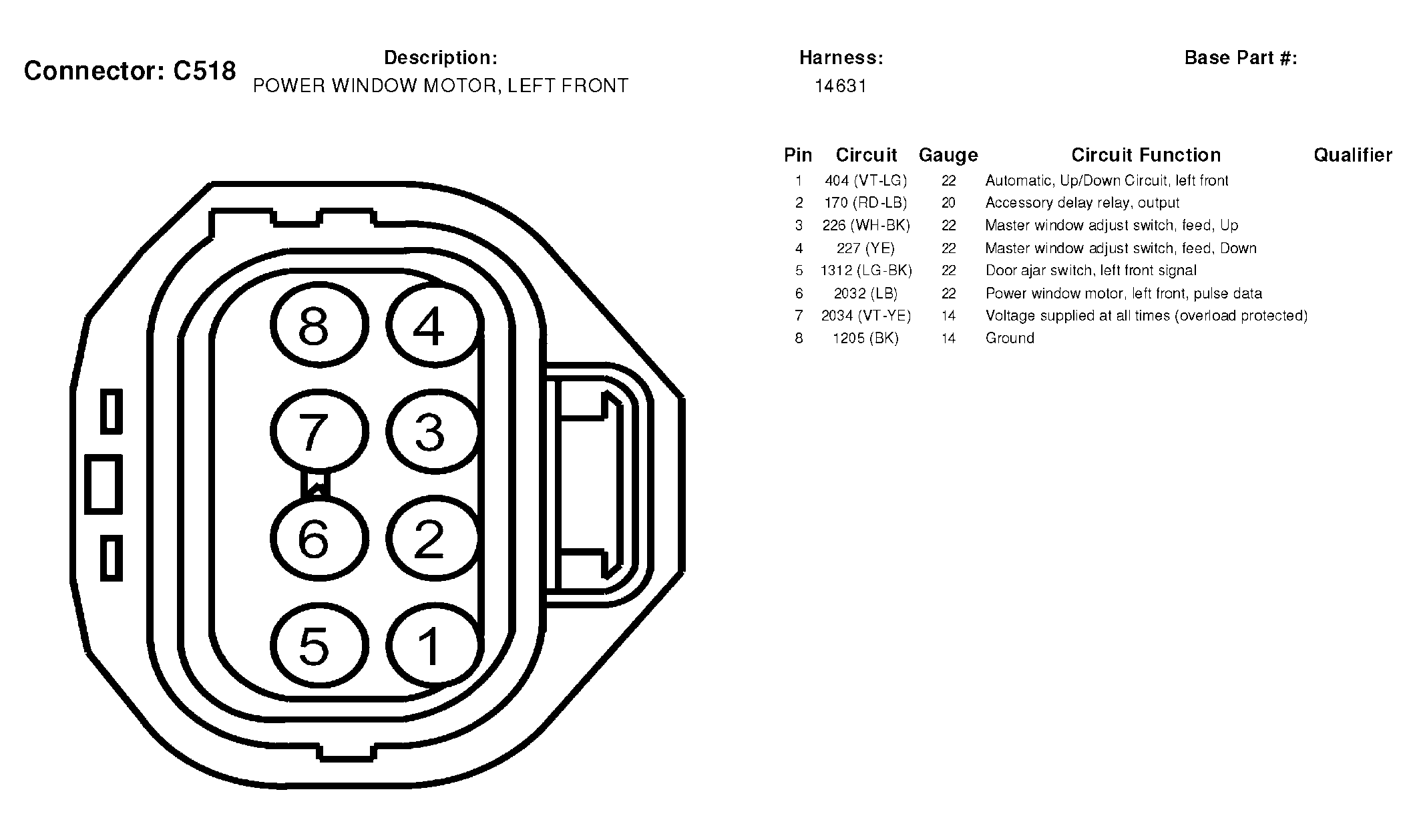

Fig 136: Power Window Motor, Left Front Connector End View (C518)
Courtesy of FORD MOTOR CO.
Fig 137: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.
Fig 138: Door Lock Actuator, Left Front Connector End View (C525)
Courtesy of FORD MOTOR CO.

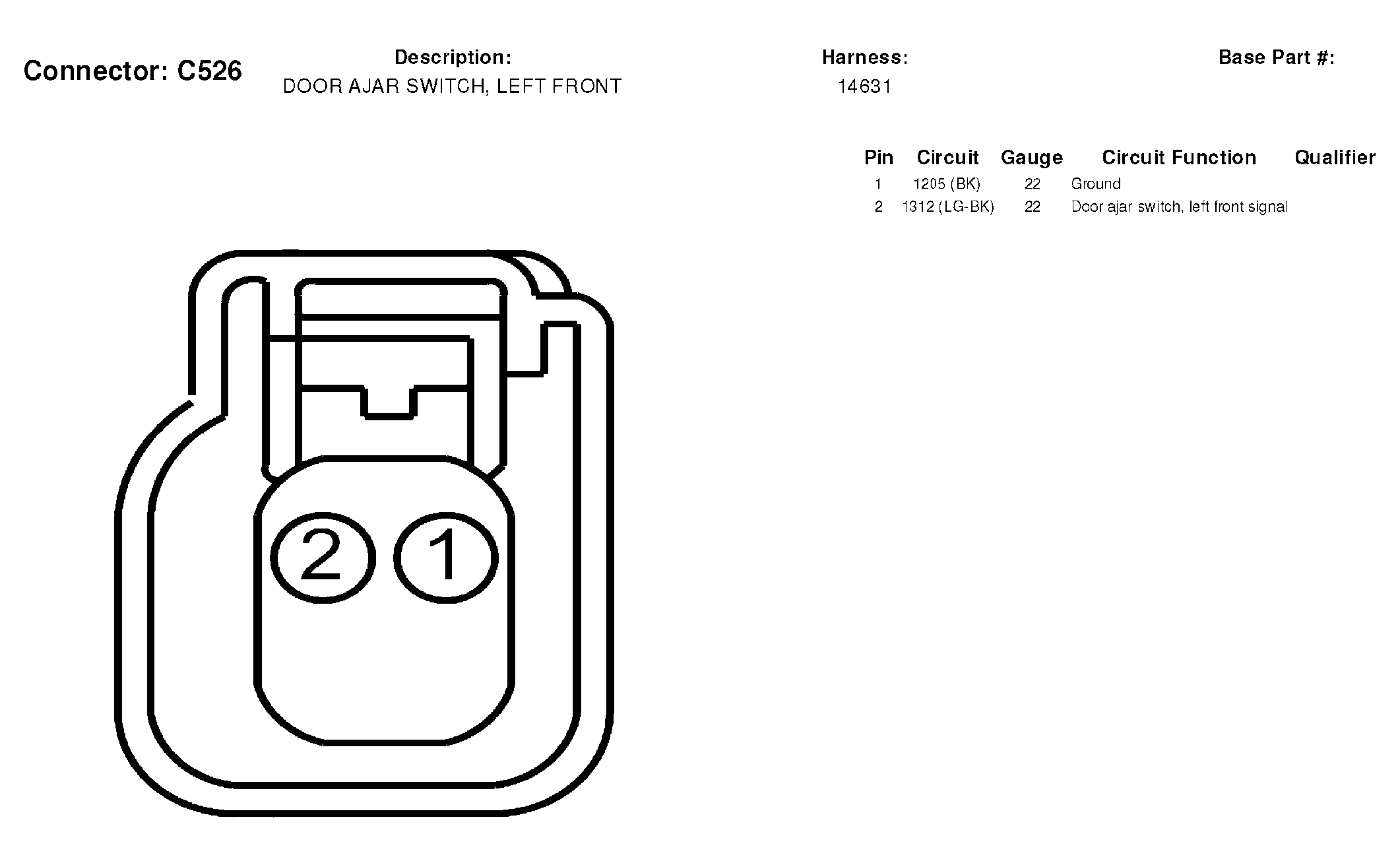

Fig 139: Door Ajar Switch, Left Front Connector End View (C526)
Courtesy of FORD MOTOR CO.

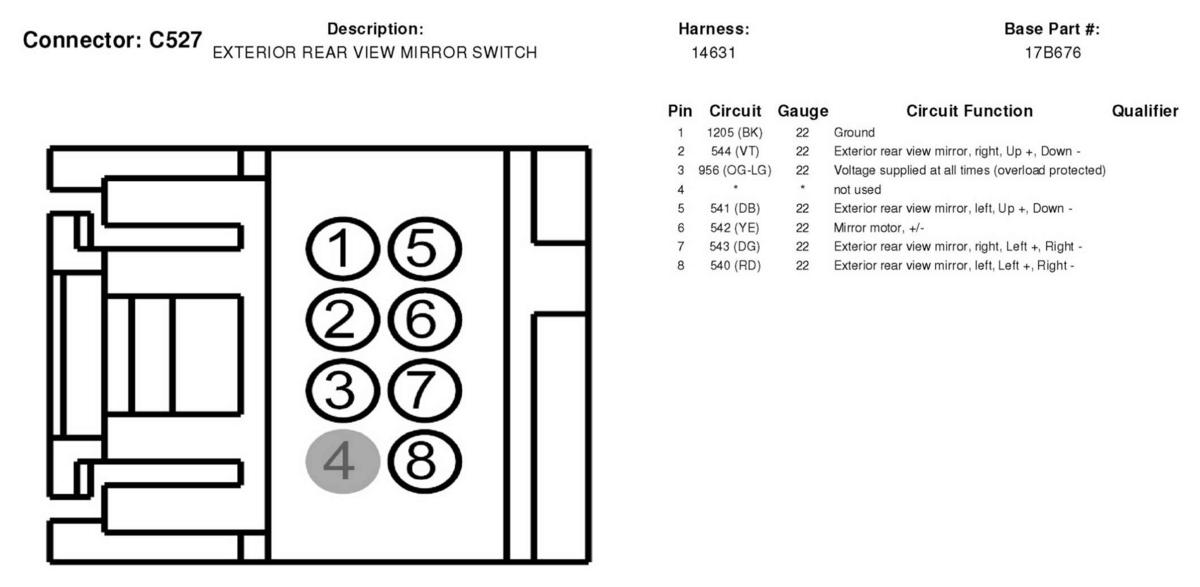

Fig 140: Exterior Rear View Mirror Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.

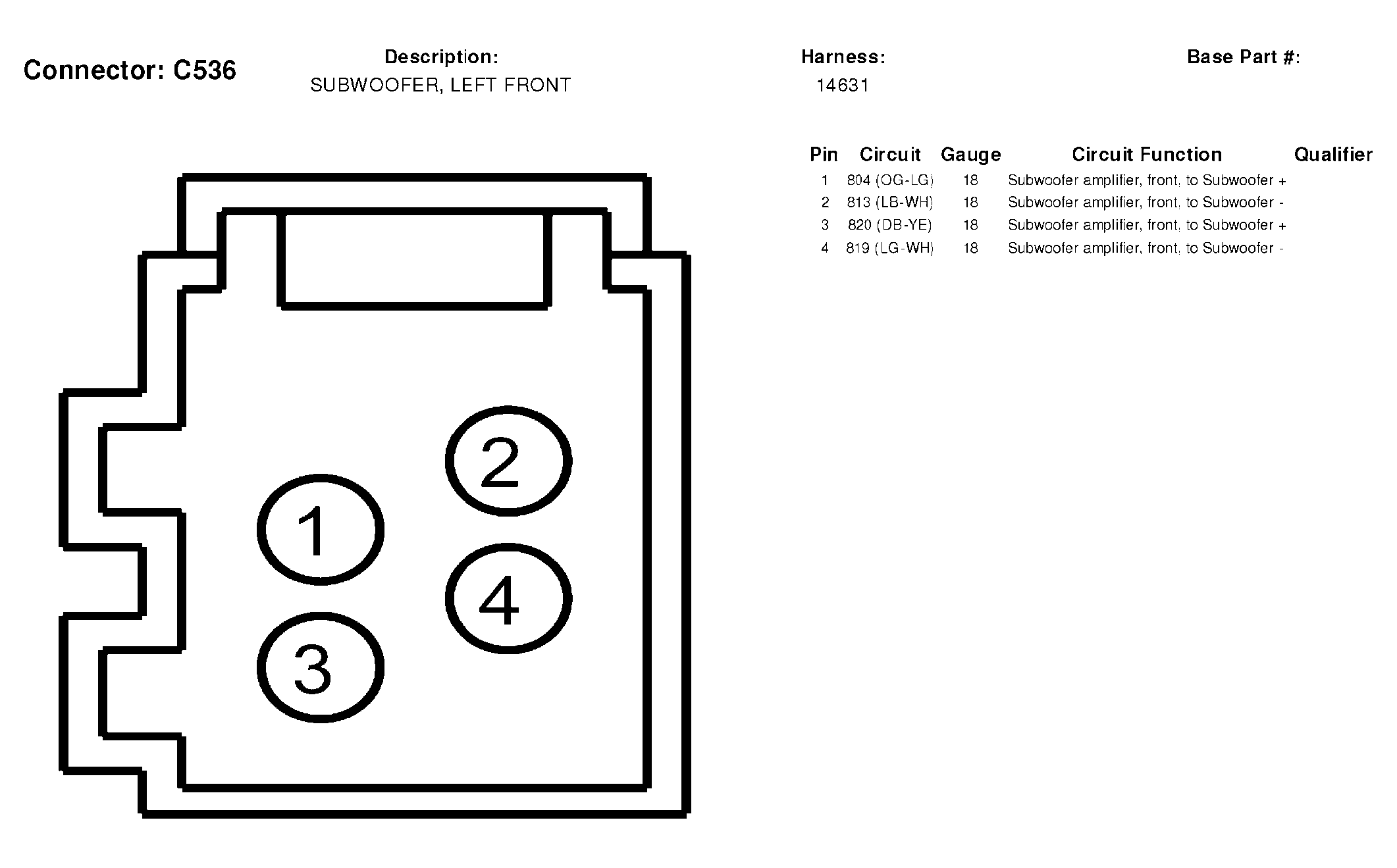

Fig 141: Subwoofer, Left Front Connector End View (C536)
Courtesy of FORD MOTOR CO.

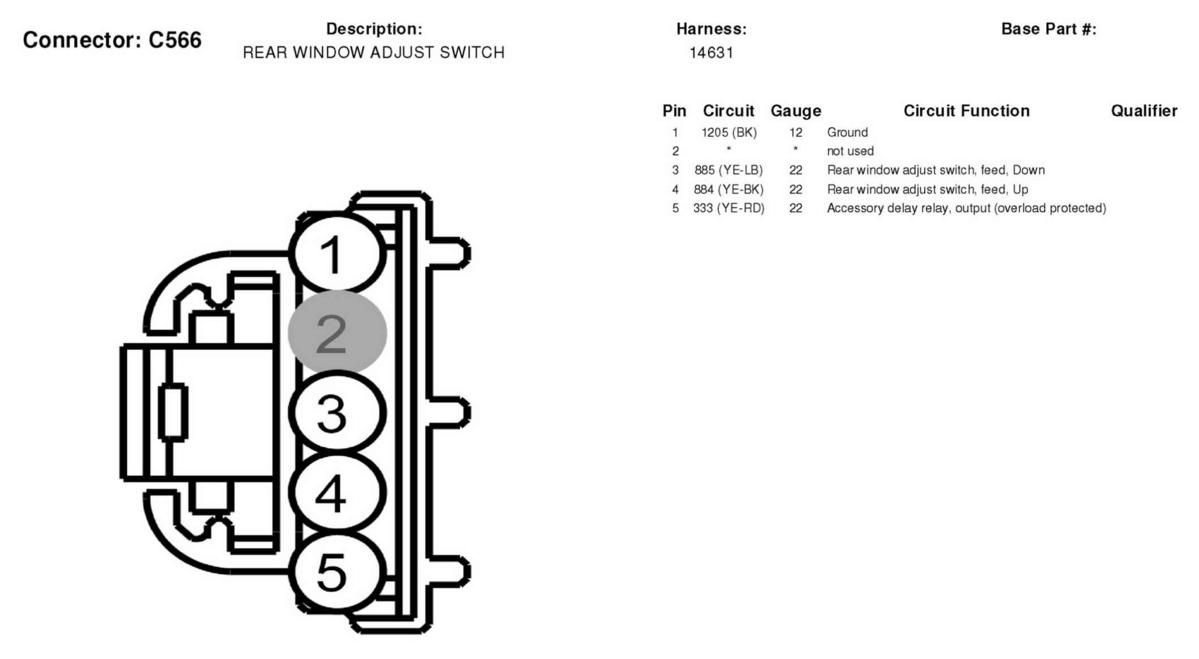

Fig 142: Rear Window Adjust Switch Connector End View (C566)
Courtesy of FORD MOTOR CO.
Fig 143: Door Ajar Switch, Right Front Connector End View (C602)
Courtesy of FORD MOTOR CO.

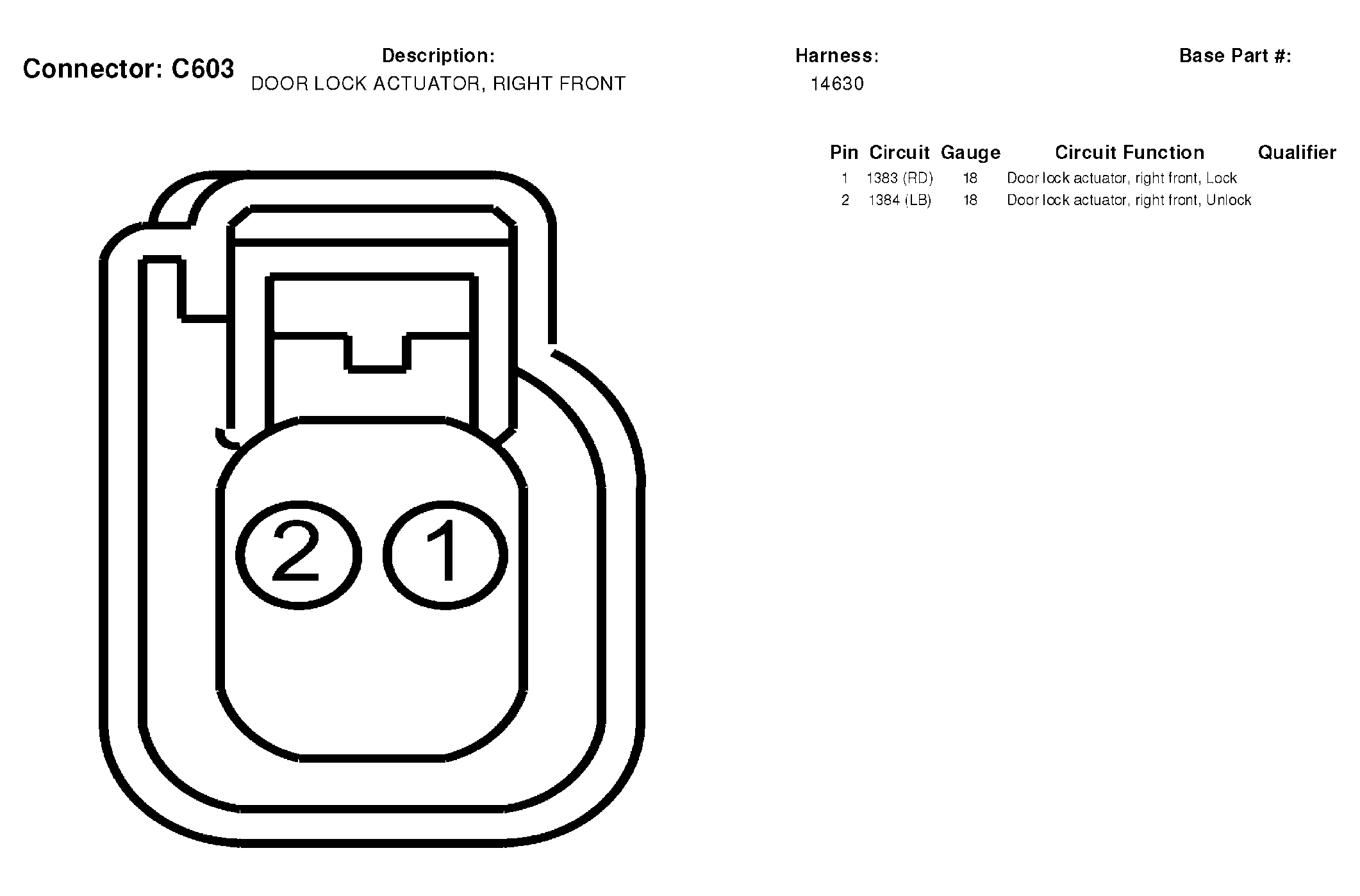

Fig 144: Door Lock Actuator, Right Front Connector End View (C603)
Courtesy of FORD MOTOR CO.

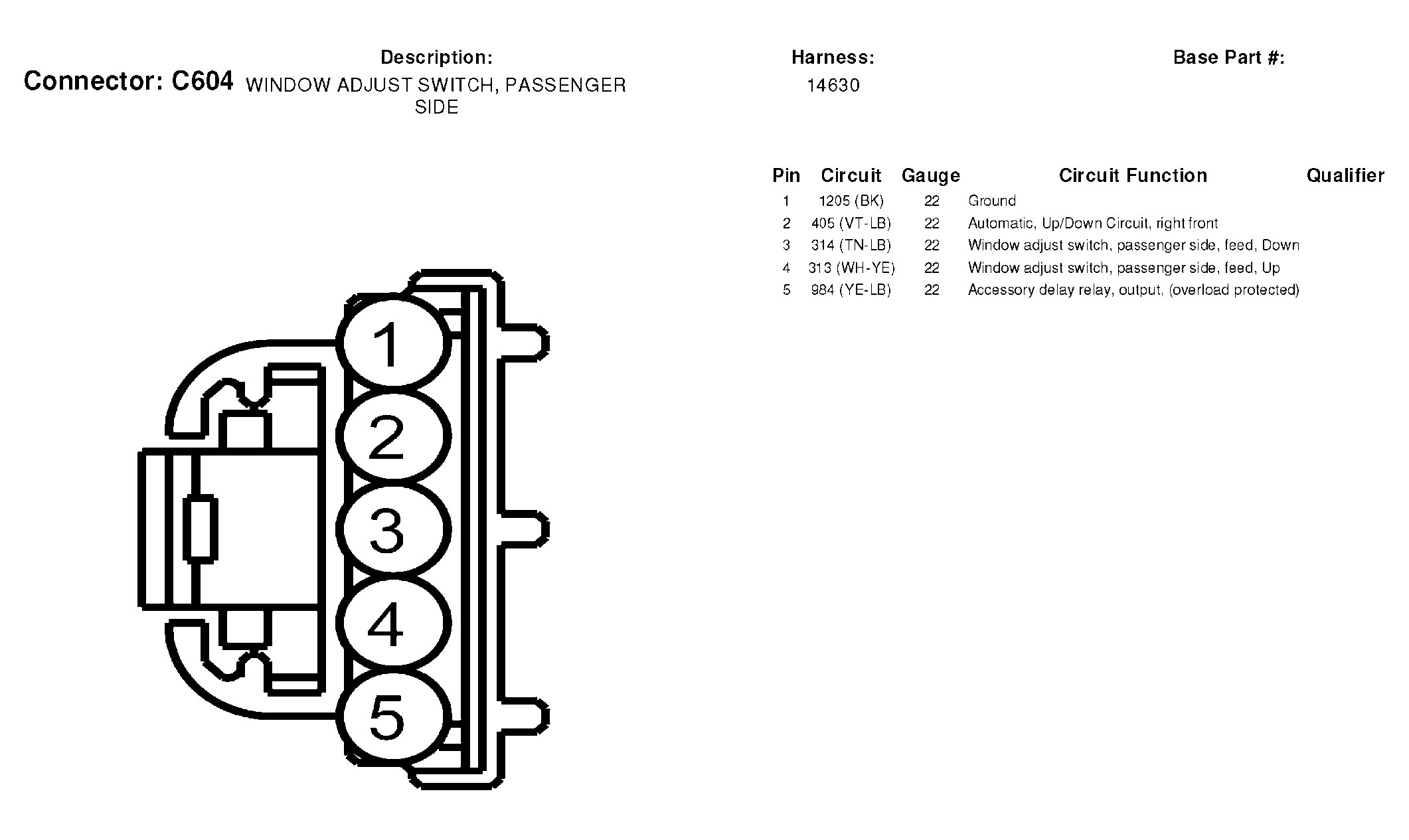

Fig 145: Window Adjust Switch, Passenger Side Connector End View (C604)
Courtesy of FORD MOTOR CO.

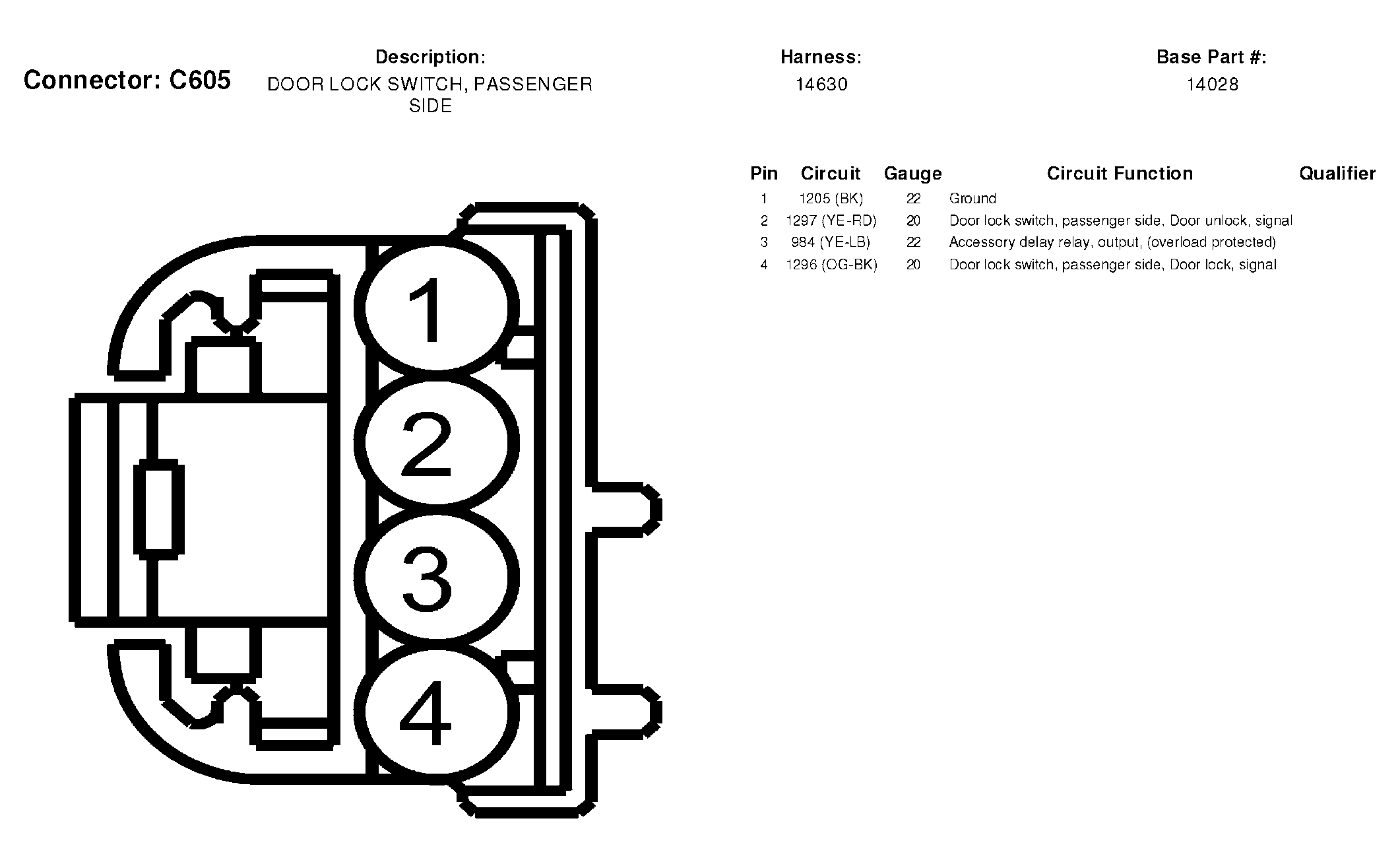

Fig 146: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.
Fig 147: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.

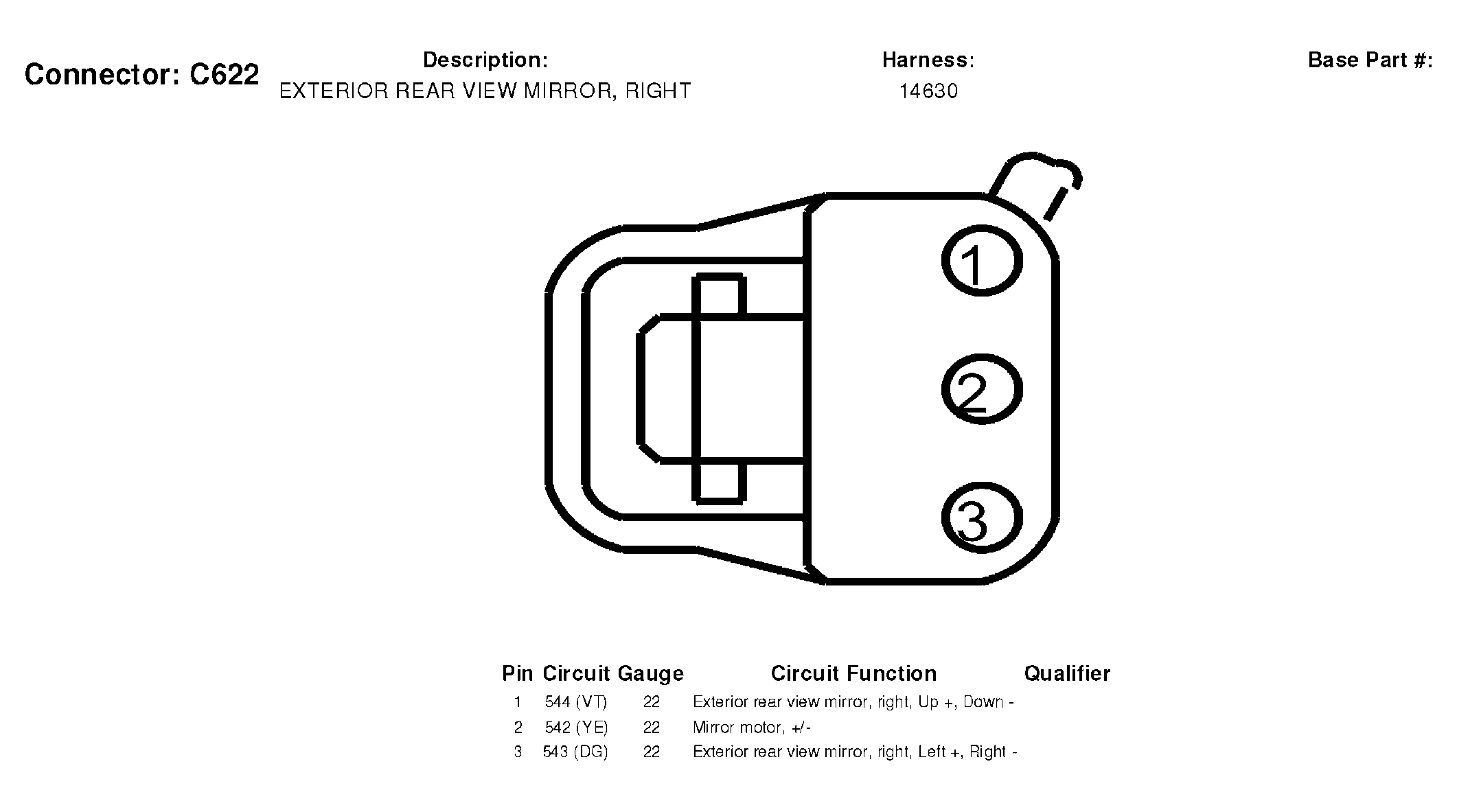

Fig 148: Exterior Rear View Mirror, Right Connector End View (C622)
Courtesy of FORD MOTOR CO.

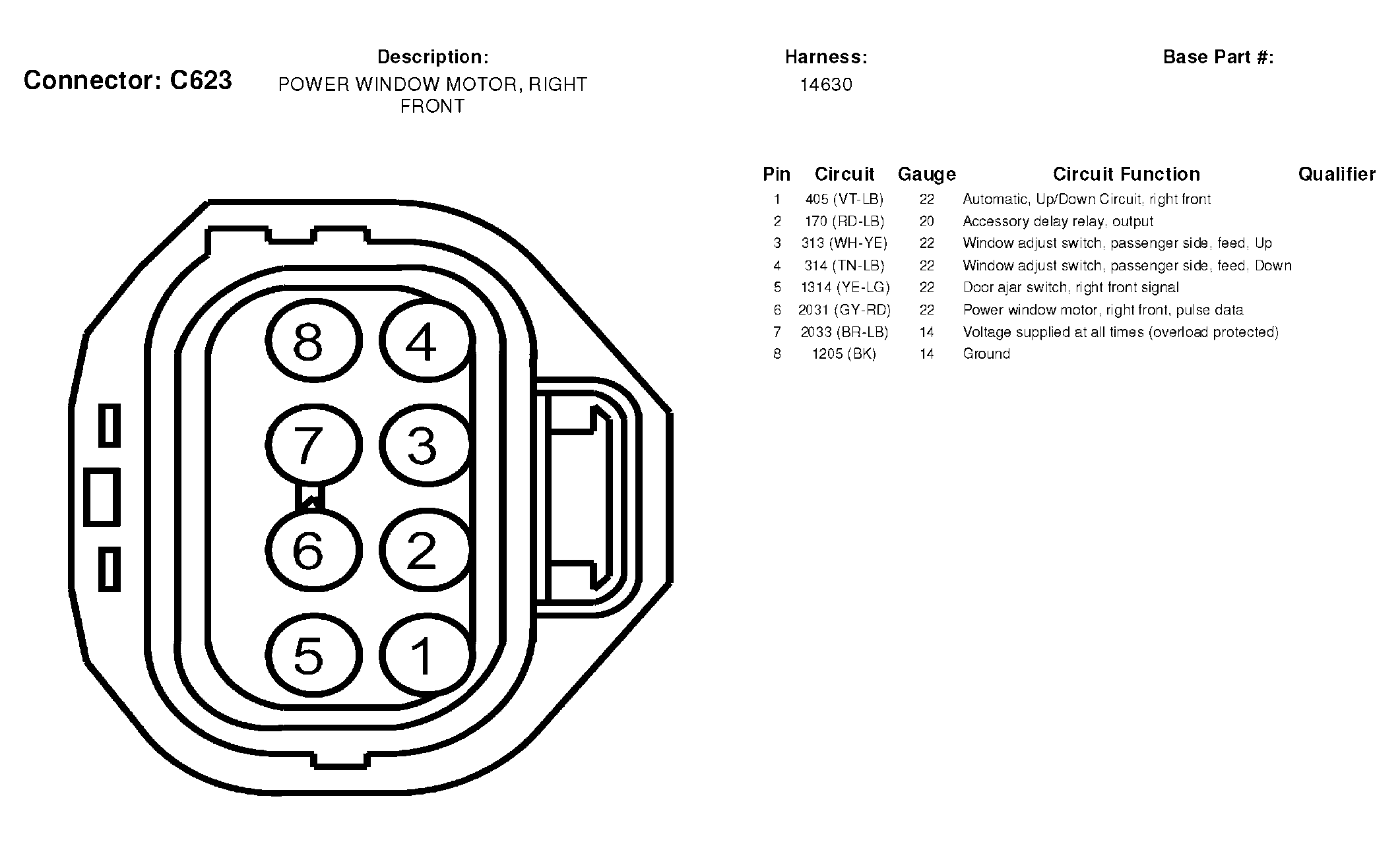

Fig 149: Power Window Motor, Right Front Connector End View (C623)
Courtesy of FORD MOTOR CO.
Fig 150: Subwoofer, Right Front Connector End View (C628)
Courtesy of FORD MOTOR CO.

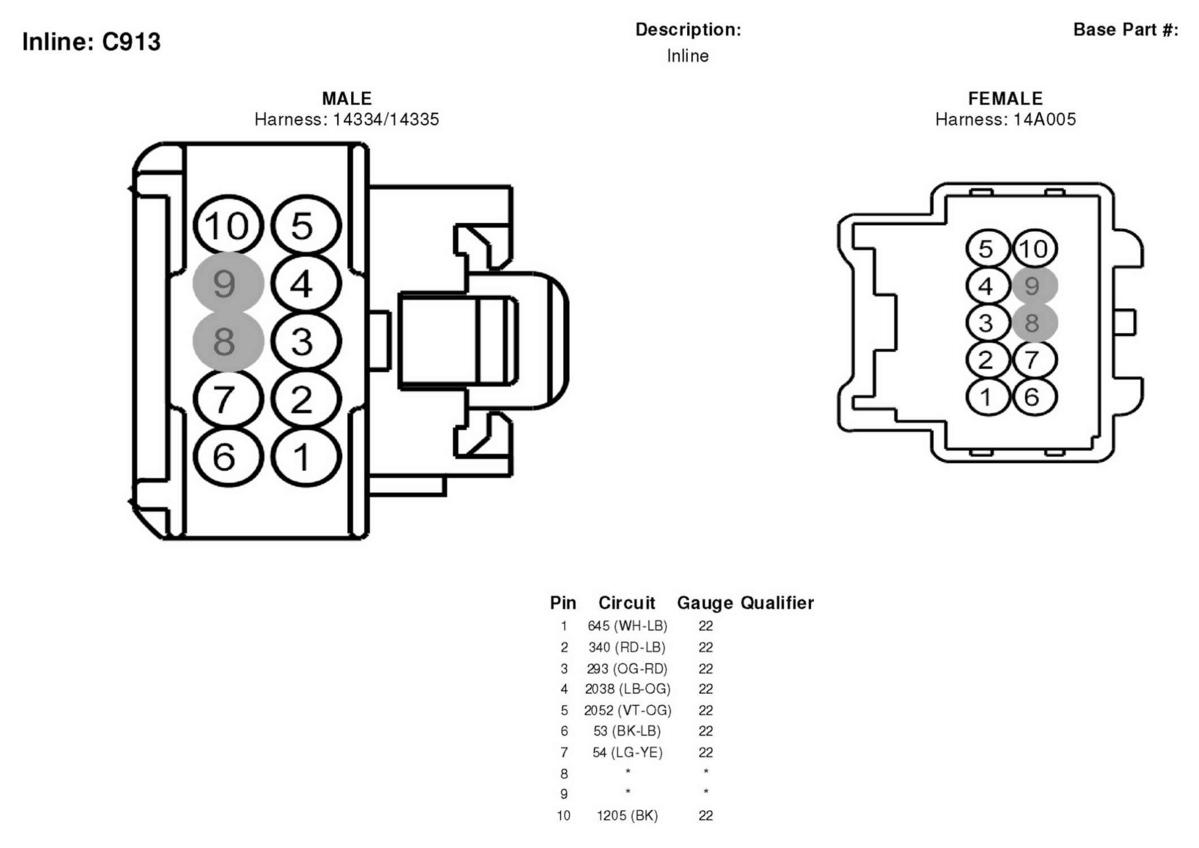

Fig 151: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.

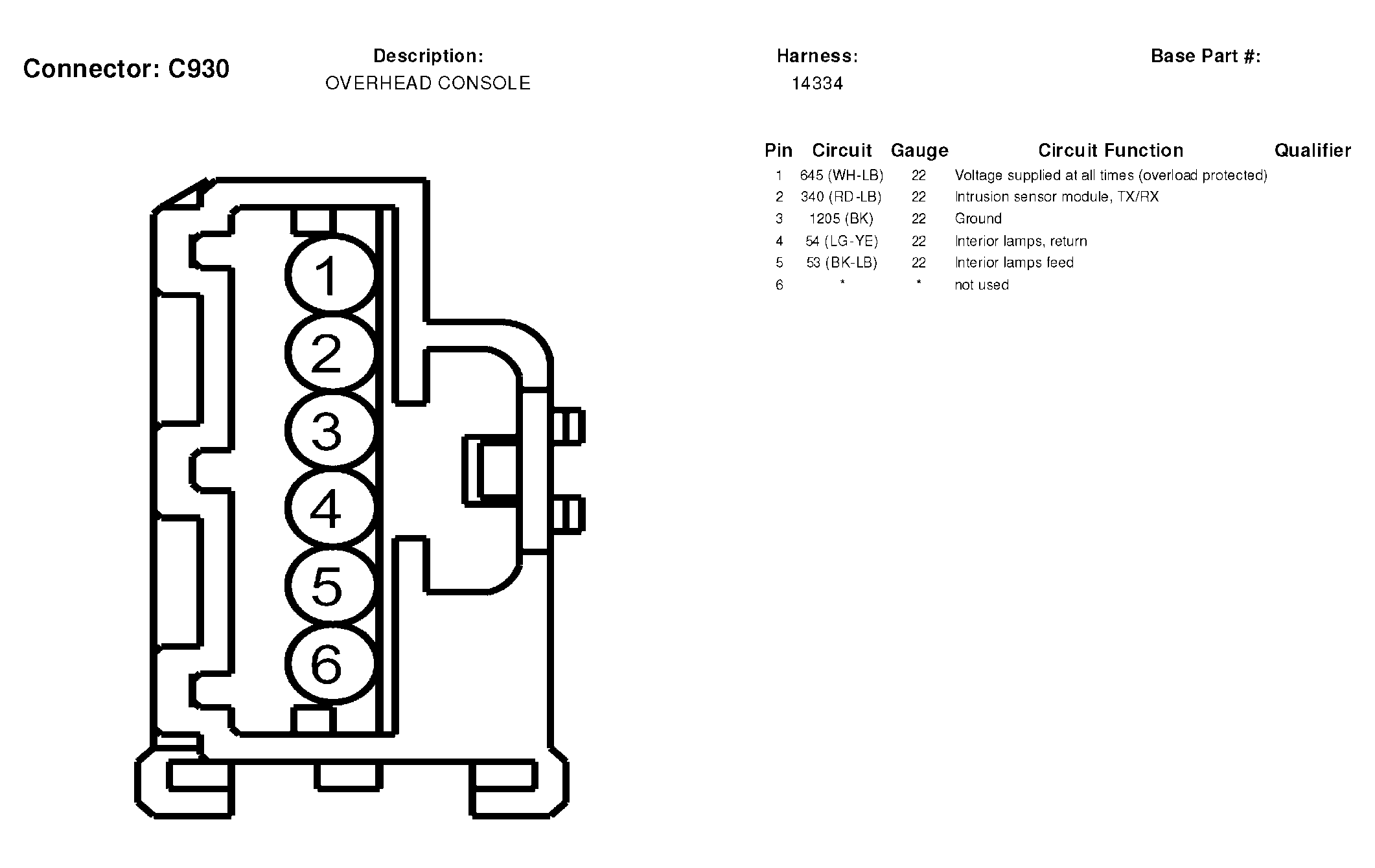

Fig 152: Overhead Console Connector End View (C930)
Courtesy of FORD MOTOR CO.

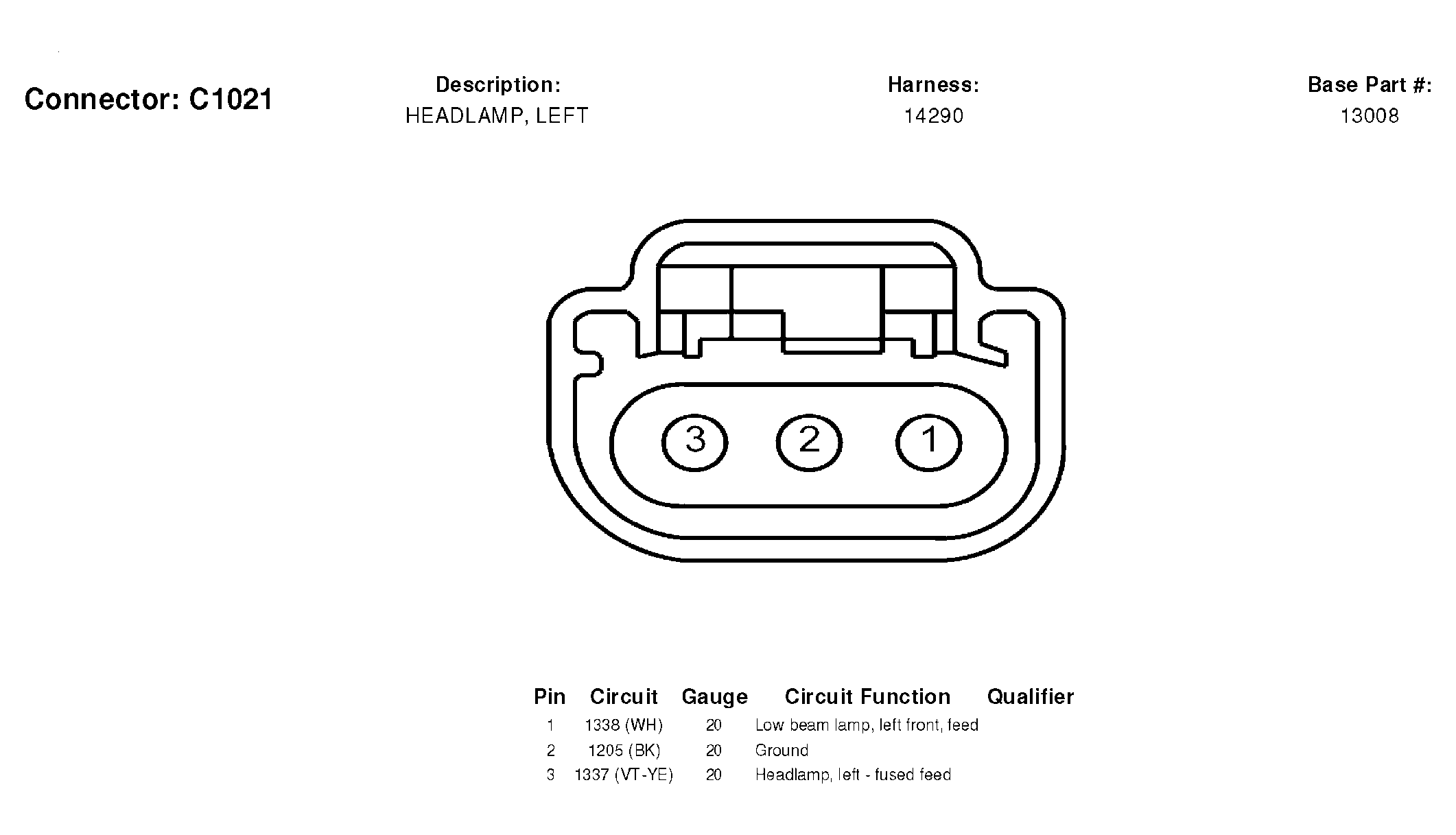

Fig 153: Headlamp, Left Connector End View (C1021)
Courtesy of FORD MOTOR CO.

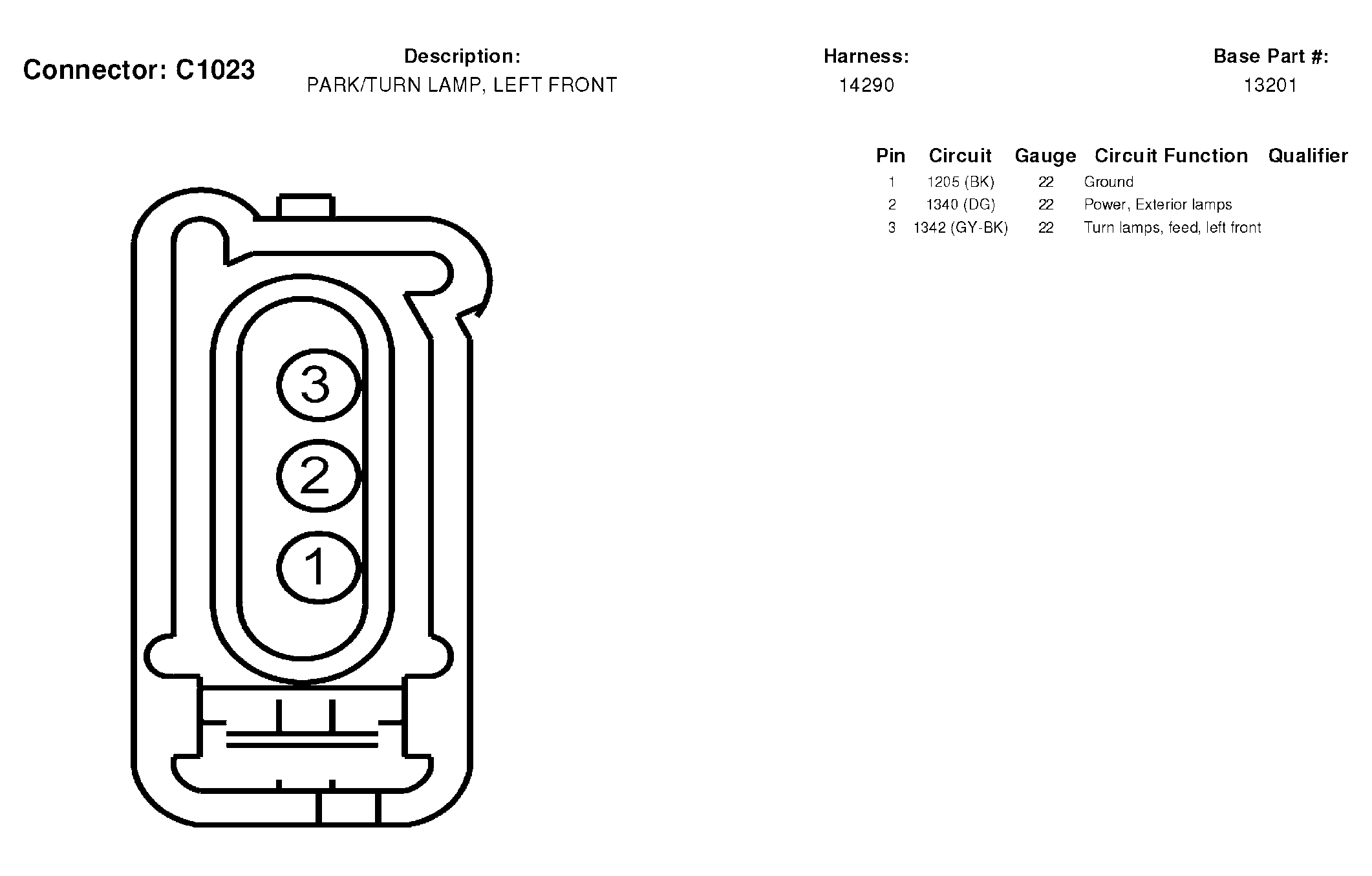

Fig 154: Park/Turn Lamp, Left Front Connector End View (C1023)
Courtesy of FORD MOTOR CO.

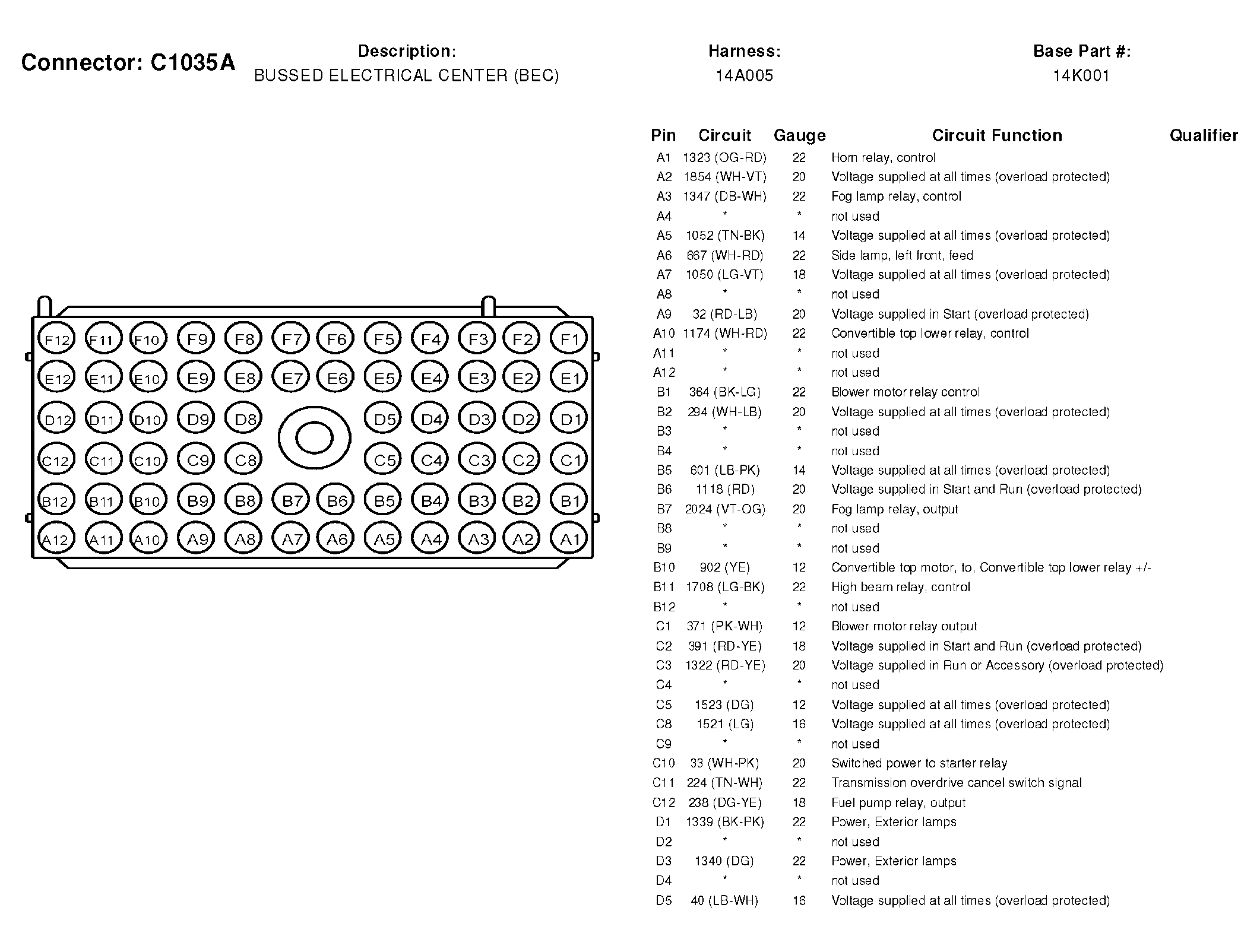

Fig 155: Bussed Electrical Center (BEC) Connector End View (C1035A) (1 Of 2)
Courtesy of FORD MOTOR CO.

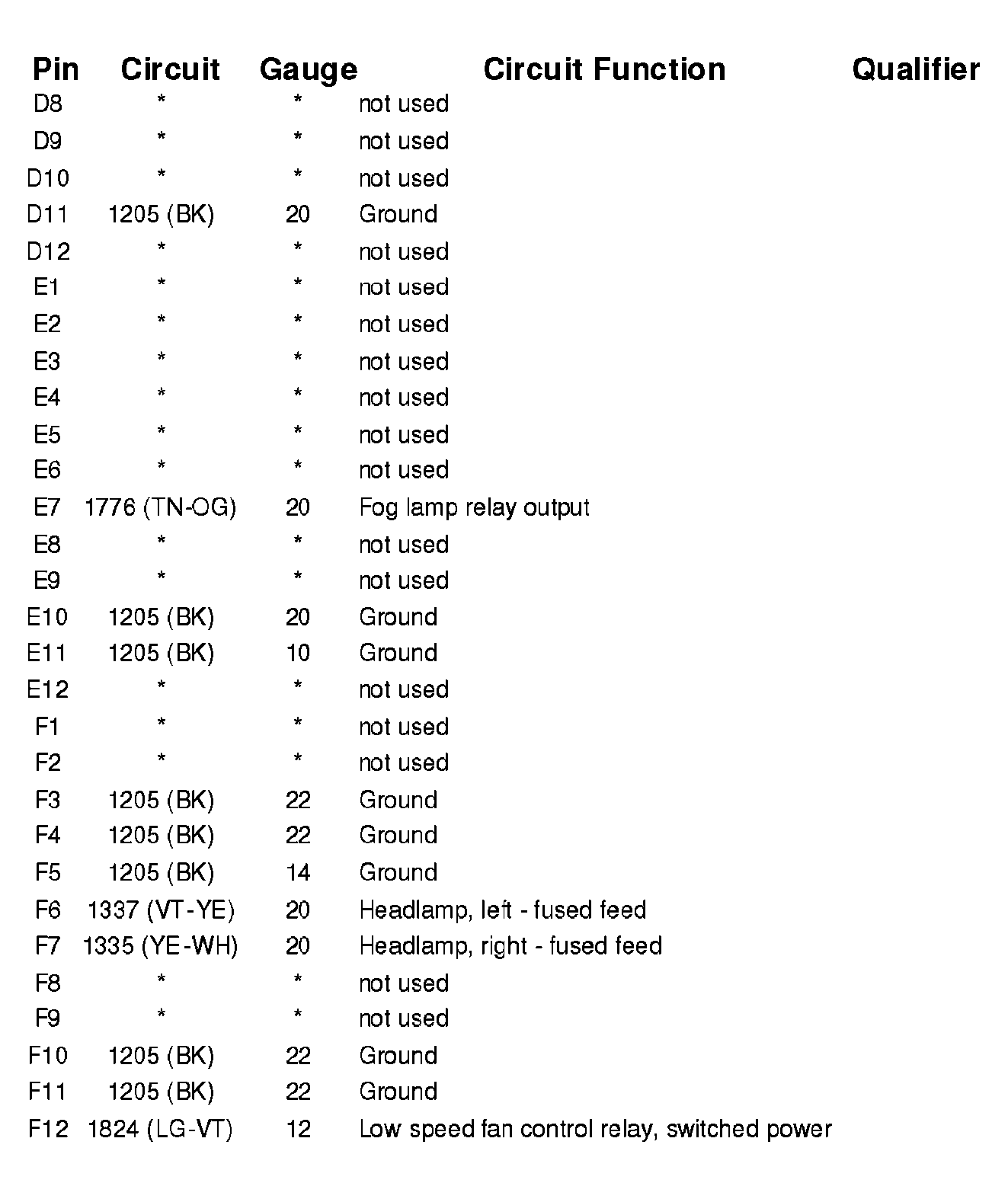

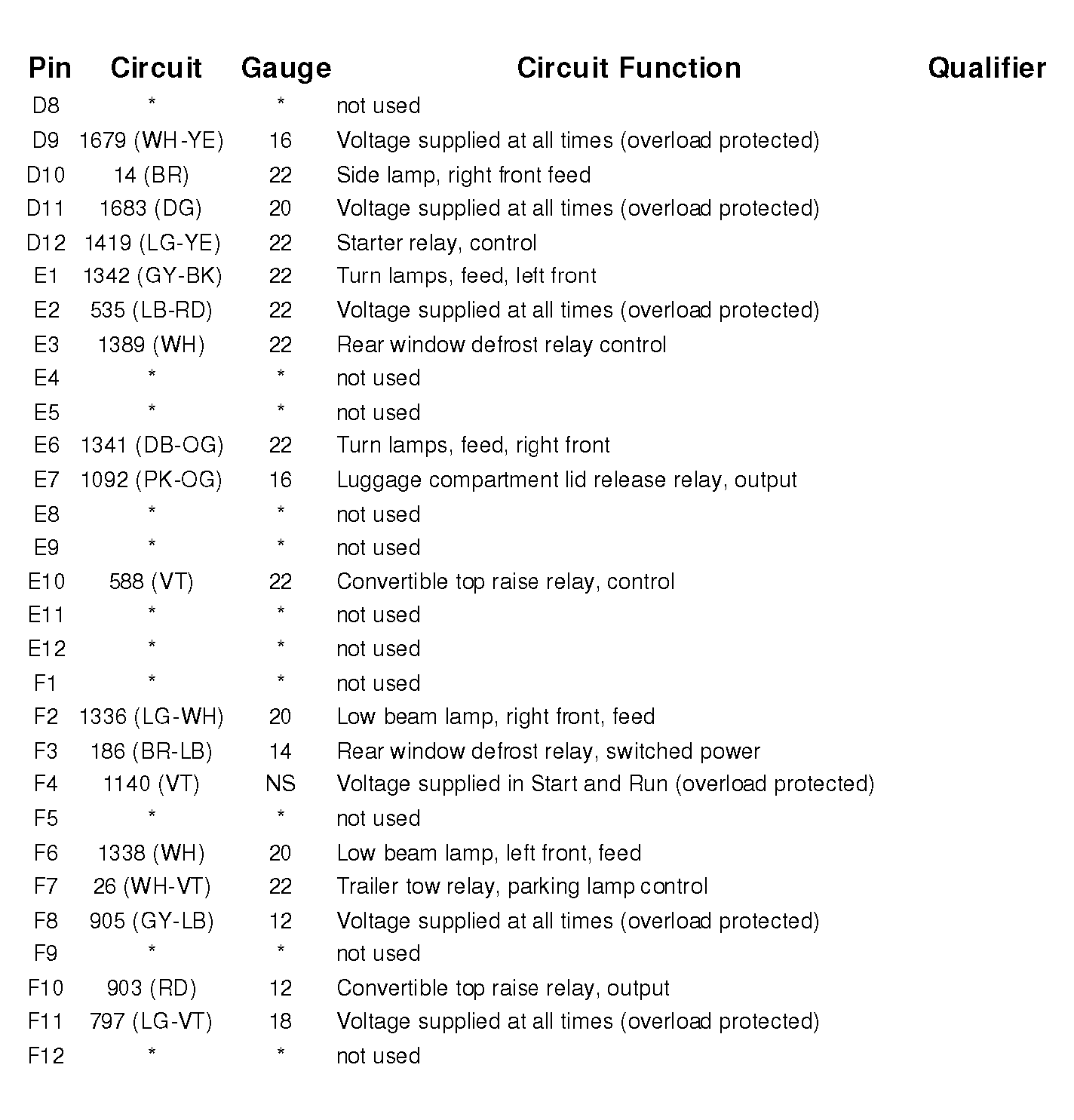

Fig 156: Bussed Electrical Center (BEC) Connector End View (C1035A) (2 Of 2)
Courtesy of FORD MOTOR CO.

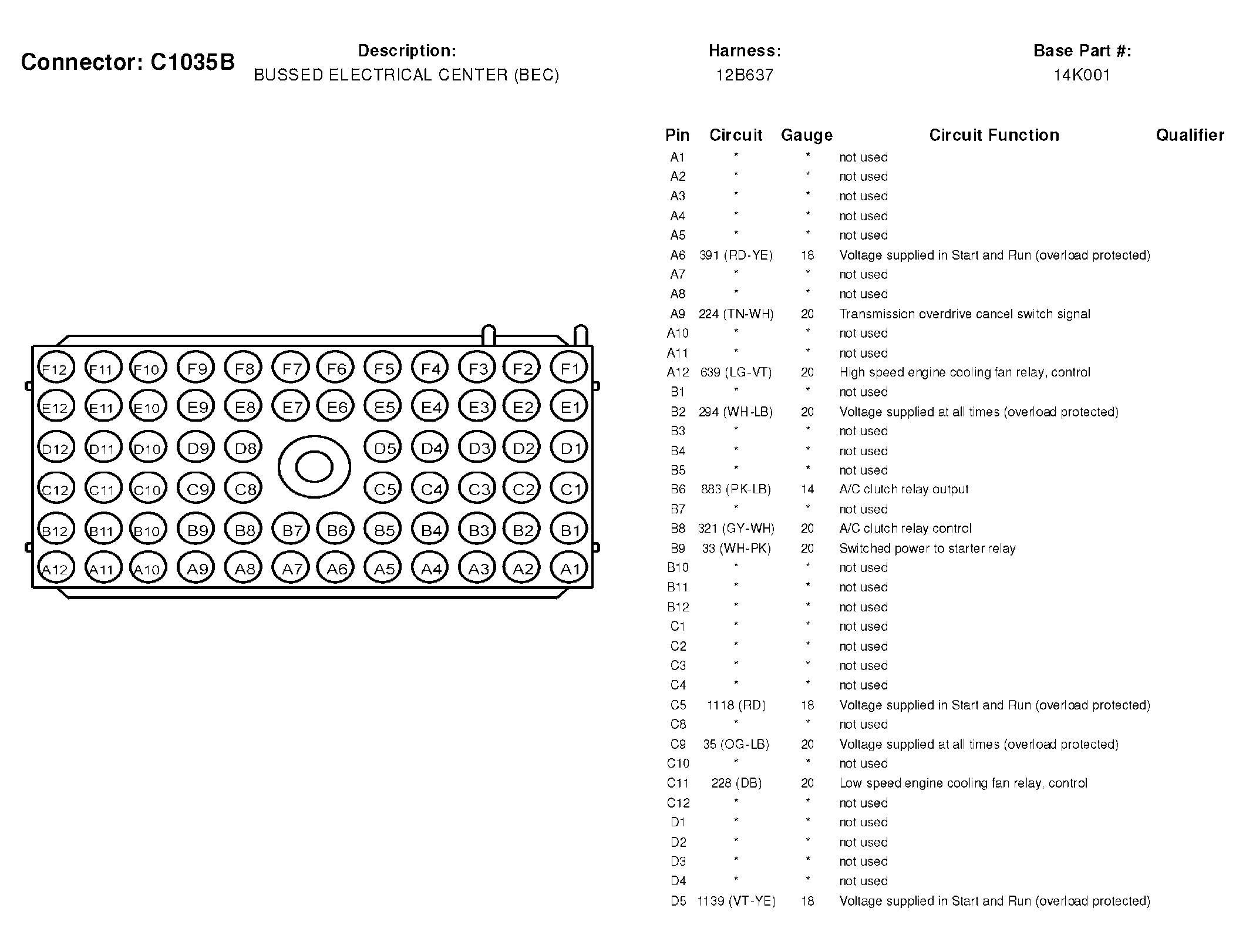

Fig 157: Bussed Electrical Center (BEC) Connector End View (C1035B) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 158: Bussed Electrical Center (BEC) Connector End View (C1035B) (2 Of 2)
Courtesy of FORD MOTOR CO.

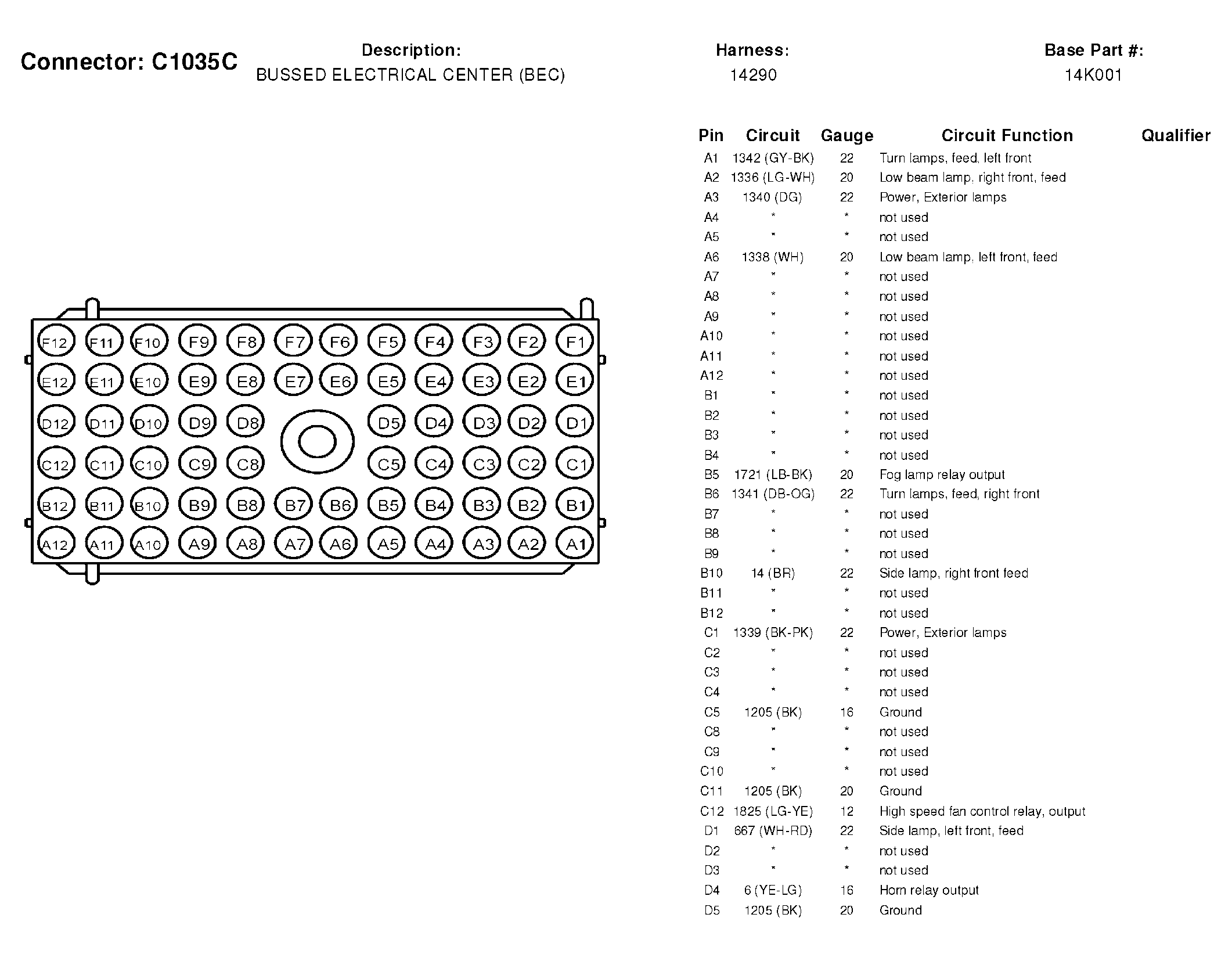

Fig 159: Bussed Electrical Center (BEC) Connector End View (C1035C) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 160: Bussed Electrical Center (BEC) Connector End View (C1035C) (2 Of 2)
Courtesy of FORD MOTOR CO.

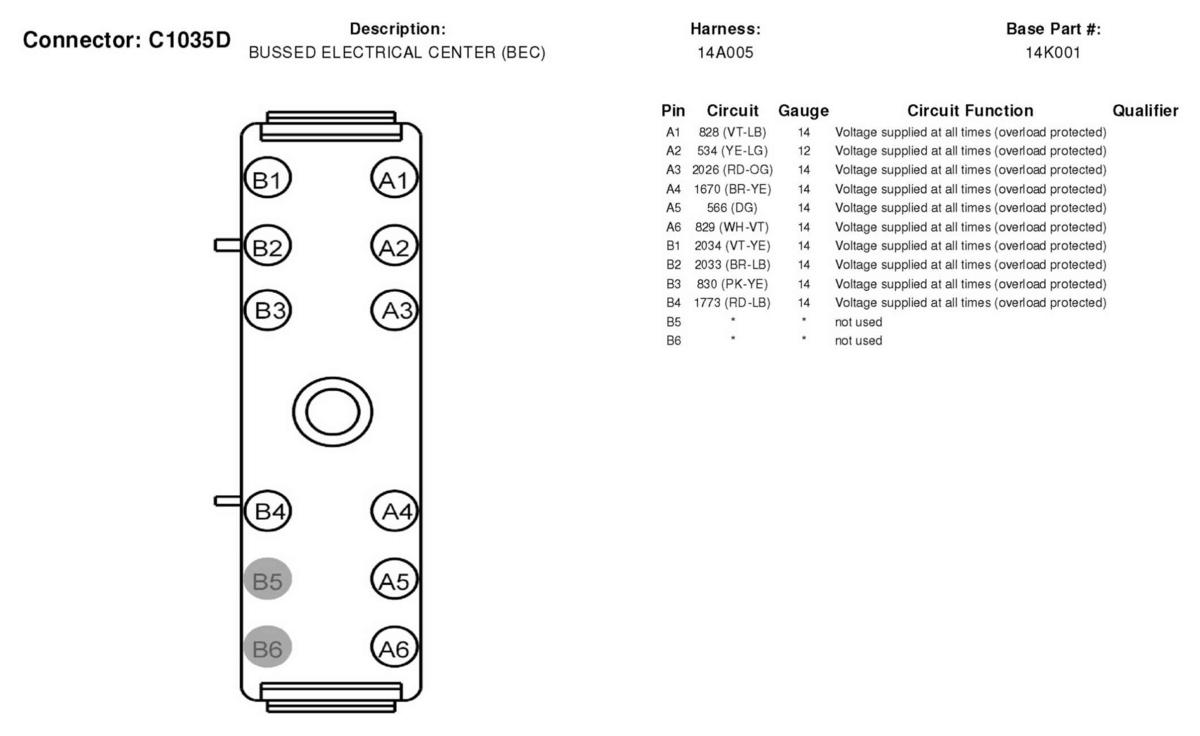

Fig 161: Bussed Electrical Center (BEC) Connector End View (C1035D)
Courtesy of FORD MOTOR CO.

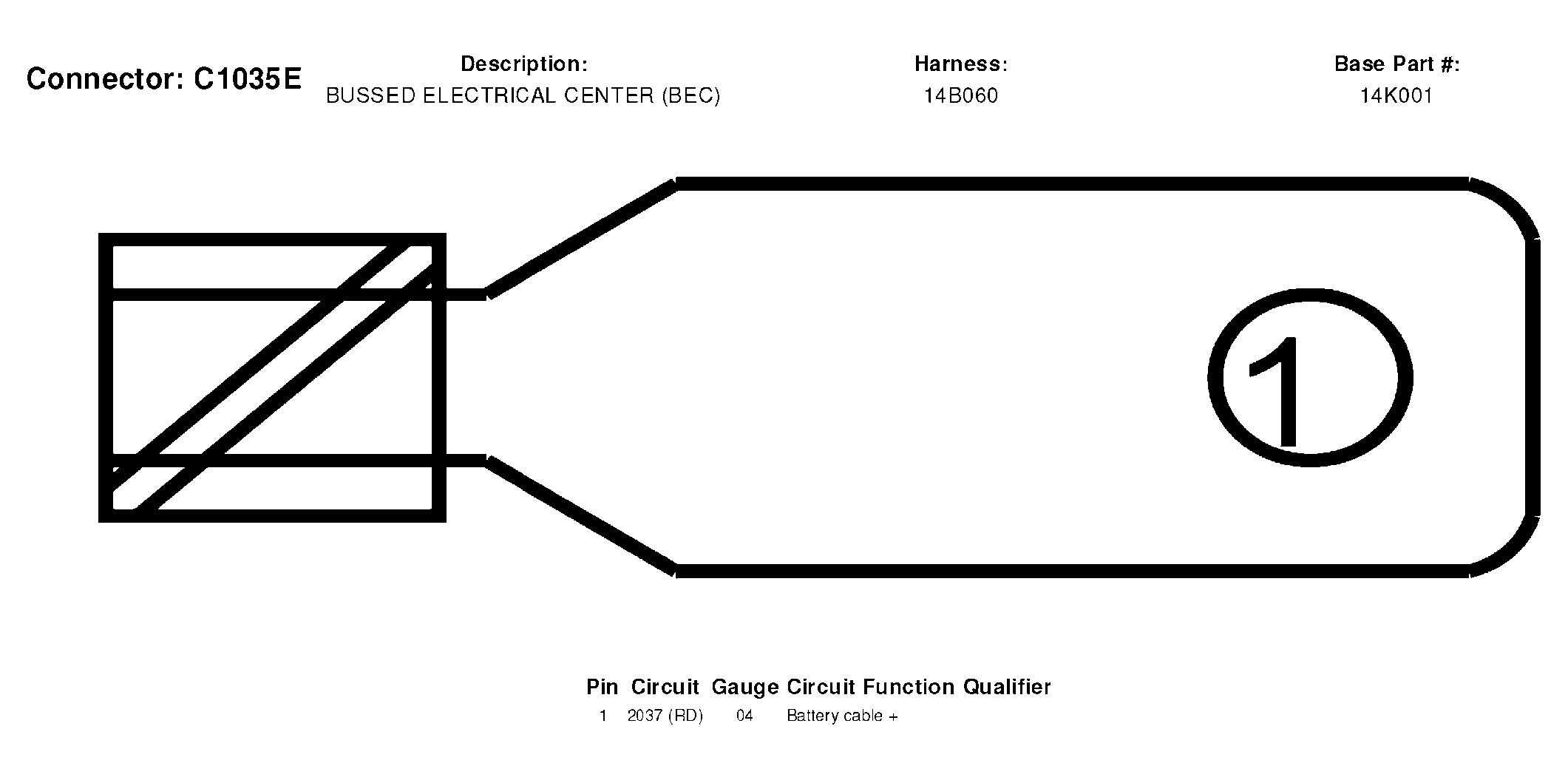

Fig 162: Bussed Electrical Center (BEC) Connector End View (C1035E)
Courtesy of FORD MOTOR CO.

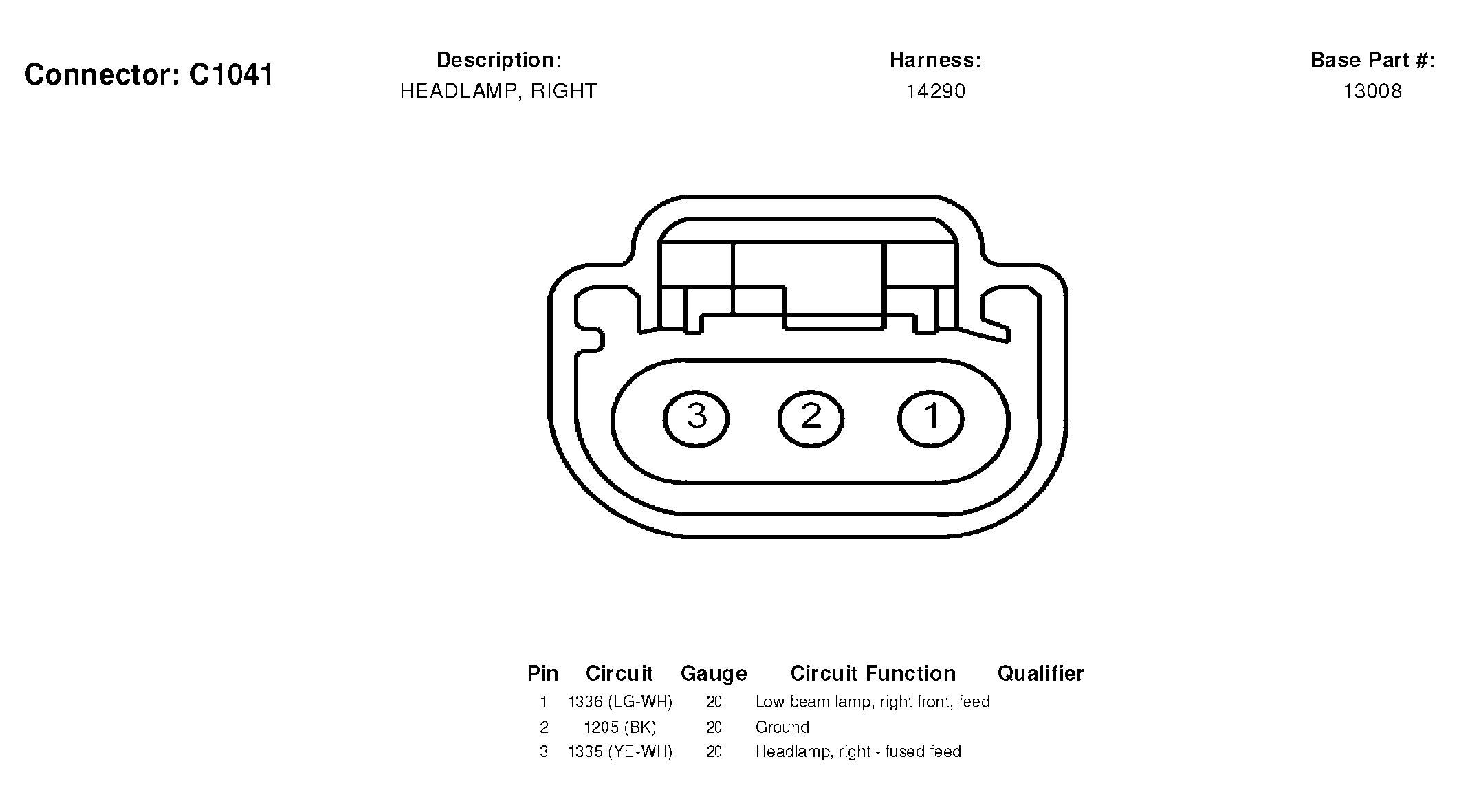

Fig 163: Headlamp, Right Connector End View (C1041)
Courtesy of FORD MOTOR CO.
Fig 164: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.

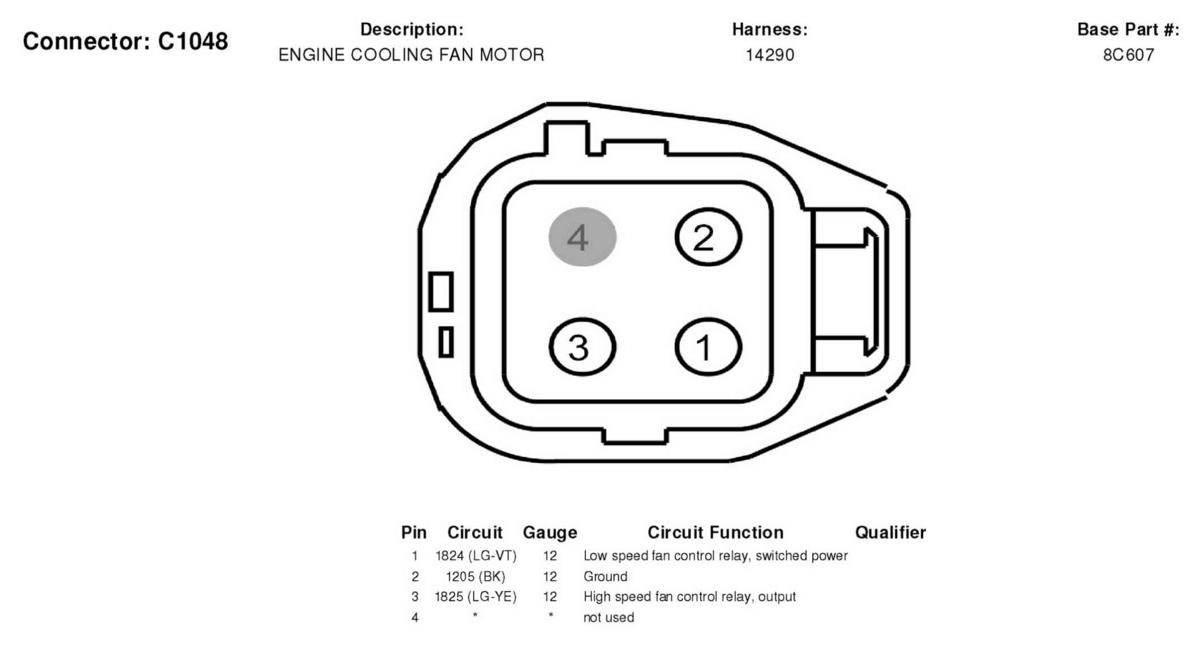

Fig 165: Engine Cooling Fan Motor Connector End View (C1048)
Courtesy of FORD MOTOR CO.

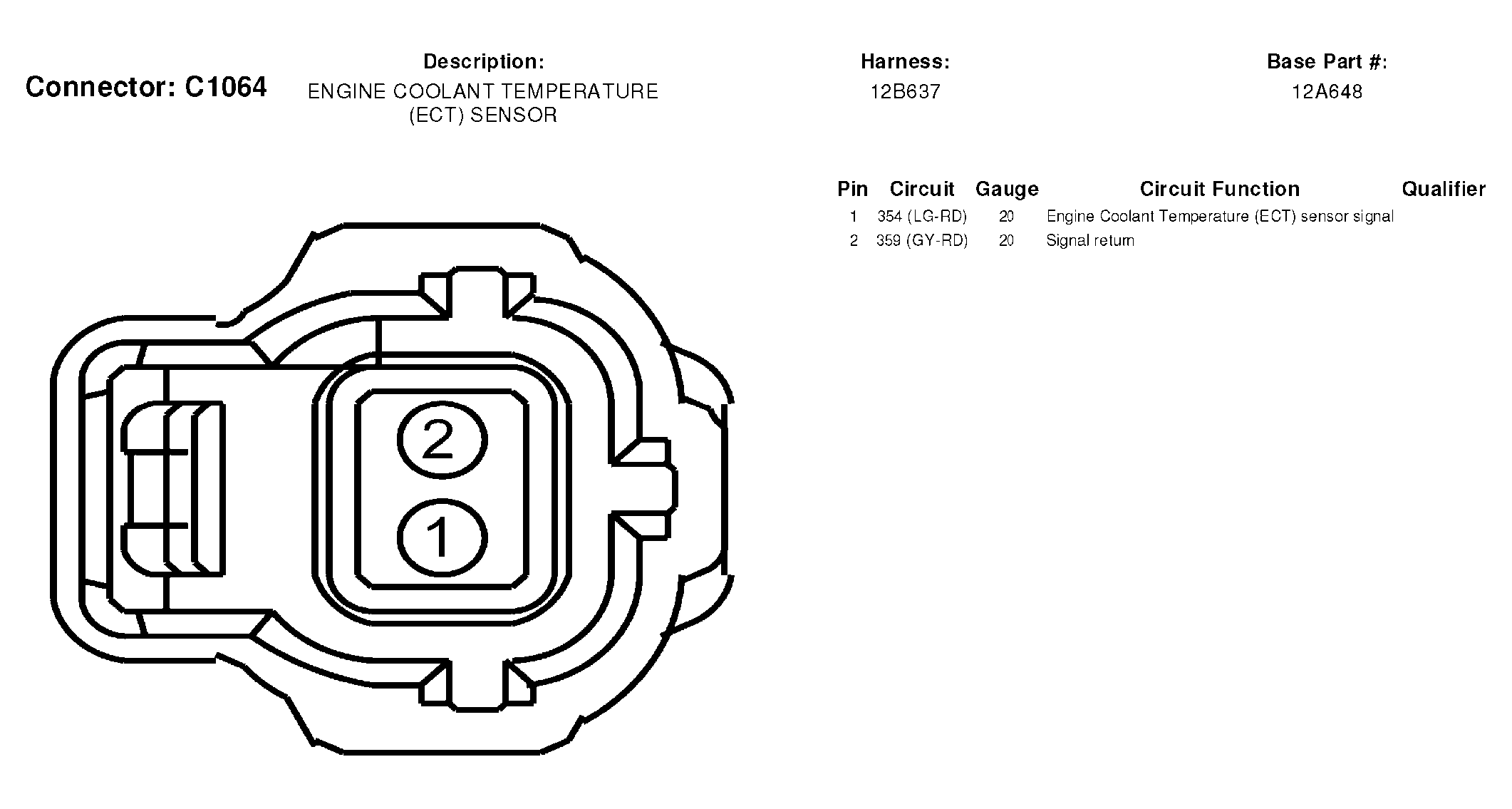

Fig 166: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)
Courtesy of FORD MOTOR CO.

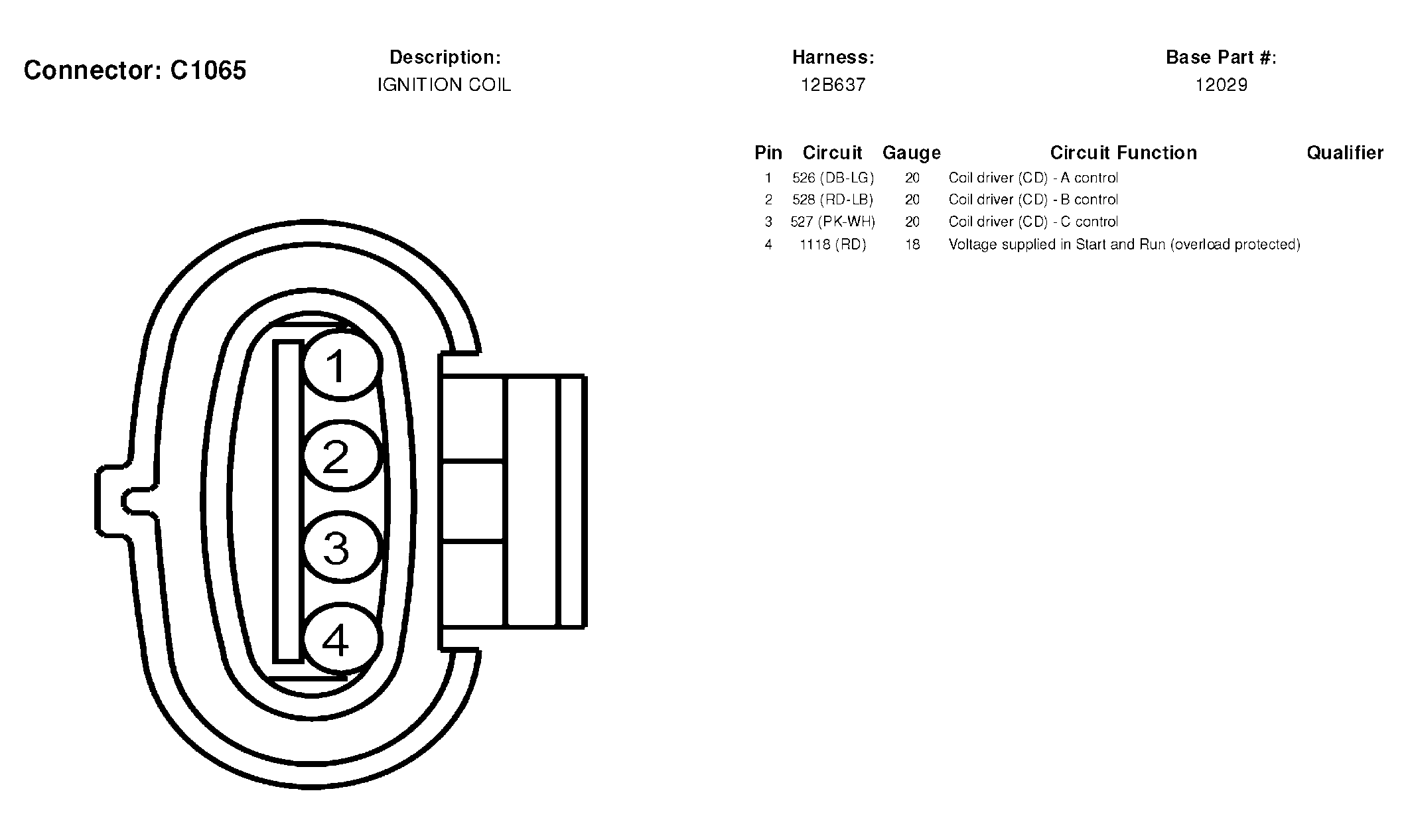

Fig 167: Ignition Coil Connector End View (C1065)
Courtesy of FORD MOTOR CO.

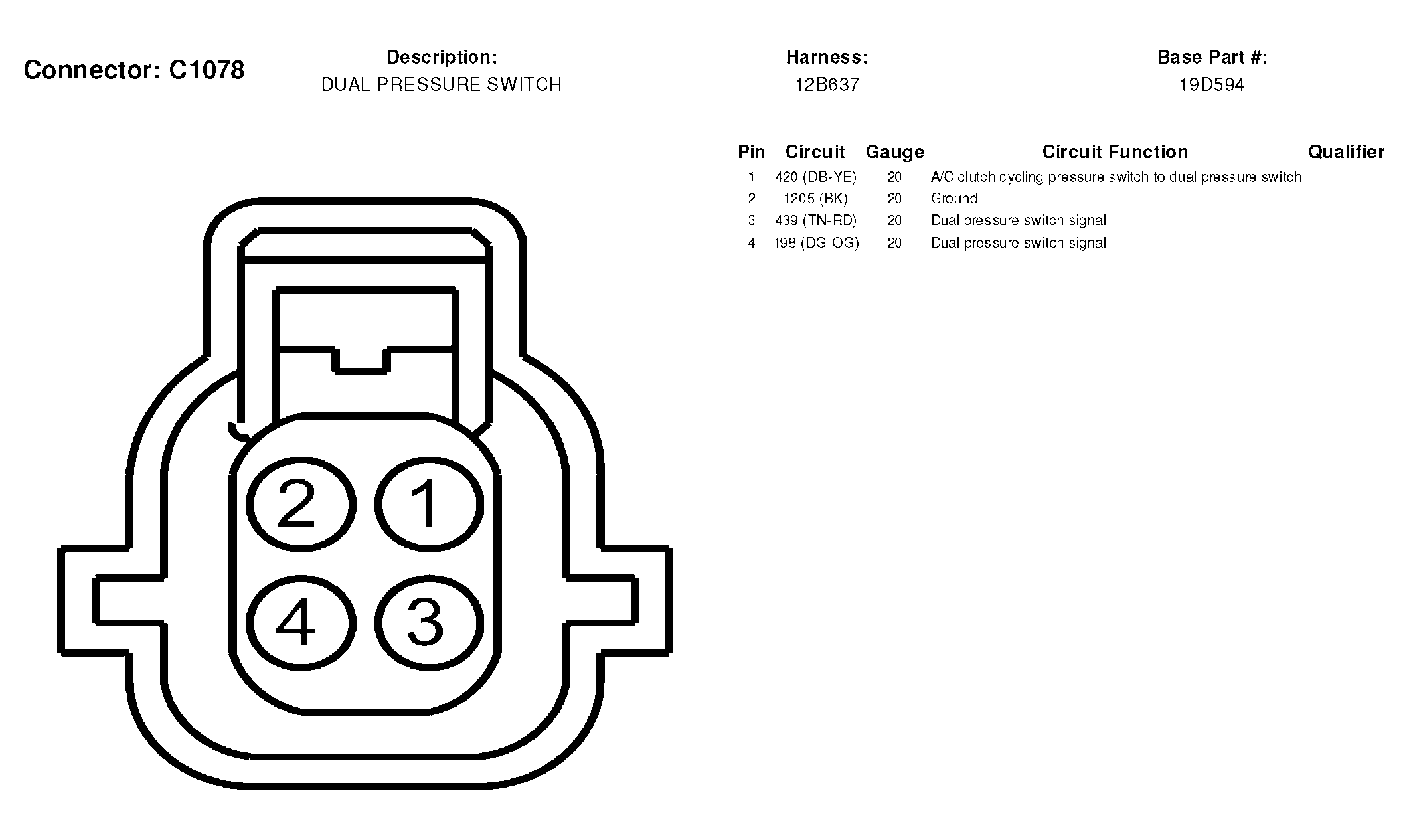

Fig 168: Dual Pressure Switch Connector End View (C1078)
Courtesy of FORD MOTOR CO.

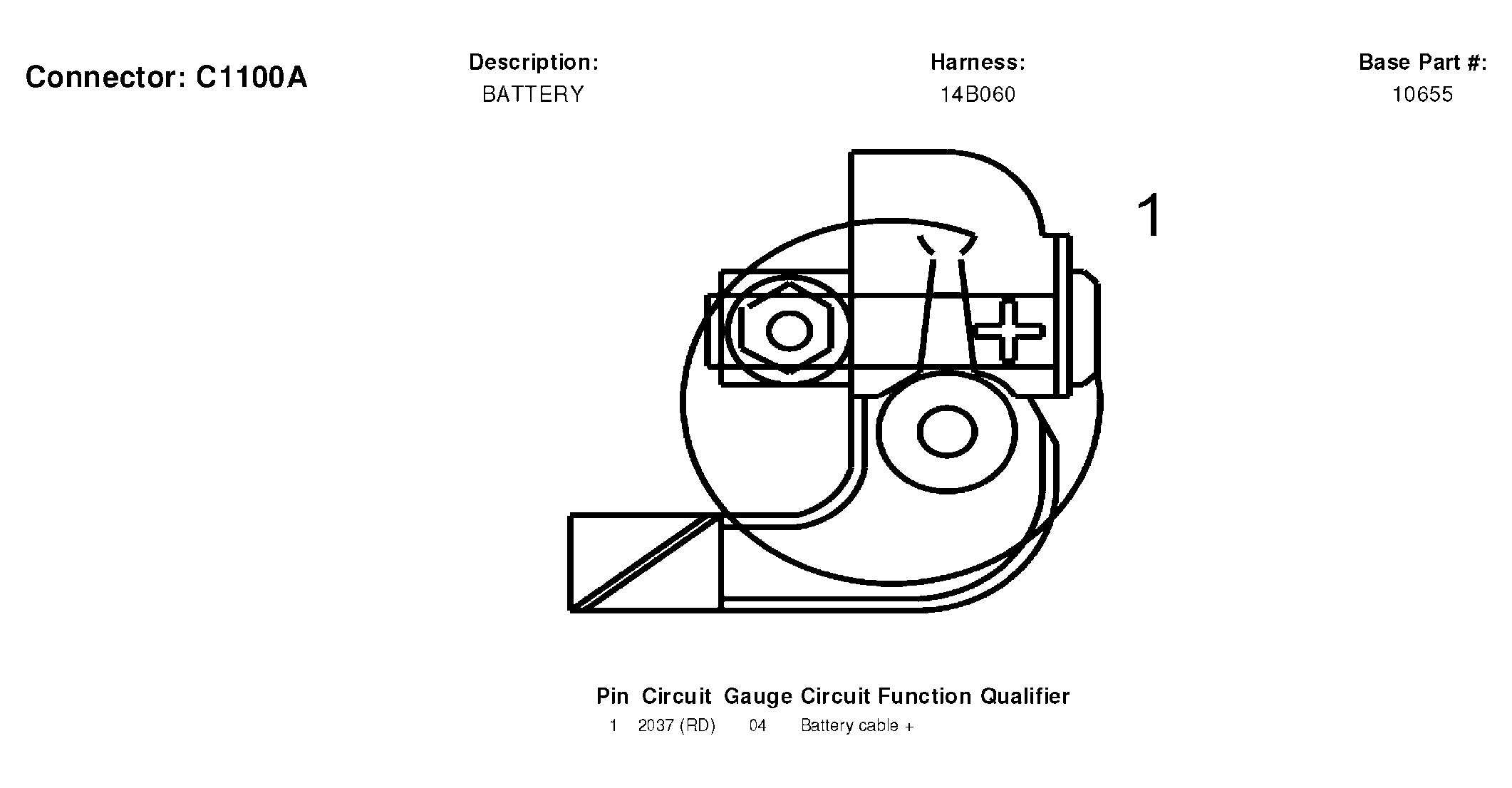

Fig 169: Battery Connector End View (C1100A)
Courtesy of FORD MOTOR CO.

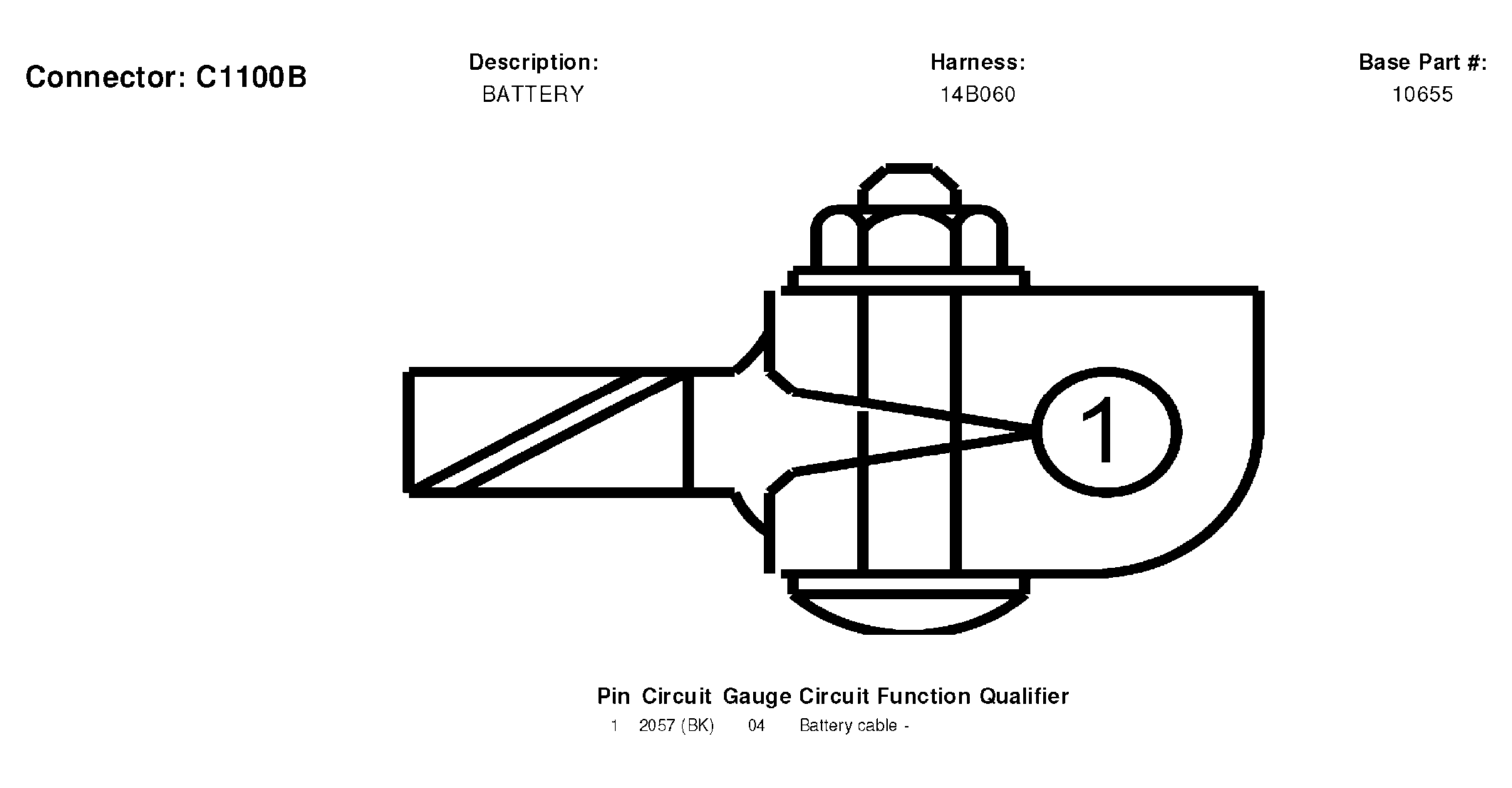

Fig 170: Battery Connector End View (C1100B)
Courtesy of FORD MOTOR CO.
Fig 171: Battery Connector End View (C1100C)
Courtesy of FORD MOTOR CO.
Fig 172: Fuel Injector 1 Connector End View (C1181)
Courtesy of FORD MOTOR CO.

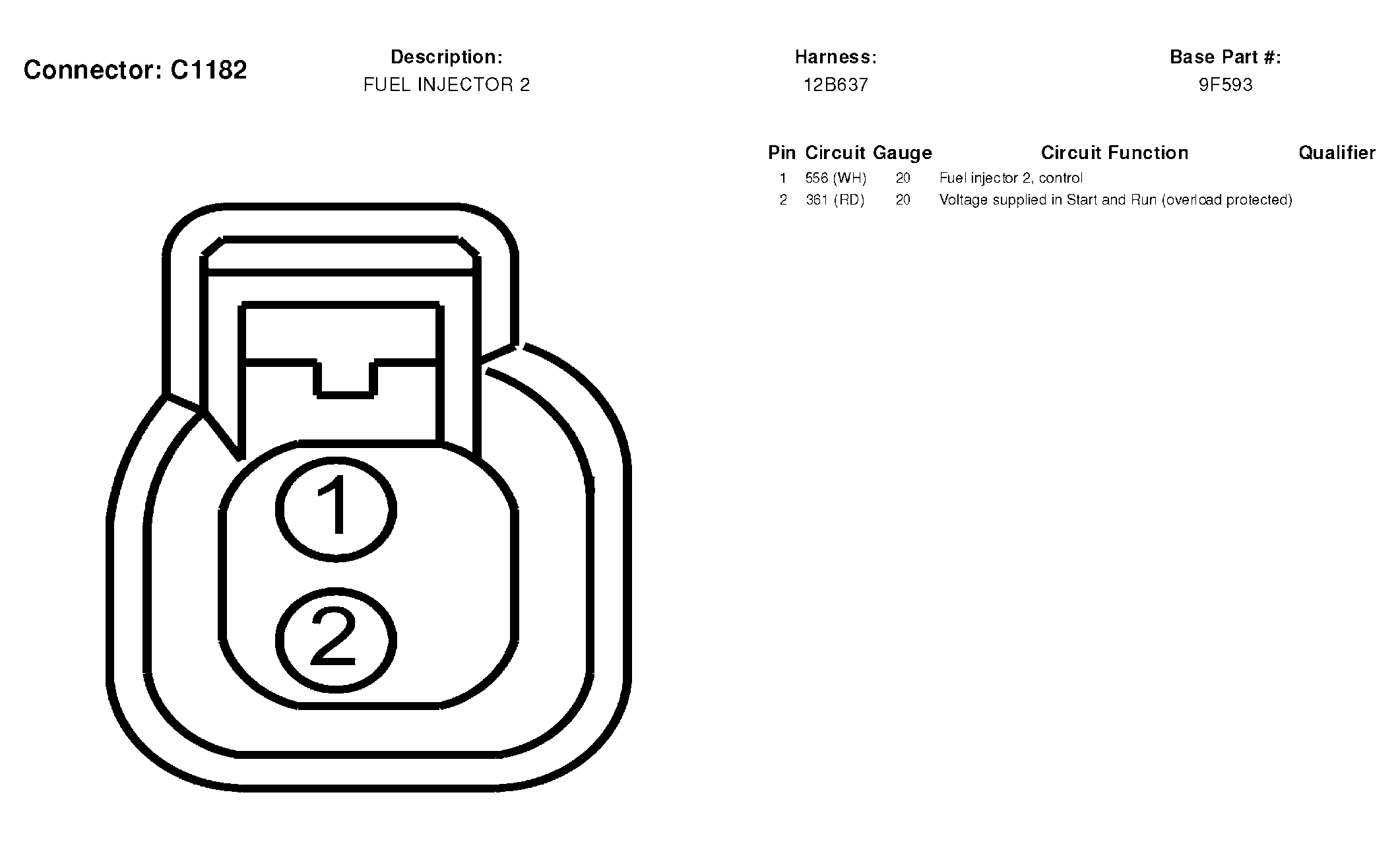

Fig 173: Fuel Injector 2 Connector End View (C1182)
Courtesy of FORD MOTOR CO.
Fig 174: Fuel Injector 3 Connector End View (C1183)
Courtesy of FORD MOTOR CO.
Fig 175: Fuel Injector 4 Connector End View (C1184)
Courtesy of FORD MOTOR CO.

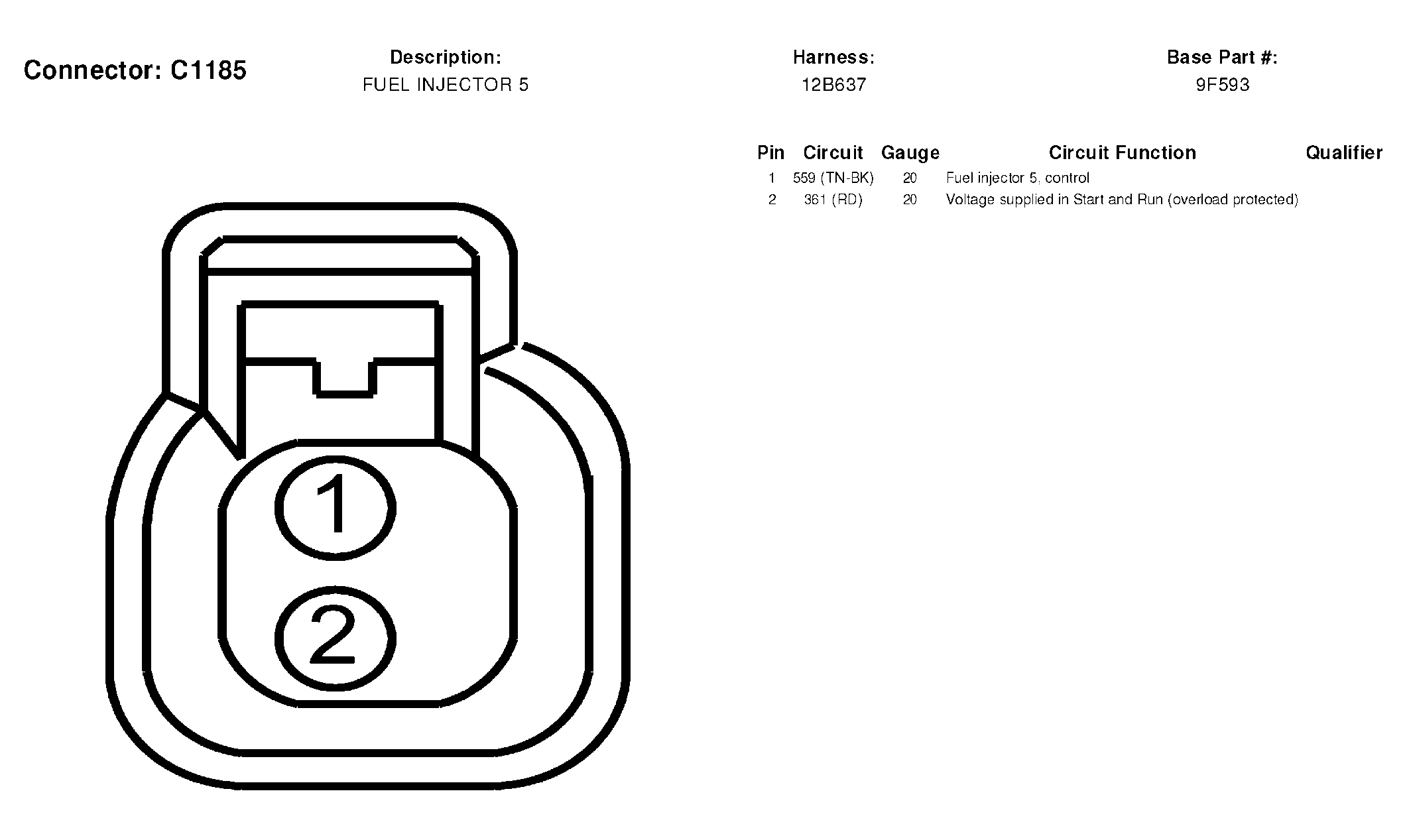

Fig 176: Fuel Injector 5 Connector End View (C1185)
Courtesy of FORD MOTOR CO.

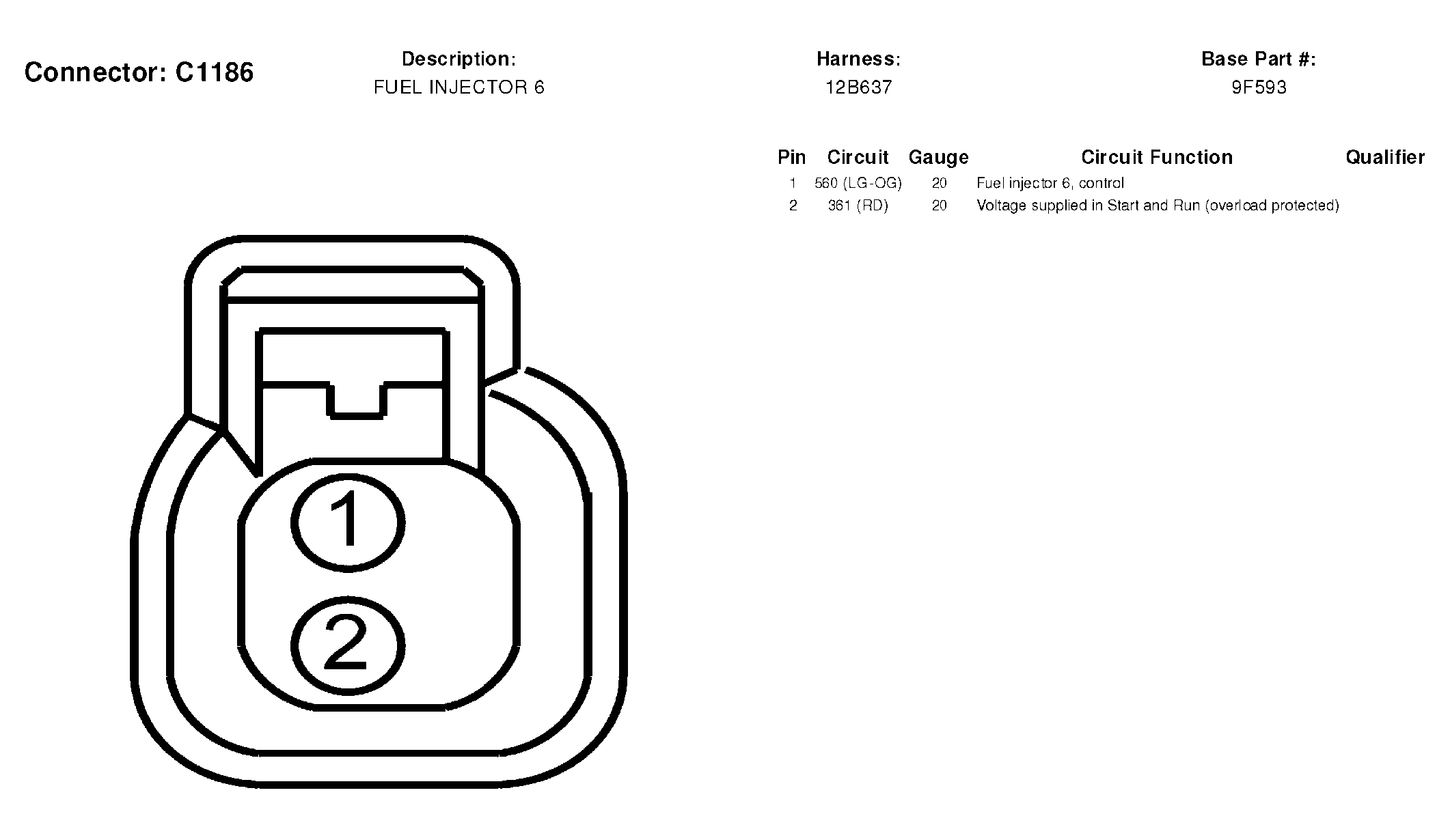

Fig 177: Fuel Injector 6 Connector End View (C1186)
Courtesy of FORD MOTOR CO.
Fig 178: Ignition Transformer Capacitor Connector End View (C1196)
Courtesy of FORD MOTOR CO.

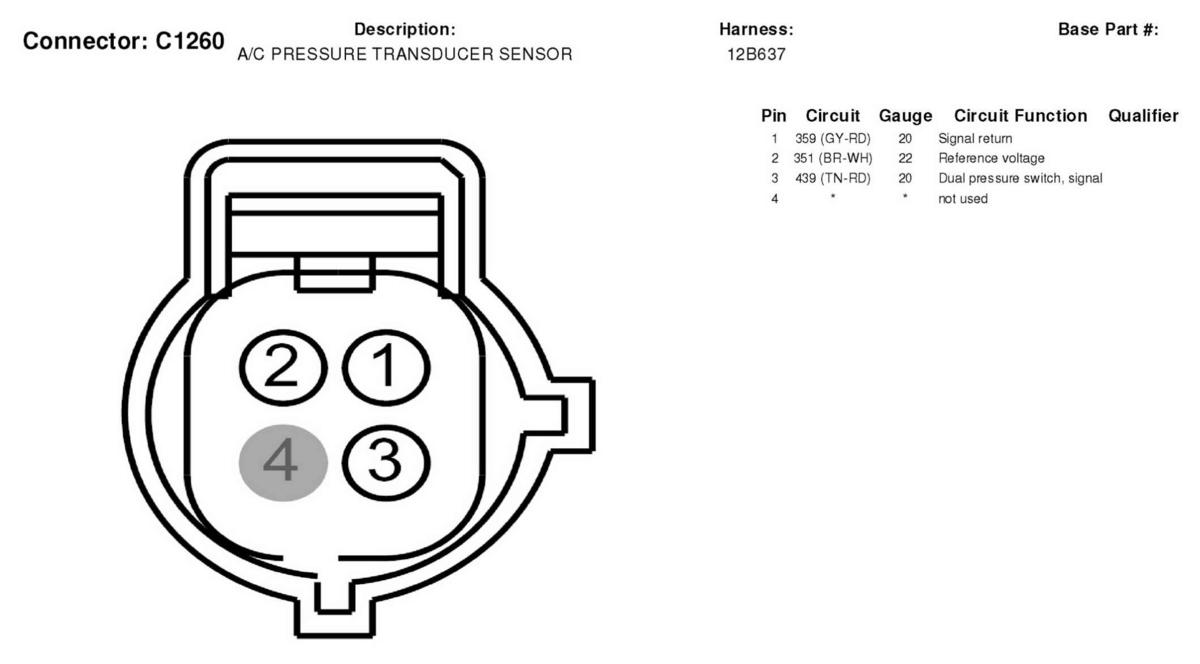

Fig 179: A/C Pressure Transducer Sensor Connector End View (C1260)
Courtesy of FORD MOTOR CO.
Fig 180: Fuel Injector 7 Connector End View (C1312)
Courtesy of FORD MOTOR CO.

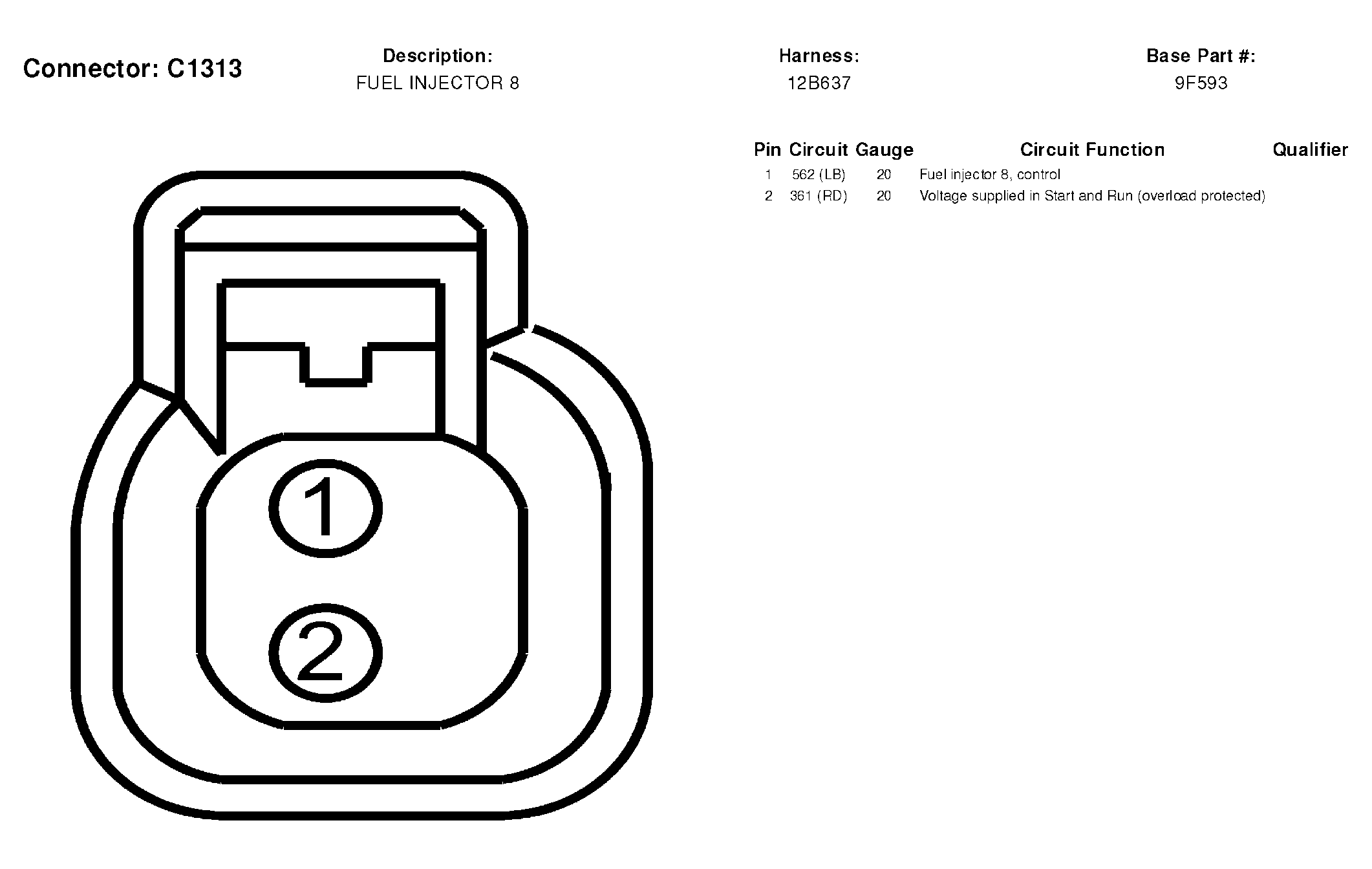

Fig 181: Fuel Injector 8 Connector End View (C1313)
Courtesy of FORD MOTOR CO.

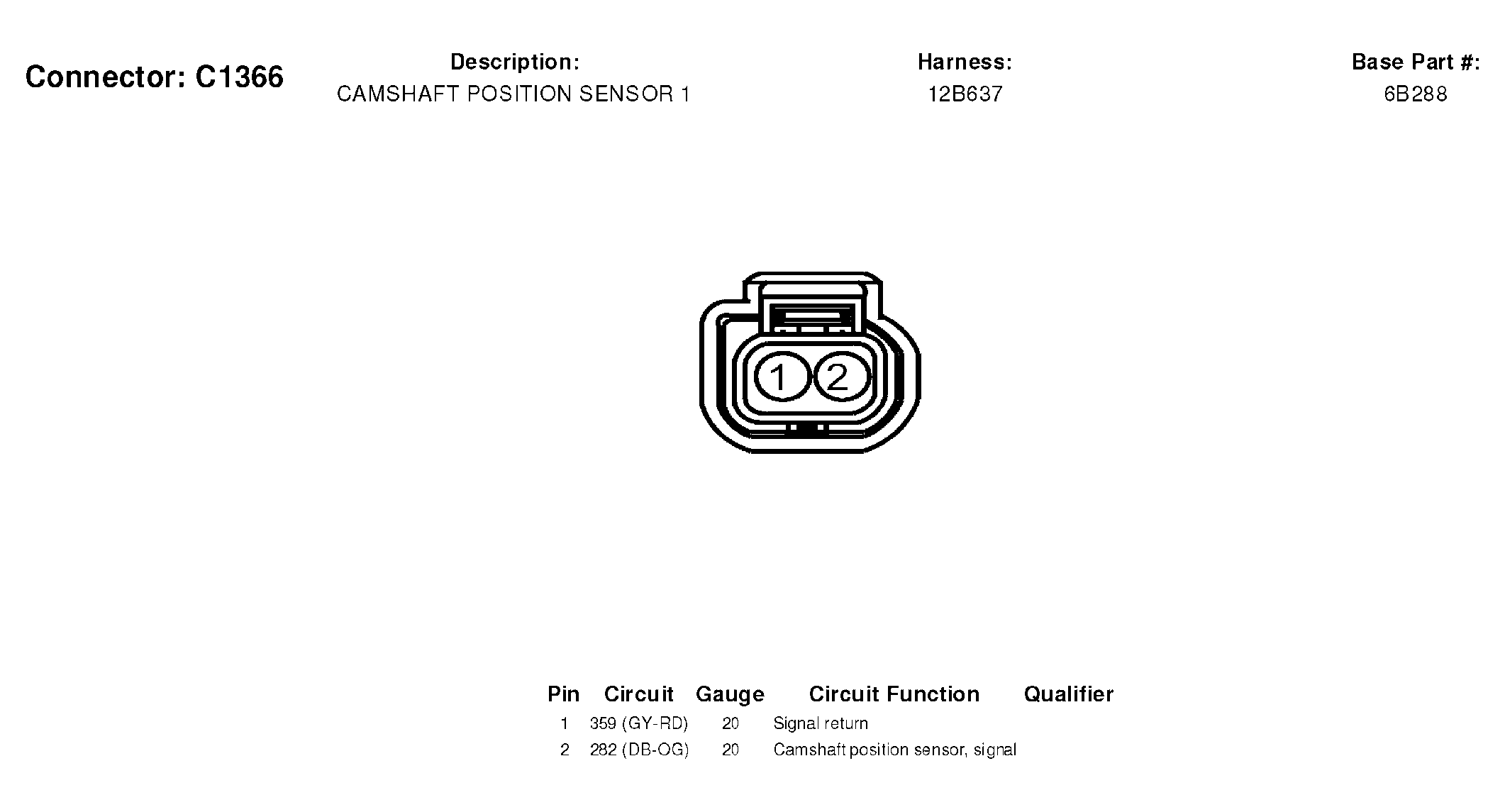

Fig 182: Camshaft Position Sensor 1 Connector End View (C1366)
Courtesy of FORD MOTOR CO.
Fig 183: Camshaft Position Sensor 2 Connector End View (C1367)
Courtesy of FORD MOTOR CO.

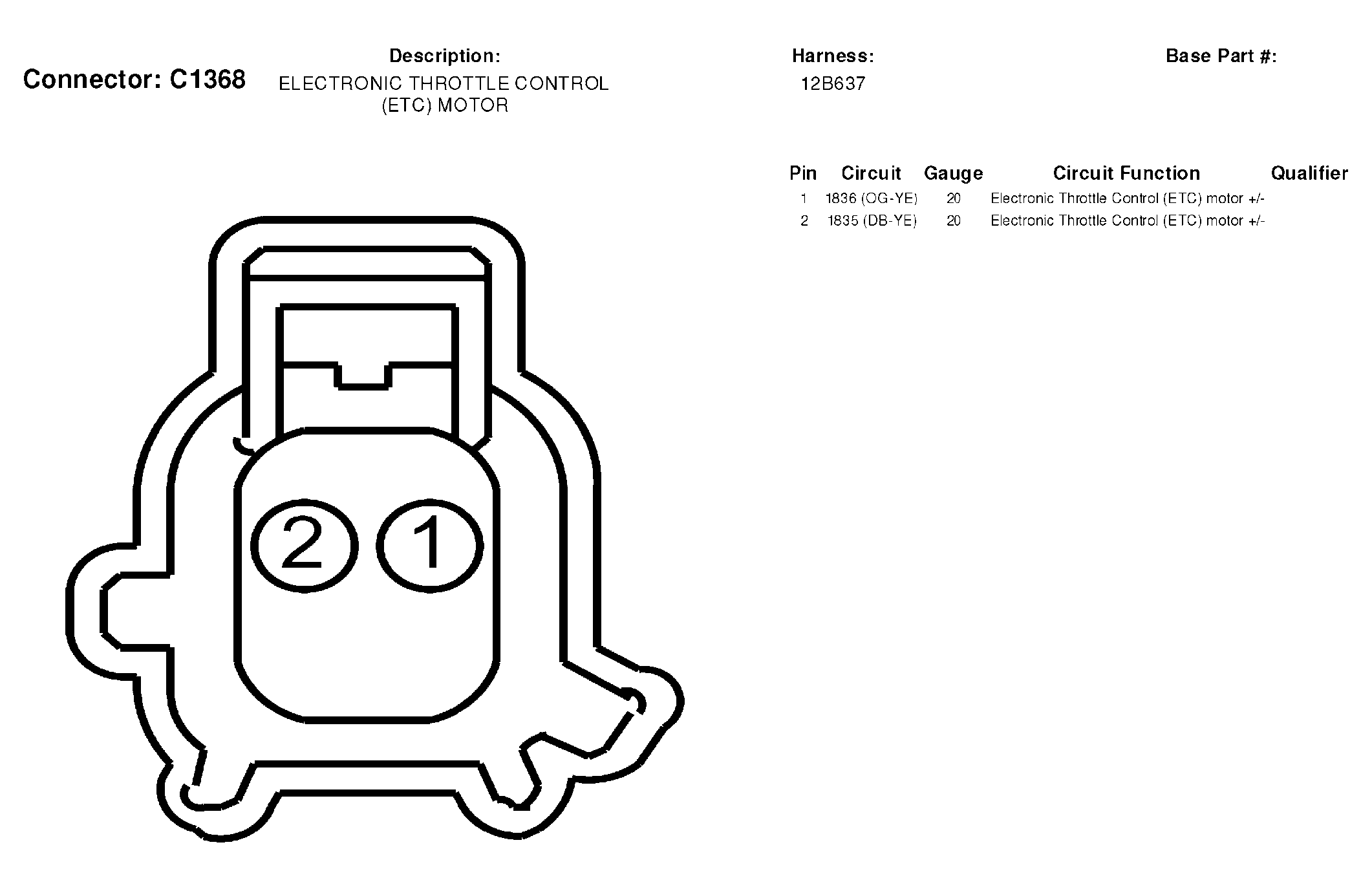

Fig 184: Electronic Throttle Control (ETC) Motor Connector End View (C1368)
Courtesy of FORD MOTOR CO.

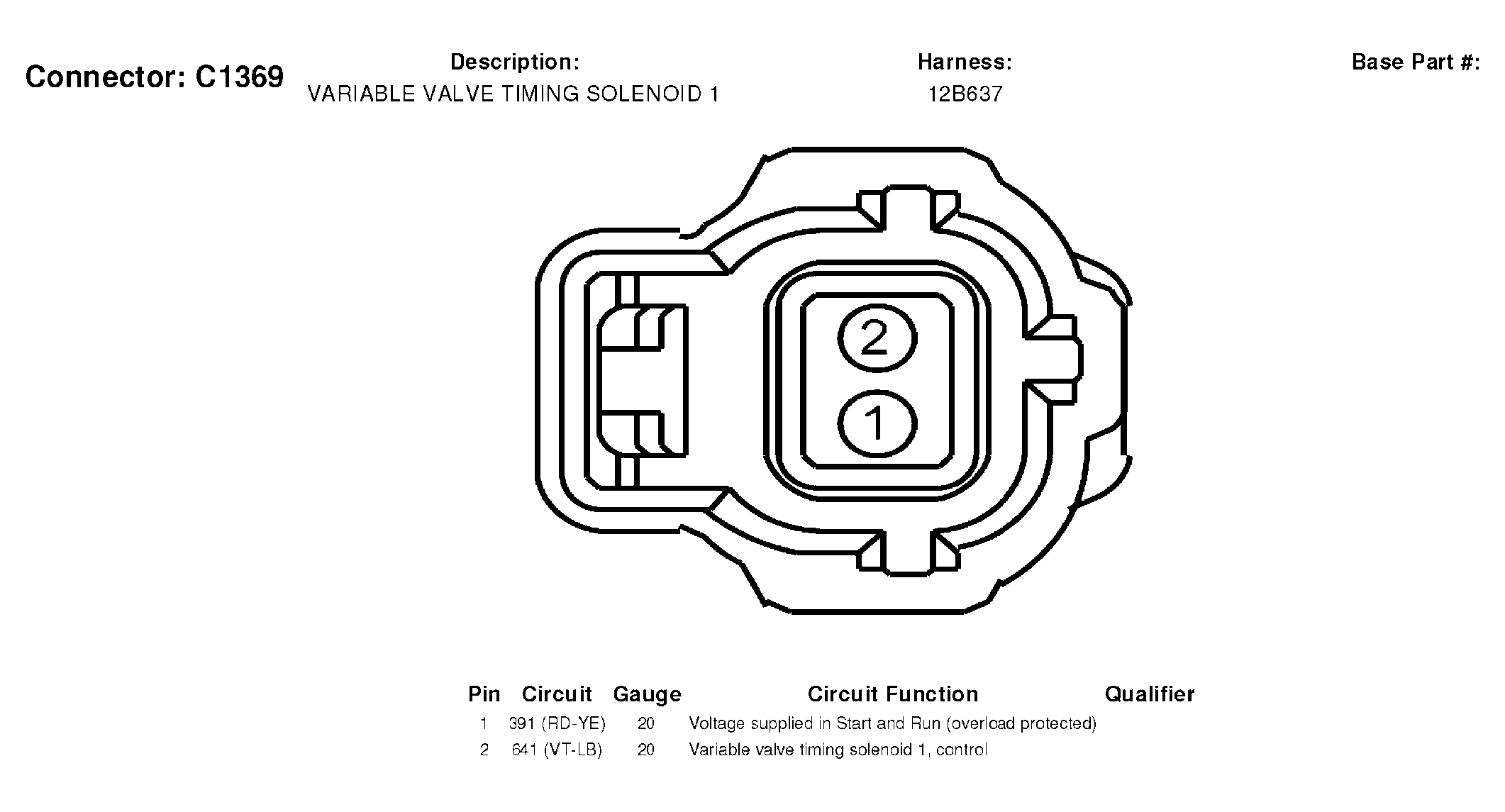

Fig 185: Variable Valve Timing Solenoid 1 Connector End View (C1369)
Courtesy of FORD MOTOR CO.

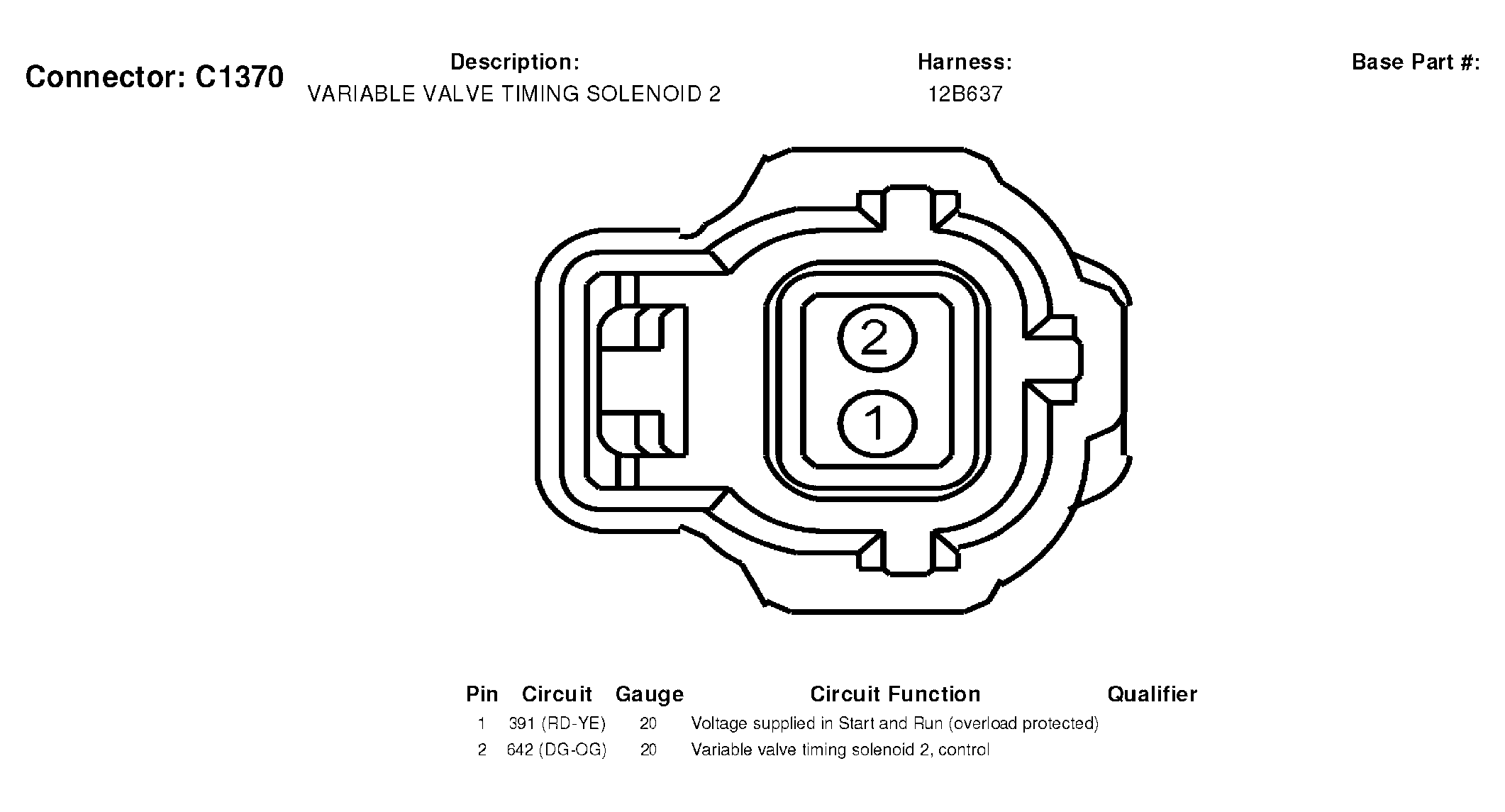

Fig 186: Variable Valve Timing Solenoid 2 Connector End View (C1370)
Courtesy of FORD MOTOR CO.

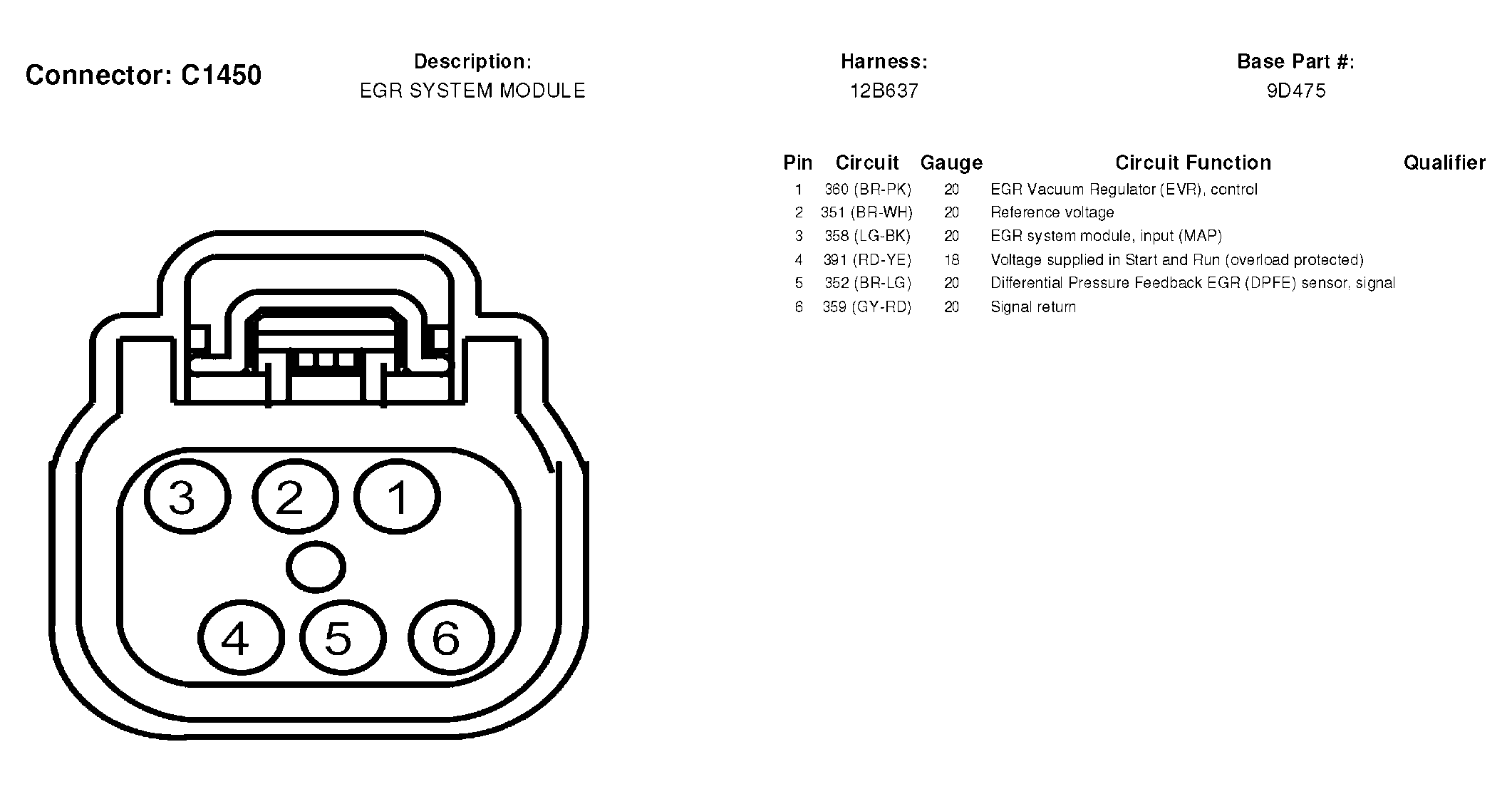

Fig 187: EGR System Module Connector End View (C1450)
Courtesy of FORD MOTOR CO.

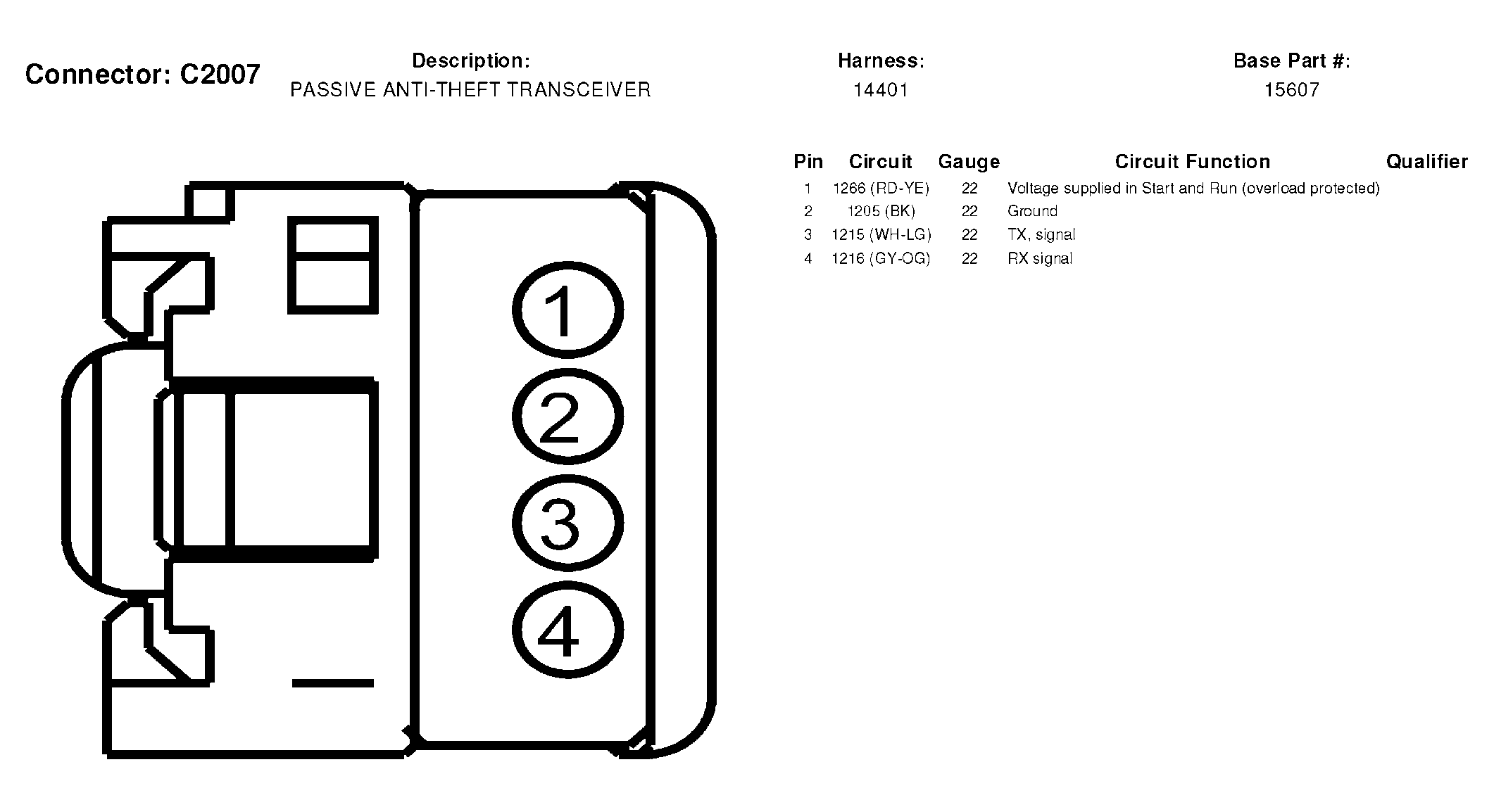

Fig 188: Passive Anti-Theft Transceiver Connector End View (C2007)
Courtesy of FORD MOTOR CO.

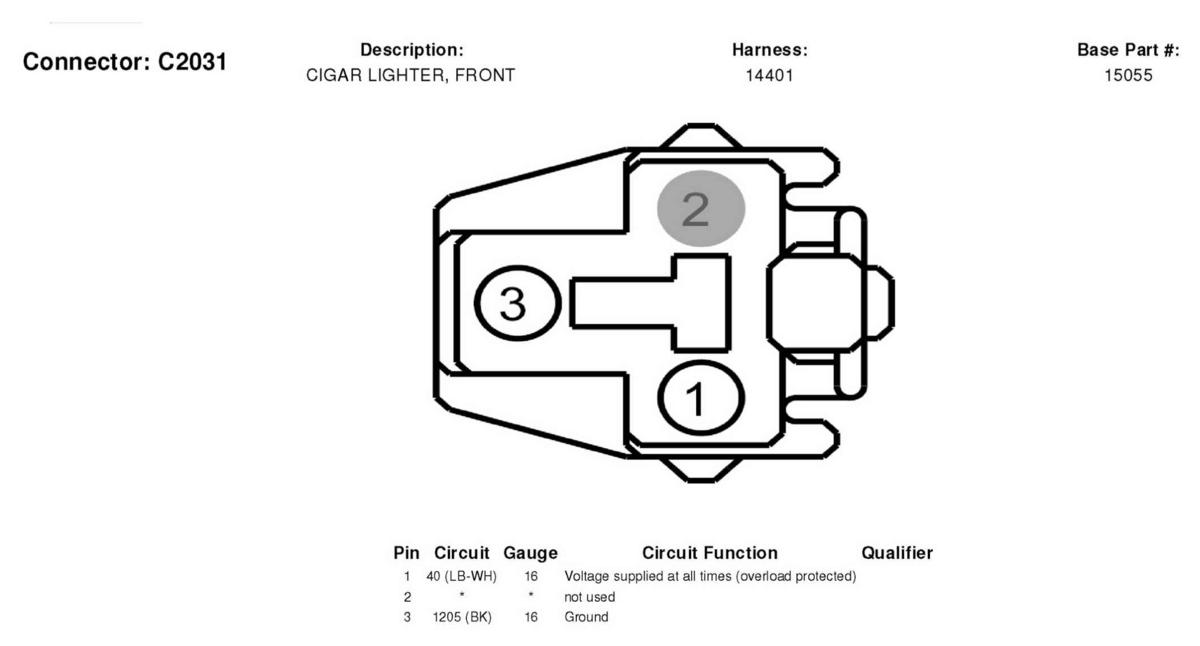

Fig 189: Cigar Lighter, Front Connector End View (C2031)
Courtesy of FORD MOTOR CO.

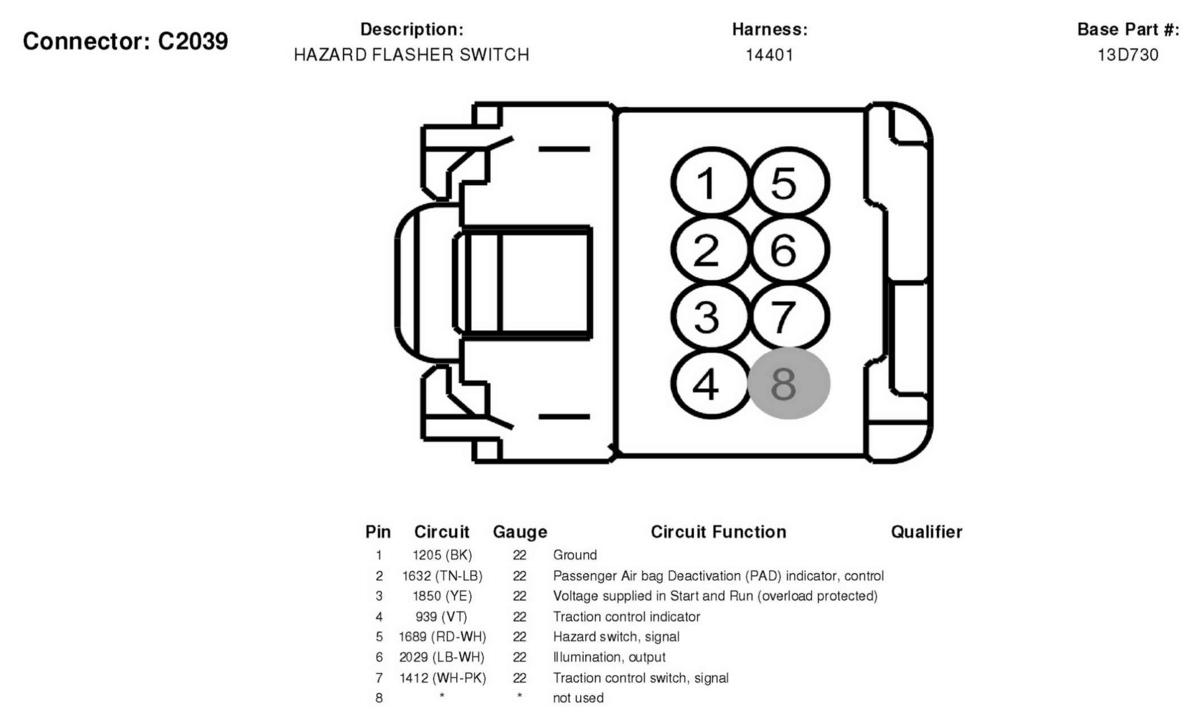

Fig 190: Hazard Flasher Switch Connector End View (C2039)
Courtesy of FORD MOTOR CO.

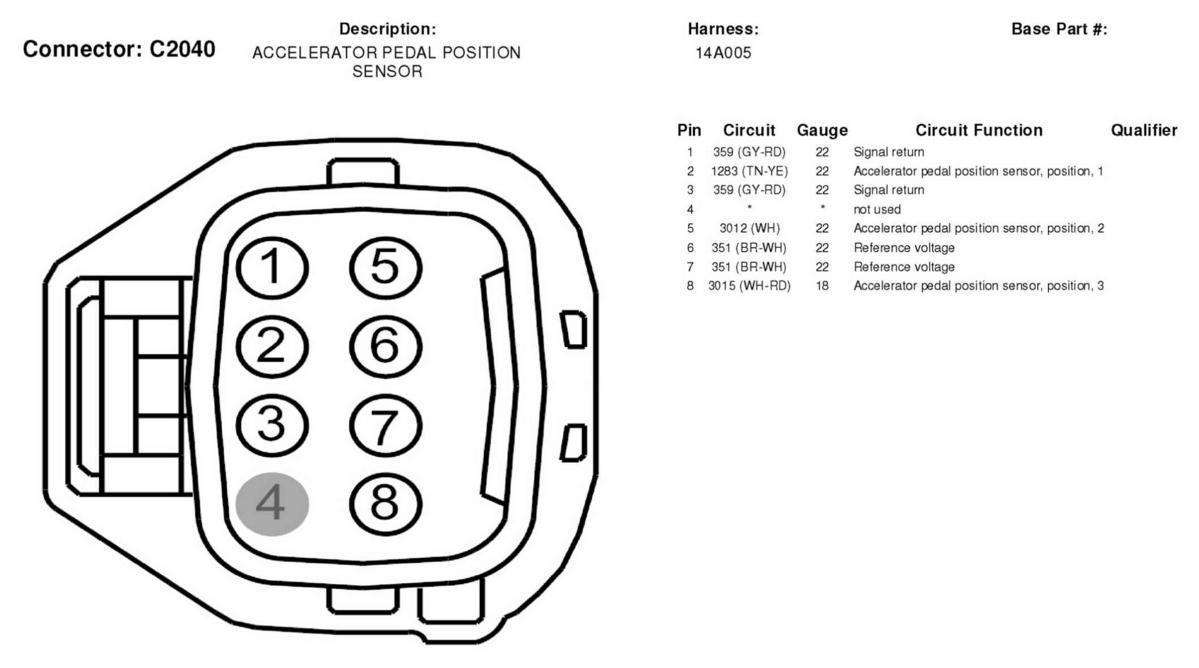

Fig 191: Accelerator Pedal Position Sensor Connector End View (C2040)
Courtesy of FORD MOTOR CO.

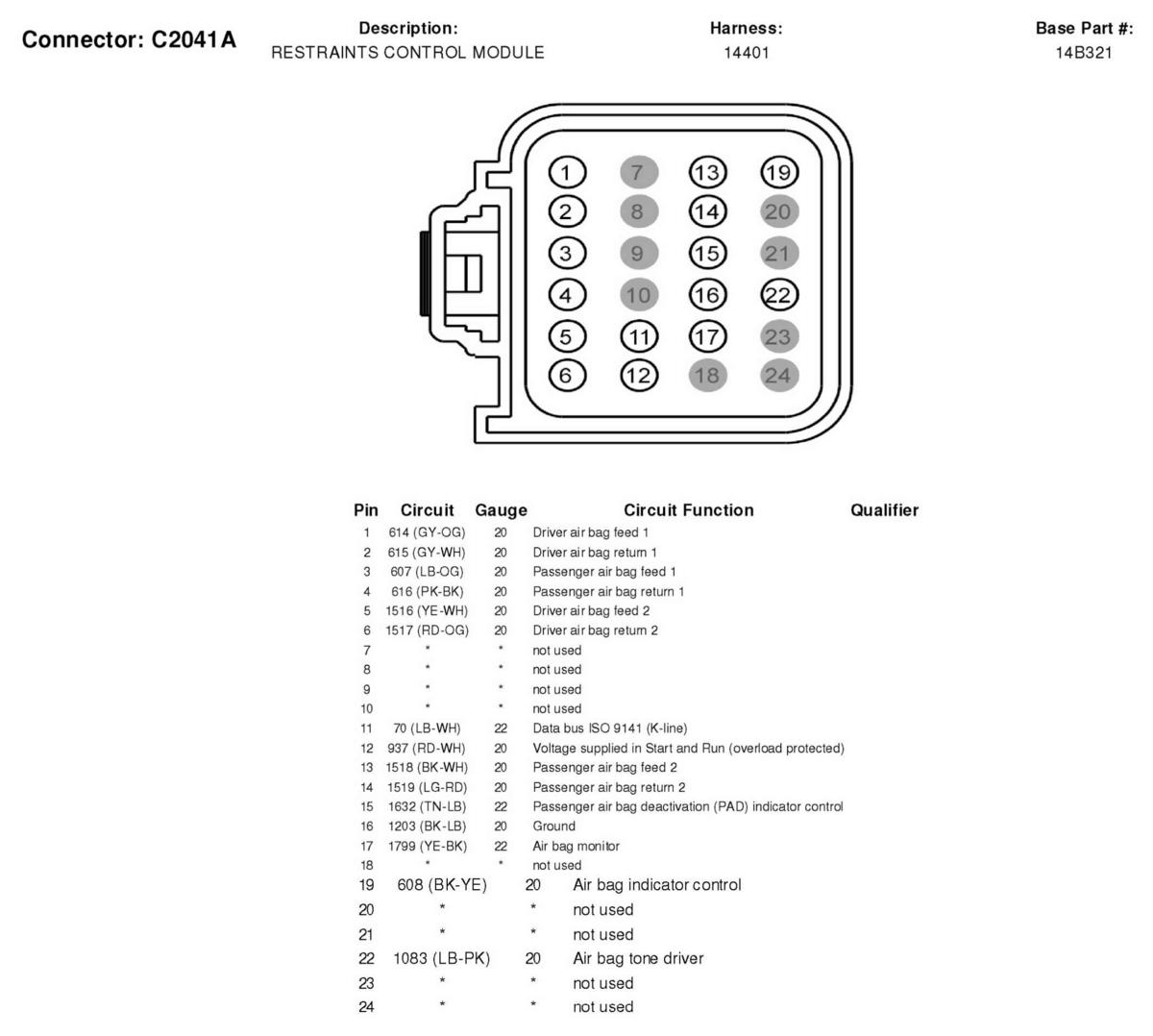

Fig 192: Restraints Control Module Connector End View (C2041A)
Courtesy of FORD MOTOR CO.

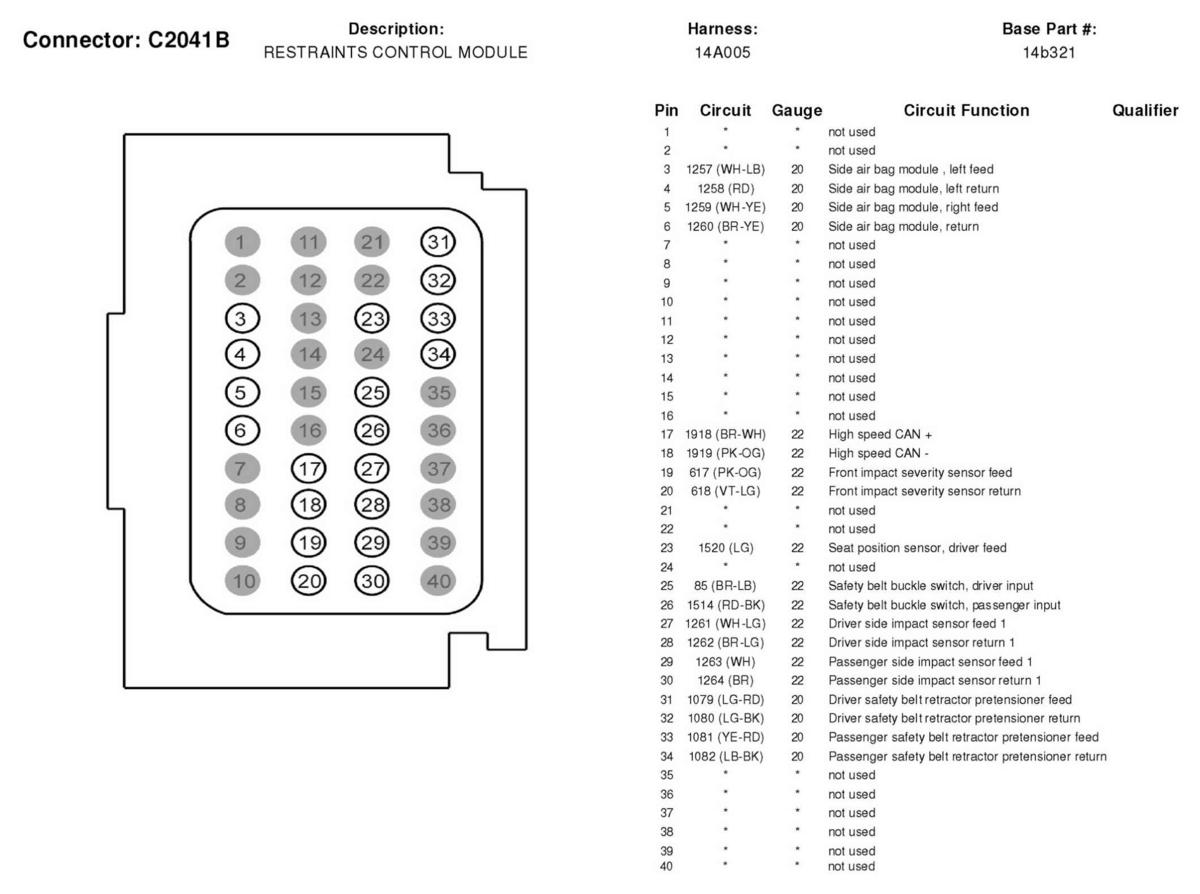

Fig 193: Restraints Control Module Connector End View (C2041B)
Courtesy of FORD MOTOR CO.

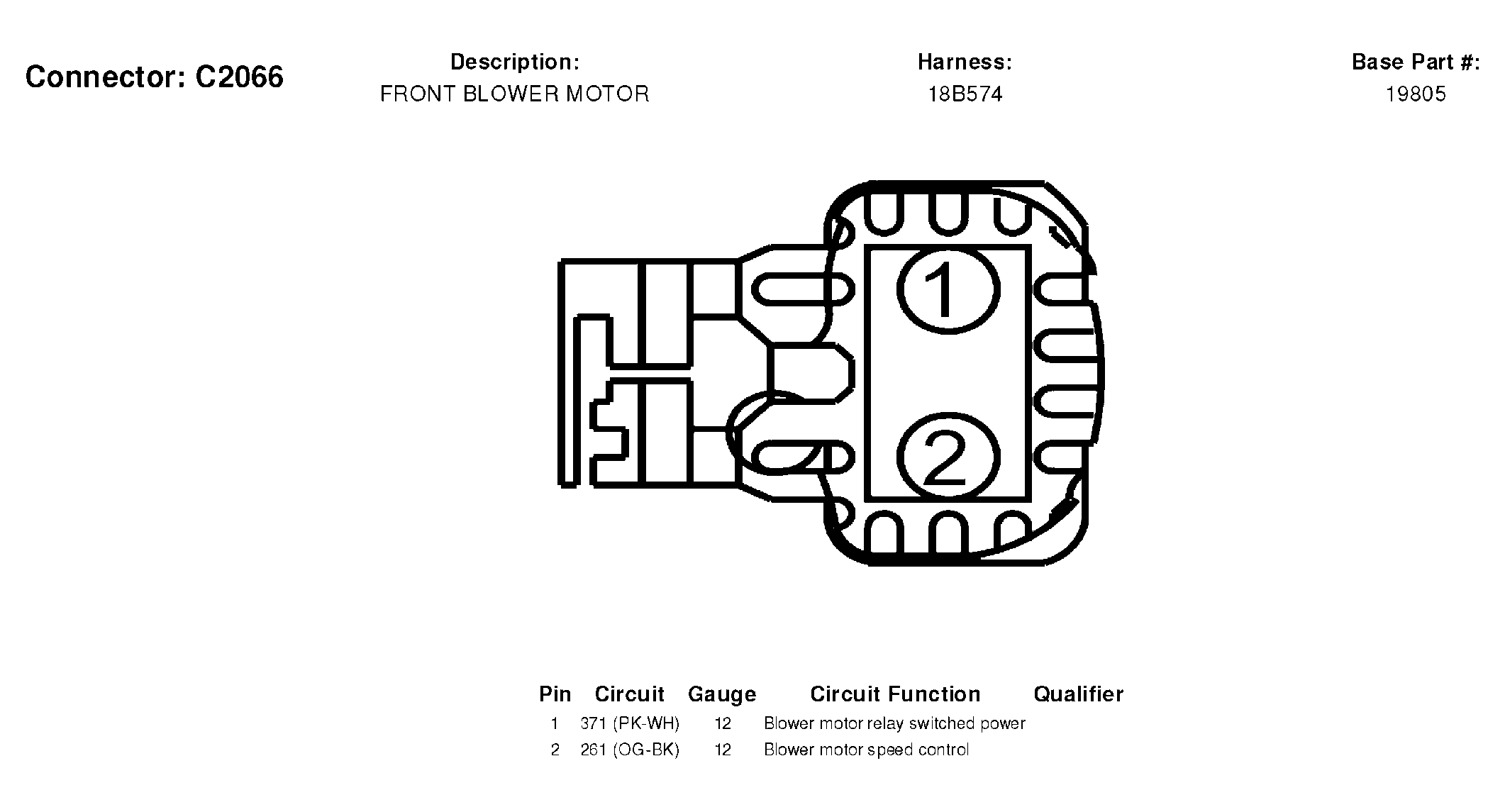

Fig 194: Front Blower Motor Connector End View (C2066)
Courtesy of FORD MOTOR CO.

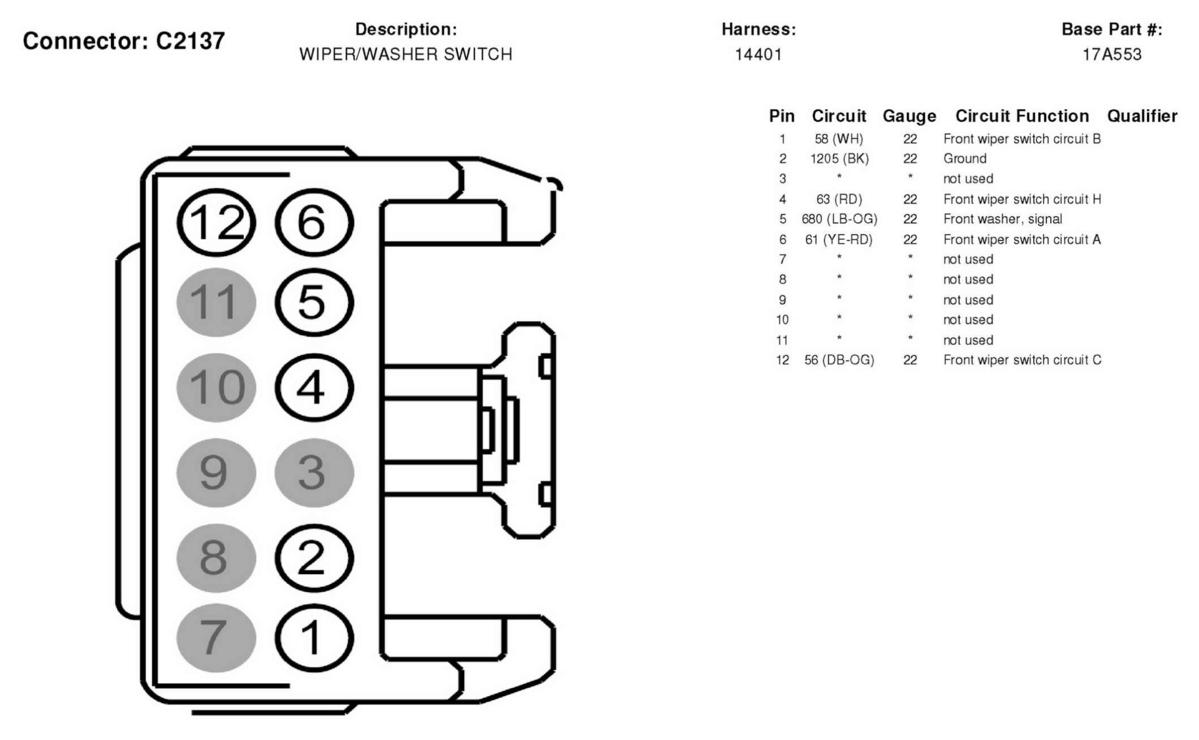

Fig 195: Wiper/Washer Switch Connector End View (C2137)
Courtesy of FORD MOTOR CO.

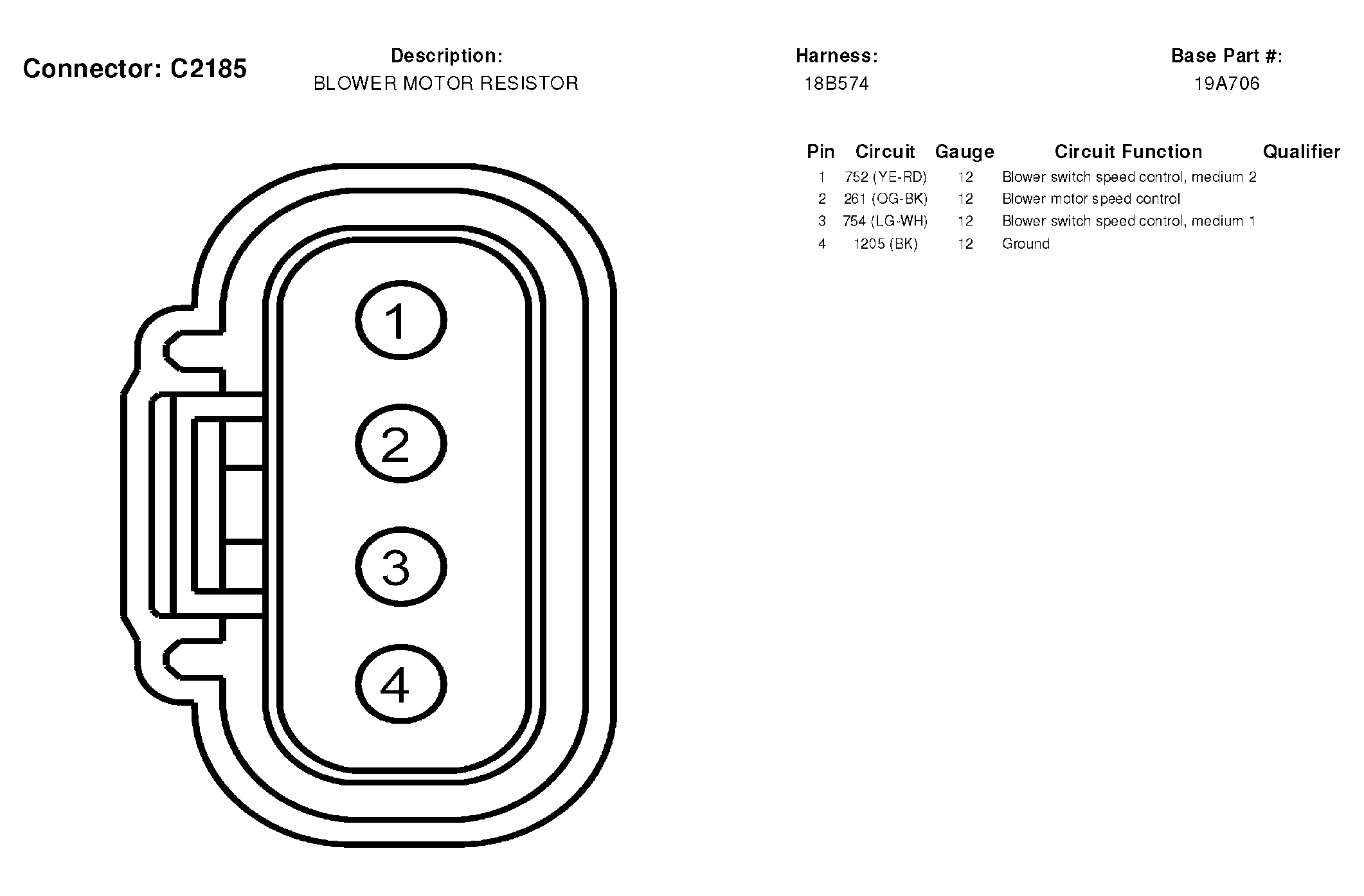

Fig 196: Blower Motor Resistor Connector End View (C2185)
Courtesy of FORD MOTOR CO.

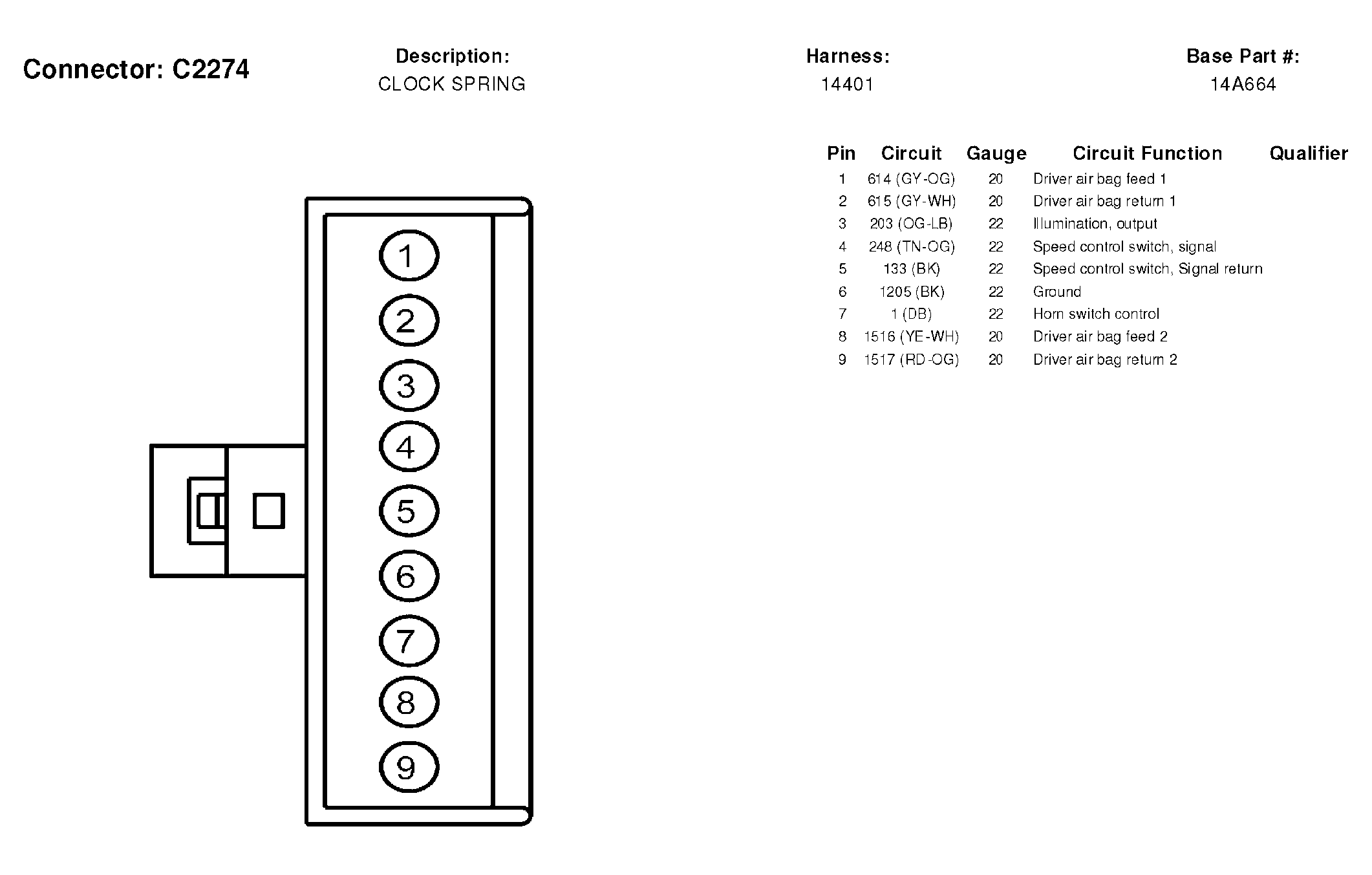

Fig 197: Clock Spring Connector End View (C2274)
Courtesy of FORD MOTOR CO.

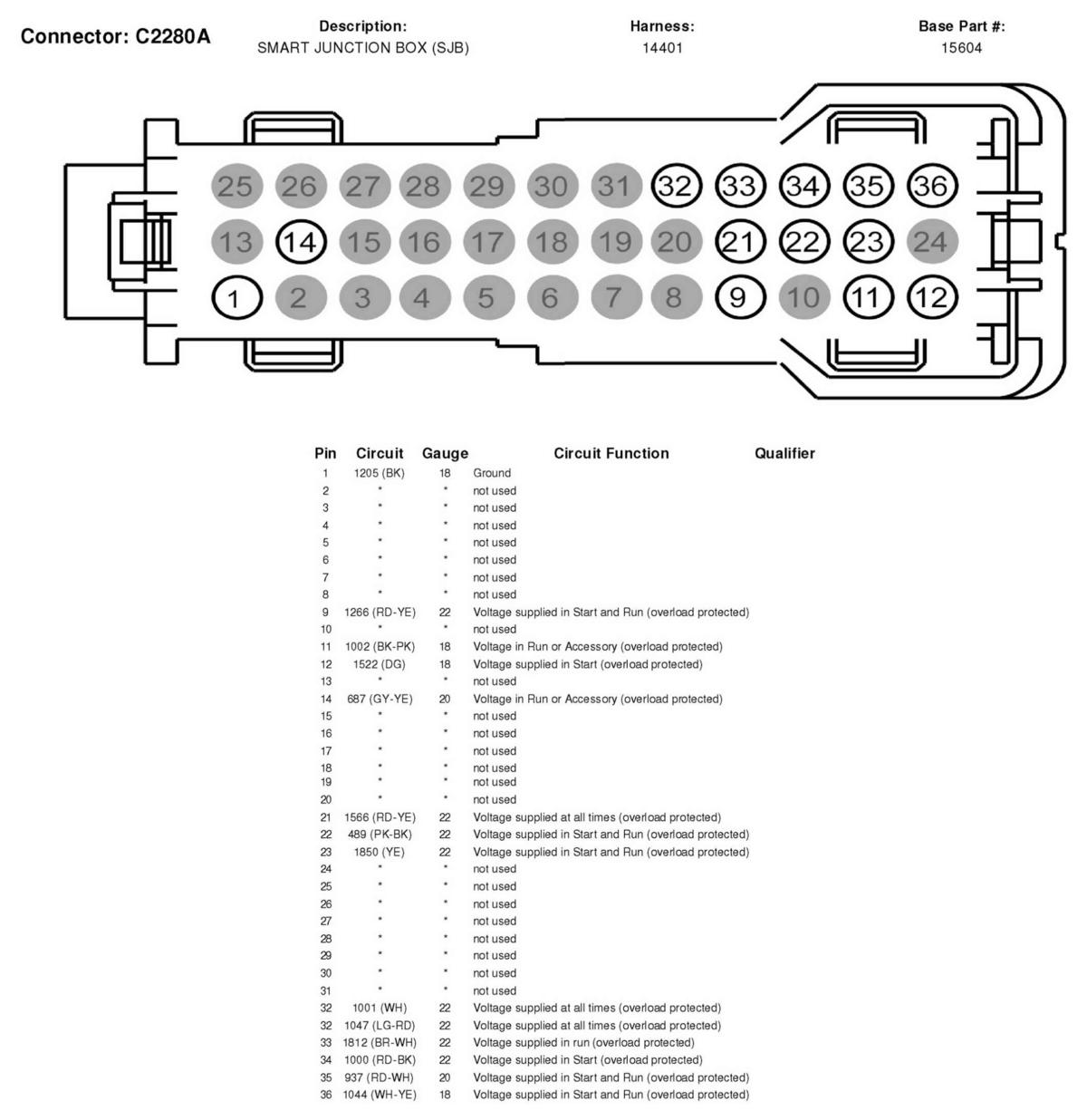

Fig 198: Smart Junction Box (SJB) Connector End View (C2280A)
Courtesy of FORD MOTOR CO.

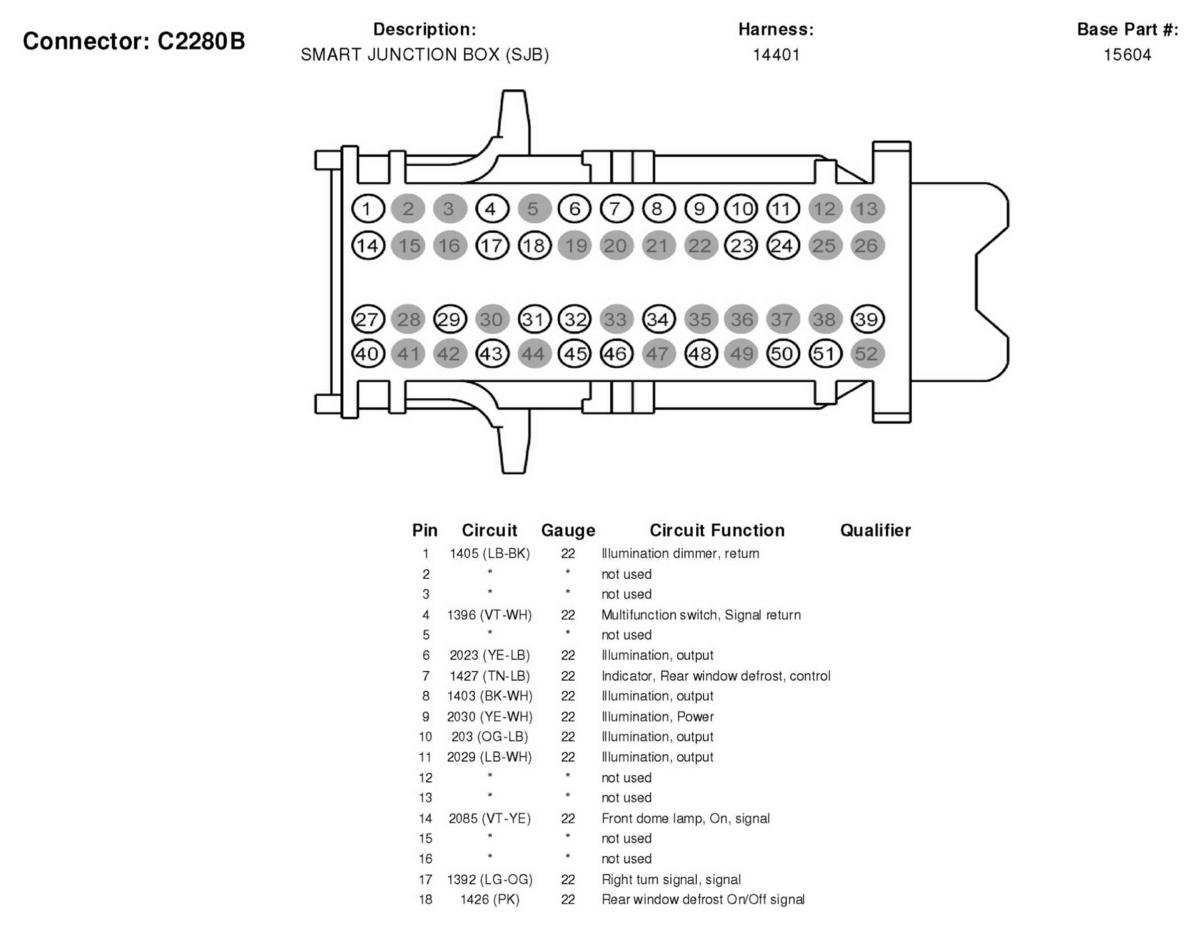

Fig 199: Smart Junction Box (SJB) Connector End View (C2280B) (1 Of 2)
Courtesy of FORD MOTOR CO.

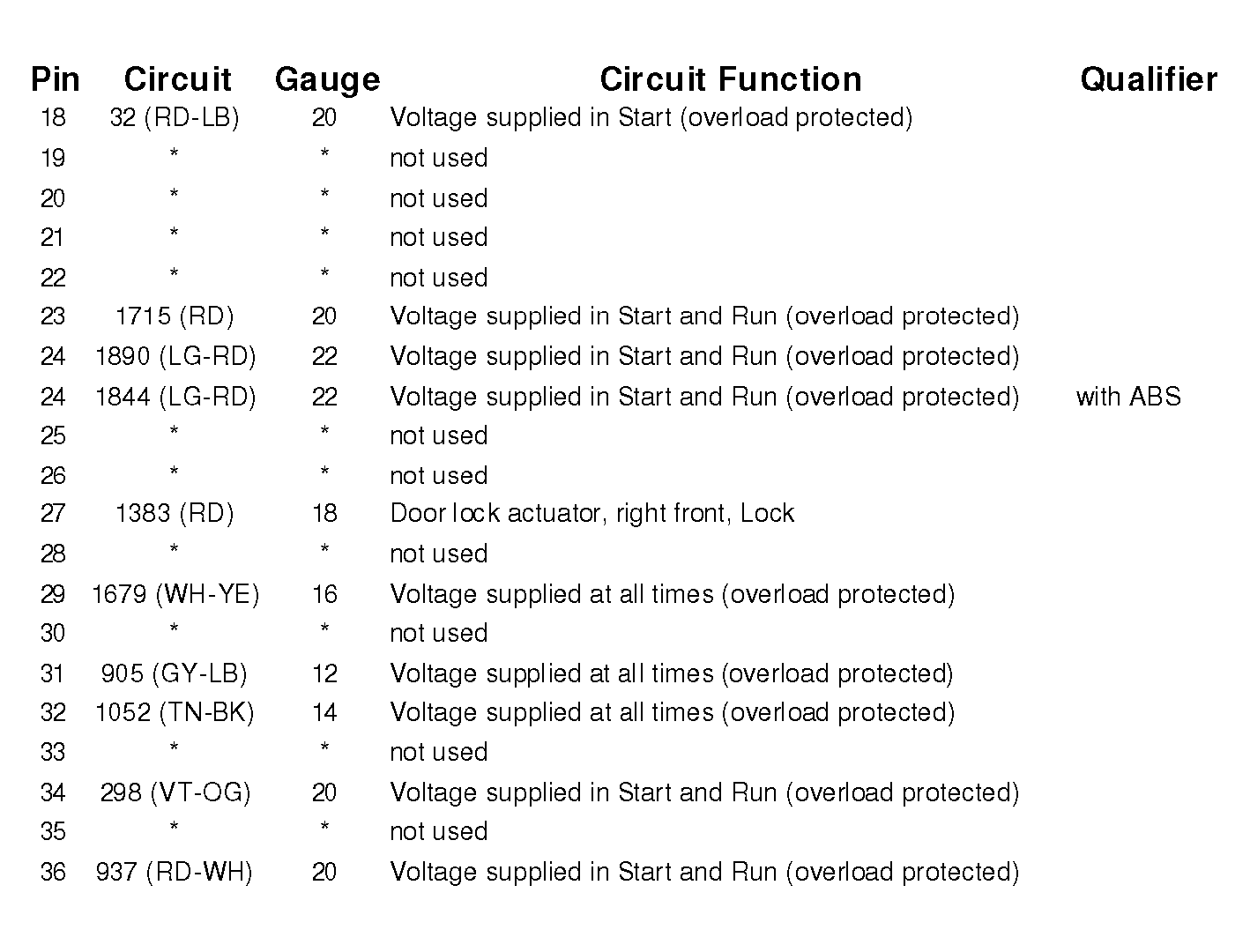

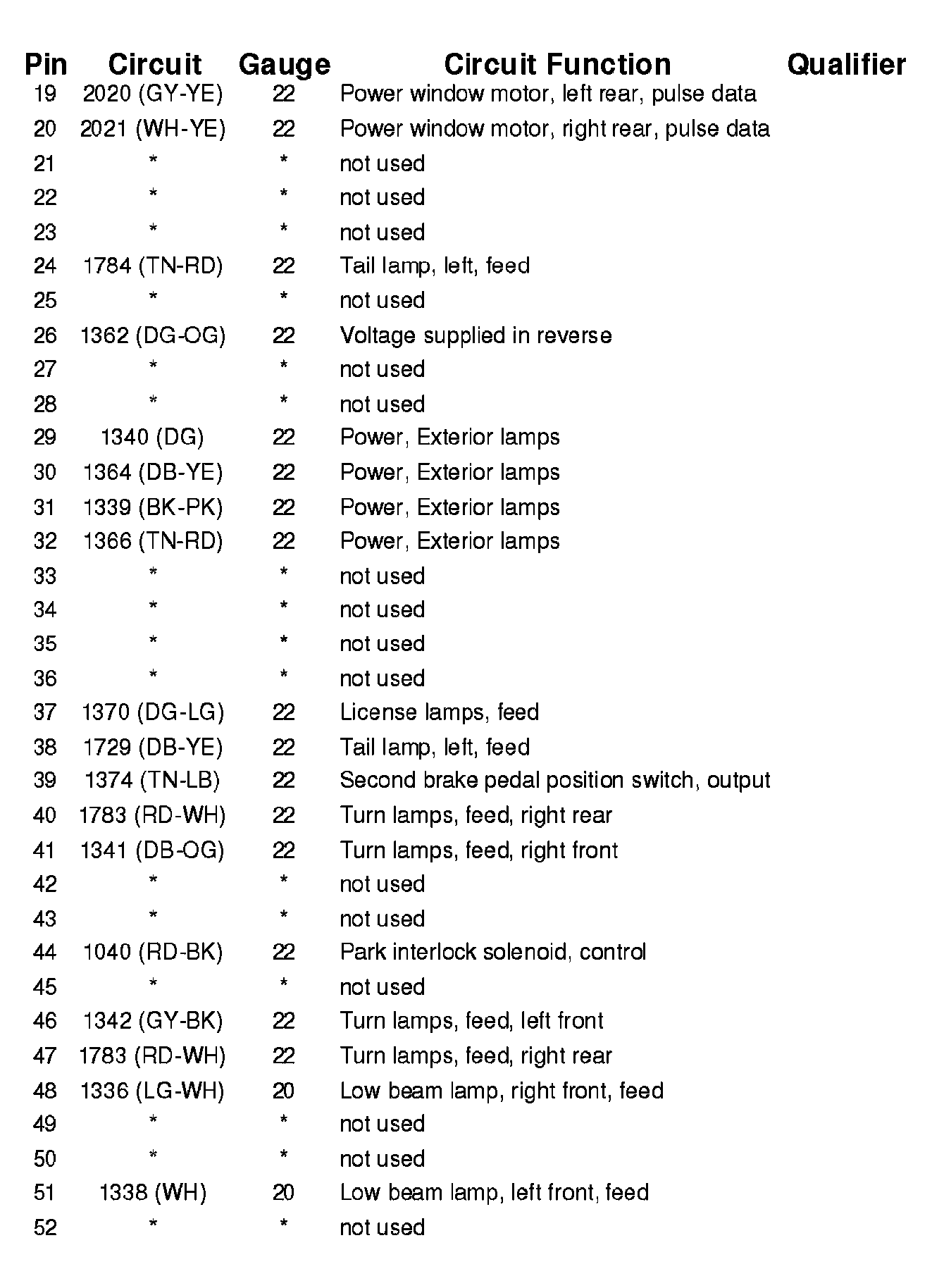

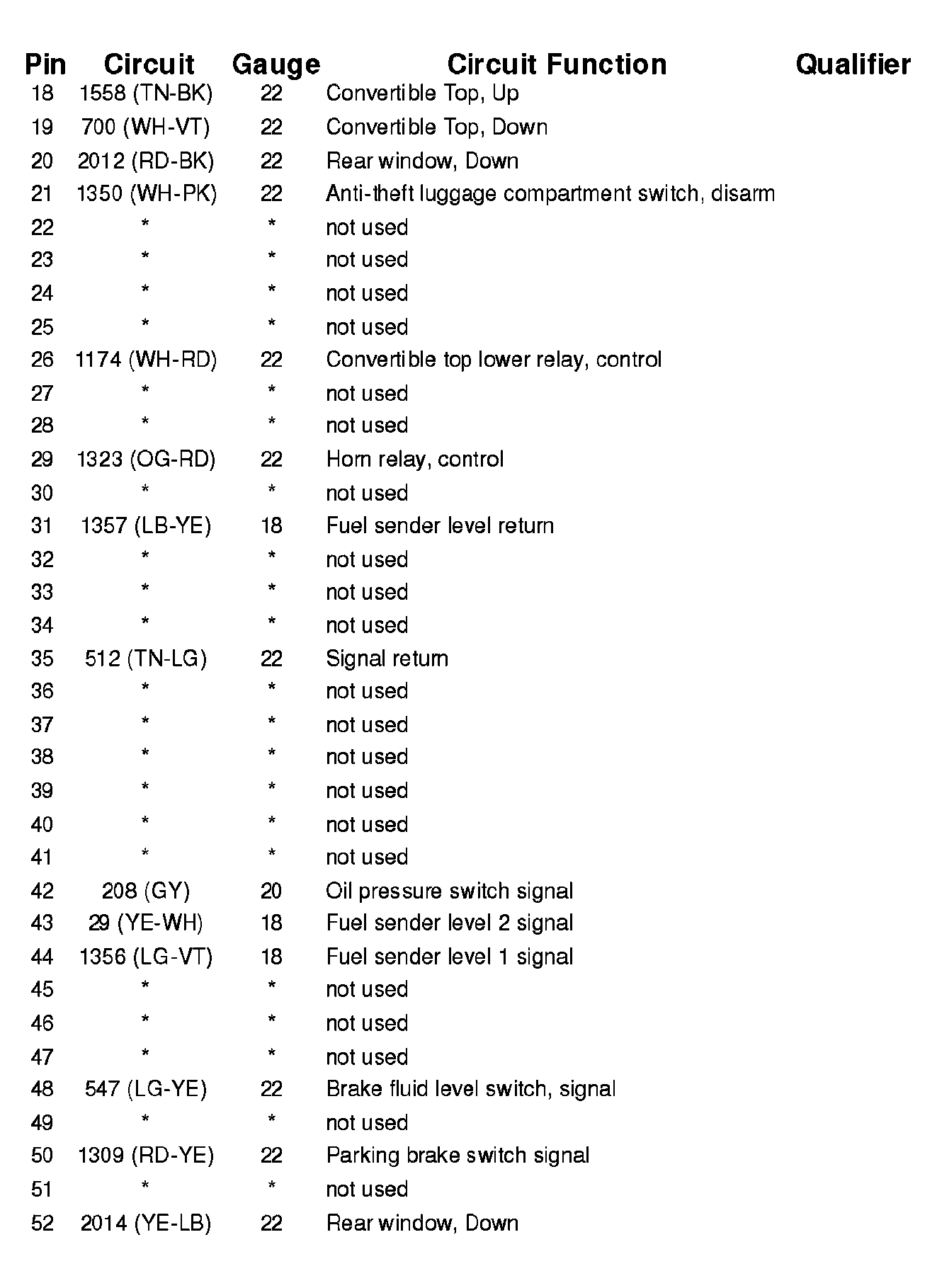

Fig 200: Smart Junction Box (SJB) Connector End View (C2280B) (2 Of 2)
Courtesy of FORD MOTOR CO.

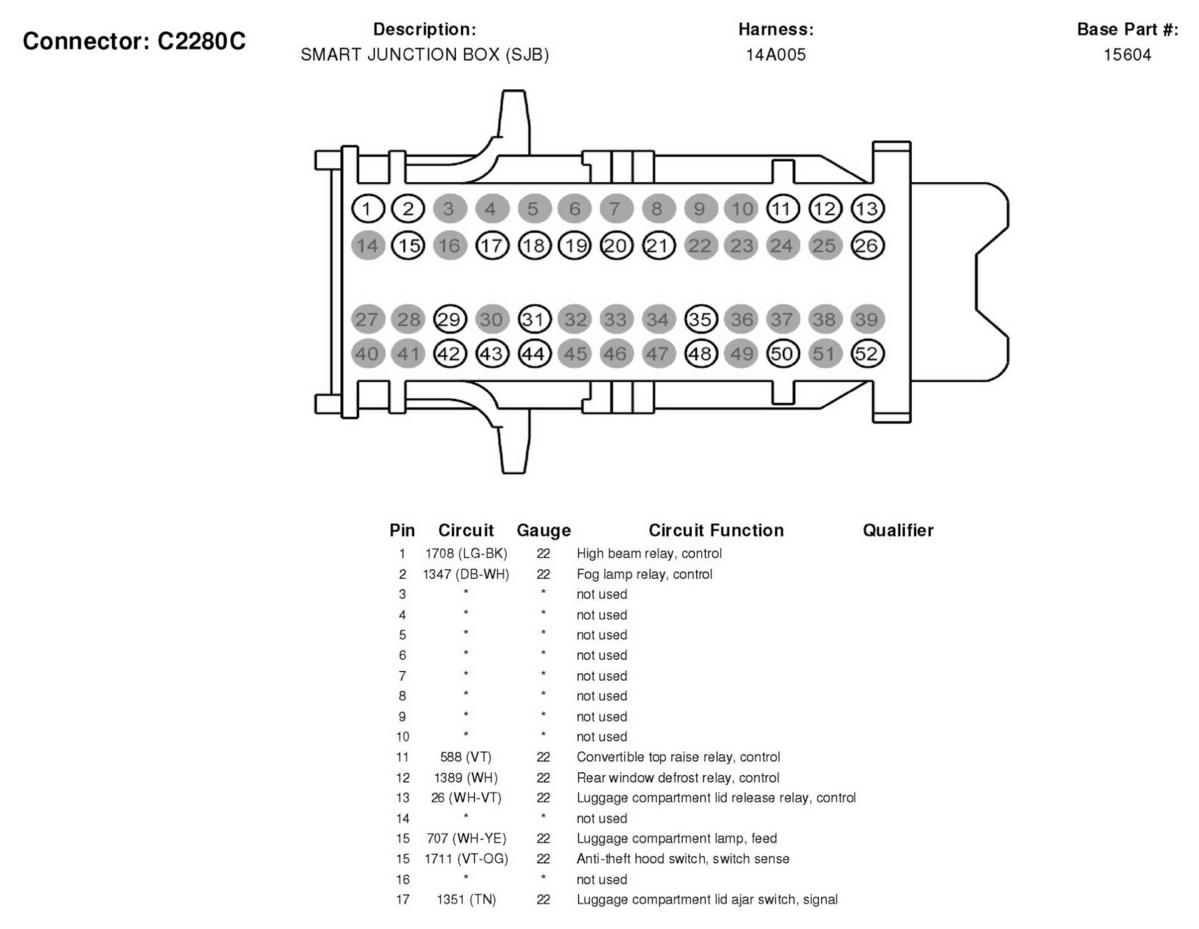

Fig 201: Smart Junction Box (SJB) Connector End View (C2280C) (1 Of 2)
Courtesy of FORD MOTOR CO.

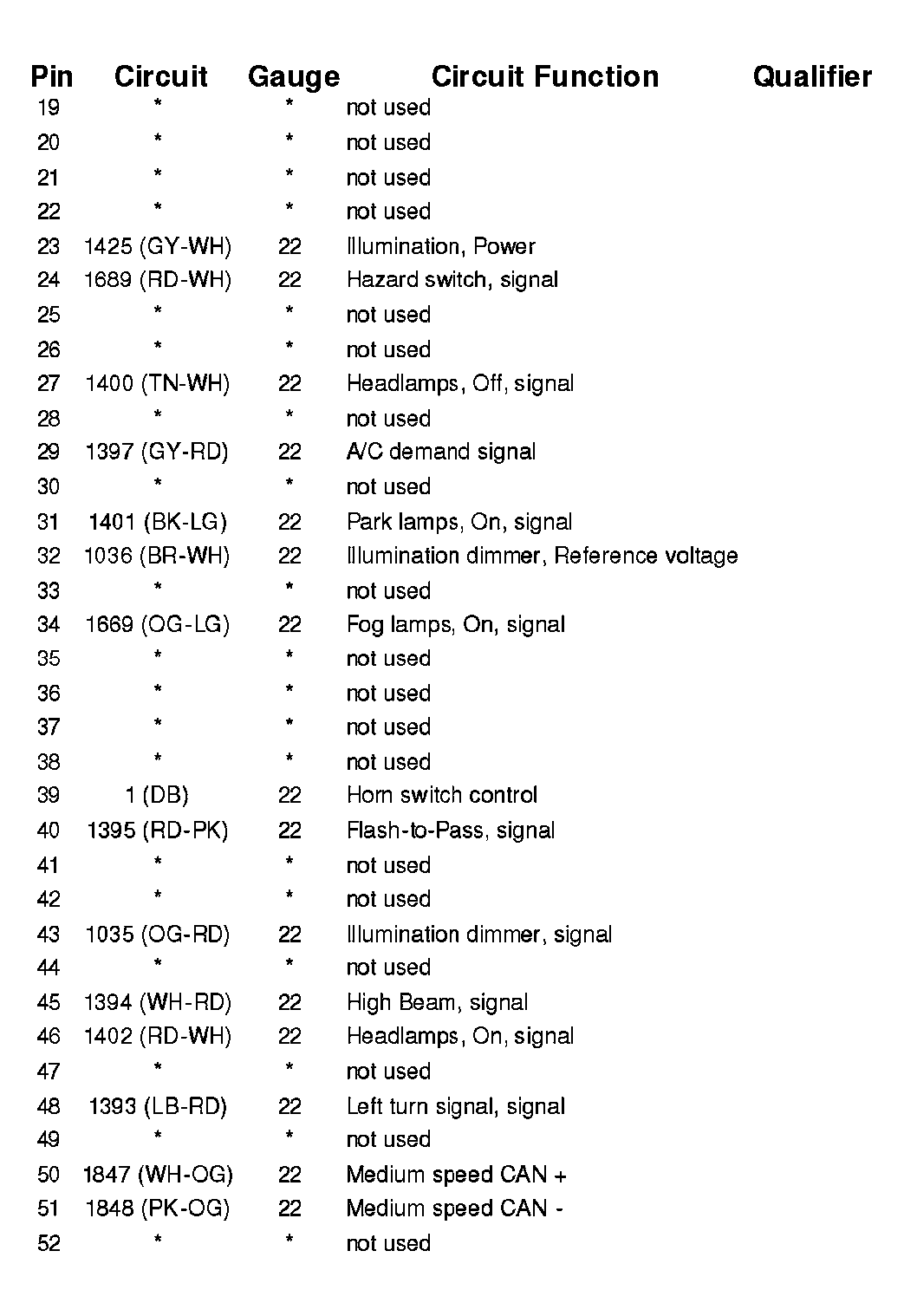

Fig 202: Smart Junction Box (SJB) Connector End View (C2280C) (2 Of 2)
Courtesy of FORD MOTOR CO.

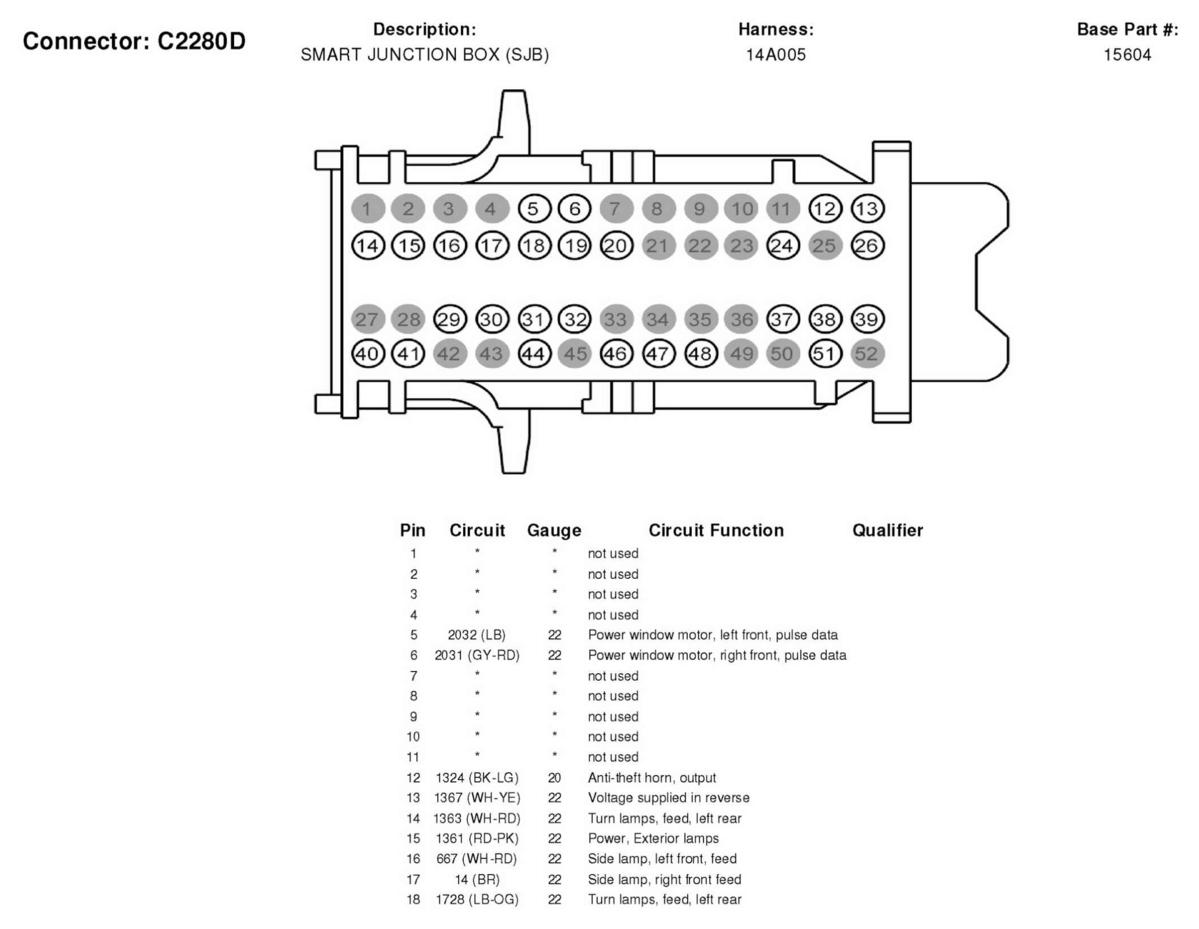

Fig 203: Smart Junction Box (SJB) Connector End View (C2280D) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 204: Smart Junction Box (SJB) Connector End View (C2280D) (2 Of 2)
Courtesy of FORD MOTOR CO.

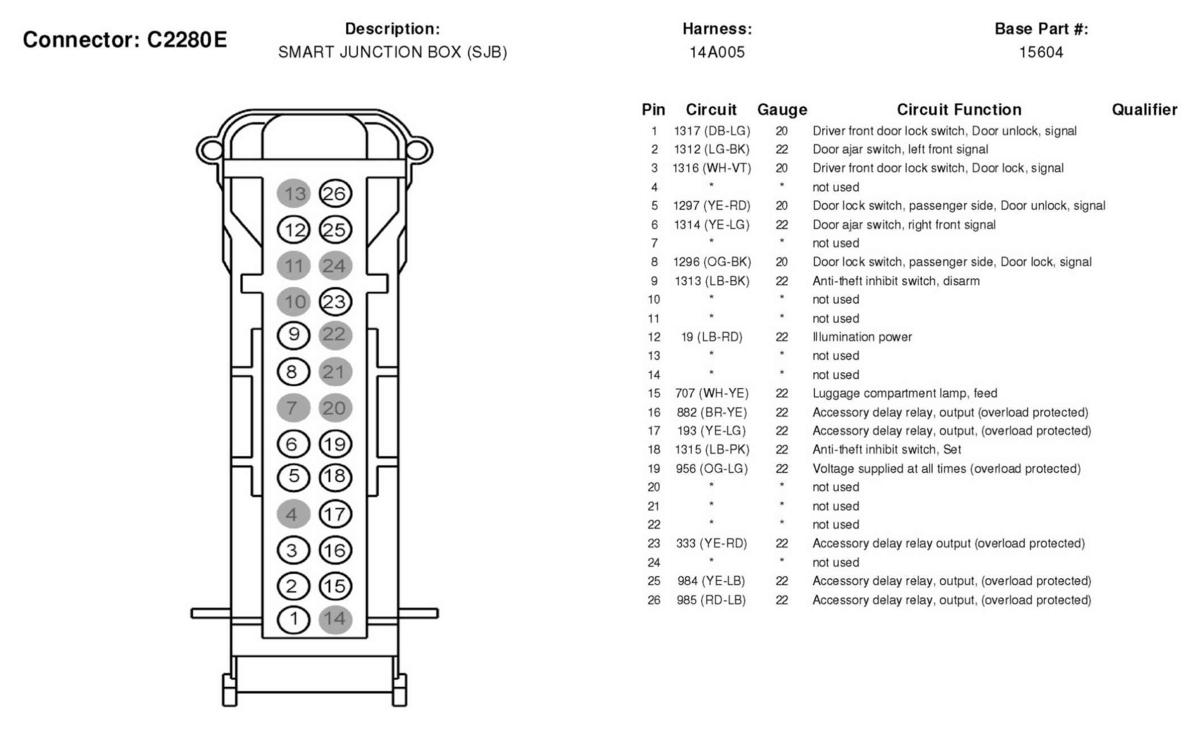

Fig 205: Smart Junction Box (SJB) Connector End View (C2280E)
Courtesy of FORD MOTOR CO.

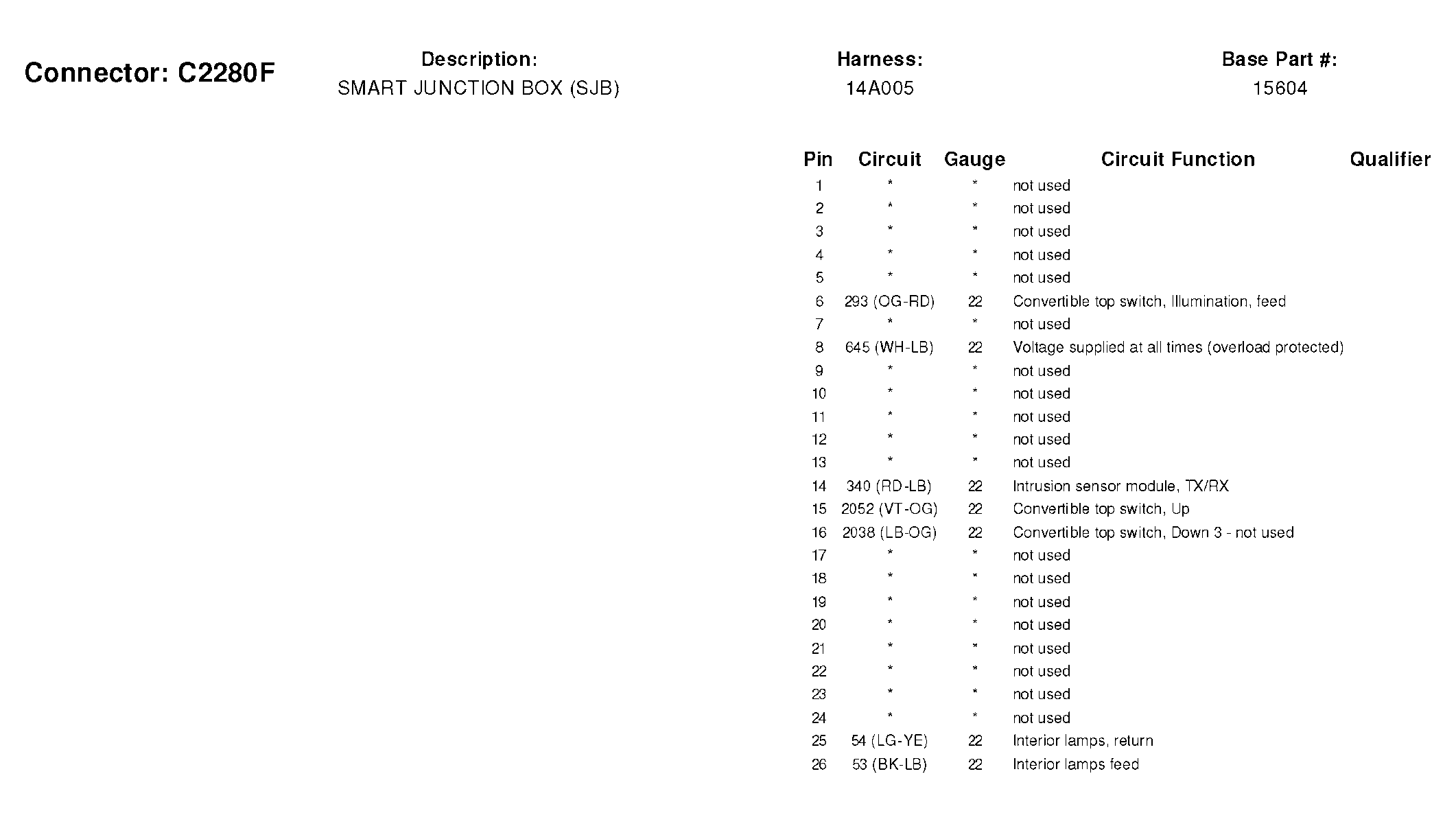

Fig 206: Smart Junction Box (SJB) Connector End View (C2280F)
Courtesy of FORD MOTOR CO.

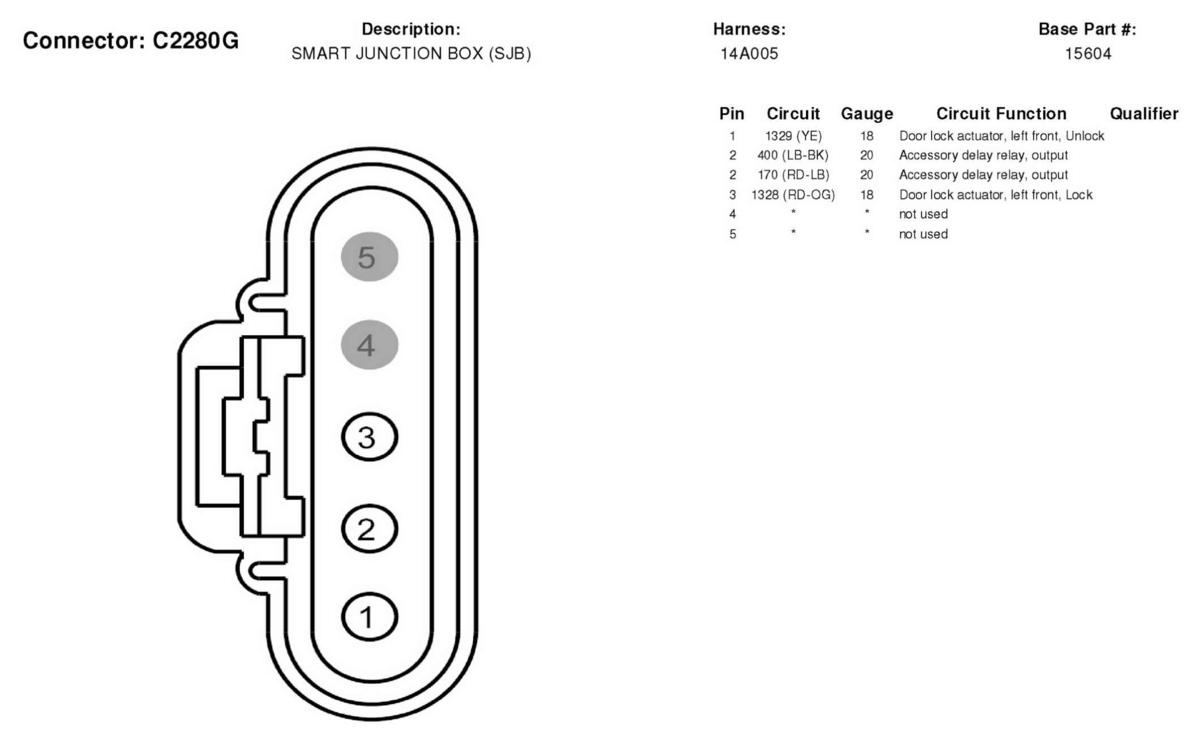

Fig 207: Smart Junction Box (SJB) Connector End View (C2280G)
Courtesy of FORD MOTOR CO.

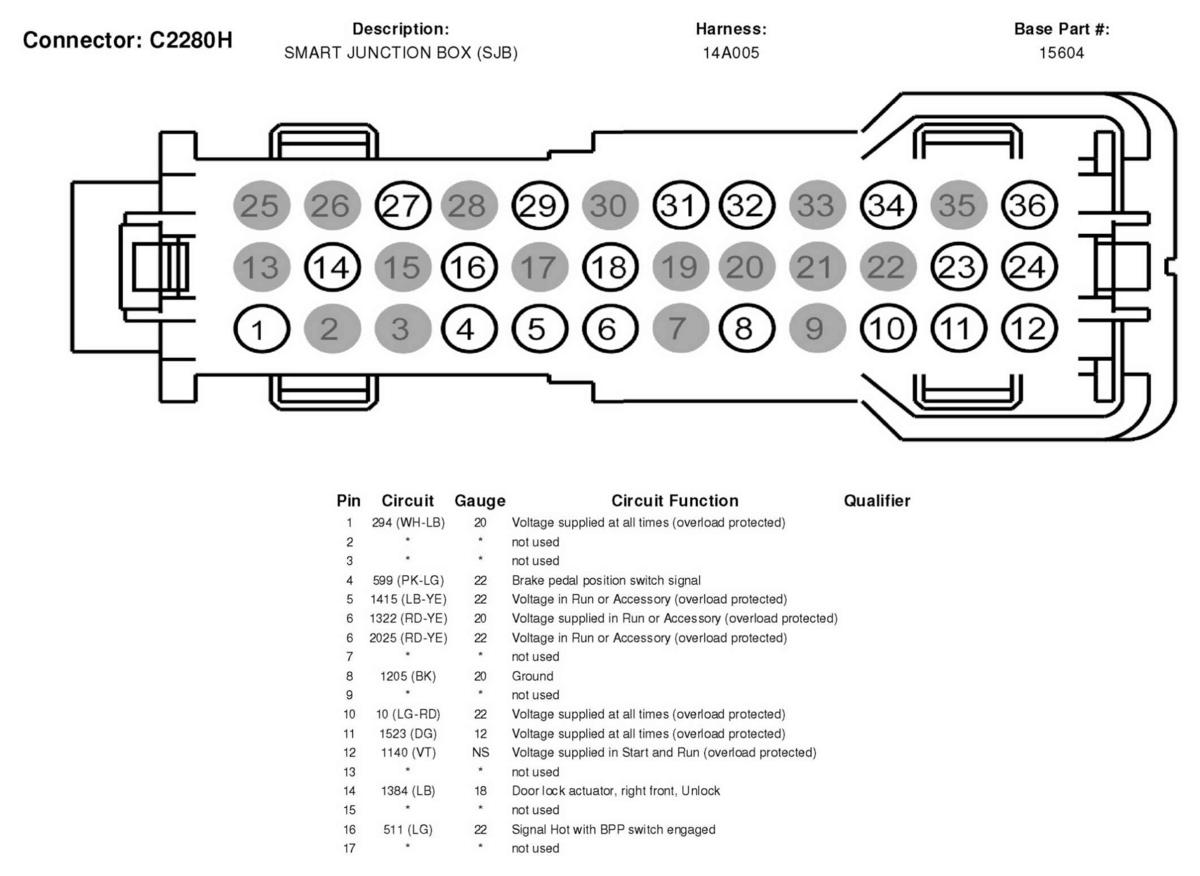

Fig 208: Smart Junction Box (SJB) Connector End View (C2280H) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 209: Smart Junction Box (SJB) Connector End View (C2280H) (2 Of 2)
Courtesy of FORD MOTOR CO.

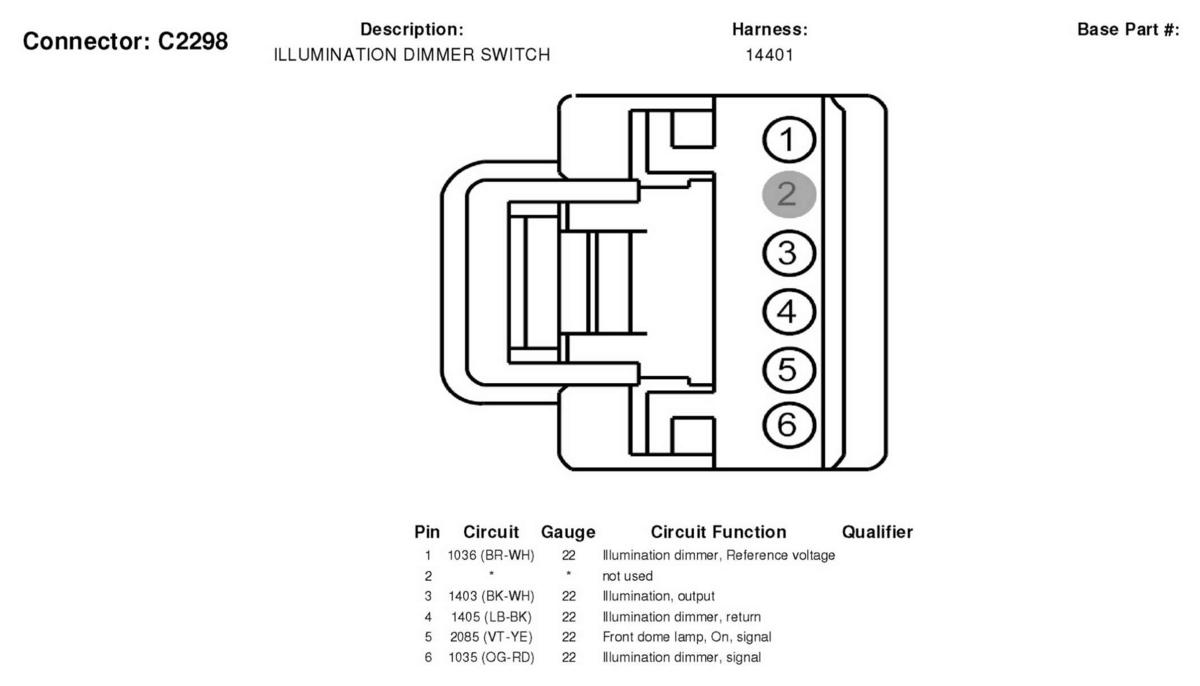

Fig 210: Illumination Dimmer Switch Connector End View (C2298)
Courtesy of FORD MOTOR CO.

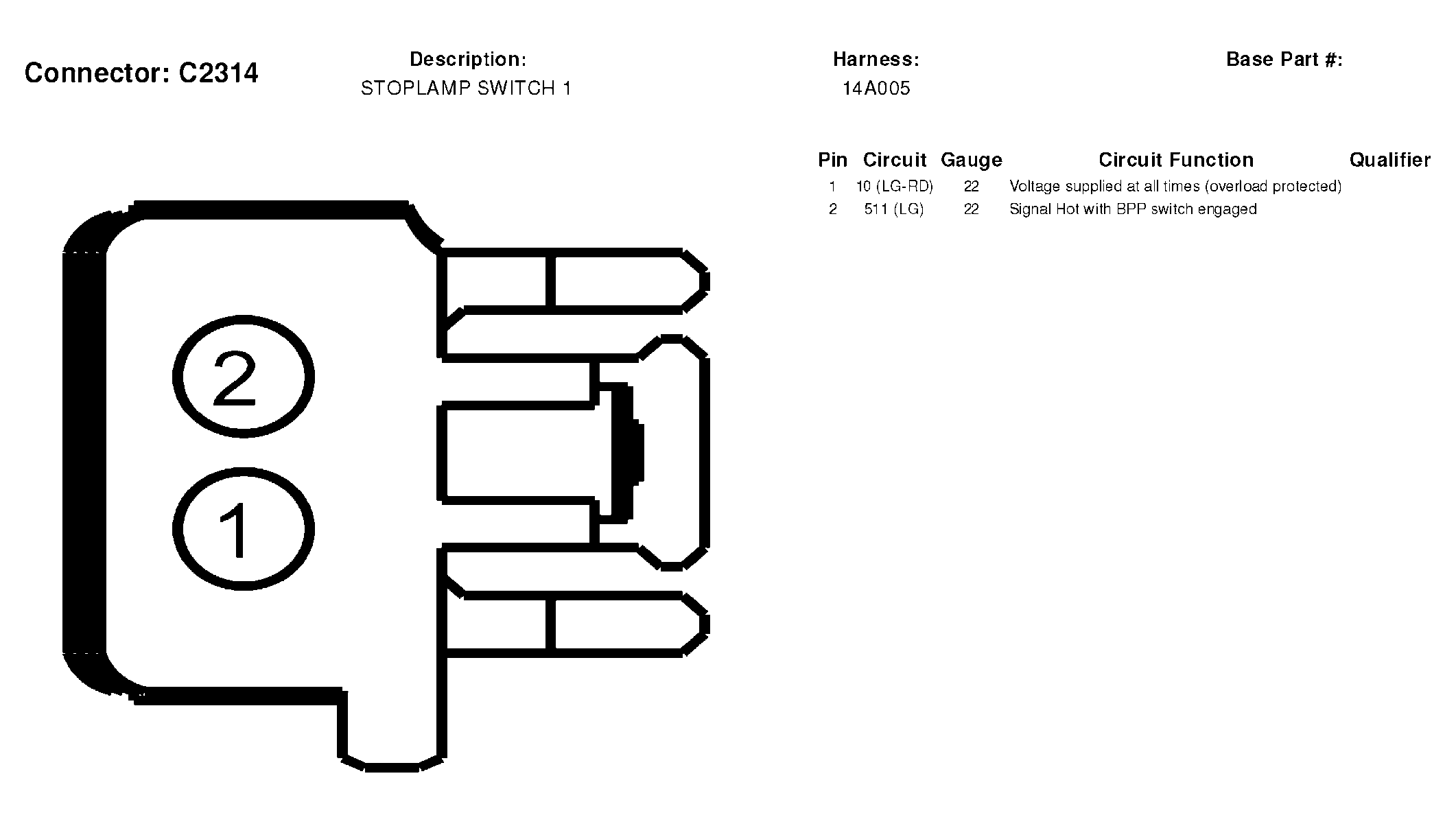

Fig 211: Stoplamp Switch 1 Connector End View (C2314)
Courtesy of FORD MOTOR CO.

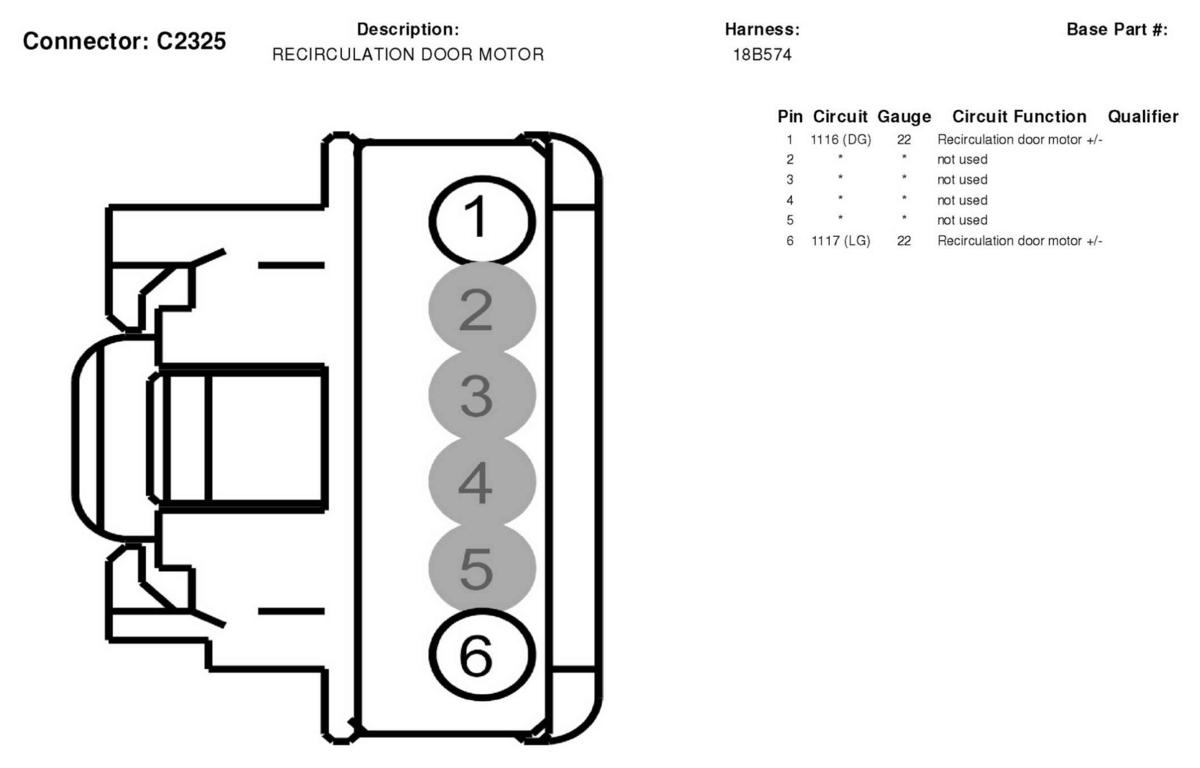

Fig 212: Recirculation Door Motor Connector End View (C2325)
Courtesy of FORD MOTOR CO.
Fig 213: Subwoofer Amplifier, Left Front Channel Connector End View (C2993A)
Courtesy of FORD MOTOR CO.

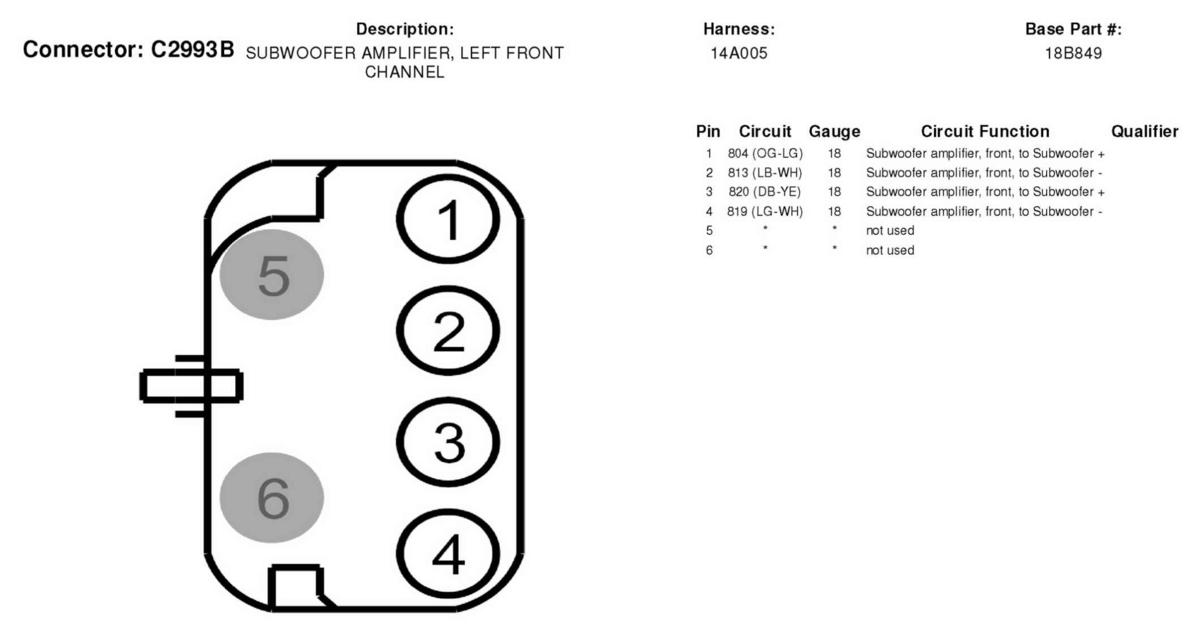

Fig 214: Subwoofer Amplifier, Left Front Channel Connector End View (C2993B)
Courtesy of FORD MOTOR CO.

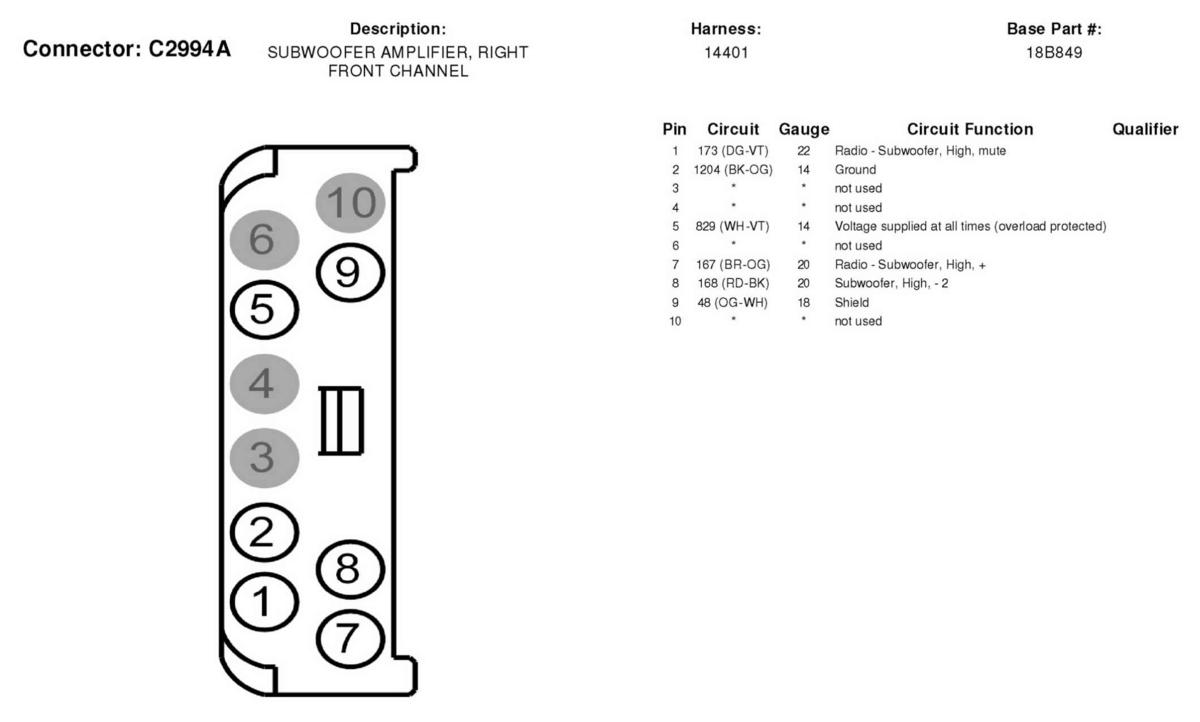

Fig 215: Subwoofer Amplifier, Right Front Channel Connector End View (C2994A)
Courtesy of FORD MOTOR CO.

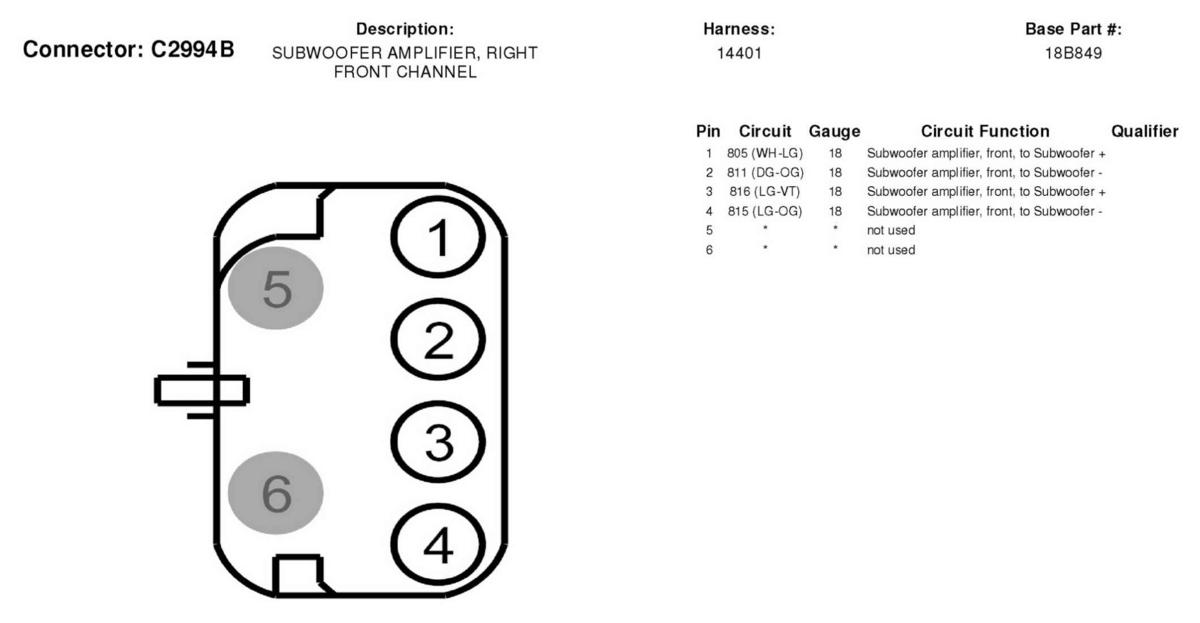

Fig 216: Subwoofer Amplifier, Right Front Channel Connector End View (C2994B)
Courtesy of FORD MOTOR CO.

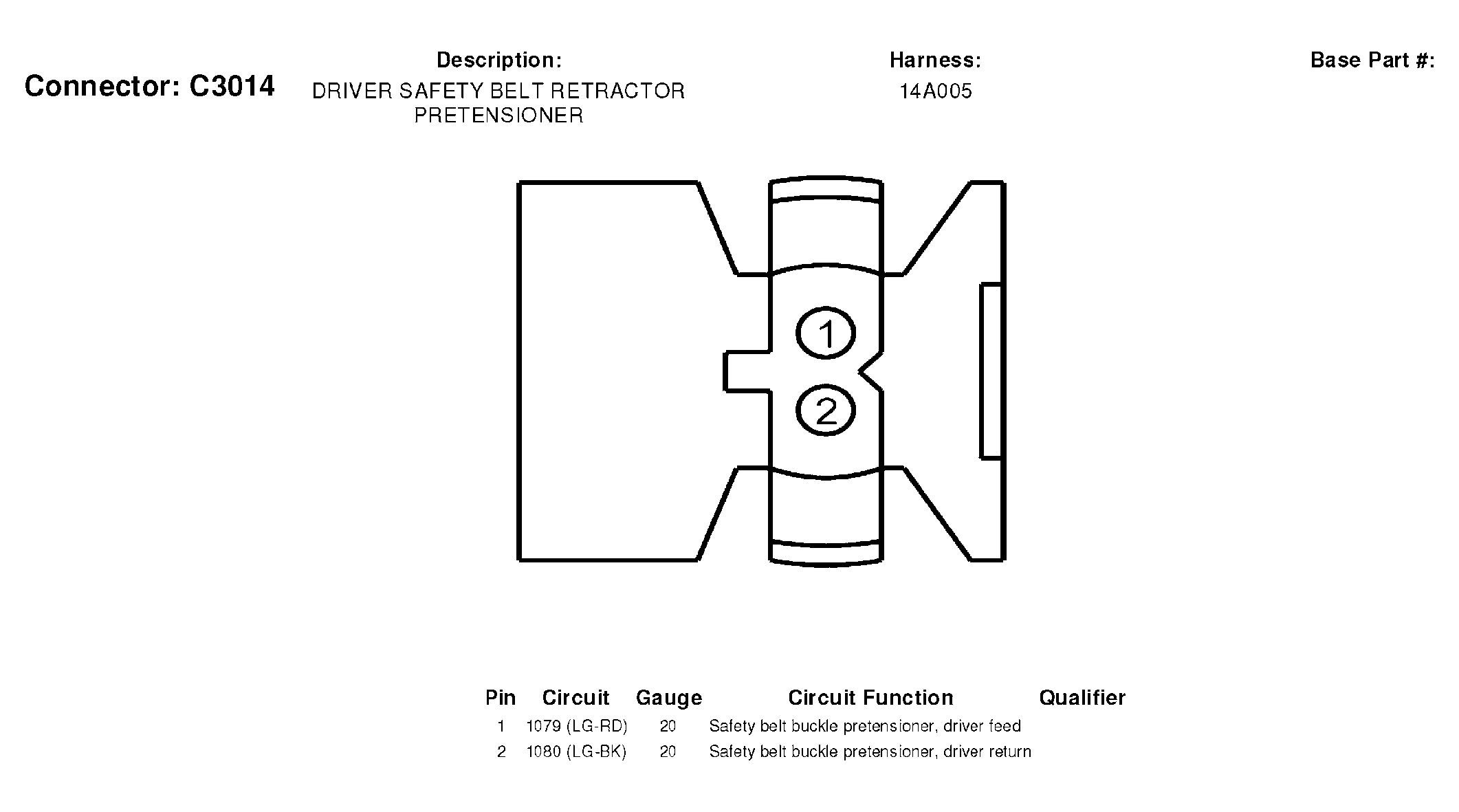

Fig 217: Driver Safety Belt Retractor Pretensioner Connector End View (C3014)
Courtesy of FORD MOTOR CO.

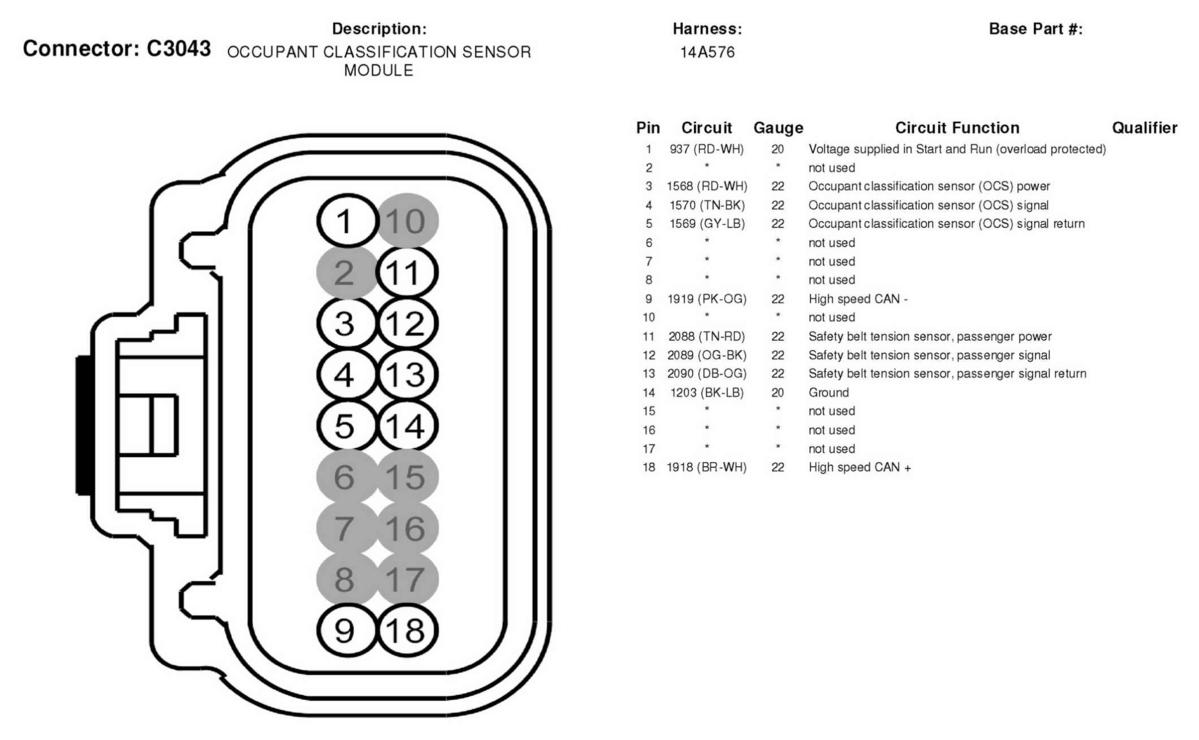

Fig 218: Occupant Classification Sensor Module Connector End View (C3043)
Courtesy of FORD MOTOR CO.

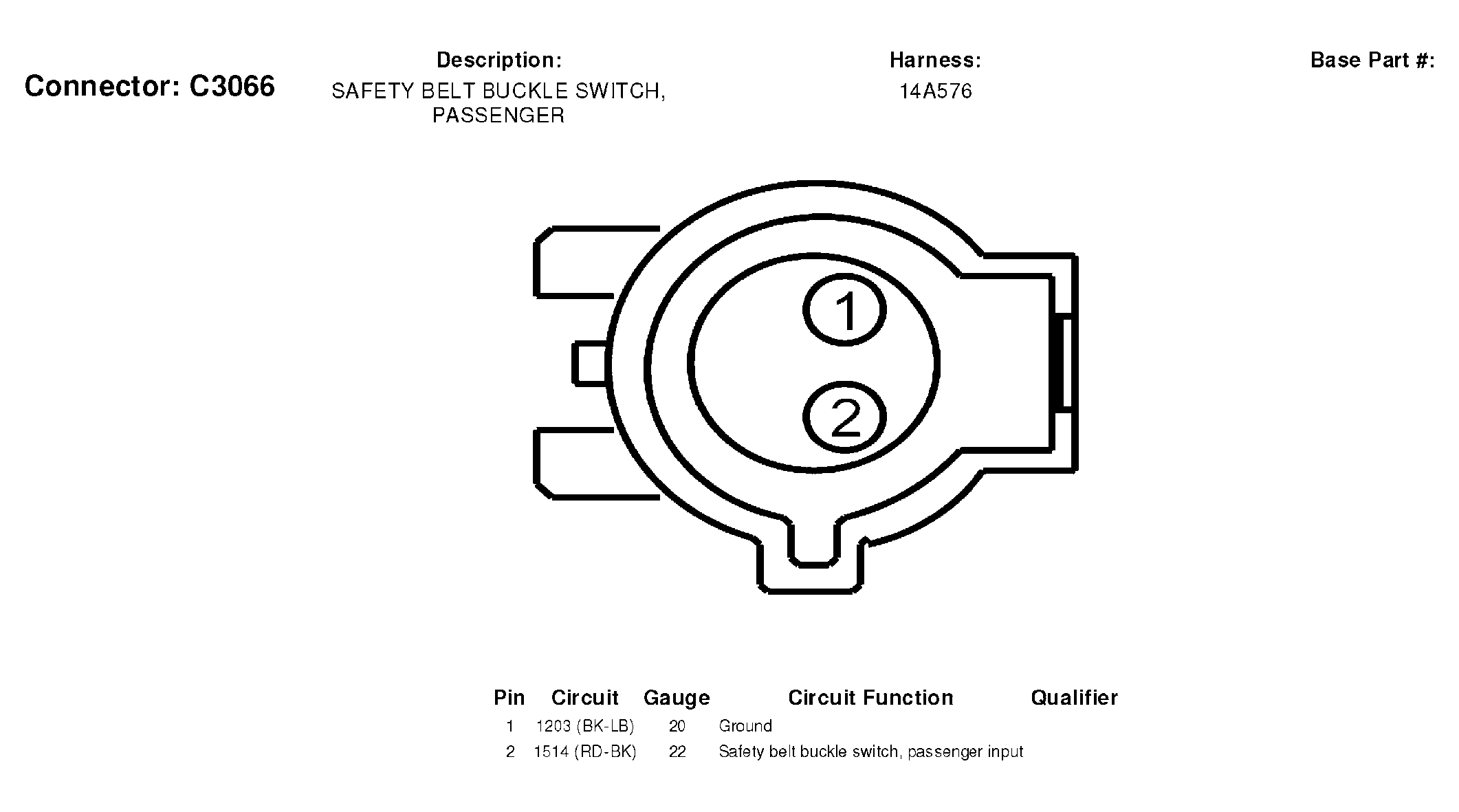

Fig 219: Safety Belt Buckle Switch, Passenger Connector End View (C3066)
Courtesy of FORD MOTOR CO.

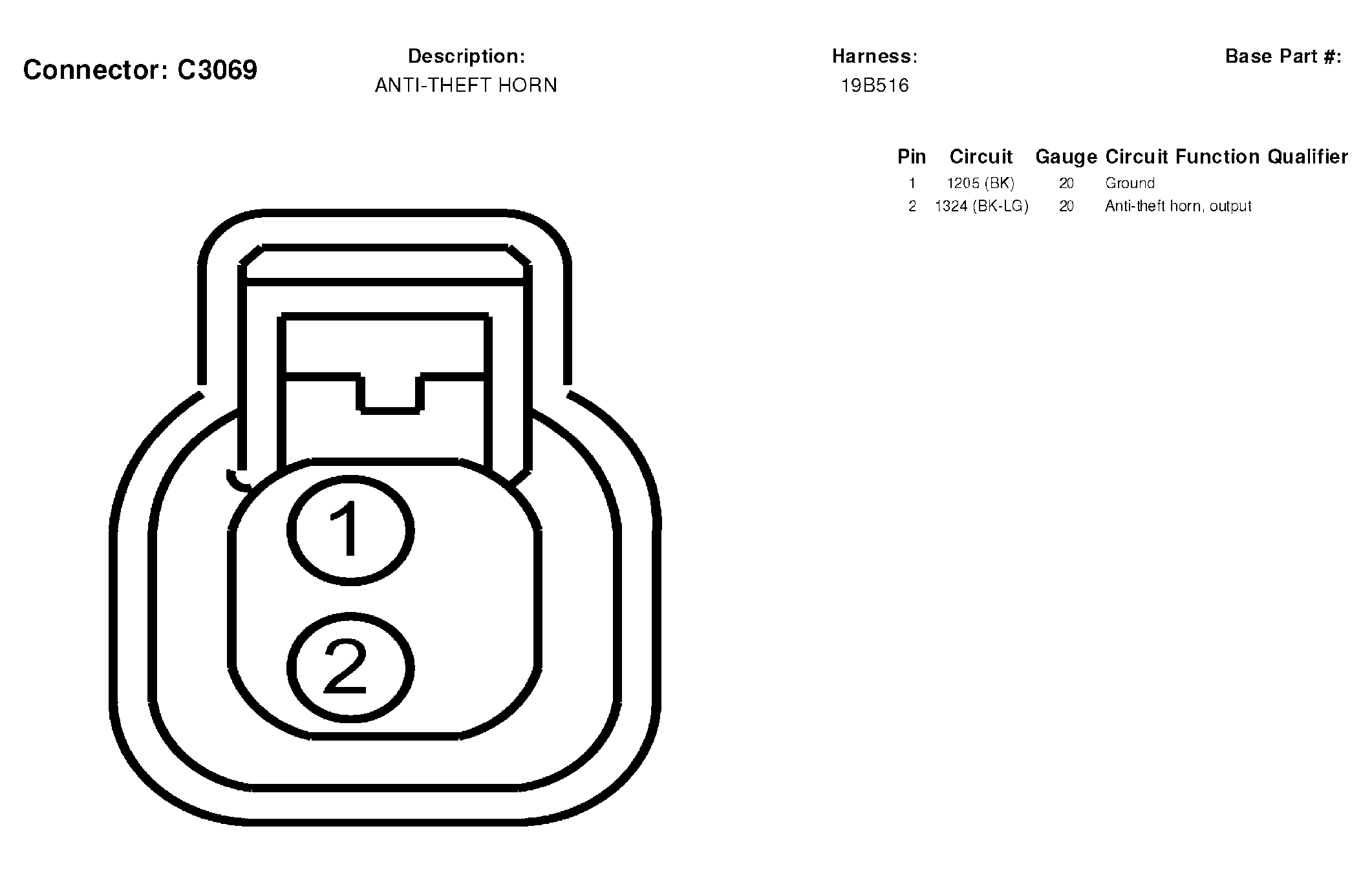

Fig 220: Anti-Theft Horn Connector End View (C3069)
Courtesy of FORD MOTOR CO.
Fig 221: Wheel Speed Sensor, Left Rear Connector End View (C3116)
Courtesy of FORD MOTOR CO.

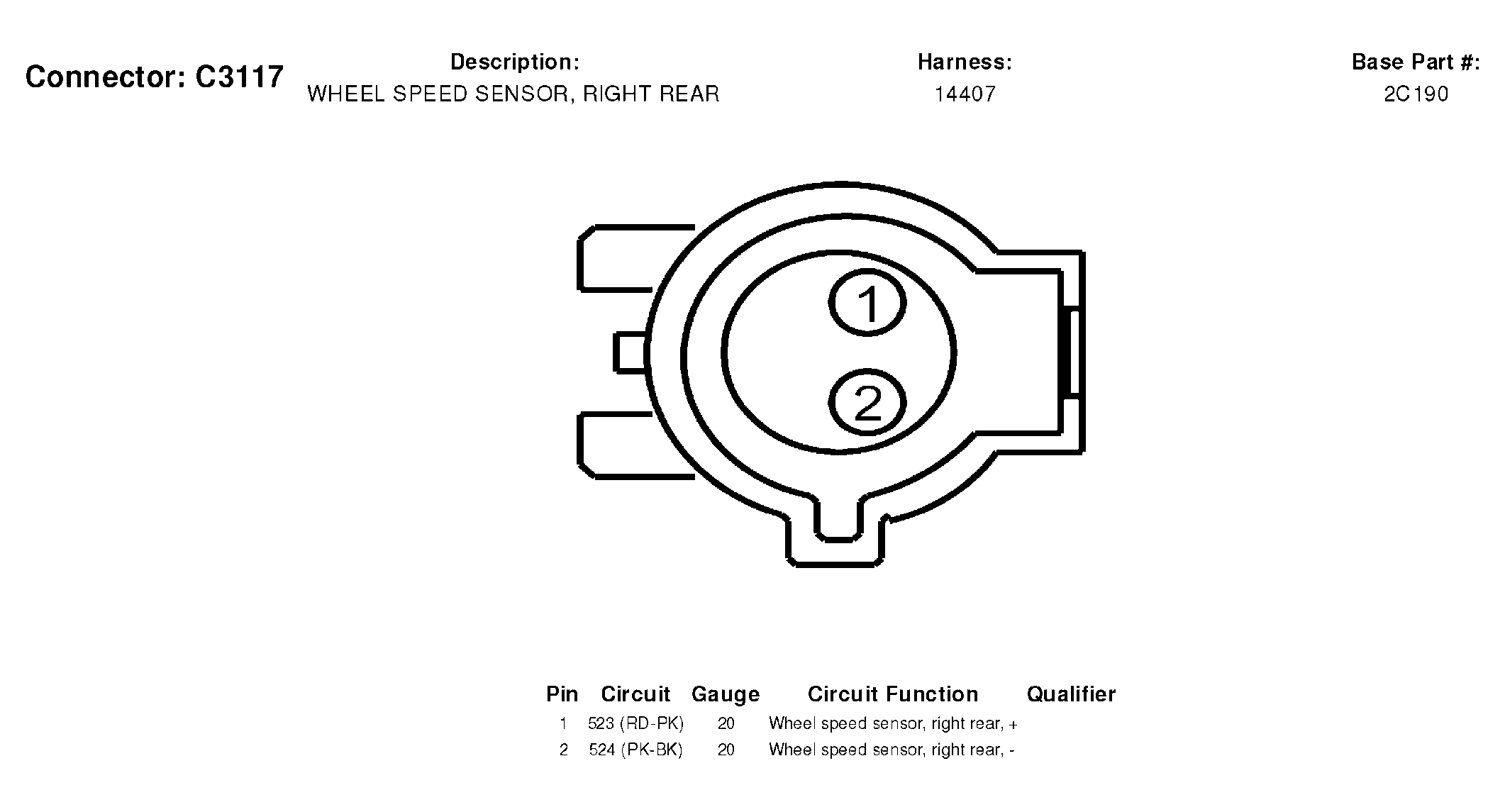

Fig 222: Wheel Speed Sensor, Right Rear Connector End View (C3117)
Courtesy of FORD MOTOR CO.

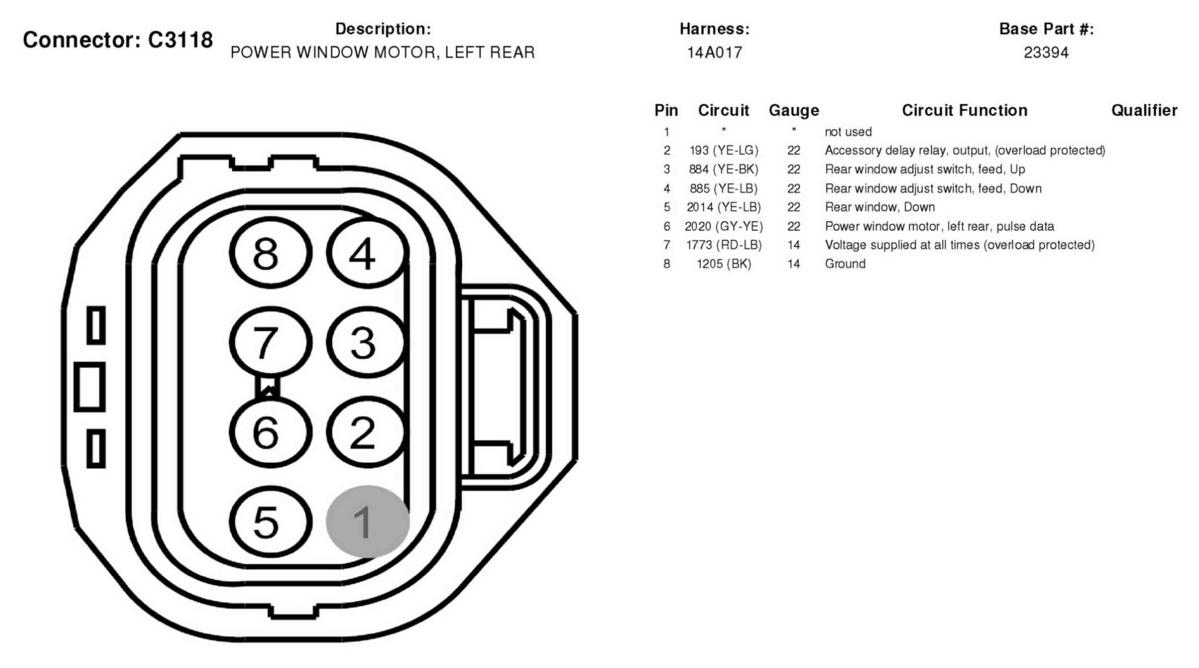

Fig 223: Power Window Motor, Left Rear Connector End View (C3118)
Courtesy of FORD MOTOR CO.

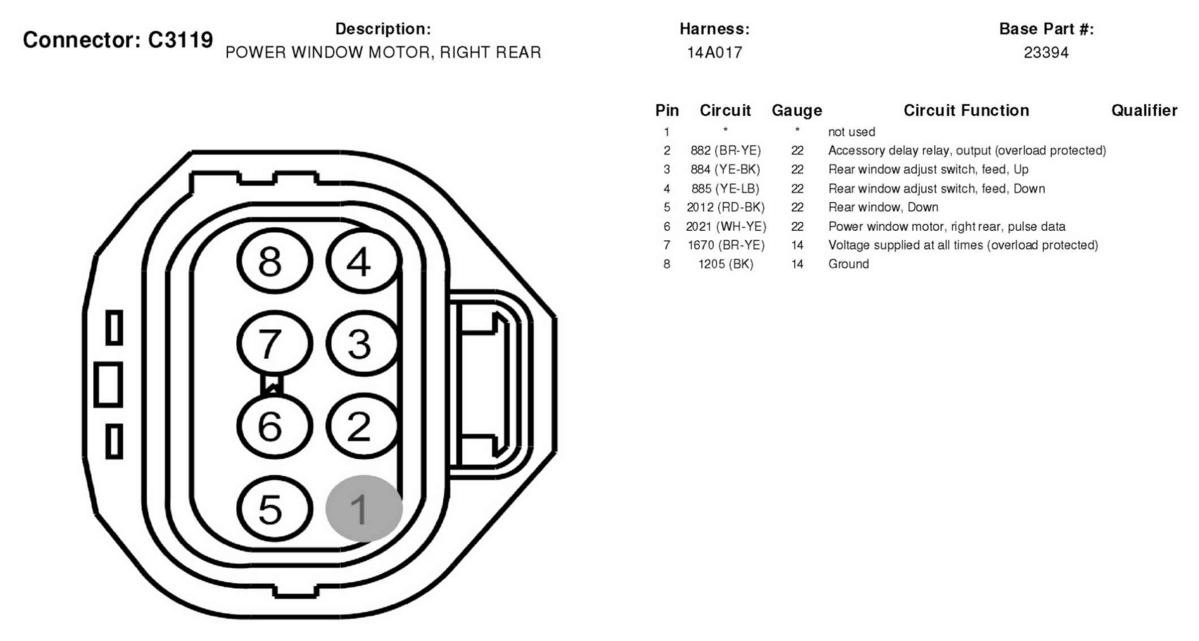

Fig 224: Power Window Motor, Right Rear Connector End View (C3119)
Courtesy of FORD MOTOR CO.

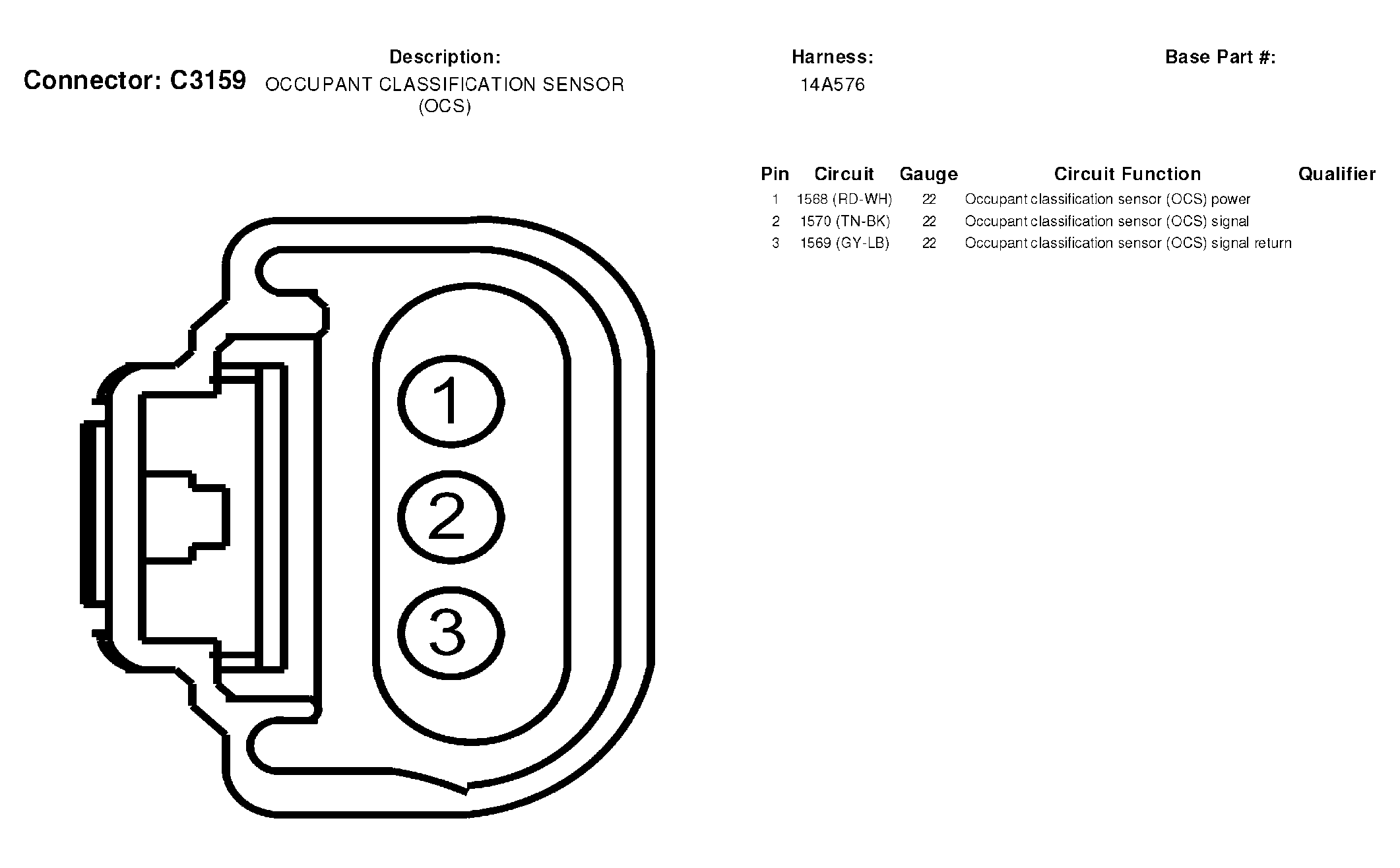

Fig 225: Occupant Classification Sensor (OCS) Connector End View (C3159)
Courtesy of FORD MOTOR CO.

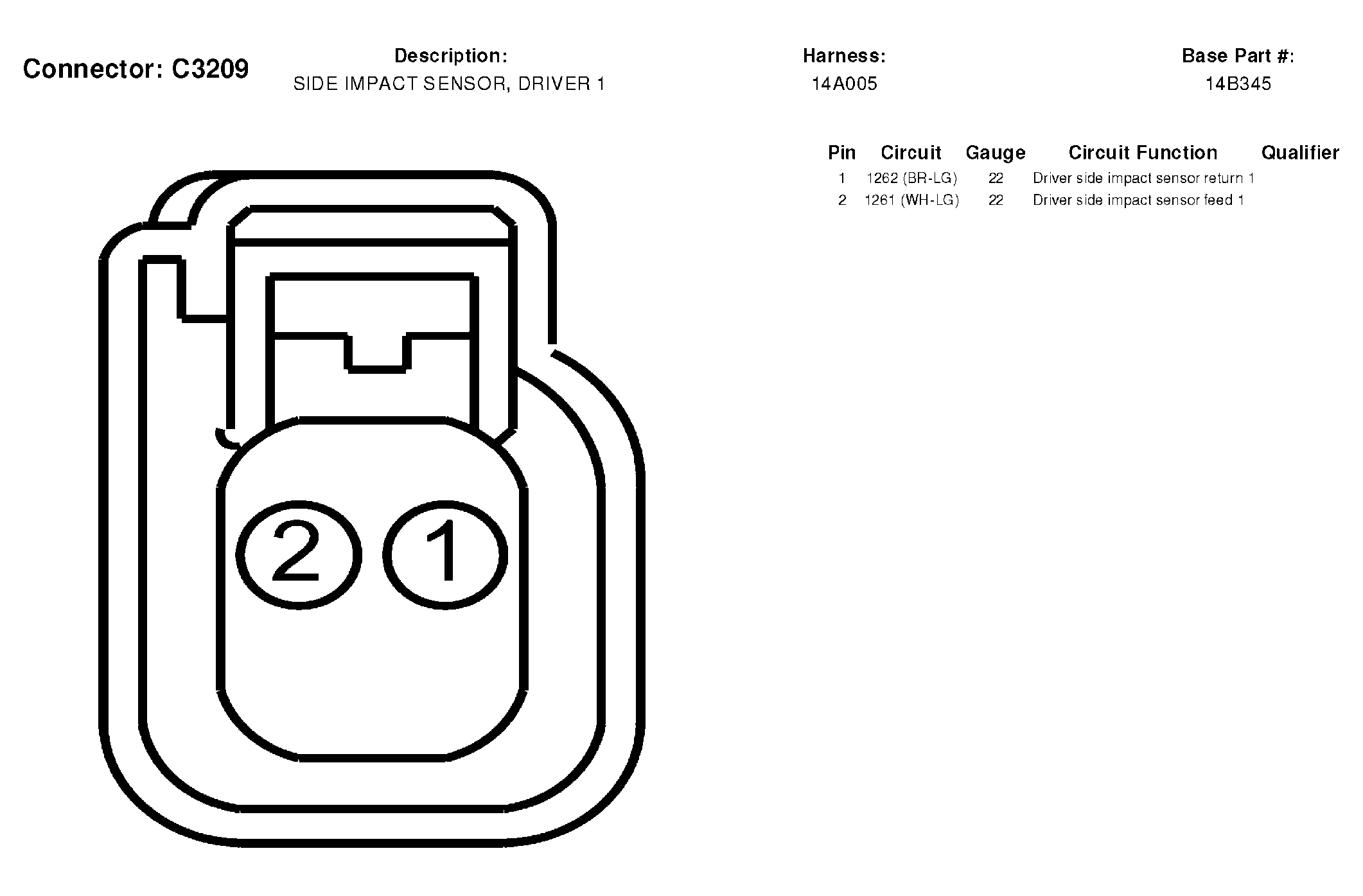

Fig 226: Side Impact Sensor, Driver 1 Connector End View (C3209)
Courtesy of FORD MOTOR CO.

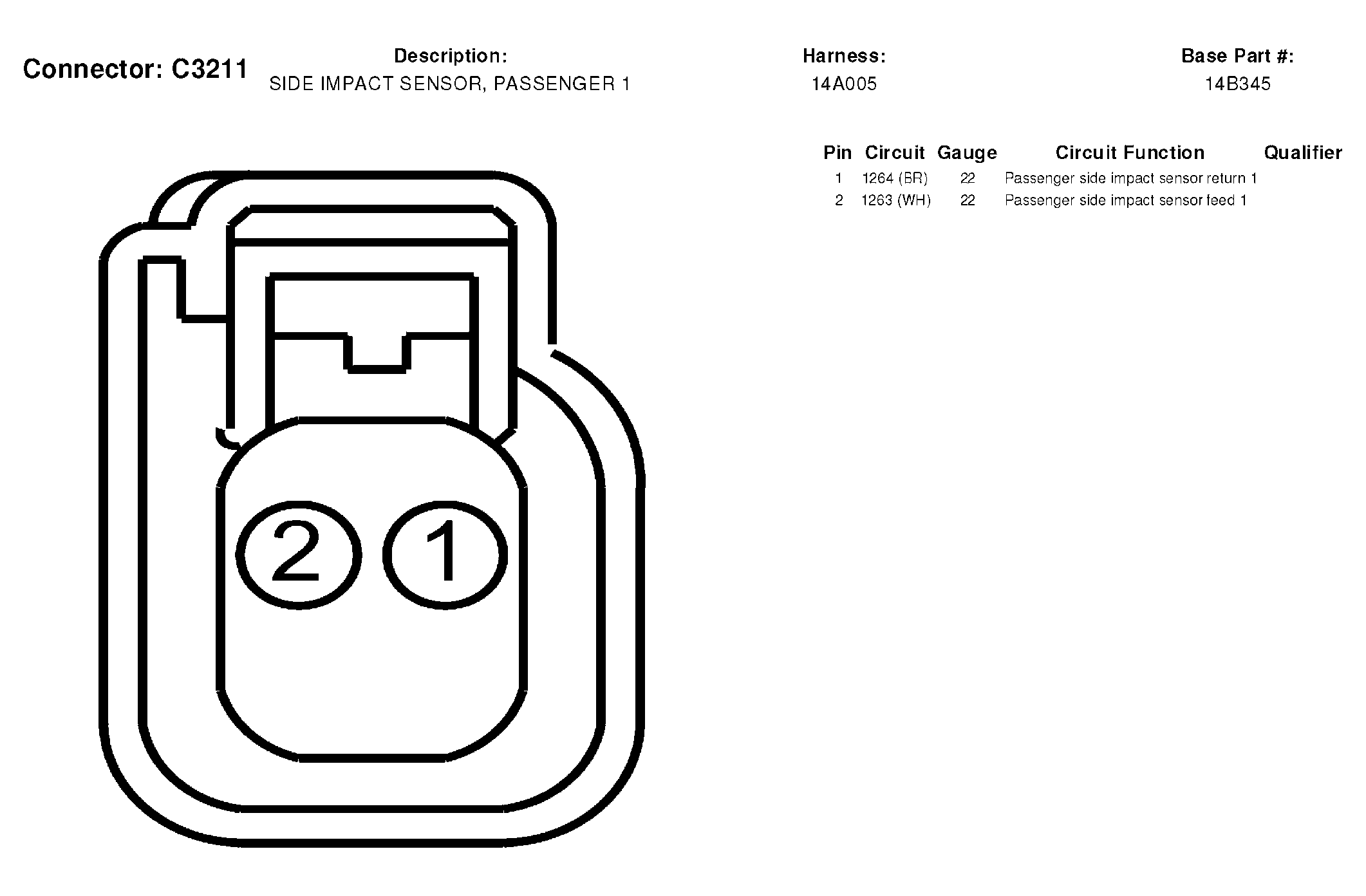

Fig 227: Side Impact Sensor, Passenger 1 Connector End View (C3211)
Courtesy of FORD MOTOR CO.

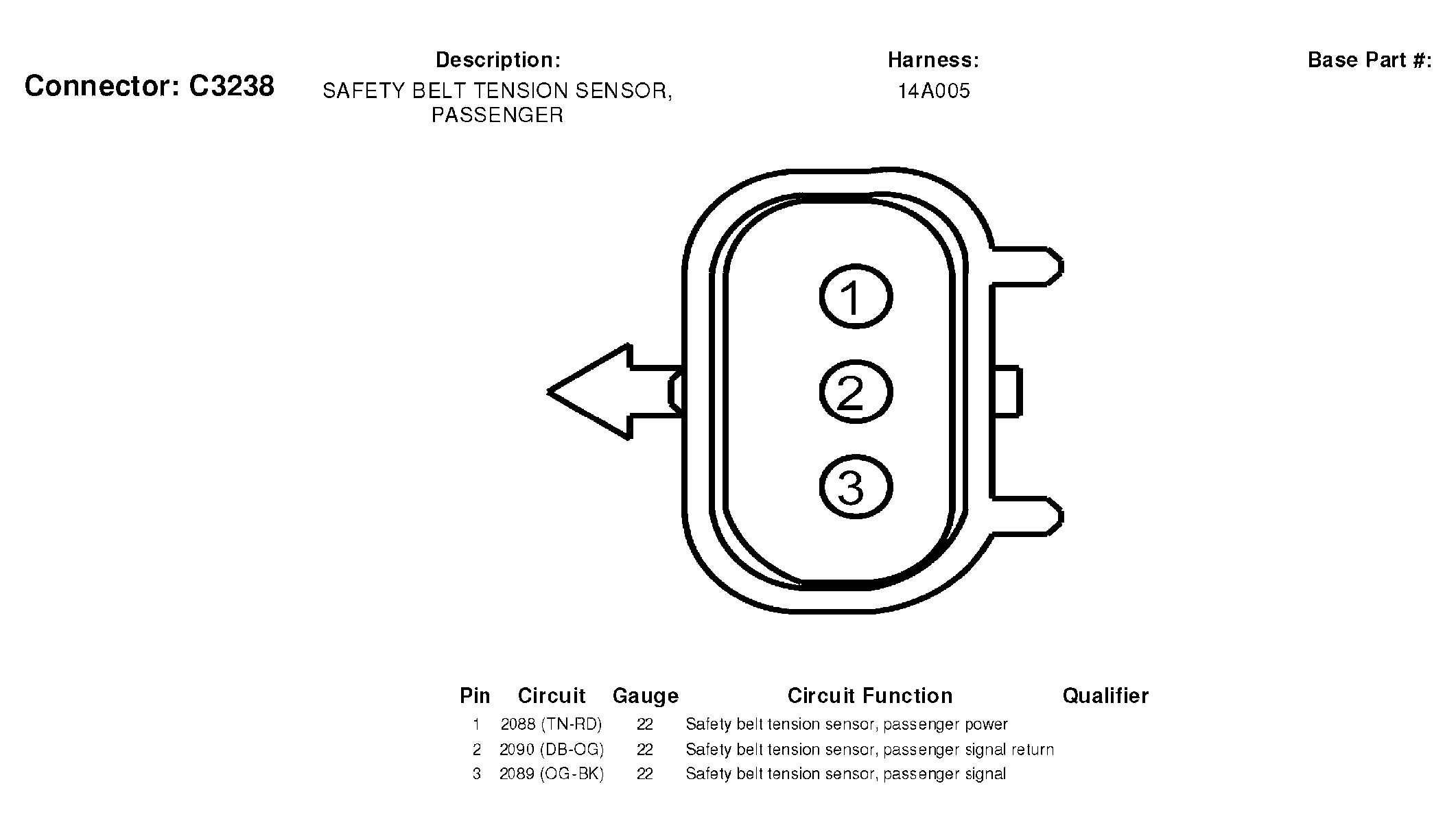

Fig 228: Safety Belt Tension Sensor, Passenger Connector End View (C3238)
Courtesy of FORD MOTOR CO.

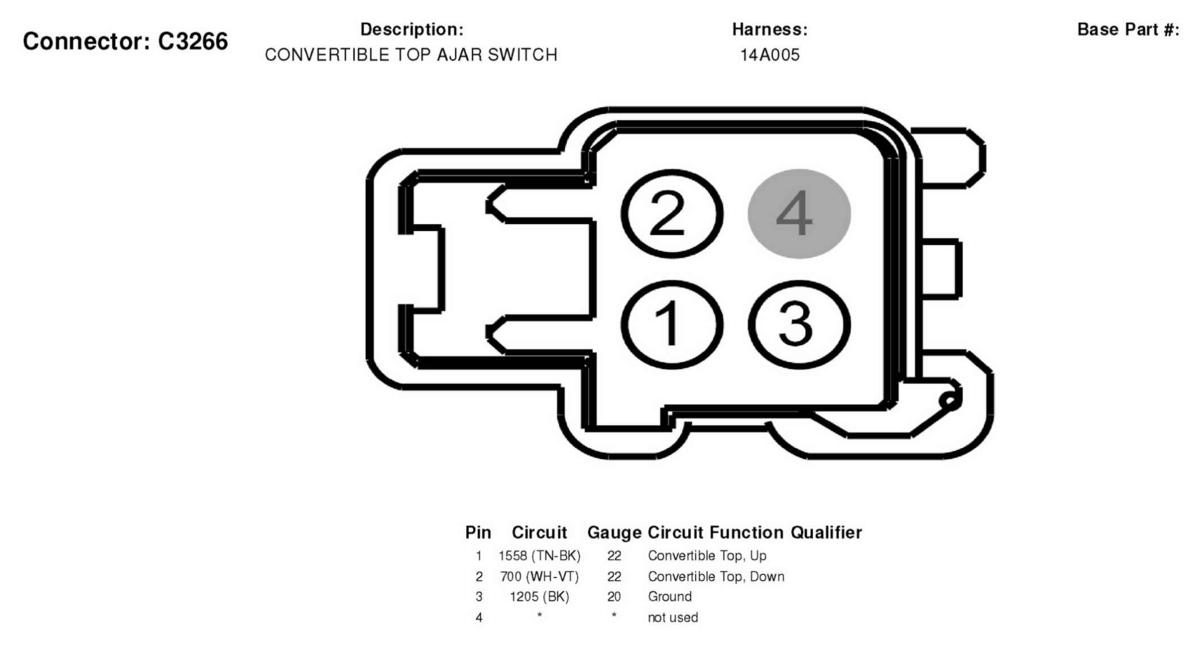

Fig 229: Convertible Top Ajar Switch Connector End View (C3266)
Courtesy of FORD MOTOR CO.

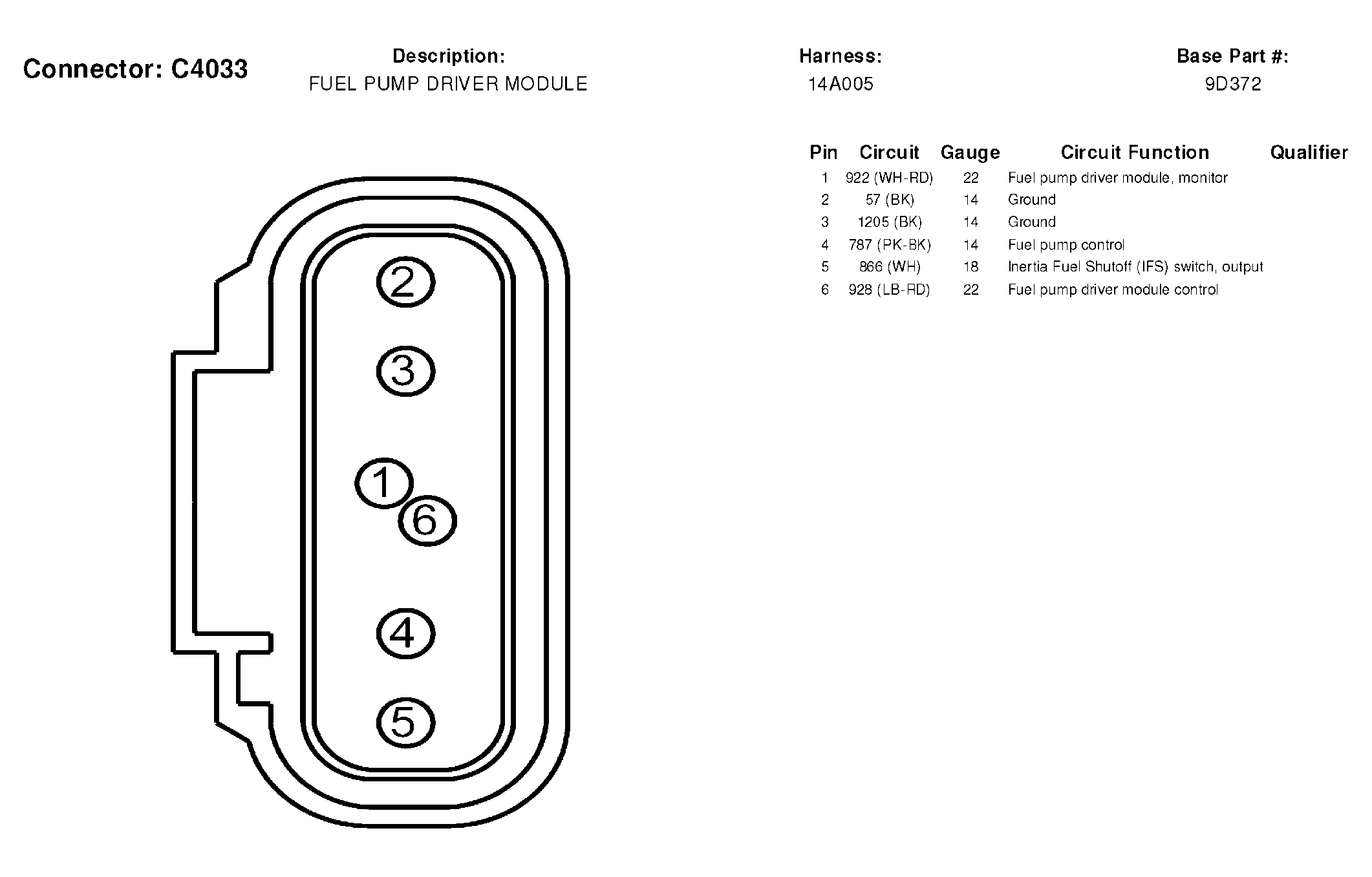

Fig 230: Fuel Pump Driver Module Connector End View (C4033)
Courtesy of FORD MOTOR CO.

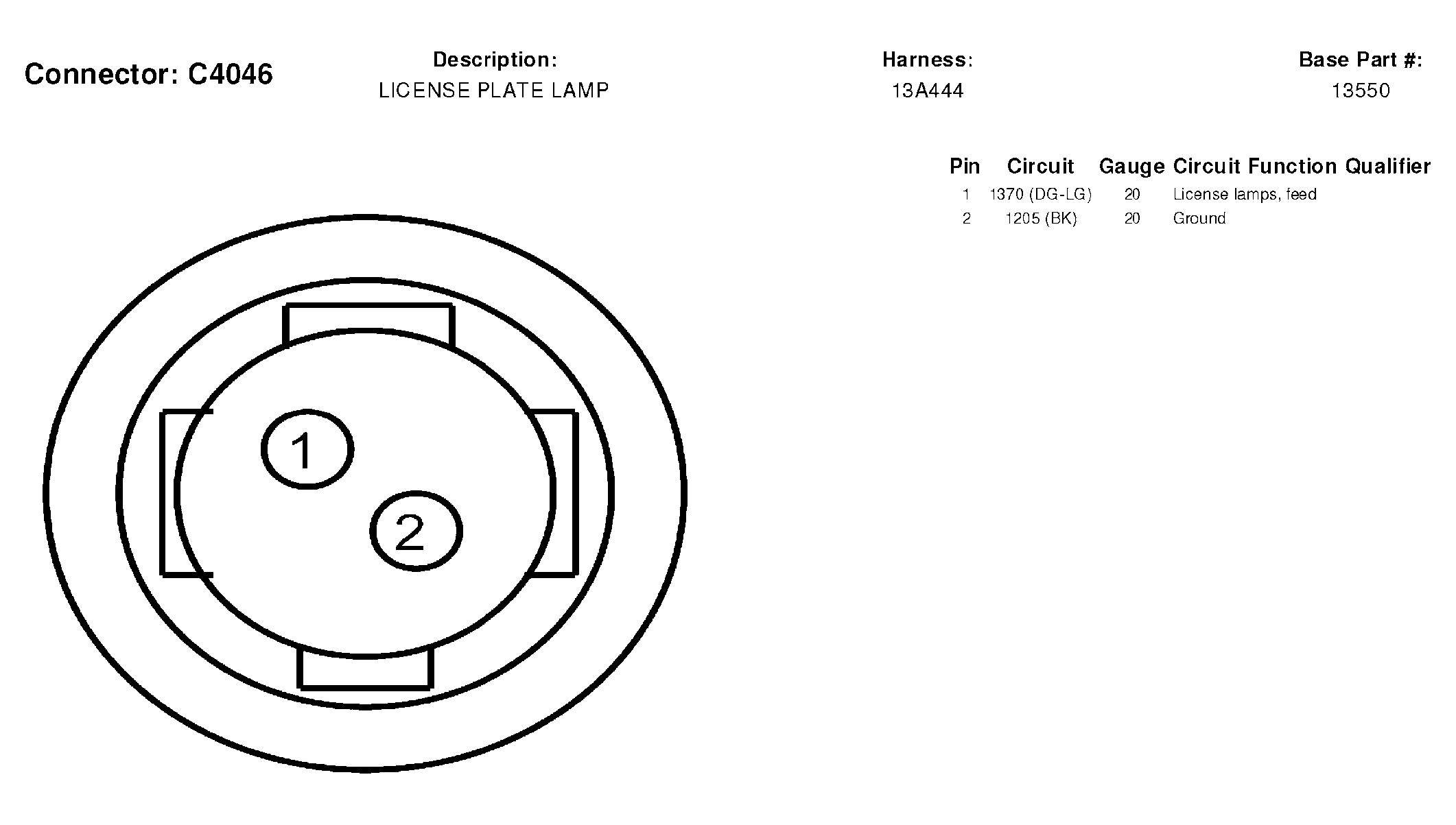

Fig 231: License Plate Lamp Connector End View (C4046)
Courtesy of FORD MOTOR CO.

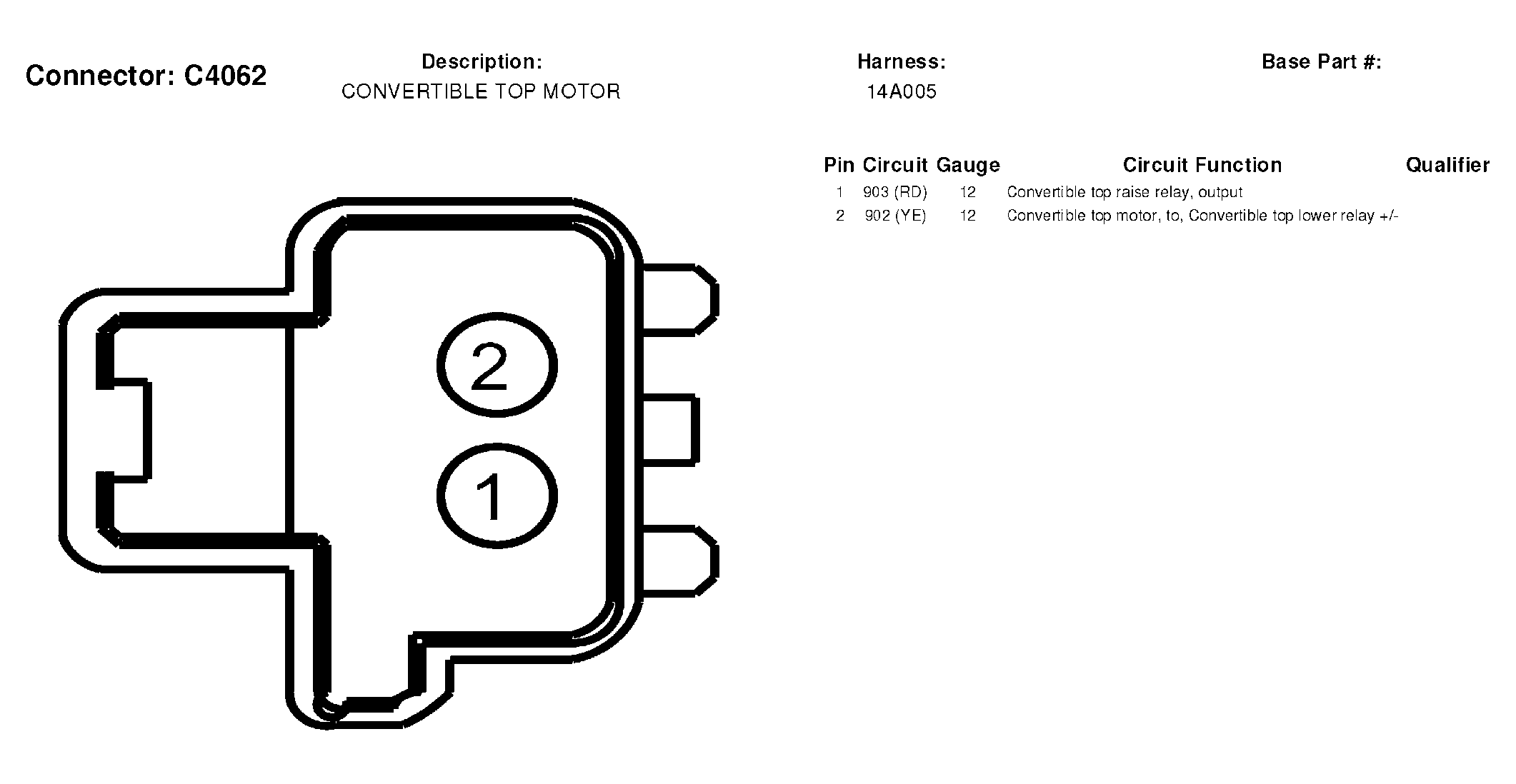

Fig 232: Convertible Top Motor Connector End View (C4062)
Courtesy of FORD MOTOR CO.
Fig 233: Park/Stop/Turn Lamp 1, Left Rear Connector End View (C4112)
Courtesy of FORD MOTOR CO.

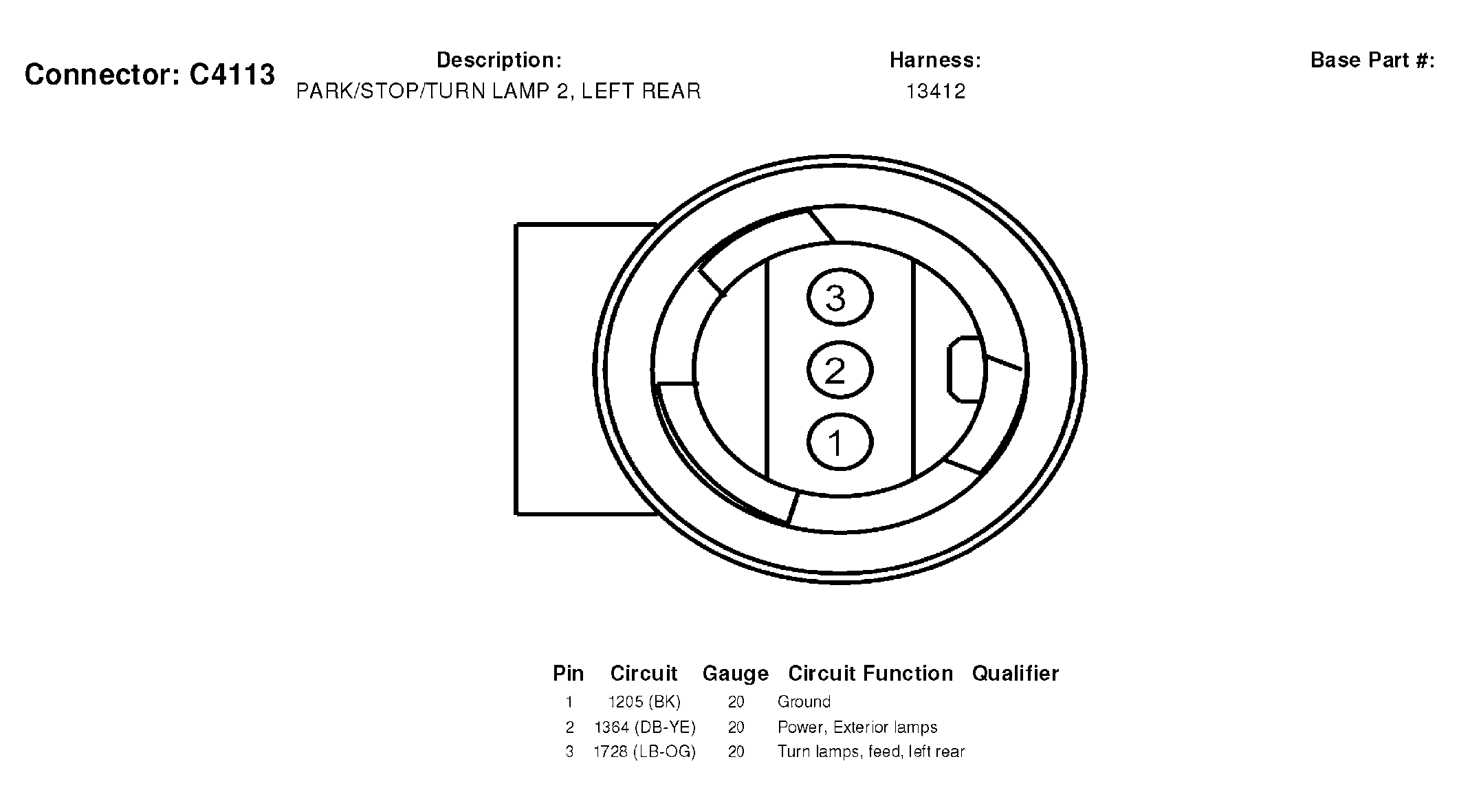

Fig 234: Park/Stop/Turn Lamp 2, Left Rear Connector End View (C4113)
Courtesy of FORD MOTOR CO.

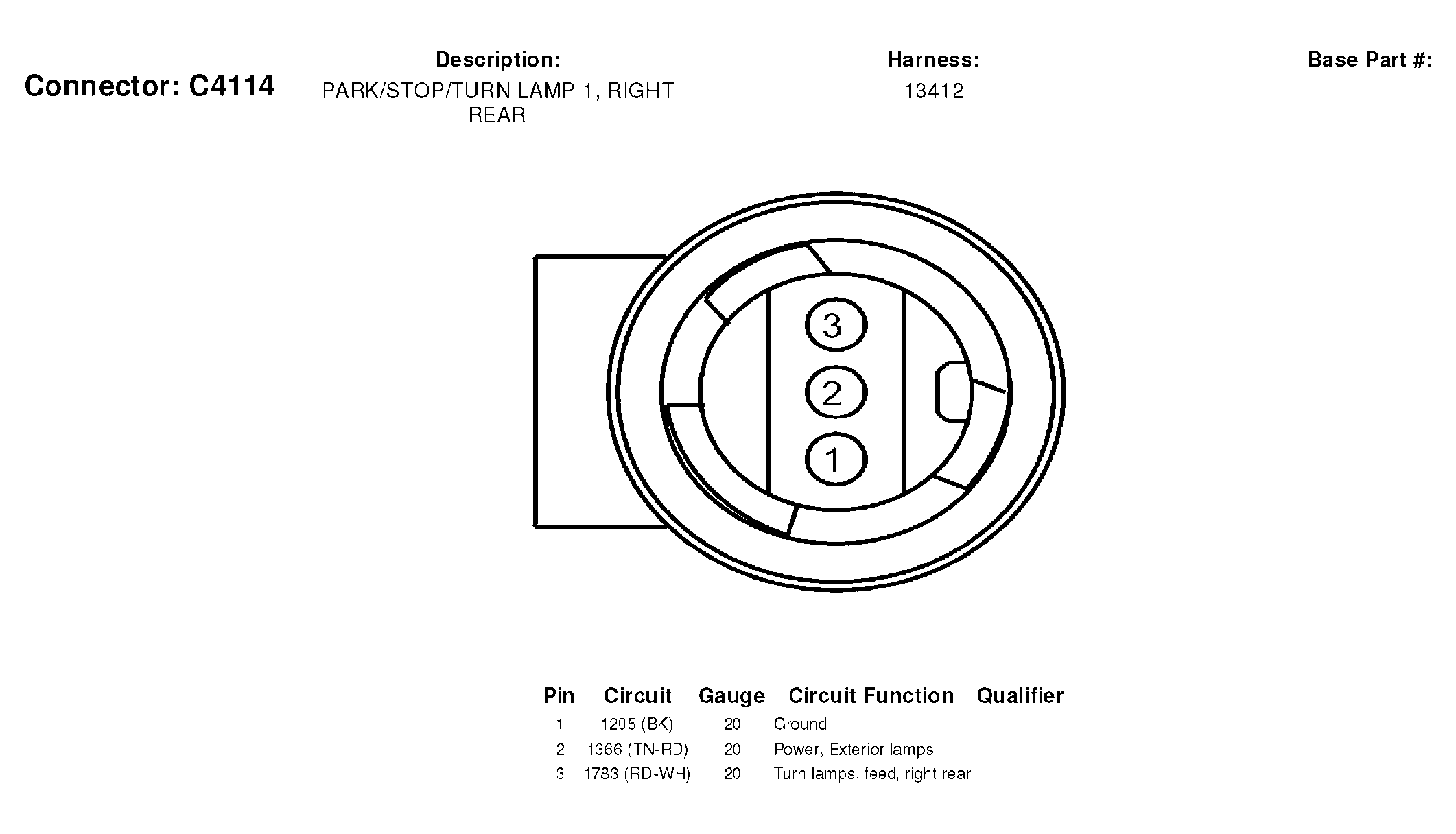

Fig 235: Park/Stop/Turn Lamp 1, Right Rear Connector End View (C4114)
Courtesy of FORD MOTOR CO.

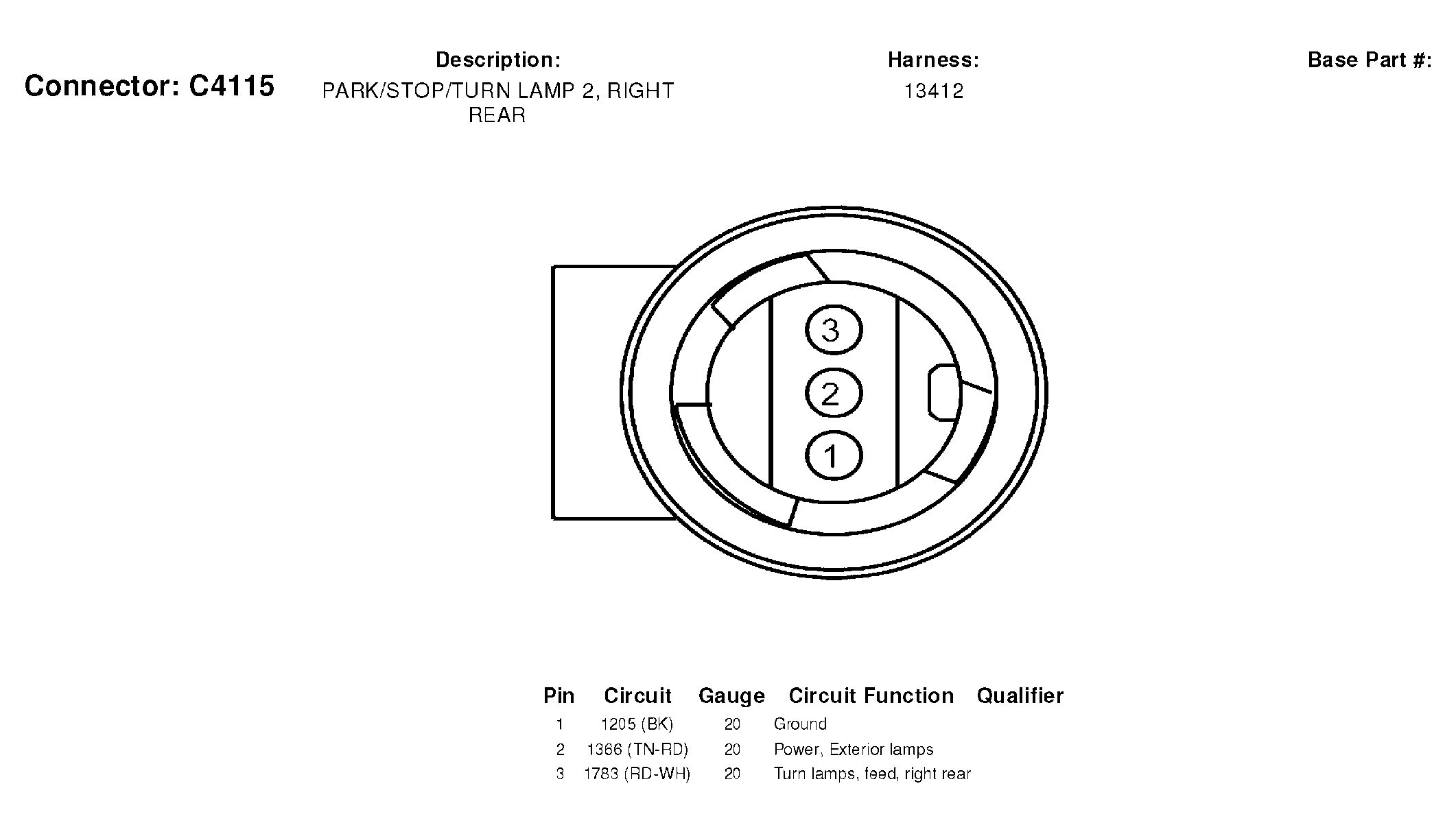

Fig 236: Park/Stop/Turn Lamp 2, Right Rear Connector End View (C4115)
Courtesy of FORD MOTOR CO.

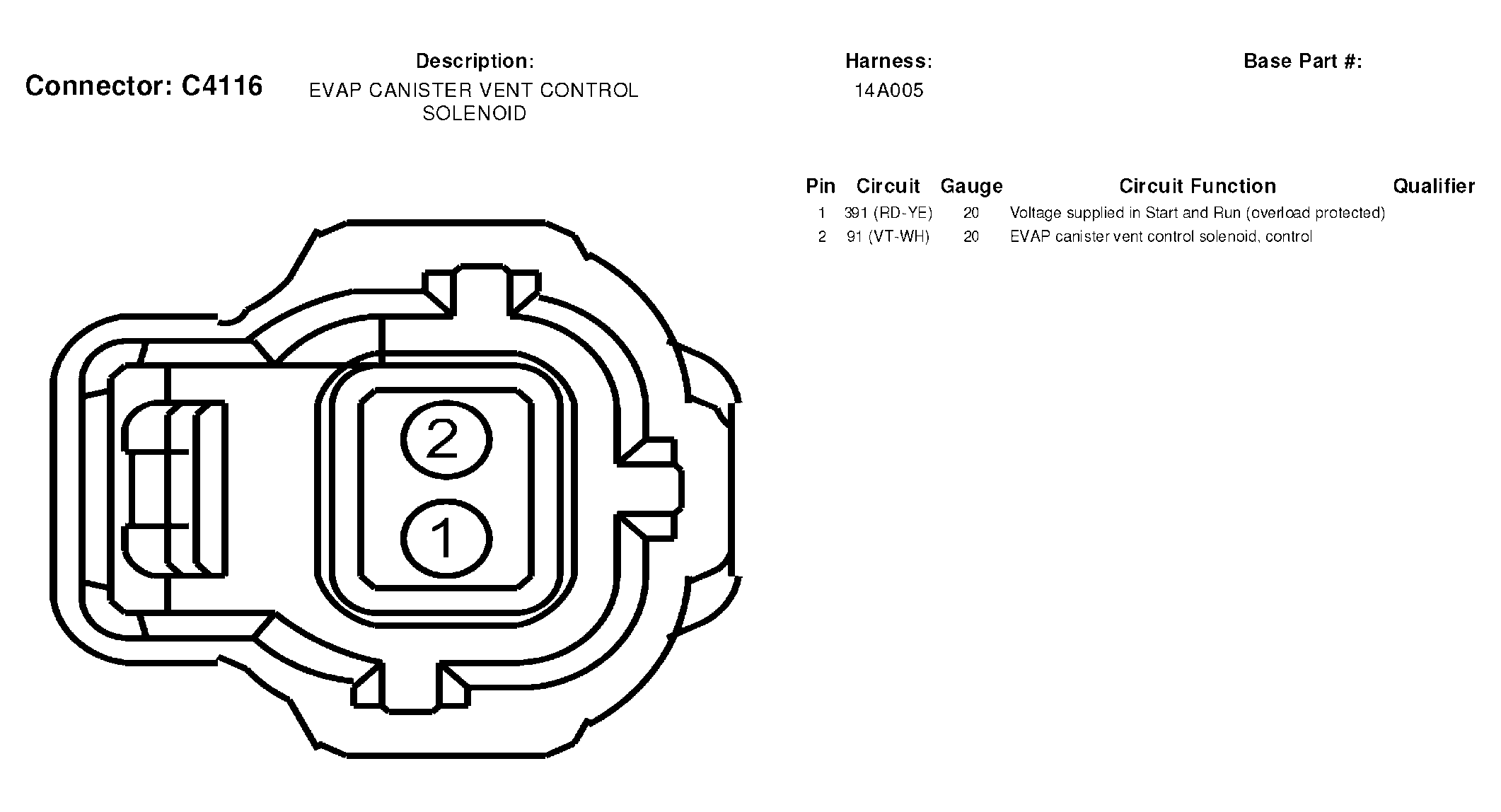

Fig 237: EVAP Canister Vent Control Solenoid Connector End View (C4116)
Courtesy of FORD MOTOR CO.

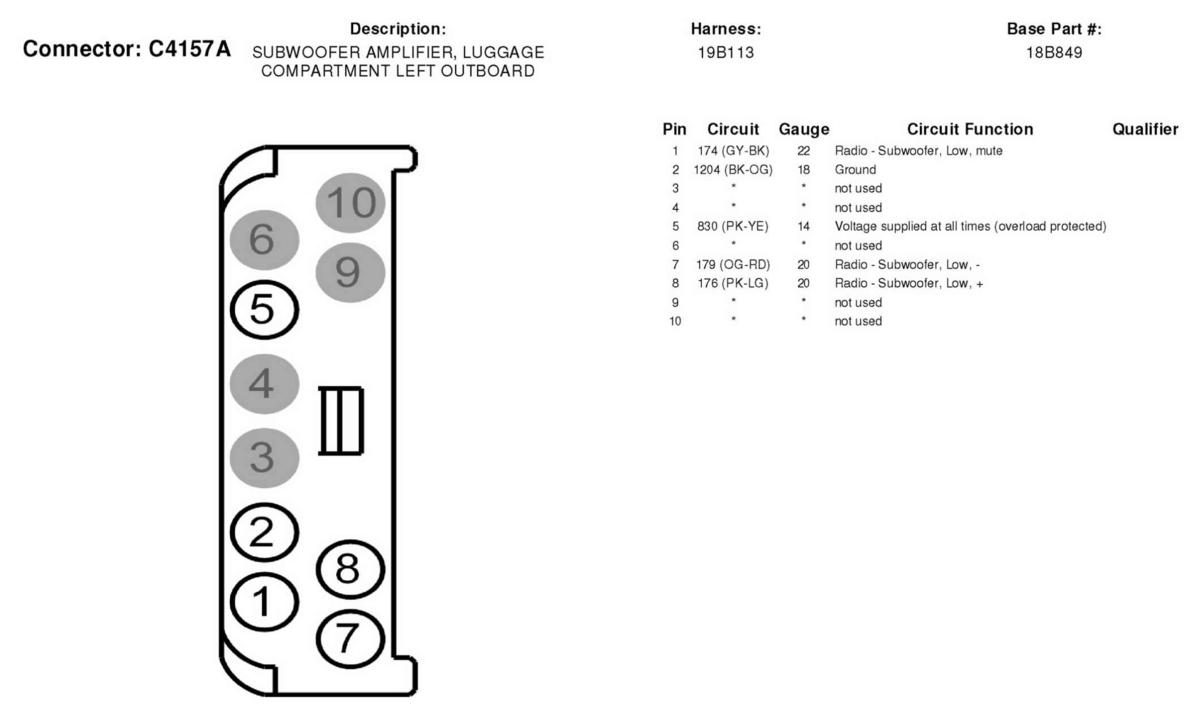

Fig 238: Subwoofer Amplifier, Luggage Compartment Left Outboard Connector End View (C4157A)
Courtesy of FORD MOTOR CO.
Fig 239: Subwoofer Amplifier, Luggage Compartment Left Outboard Connector End View (C4157B)
Courtesy of FORD MOTOR CO.
Fig 240: Subwoofer Amplifier, Luggage Compartment Left Inboard Connector End View (C4158A)
Courtesy of FORD MOTOR CO.

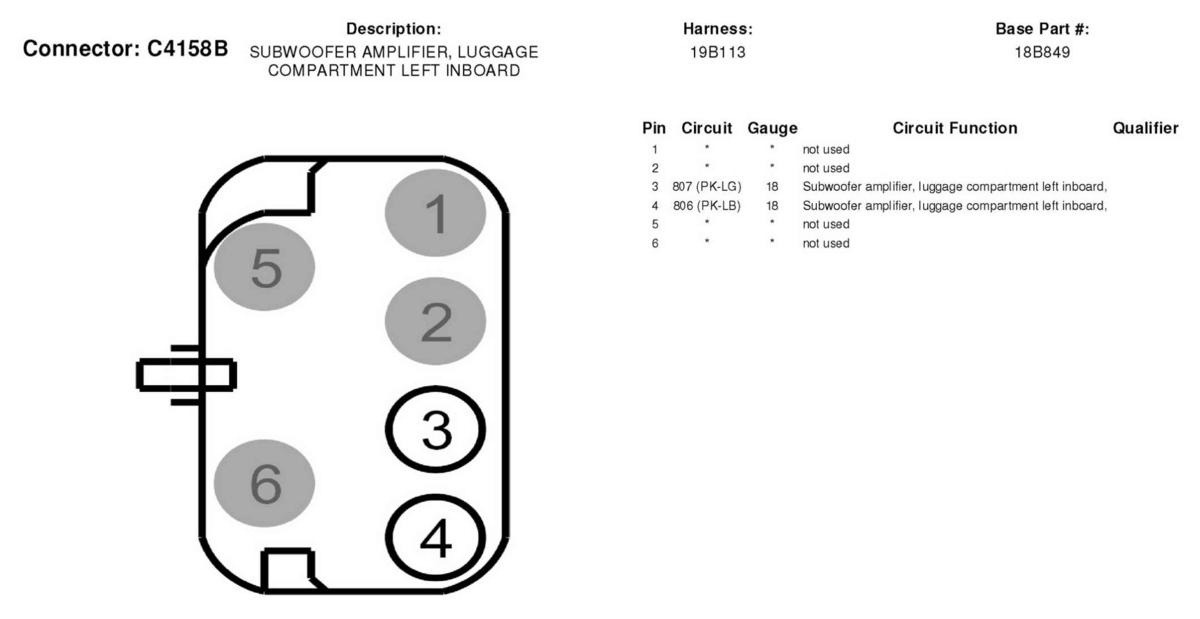

Fig 241: Subwoofer Amplifier, Luggage Compartment Left Inboard Connector End View (C4158B)
Courtesy of FORD MOTOR CO.
Fig 242: Subwoofer Amplifier, Luggage Compartment Right Inboard Connector End View (C4159A)
Courtesy of FORD MOTOR CO.

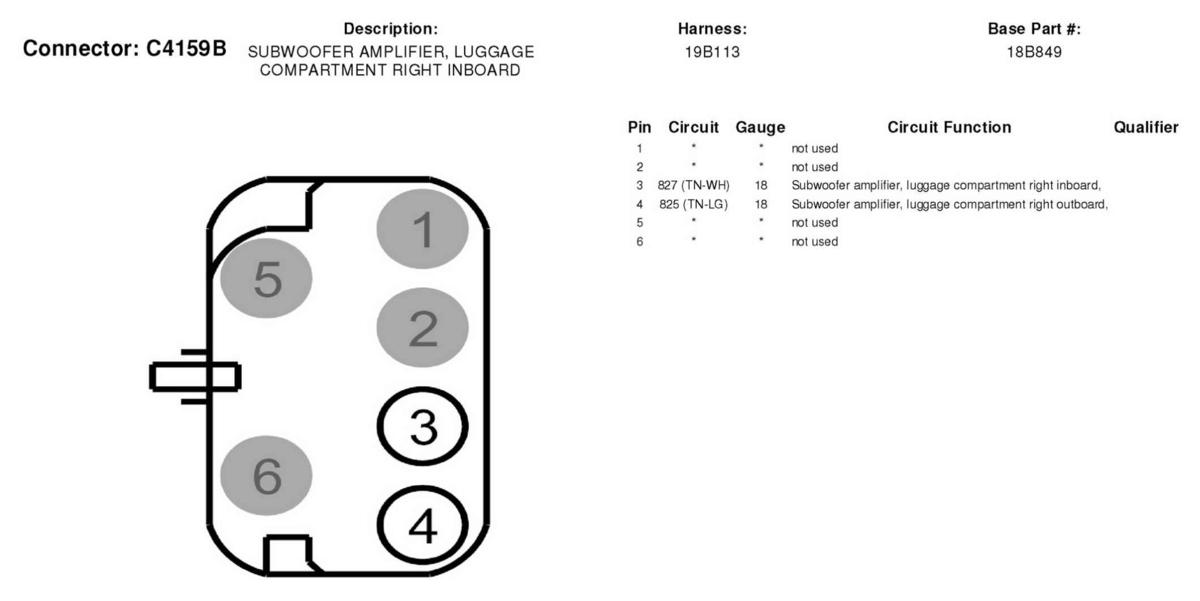

Fig 243: Subwoofer Amplifier, Luggage Compartment Right Inboard Connector End View (C4159B)
Courtesy of FORD MOTOR CO.
Fig 244: Subwoofer Amplifier, Luggage Compartment Right Outboard Connector End View (C4160A)
Courtesy of FORD MOTOR CO.

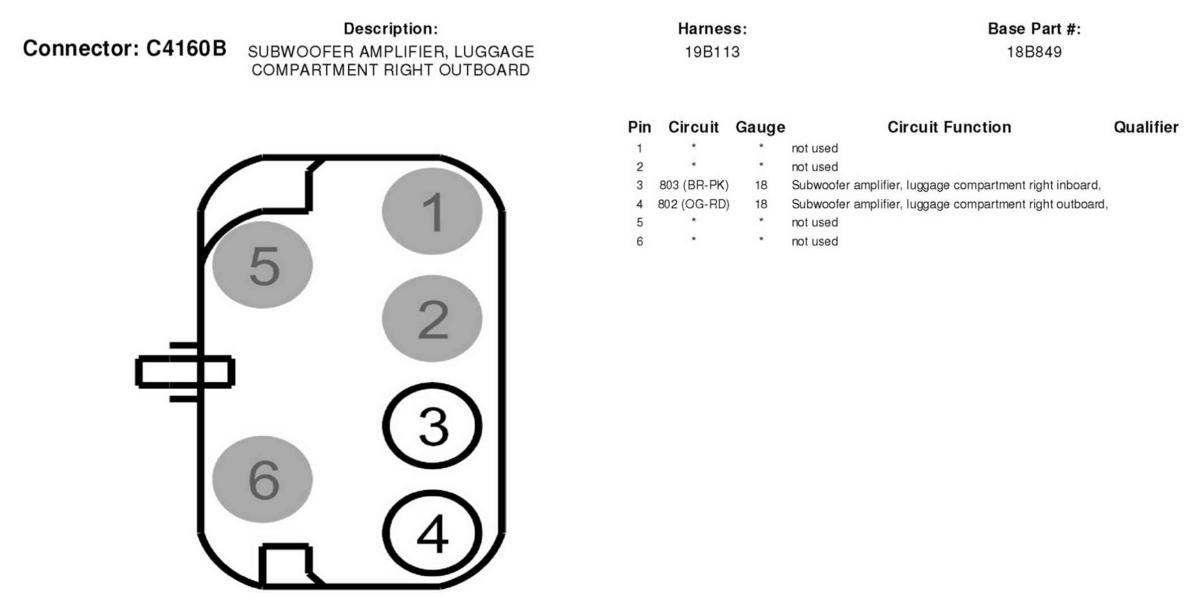

Fig 245: Subwoofer Amplifier, Luggage Compartment Right Outboard Connector End View (C4160B)
Courtesy of FORD MOTOR CO.

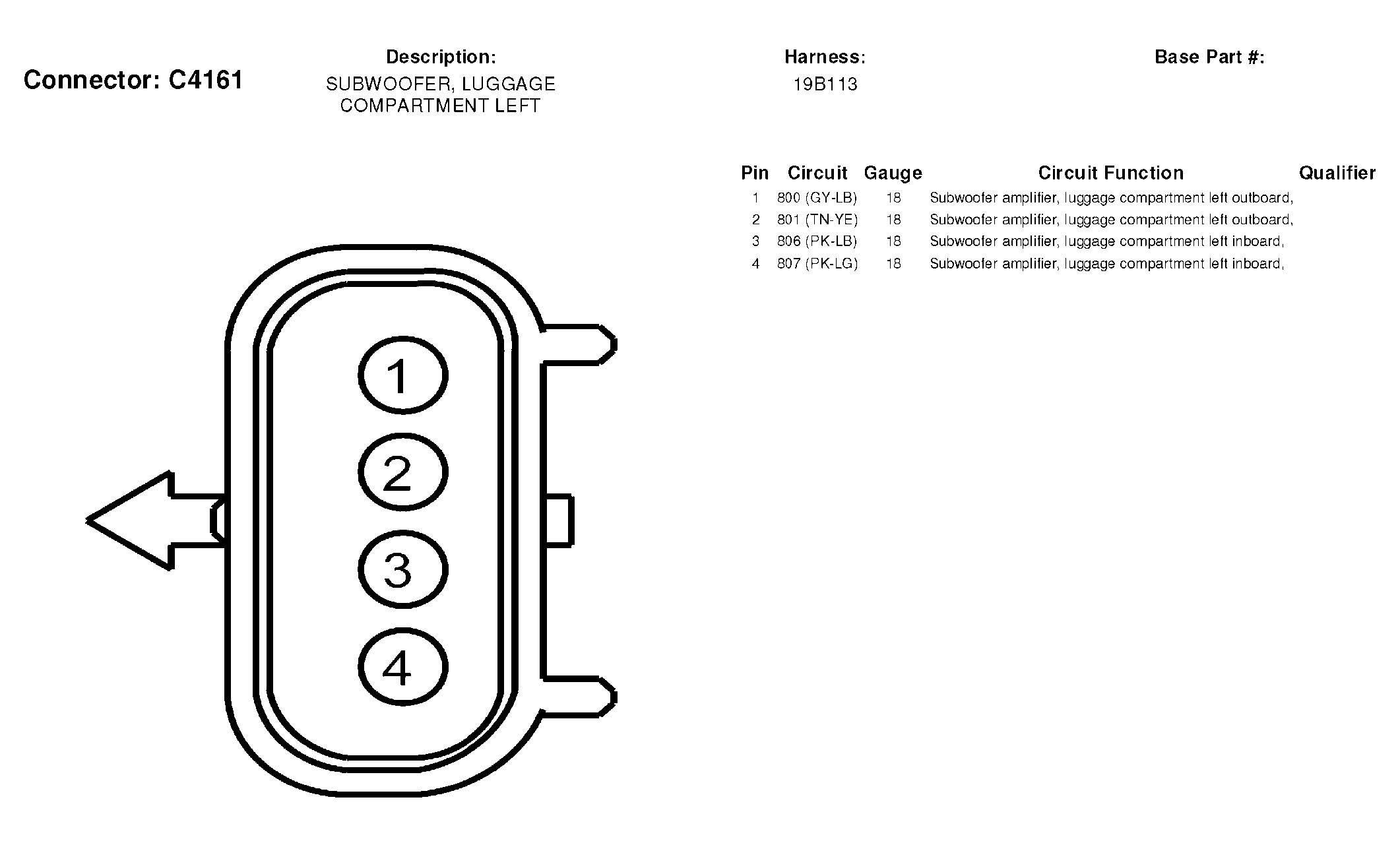

Fig 246: Subwoofer, Luggage Compartment Left Connector End View (C4161)
Courtesy of FORD MOTOR CO.

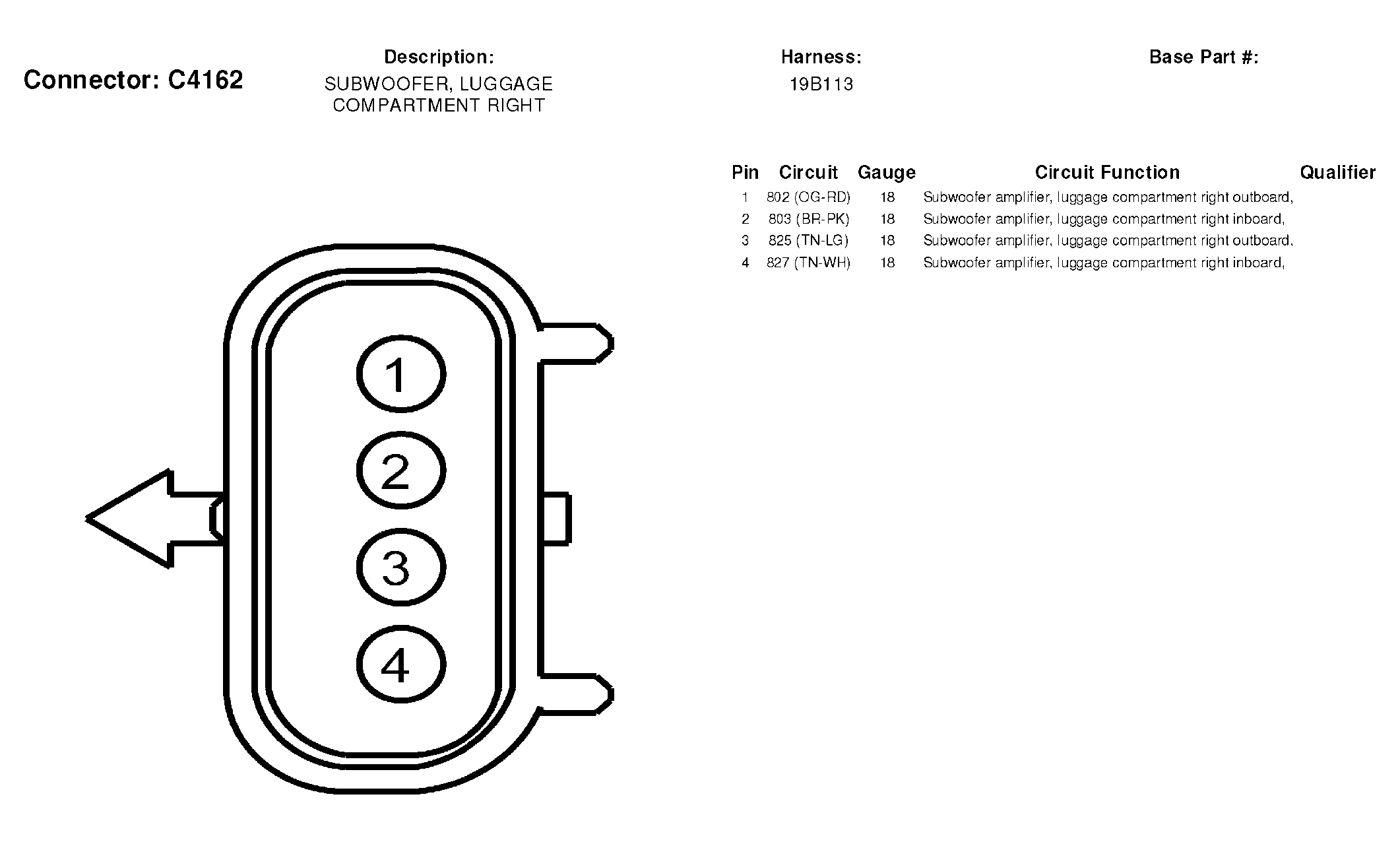

Fig 247: Subwoofer, Luggage Compartment Right Connector End View (C4162)
Courtesy of FORD MOTOR CO.

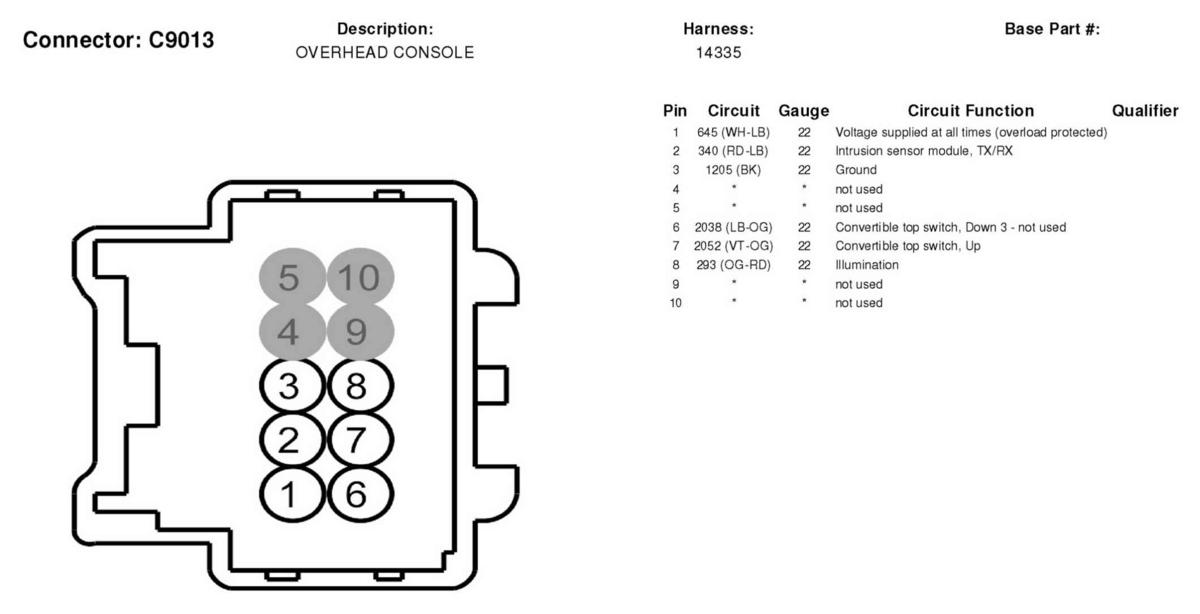

Fig 248: Overhead Console Connector End View (C9013)
Courtesy of FORD MOTOR CO.
